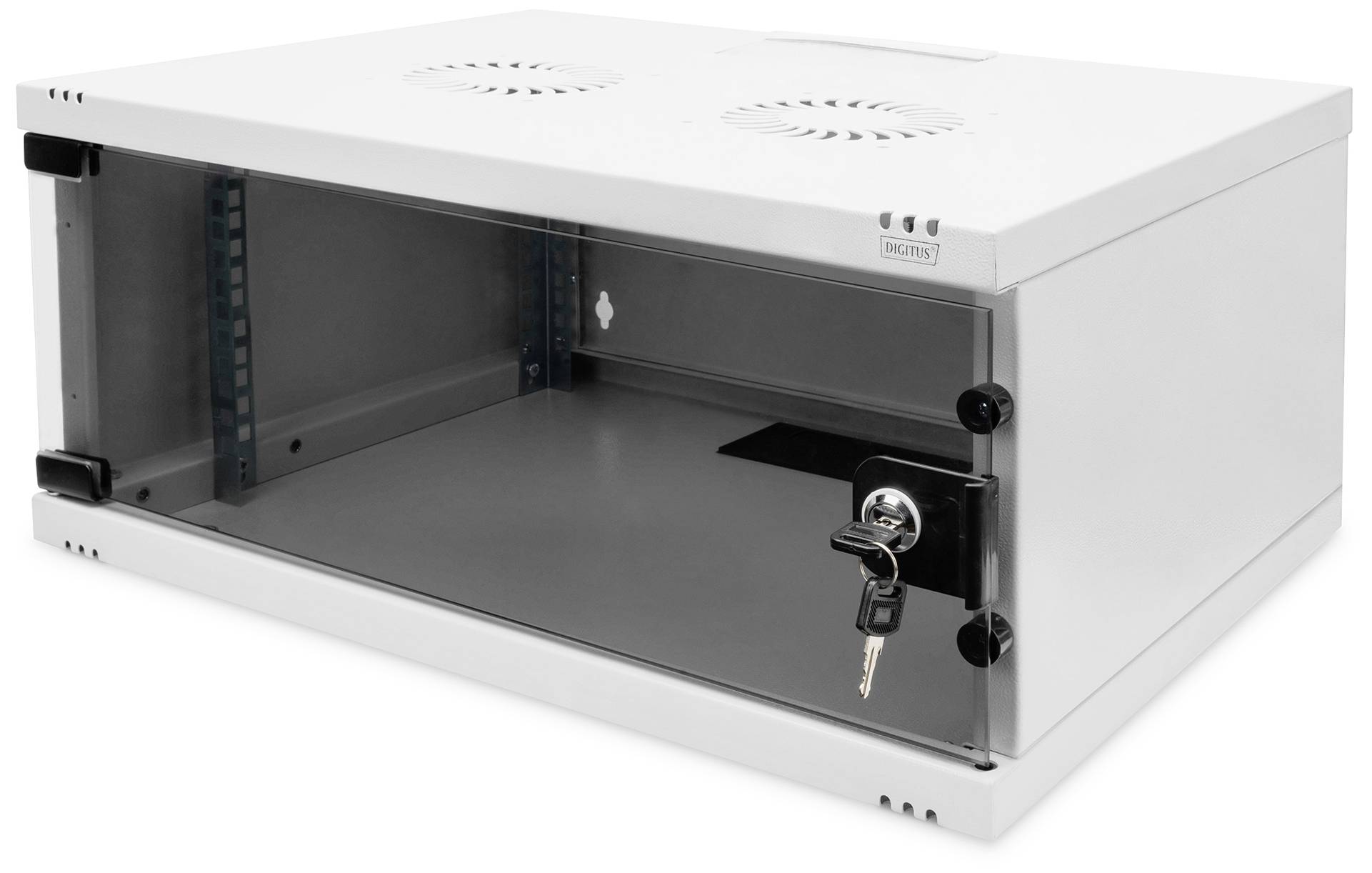

A white metal cabinet with a lockable glass door. Ventilation slots are located at the top. The cabinet is empty and the key is in the lock.

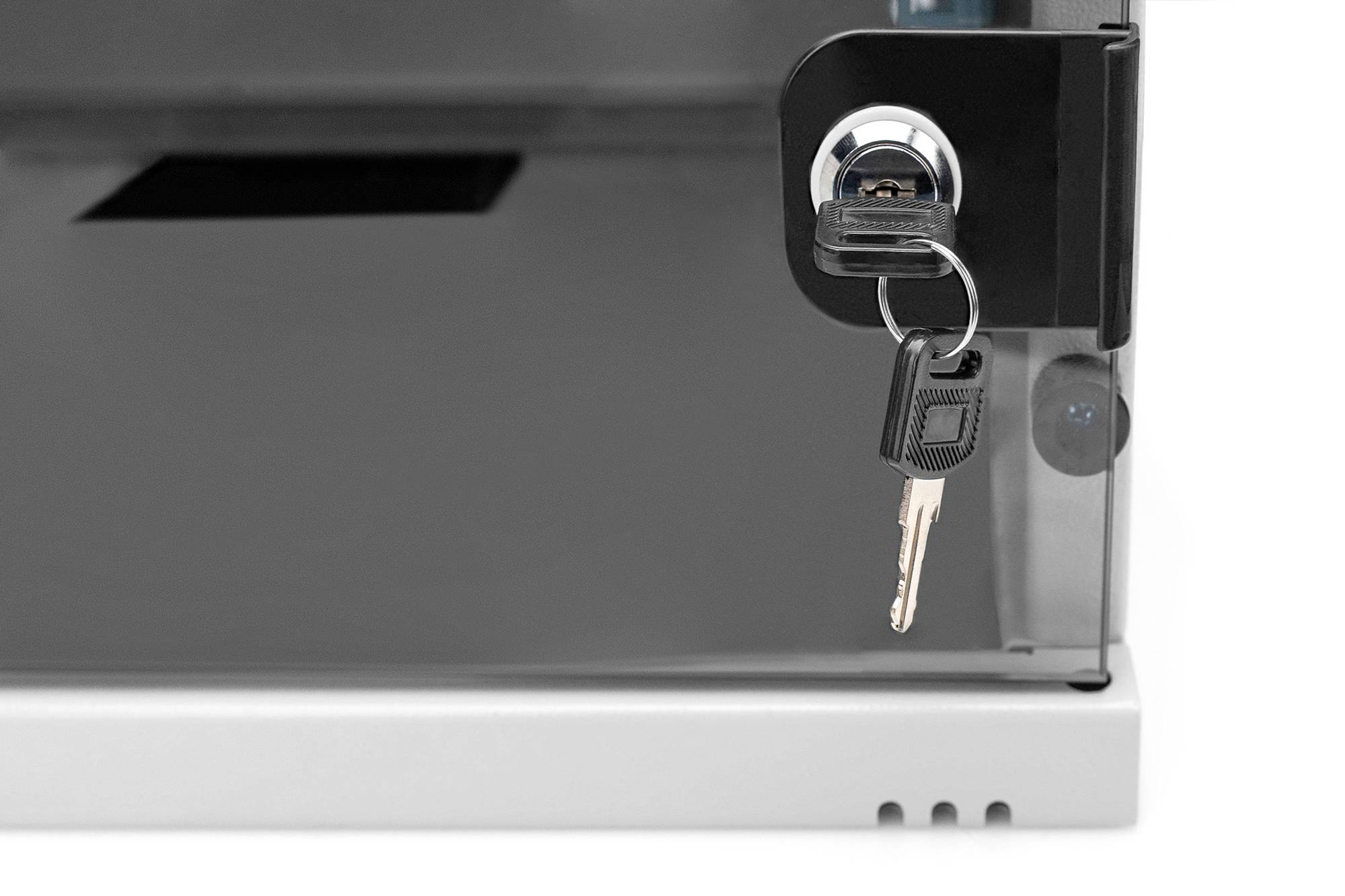

A key lock with two keys is inserted in a black metal device attached to a grey casing.

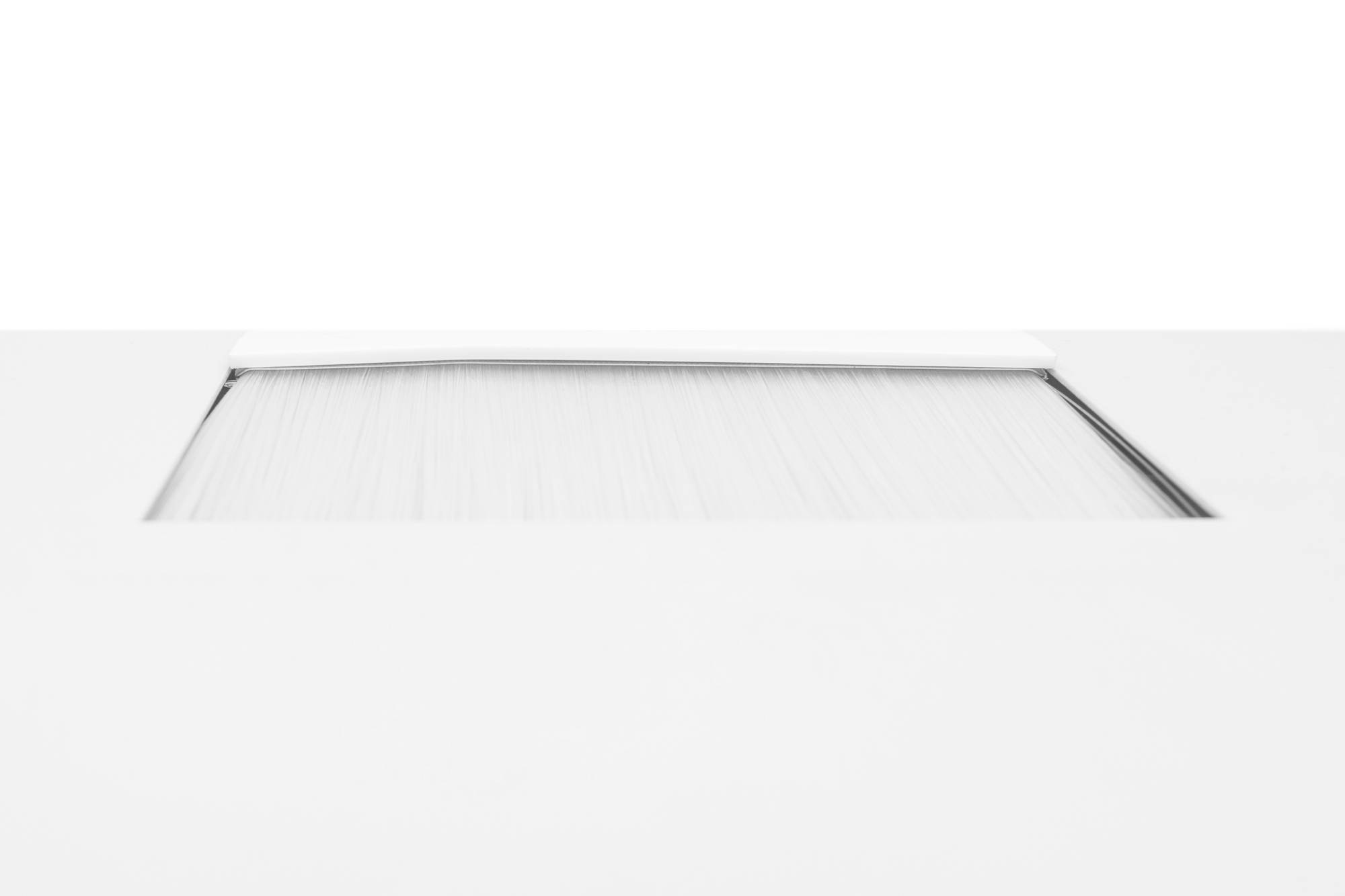

A rectangular, slightly open slit in a smooth, white surface.

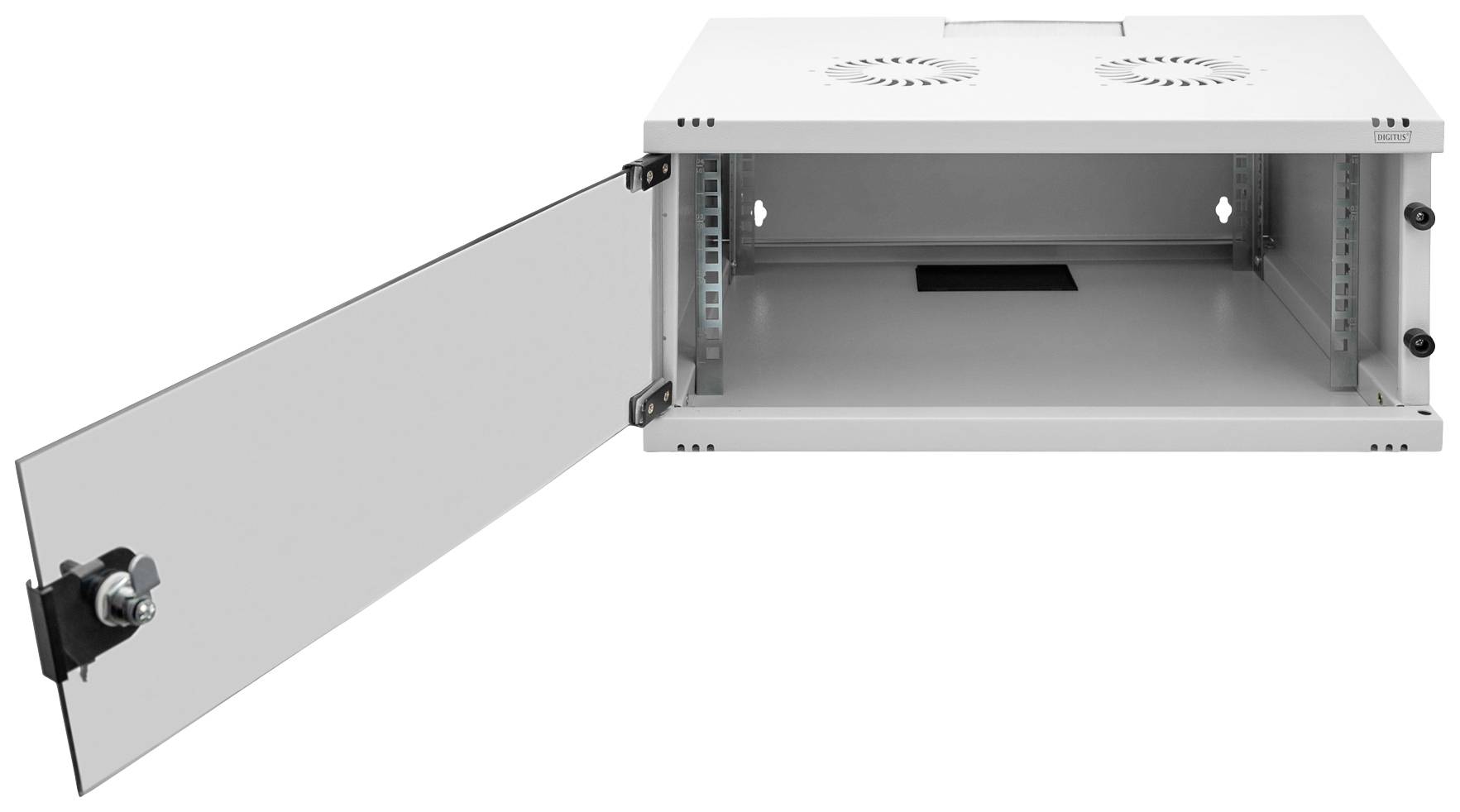

White metal network cabinet with an open glass door; two ventilation holes at the top, space for modular technical components inside.

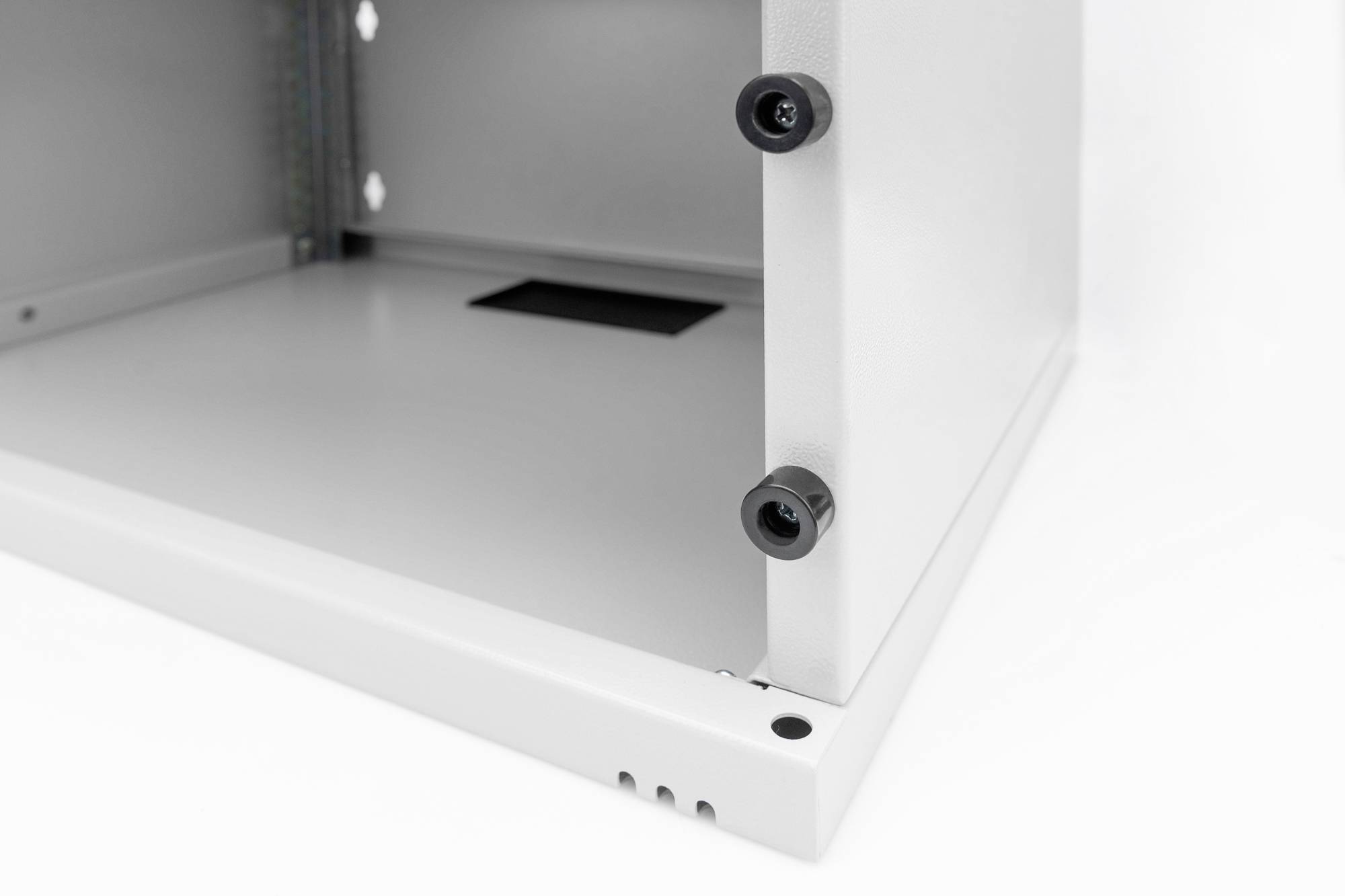

Side view of a white metal cabinet with visible screws and ventilation slots, partial view of the internal structure.

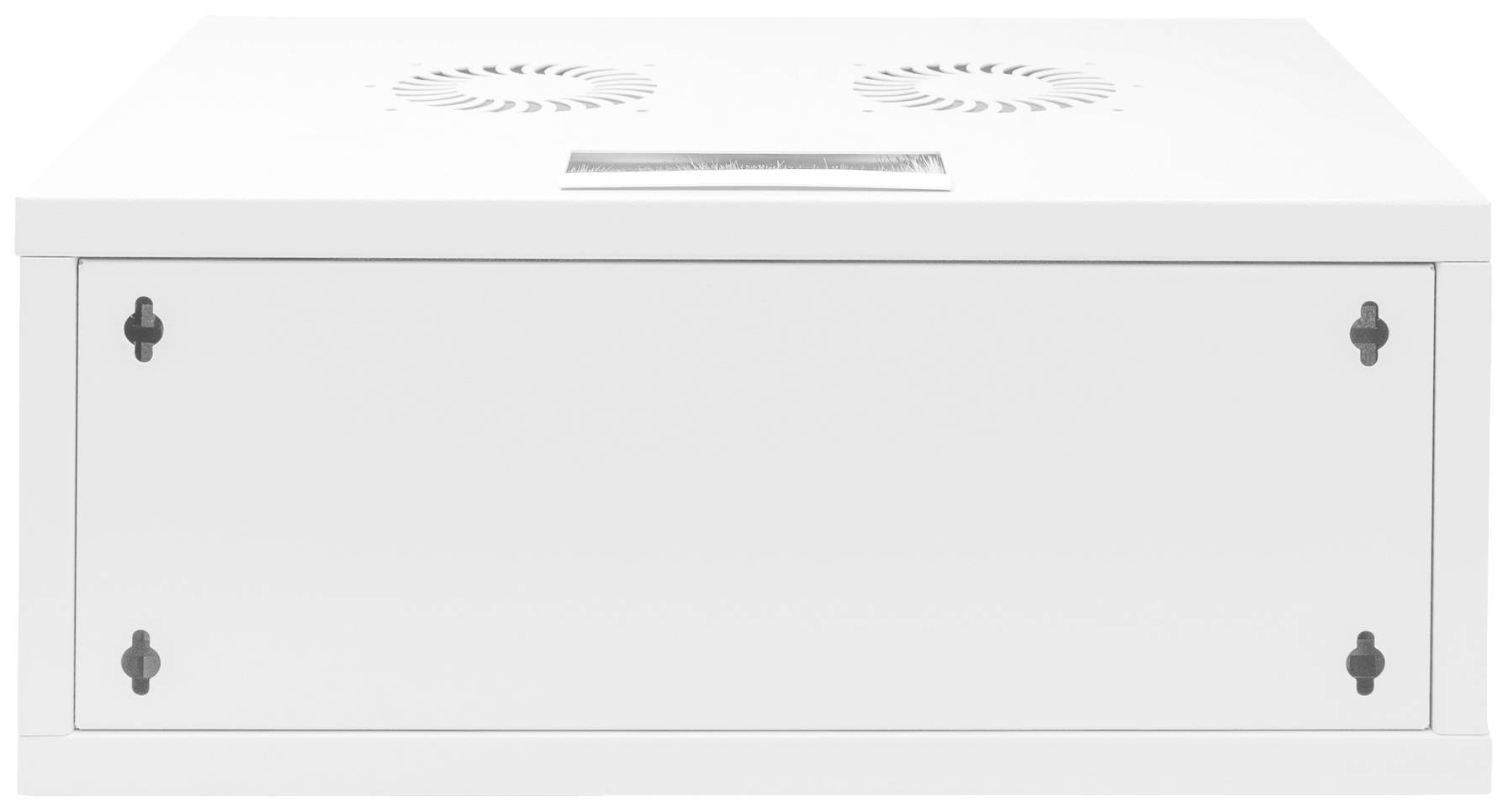

White, rectangular metal box with ventilation slots at the top and four screws on the front panel.

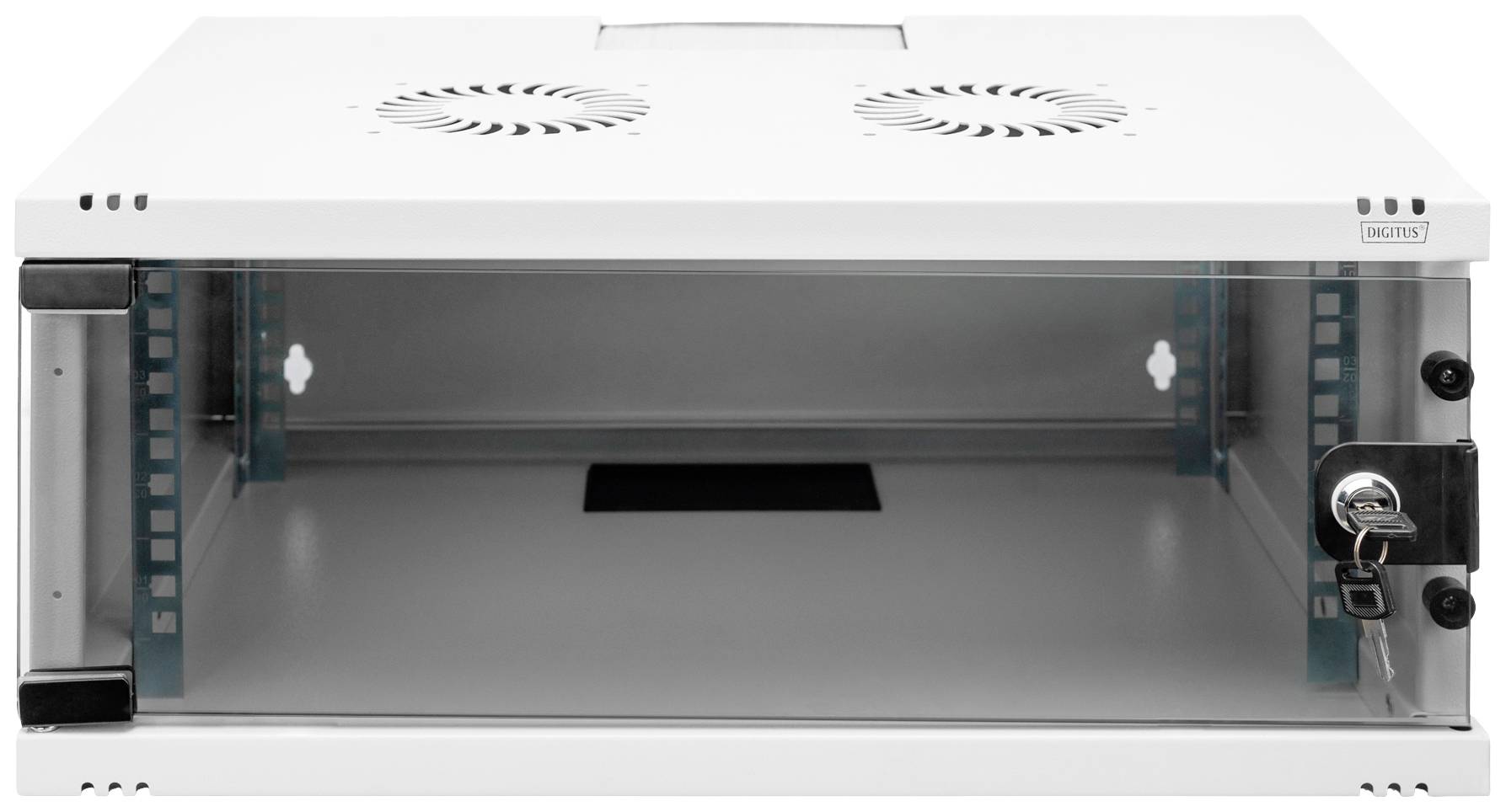

White wall-mounted network device enclosure with a glass front door, two ventilation slots at the top and a security lock on the right.

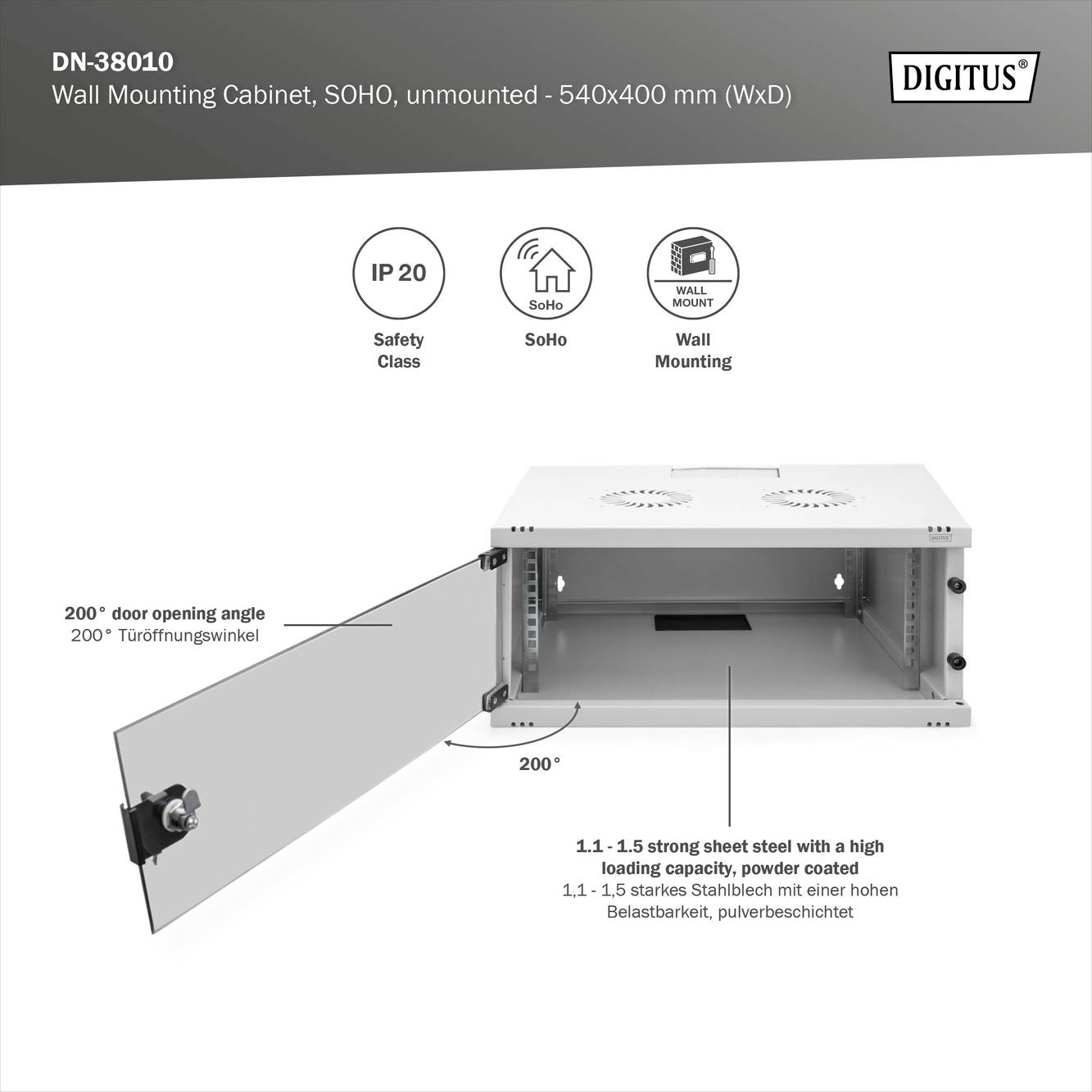

Wall-mounted cabinet, white, with 200-degree door opening. Suitable for use in small offices. Load capacity up to 1.5 tonnes.

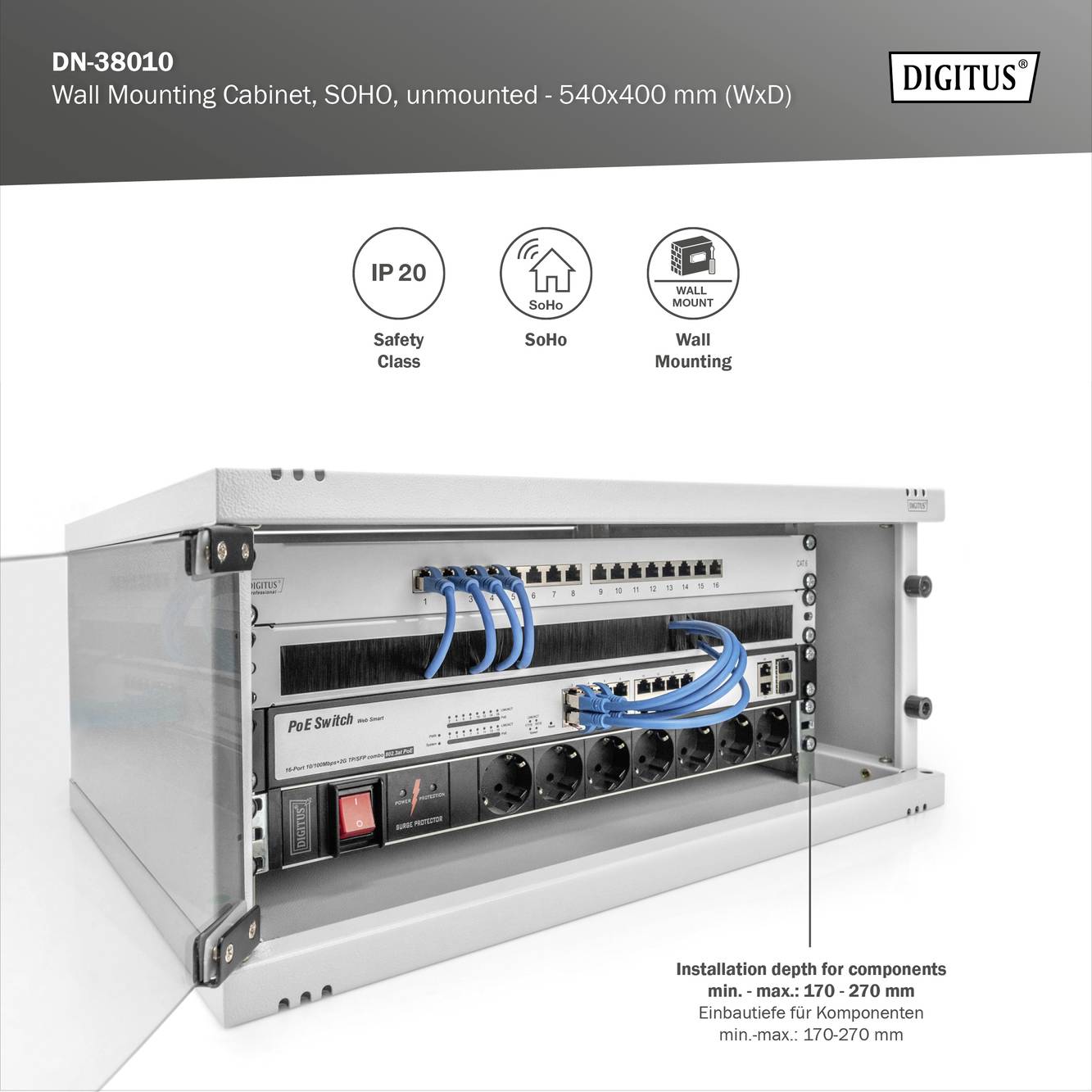

A wall-mounted cabinet for SOHO, unmounted, with dimensions 540x400 mm. Contains network and power components, protection class IP 20.

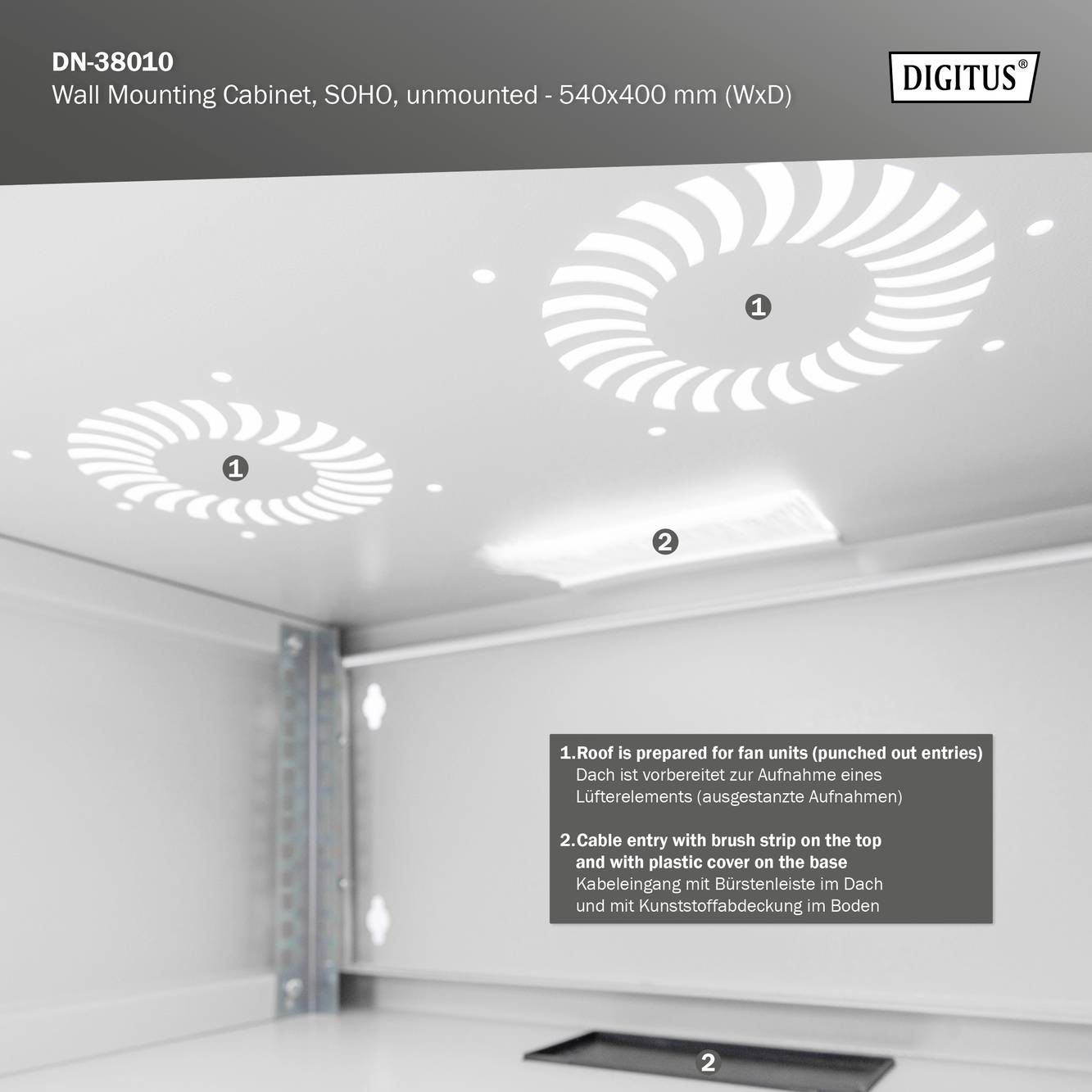

'Roof prepared for ventilator, including plastic brush strips at the bottom for cable management in a grey wall-mounted cabinet.'

1/10

Datasheet (PDF)

Unavailable

26 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus wall housing, SOHO, unassembled - 540x400 mm (WxT)

Highlights & Details

Unassembled delivery in flat pack provides cost and space efficiency
Optimum ventilation
Lockable glass door guarantees security

Technical specifications

Product type: 19" wall cabinet

Rack unit: 4 U

Width: 540 mm

Height: 241 mm

Depth: 400 mm

Material: Steel
Metal
Metal (powder-finished)

Dim: (W x H x D) 540 x 241 x 400 mm

Weight: 10000 g

Factory colour: Grey-white (RAL 7035)
Grey
Grey (metal housing)
Light grey
Light grey

Rack size: 483 mm (19")

Type: SOHO, not mounted

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3129072 Digitus DN-38010 19" wall cabinet (W x H x D) 540 x 241 x 400 mm 4 U Grey-white (RAL 7035), Grey, Grey (metal housing),

User & Safety Instructions

User & Safety Instructions 3129072 Digitus DN-38010 19" wall cabinet (W x H x D) 540 x 241 x 400 mm 4 U Grey-white (RAL 7035), Grey, Grey (metal housing),

Description

The 483 mm (19 ") network cabinets for wall mounting of the SOHO series are delivered cost-optimized in the reassembled condition by means of flat pack. Available in four height units and equipped with a full-glass door, as well as a cable entry with brushes in the roof and floor, it is the perfect product for sub-distribution or for setting up a small to medium-sized network. Two pair of galvanized, with readable rack units labeled 483 mm (19") rails are installed in the interior. The depth of these can be adjusted. Each cabinet is a sturdy steel construction made of up to 1.5 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). A door stop can be changed. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions.
