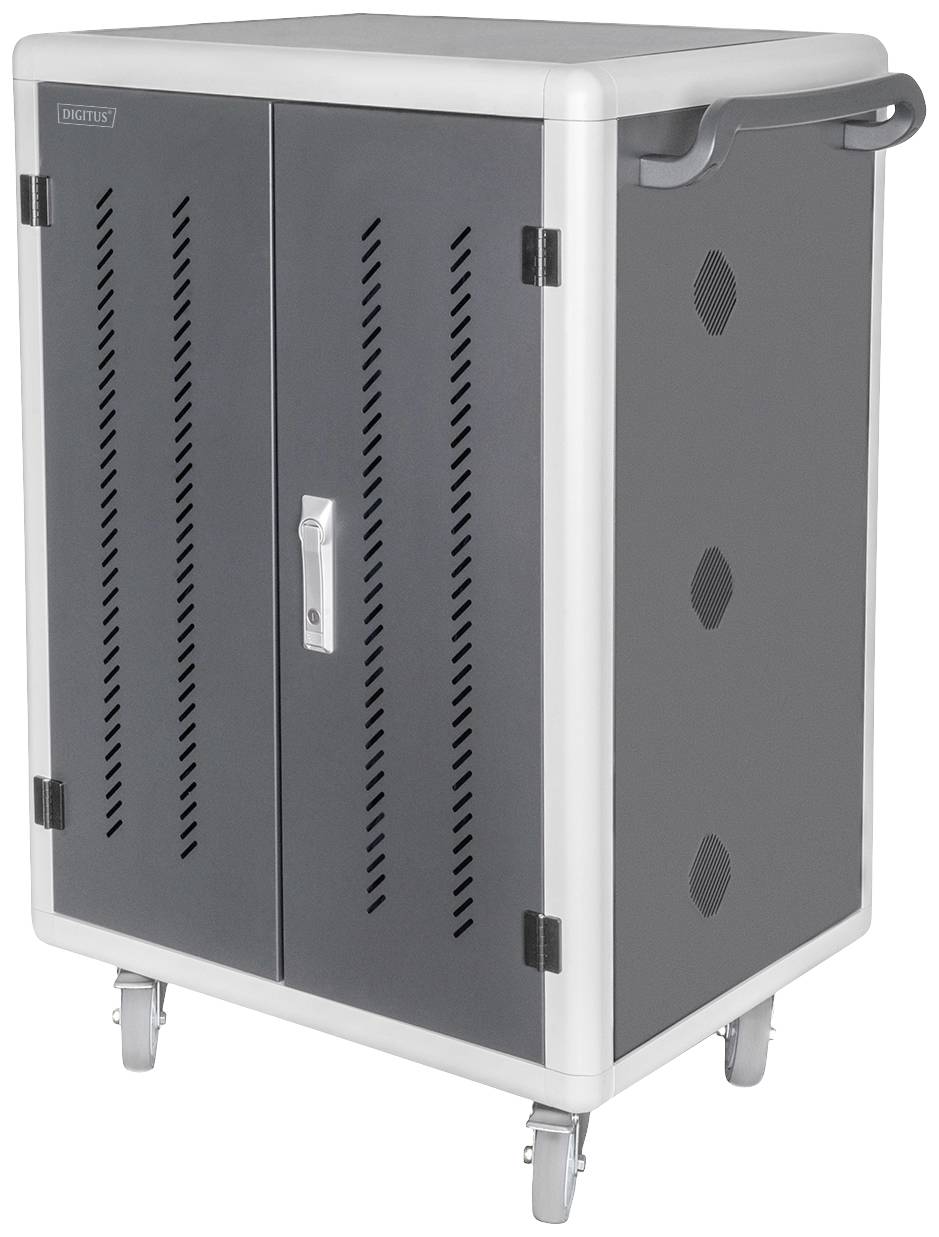

Rollable two-door storage cabinet with side handle and ventilation slots. Mounted on four wheels for easy movement.

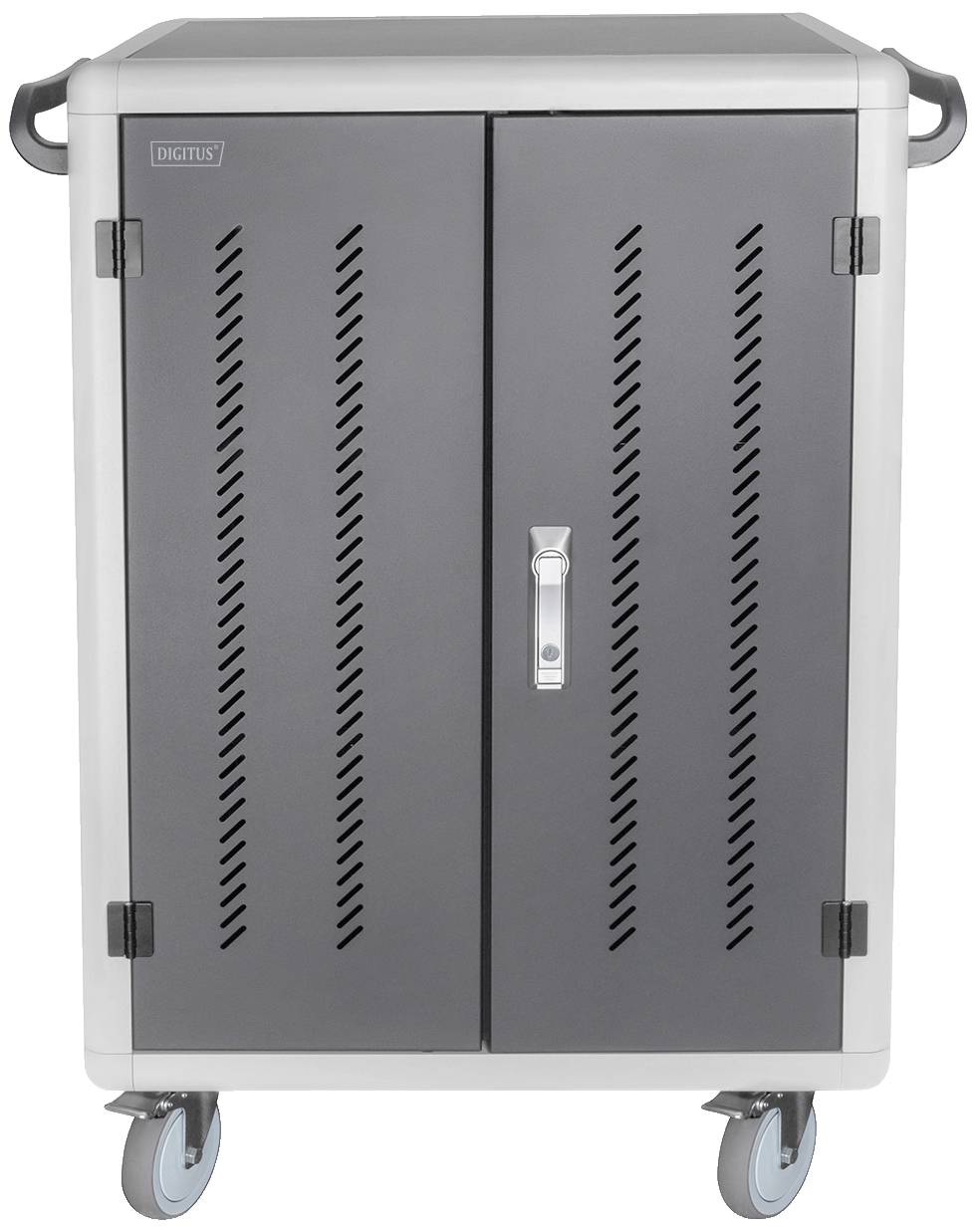

Metal cabinet on wheels with two lockable doors. Ventilation openings on the door surfaces. Suitable for secure storage.

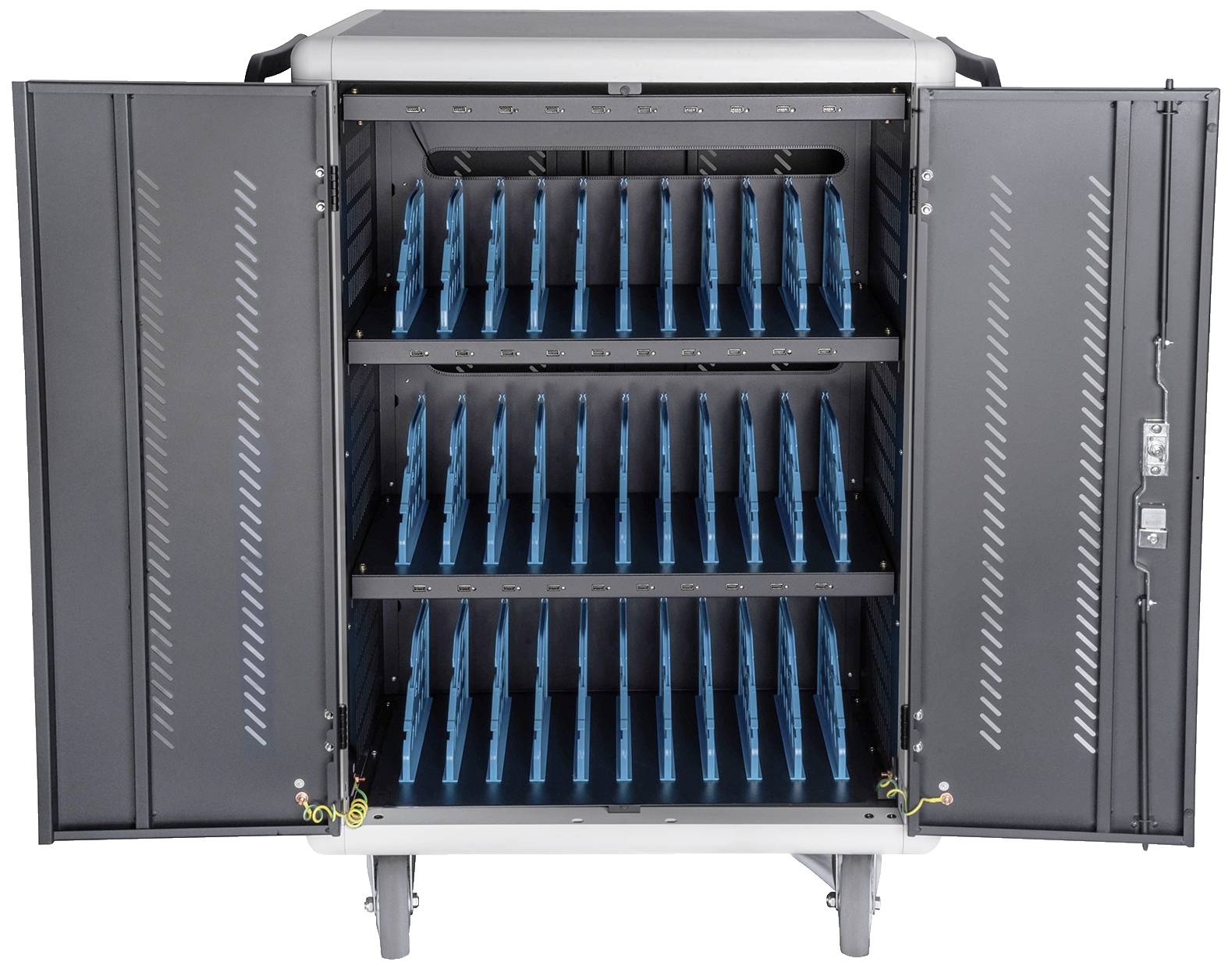

An open storage cabinet with three shelves, each containing multiple blue tablet holders.

An opened server cabinet with multiple units, each equipped with ventilation grilles and indicator lights.

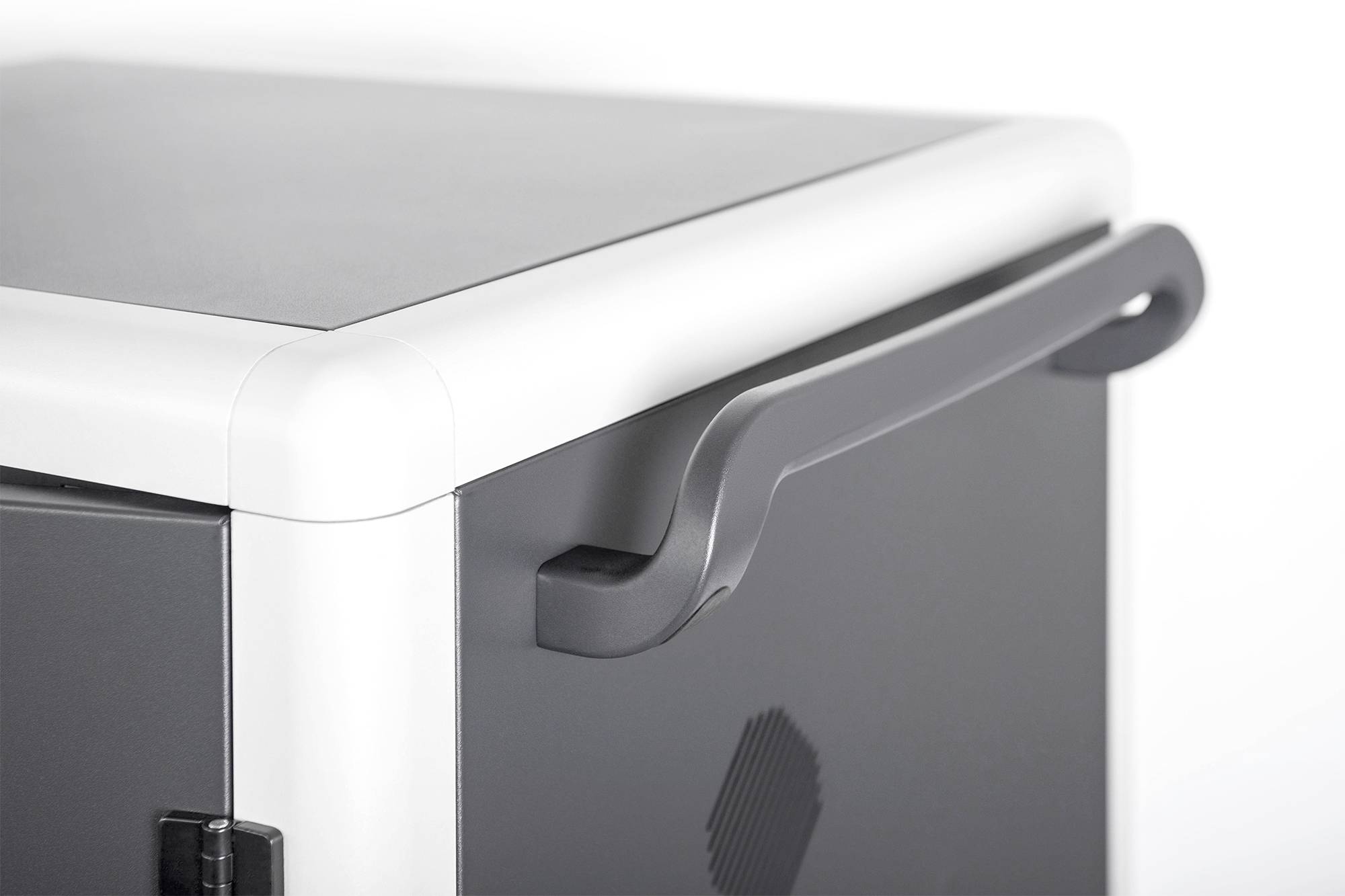

A rectangular white and black box with a dark handle on one side. The surface is flat and smooth.

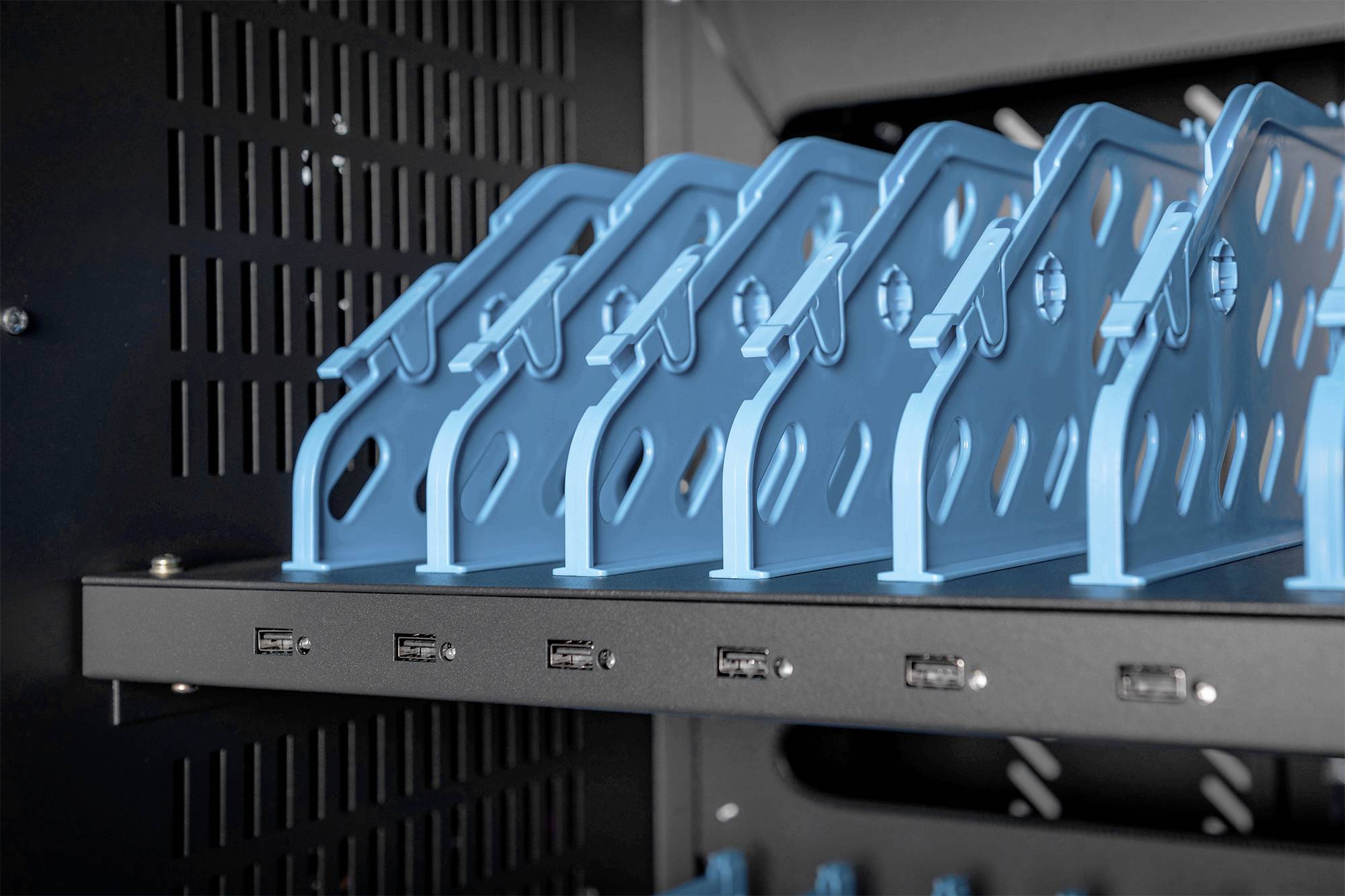

Blue metal brackets in a black enclosure, likely used for computer or server components.

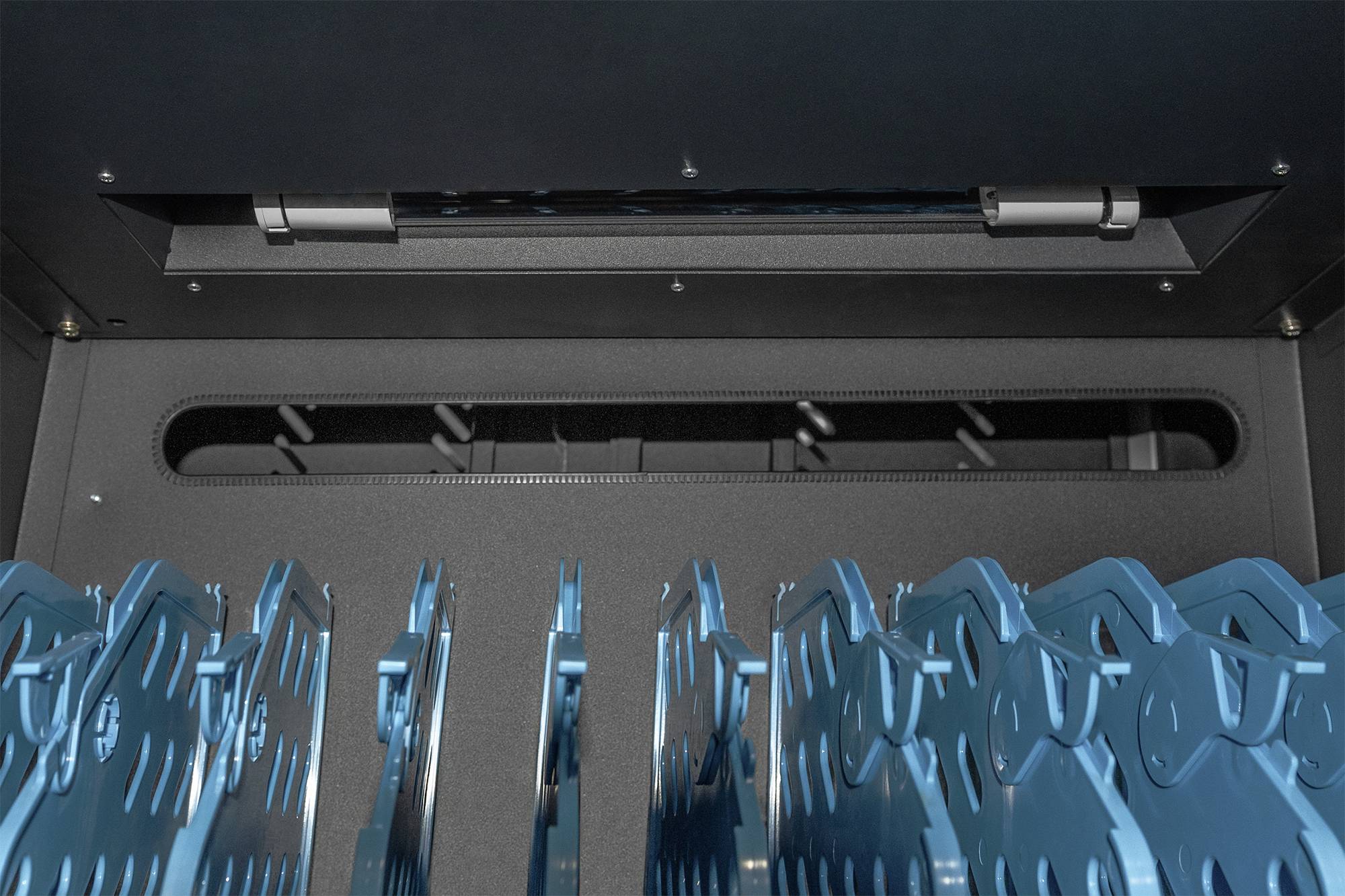

View of a mechanical device component with blue, gear-like structures against a dark background.

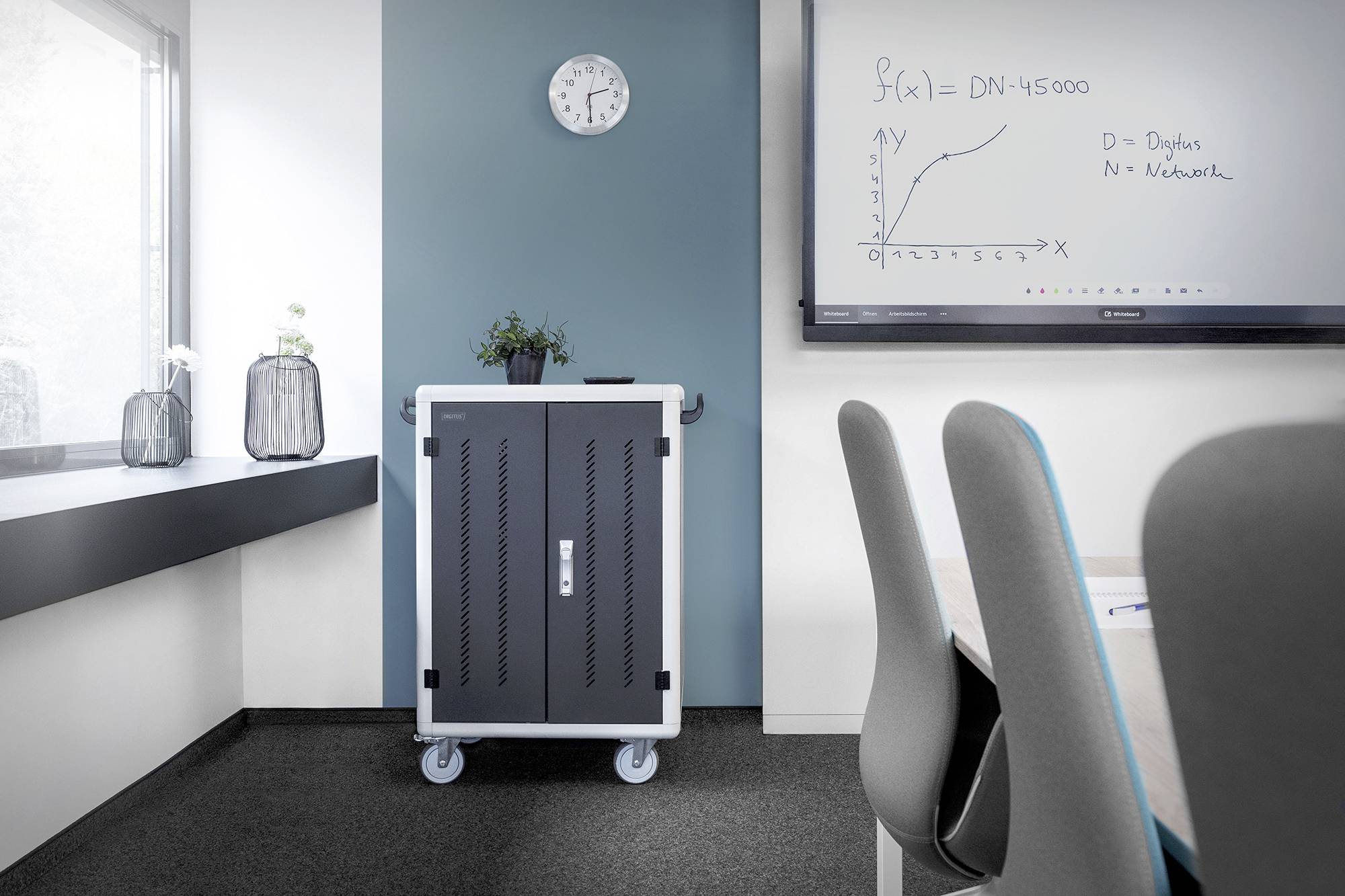

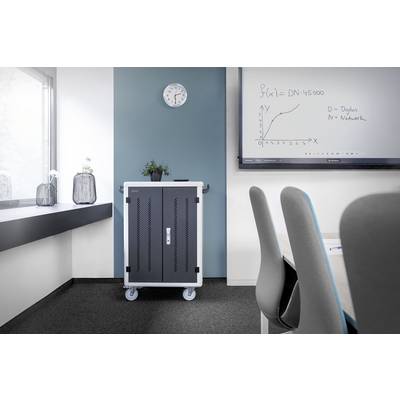

A conference room with a table and chairs, a wheeled cabinet, a wall-mounted whiteboard with a drawn function, and a clock on the wall.

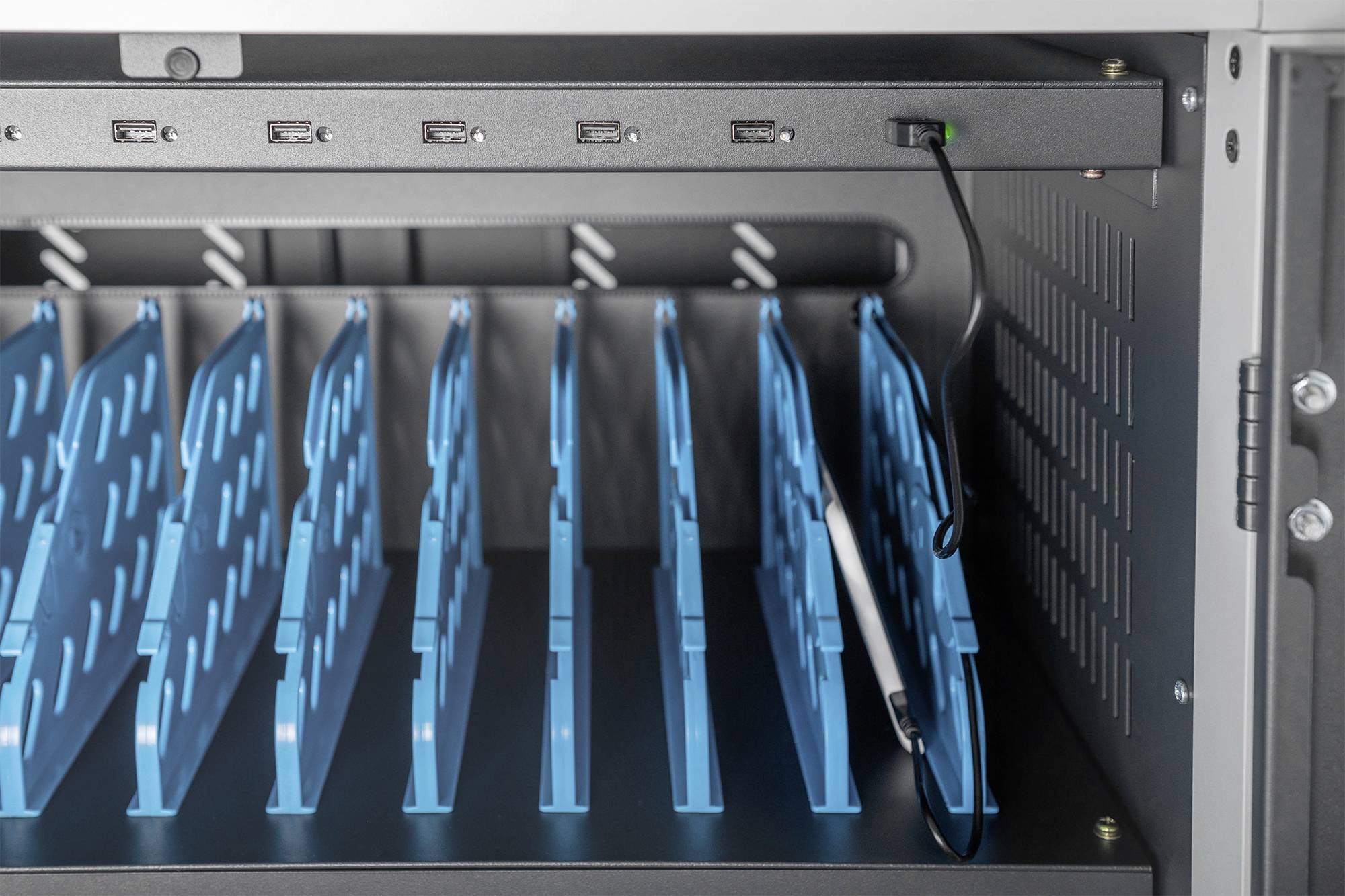

'Interior view of a storage or shop cabinet with blue dividing compartments for tablets or laptops and USB ports.'

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus portable charging cabinet for notebooks/tablets up to 15.6", data synchronization, UV-C.

Highlights & Details

UV-C lamps for improved hygiene
Data synchronization option
30 places (3x10) for devices

Technical specifications

UV-C lamps for improved hygiene
Data synchronization option
Double-wing front and rear door
Pressure lock system with pivot lever handle on front and rear door, lockable
180° door opening angle
2-point lock (bar lock)
Incl. 4 wheels (2 units detected)
With 6 bits. Grips for better mobility (included)
Product dimensions (H x W x D) in mm: 1260 x 824 x 650 mm
Earthing contact connection (AC) with switch on the side
C20 port on the side
With 6 bits. RCD 30 mA
Supplied fully assembled
Depth of inner shelf: 415 mm (suitable for devices up to 15.6")
Rolls can be removed as required
USB-A port output: 10W (5V 2.1A) per port; 300W max.
Temperature control: Fans start automatically when the internal temperature exceeds 40 °C.
Colour: Black, RAL 9005

Product type: Battery charger/manager

Type: Mobile charger

Suitable for: Smartphones
Tablet PCs
Laptops

No. of devices: 30

Suitable for: 10,1 cm (4")
10,2 cm (4")
11,4 cm (4,5")
11,7 cm (4,6")
11,9 cm (4,7")
12,2 cm (4,8")
12,4 cm (4,9")
12,7 cm (5")
13 cm (5,1")
13,0 cm (5,1")
13,2 cm (5,2")
13,5 cm (5,3")
13,7 cm (5,4")
13,8 cm (5,45")
14 cm (5,5")
14,0 cm (5,5")
14,2 cm (5,6")
14,5 cm (5,7")
14,7 cm (5,8")
14,8 cm (5,84")
15 cm (5,9")
15,2 cm (5,99")
15,5 cm (6,09")
15,5 cm (6,1")
15,6 cm (6,15")
15,7 cm (6,18")
15,7 cm (6,2")
15,8 cm (6,21")
15,9 cm (6,26")
16 cm (6,3")
16,2 cm (6,39")
16,3 cm (6,4")
16,4 cm (6,47")
16,5 cm (6,5")
16,8 cm (6,6")
17 cm (6,7")
17,5 cm (6,9")
19,8 cm (7,8")
19,9 cm (7,85")
20,1 cm (7,9")
20,6 cm (8,1")
21,3 cm (8,4")
22,1 cm (8,7")
22,6 cm (8,9")
22,9 cm (9")
23,9 cm (9,4")
24 cm (9,5")
24,4 cm (9,6")
24,6 cm (9,7")
25,4 cm (10")
25,7 cm (10,1")
25,9 cm (10,2")
25,9 cm (10.2")
26,2 cm (10,3")
26,4 cm (10,4")
26,7 cm (10,5")
26,9 cm (10,6")
27,4 cm (10,8")
27,4 cm (10.8")
27,7 cm (10,9")
27,9 cm (11")
279,4 cm (110")
29,2 cm (11,5")
29,5 cm (11,6")
30,5 cm (12")
30,7 cm (12,1")
30.0 cm (10,8")
31 cm (12,2")
31,0 cm (12,2")
31,2 cm (12,3")
31,5 cm (12,4")
31,8 cm (12,5")
32 cm (12,6")
32,8 cm (12,9")
33 cm (13")
33,0 cm (13")
33,3 cm (13,1")
33,8 cm (13,3")
34 cm (13,4")
34,3 cm (13,5")
35 cm (13,8")
35,3 cm (13,9")
35,6 cm (14")
35,82 cm (14,1")
36,1 cm (14,2")
36,6 cm (14,4")
36,8 cm (14,5")
38,1 cm (15")
38,4 cm (15,1")
39,1 cm (15,4")
39,6 cm (15,6")
Show more

Width: 824 mm

Height: 1260 mm

Depth: 650 mm

Weight: 96 kg

Factory colour: Black (RAL 9005)

Suitable for: 10,1 cm (4") - 279,4 cm (110")

Keyboard layout: German, QWERTZ

Wireless charging: No

Product type description: Sonstiges Notebookzubehör

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Suitable for

No. of devices

Suitable for

Digitus DN-45005 Battery charger/manager Mobile charger

Item no:2900278

This article

10,1 cm (4")10,2 cm (4")11,4 cm (4,5")11,7 cm (4,6")11,9 cm (4,7")12,2 cm (4,8")12,4 cm (4,9")12,7 cm (5")13 cm (5,1")13,0 cm (5,1")13,2 cm (5,2")13,5 cm (5,3")13,7 cm (5,4")13,8 cm (5,45")14 cm (5,5")14,0 cm (5,5")14,2 cm (5,6")14,5 cm (5,7")14,7 cm (5,8")14,8 cm (5,84")15 cm (5,9")15,2 cm (5,99")15,5 cm (6,09")15,5 cm (6,1")15,6 cm (6,15")15,7 cm (6,18")15,7 cm (6,2")15,8 cm (6,21")15,9 cm (6,26")16 cm (6,3")16,2 cm (6,39")16,3 cm (6,4")16,4 cm (6,47")16,5 cm (6,5")16,8 cm (6,6")17 cm (6,7")17,5 cm (6,9")19,8 cm (7,8")19,9 cm (7,85")20,1 cm (7,9")20,6 cm (8,1")21,3 cm (8,4")22,1 cm (8,7")22,6 cm (8,9")22,9 cm (9")23,9 cm (9,4")24 cm (9,5")24,4 cm (9,6")24,6 cm (9,7")25,4 cm (10")25,7 cm (10,1")25,9 cm (10,2")25,9 cm (10.2")26,2 cm (10,3")26,4 cm (10,4")26,7 cm (10,5")26,9 cm (10,6")27,4 cm (10,8")27,4 cm (10.8")27,7 cm (10,9")27,9 cm (11")279,4 cm (110")29,2 cm (11,5")29,5 cm (11,6")30,5 cm (12")30,7 cm (12,1")30.0 cm (10,8")31 cm (12,2")31,0 cm (12,2")31,2 cm (12,3")31,5 cm (12,4")31,8 cm (12,5")32 cm (12,6")32,8 cm (12,9")33 cm (13")33,0 cm (13")33,3 cm (13,1")33,8 cm (13,3")34 cm (13,4")34,3 cm (13,5")35 cm (13,8")35,3 cm (13,9")35,6 cm (14")35,82 cm (14,1")36,1 cm (14,2")36,6 cm (14,4")36,8 cm (14,5")38,1 cm (15")38,4 cm (15,1")39,1 cm (15,4")39,6 cm (15,6")

SmartphonesTablet PCsLaptops

Digitus DN-45004 Battery charger/manager Cabinet for USB-C cables

Item no:2900276

LaptopsSmartphonesTablet PCs

Documents & Downloads

Datasheet

Datasheet 2900278 Digitus DN-45005 Battery charger/manager Mobile charger

User & Safety Instructions

User & Safety Instructions 2900278 Digitus DN-45005 Battery charger/manager Mobile charger

Description

The Digitus® mobile charging cabinet is the ideal and compact solution for storing and charging your portable devices such as notebooks and tablets. Mobile charging cabinets are often used in public facilities such as schools to store the devices in a central location and to charge them at the same time. The cabinet contains 3 rows of 10 loading spaces each, each with its own USB port on the front. In addition, the devices can be connected on the back side with integrated power strip (3 x 10-way protection contact). Thanks to the generous cable guides and extra-long storage shelves, an optimum cable management is ensured. The installed fans (3 x 24 V) used in conjunction with ventilation slots actively cool the cabinet. Built-in UV-C lamps provide sterile conditions and thus an environmentally friendly, improved hygiene. For a centralized synchronization of data, a device can be connected to the outer USB-port.

This text is machine translated.

Features

30 x USB-A connection (5V, 2.1A)

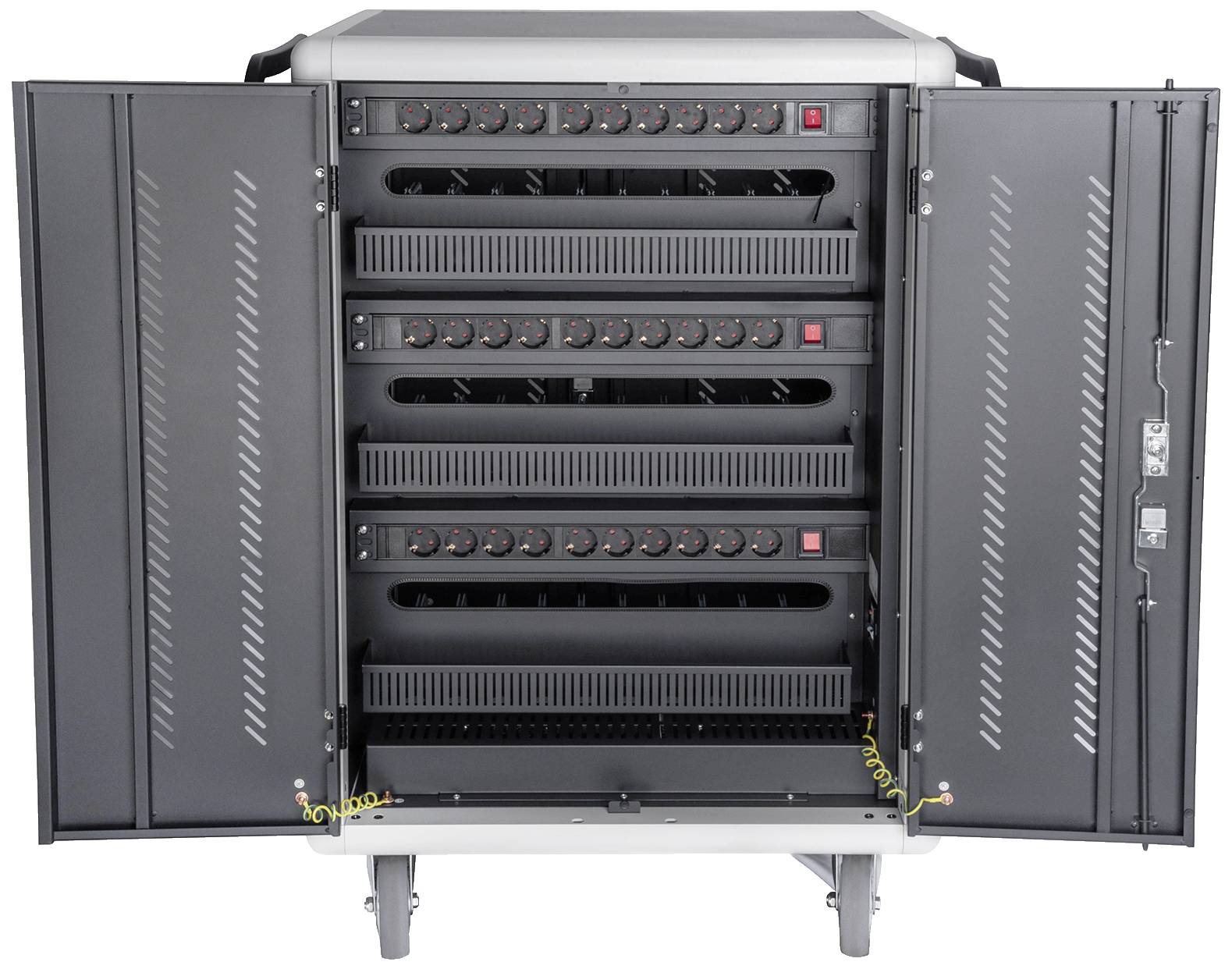

3 x socket strip fitted at the back (10 x earthed sockets, included Switch)
Cable entry and excess length storage per level
Compact casing, mobile thanks to mounted wheels
3 x fans (24 V) for active cooling of the cabinet
With 6 bits. RCD 30 mA

Scope of delivery

Mobile charging cabinet
2x grip (for installation on the outer side) included Including mounting material
Power Cables
User manual
