Buy Digitus DN-49102-SET 10" server rack cabinet (W x H x D) 315 x 460 x 300 mm 9 U Grey

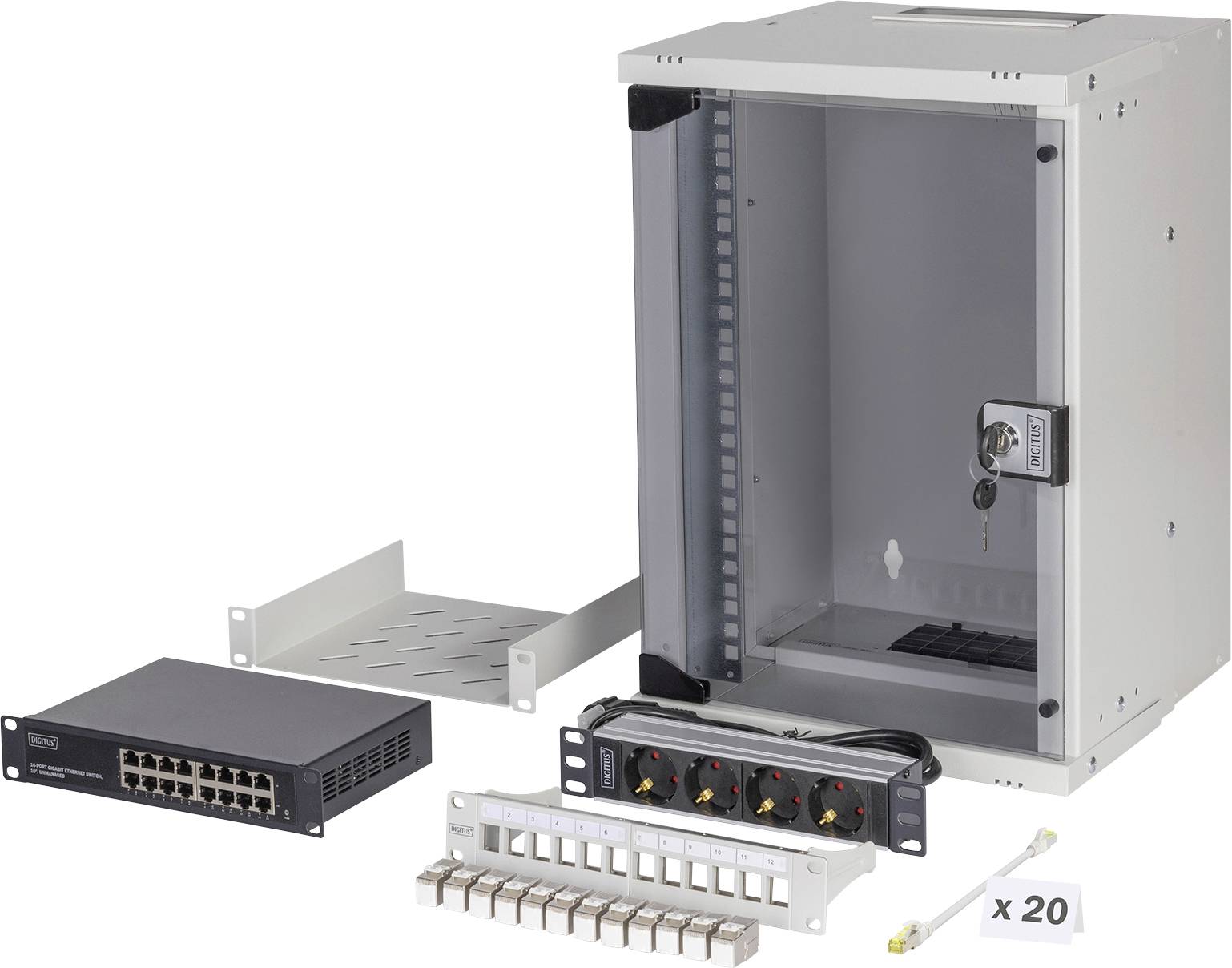

Network cabinet kit including a lockable rack, patch panel, surge protector, switch, mounting tray, and 20 cable connectors.

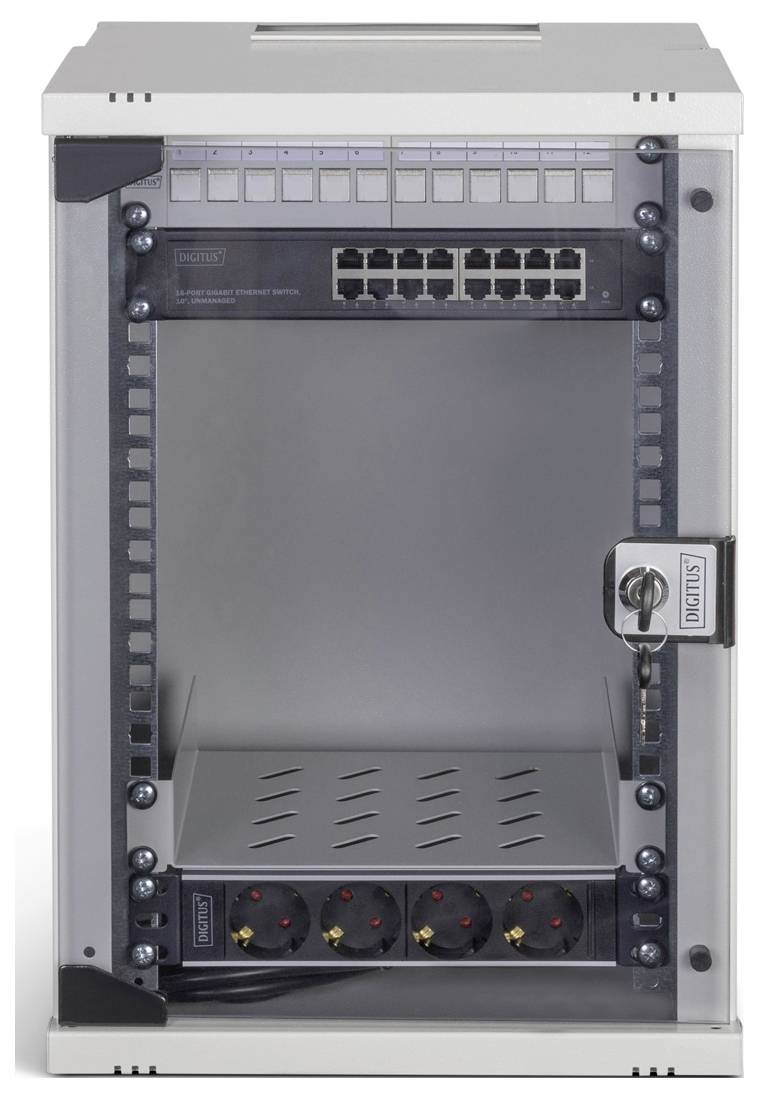

A small white network cabinet with 12 Ethernet ports, key lock, and internal power panel.

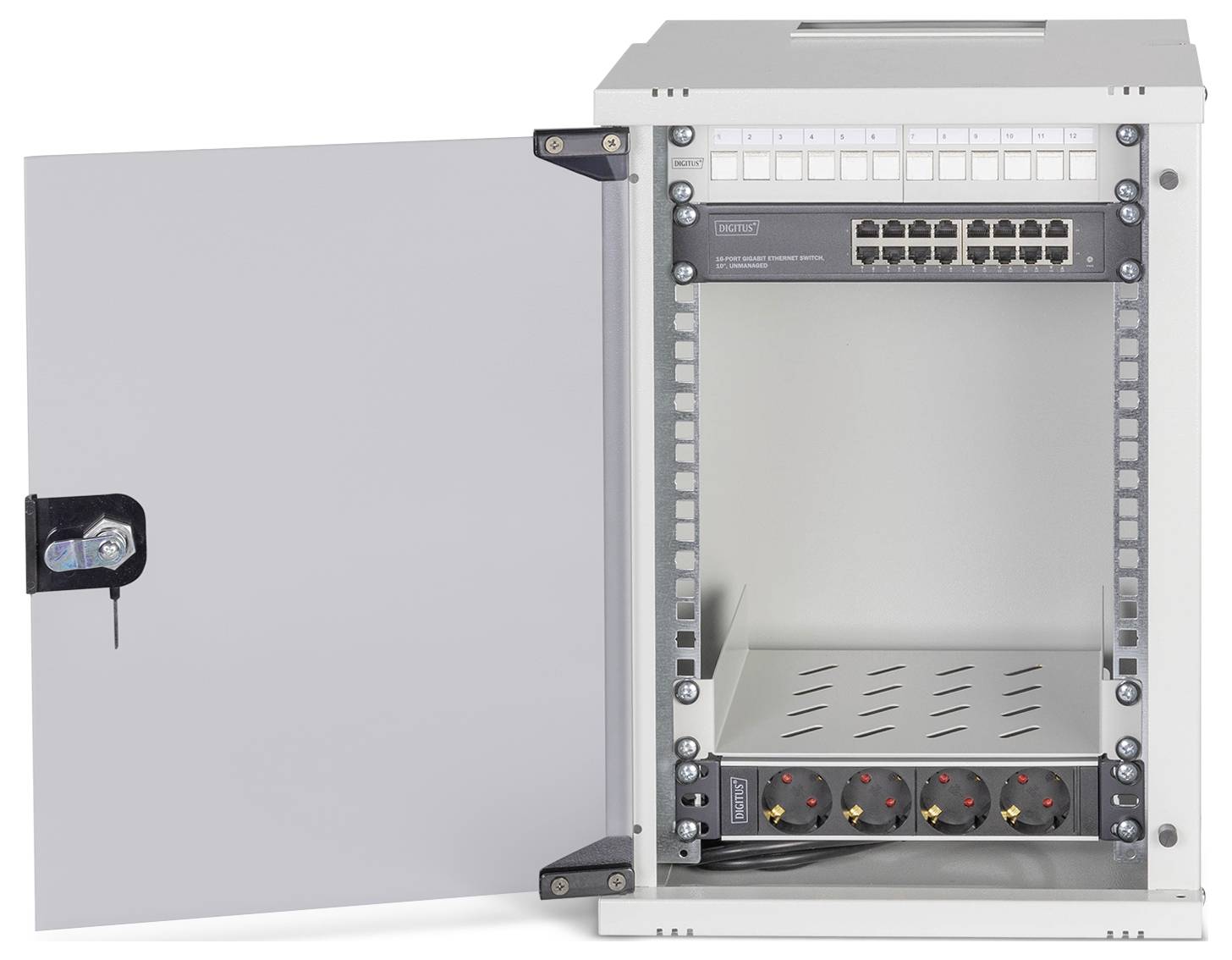

A gray, open server rack with a lockable door, featuring a mounted network switch and power distribution unit.

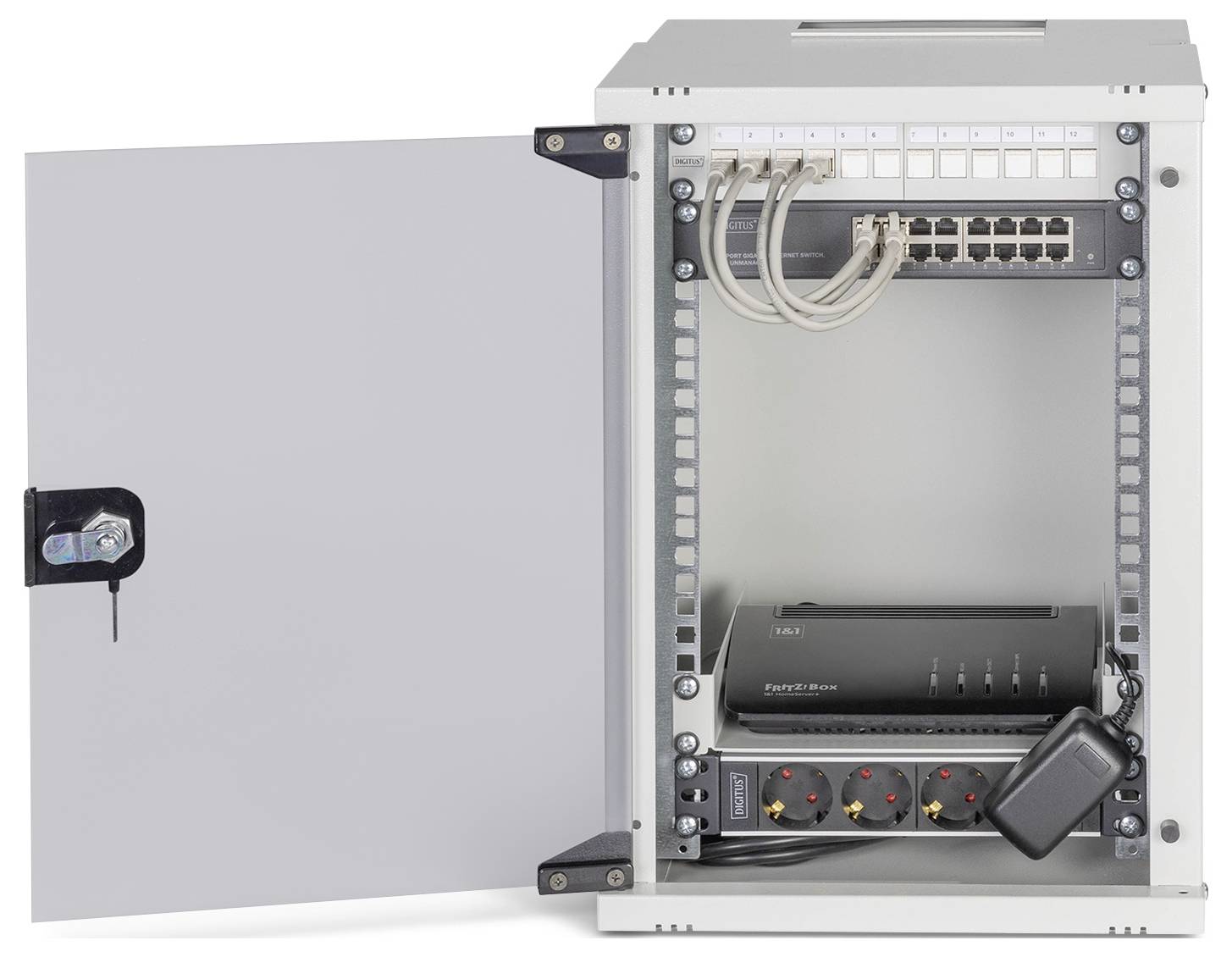

A small, open server cabinet containing a network switch with several connected cables and a rack-mounted power strip with plugs.

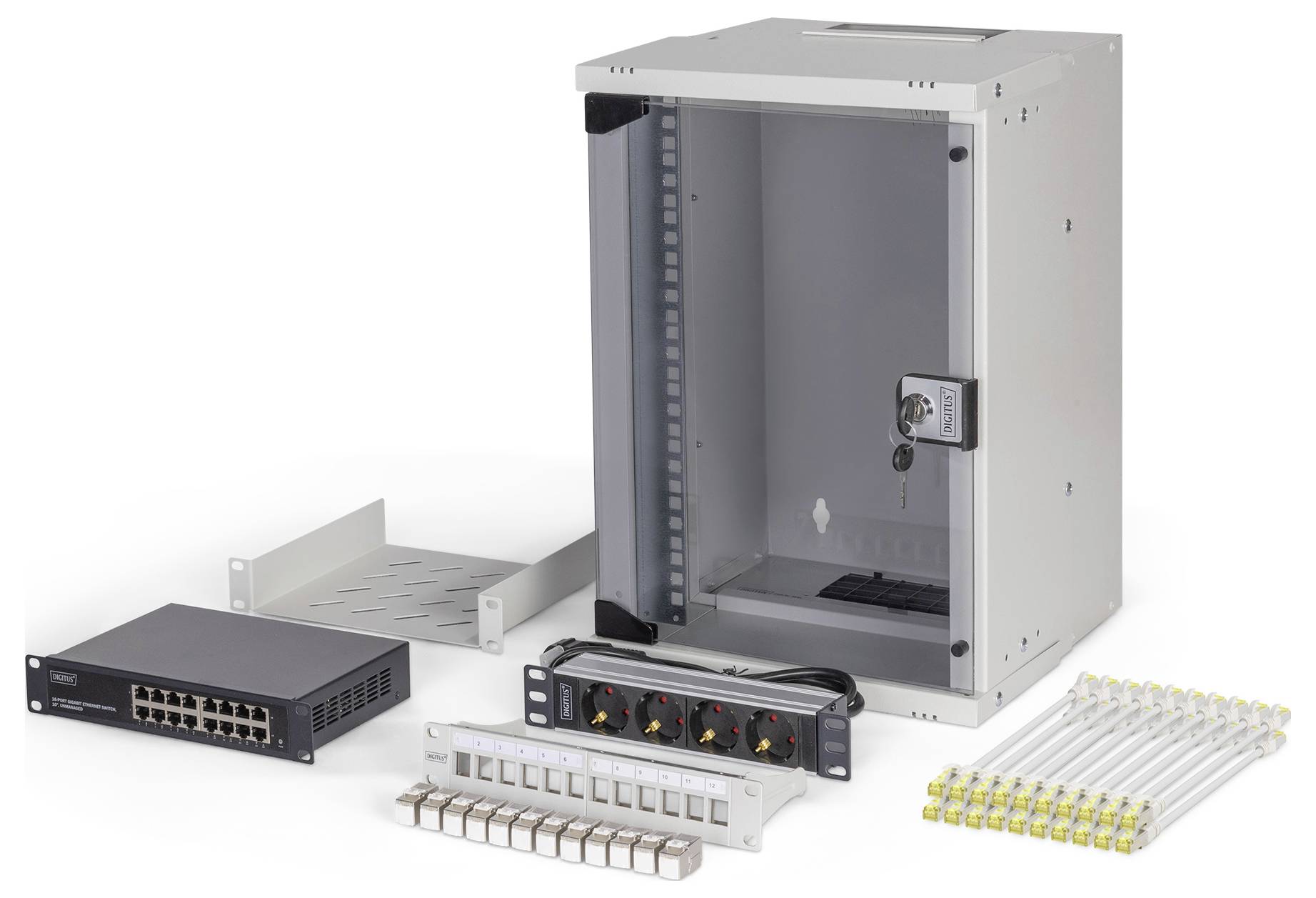

Network equipment setup includes a wall-mounted rack, switch, patch panel, power strip, mounting hardware, and cable bundles.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Digitus Network-Set SOHO Pro, 254 mm (10") - 9HE, 315 x 300 mm (W x D)

Maximum design freedom: Thanks to unassembled delivery, individual positioning of all 10" components is possible.
Including wall housing SOHO PRO, 9HE, 460 x 315 x 300 mm, unmounted (DN-49102)
Including shelf, 1HE (DN-10-TRAY-2)
Including power strip, 1HE, 4 x earthing contact (DN-95418)
Including Gigabit Ethernet switch, 16-port (DN-80115)
Including modular patch panel, 12-port (DN-91419)
Including 12 x Keystone module, CAT 6A, shielded (DN-93615)
Inclusive 20 x Patch cable, CAT 6A, S/FTP, 0.25 m

Technical specifications

Power strip 4 safety contact sockets
Voltage 250 V/AC, 50/60 Hz
Load capacity 16 A / 4000 W
Cable: 2 m (H05VV-F 3G1.5 mm²)
Switch IEEE 802.3, 802.3u, 802.3ab, 802.3x
Keystone module CAT 6A, 500 MHz
Patch cable CAT 6A, length 0.25 m, AWG 26/7

Product type: 10" server rack cabinet

Rack unit: 9 U

Width: 315 mm

Height: 460 mm

Depth: 300 mm

Material: Steel plate

Dim: (W x H x D) 315 x 460 x 300 mm

Weight: 12.5 kg

Factory colour: Grey

Rack size: 254 mm (10")

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3462095 Digitus DN-49102-SET 10" server rack cabinet (W x H x D) 315 x 460 x 300 mm 9 U Grey

Description

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 254 mm (10") solutions of the SOHO Pro series. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions. Available in three designs of rack units (6HE, 9HE, 12HE) in these network sets perfectly tuned Digitus components are supplemented with one another in order to ensure a fast and easy functioning IT-cabling. The network cabinet as well as the respective accessories (e.g. Switch, Patch Panel, Socket connector, shelf, Cable management panel, Patch cables, etc.) are supplied in a compact box.

This text is machine translated.

Features

Supplied unassembled
PG plug
Keystone module: Suitable for PoE / PoE+ / 4-pin (IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt)
Patch cable S-FTP, Cu, LSZH, color gray
