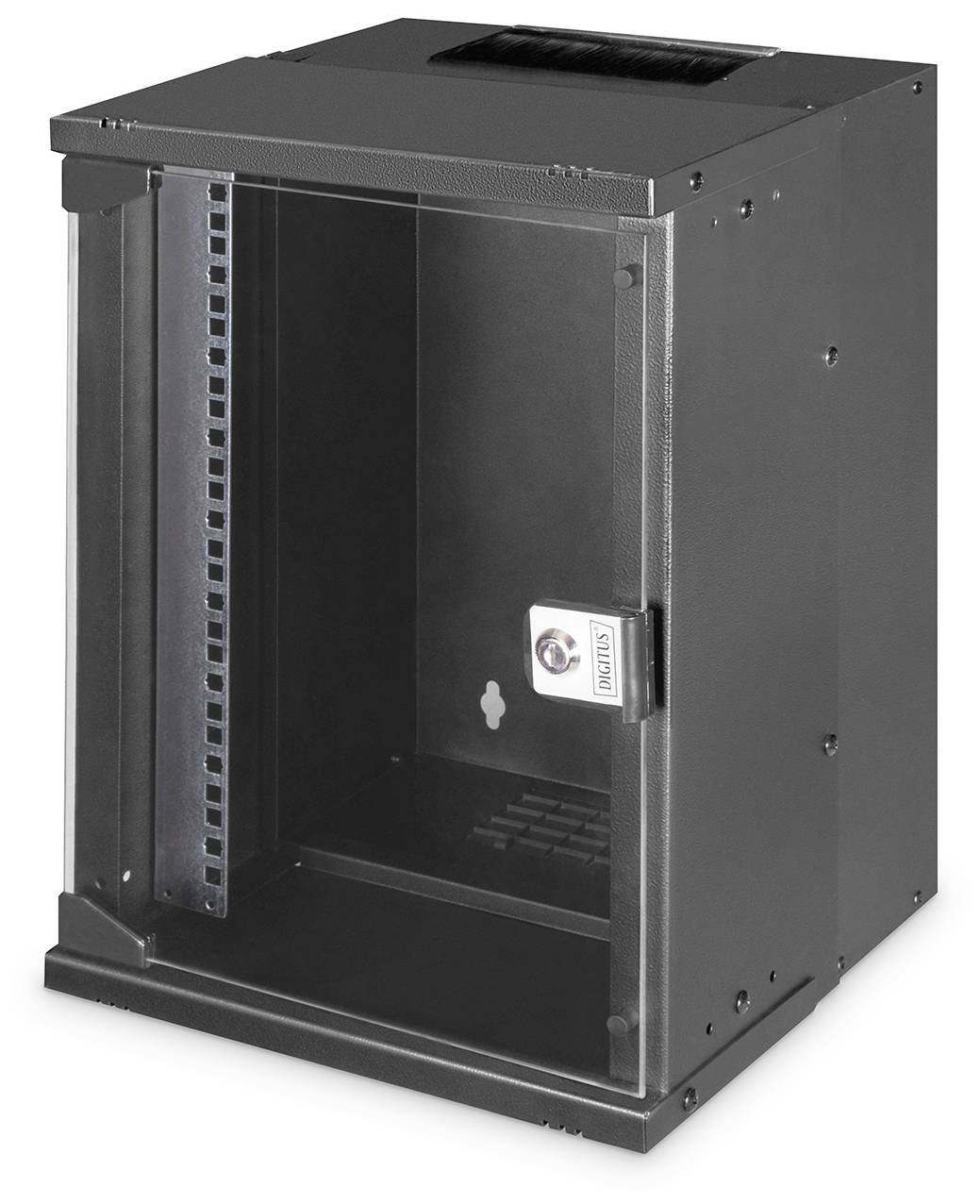

A black network cabinet with a glass door, lockable and suitable for wall mounting, shows an empty interior for IT equipment.

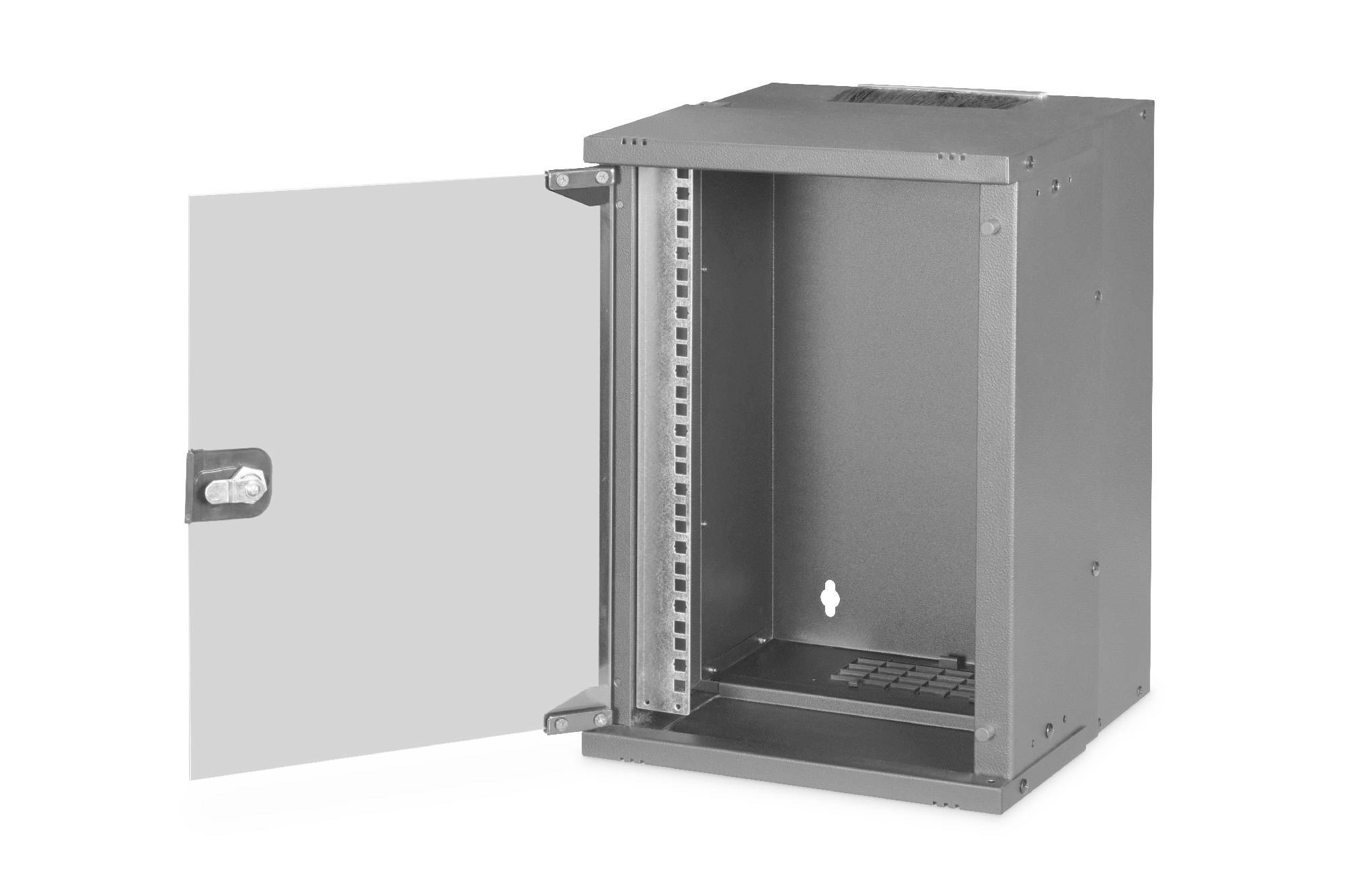

Metal cabinet with an open door, showing empty shelves and ventilation openings. Suitable for electronic or network equipment.

A black cable grommet with bristles in a grey housing, with two metal mounting brackets located on the sides.

Metallic ventilation slot encapsulated by a smooth surface, with two round cutouts visible at the top.

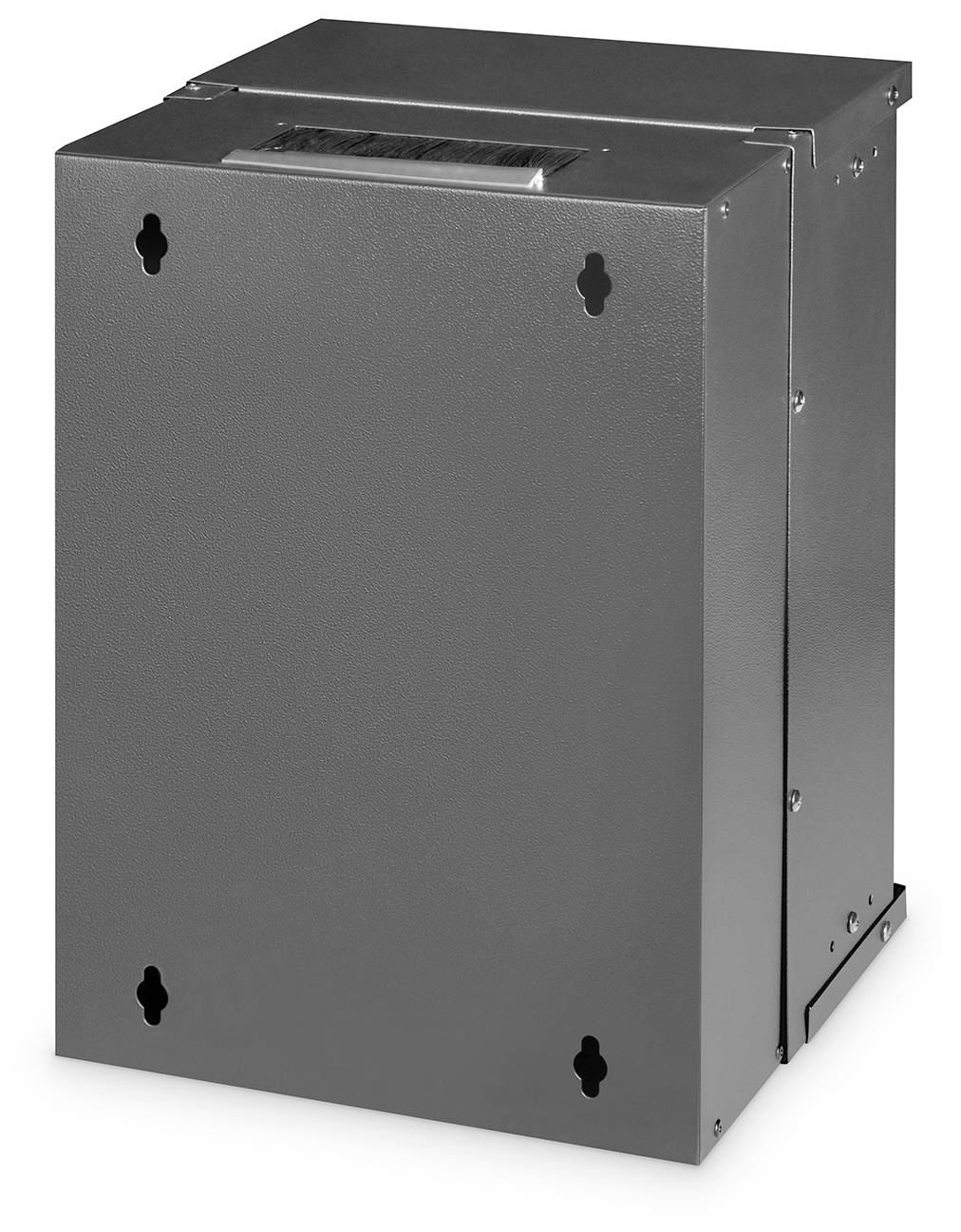

A grey, rectangular metal device with ventilation slots on top. Possibly a technical enclosure or housing for electrical equipment.

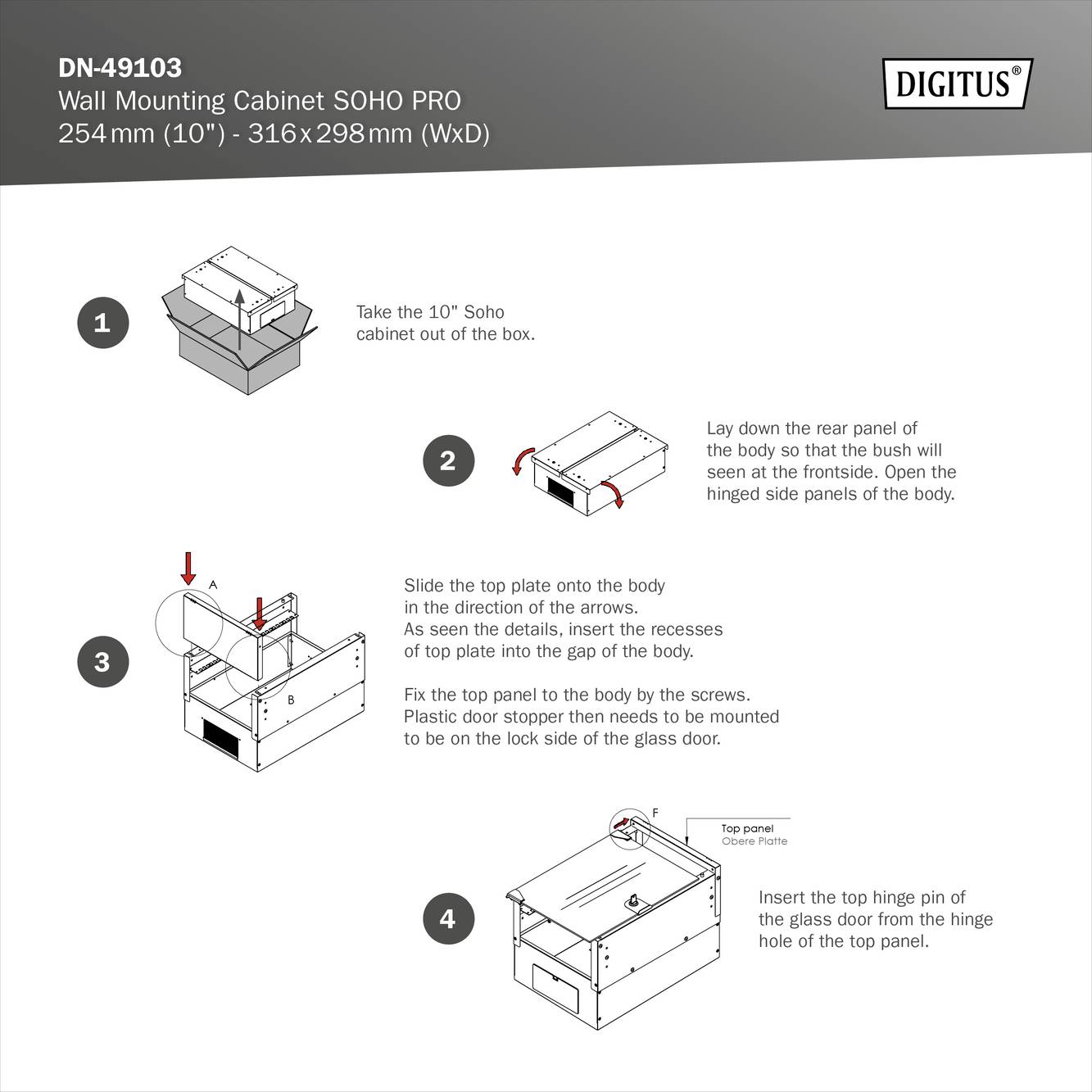

'Instructions for Installing a 10-Inch Wall Cabinet. Steps: 1) Remove top section, 2) Position side panel, 3) Clip in drawer runners, 4) Insert upper hinge.'

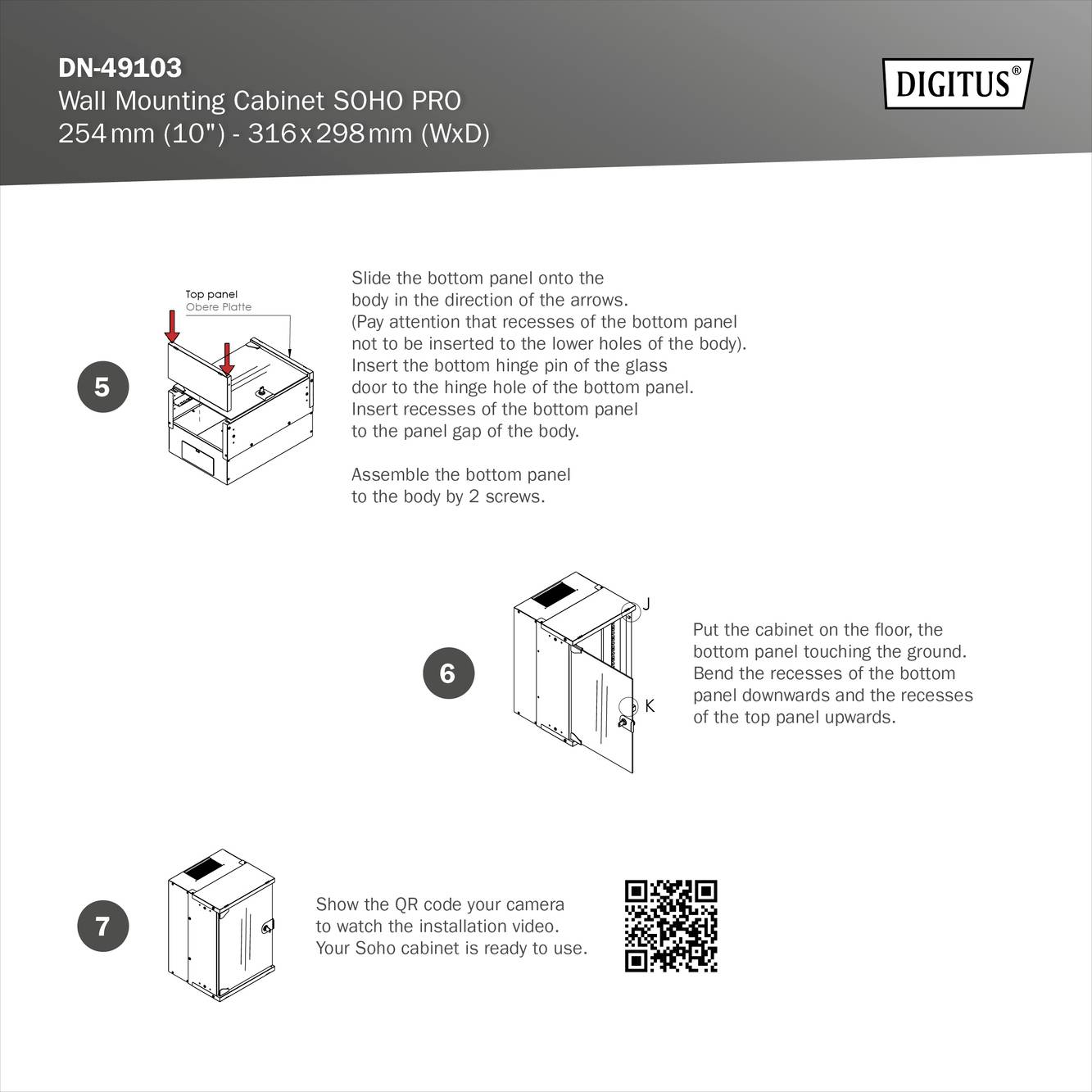

Instructions for DN-49103 Wall-Mounted Cabinet. Steps describe the mounting process with images and QR code.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

10" 9HE wall housing, SOHO PRO 460 x 315 x 300 mm, black

Highlights & Details

Supplied unassembled in optimized flat pack
Especially user-friendly, quick installation
Compact housing for 254 mm (10 ") network installations

Technical specifications

Product type: 10" wall cabinet

Rack unit: 9 U

Width: 315 mm

Height: 460 mm

Depth: 300 mm

Material: Glass
Steel

Dim: (W x H x D) 315 x 460 x 300 mm

Weight: 6.76 kg

Factory colour: Black
Black (RAL 9005)

Rack size: 254 mm (10")

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3207652 Digitus DN-49103 10" wall cabinet (W x H x D) 315 x 460 x 300 mm 9 U Black, Black (RAL 9005)

User & Safety Instructions

User & Safety Instructions 3207652 Digitus DN-49103 10" wall cabinet (W x H x D) 315 x 460 x 300 mm 9 U Black, Black (RAL 9005)

Description

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 254 mm (10") solutions of the SOHO PRO series. Available in three height units (6HE, 9HE, 12HE), the wall-mounted units are equipped with a full-glass door and a cable entry in the roof and floor. A pair of galvanized, with readable rack units labeled 254 mm (10") rails are installed in the interior. The depth of these can be adjusted. Each cabinet is a sturdy steel construction made of up to 1.5 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). A door stop can be changed. The network cabinets are delivered unassembled in an optimized flat pack. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions.

This text is machine translated.

Features

Protection class: IP20
Lockable safety glass door
200° door opening angle

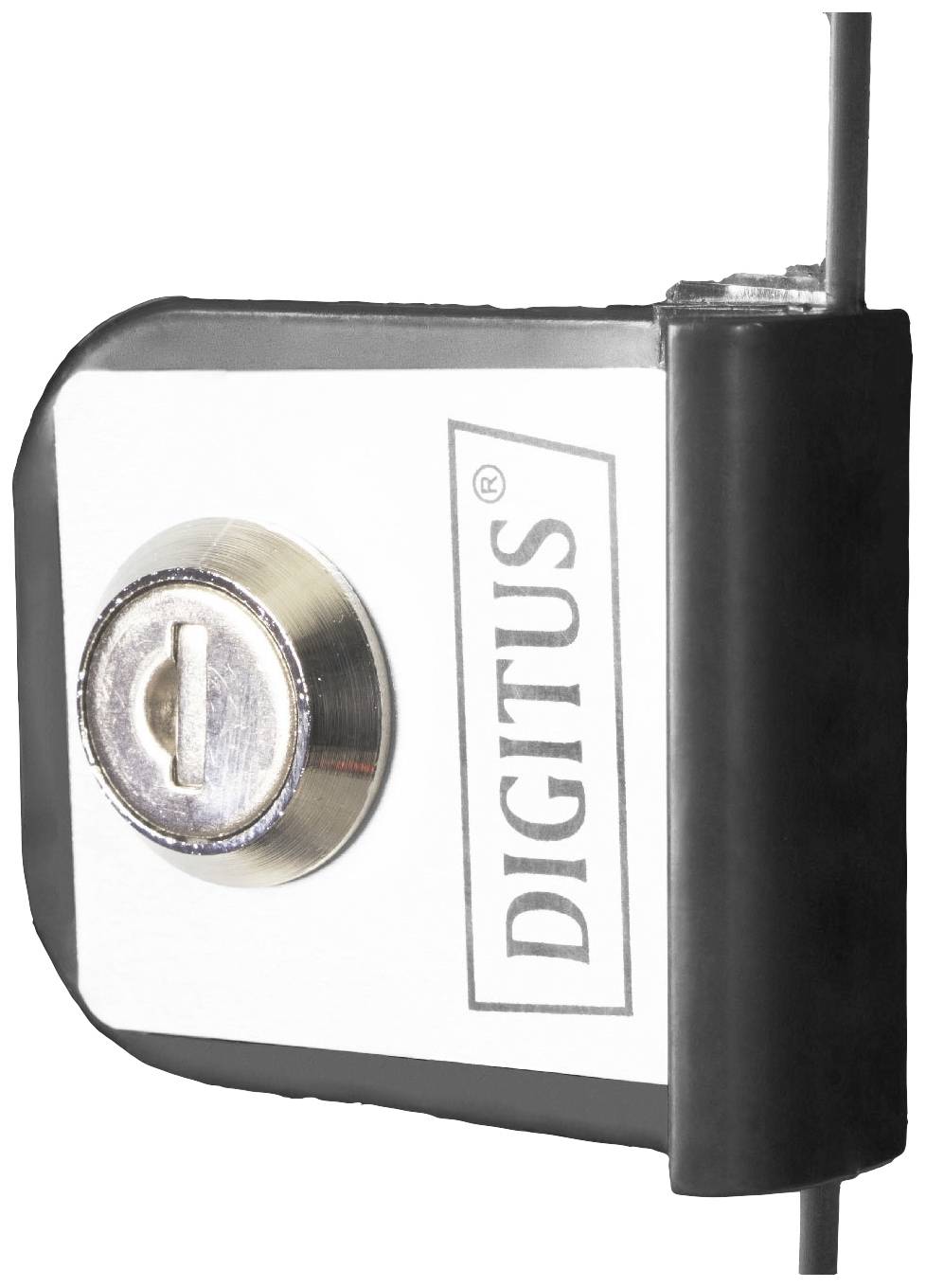

1-point lock on the front door
254 mm (10 ") profile rails installed on the front inside the cabinet, galvanized
Depth adjustable with 254 mm (10 ") rails
1.1 - 1.5 strong steel sheet with a high load capacity, powder-coated

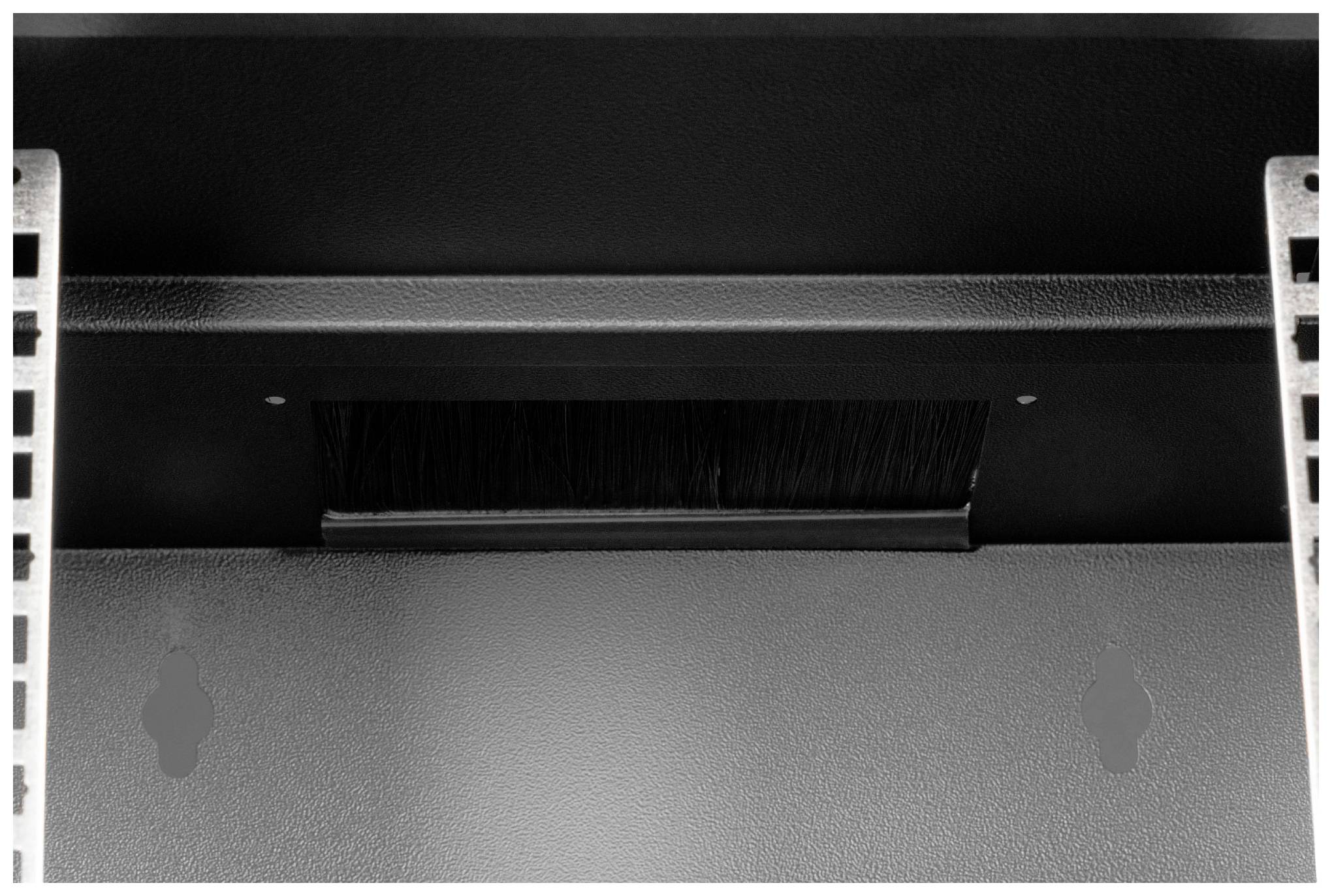

Cable input with brush strip in the roof and with plastic cover in the ground

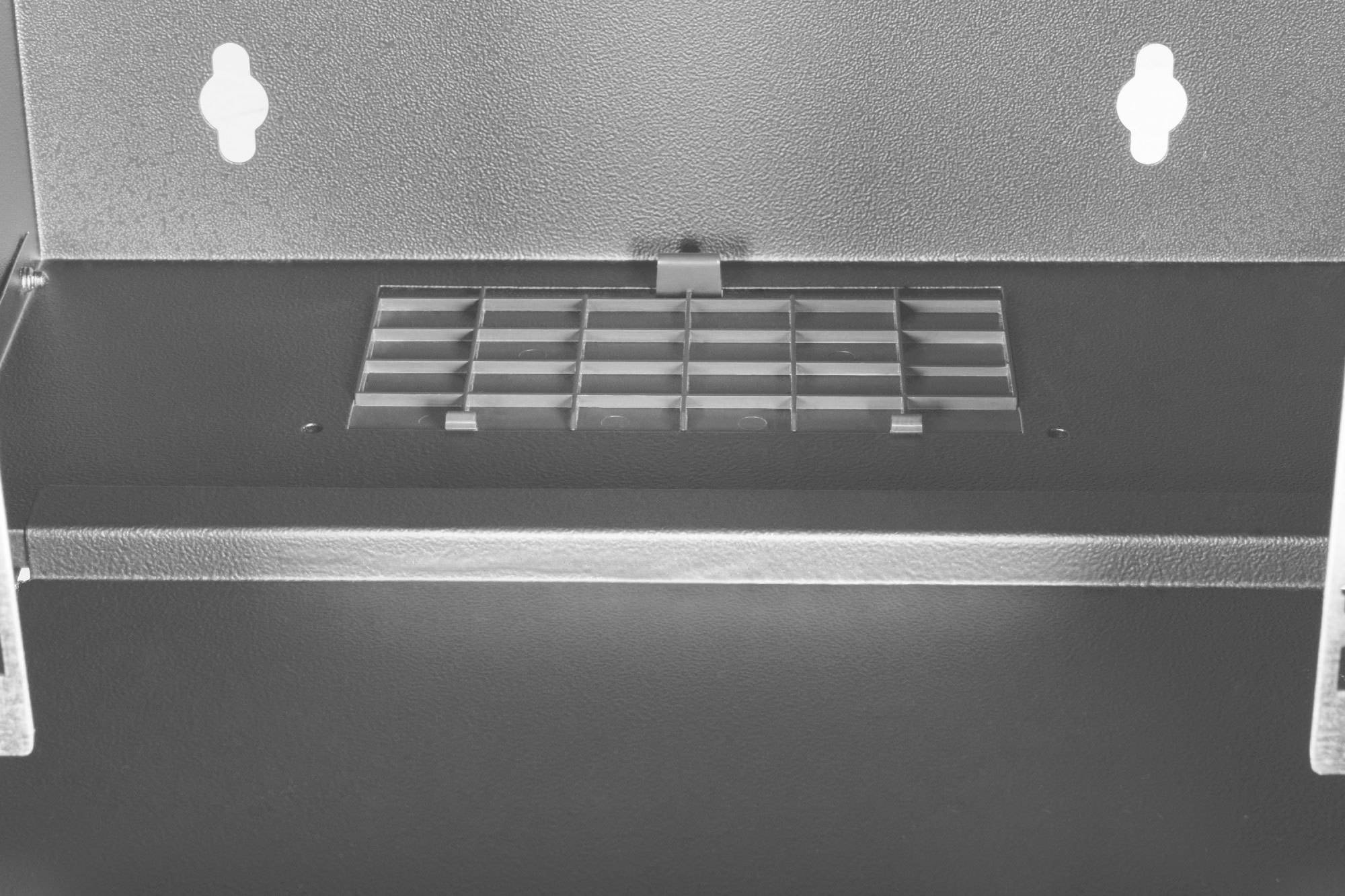

Ventilation slots for active and passive ventilation
Front door: Glass door, single-leaf
Cabinet type: Wall housing
Side walls: Both sides
60 kg load capacity
Mounted: No.
