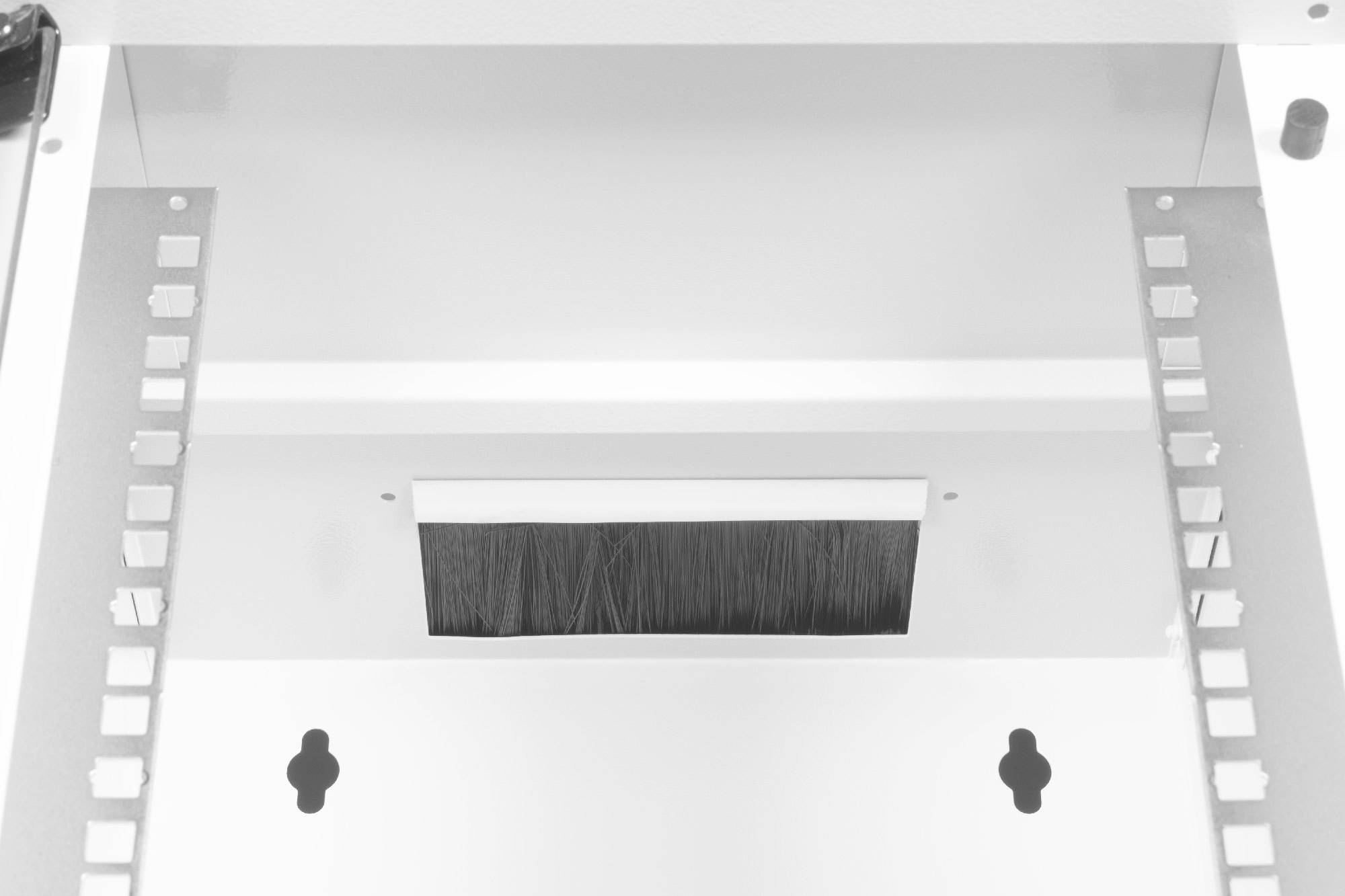

A blank, white server cabinet viewed from above, featuring two vertical mounting rails on the sides and a rectangular ventilation slot in the centre.

A vacant metal shelf with two vertical mounting brackets and a ventilation grille in the centre, suitable for installing technical components.

A square lock with a keyhole, marked with the inscription 'DIGITUS'.

Digitus DN-49104 10" wall cabinet (W x H x D) 315 x 595 x 300 mm 12 U Grey, Grey (metal housing), Grey (RAL 7035)-5

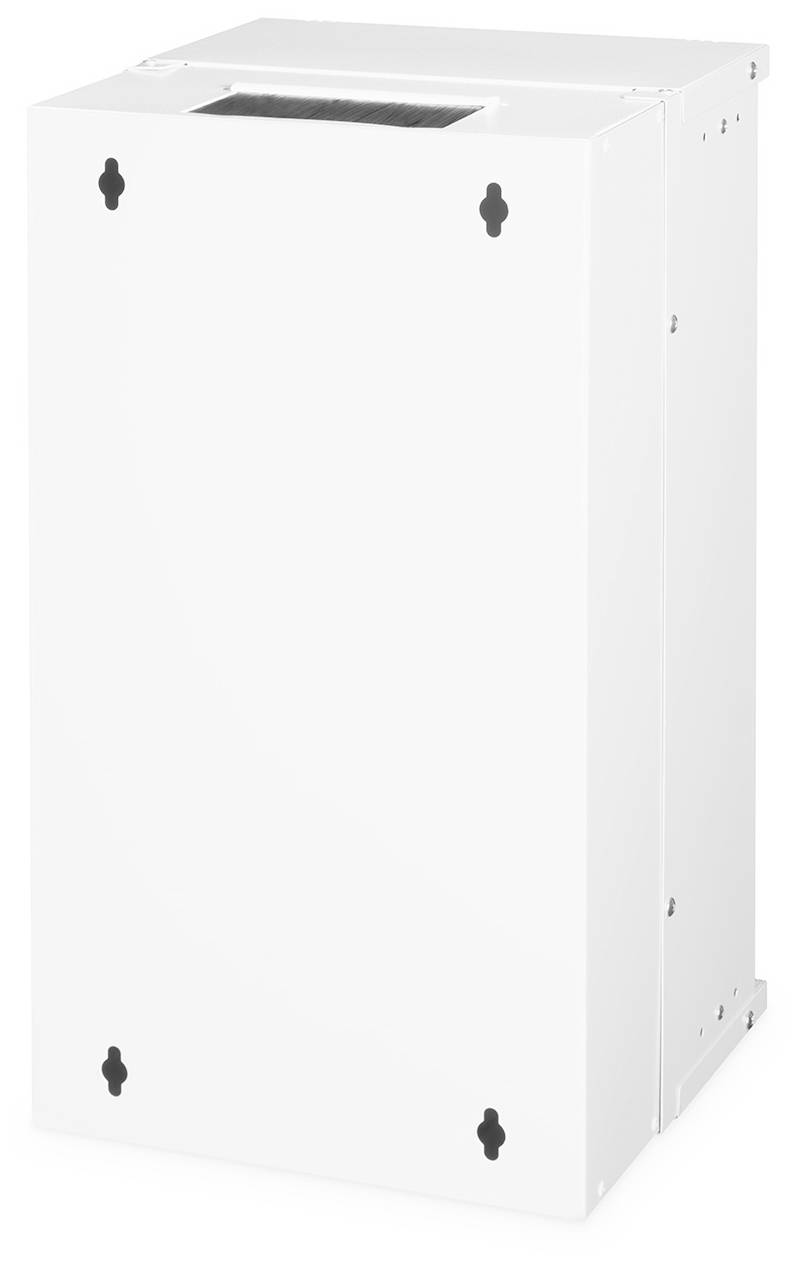

White rectangular device with ventilation slots on the top, possibly an air purifier or ventilation unit.

A large, sturdy cardboard box, sealed with adhesive tape.

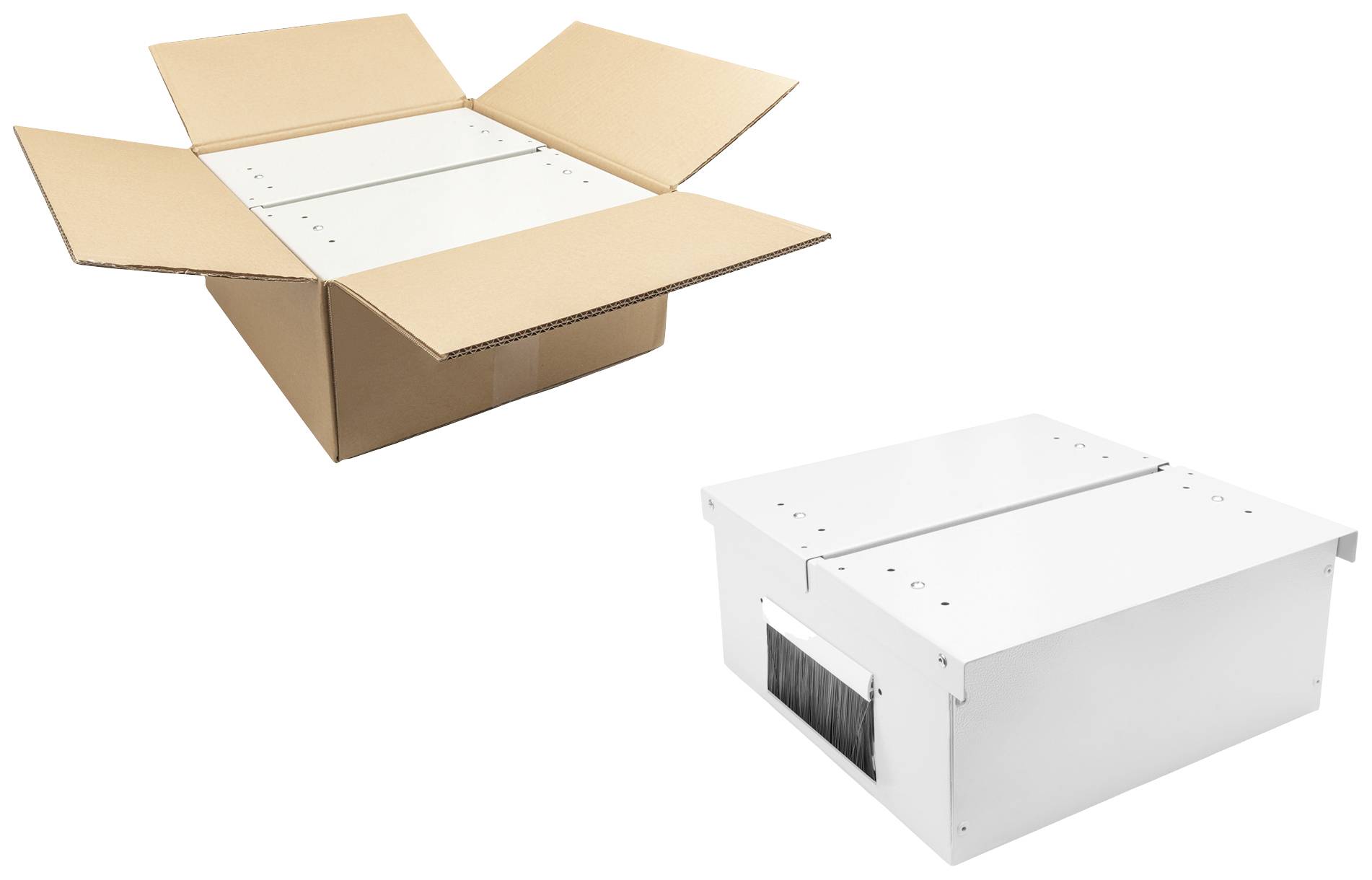

Two metal enclosures: One in an open cardboard box and one without a box. The enclosures are suitable for wiring or installation.

A white automated machine with a brush mechanism and two openings. A hand lifts the upper cover.

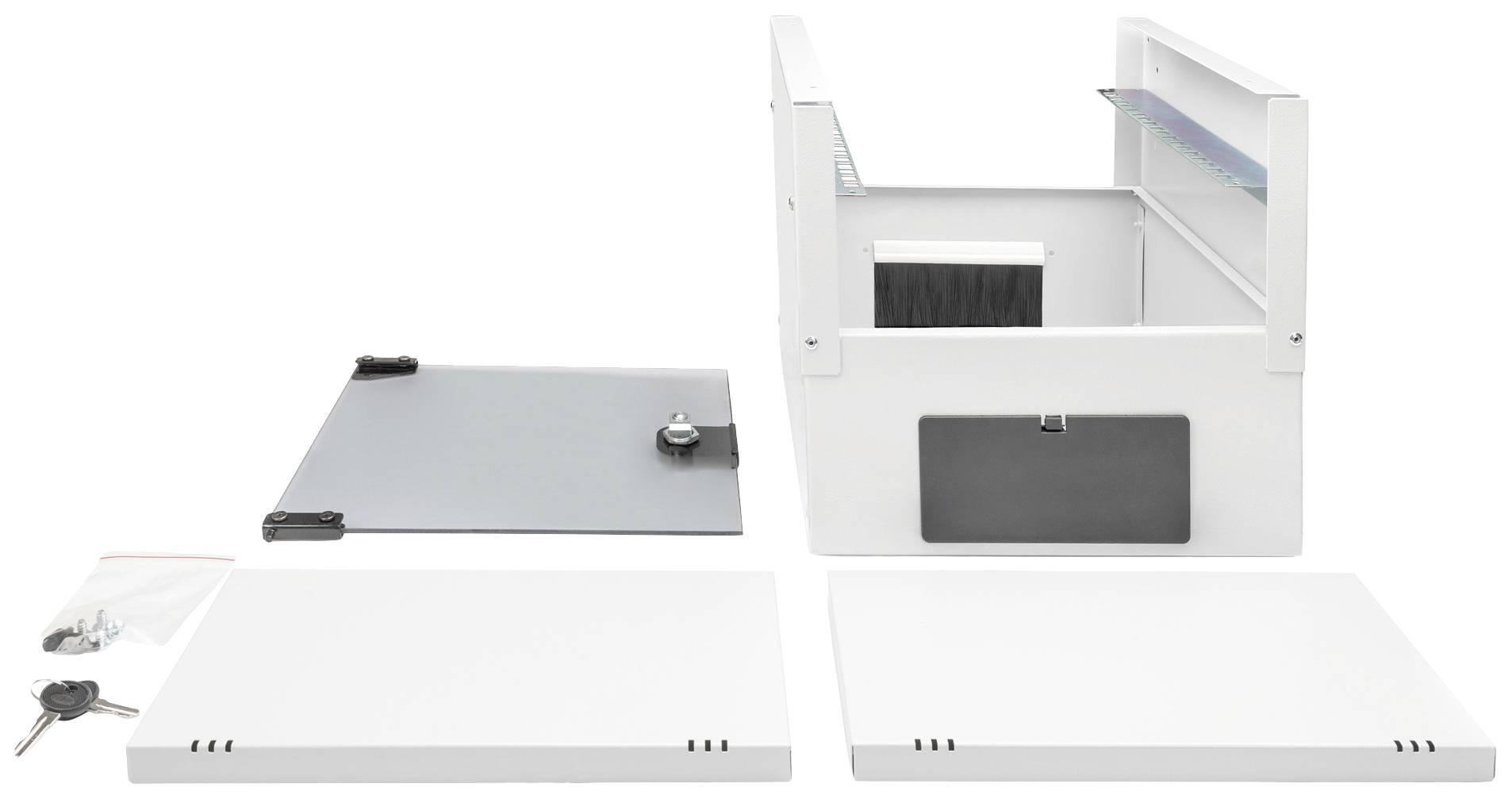

Parts of a white safe: main housing, two covers, a metal plate with a lock, and a key set.

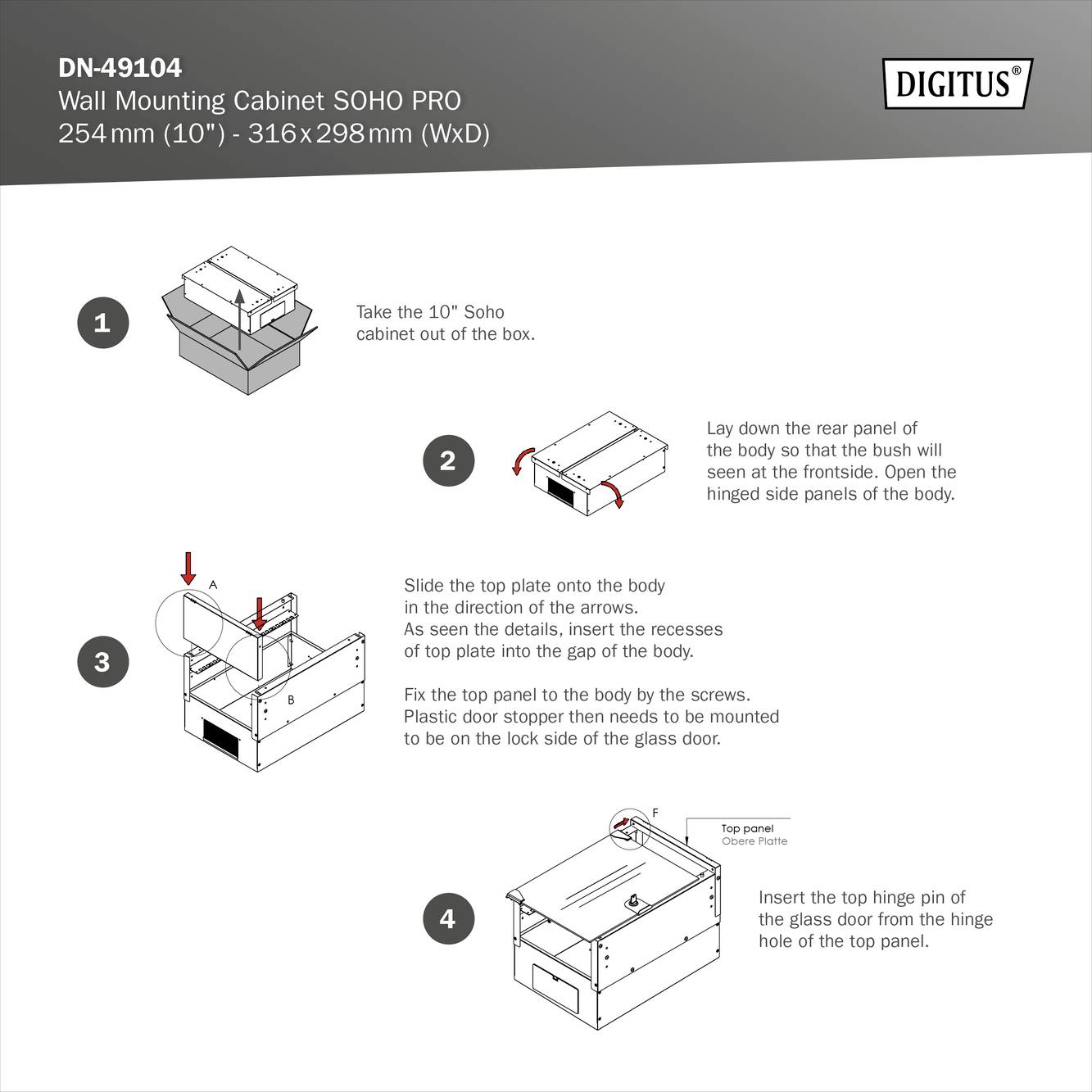

'Instructions for Assembling the 10-inch SOHO PRO Wall Enclosure. Steps: Remove the top section, unfold the side panel, install the door, secure the enclosure.'

Digitus DN-49104 10" wall cabinet (W x H x D) 315 x 595 x 300 mm 12 U Grey, Grey (metal housing), Grey (RAL 7035)-12

1/13

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

10" 12HE wall housing, SOHO PRO 595 x 315 x 300 mm, gray

Highlights & Details

Supplied unassembled in optimized flat pack
Especially user-friendly, quick installation
Compact housing for 254 mm (10 ") network installations

Technical specifications

Product type: 10" wall cabinet

Rack unit: 12 U

Width: 315 mm

Height: 595 mm

Depth: 300 mm

Material: Glass
Steel

Dim: (W x H x D) 315 x 595 x 300 mm

Weight: 8.262 kg

Factory colour: Grey
Grey (metal housing)
Grey (RAL 7035)

Rack size: 254 mm (10")

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3207653 Digitus DN-49104 10" wall cabinet (W x H x D) 315 x 595 x 300 mm 12 U Grey, Grey (metal housing), Grey (RAL 7035)

User & Safety Instructions

User & Safety Instructions 3207653 Digitus DN-49104 10" wall cabinet (W x H x D) 315 x 595 x 300 mm 12 U Grey, Grey (metal housing), Grey (RAL 7035)

Description

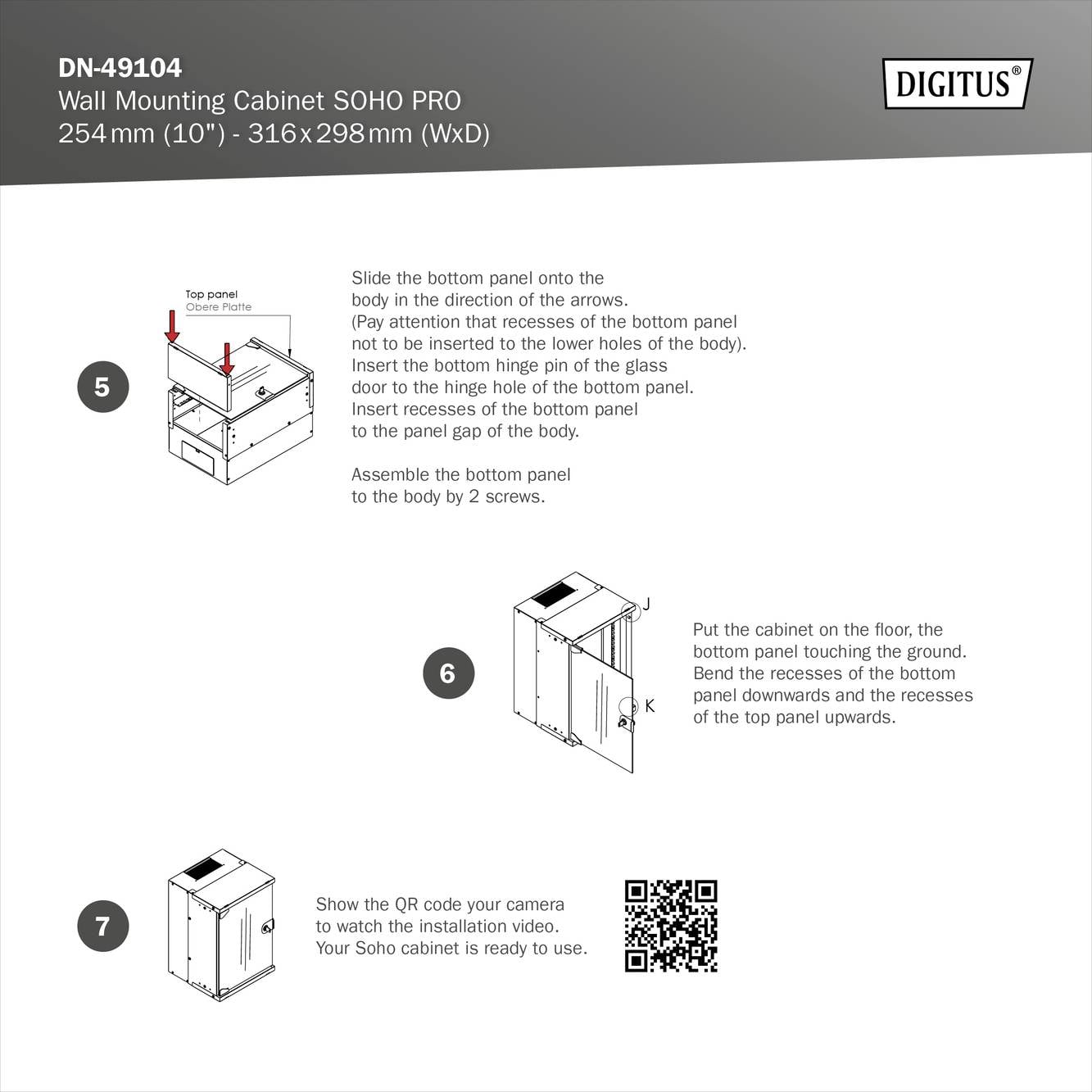

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 254 mm (10") solutions of the SOHO PRO series. Available in three height units (6HE, 9HE, 12HE), the wall-mounted units are equipped with a full-glass door and a cable entry in the roof and floor. A pair of galvanized, with readable rack units labeled 254 mm (10") rails are installed in the interior. The depth of these can be adjusted. Each cabinet is a sturdy steel construction made of up to 1.5 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). A door stop can be changed. The network cabinets are delivered unassembled in an optimized flat pack. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions.

This text is machine translated.

Features

Protection class: IP20

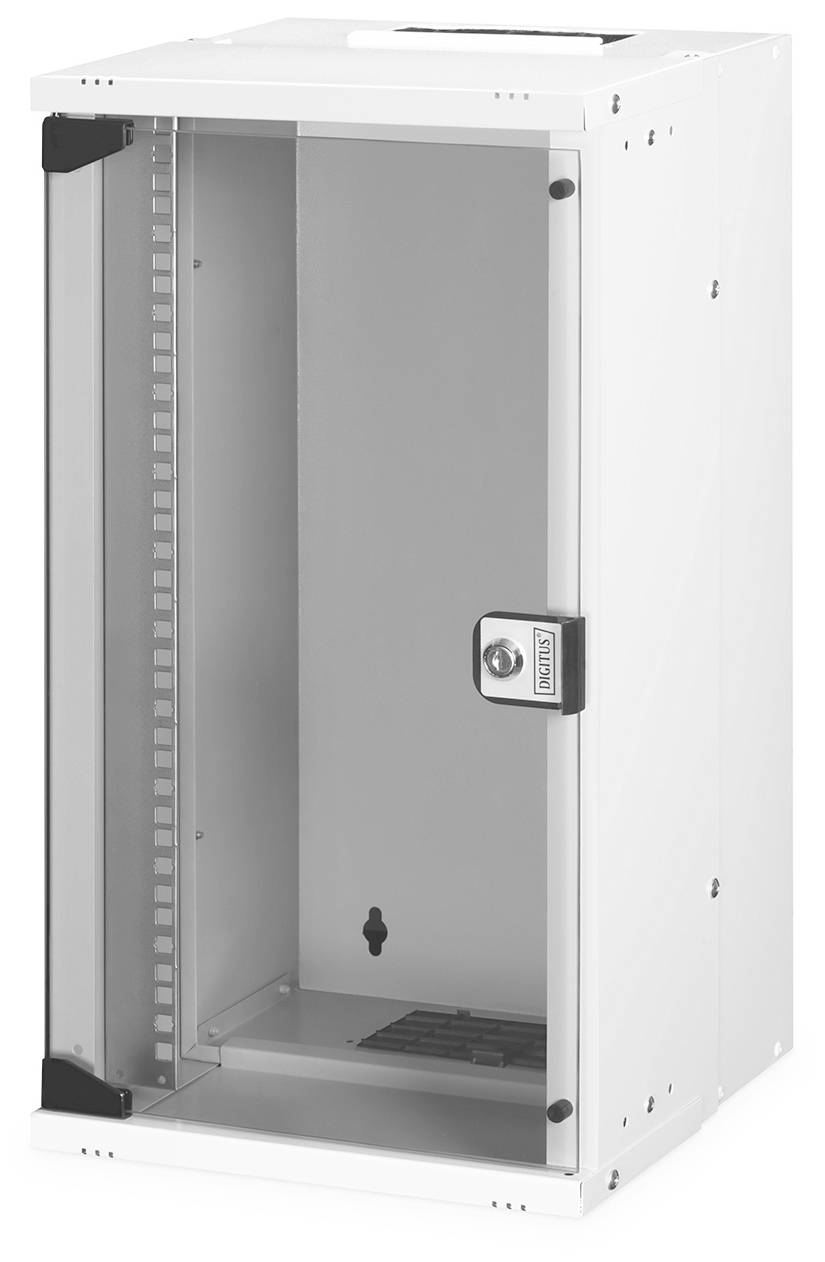

Lockable safety glass door
200° door opening angle

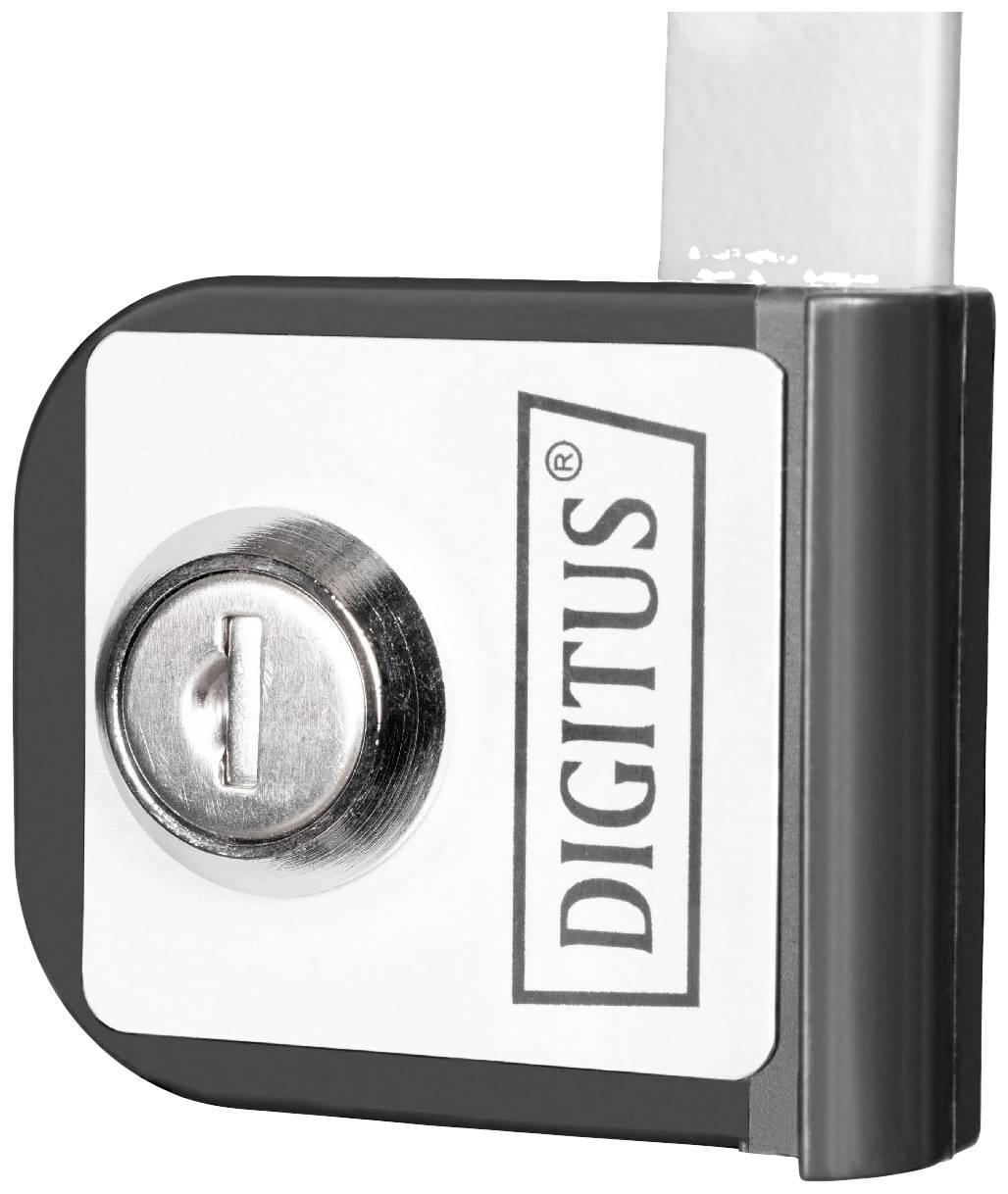

1-point lock on the front door

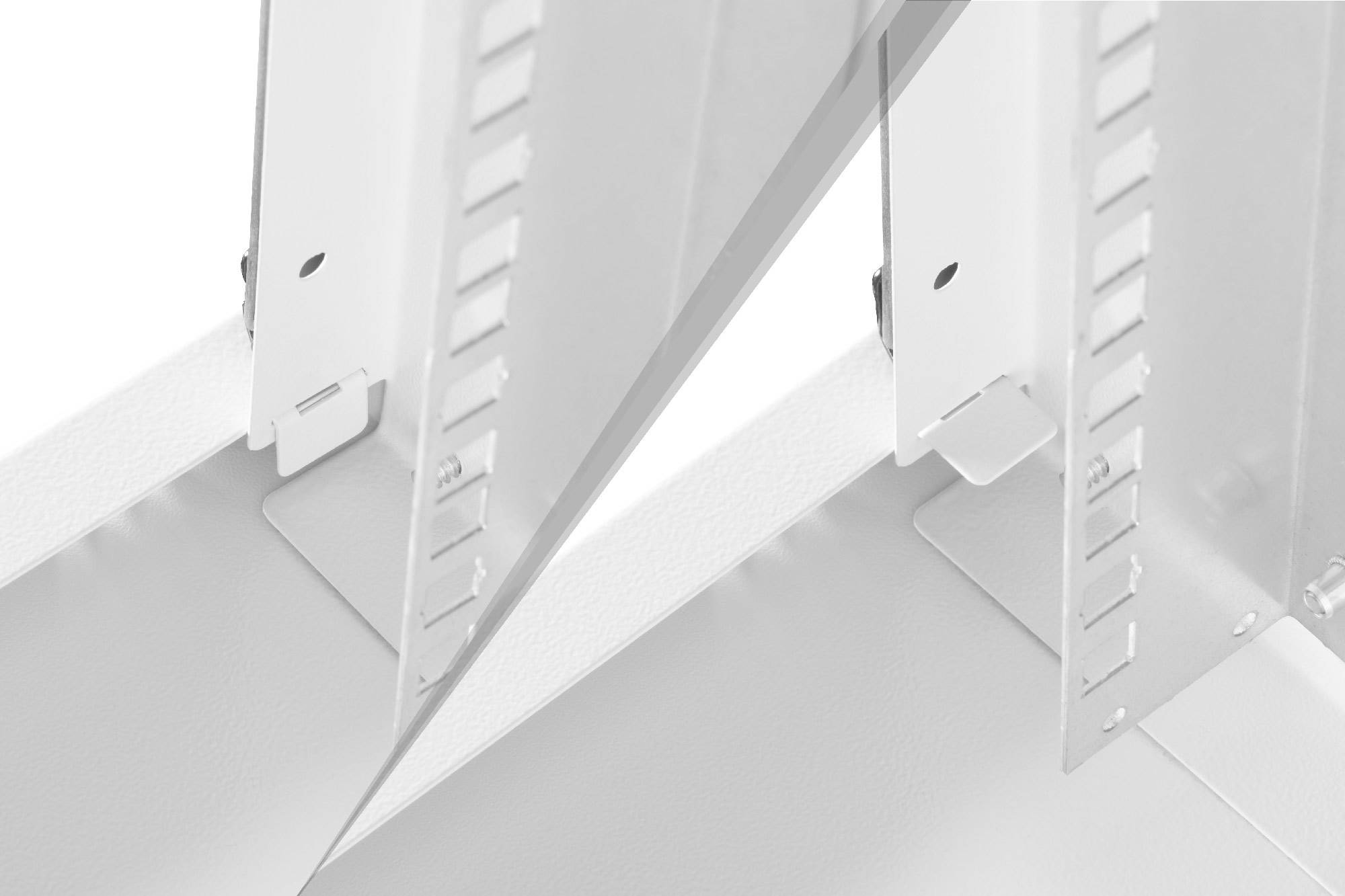

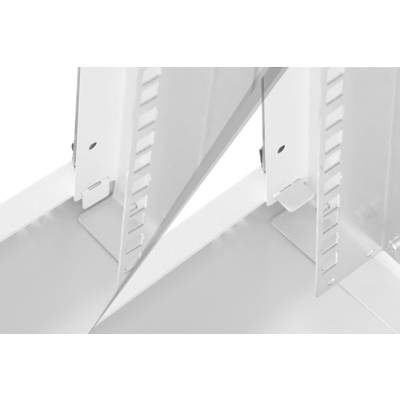

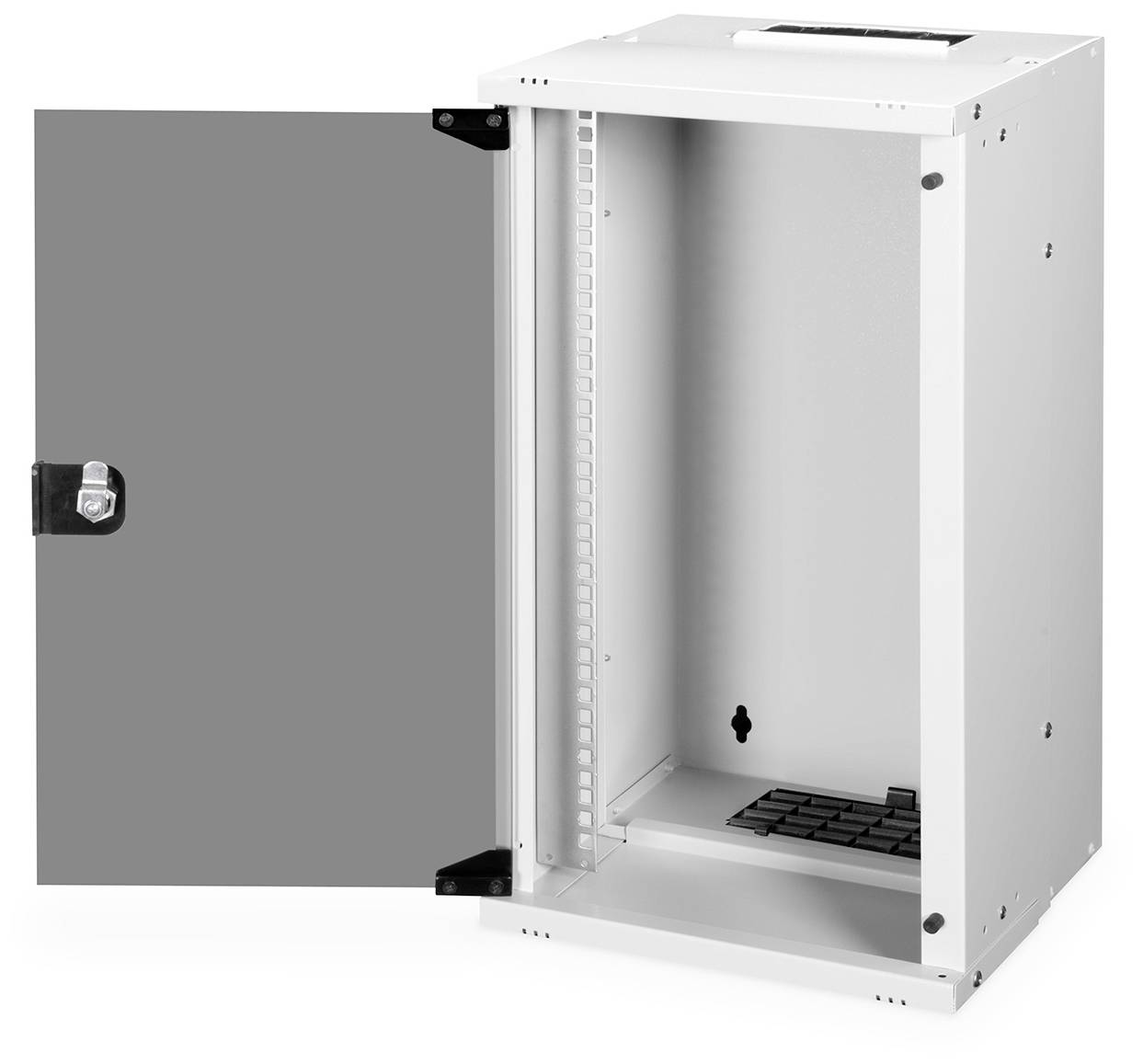

254 mm (10 ") profile rails installed on the front inside the cabinet, galvanized
Depth adjustable with 254 mm (10 ") rails
1.1 - 1.5 strong steel sheet with a high load capacity, powder-coated

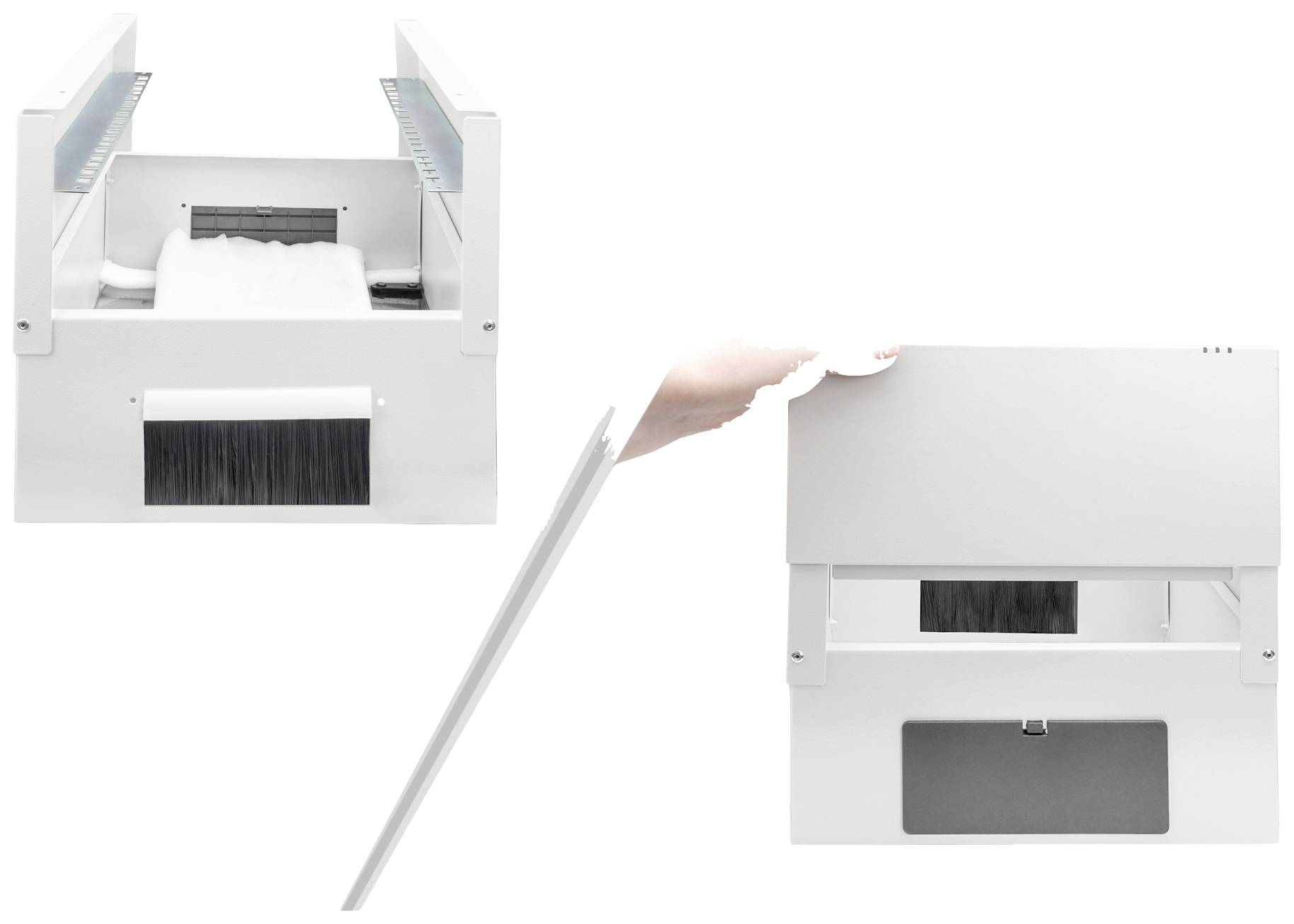

Cable input with brush strip in the roof and with plastic cover in the ground

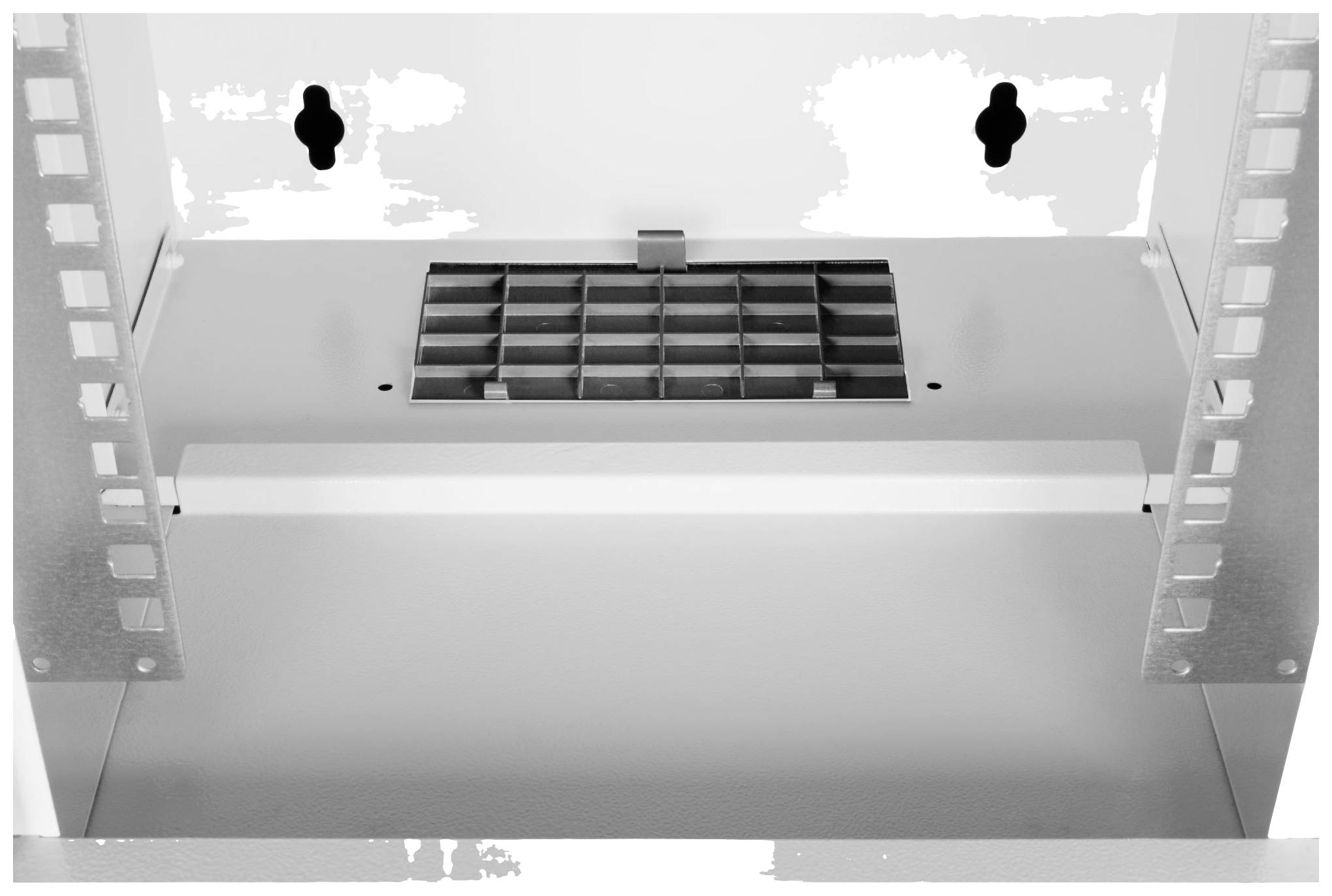

Ventilation slots for active and passive ventilation
Front door: Glass door, single-leaf
Side walls: Both sides
60 kg load capacity
Mounted: No.
