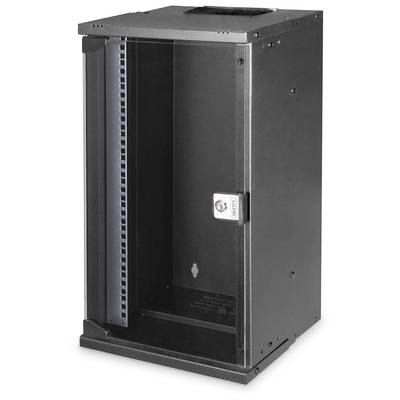

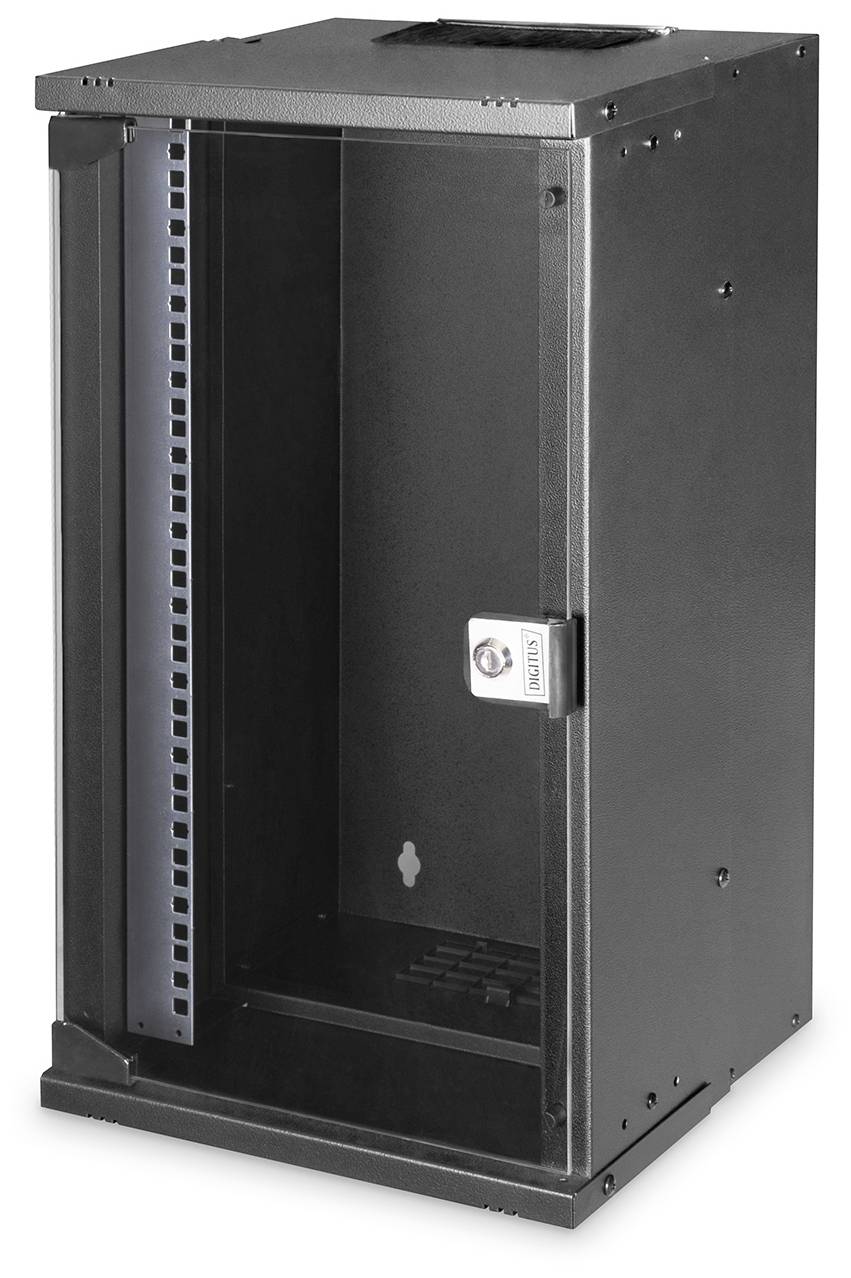

An open, black server cabinet with a glass door secured by a lock on the right side. The cabinet is empty and ready for use.

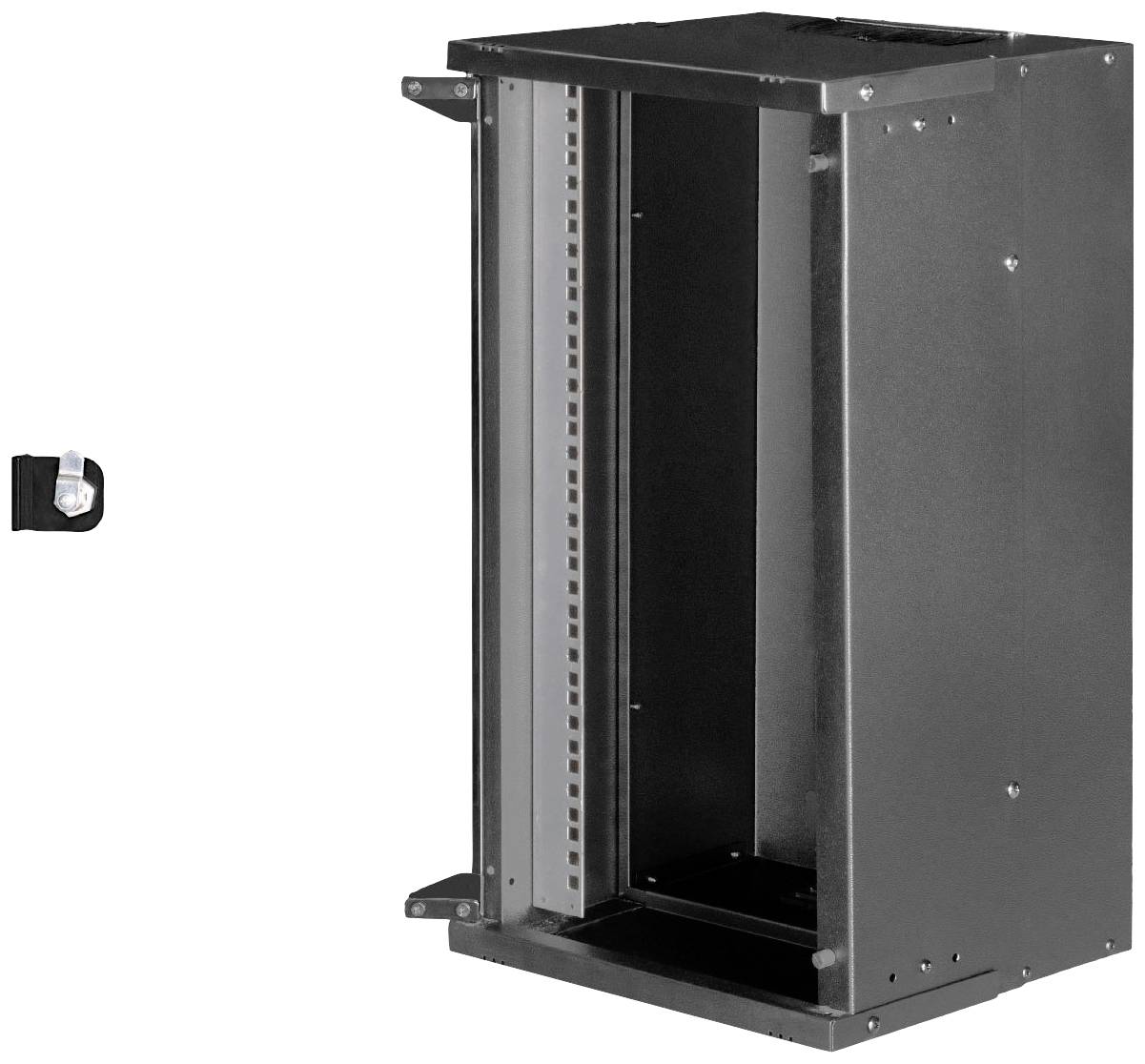

Black wall-mounted server rack without doors, positioned to the right of a small wall-mounted bracket in the same colour.

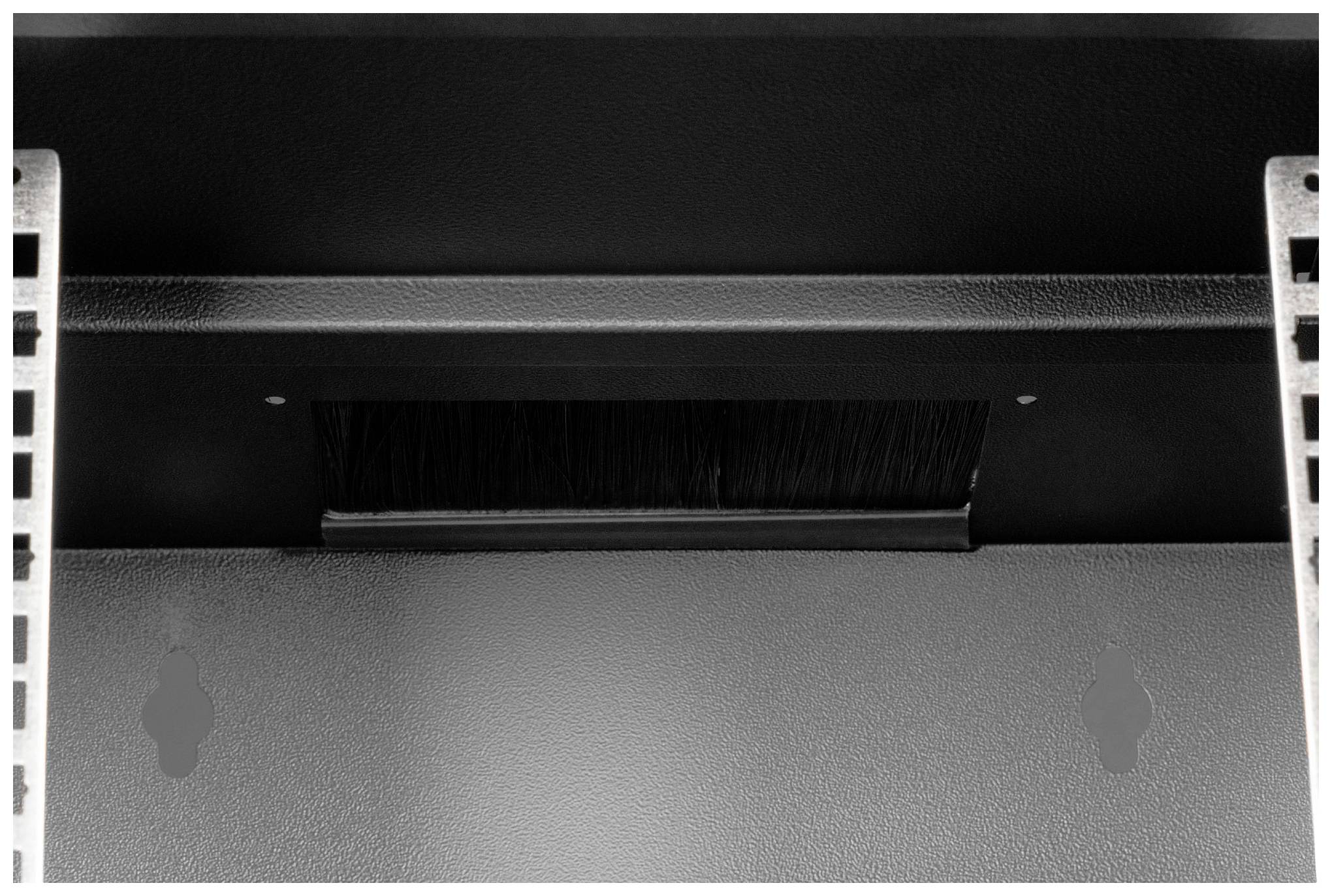

Metallic network enclosure with brush cut-out for cable routing in the centre, surrounded by vertical rails.

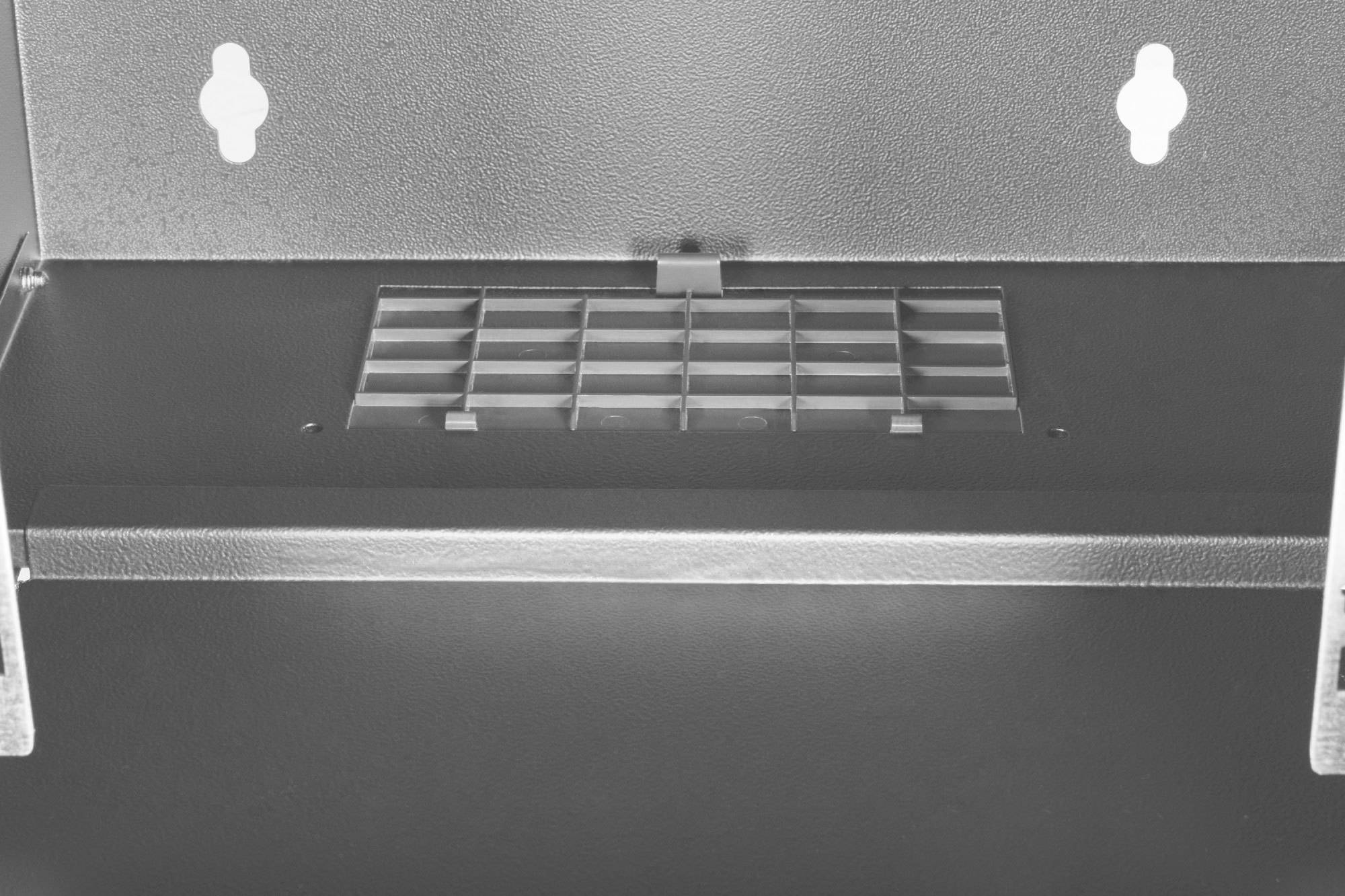

Back of a metallic enclosure with mounting and ventilation slots. The structure is designed simply and functionally.

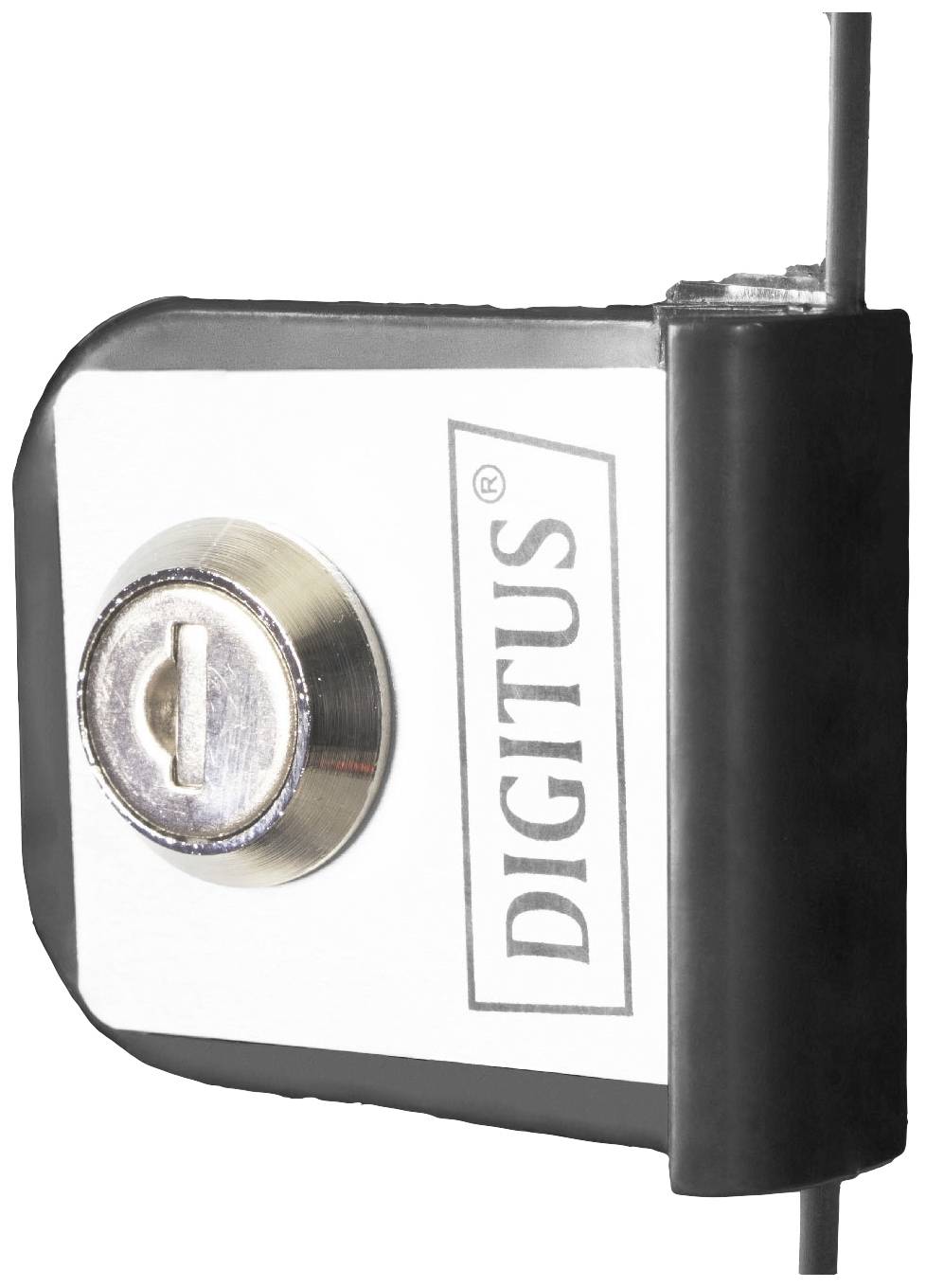

A silver lock with a keyhole, mounted on a black frame. To the right is the word 'DIGITUS'.

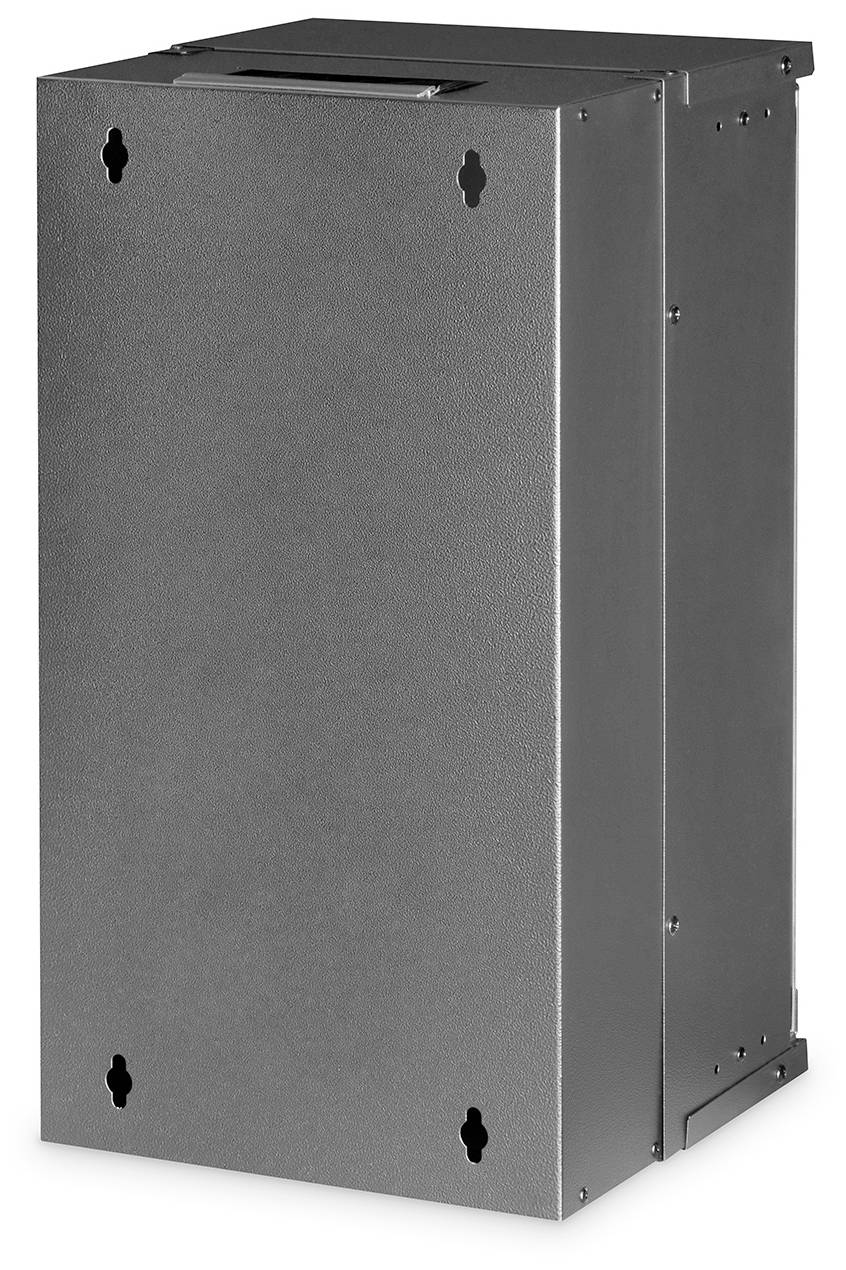

Metal case with a rectangular shape and four screw holes. Portrait view, smooth surface structure.

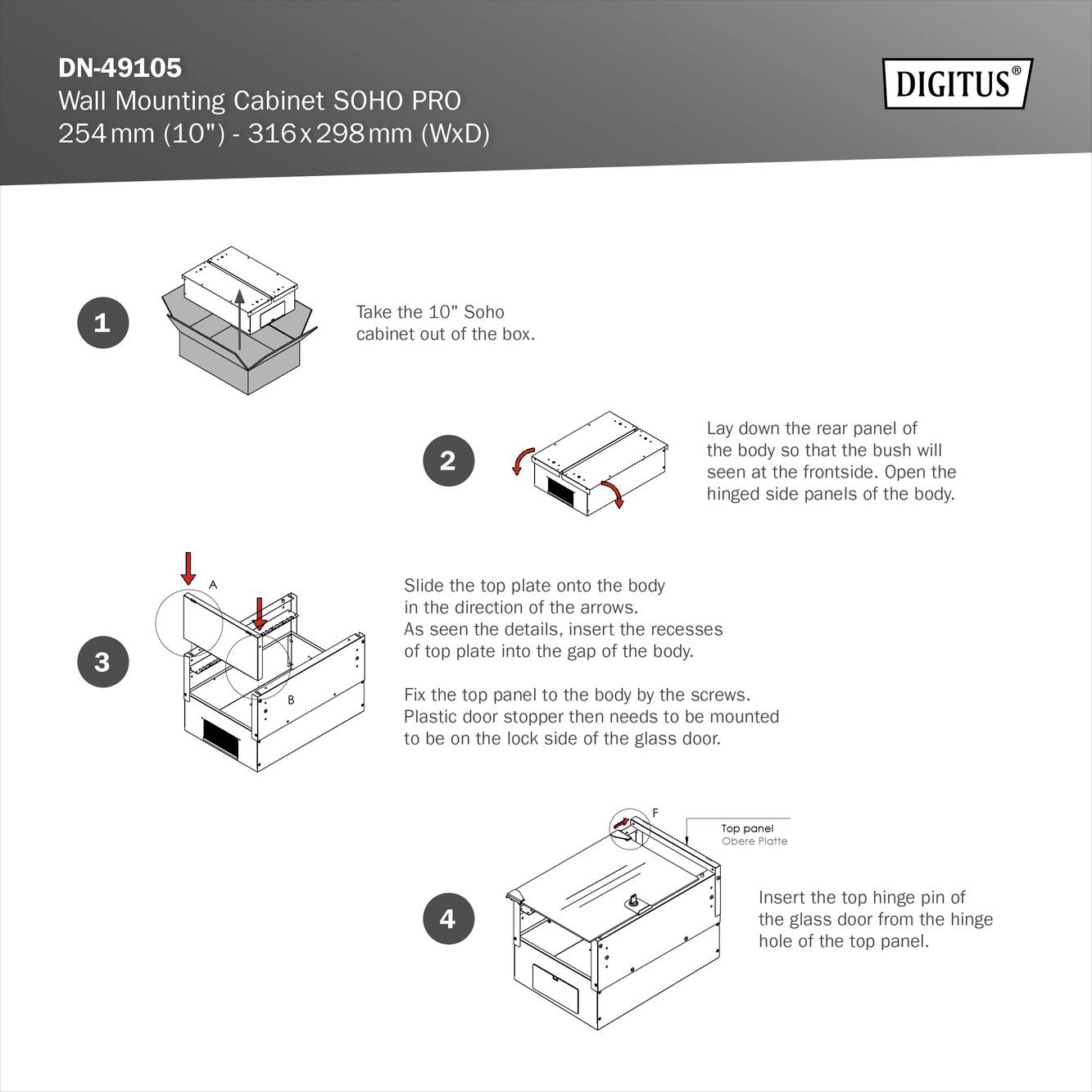

'Installation Instructions for the Soho Pro Wall-Mounted Cabinet. Step-by-Step Assembly Procedure with Illustrated Guidance.'

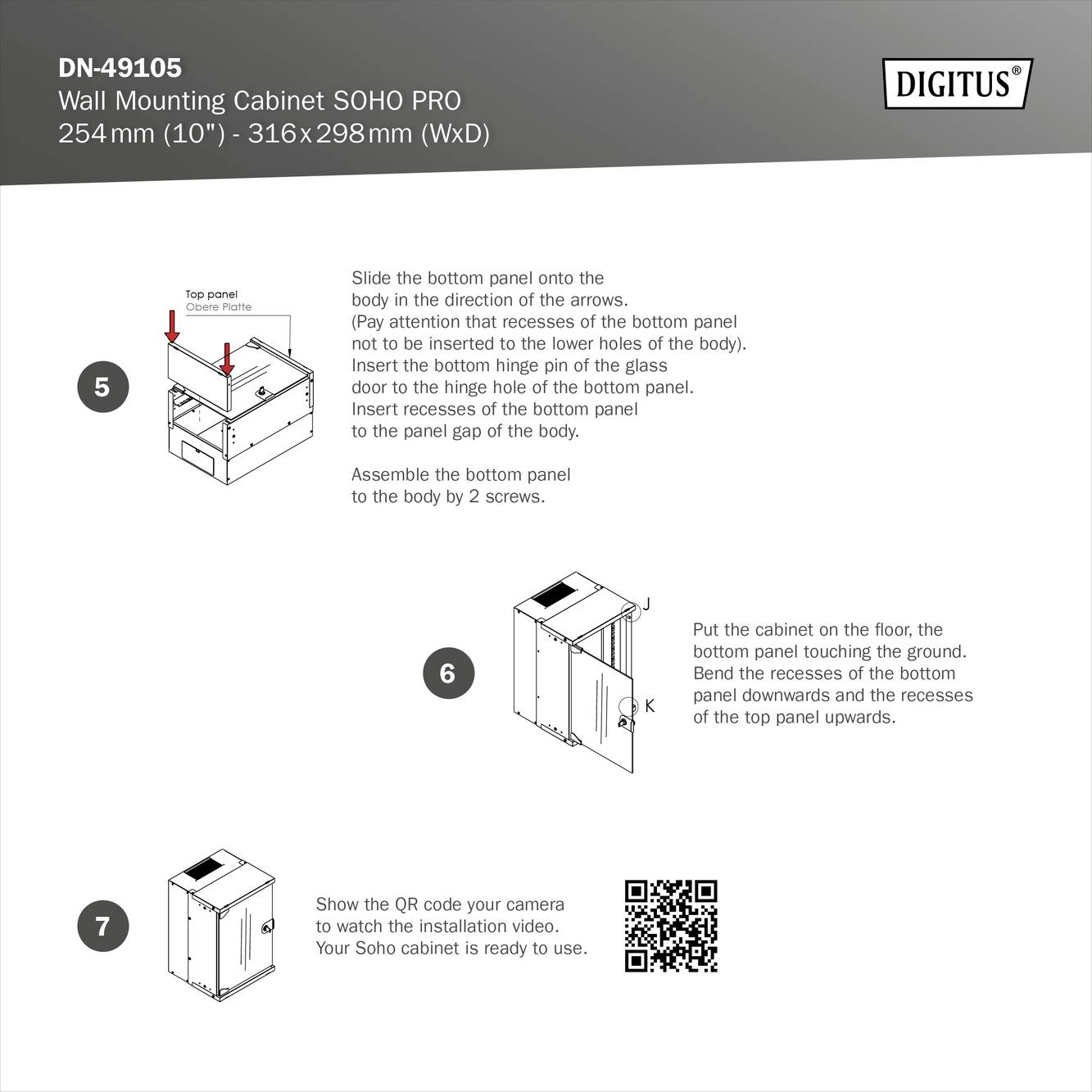

Step-by-Step Guide to Installing a Wall Enclosure. Shows illustrations and instructions for attaching mounting screws.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

10" 12HE wall housing, SOHO PRO 595 x 315 x 300 mm, black

Highlights & Details

Supplied unassembled in optimized flat pack
Especially user-friendly, quick installation
Compact housing for 254 mm (10 ") network installations

Technical specifications

Product type: 10" wall cabinet

Rack unit: 12 U

Width: 315 mm

Height: 595 mm

Depth: 300 mm

Material: Glass
Steel

Dim: (W x H x D) 315 x 595 x 300 mm

Weight: 8.153 kg

Factory colour: Black
Black (RAL 9005)

Rack size: 254 mm (10")

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3207654 Digitus DN-49105 10" wall cabinet (W x H x D) 315 x 595 x 300 mm 12 U Black, Black (RAL 9005)

User & Safety Instructions

User & Safety Instructions 3207654 Digitus DN-49105 10" wall cabinet (W x H x D) 315 x 595 x 300 mm 12 U Black, Black (RAL 9005)

Description

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 254 mm (10") solutions of the SOHO PRO series. Available in three height units (6HE, 9HE, 12HE), the wall-mounted units are equipped with a full-glass door and a cable entry in the roof and floor. A pair of galvanized, with readable rack units labeled 254 mm (10") rails are installed in the interior. The depth of these can be adjusted. Each cabinet is a sturdy steel construction made of up to 1.5 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). A door stop can be changed. The network cabinets are delivered unassembled in an optimized flat pack. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions.

This text is machine translated.

Features

Protection class: IP20
Lockable safety glass door
200° door opening angle
1-point lock on the front door
254 mm (10 ") profile rails installed on the front inside the cabinet, galvanized
Depth adjustable with 254 mm (10 ") rails
1.1 - 1.5 strong steel sheet with a high load capacity, powder-coated
Cable input with brush strip in the roof and with plastic cover in the ground
Ventilation slots for active and passive ventilation
Front door: Glass door, single-leaf
Side walls: Both sides
60 kg load capacity
Mounted: No.
