Digitus DN-49200-SET 19" server rack cabinet (W x H x D) 540 x 4 x 400 mm 4 U Grey
EAN:
Part number:
Item no:

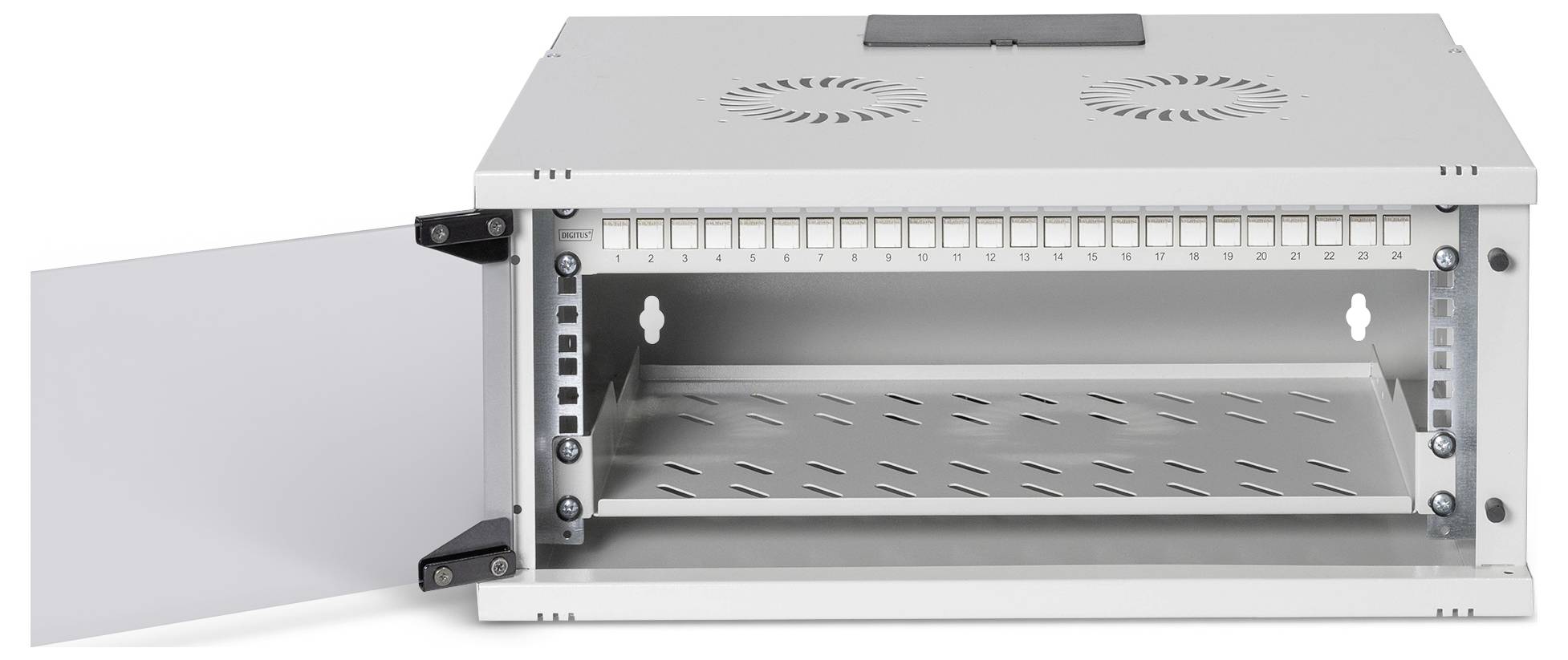

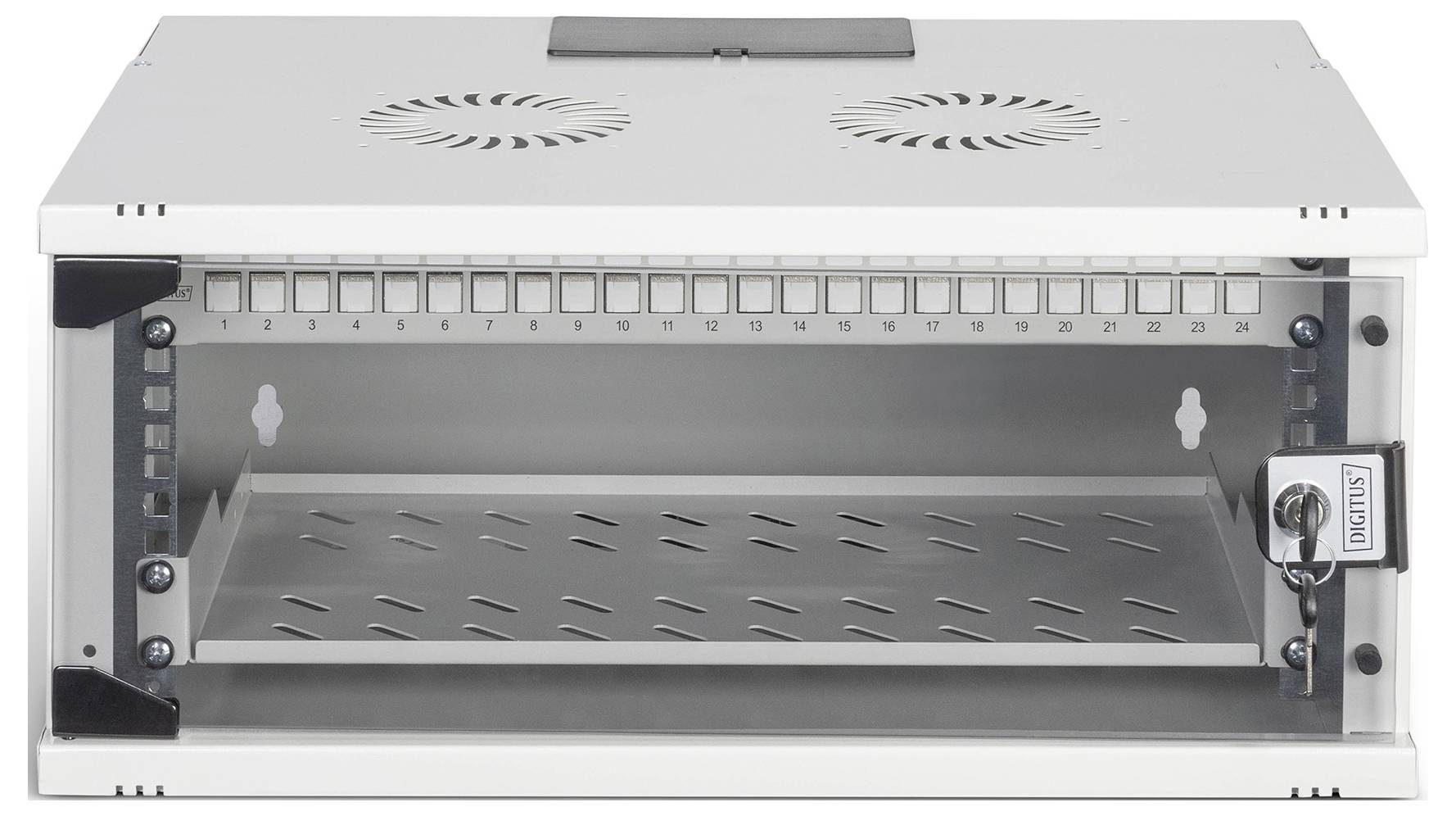

Digitus Network-Set SOHO Pro, 483 mm (19") - 4HE, 540 x 400 mm (W x D)
Highlights & Details
- Maximum design freedom: Thanks to unassembled delivery, individual positioning of all 19" components is possible.
- Including wall housing SOHO PRO, 4HE, 240 x 540 x 400 mm, unmounted (DN-49200)
- Including shelf, 1HE (DN-97609)
- Including modular patch panel, 24-port (DN-91410)
- Includes 24 x Keystone module, CAT 6A, shielded (DN-93615-24)
- Inclusive 30 x Patch cable, CAT 6A, S/FTP, 0.25 m
Technical specifications
- Dimensions of wall-mounted housing (H × W × D): 240 × 540 × 400 mm
- Keystone Module: Category 6A, 10GBase-T, 500 MHz
- CAT 6A S-FTP, Cu, LSZH, AWG 26/7, length 0.25 m
- Width 540 mm
- HE 4
- Depth: 400 mm
- 60 kg load capacity
- IP protection class IP20
- Product type
19" server rack cabinet
- Rack unit
4 U
- Width
540 mm
- Height
4 U
- Depth
400 mm
- Material
Steel plate
- Dim
(W x H x D) 540 x 4 x 400 mm
- Weight
11.7 kg
- Factory colour
Grey
- Rack size
483 mm (19")
- Wireless charging
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3462099 Digitus DN-49200-SET 19" server rack cabinet (W x H x D) 540 x 4 x 400 mm 4 U Grey
Description
Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 483 mm (19") solutions of the SOHO Pro series. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions. Available in four rack units (4HE, 7HE, 9HE, 12HE) in these network sets perfectly tuned Digitus components are supplemented with one another in order to ensure a fast and easy functioning IT-cabling. The network cabinet as well as the respective accessories (e.g. Switch, Patch Panel, Socket connector, shelf, Cable management panel, Patch cables, etc.) are supplied in a compact box.
This text is machine translated.
This text is machine translated.
Features
- Dimensions of wall-mounted housing (H x W x D) 240 x 540 x 400 mm (Supplied unassembled)
- Keystone Module: Category 6A 10GBase-T, 500 MHz, suitable for PoE/PoE+/4PPPoE (IEEE 802.3af, 802.3at, 802.3at), GHMT certified
- Patch cable CAT 6A S-FTP, Cu, LSZH, AWG 26/7, length 0.25 m, Colour gray
- Features
- Width 540 mm
- Colour: Light gray, RAL 7035
- Front door: Glass door, single-leaf
- HE 4
- Cabinet type: Wall housing
- Side walls: Both sides
- Depth: 400 mm
- 60 kg load capacity
- IP protection class IP20
- Mounted: No.

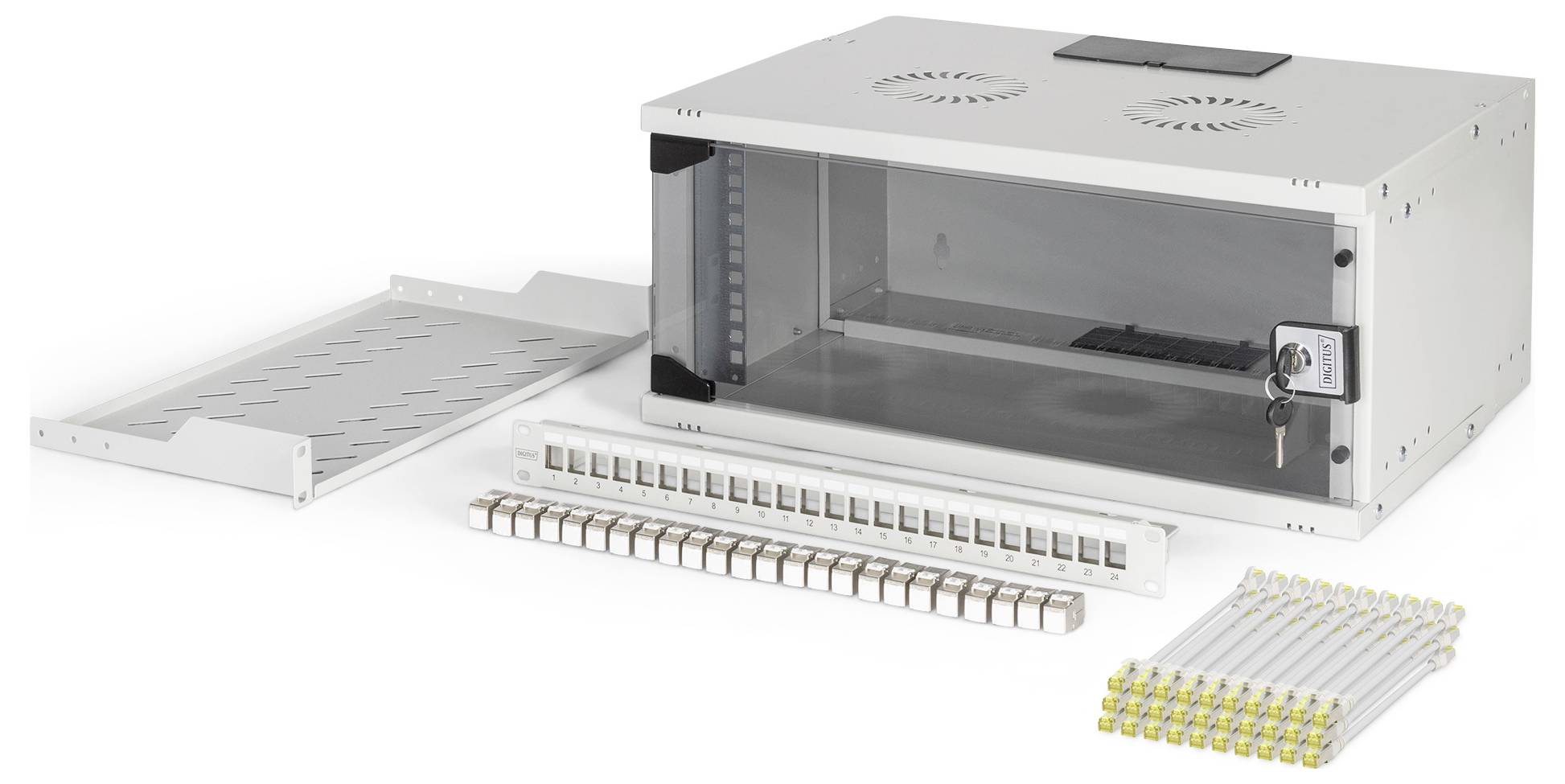

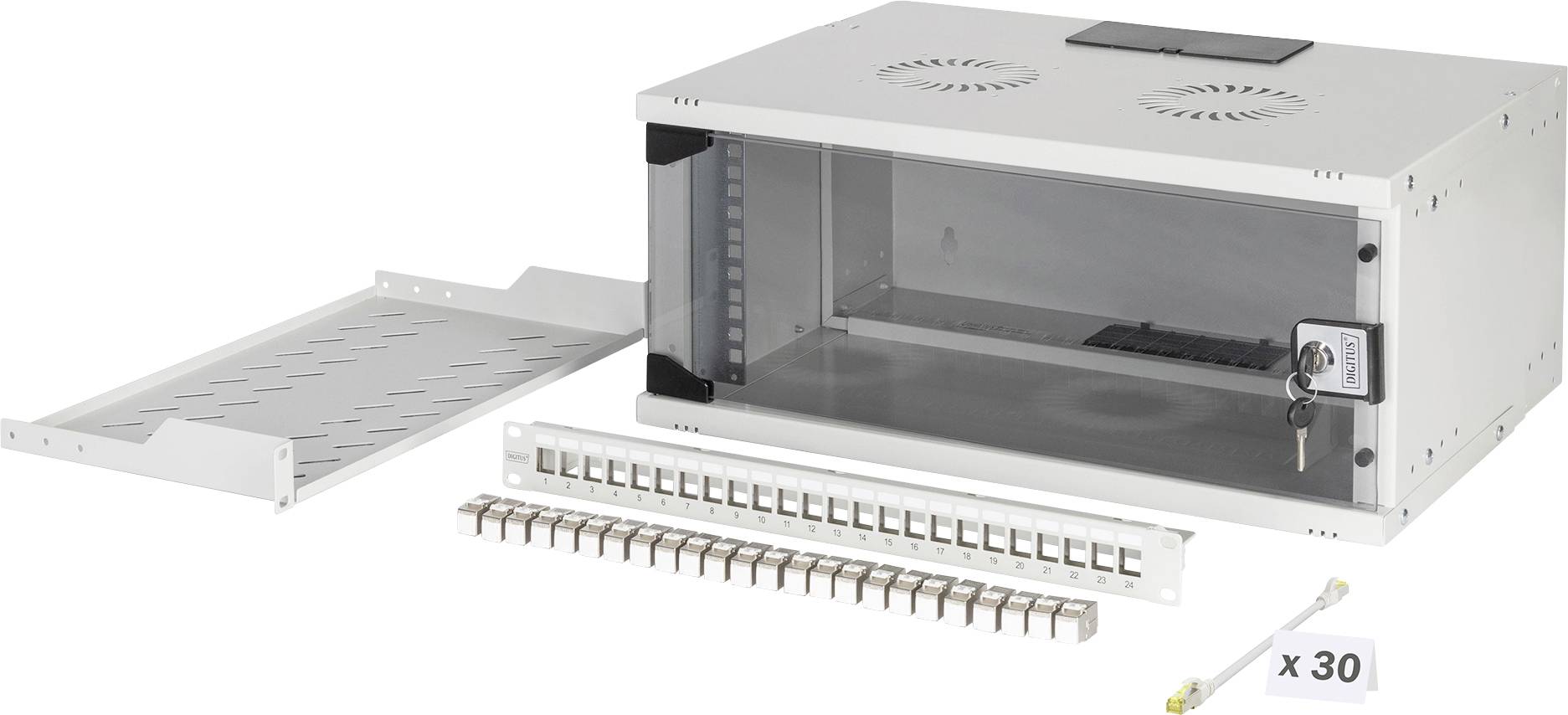

Scope of delivery
- 1 x wall housing, unassembled (incl. 2 x keys)
- 1 x lower compartment
- 1 x Patch Panel
- 24 x Keystone Module
- 30 x Patch cable
