Buy Digitus DN-49201 19" wall cabinet (W x H x D) 540 x 240 x 400 mm 4 U Black, Black (RAL 9005)

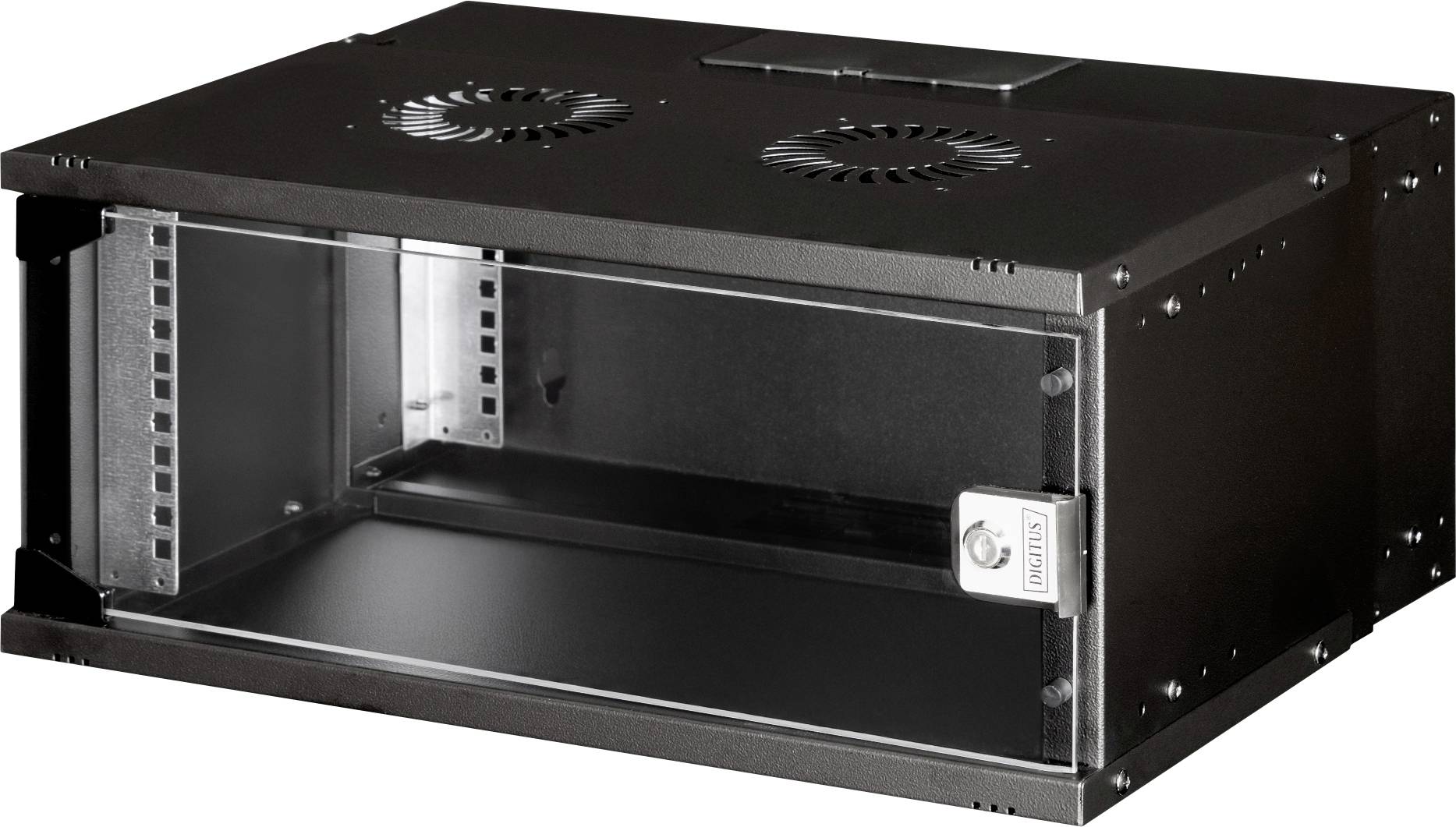

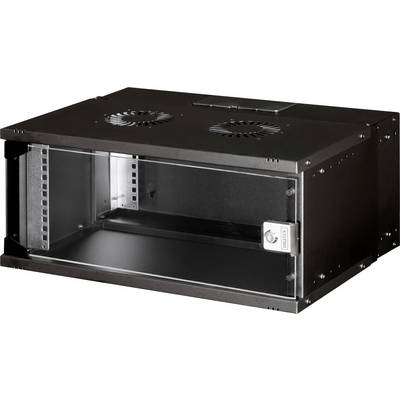

A black, rectangular rack cabinet with a glass door and lock, featuring ventilation slots at the top, designed for storing servers or network equipment.

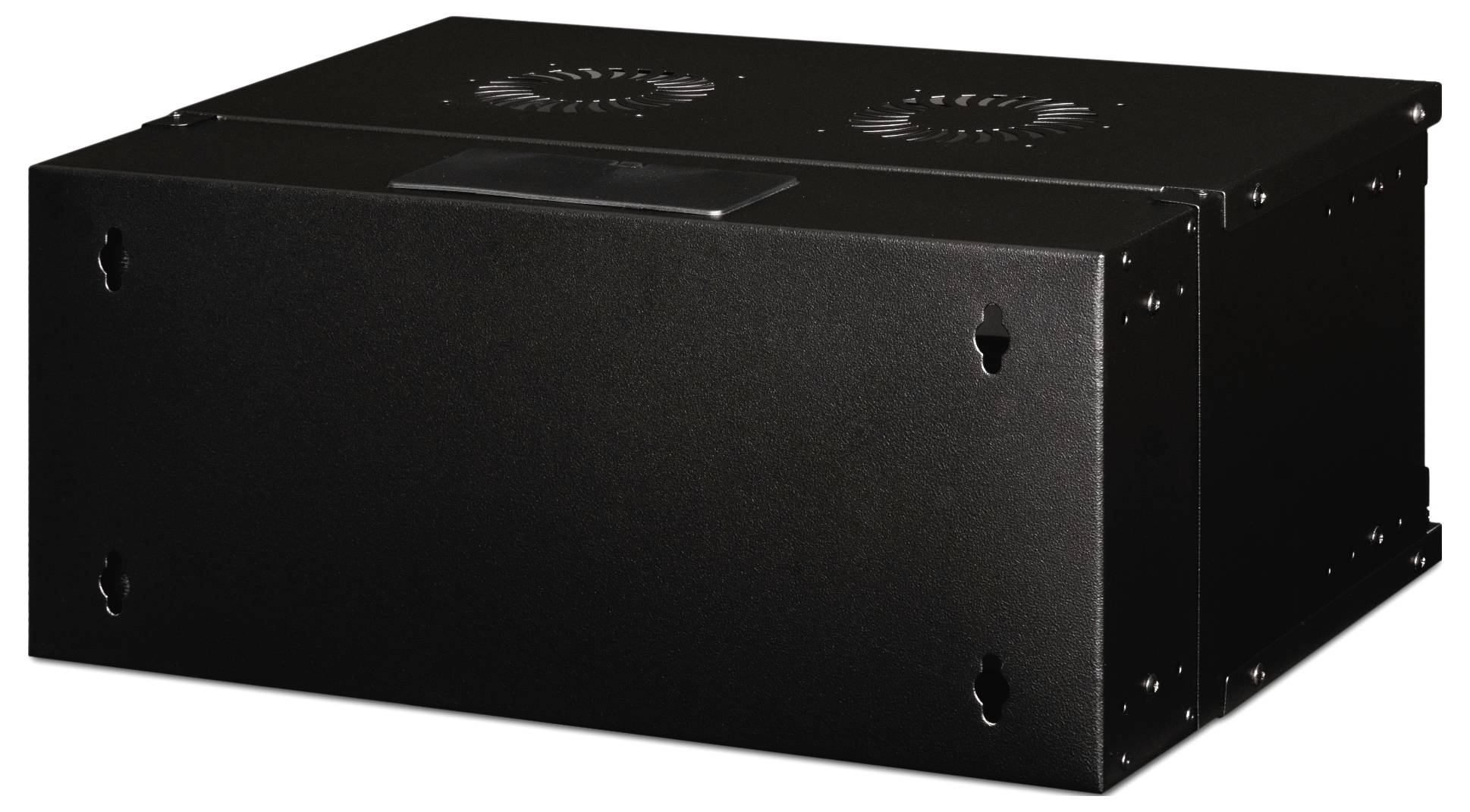

Black rectangular metal enclosure with screw holes at the edges; presumably an electronic device, ventilation slots at the top.

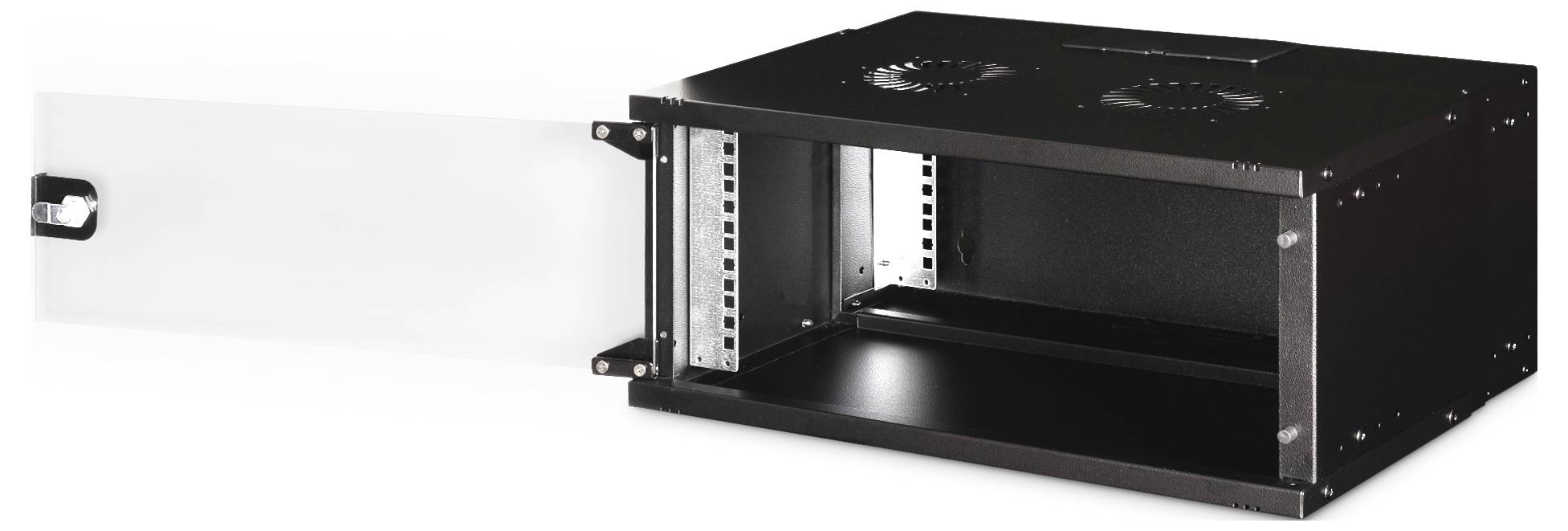

Open, rectangular rack enclosure with a slightly ajar front door, suitable for housing hardware components.

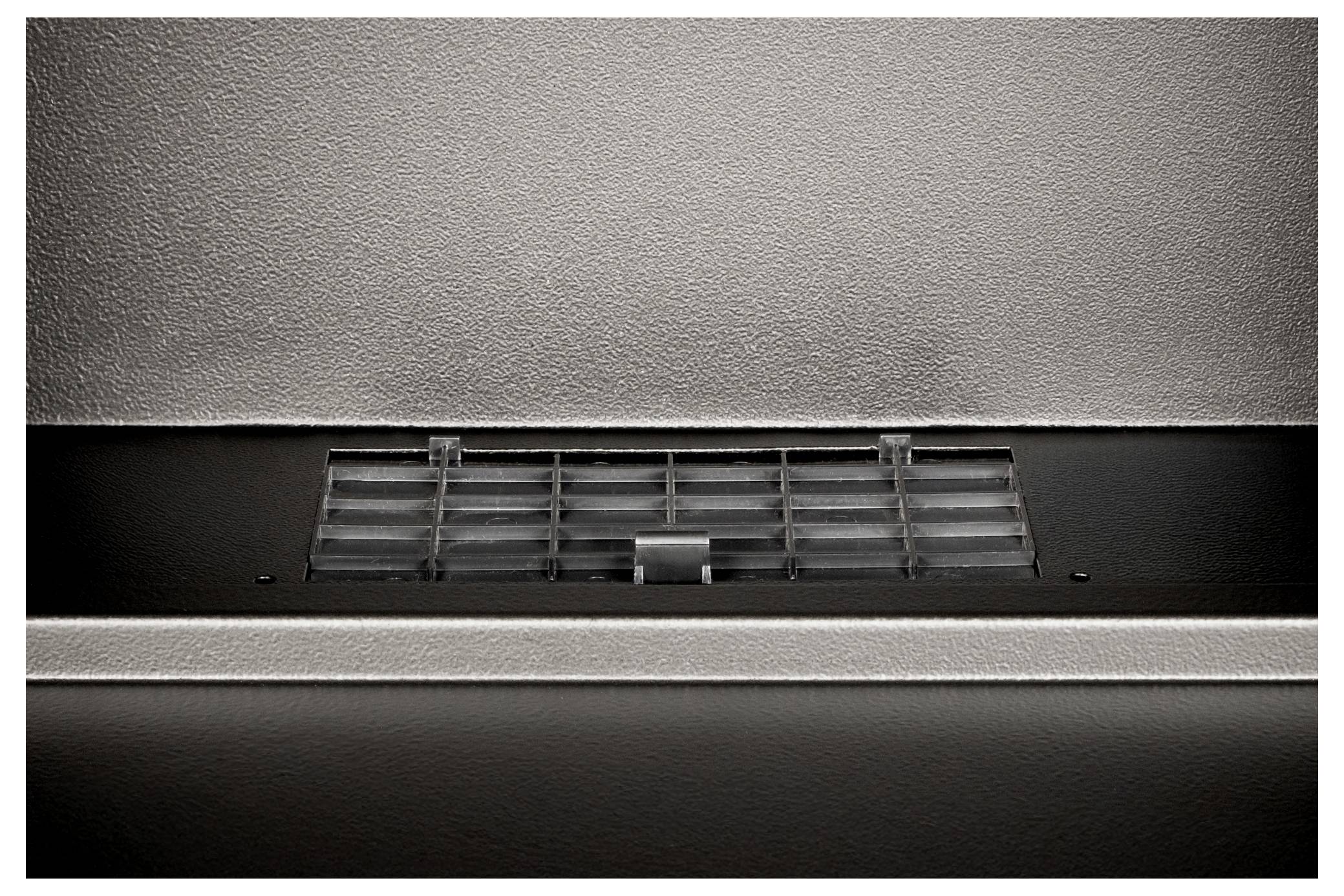

Ventilation grille in a metallic surface, centrally positioned.

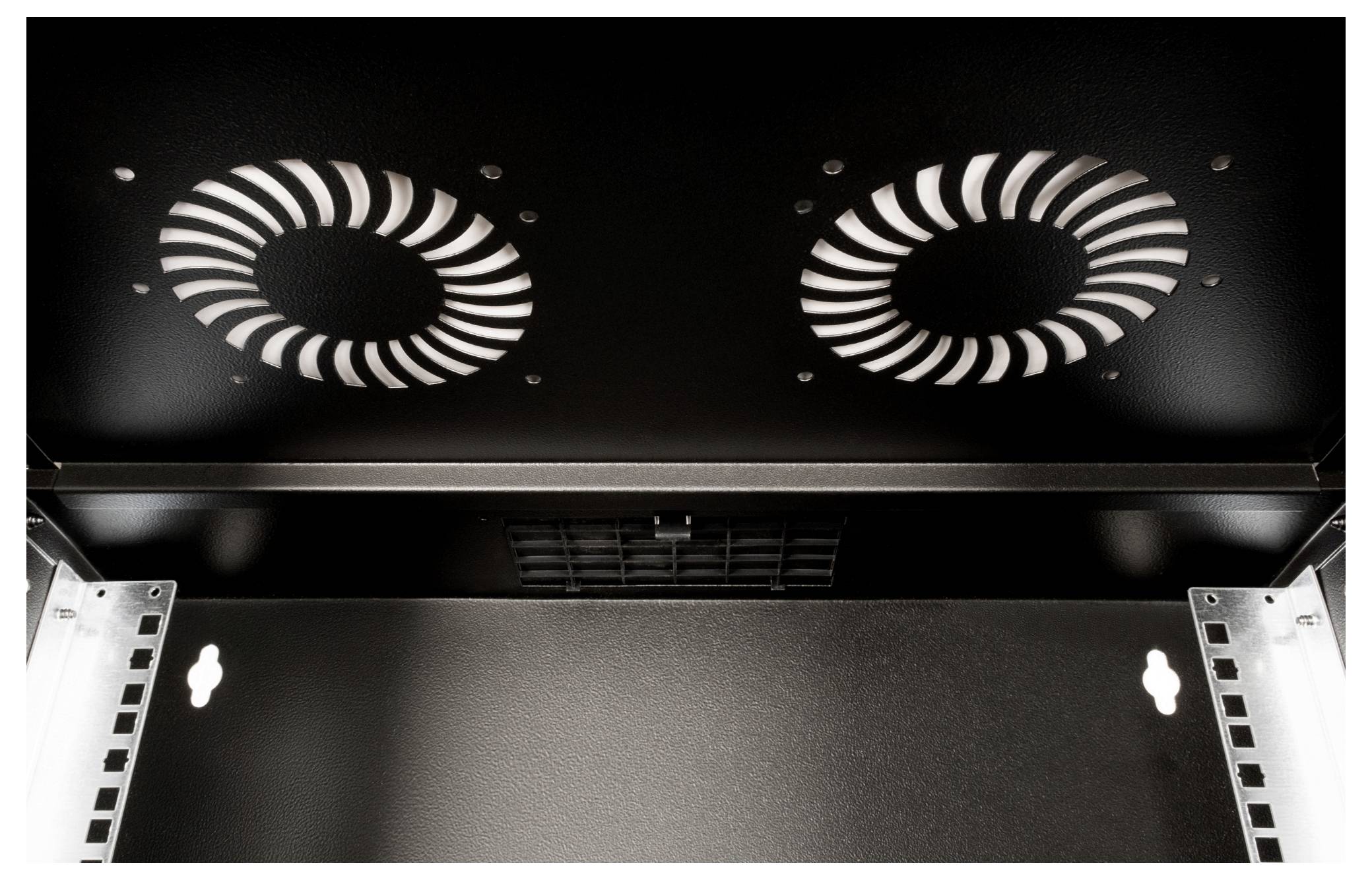

Interior view of a black server rack with two circular fans on the upper wall for cooling.

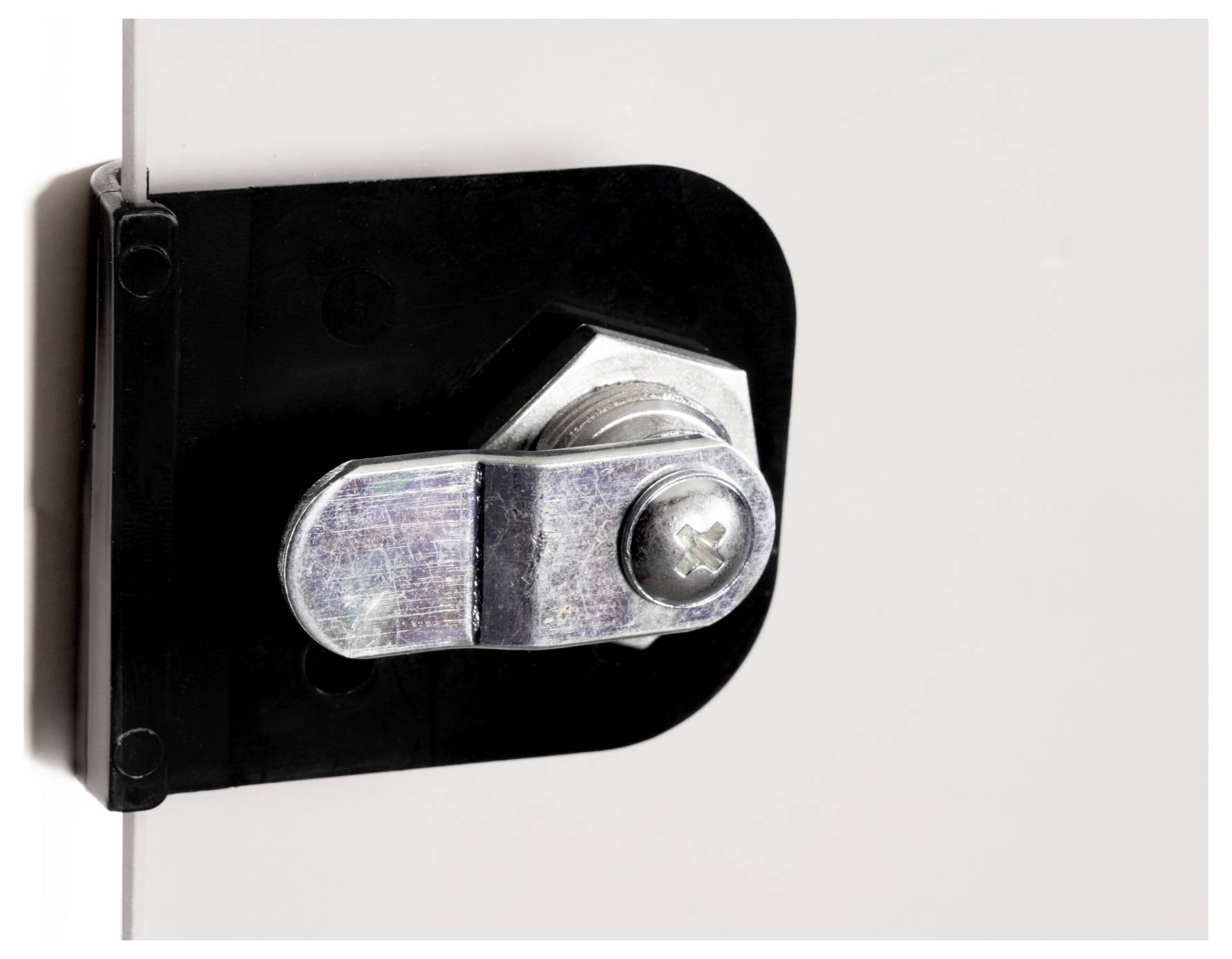

Silver metal padlock on a black holder, secured against a white background. The lock has a cross-head screw.

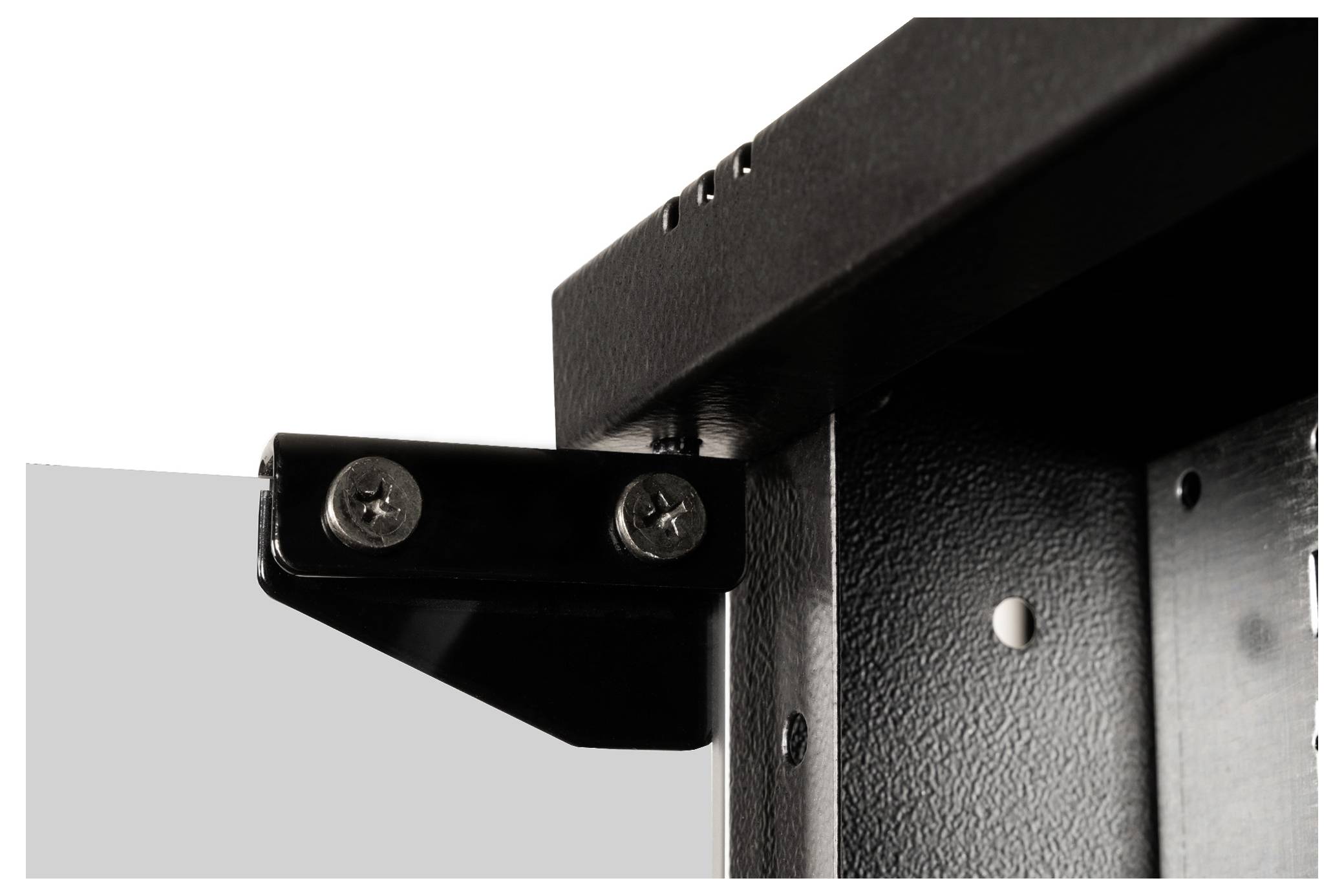

Metal angle fixed with two screws at a black enclosure corner.

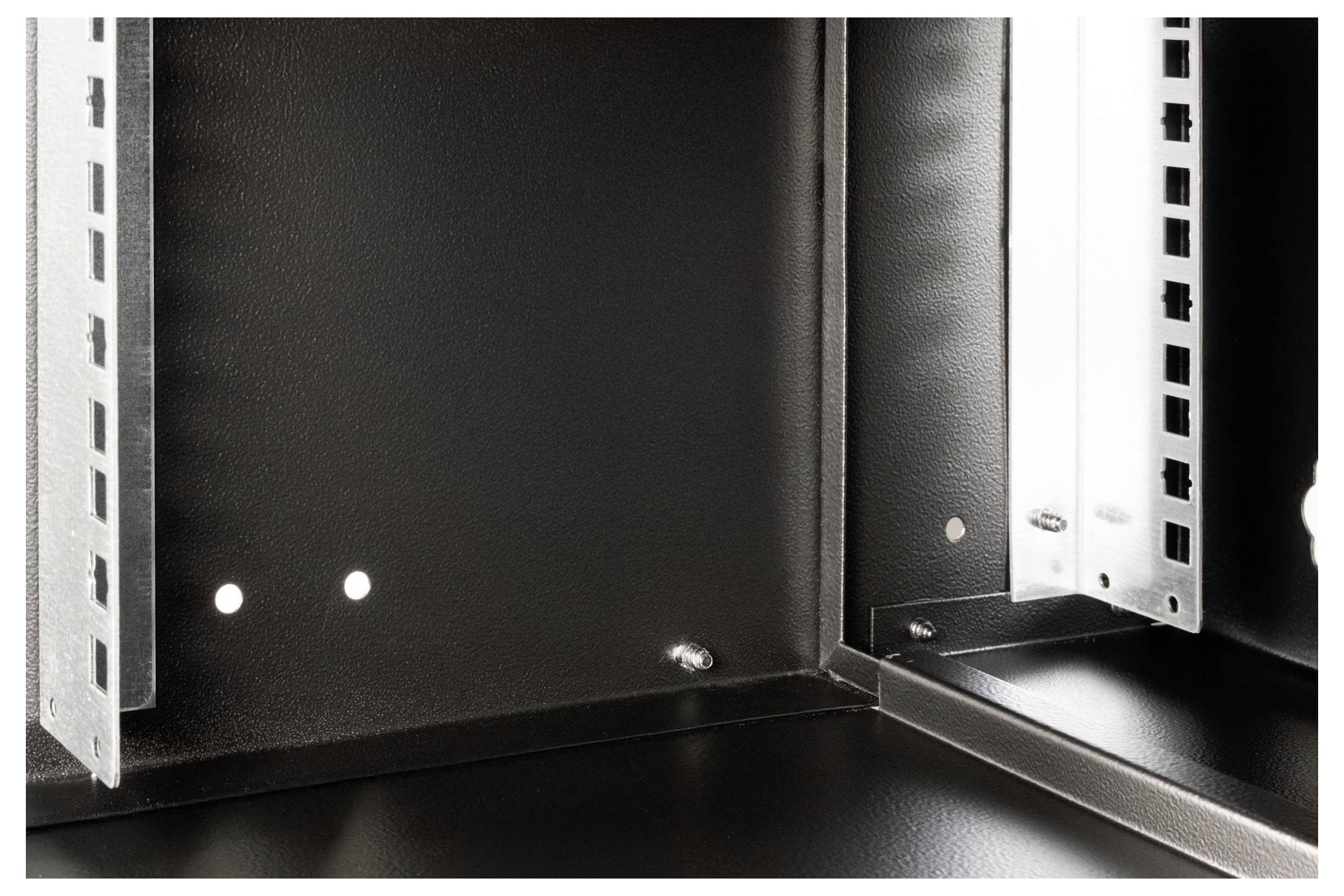

Interior of an empty black server rack with visible metal mounting brackets and screw holes on the sides.

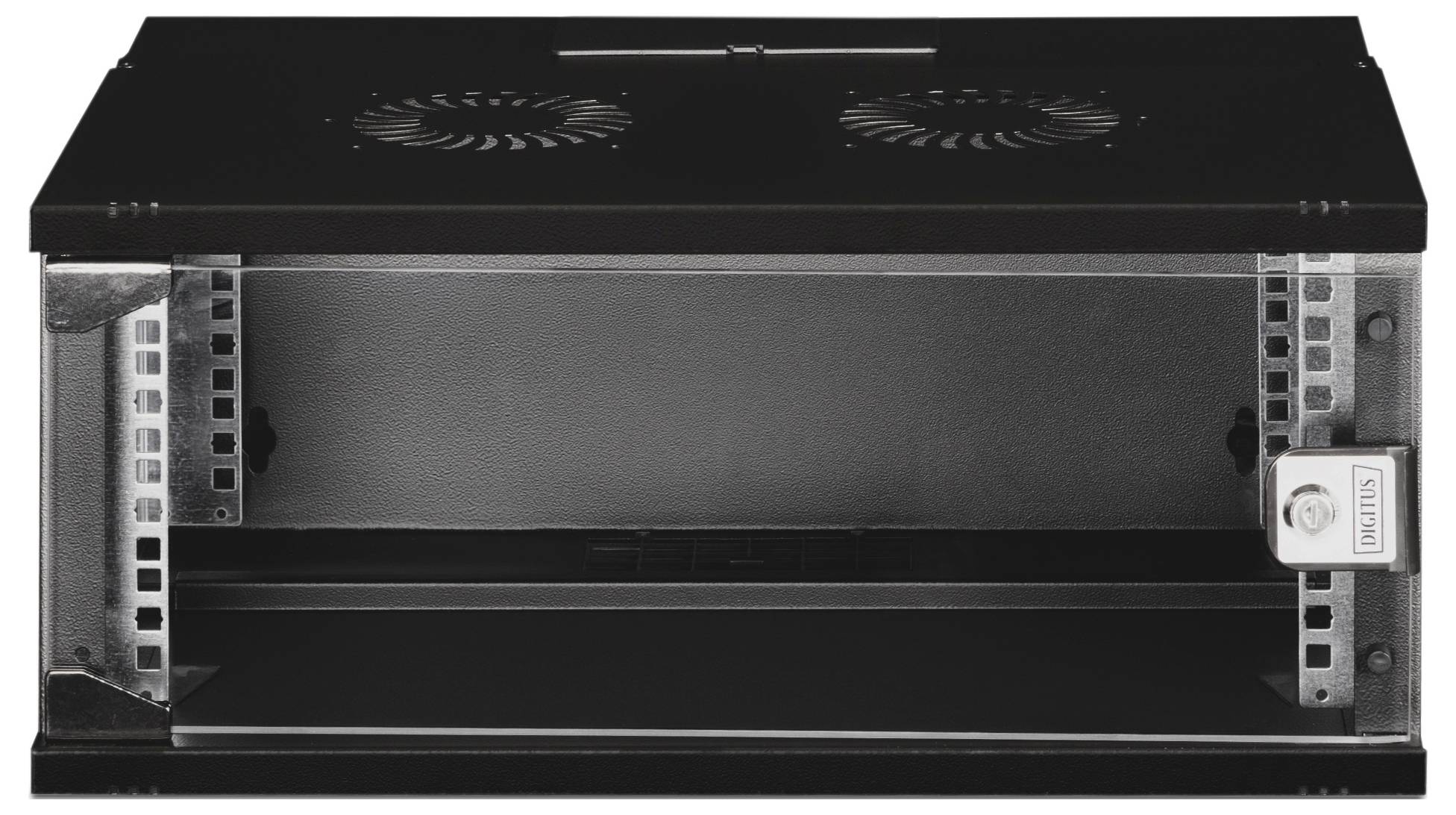

Black metal enclosure with ventilation slots on the top. Front panel open, revealing an empty compartment, suitable for device installation.

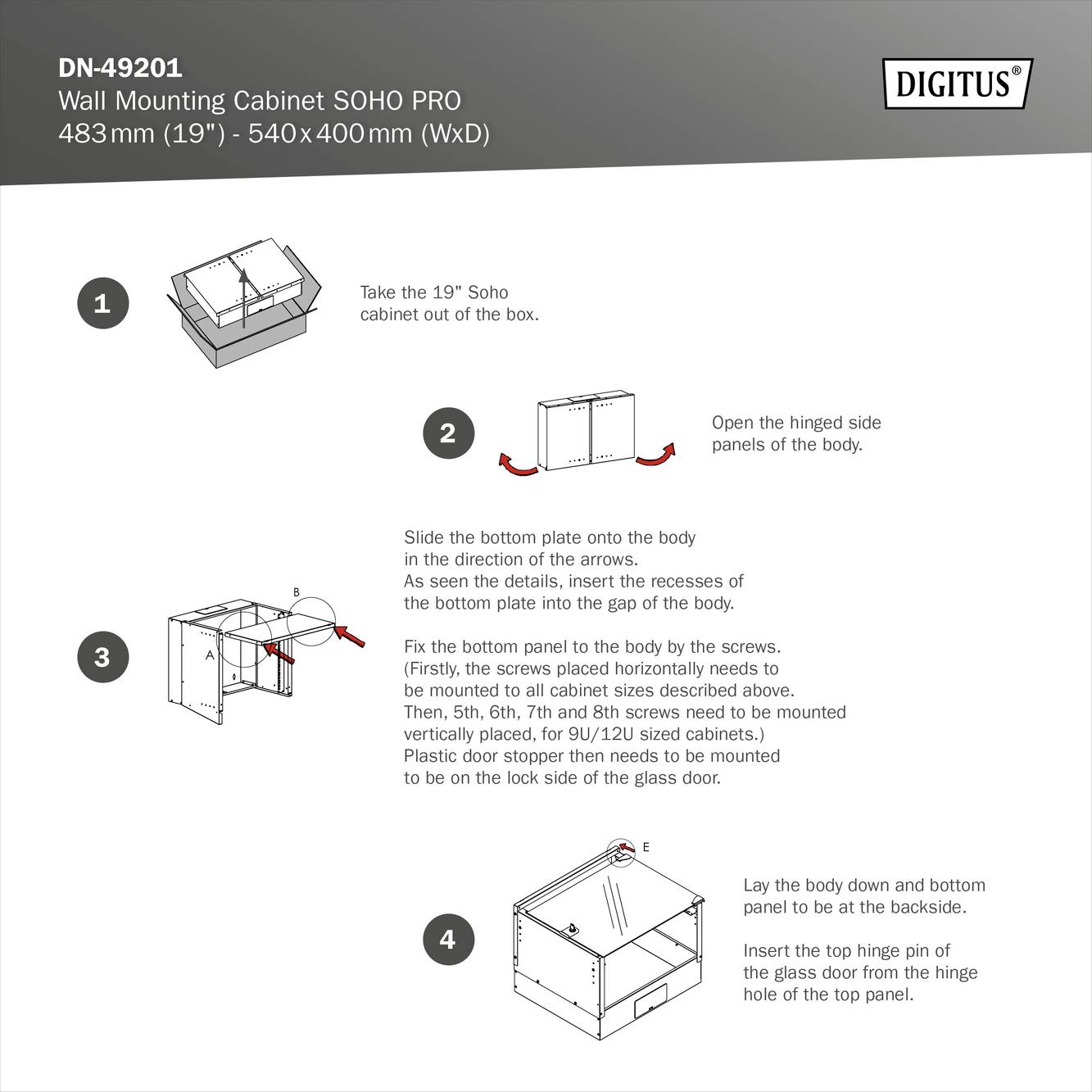

'Mounting cabinet housing: Open the sides, slide in the base plate, secure with screws, mount to the wall.'

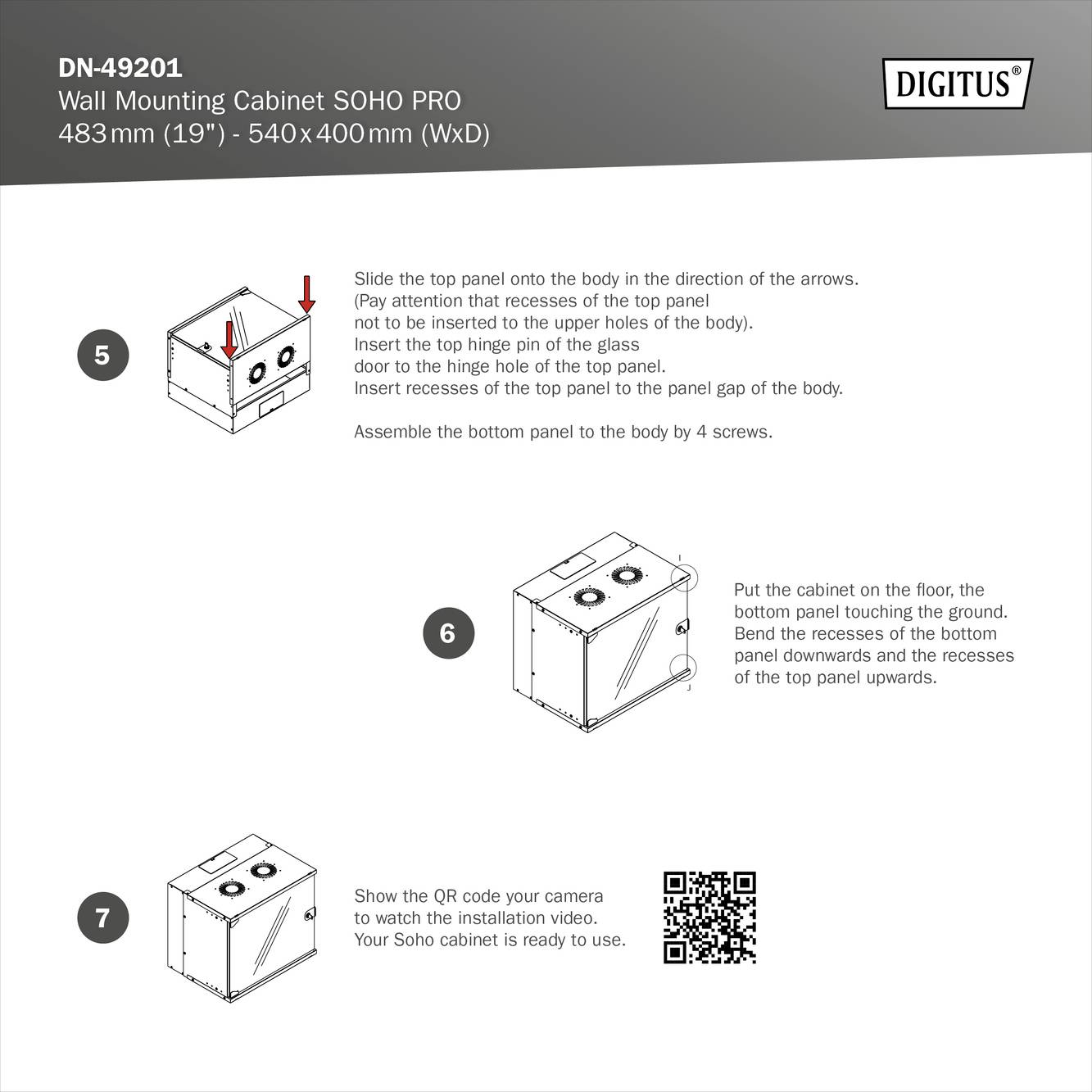

Installation Instructions for Wall Housing: Step 1: Slide top section to the side. Step 2: Attach with 4 screws. QR Code for video preview.

1/11

Unavailable

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

19" 4U wall housing, SOHO PRO 240 x 540 x 400 mm, black

Highlights & Details

Supplied unassembled in optimized flat pack
Especially user-friendly, quick installation
Compact housing for 483 mm (19 ") network installations

Technical specifications

Product type: 19" wall cabinet

Rack unit: 4 U

Width: 540 mm

Height: 240 mm

Depth: 400 mm

Material: Glass
Steel

Dim: (W x H x D) 540 x 240 x 400 mm

Weight: 7130 g

Factory colour: Black
Black (RAL 9005)

Rack size: 483 mm (19")

Type: SOHO PER

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3207656 Digitus DN-49201 19" wall cabinet (W x H x D) 540 x 240 x 400 mm 4 U Black, Black (RAL 9005)

Description

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 483 mm (19") solutions of the SOHO PRO series. Available in four height units (4HE, 7HE, 9HE, 12HE), the wall-mounted units are equipped with a full-glass door and a cable entry in the roof and floor. A pair of galvanized, with readable rack units labeled 483 mm (19") rails are installed in the interior. The depth of these can be adjusted. Each cabinet is a sturdy steel construction made of up to 1.5 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). A door stop can be changed. The network cabinets are delivered unassembled in an optimized flat pack. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions.

This text is machine translated.

Features

Protection class: IP20
Lockable safety glass door
200° door opening angle
1-point lock on the front door
483 mm (19 ") profile rails installed on the front inside the cabinet, galvanized
Depth adjustable with 483 mm (19 ") rails
1.1 - 1.5 strong steel sheet with a high load capacity, powder-coated
Cable input with plastic cover in roof and floor
Ventilation slots for active and passive ventilation
Front door: Glass door, single-leaf
Side walls: Both sides
Mounted: No.
