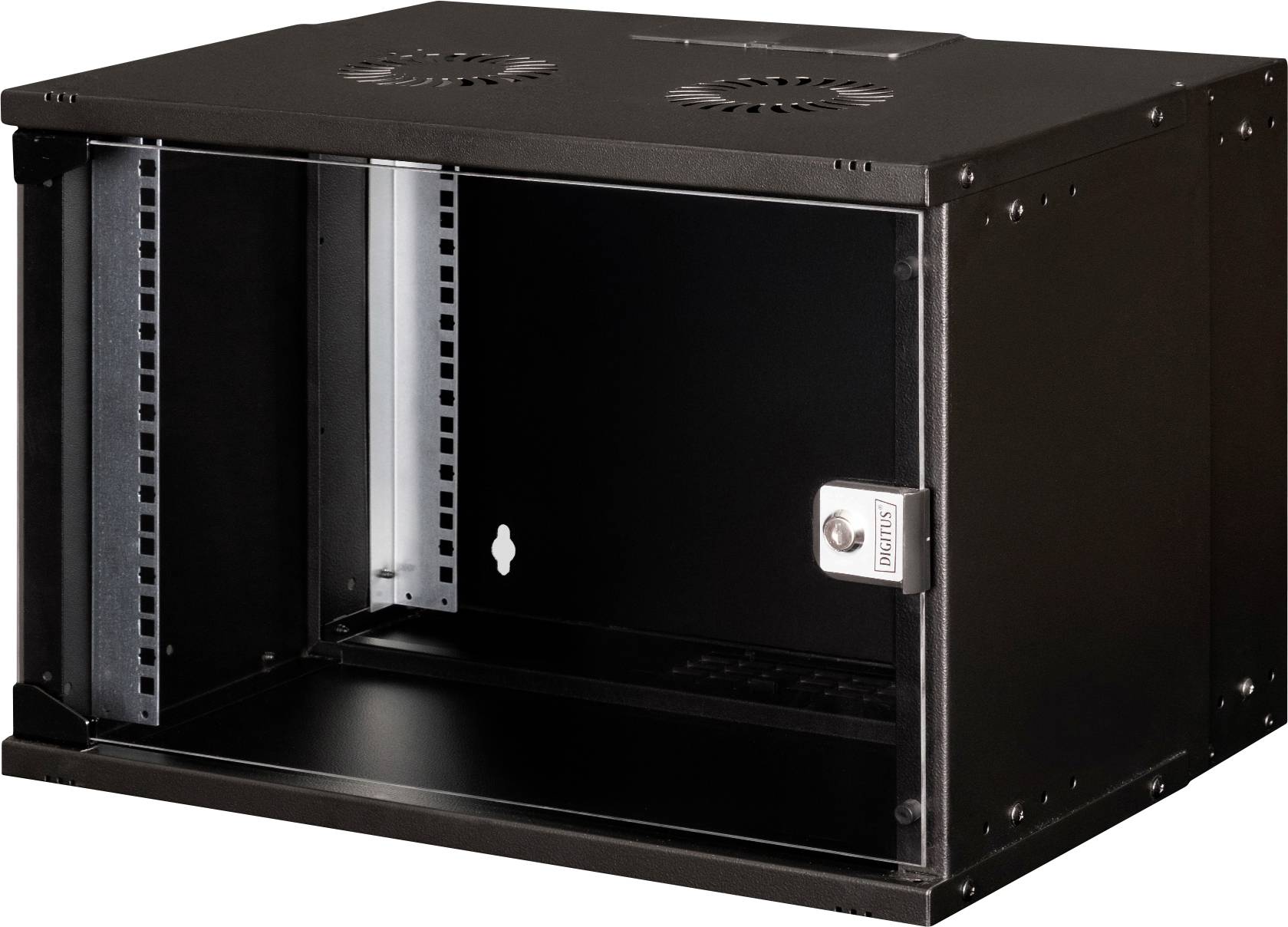

Black, rectangular network cabinet with ventilation slots at the top, open front panel, and a lock on the right-hand side wall.

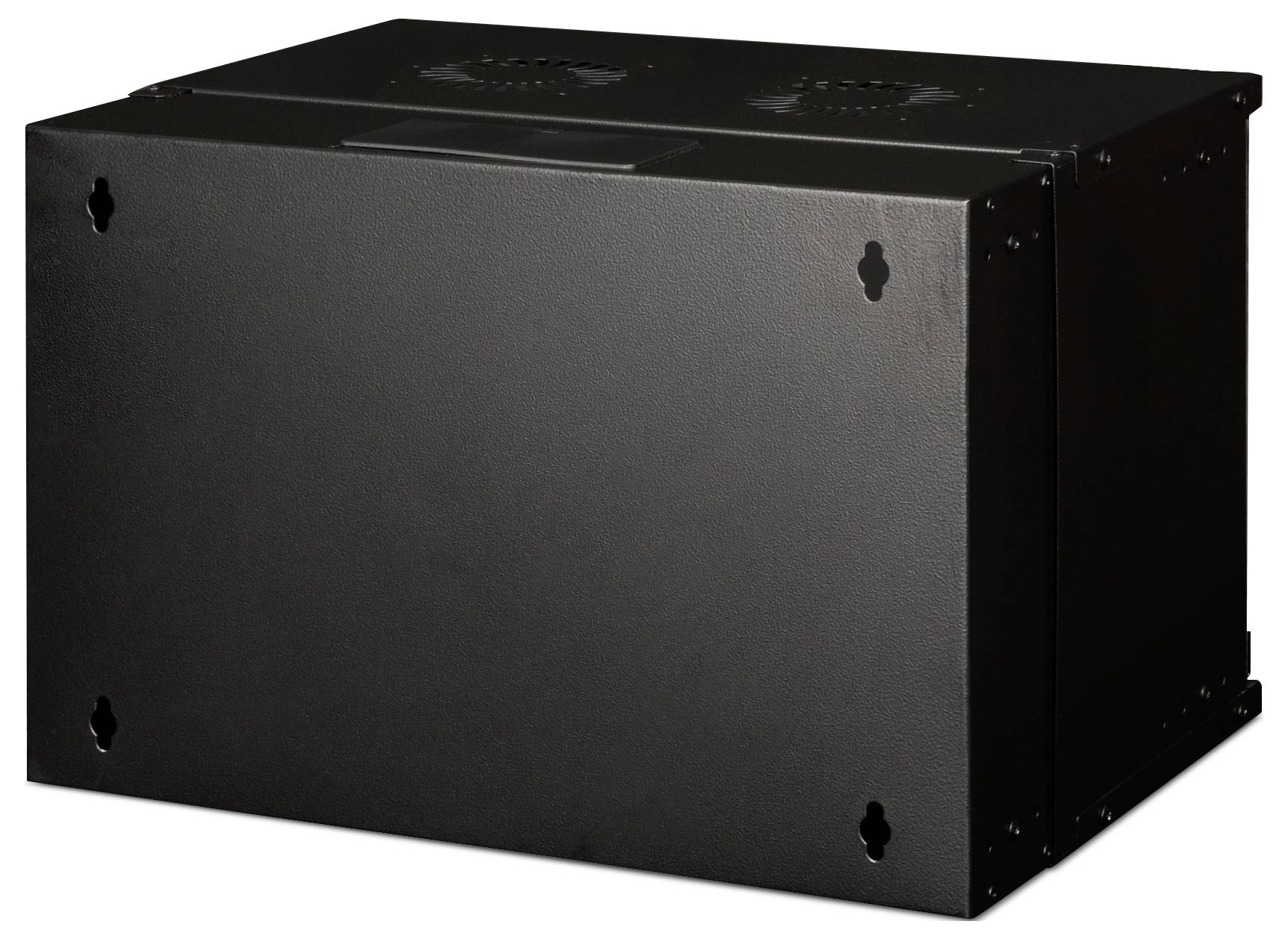

Black rectangular enclosure with ventilation slots and mounting holes at the corners, suitable for wall-mounting of technical equipment.

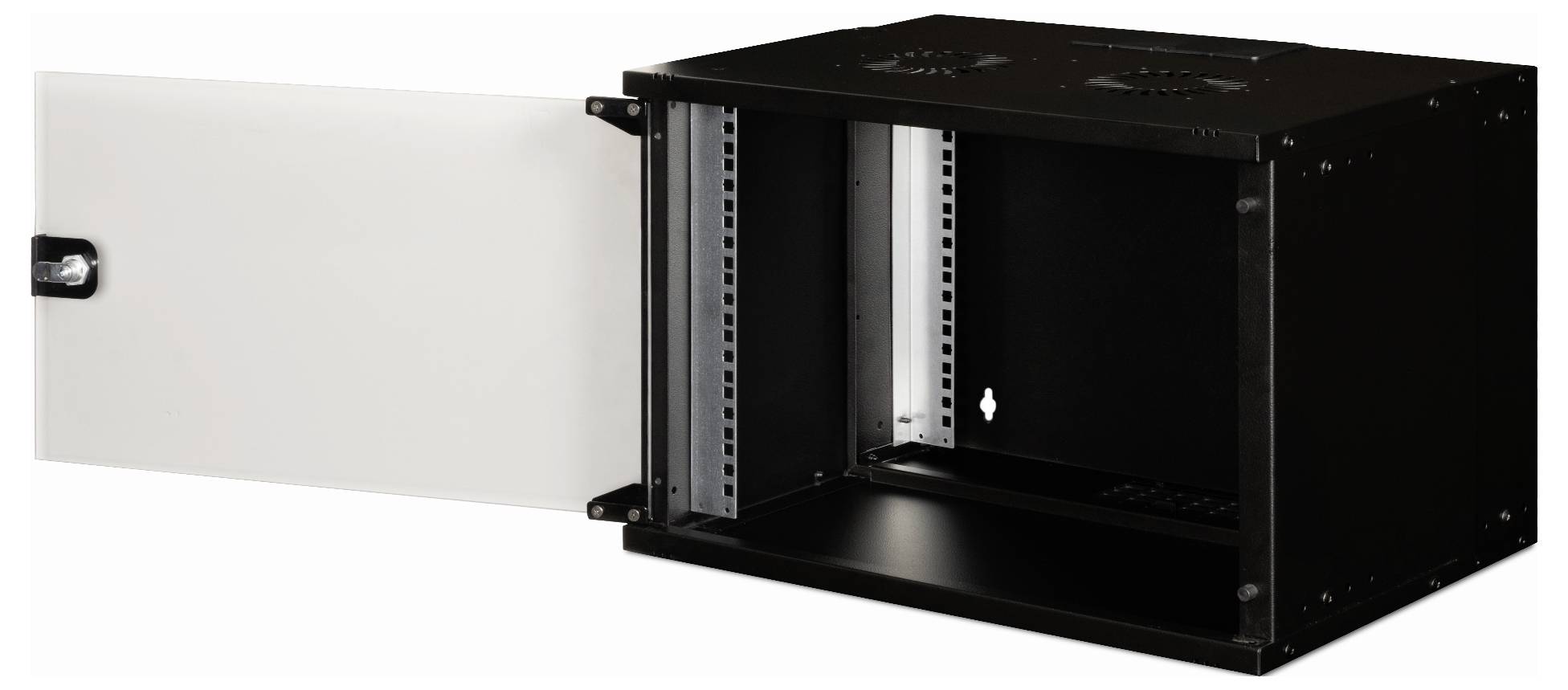

An open black wall-mounted cabinet, door opened on the left. Ideal for mounting IT equipment in network environments.

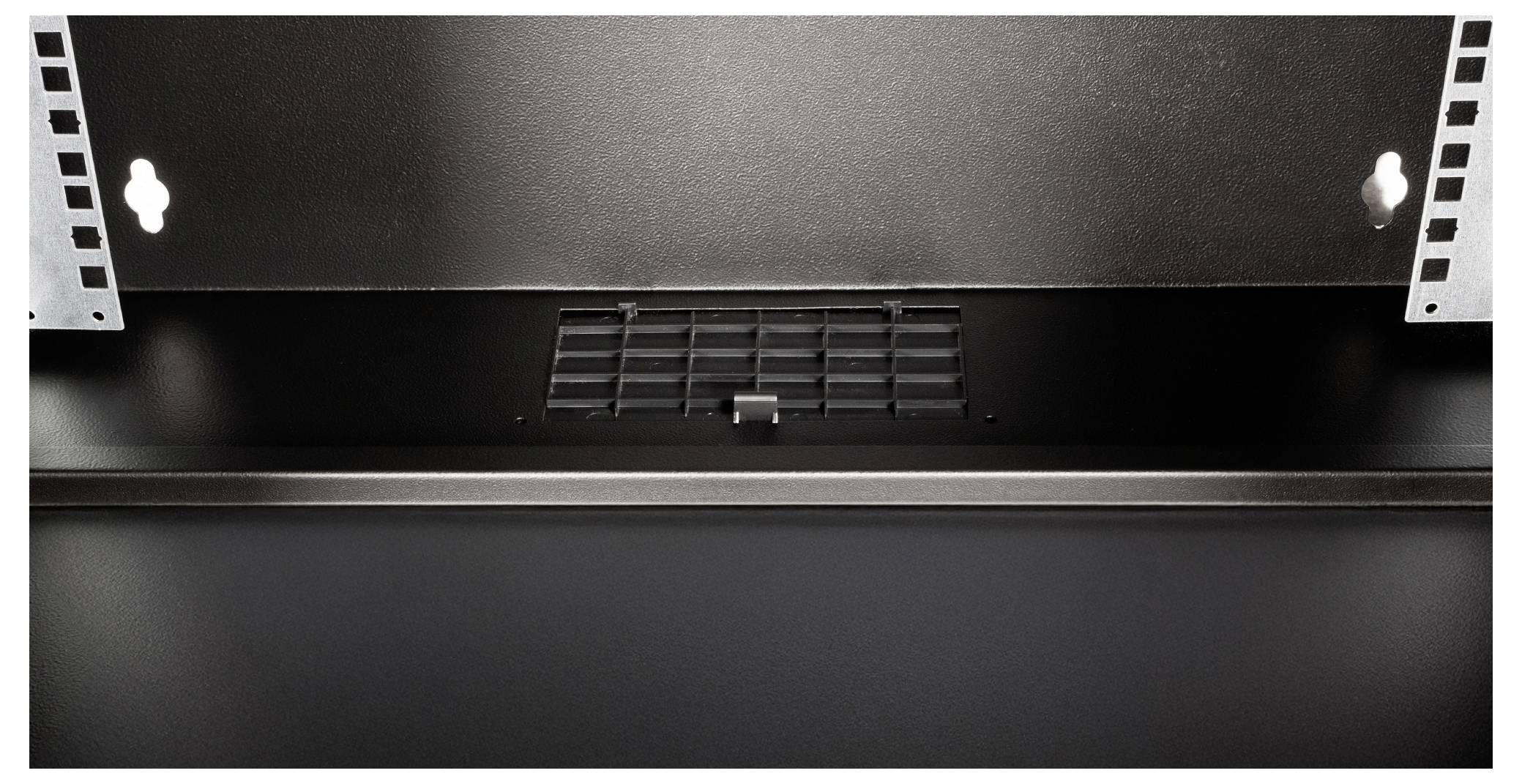

Top surface of a black server chassis with a ventilation grille in the centre, symmetrical mounting brackets on the sides.

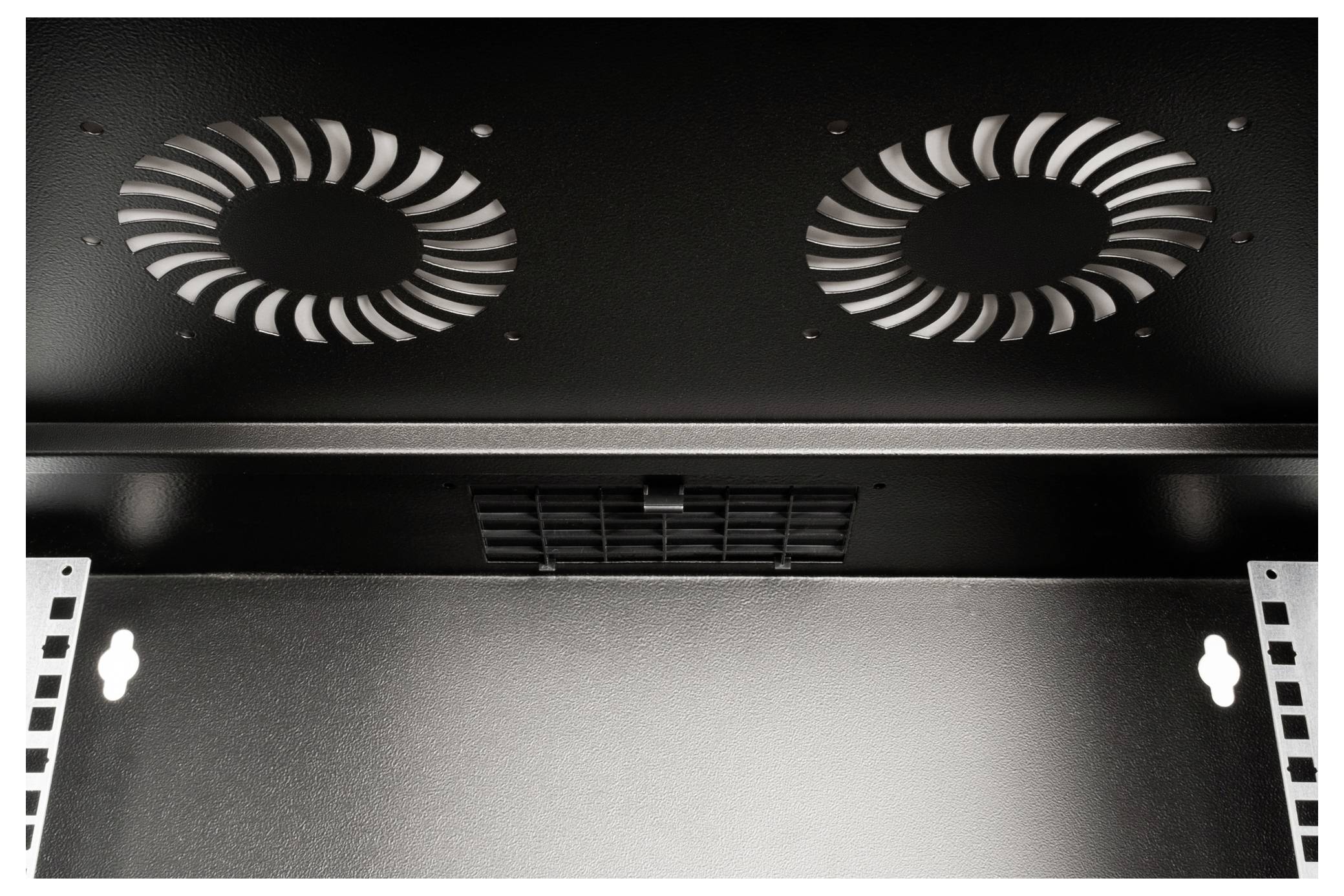

A black chassis with two visible fans on the top. Ventilation grille in the centre for improved air circulation.

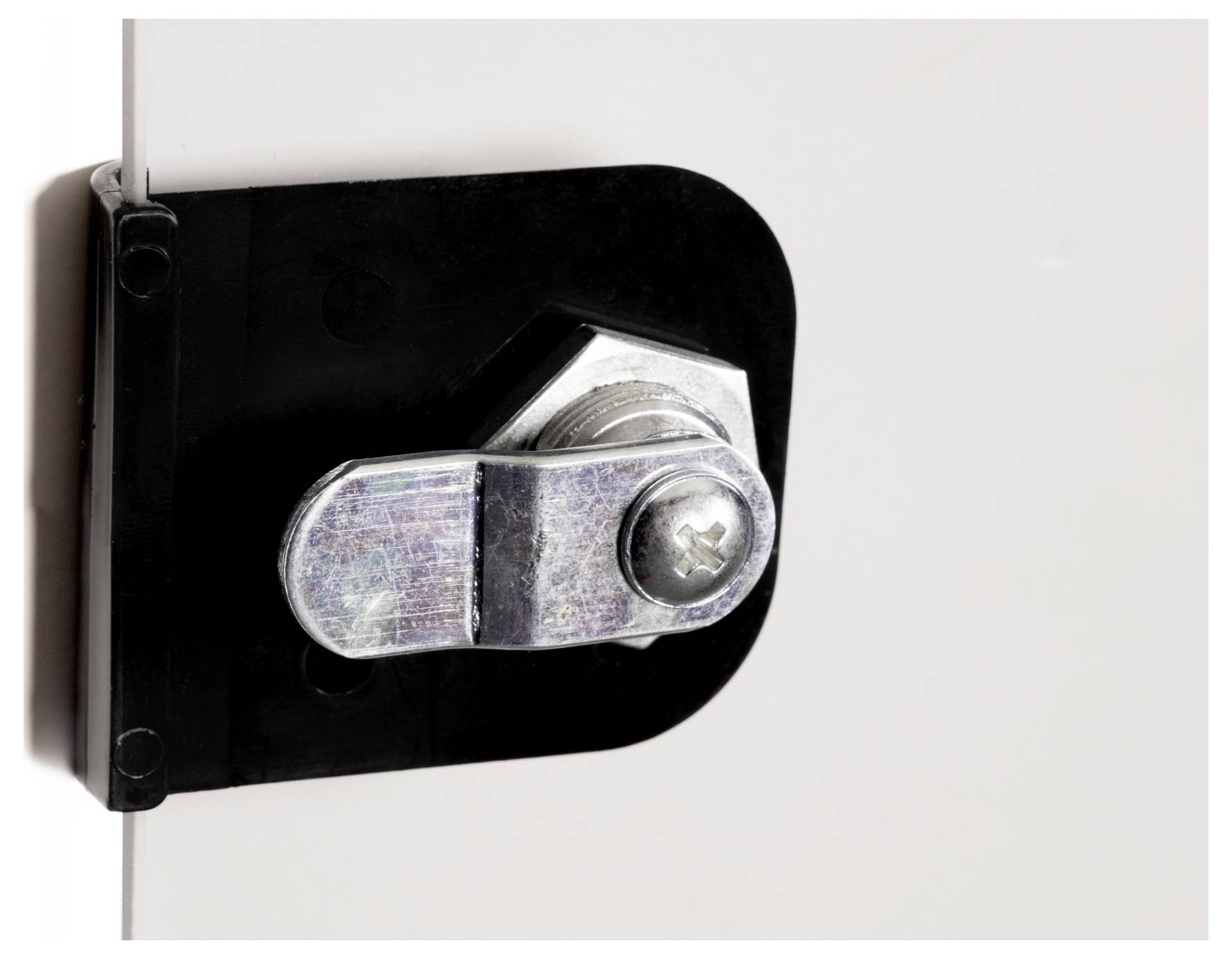

A silver metal lock with a round handle is attached to a black bracket on a white surface.

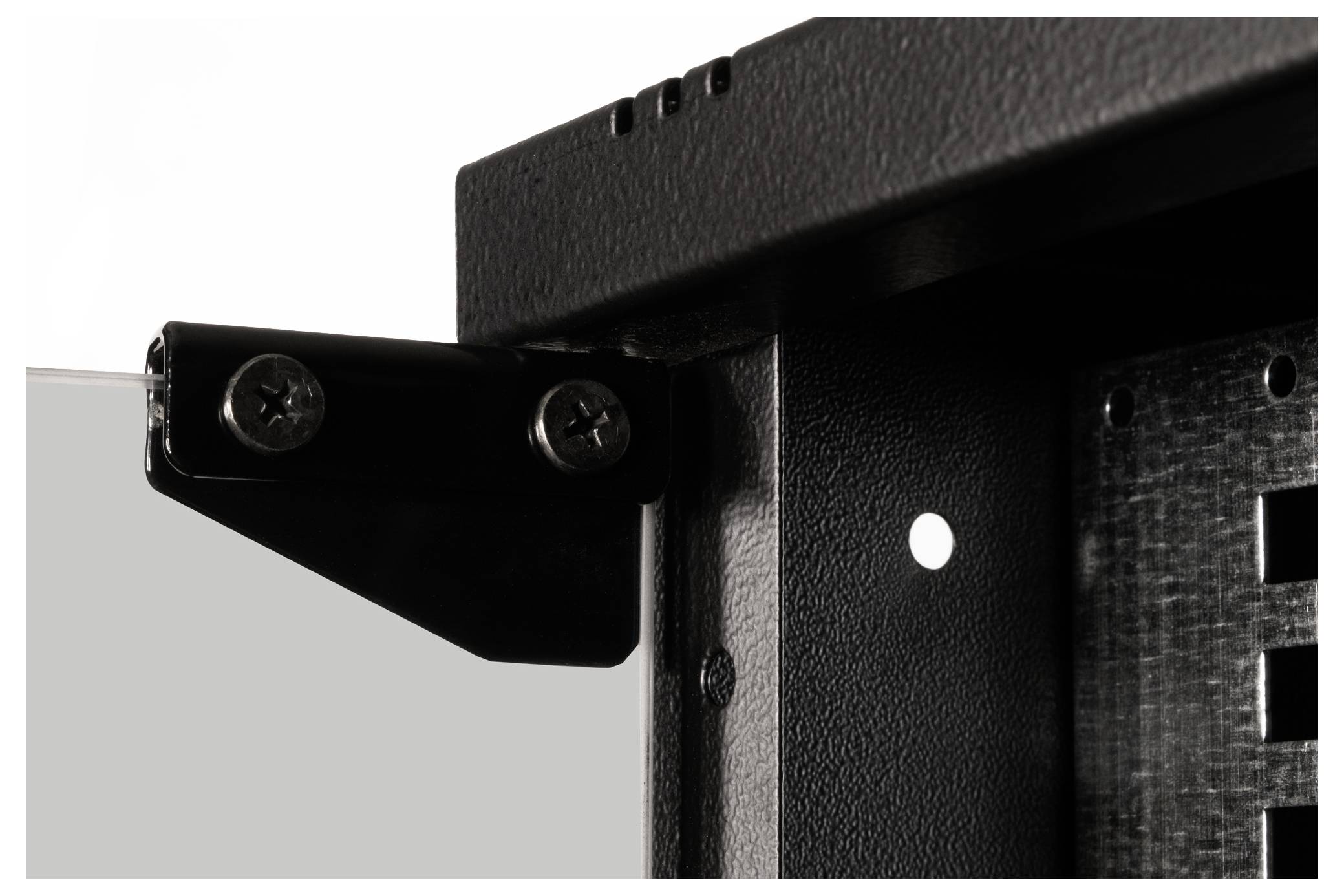

Close-up of a black metal angle bracket secured with two screws at the corner of a frame.

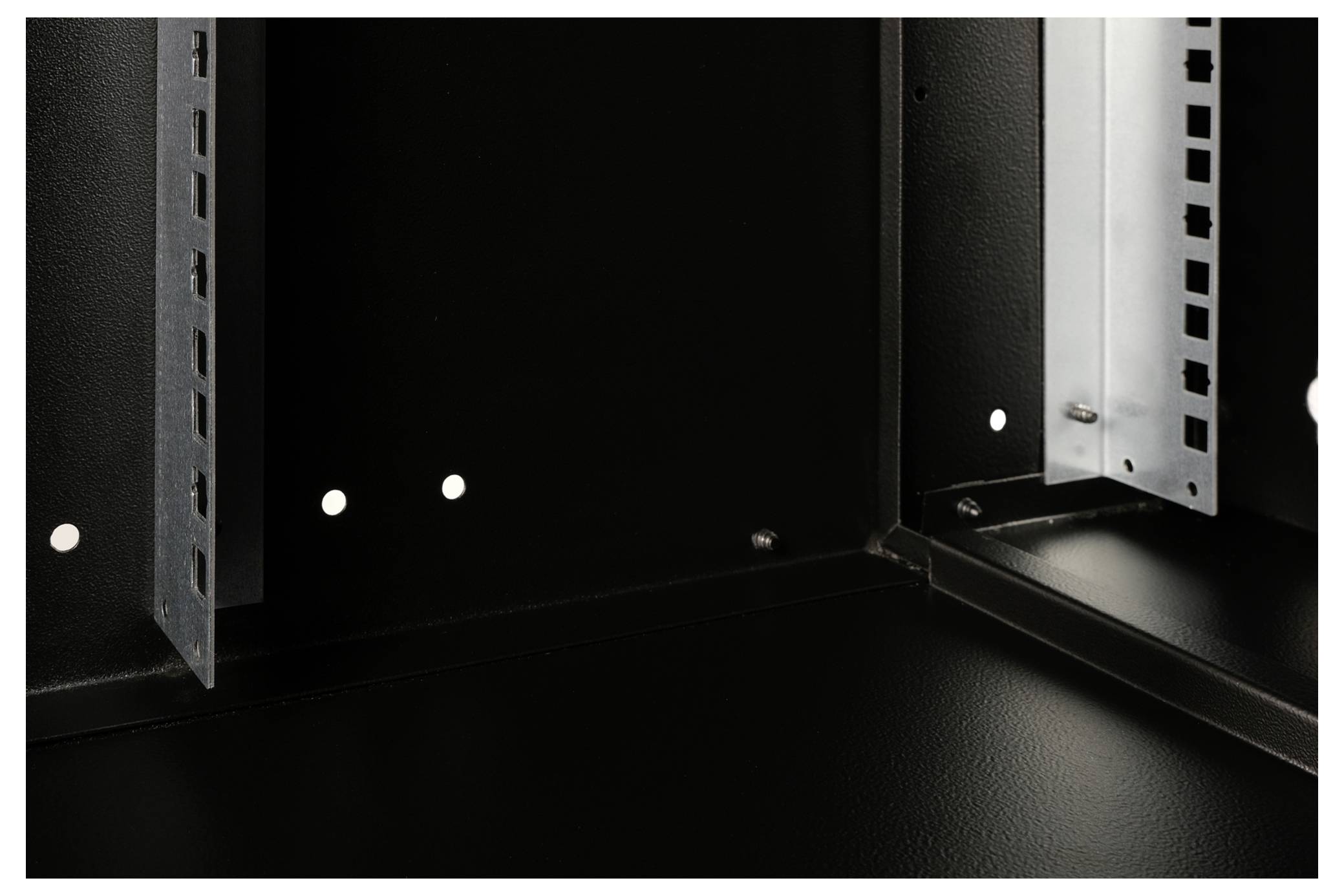

A view inside a black metal enclosure with open sides, suitable for installing IT equipment or electronic devices.

Black, empty wall-mounted enclosure with ventilation holes at the top and a lock on the right side. Ideal for securely storing equipment.

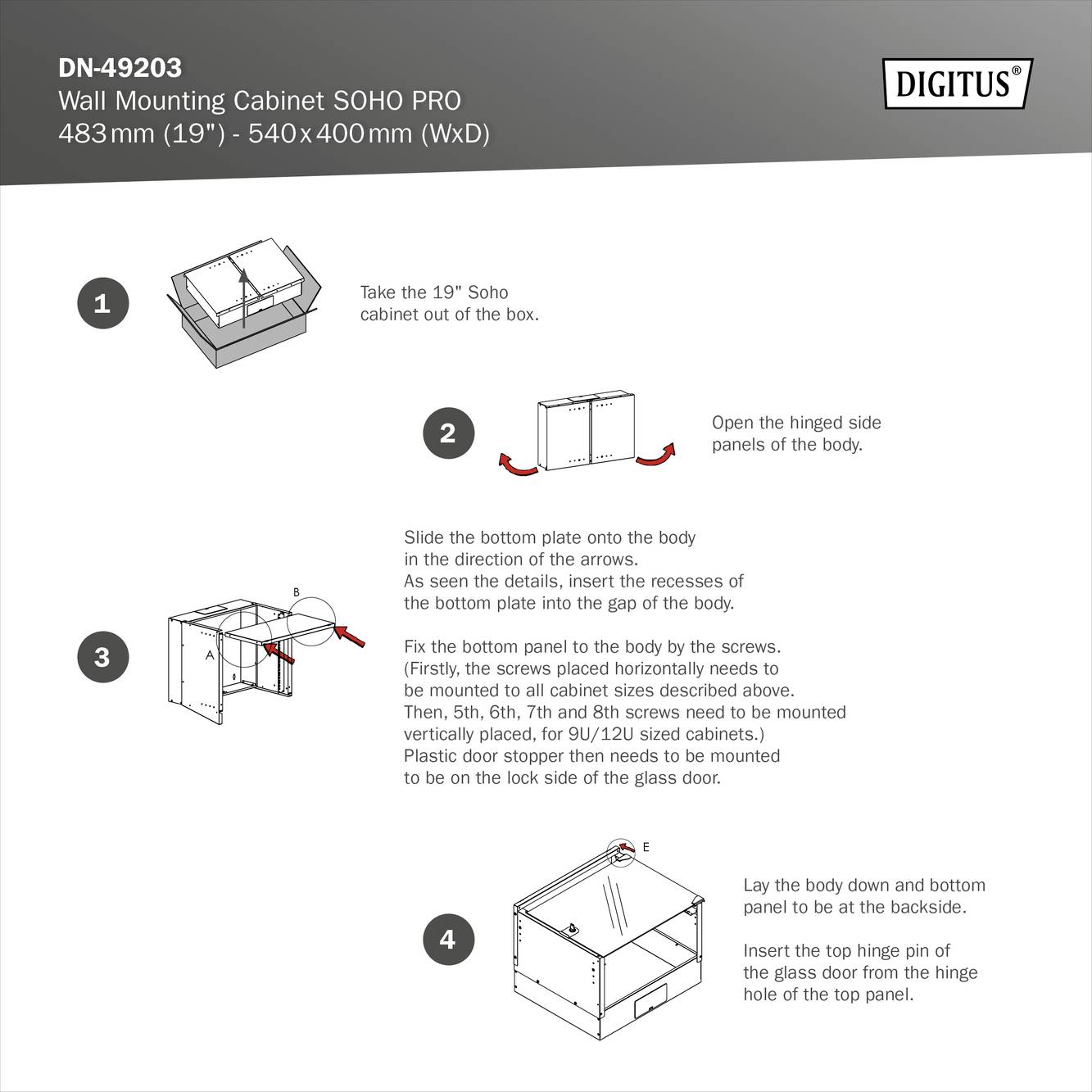

'DN-49203' Wall-Mounted Cabinet. Installation steps: 1. Remove 19" side. 2. Open side panels. 3. Attach and secure base plate. 4. Attach top plate.

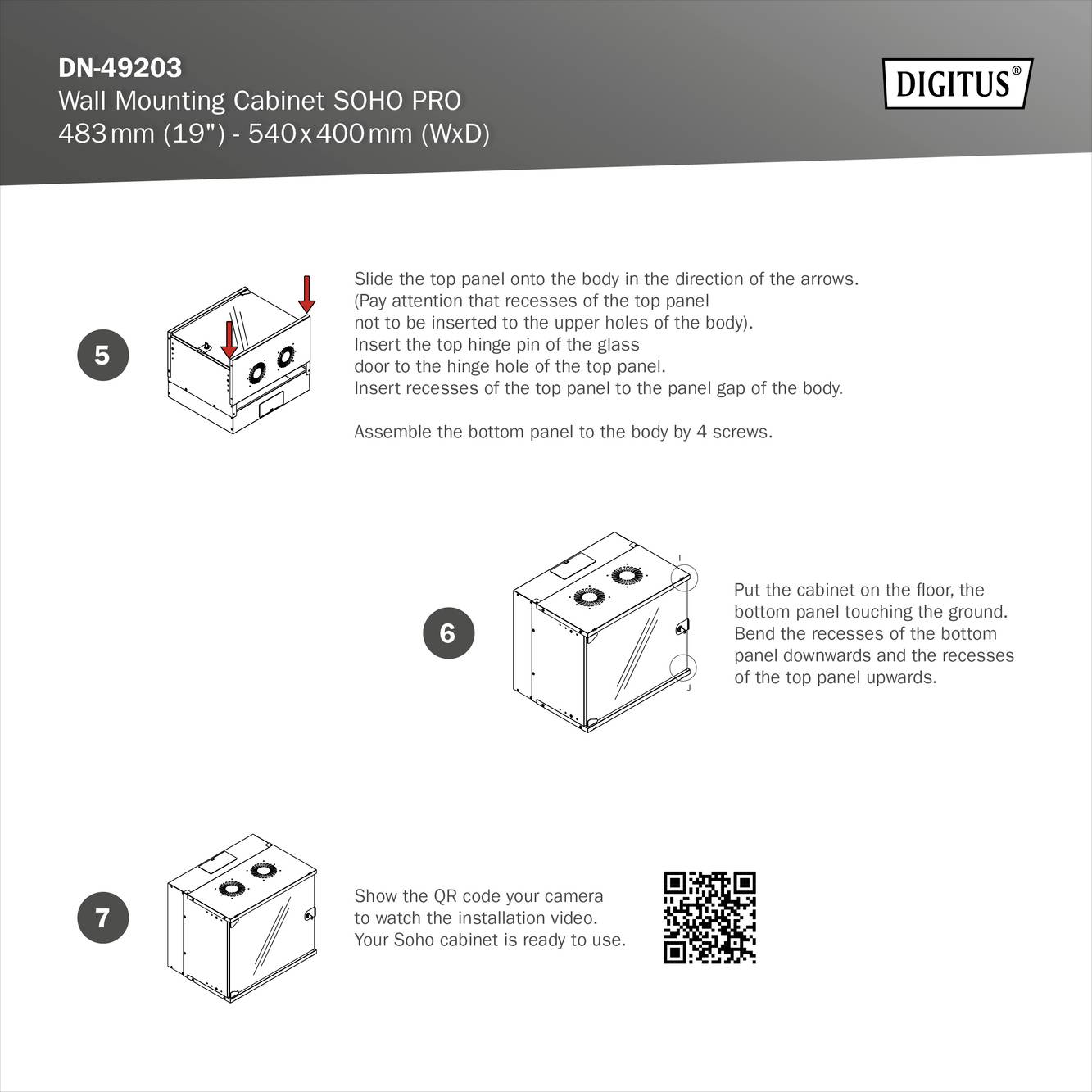

'DN-49203: Wall-Mounted Cabinet SOHO PRO. Step-by-Step Installation Guide with Graphic Illustrations and Descriptive Steps.'

1/11

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

19" 7HE wall housing, SOHO PRO 370 x 540 x 400 mm, black

Highlights & Details

Supplied unassembled in optimized flat pack
Especially user-friendly, quick installation
Compact housing for 483 mm (19 ") network installations

Technical specifications

Product type: 19" wall cabinet

Rack unit: 7 U

Width: 540 mm

Height: 370 mm

Depth: 400 mm

Material: Glass
Steel

Dim: (W x H x D) 540 x 370 x 400 mm

Weight: 9110 g

Factory colour: Black
Black (RAL 9005)

Rack size: 483 mm (19")

Type: SOHO PER

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3207658 Digitus DN-49203 19" wall cabinet (W x H x D) 540 x 370 x 400 mm 7 U Black, Black (RAL 9005)

Information

Information 3207658 Digitus DN-49203 19" wall cabinet (W x H x D) 540 x 370 x 400 mm 7 U Black, Black (RAL 9005)

Description

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 483 mm (19") solutions of the SOHO PRO series. Available in four height units (4HE, 7HE, 9HE, 12HE), the wall-mounted units are equipped with a full-glass door and a cable entry in the roof and floor. A pair of galvanized, with readable rack units labeled 483 mm (19") rails are installed in the interior. The depth of these can be adjusted. Each cabinet is a sturdy steel construction made of up to 1.5 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). A door stop can be changed. The network cabinets are delivered unassembled in an optimized flat pack. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions.

This text is machine translated.

Features

Protection class: IP20
Lockable safety glass door
200° door opening angle
1-point lock on the front door
483 mm (19 ") profile rails installed on the front inside the cabinet, galvanized
Depth adjustable with 483 mm (19 ") rails
1.1 - 1.5 strong steel sheet with a high load capacity, powder-coated
Cable input with plastic cover in roof and floor
Ventilation slots for active and passive ventilation
Front door: Glass door, single-leaf
Side walls: Both sides
60 kg load capacity
Mounted: No.
