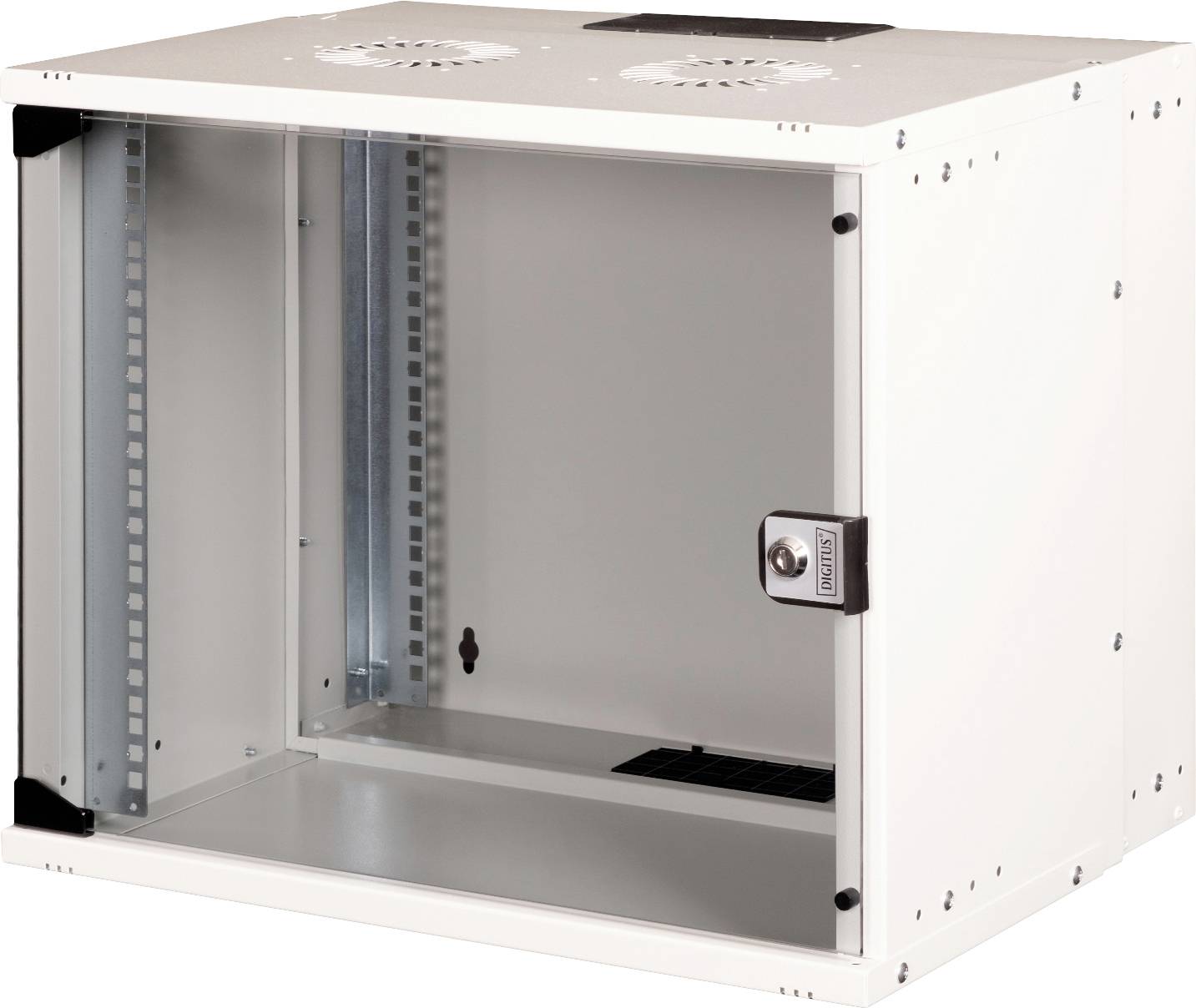

White, empty wall-mounted cabinet with glass door, suitable for network devices or electronics, with ventilation holes at the top.

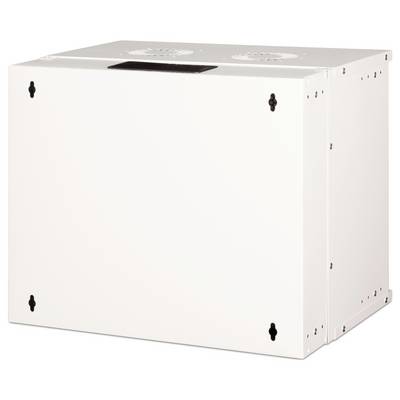

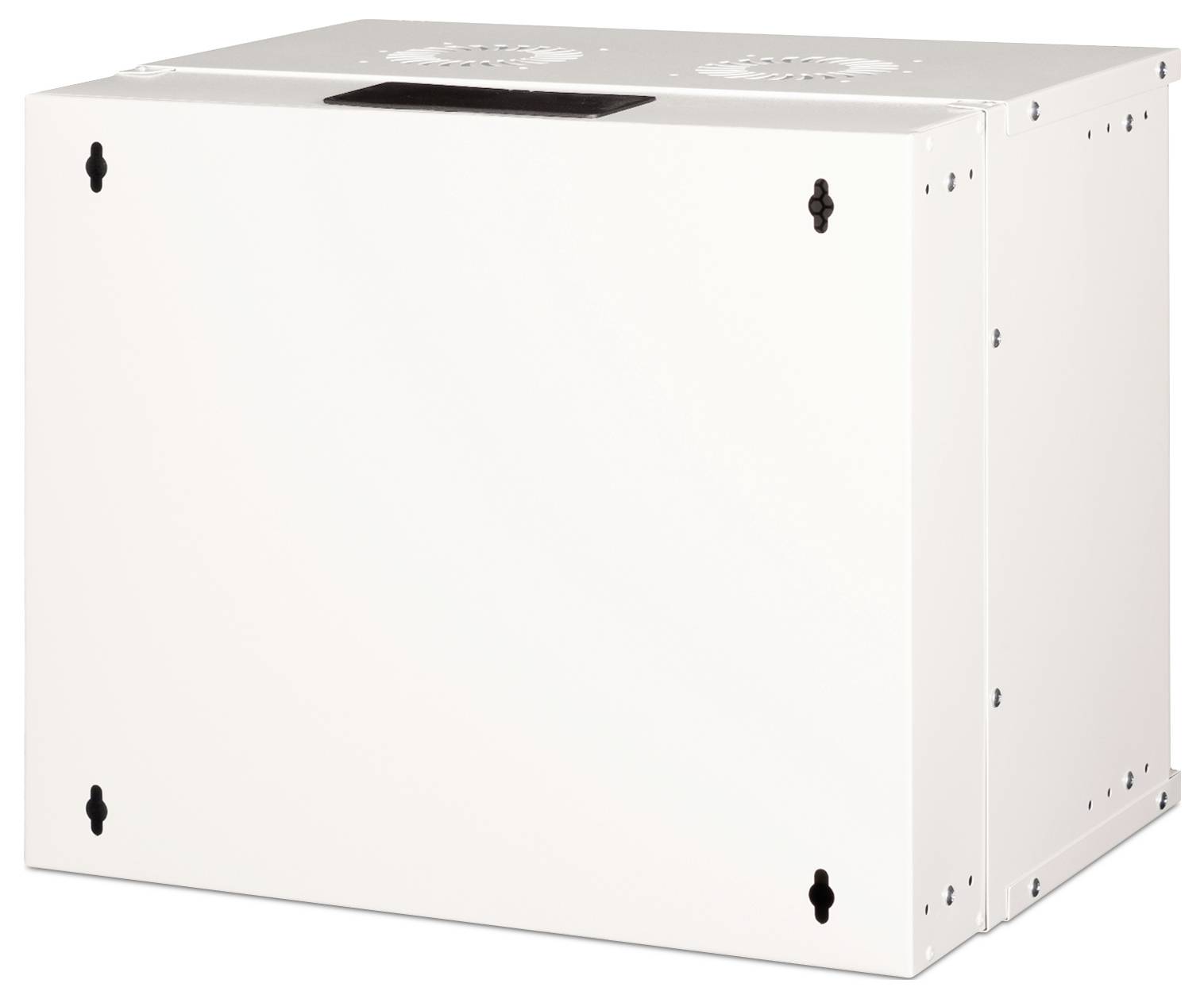

White, rectangular metal box with ventilation slots at the top.

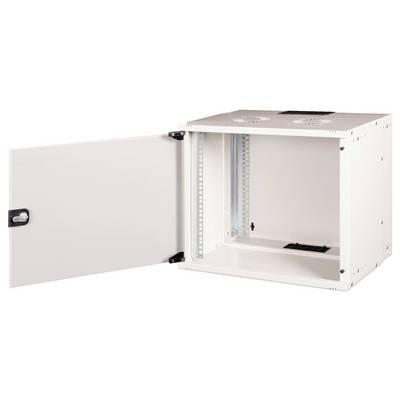

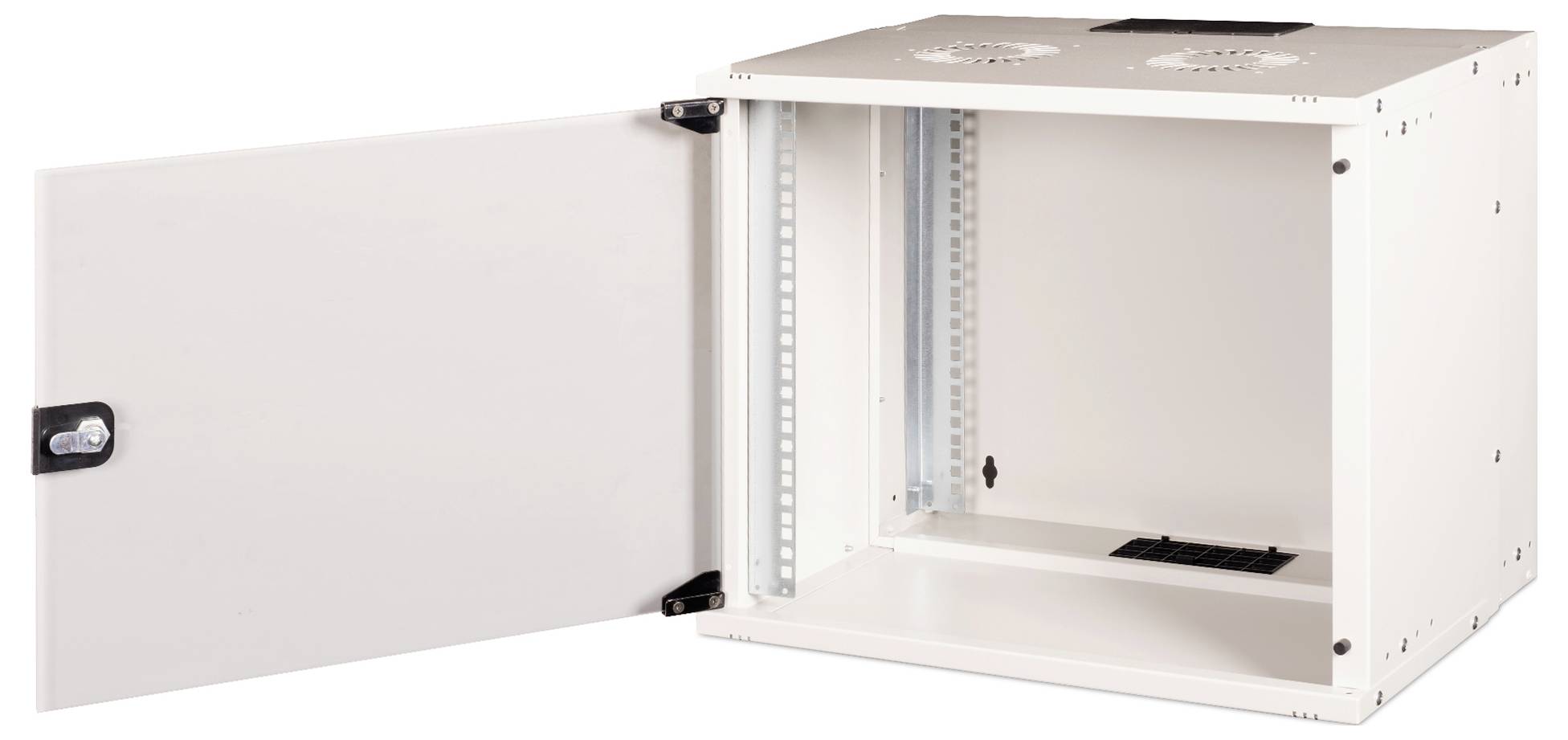

A white server rack cabinet with an open door, revealing an empty interior with mounted side rails and ventilation slots at the top.

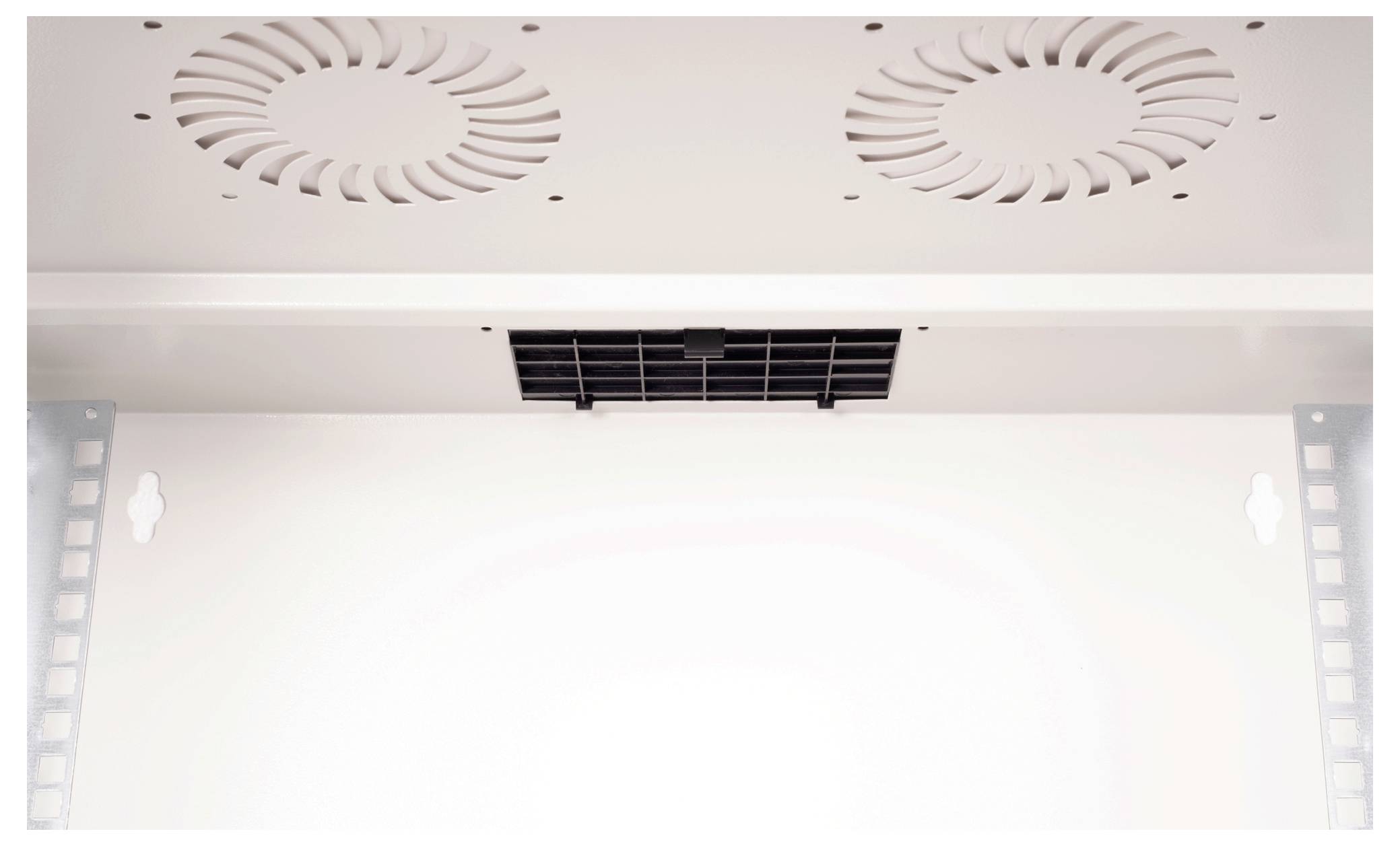

Inside of a white cabinet with two fans at the top and a grille in the middle, possibly for ventilation.

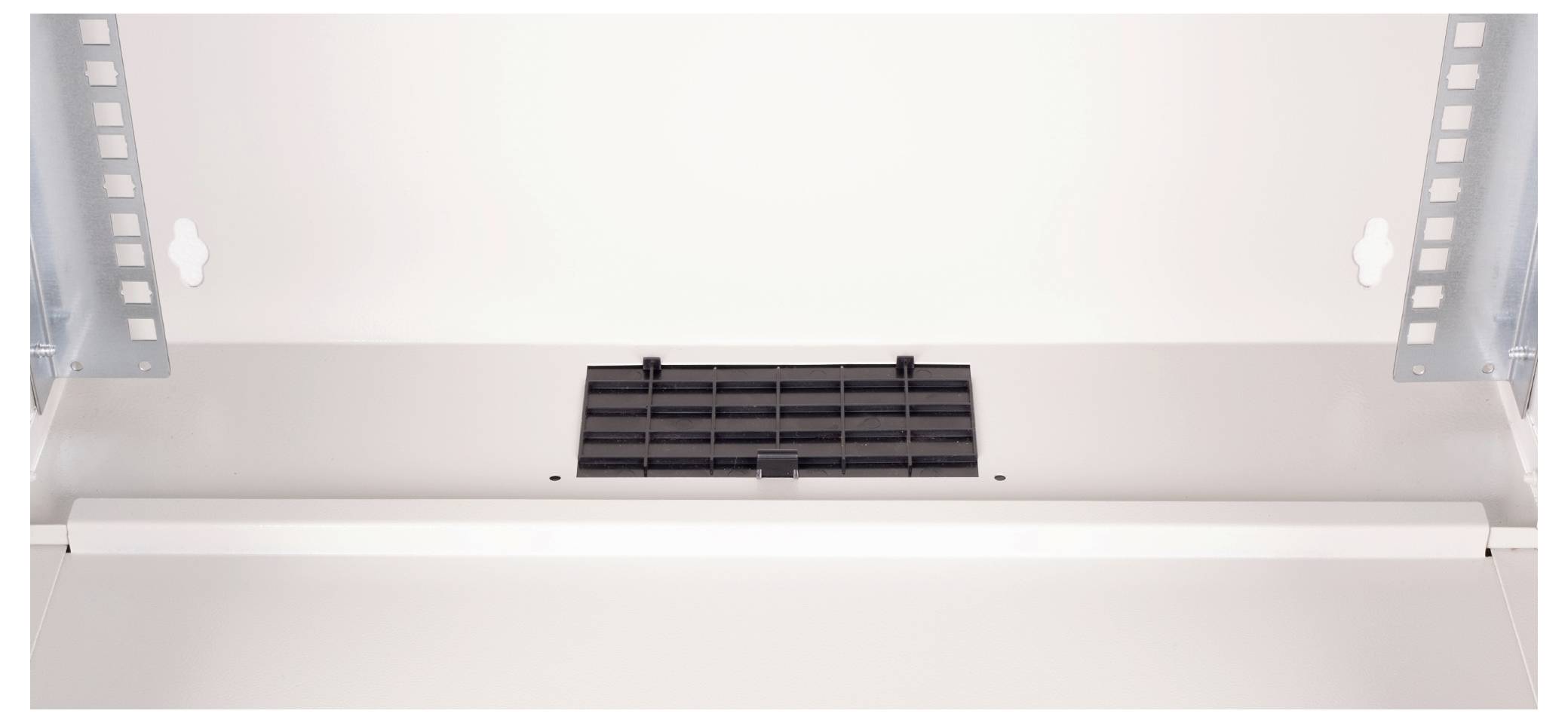

Ventilation grille in a white housing, presumably part of a technical device, with side metal supports for mounting.

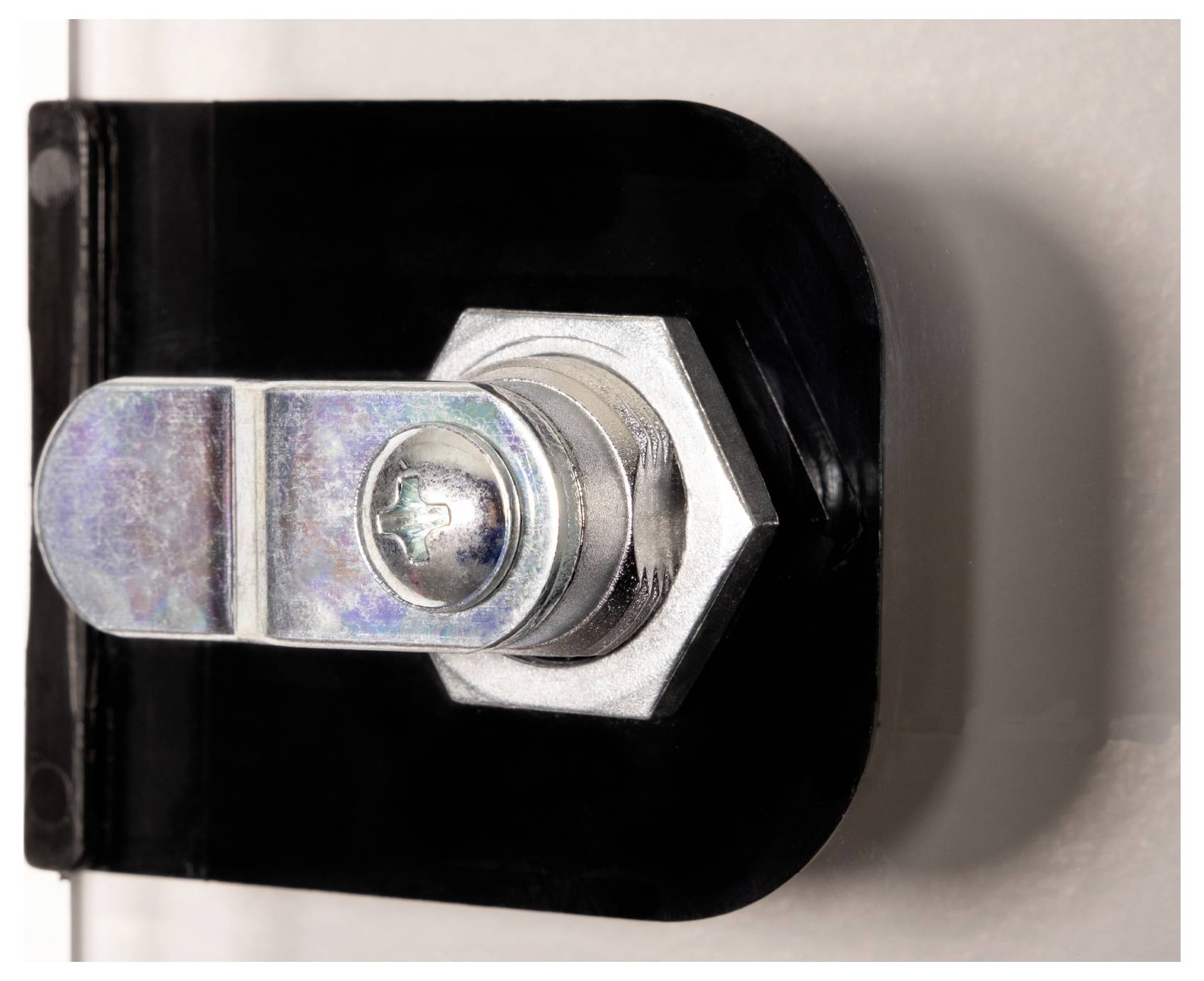

Locking mechanism of a stainless steel metal box, showing a hexagonal bolt in a black fastening.

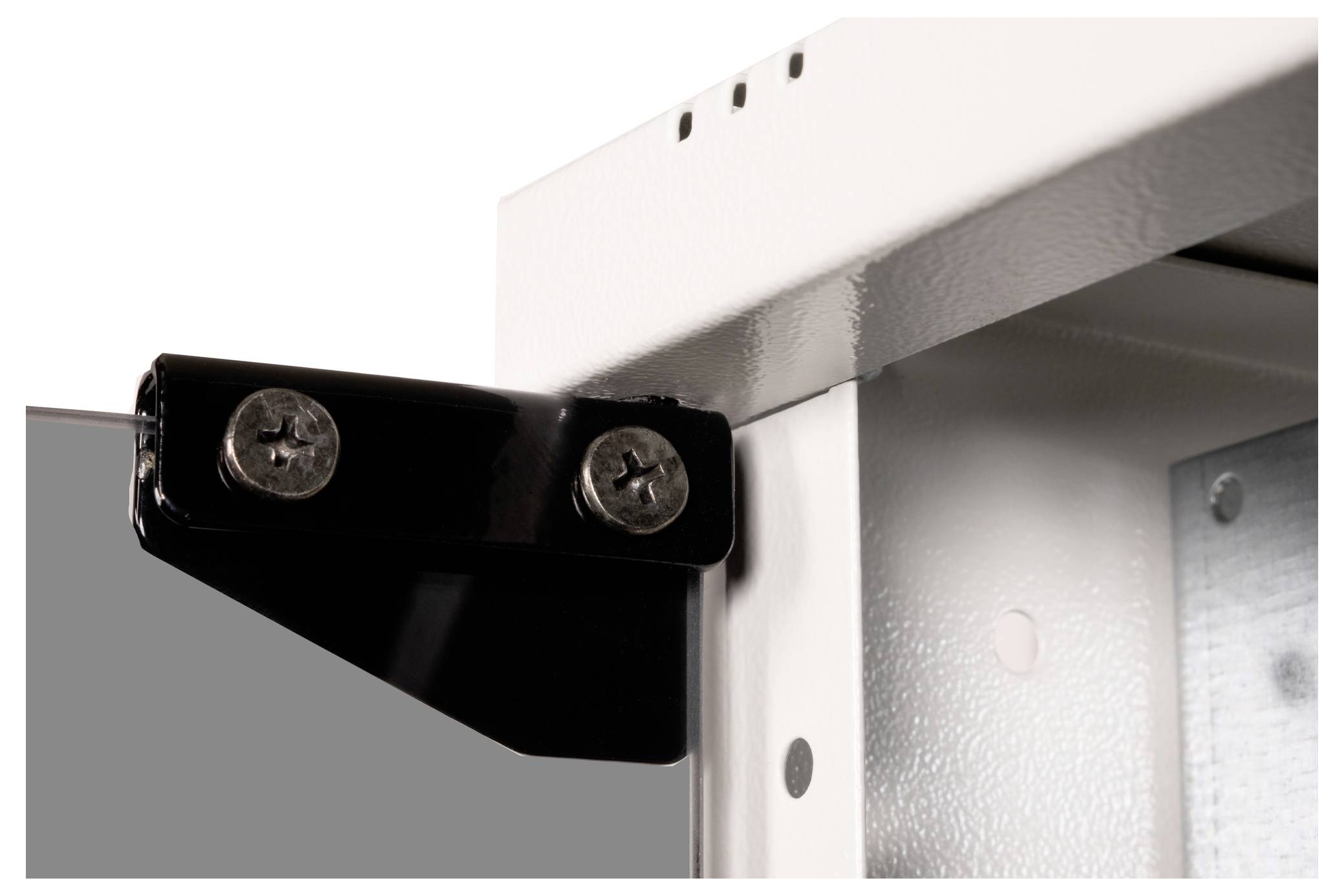

Close-up of a black hinge mounted on a white metal cabinet door. Two screws secure the hinge.

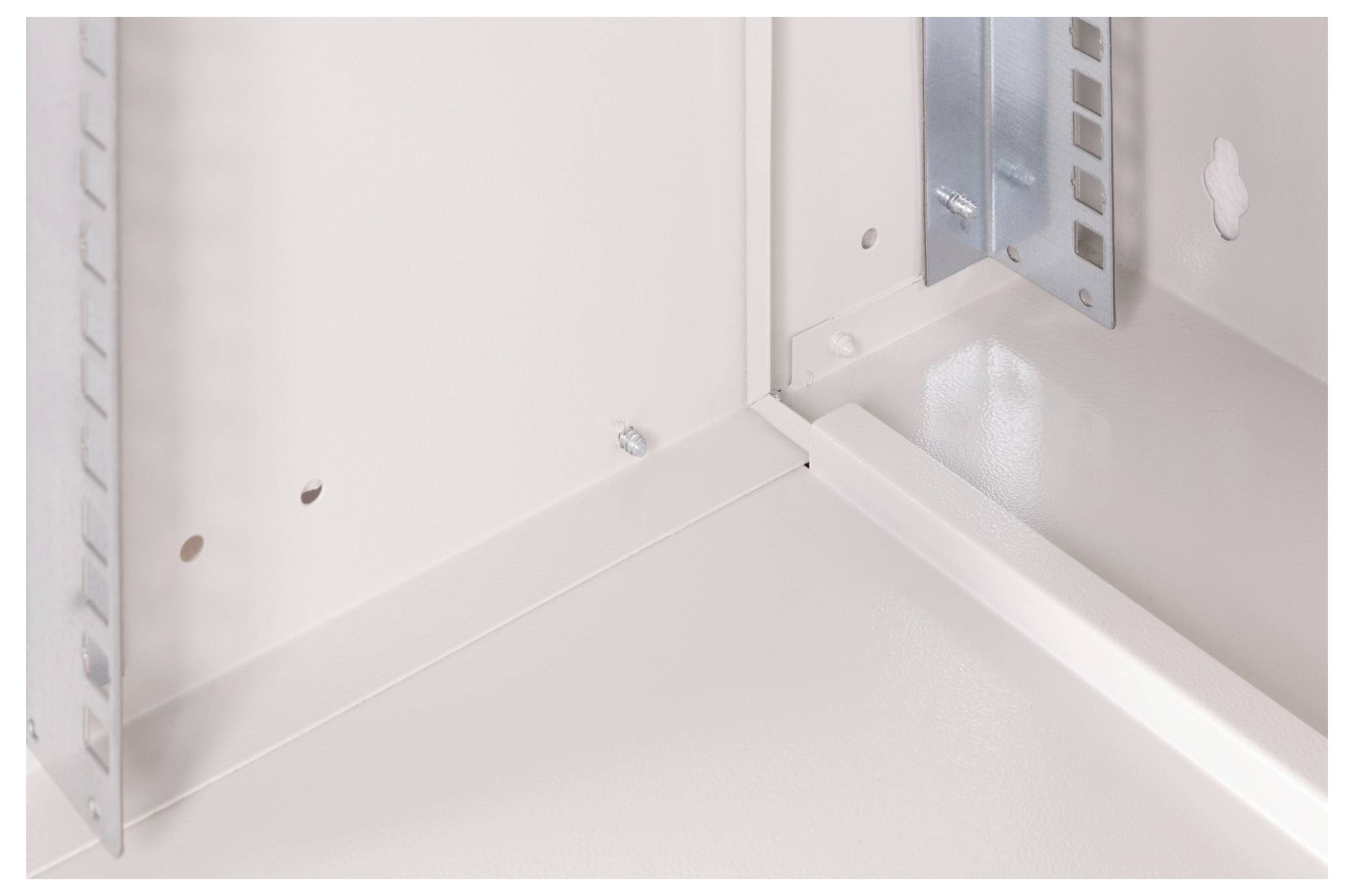

A beige interior of a technical cabinet with vertical and horizontal rails, screws visible.

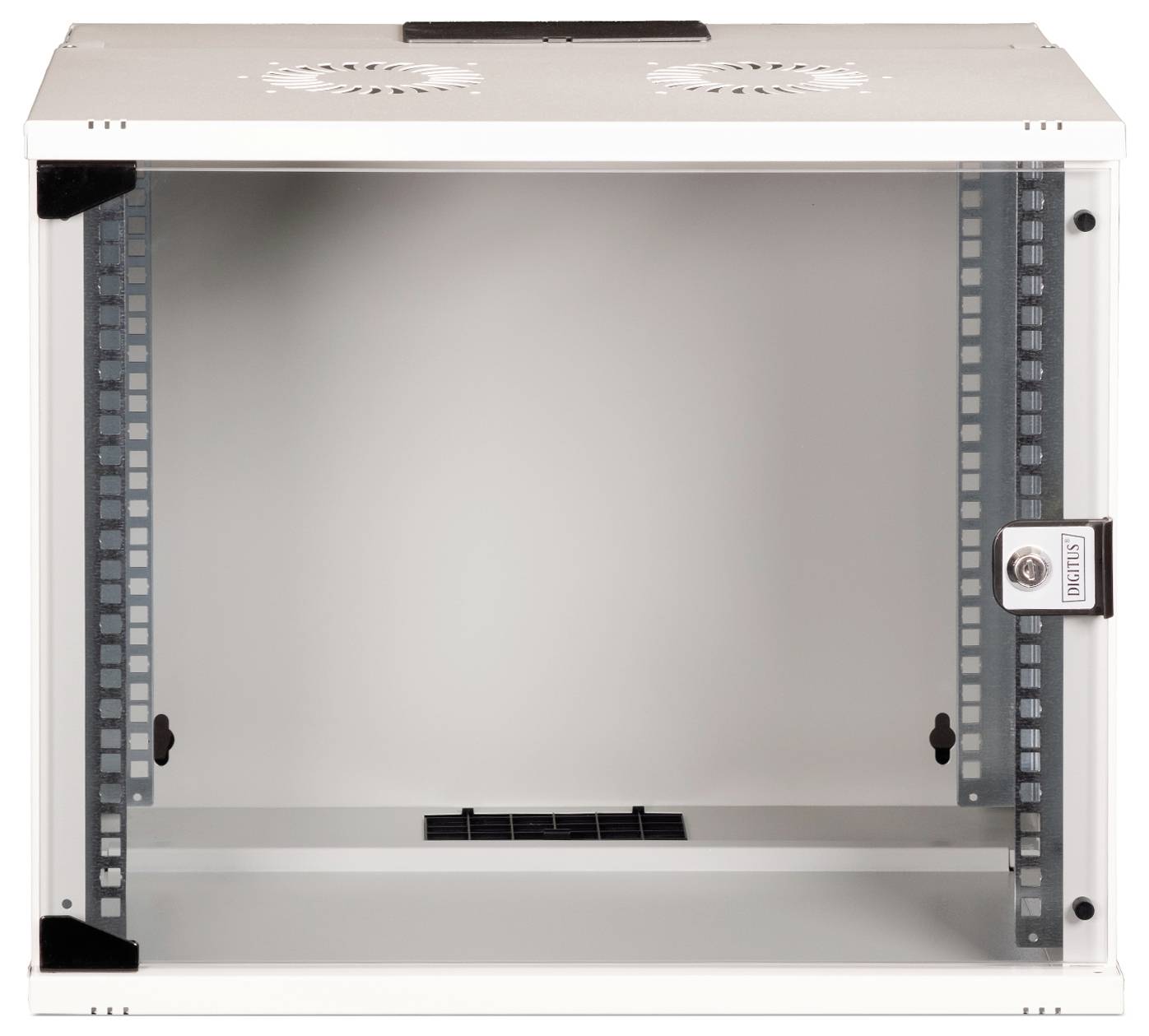

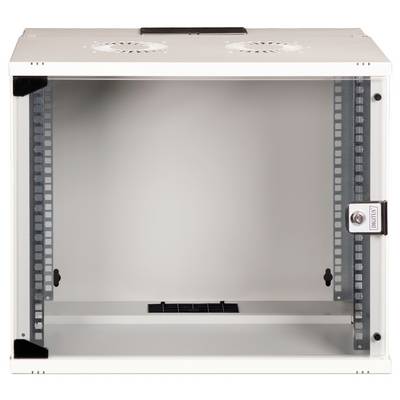

'Empty wall-mounted enclosure with door and lock, suitable for secure storage of IT equipment and network systems.'

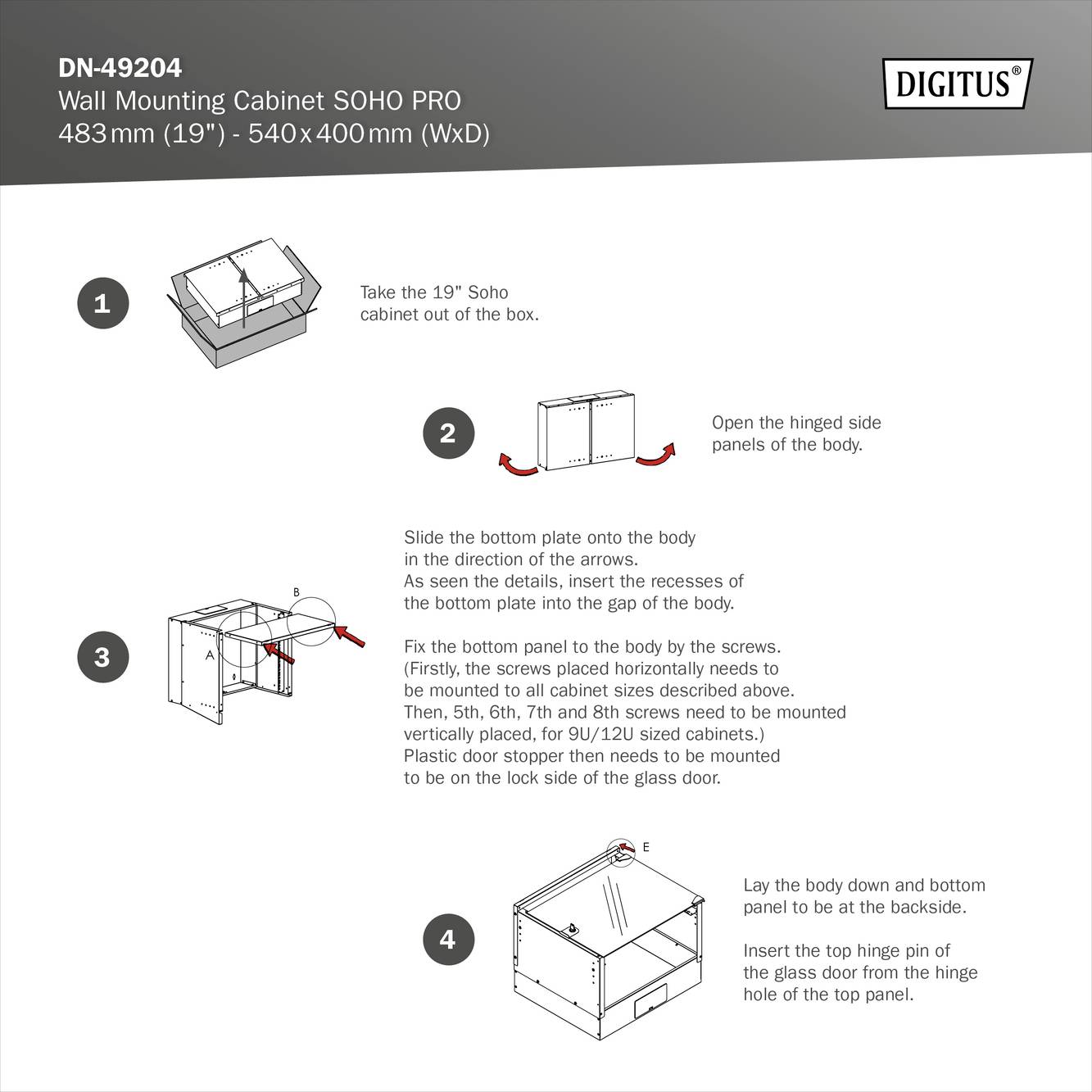

'DN-49204 Wall-Mounted Cabinet SOHO PRO 483 mm (19") - 540x400 mm (WxD)'. Installation Instructions: 1) Open cabinet, 2) Insert base plate, 3) Secure, 4) Mount to wall.

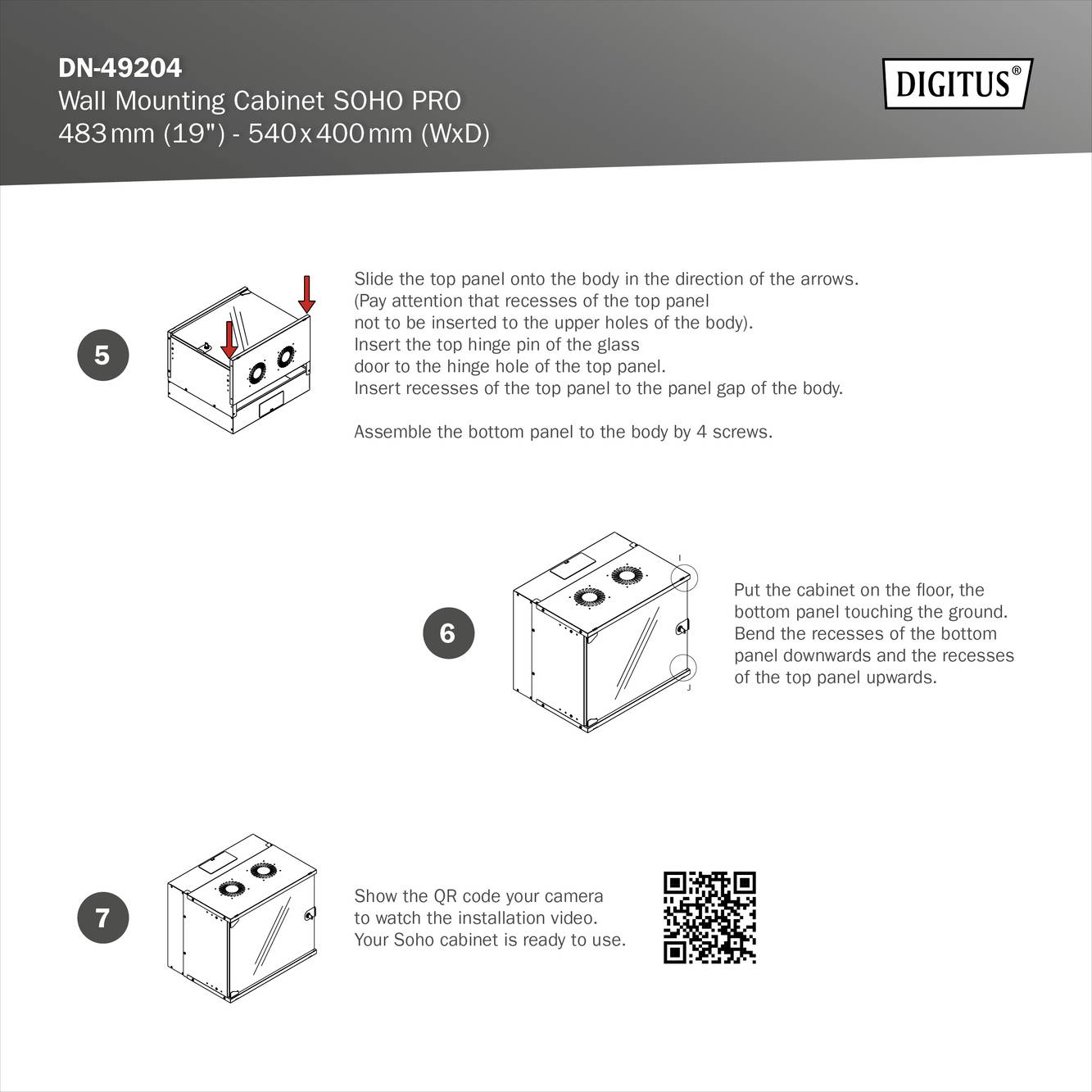

'Assembly Instructions for the SOHO PRO Wall Cabinet. Steps 5-7 explain the attachment of the top panel and base plate with QR code for video guidance.'

1/11

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

19" 9HE wall housing, SOHO PRO 460 x 540 x 400 mm, gray

Highlights & Details

Supplied unassembled in optimized flat pack
Especially user-friendly, quick installation
Compact housing for 483 mm (19 ") network installations

Technical specifications

Product type: 19" wall cabinet

Rack unit: 9 U

Width: 540 mm

Height: 460 mm

Depth: 400 mm

Material: Glass
Steel

Dim: (W x H x D) 540 x 460 x 400 mm

Weight: 10580 g

Factory colour: Grey
Grey (metal housing)
Grey (RAL 7035)

Rack size: 483 mm (19")

Type: SOHO PER

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3207659 Digitus DN-49204 19" wall cabinet (W x H x D) 540 x 460 x 400 mm 9 U Grey, Grey (metal housing), Grey (RAL 7035)

Information

Information 3207659 Digitus DN-49204 19" wall cabinet (W x H x D) 540 x 460 x 400 mm 9 U Grey, Grey (metal housing), Grey (RAL 7035)

Description

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 483 mm (19") solutions of the SOHO PRO series. Available in four height units (4HE, 7HE, 9HE, 12HE), the wall-mounted units are equipped with a full-glass door and a cable entry in the roof and floor. A pair of galvanized, with readable rack units labeled 483 mm (19") rails are installed in the interior. The depth of these can be adjusted. Each cabinet is a sturdy steel construction made of up to 1.5 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). A door stop can be changed. The network cabinets are delivered unassembled in an optimized flat pack. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions.

This text is machine translated.

Features

Protection class: IP20
Lockable safety glass door
200° door opening angle
1-point lock on the front door
483 mm (19 ") profile rails installed on the front inside the cabinet, galvanized
Depth adjustable with 483 mm (19 ") rails
1.1 - 1.5 strong steel sheet with a high load capacity, powder-coated
Cable input with plastic cover in roof and floor
Ventilation slots for active and passive ventilation
Colour: Light gray, RAL 7035
Front door: Glass door, single-leaf
Side walls: Both sides
60 kg load capacity
Mounted: No.
