Buy Digitus DN-49205-SET 19" server rack cabinet (W x H x D) 540 x 460 x 400 mm 9 U Black

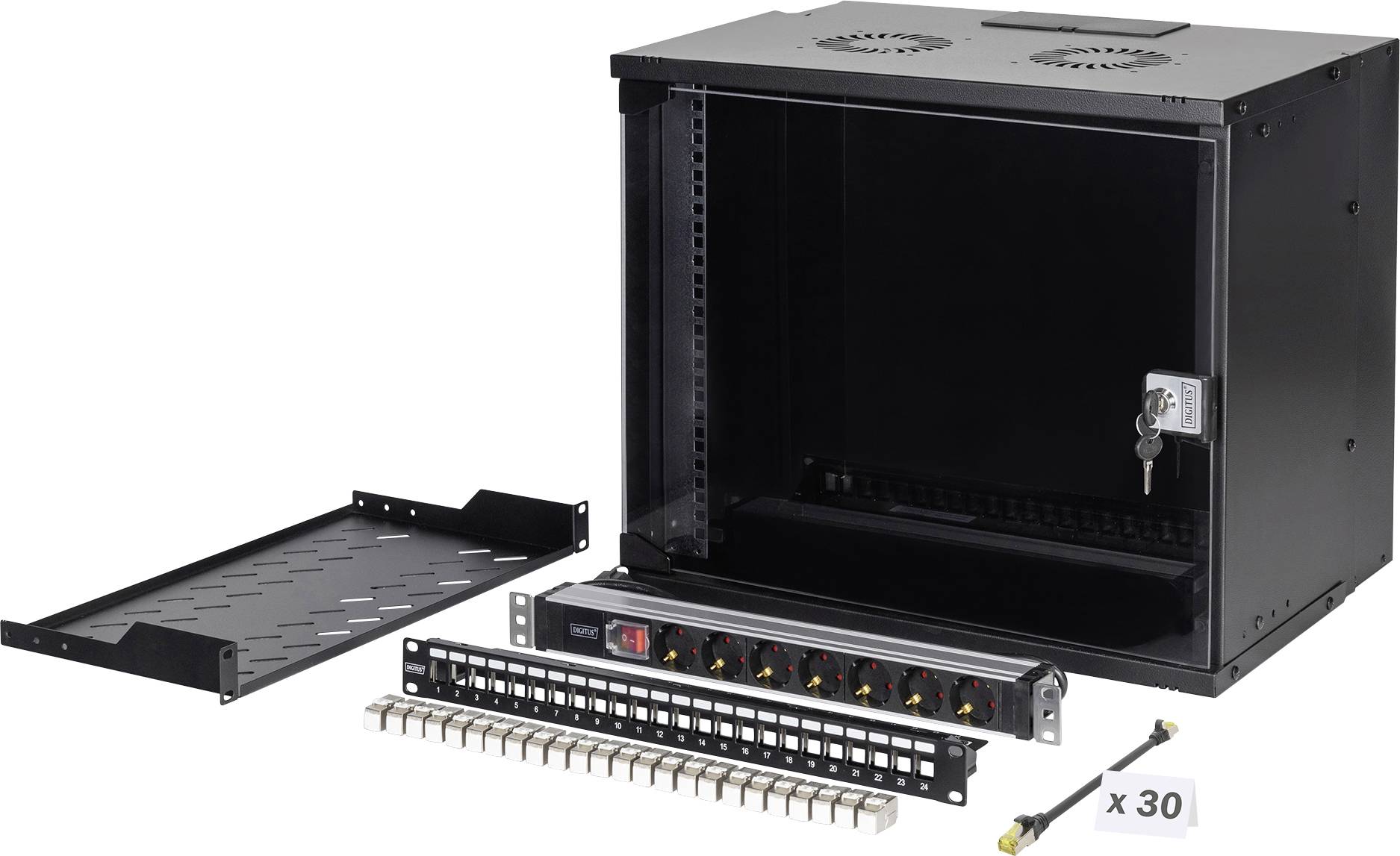

A black server rack with a locking door, vented top panel, metal shelf, power strip, patch panel, and set of mounting screws.

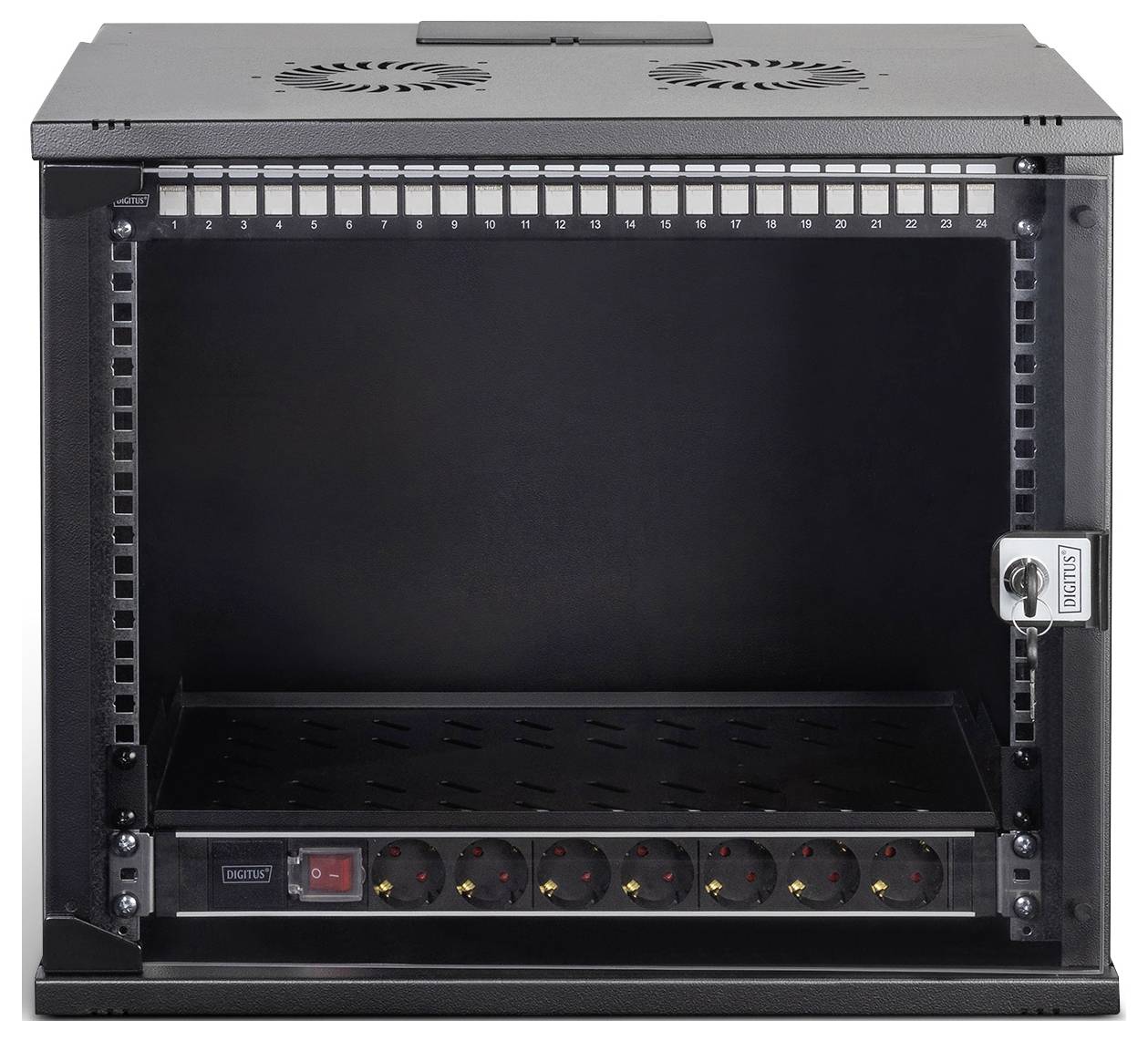

A black server rack cabinet with open front, capacity for network equipment. Features cooling fans on top, numbered slots, and power strip.

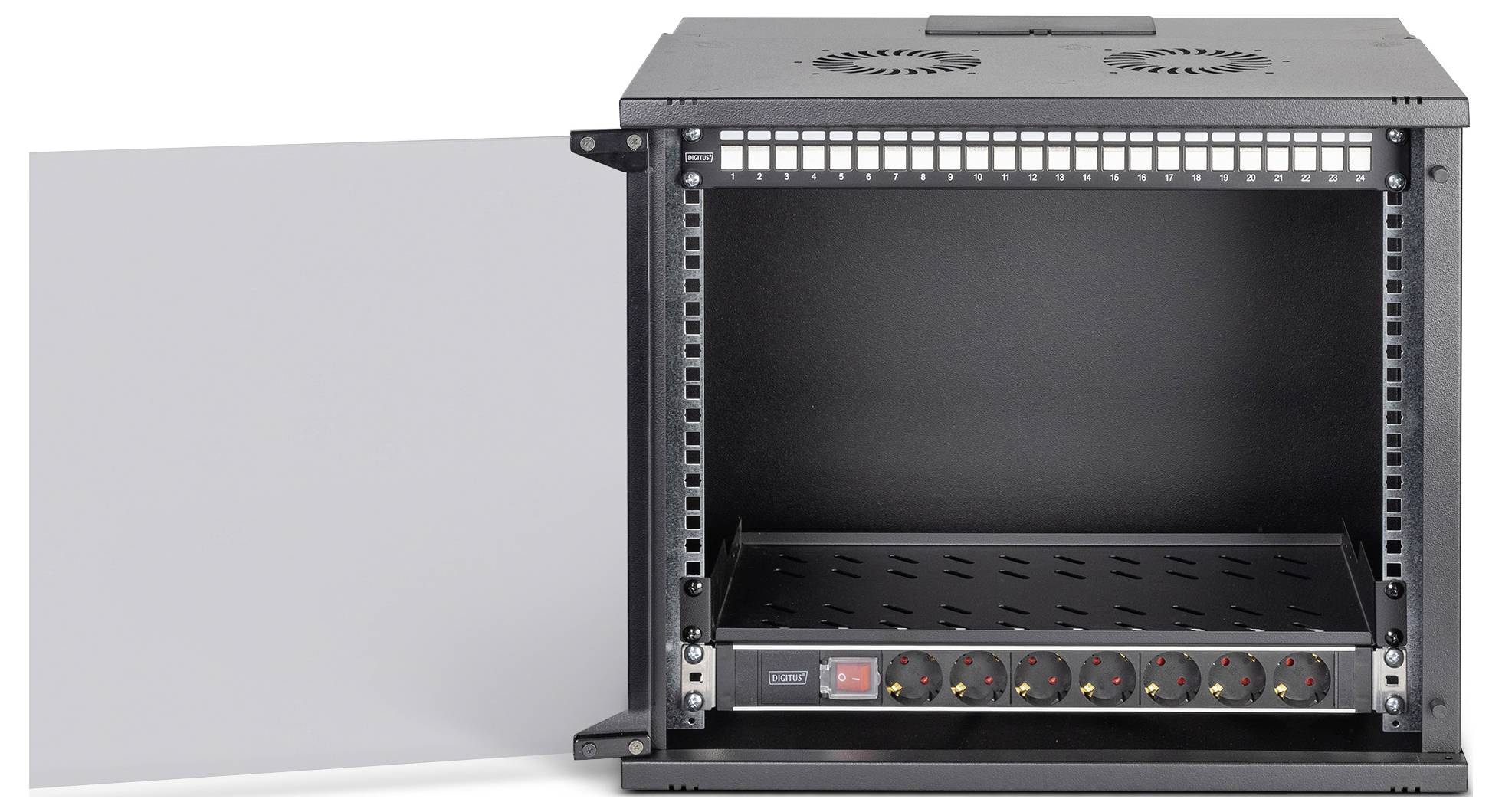

An open black server rack cabinet with a power distribution unit inside, visible from the front with a partially open door.

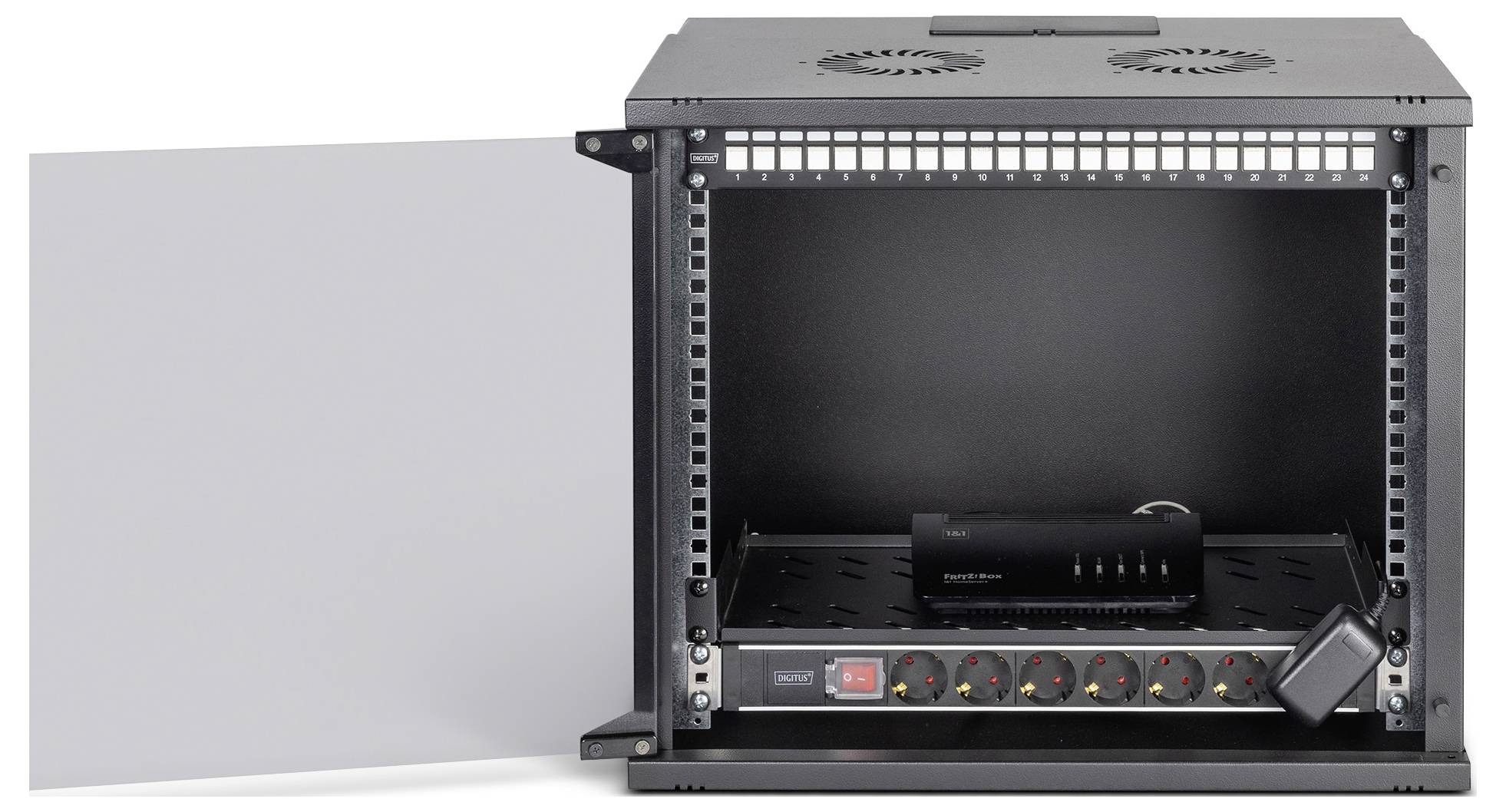

An open black server cabinet with a door ajar, containing a power strip and a small electronic device inside.

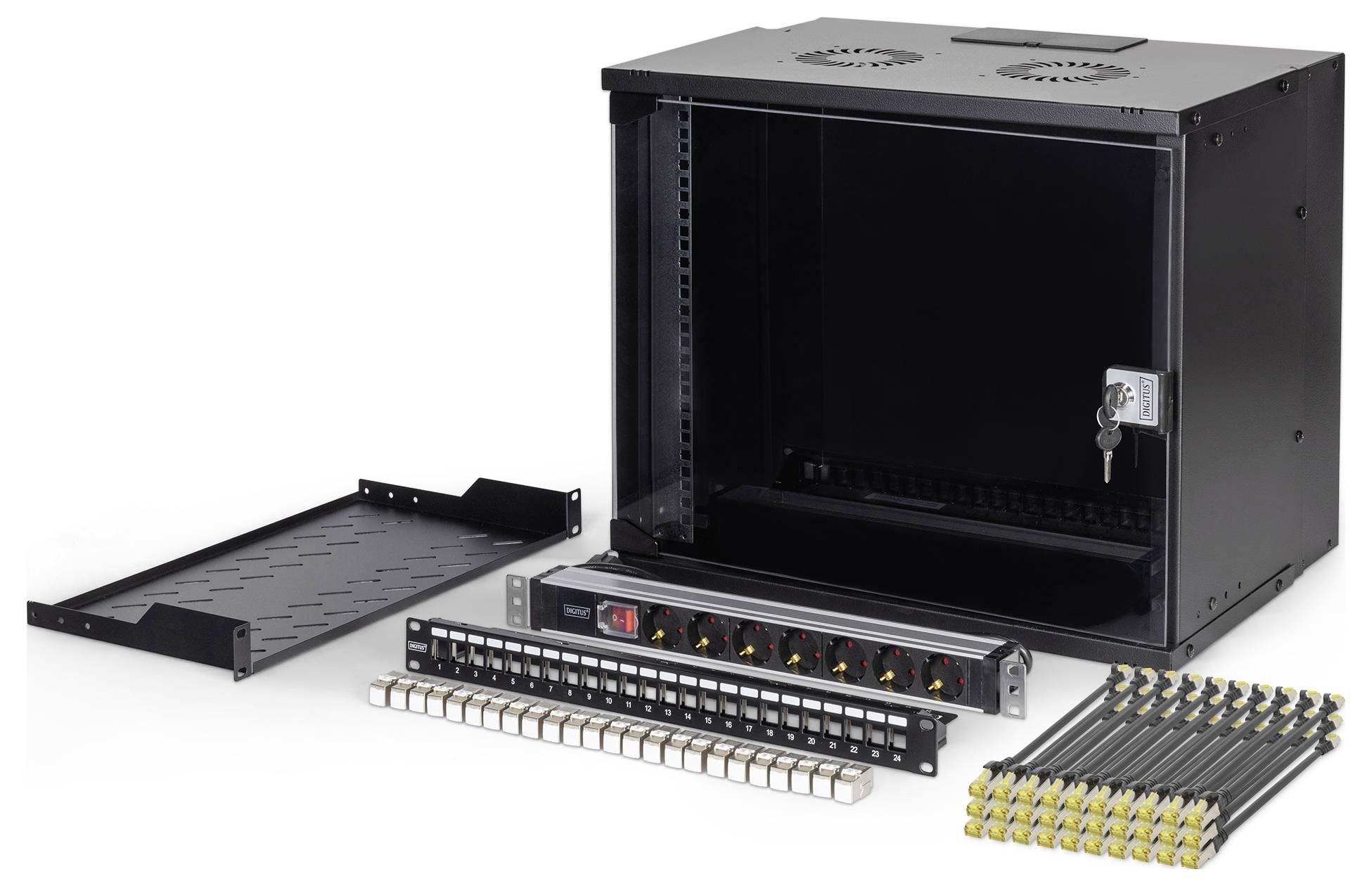

Network equipment bundle includes a black wall-mounted cabinet, patch panel, power distribution unit, and network cable connectors.

1/5

Unavailable

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Digitus Network-Set SOHO Pro, 483 mm (19") - 9HE, 540 x 400 mm (W x D)

Maximum design freedom: Thanks to unassembled delivery, individual positioning of all 19" components is possible.
Including wall housing SOHO PRO, 9HE, 460 x 540 x 400 mm, unmounted (DN-49205)
Inclusive of shelf, 1HE (DN-19 TRAY-1-SW)
Including power strip, 1He, 7 x earthing contact, with switch (DN-95402)
Including modular patch panel, 24-port (DN-91411)
Includes 24 x Keystone module, CAT 6A, shielded (DN-93615-24)
Inclusive 30 x Patch cable, CAT 6A, S/FTP, 0.25 m

Technical specifications

Dimensions of wall-mounted housing (H × W × D): 460 × 540 × 400 mm
Power strip 7 safety contact sockets
Voltage 250 V/AC, 50/60 Hz
Load capacity 16 A / 4000 W
Cable: 2 m (H05VV-F 3G1.5 mm²)
Keystone Module: Category 6A, 500 MHz
Patch cable CAT 6A, length 0.25 m, AWG 26/7

Product type: 19" server rack cabinet

Rack unit: 9 U

Width: 540 mm

Height: 460 mm

Depth: 400 mm

Material: Steel plate

Dim: (W x H x D) 540 x 460 x 400 mm

Weight: 18.4 kg

Factory colour: Black

Rack size: 483 mm (19")

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3462104 Digitus DN-49205-SET 19" server rack cabinet (W x H x D) 540 x 460 x 400 mm 9 U Black

Description

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 483 mm (19") solutions of the SOHO Pro series. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions. Available in four rack units (4HE, 7HE, 9HE, 12HE) in these network sets perfectly tuned Digitus components are supplemented with one another in order to ensure a fast and easy functioning IT-cabling. The network cabinet as well as the respective accessories (e.g. Switch, Patch Panel, Socket connector, shelf, Cable management panel, Patch cables, etc.) are supplied in a compact box.

This text is machine translated.
