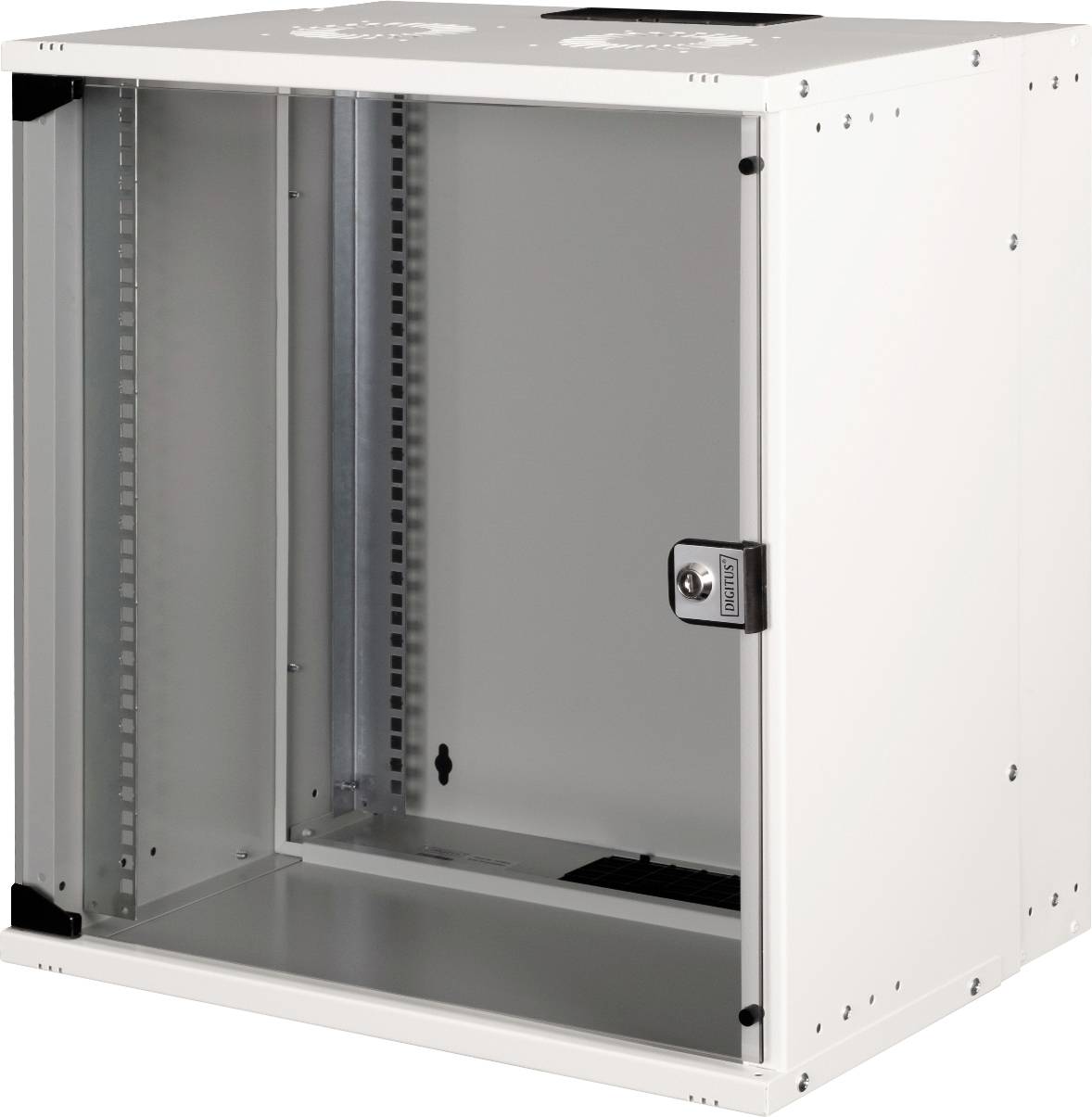

A vacant, open metal network cabinet with a white housing and black lock on the door, designed for housing IT equipment.

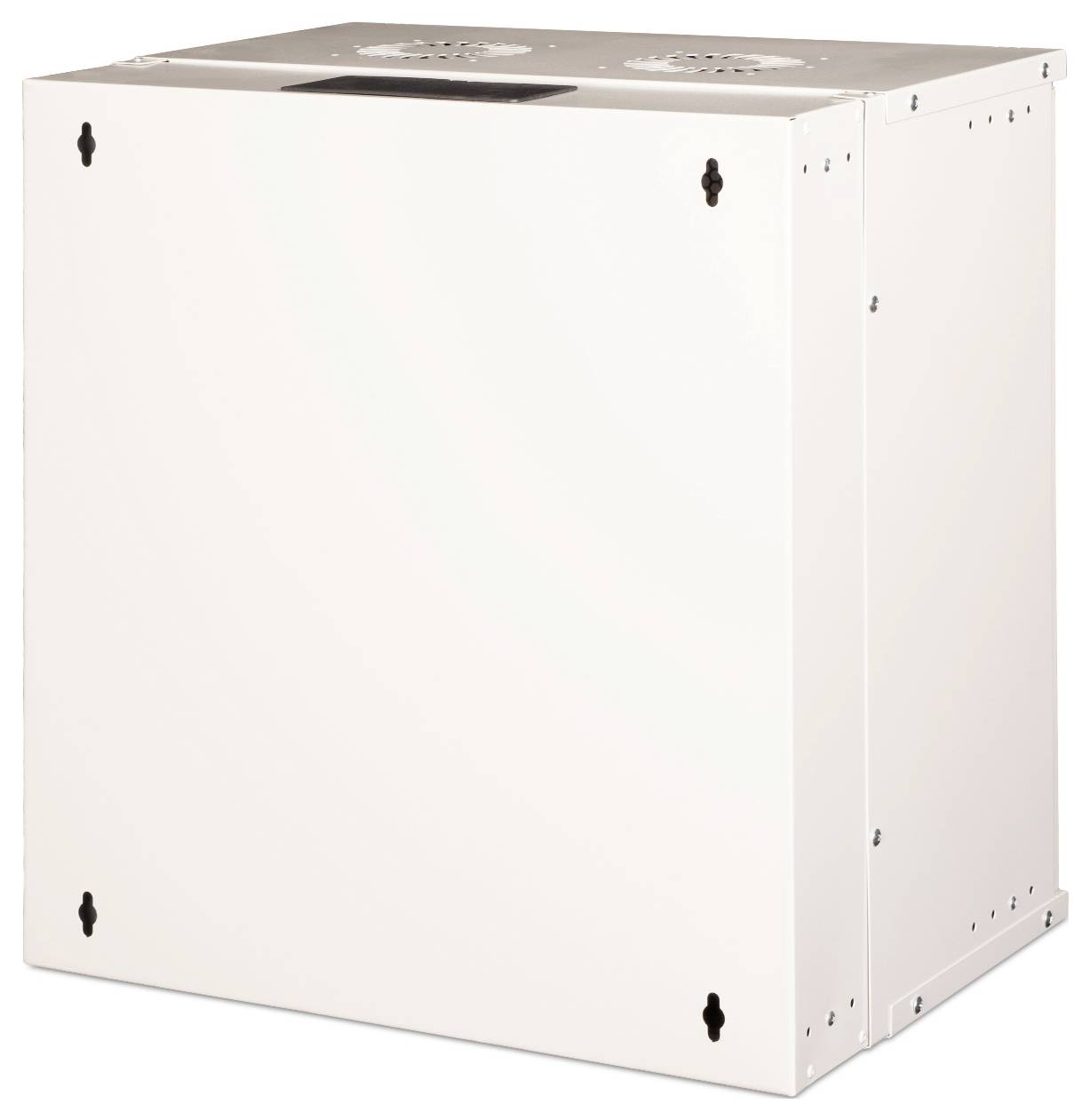

A white, rectangular dehumidifier with a perforated metal section on top, identifiable by ventilation openings and mounting points on the sides.

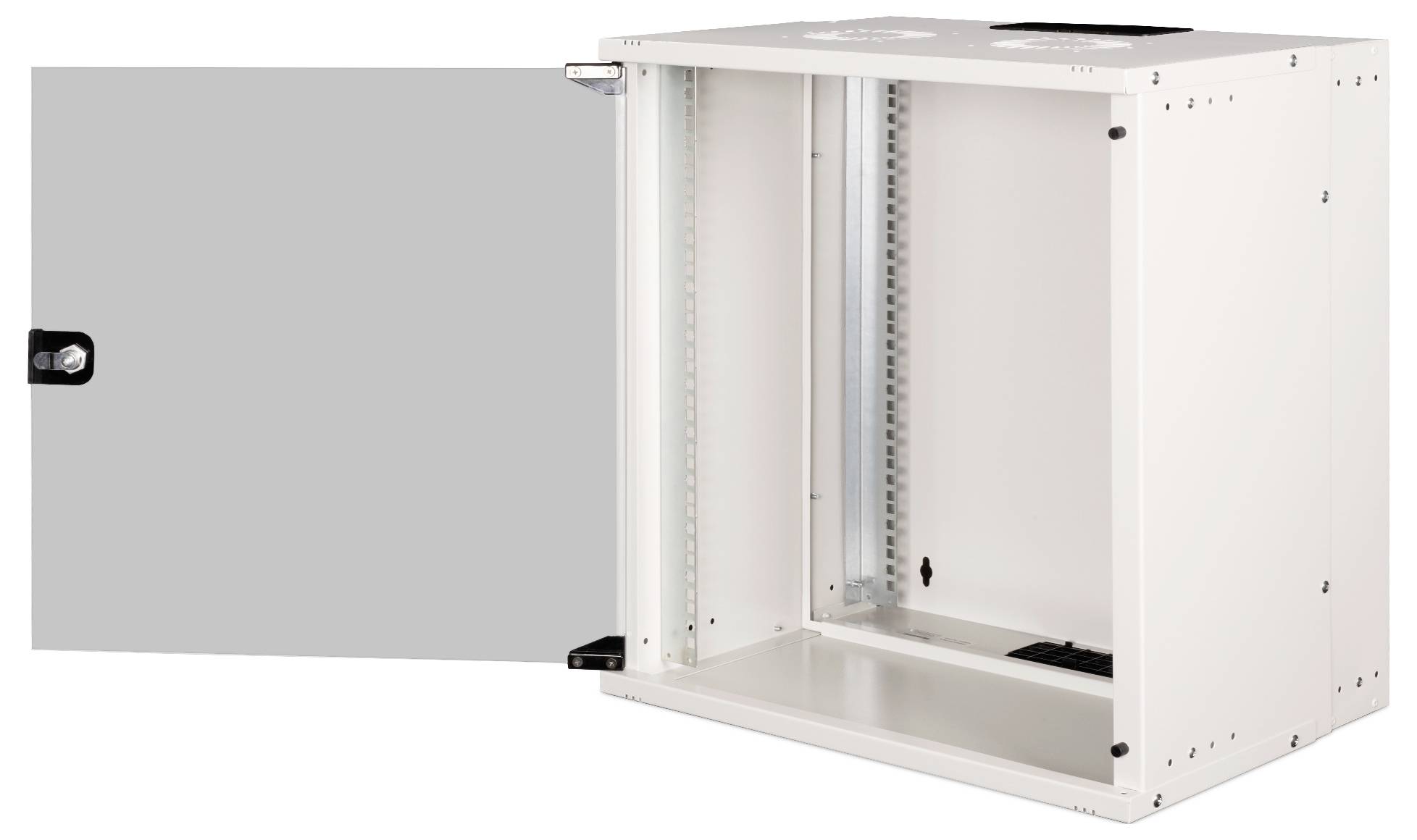

White, open network wall cabinet with an open door, showing internal mounting rails for device installation.

A closed, empty electronic enclosure with ventilation grilles on the top surface.

The image shows the interior of a white cooling device with two fans at the top and a rectangular air grille in the centre.

Small metal door lock with a hexagonal screw, mounted on a black bracket against a white background.

'Close-up of a metal connection with screws on a housing or frame.'

A plain, white metal enclosure with visible screw holes and a discreet manufacturer's label in the bottom right corner.

A vacant, open IT wall cabinet with ventilation slots and a secure locking mechanism, suitable for network devices.

'SOHO PRO Wall-Mounted Cupboard.' Installation Instructions, Step by Step with Images: Remove cupboard, open sides, slide shelf, secure cupboard.

'Installation Instructions for Wall-Mounted Cabinet: Step 5-7, Secure Top Plate, Attach Housing to Wall, QR Code for Video.'

1/11

Unavailable

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

19" 12HE wall housing, SOHO PRO 595 x 540 x 400 mm, gray

Highlights & Details

Supplied unassembled in optimized flat pack
Especially user-friendly, quick installation
Compact housing for 483 mm (19 ") network installations

Technical specifications

Product type: 19" wall cabinet

Rack unit: 12 U

Width: 540 mm

Height: 595 mm

Depth: 400 mm

Material: Glass
Steel

Dim: (W x H x D) 540 x 595 x 400 mm

Weight: 12630 g

Factory colour: Grey
Grey (metal housing)
Grey (RAL 7035)

Rack size: 483 mm (19")

Type: SOHO PER

Keyboard layout: German, QWERTZ

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3207661 Digitus DN-49206 19" wall cabinet (W x H x D) 540 x 595 x 400 mm 12 U Grey, Grey (metal housing), Grey (RAL 7035)

Information

Information 3207661 Digitus DN-49206 19" wall cabinet (W x H x D) 540 x 595 x 400 mm 12 U Grey, Grey (metal housing), Grey (RAL 7035)

Description

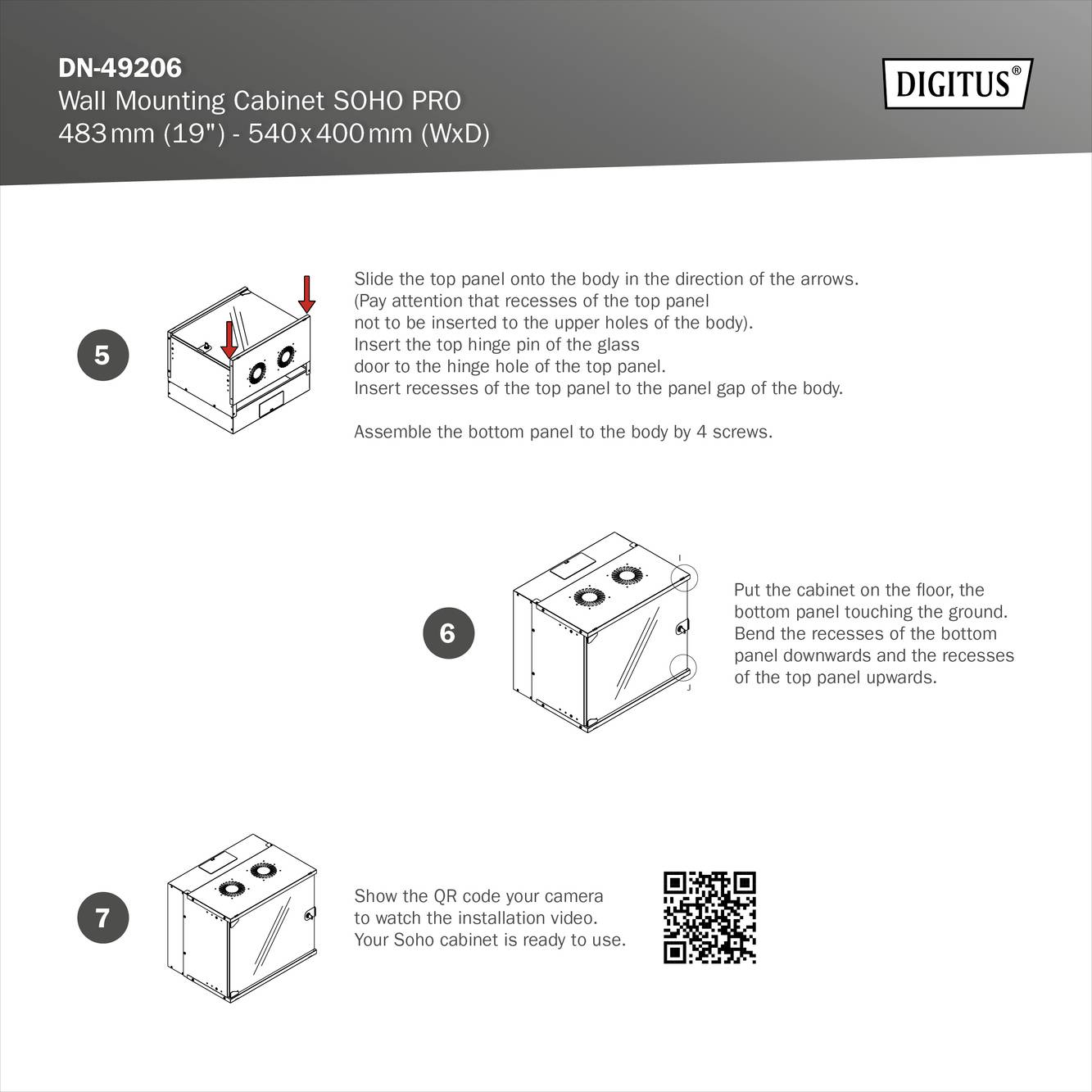

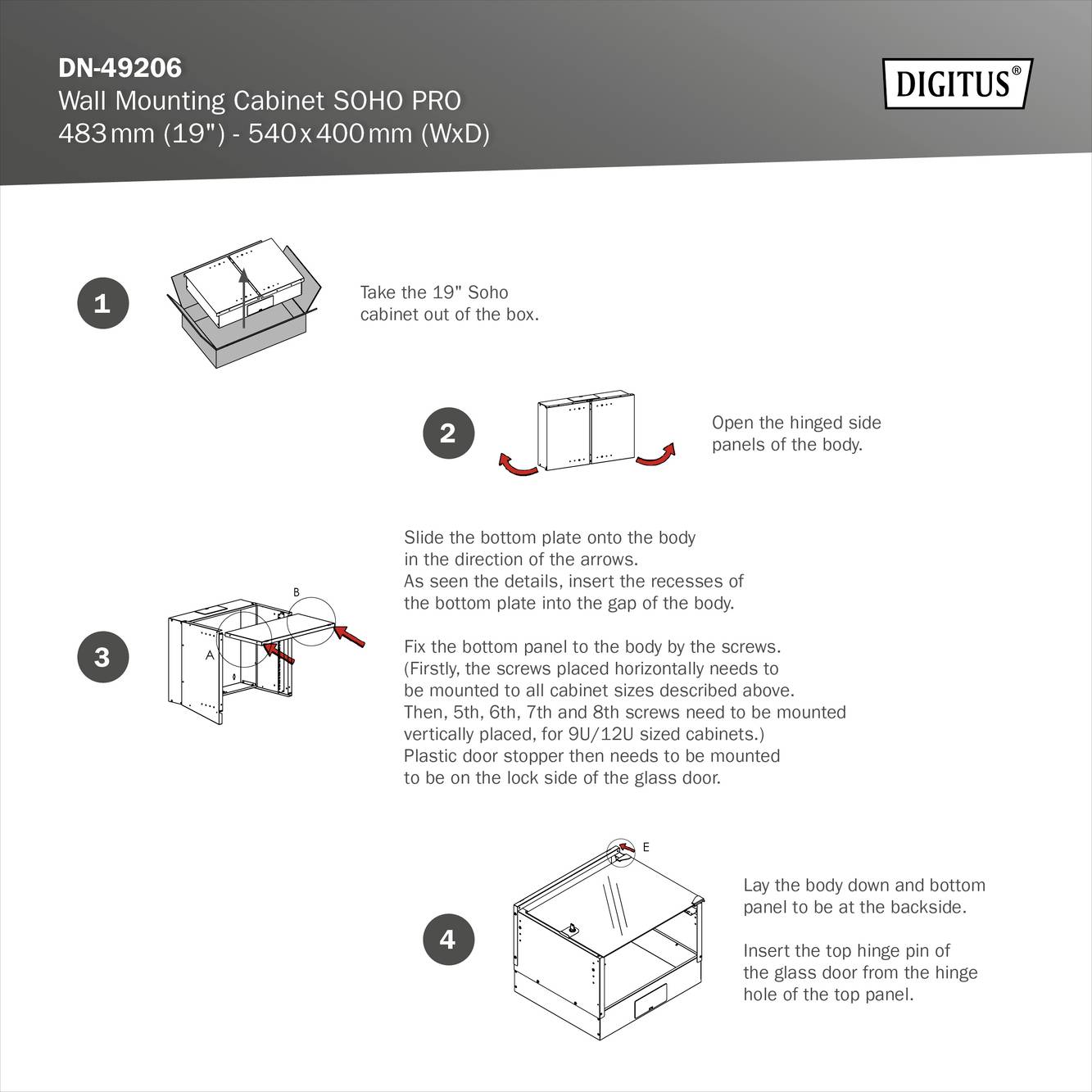

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 483 mm (19") solutions of the SOHO PRO series. Available in four height units (4HE, 7HE, 9HE, 12HE), the wall-mounted units are equipped with a full-glass door and a cable entry in the roof and floor. A pair of galvanized, with readable rack units labeled 483 mm (19") rails are installed in the interior. The depth of these can be adjusted. Each cabinet is a sturdy steel construction made of up to 1.5 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). A door stop can be changed. The network cabinets are delivered unassembled in an optimized flat pack. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions.

This text is machine translated.

Features

Protection class: IP20

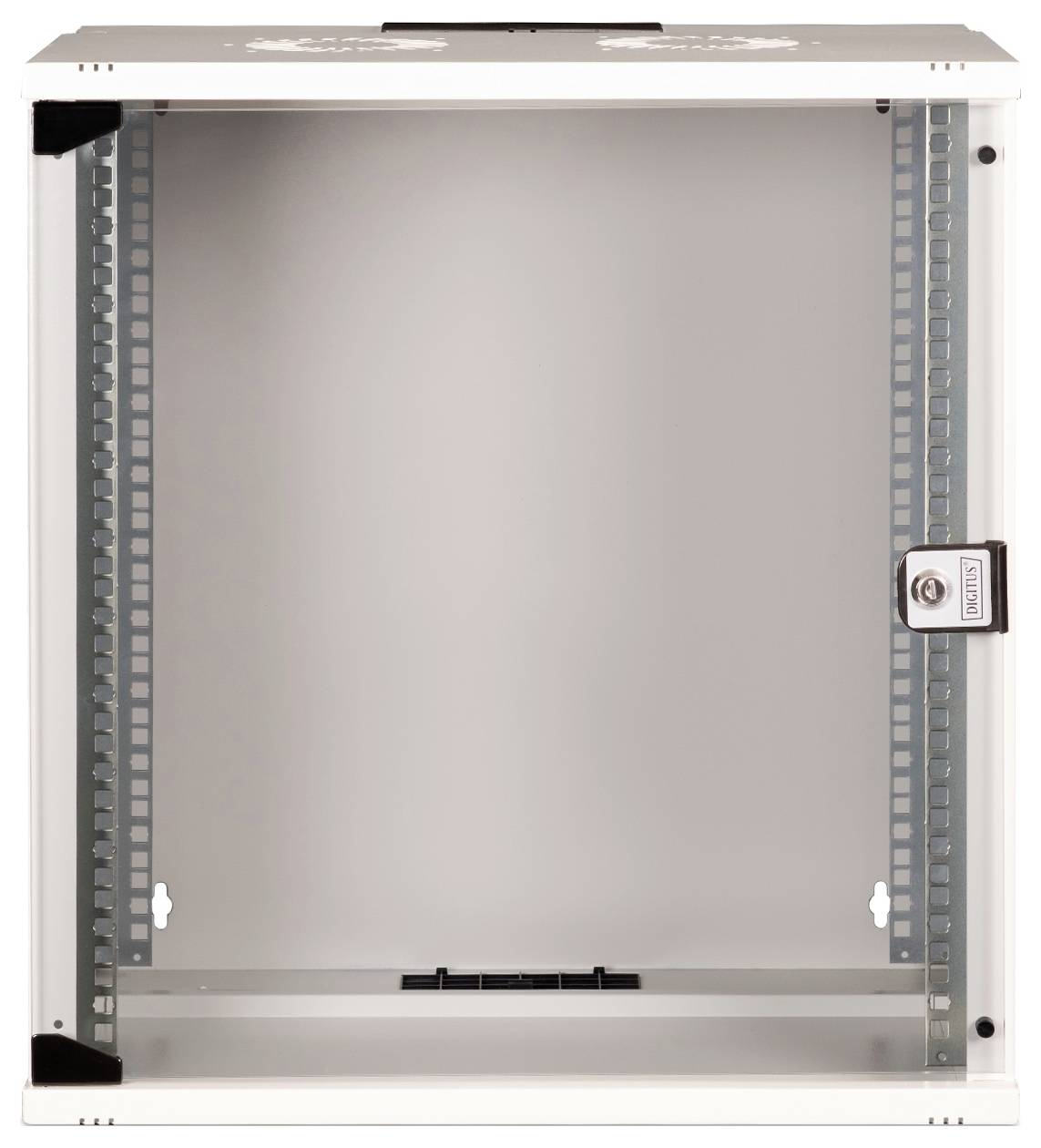

Lockable safety glass door
200° door opening angle

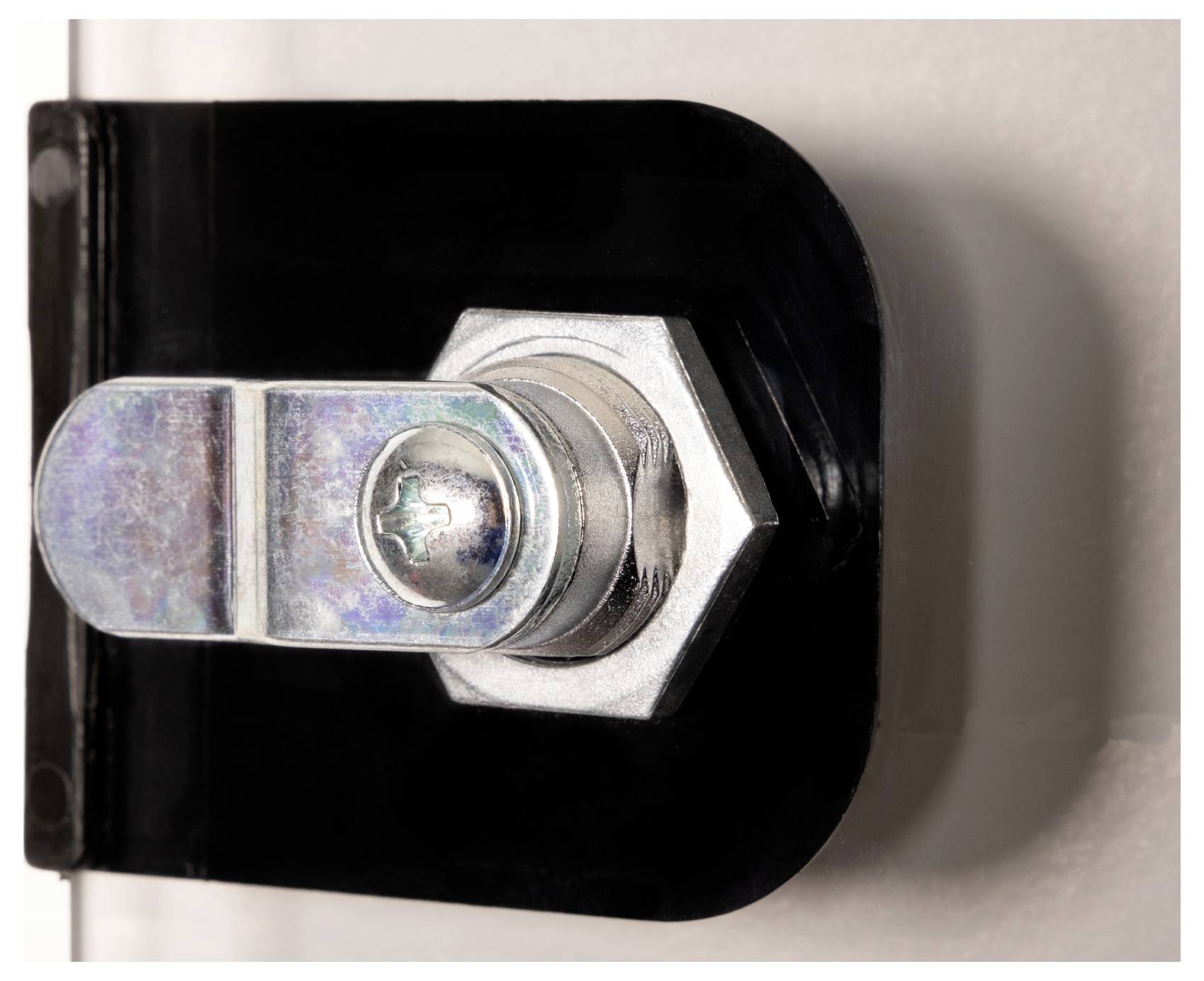

1-point lock on the front door

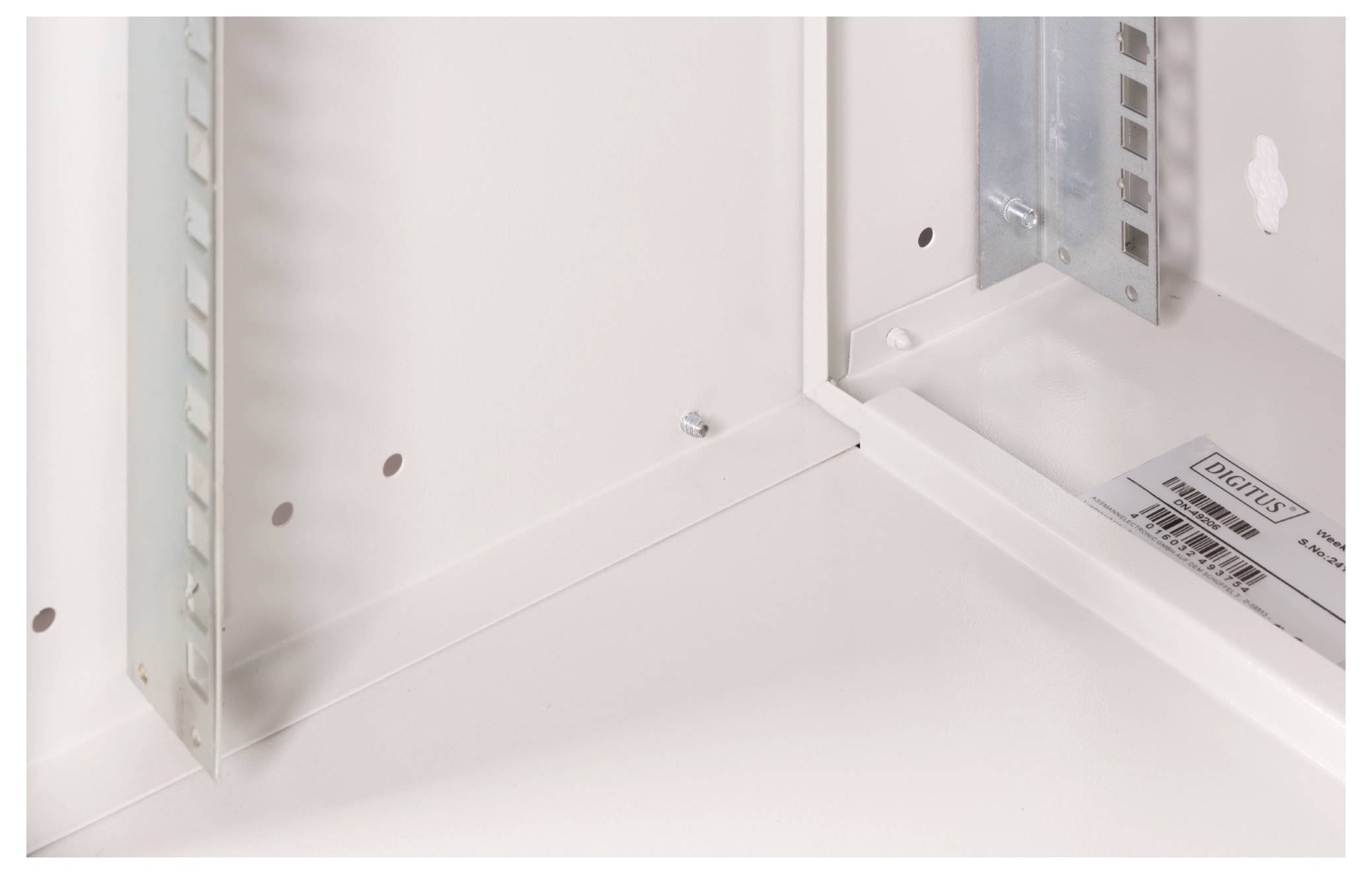

483 mm (19 ") profile rails installed on the front inside the cabinet, galvanized
Depth adjustable with 483 mm (19 ") rails
1.1 - 1.5 strong steel sheet with a high load capacity, powder-coated

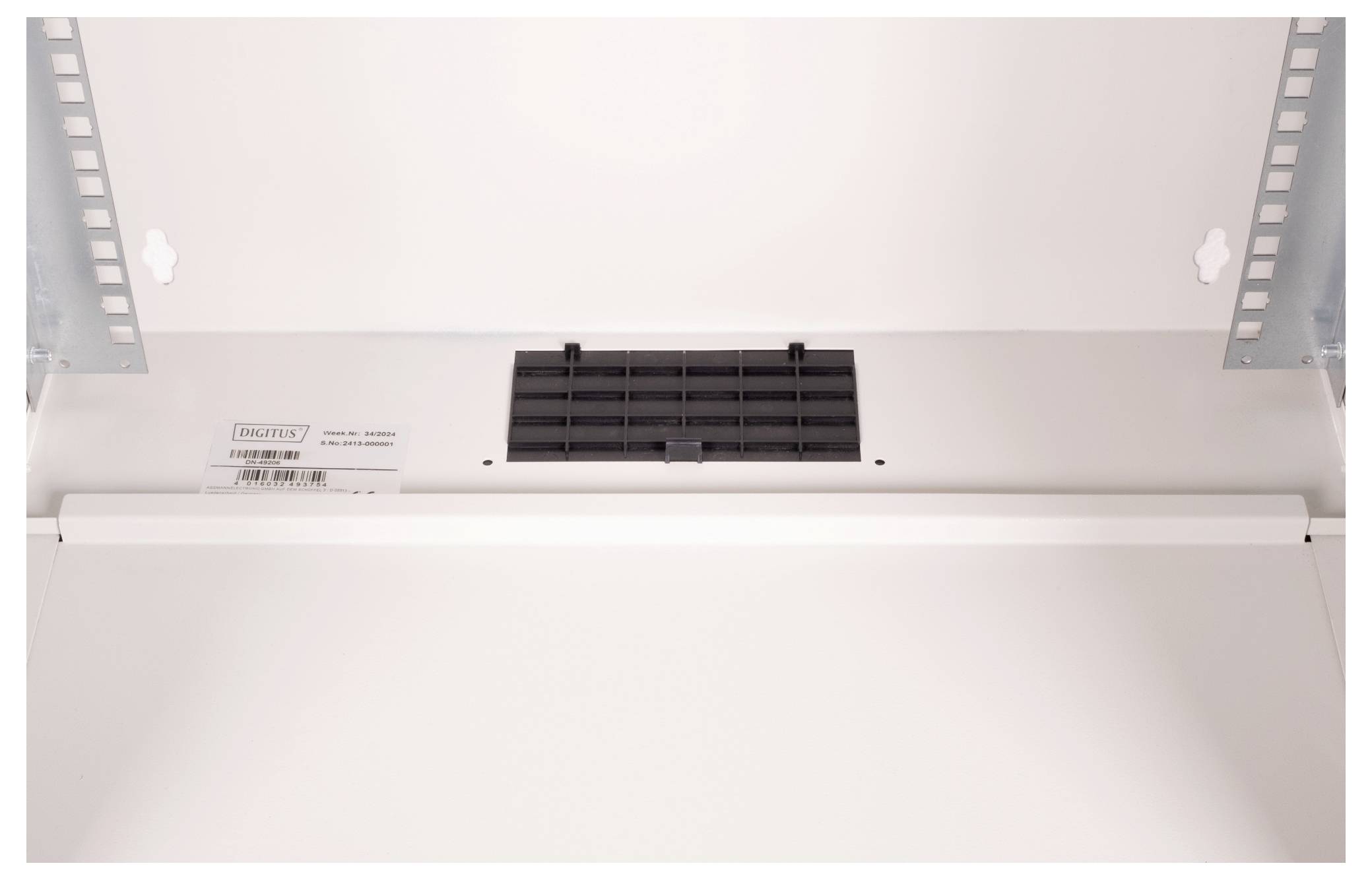

Cable input with plastic cover in roof and floor

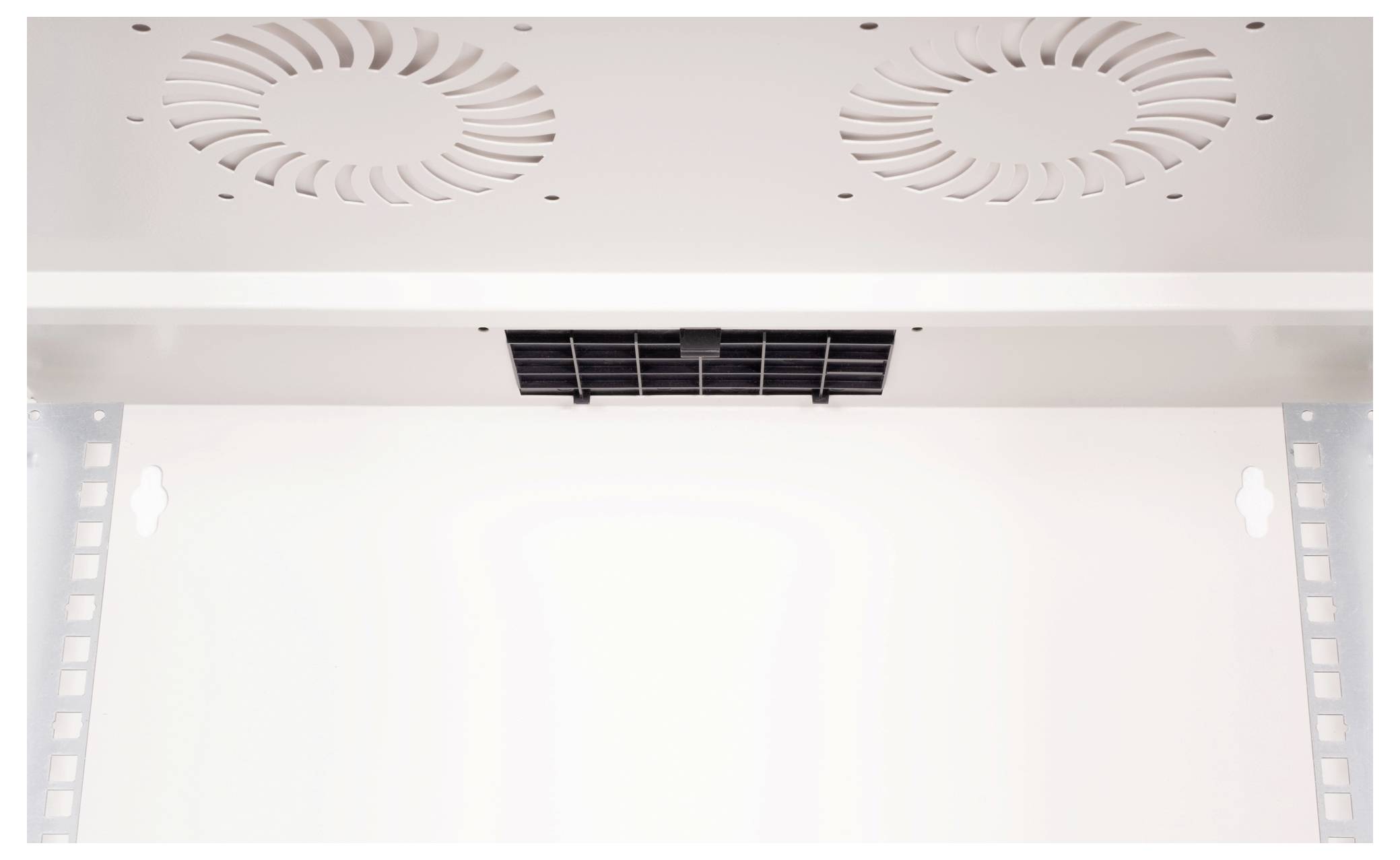

Ventilation slots for active and passive ventilation
Front door: Glass door, single-leaf
Cabinet type: Wall housing
Side walls: Both sides
60 kg load capacity
Mounted: No.
