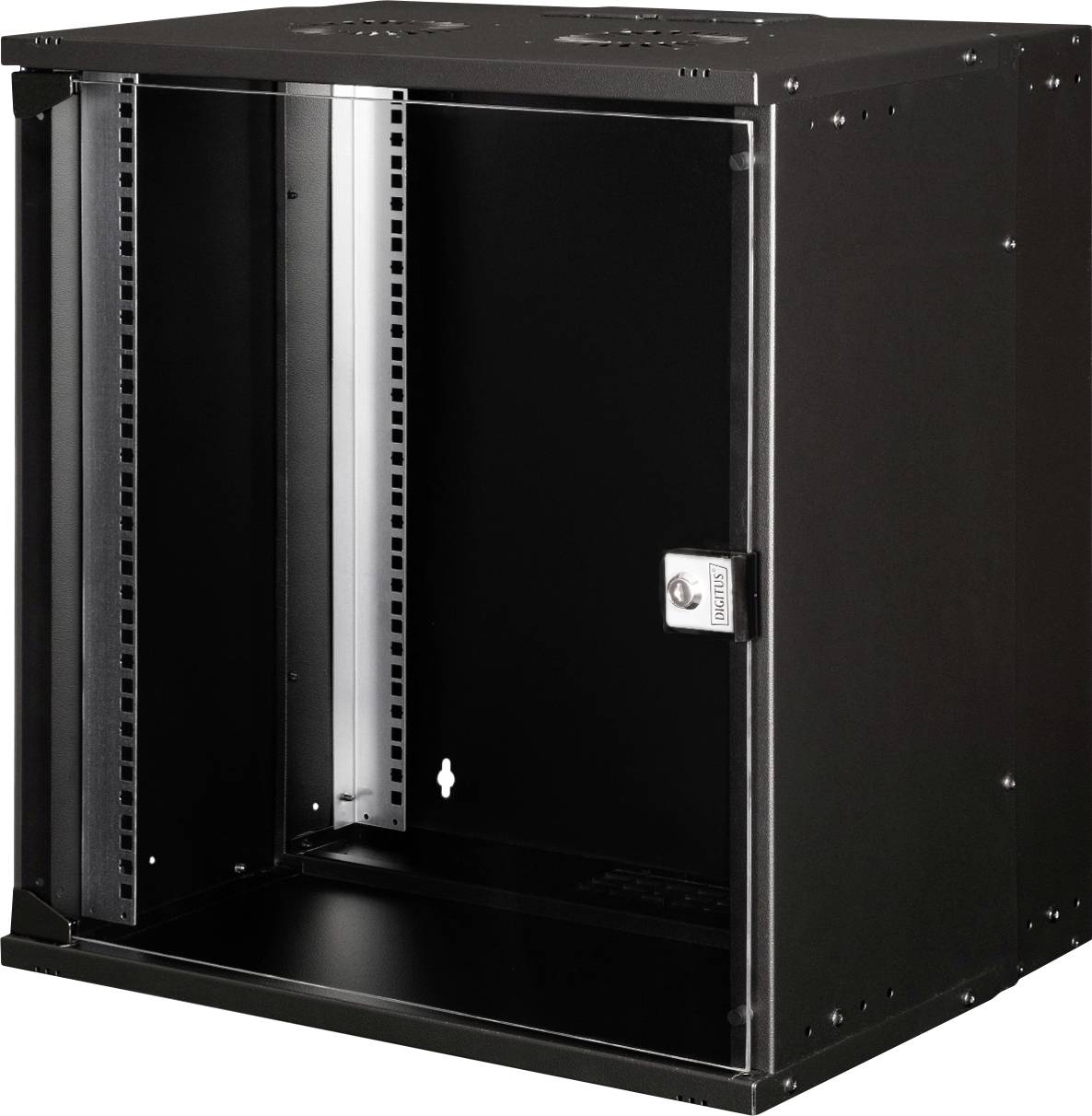

Black wall-mounted network cabinet with glass door, open on the side, suitable for storing network devices in offices.

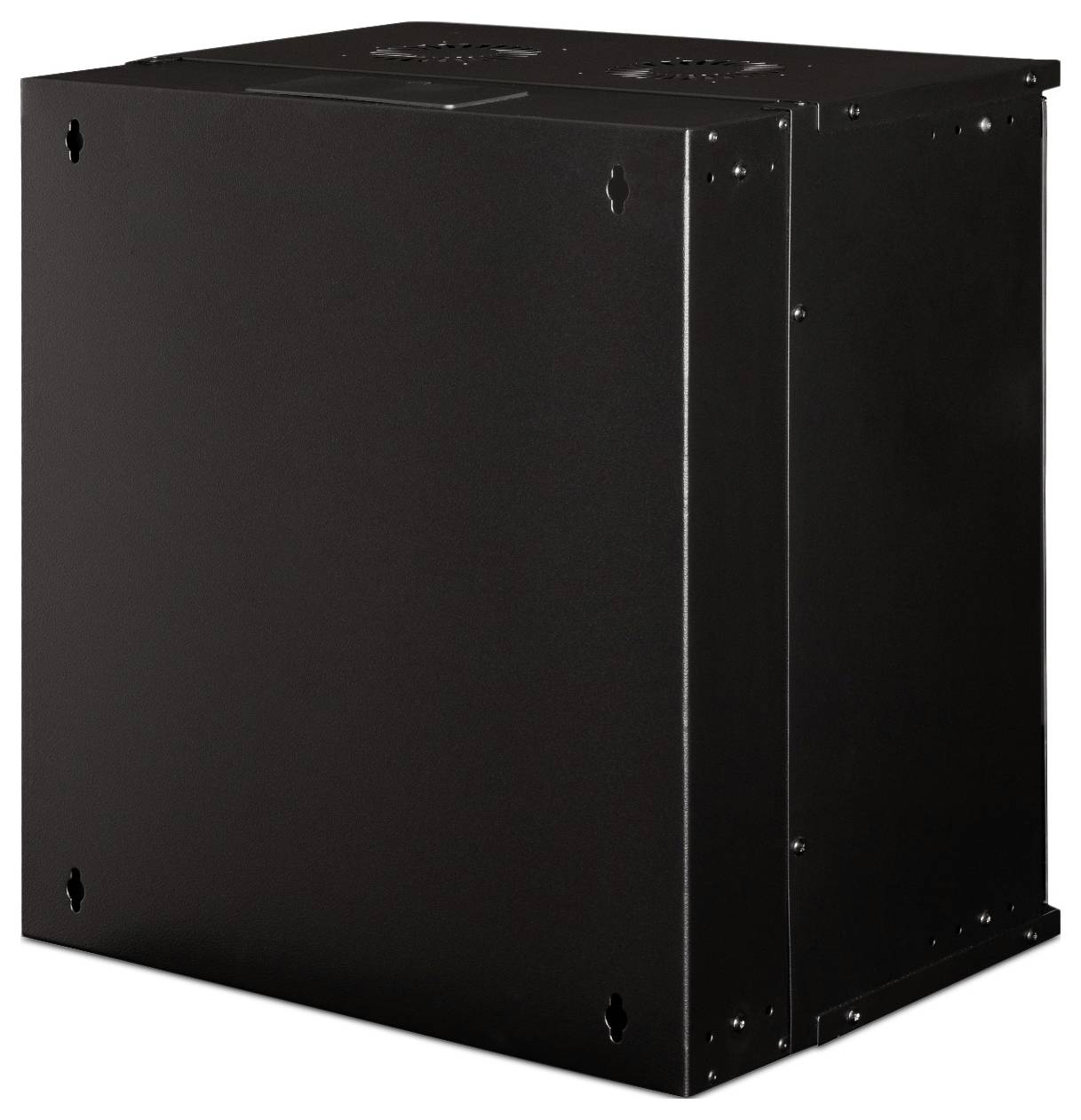

Black, cubic electronic device without visible labelling or connections, possibly a server or an amplifier.

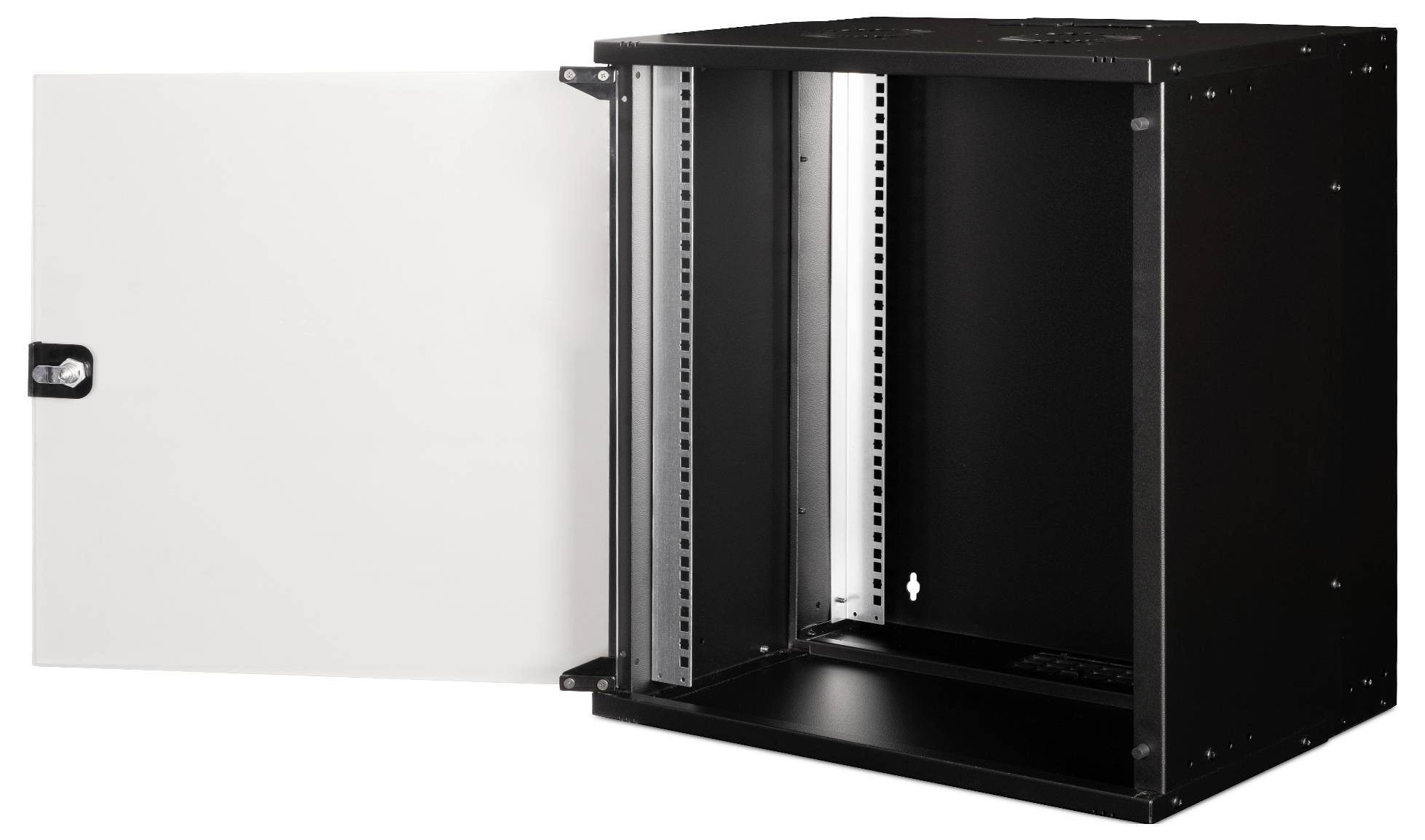

A black server rack cabinet with an open door reveals an empty interior and mounting rails.

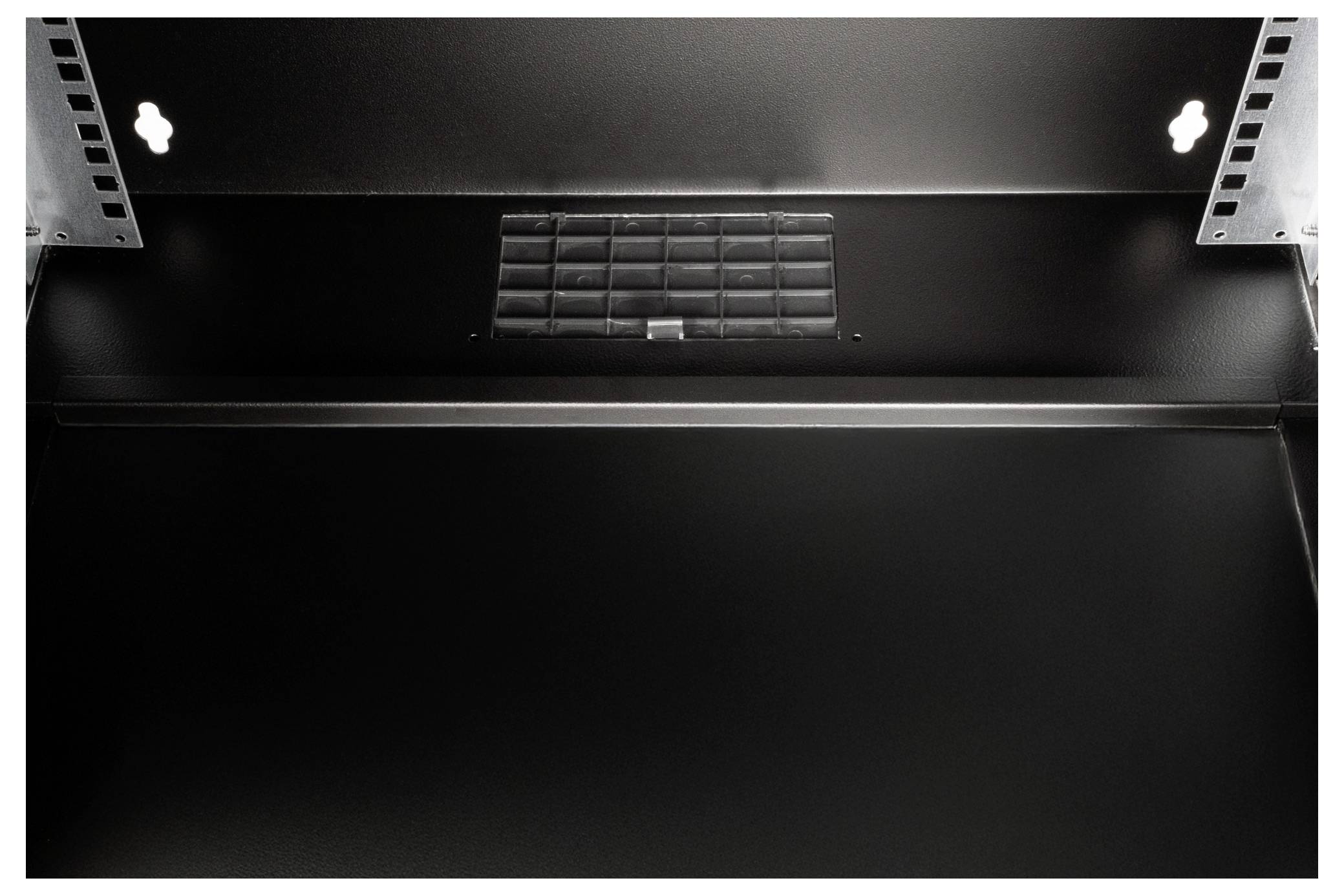

Black rectangular panel with punched holes along the sides and a rectangular grid at the top.

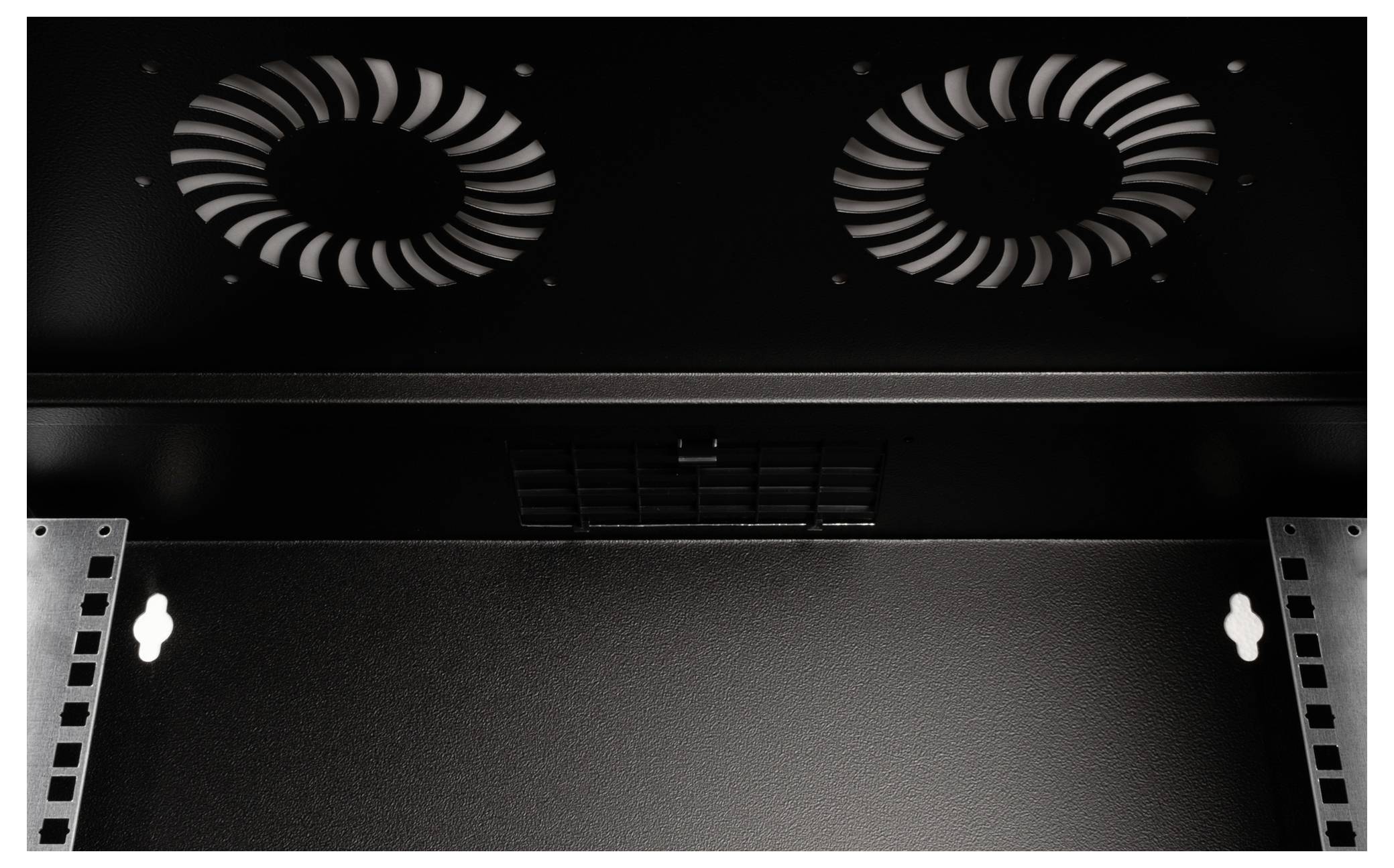

Interior view of a black server chassis with two fans at the top for ventilation. Device mounting brackets are located on the left and right sides.

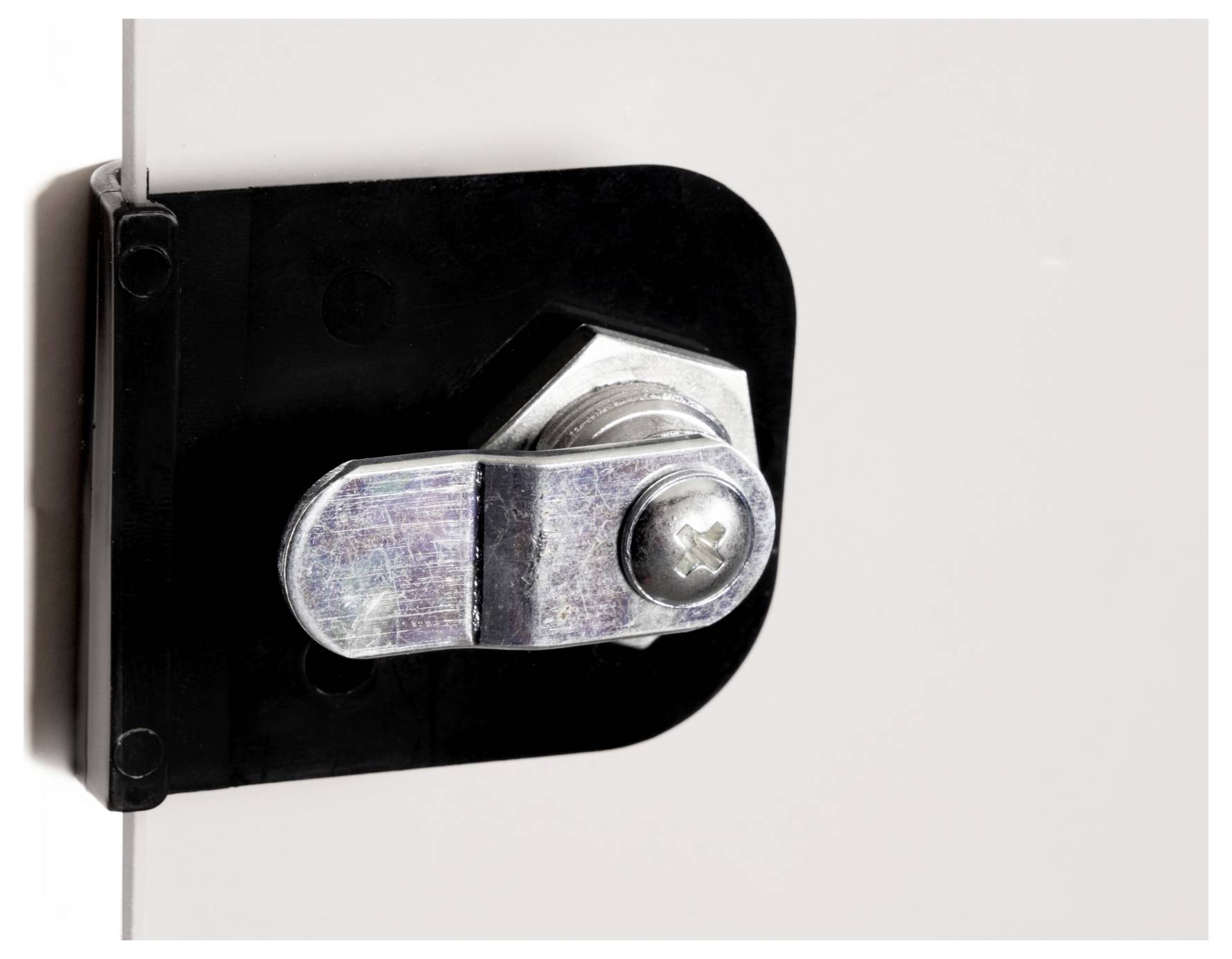

Locking mechanism on a door or enclosure, consisting of a metal bolt and screw, mounted on a black plate.

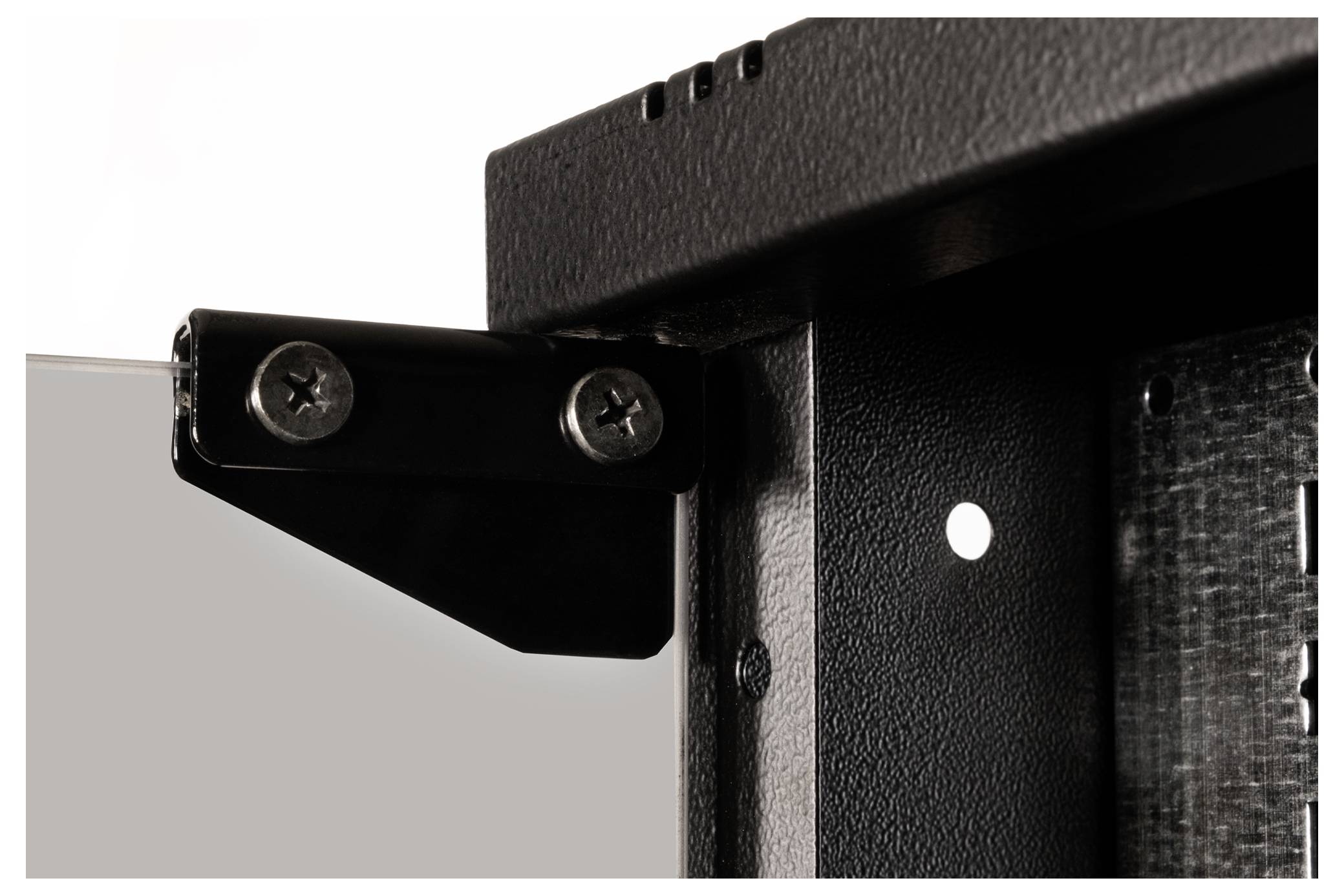

Close-up of a black hinge attached to a metal frame. The hinge is mounted with two silver screws.

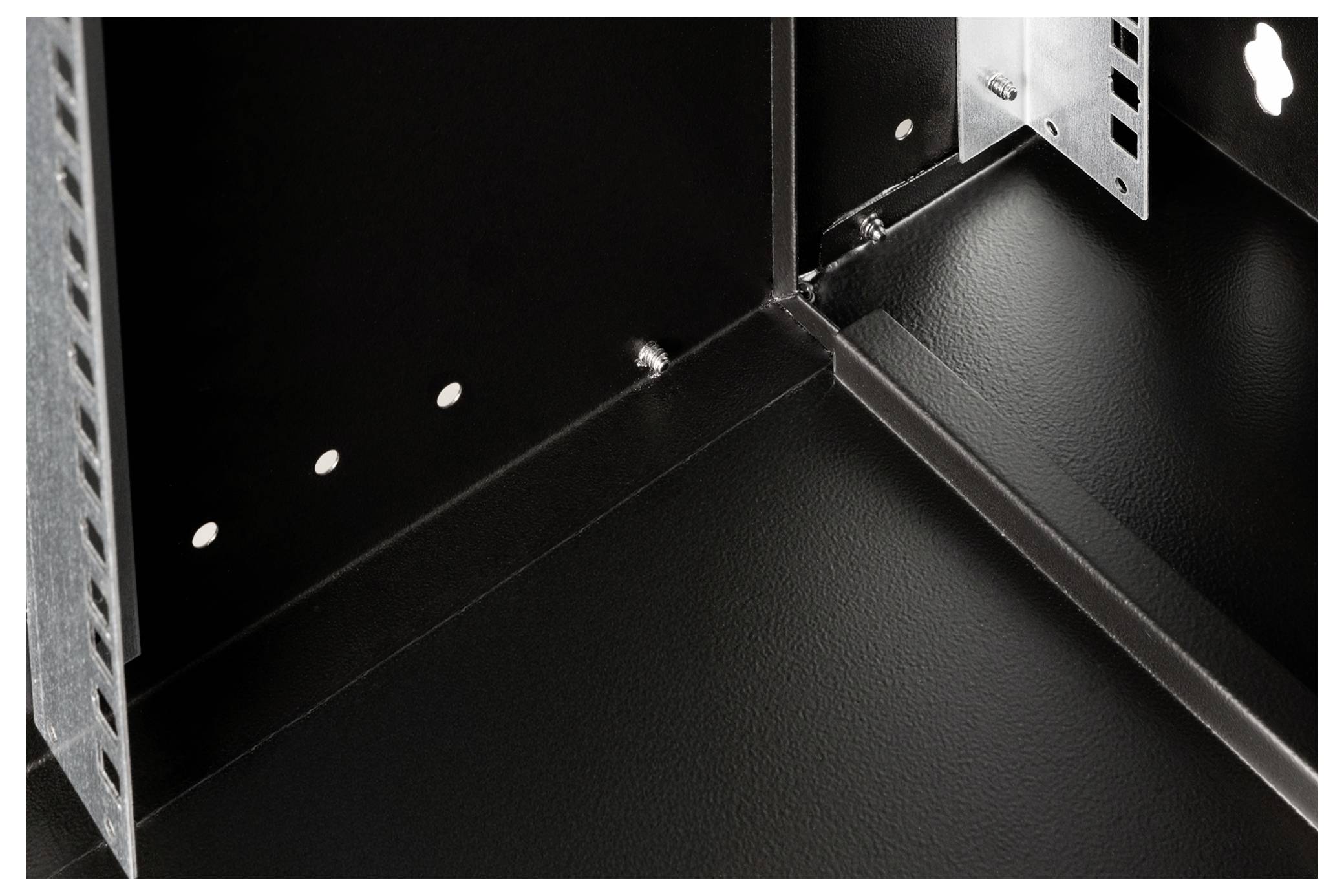

A black metal box with ventilation holes on the side, showing an interior view. Suitable for electrical or technical installations.

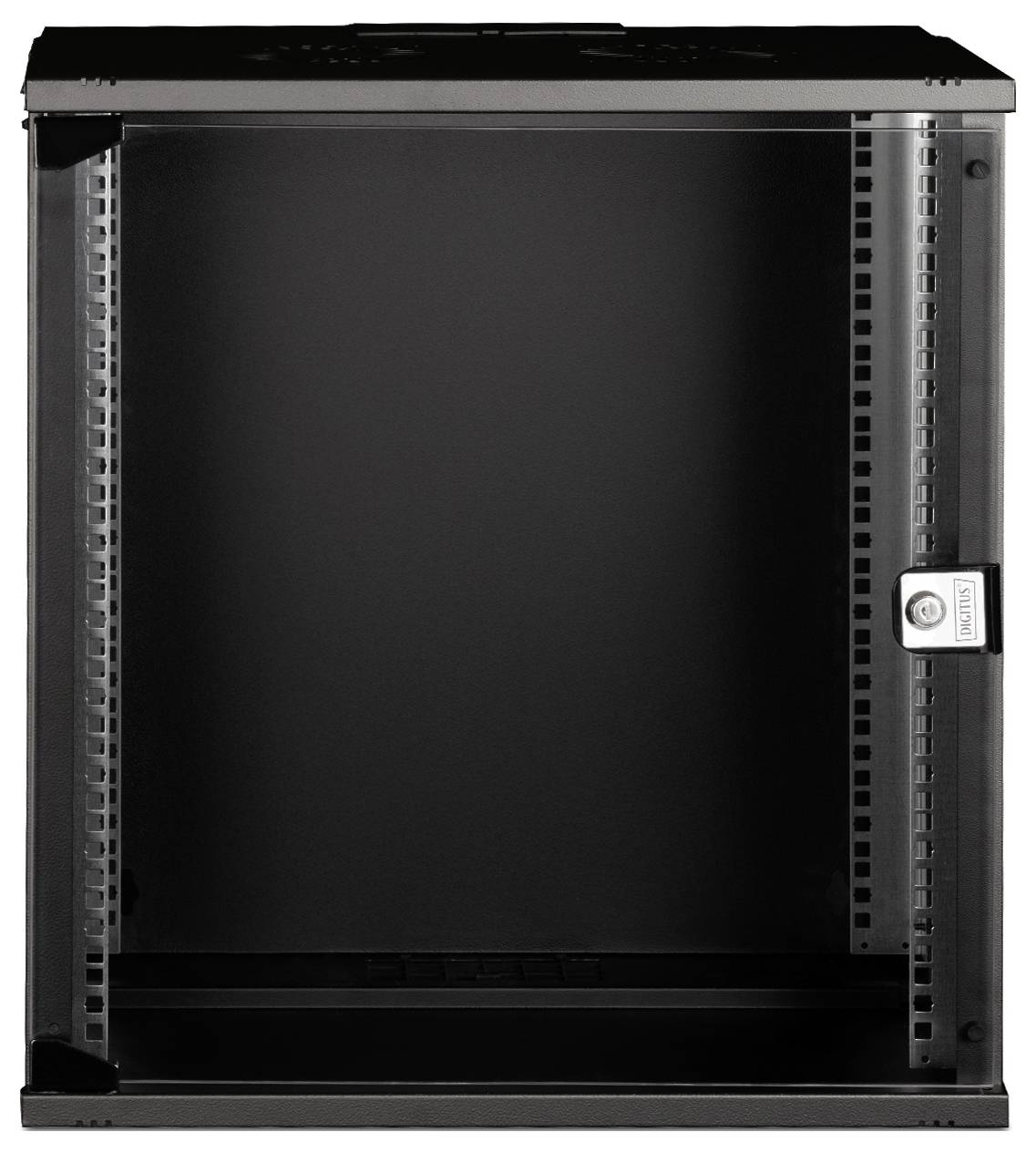

An empty, black server cabinet with a glass door, suitable for housing network equipment in an office or data centre.

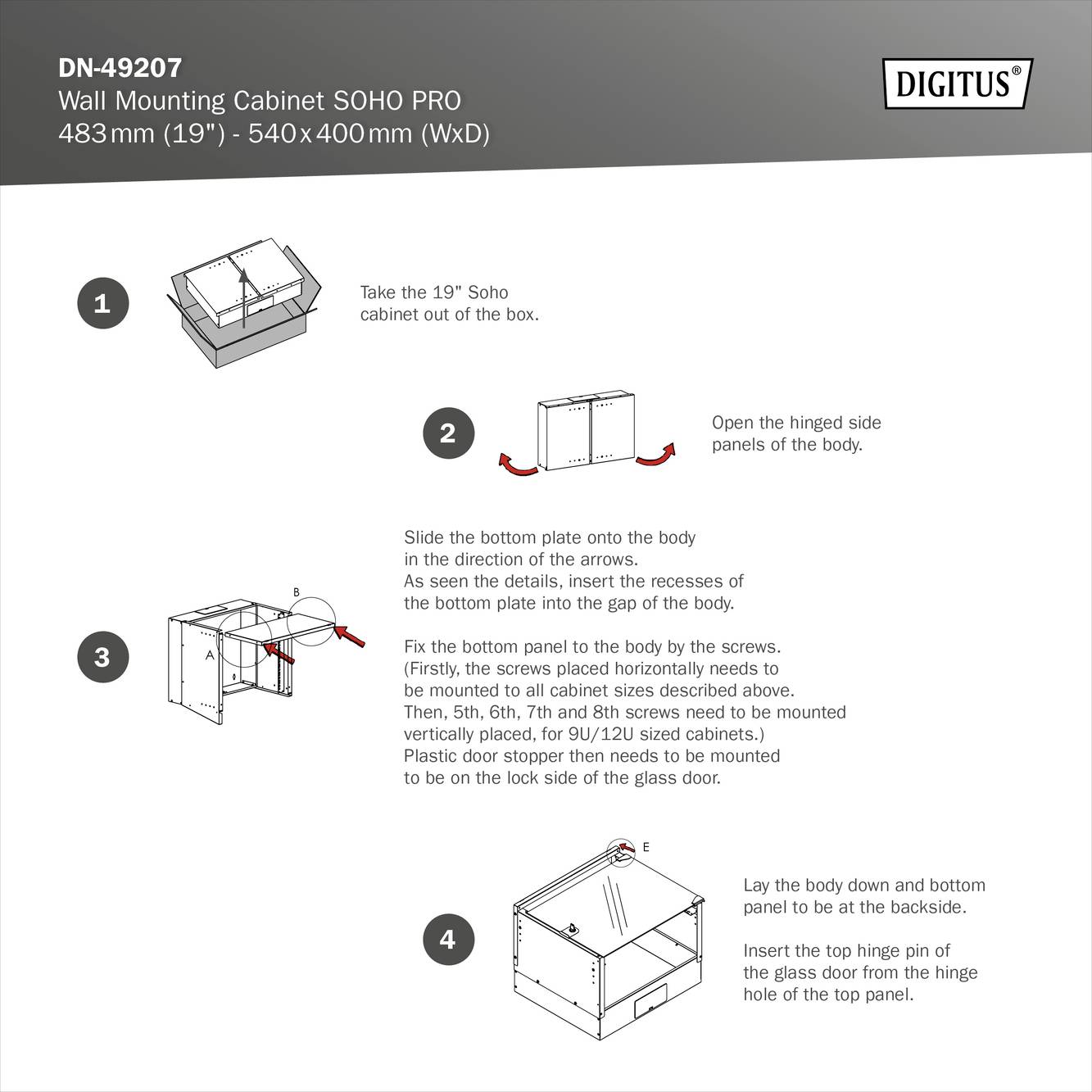

'Installation Instructions for Wall-Mounted Cabinet: 1. Remove 19-inch module, 2. Open side panels, 3. Install base plate, 4. Secure back panel.'

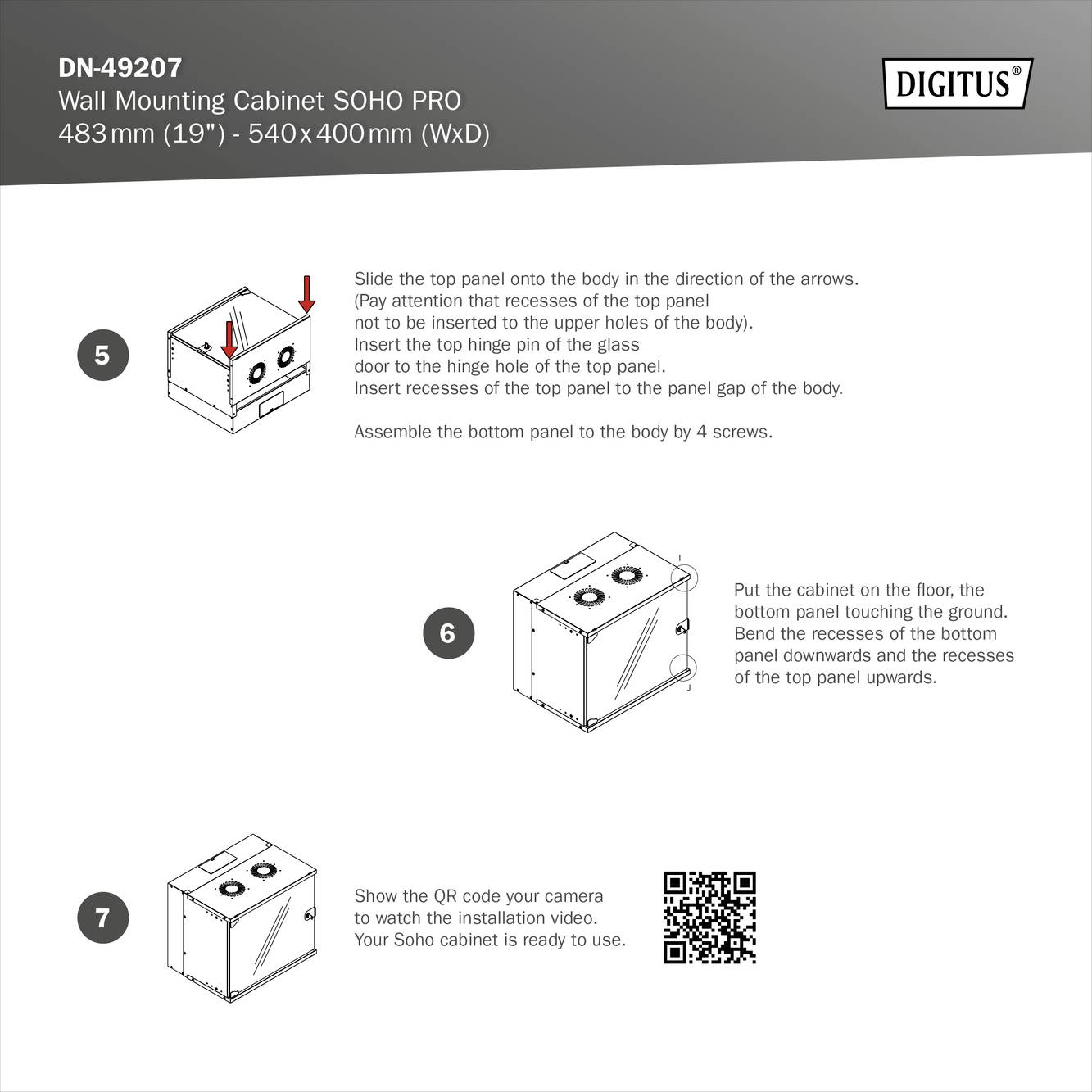

'DN-49207 Wall Mounting Cabinet SOHO PRO' - Installation Instructions for a Wall-Mounted Enclosure with Dimensions and Step-by-Step Guidance

1/11

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

19" 12HE wall housing, SOHO PRO 595 x 540 x 400 mm, black

Highlights & Details

Supplied unassembled in optimized flat pack
Especially user-friendly, quick installation
Compact housing for 483 mm (19 ") network installations

Technical specifications

Product type: 19" wall cabinet

Rack unit: 12 U

Width: 540 mm

Height: 595 mm

Depth: 400 mm

Material: Glass
Steel

Dim: (W x H x D) 540 x 595 x 400 mm

Weight: 12630 g

Factory colour: Black
Black (RAL 9005)

Rack size: 483 mm (19")

Type: SOHO PER

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3207662 Digitus DN-49207 19" wall cabinet (W x H x D) 540 x 595 x 400 mm 12 U Black, Black (RAL 9005)

Information

Information 3207662 Digitus DN-49207 19" wall cabinet (W x H x D) 540 x 595 x 400 mm 12 U Black, Black (RAL 9005)

Description

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 483 mm (19") solutions of the SOHO PRO series. Available in four height units (4HE, 7HE, 9HE, 12HE), the wall-mounted units are equipped with a full-glass door and a cable entry in the roof and floor. A pair of galvanized, with readable rack units labeled 483 mm (19") rails are installed in the interior. The depth of these can be adjusted. Each cabinet is a sturdy steel construction made of up to 1.5 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). A door stop can be changed. The network cabinets are delivered unassembled in an optimized flat pack. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions.

This text is machine translated.

Features

Protection class: IP20
Lockable safety glass door
200° door opening angle
1-point lock on the front door
483 mm (19 ") profile rails installed on the front inside the cabinet, galvanized
Depth adjustable with 483 mm (19 ") rails
1.1 - 1.5 strong steel sheet with a high load capacity, powder-coated
Cable input with plastic cover in roof and floor
Ventilation slots for active and passive ventilation
Front door: Glass door, single-leaf
Cabinet type: Wall housing
Side walls: Both sides
60 kg load capacity
Mounted: No.
