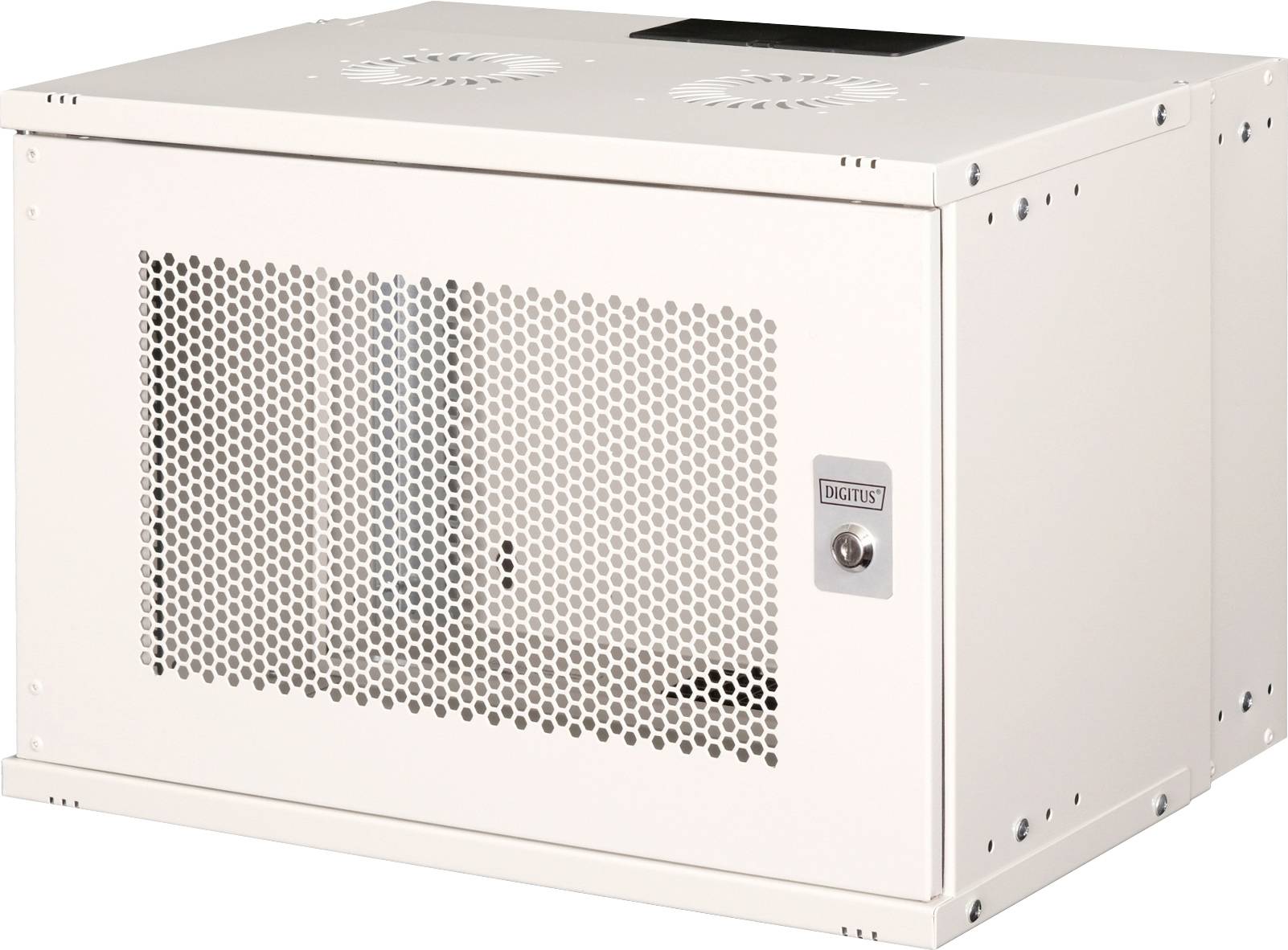

A white metal enclosure with a perforated front panel and a lock, designed for secure equipment storage and ventilation.

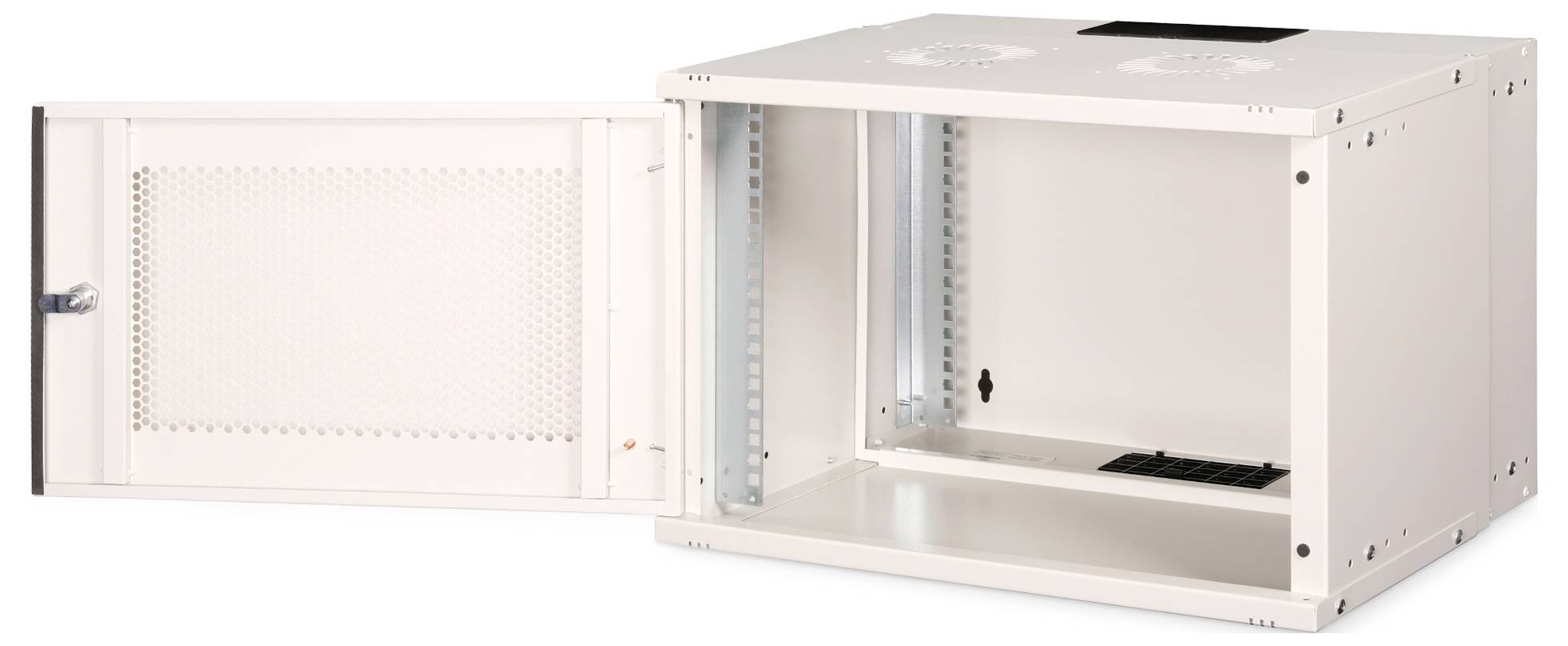

An empty, open metal server cabinet with a mesh door, suitable for network equipment installation, is shown.

A close-up image of an Indesit oven's interior ceiling, showing a vent and light fixture, providing ventilation and illumination.

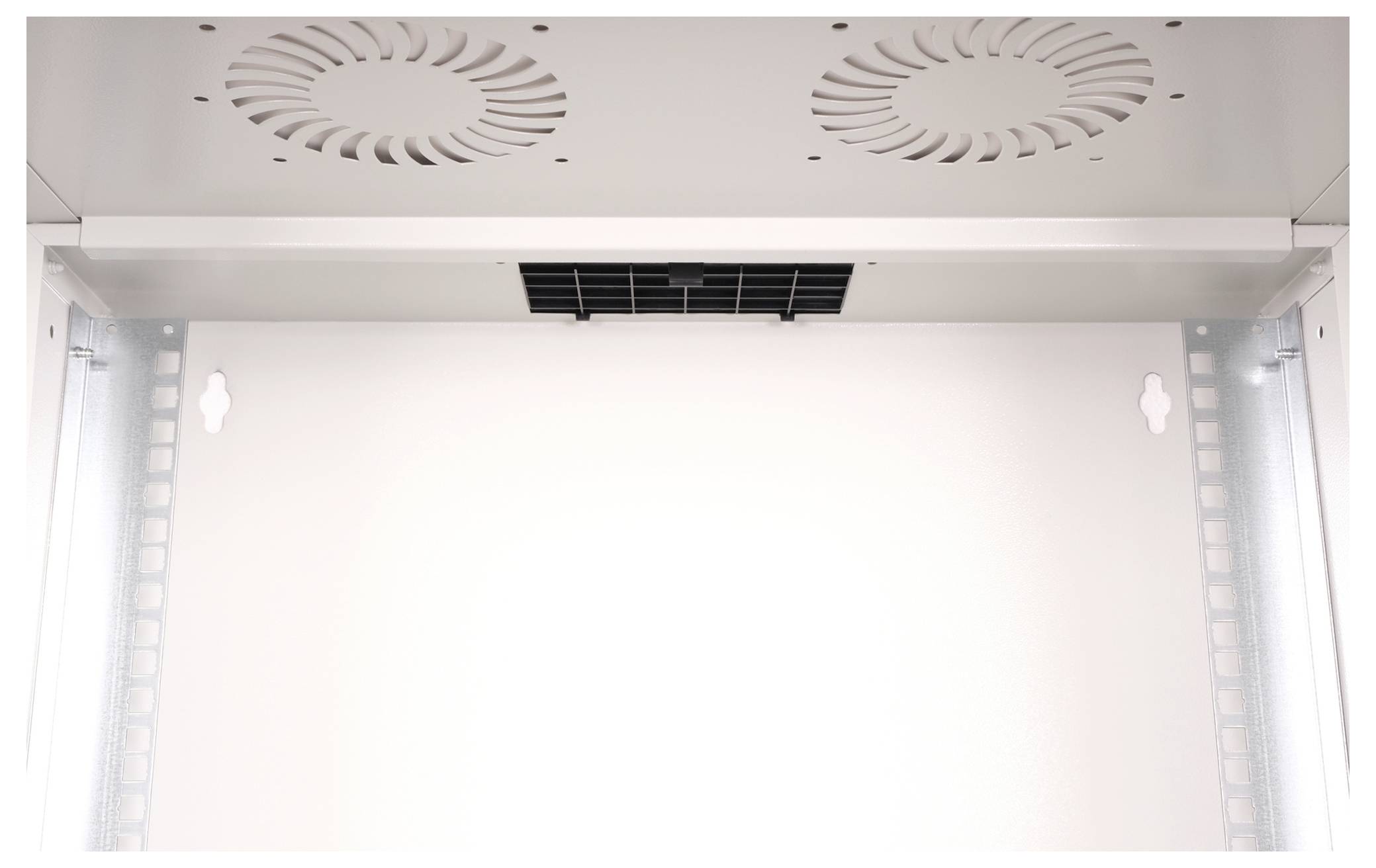

Interior of a metal cabinet featuring two ventilation fans on the top panel and mounting holes on the side walls.

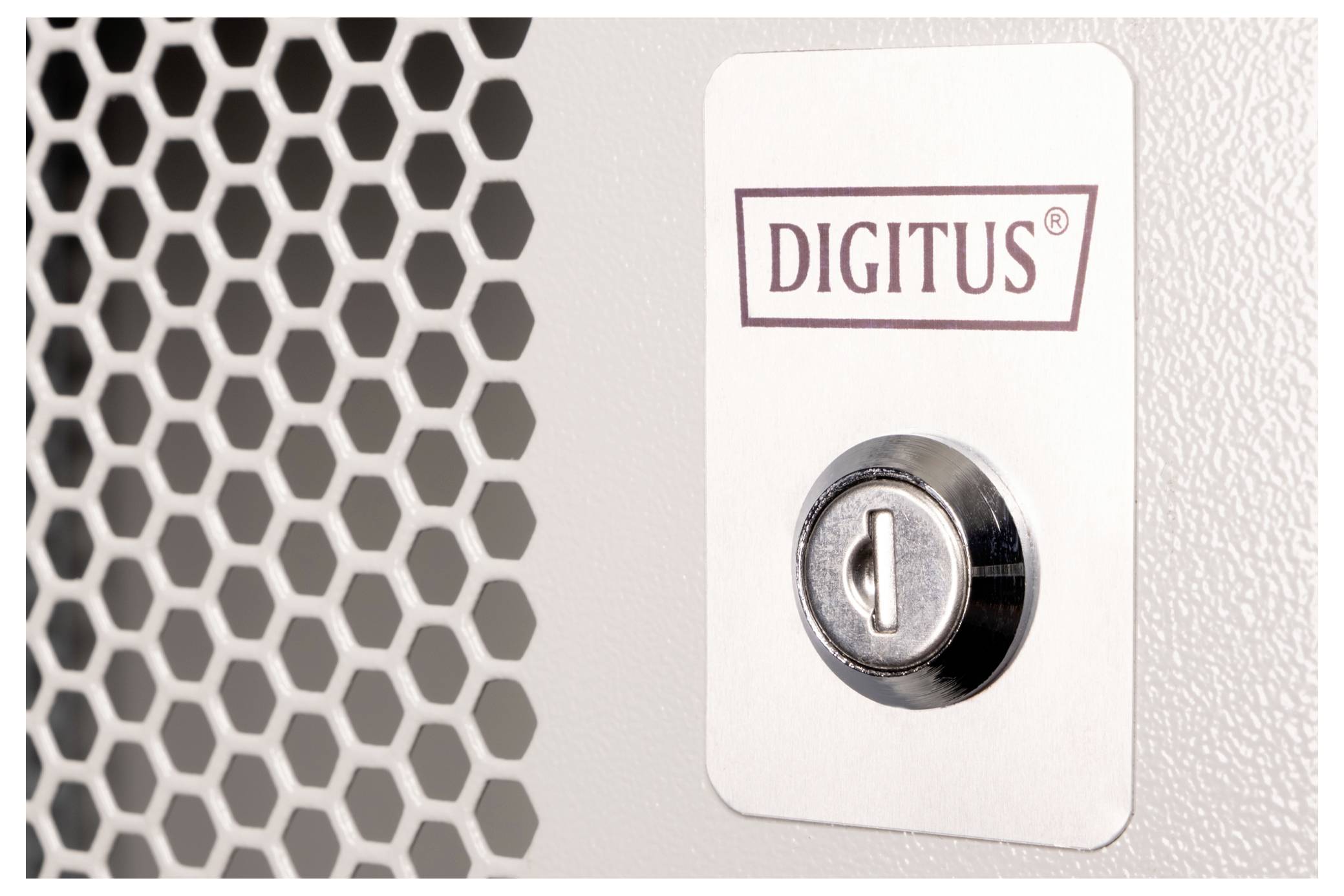

A metal cabinet door with a hexagonal mesh vent and a key lock labeled 'DIGITUS'.

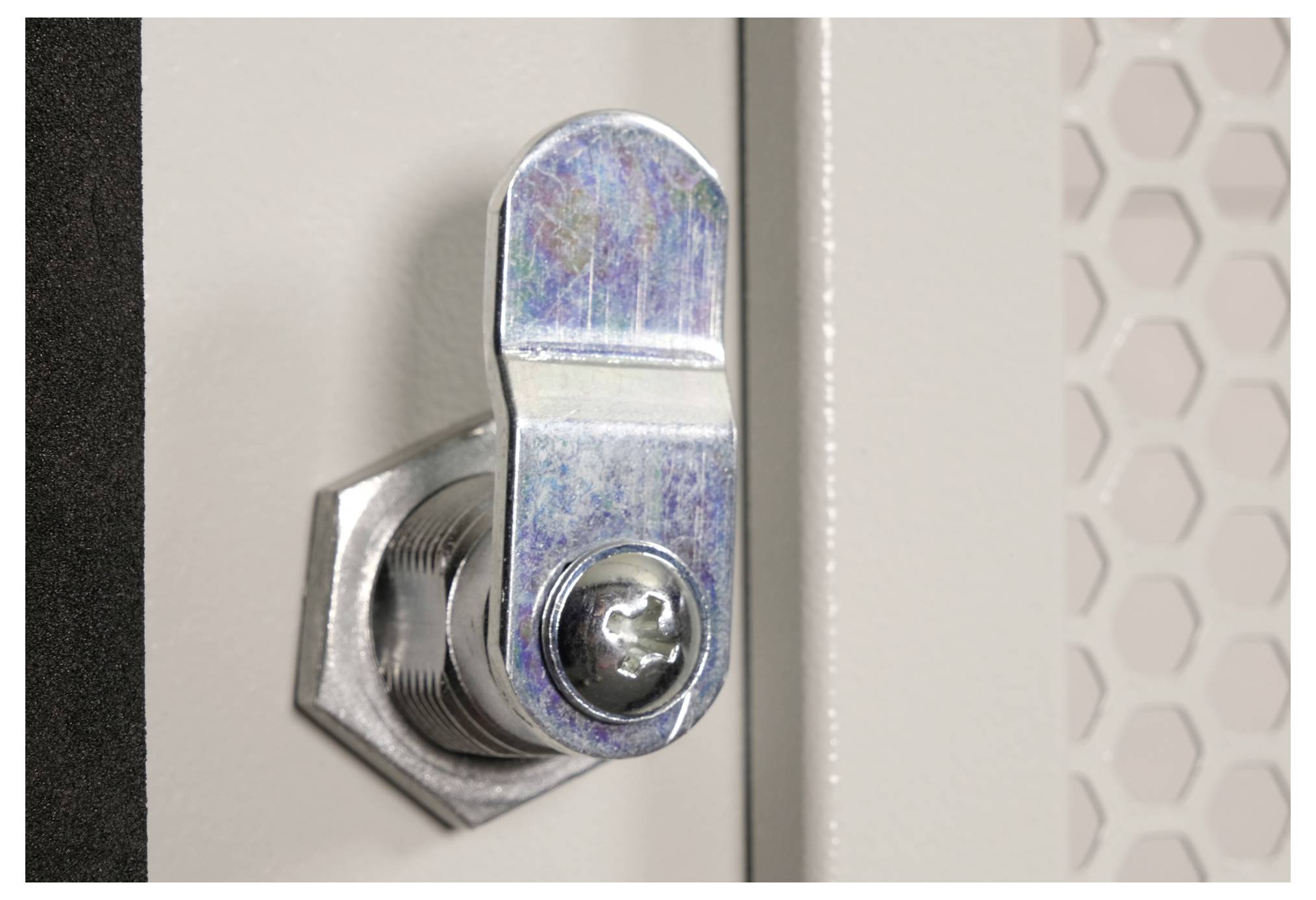

Close-up of a metal cam lock on a panel door, with hexagonal mesh pattern visible in the background.

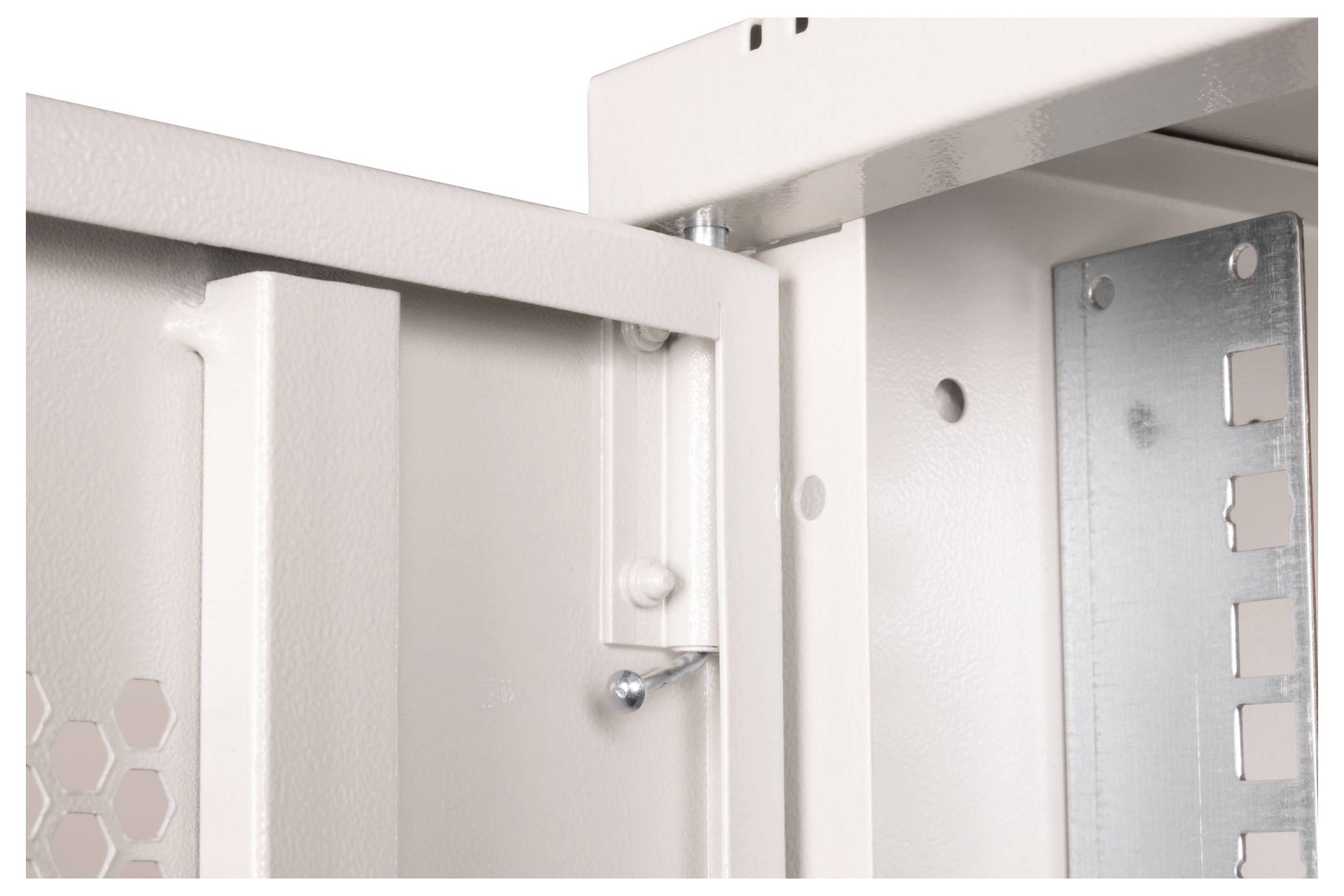

Close-up of a beige metal cabinet corner with a hinge and latch, showing structural details and assembly features.

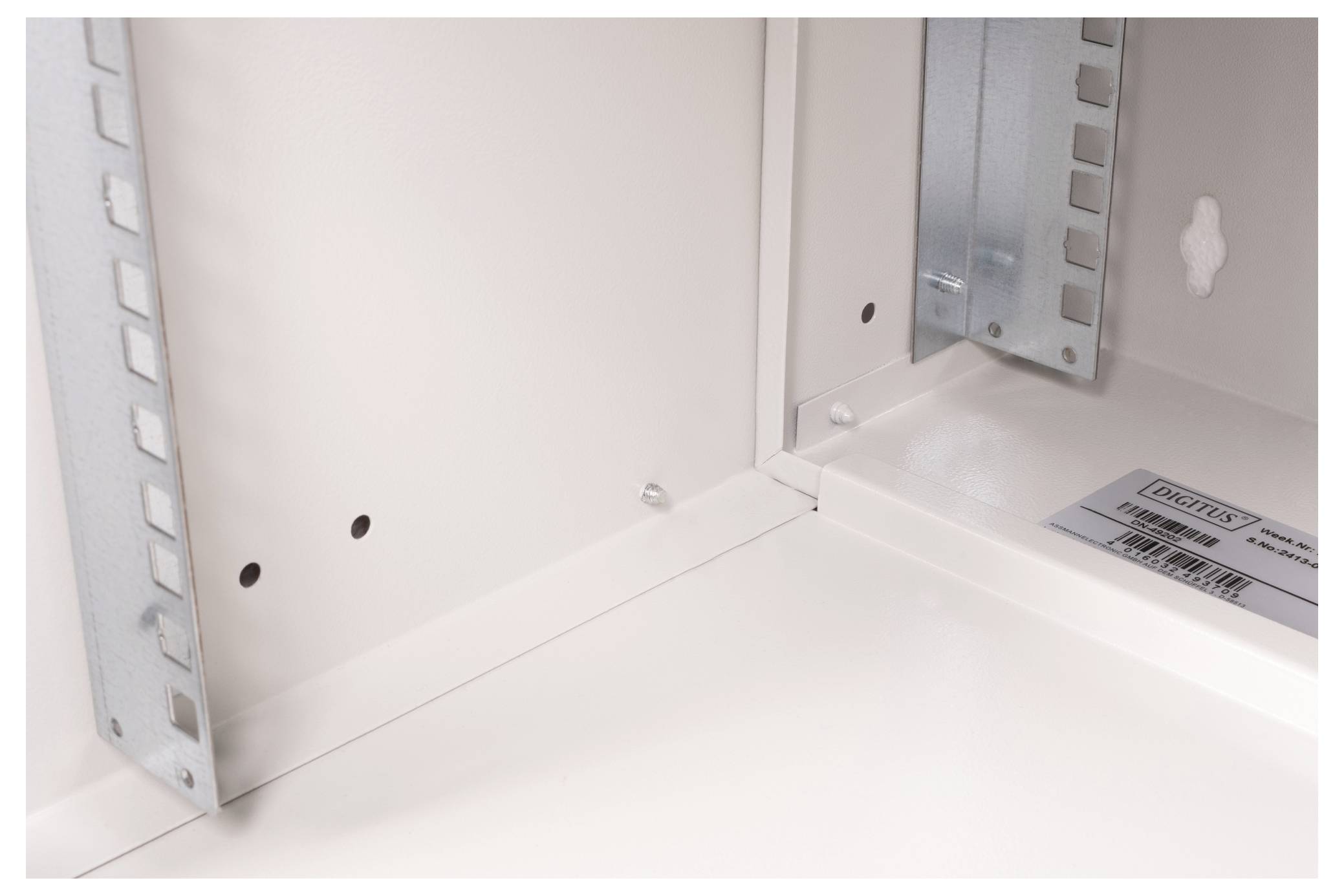

Interior view of a metal enclosure showing corner construction with rivets, two vertical support brackets, and a manufacturer's label.

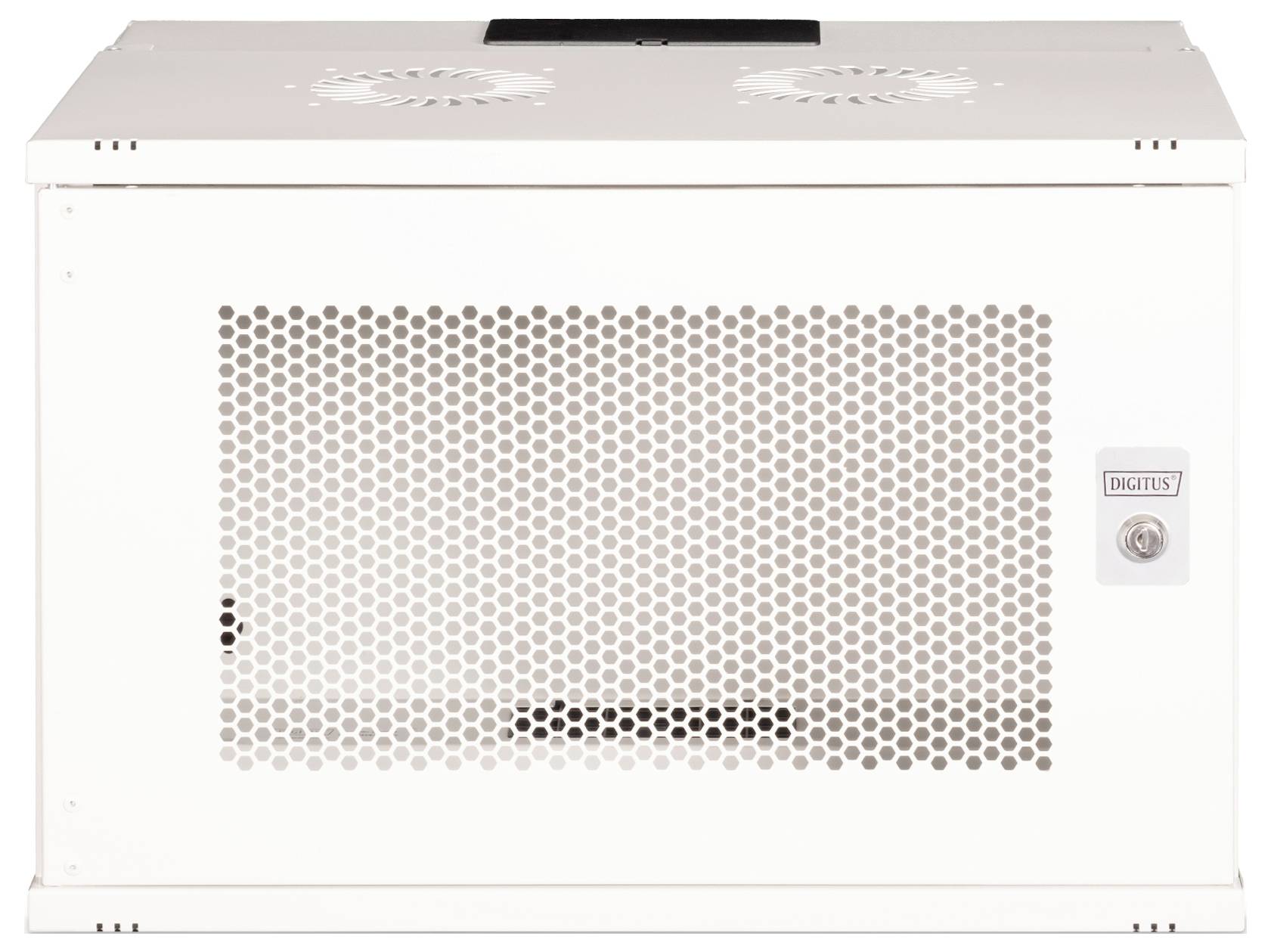

A white wall-mount server or network cabinet with a perforated front panel and a lock, designed for secure equipment storage.

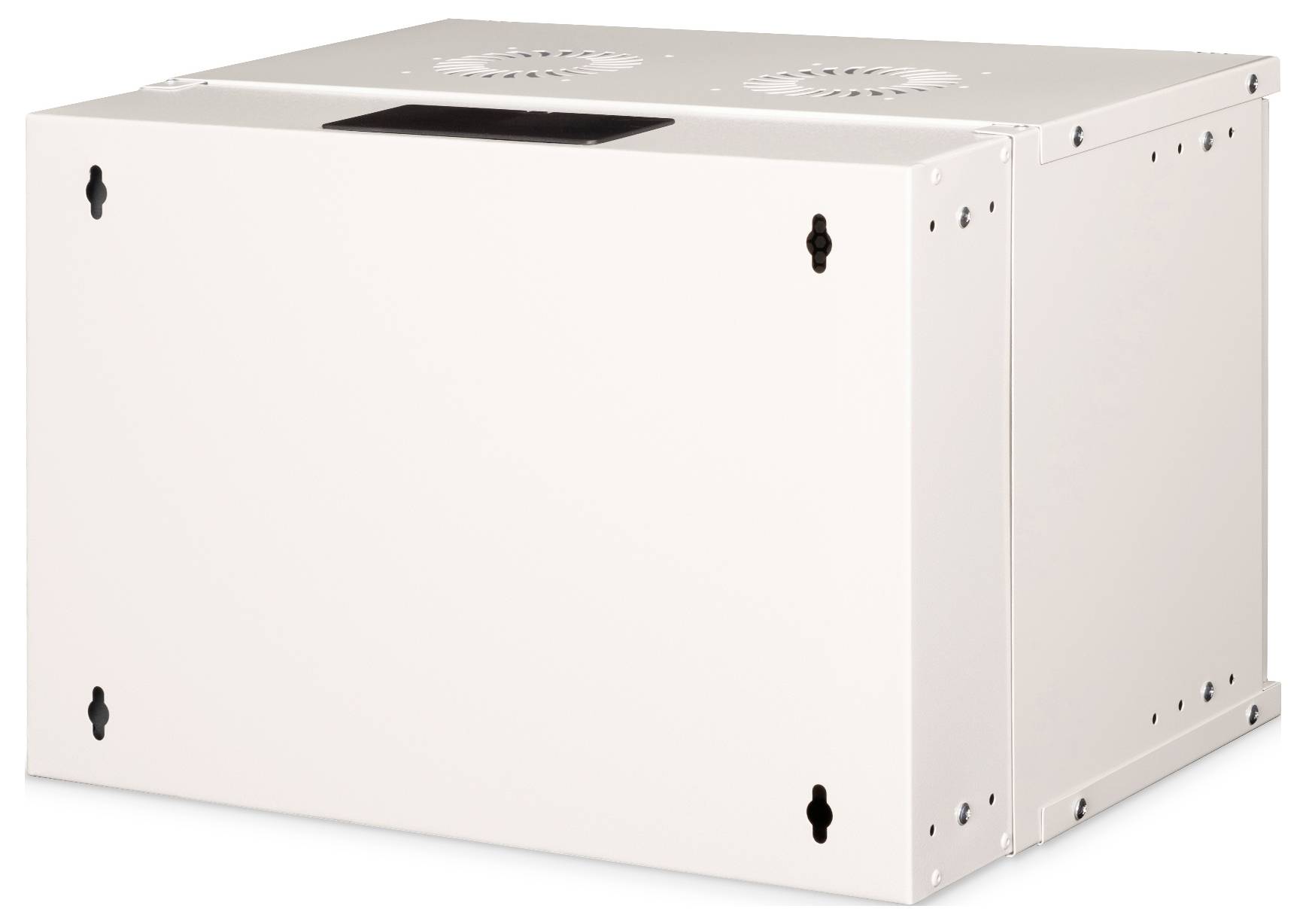

A white metal box with ventilation holes on top and mounting holes on the sides, likely for use in electrical installations.

1/10

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus wall housing SOHO PRO - 483 mm (19") - 540x400 mm (WxT)

Highlights & Details

Compact casing for 483 mm (19") installations
Simplified logistics: Supplied unassembled in optimized flat pack
Quick to set up: Extremely user-friendly, quick installation with just a few screws

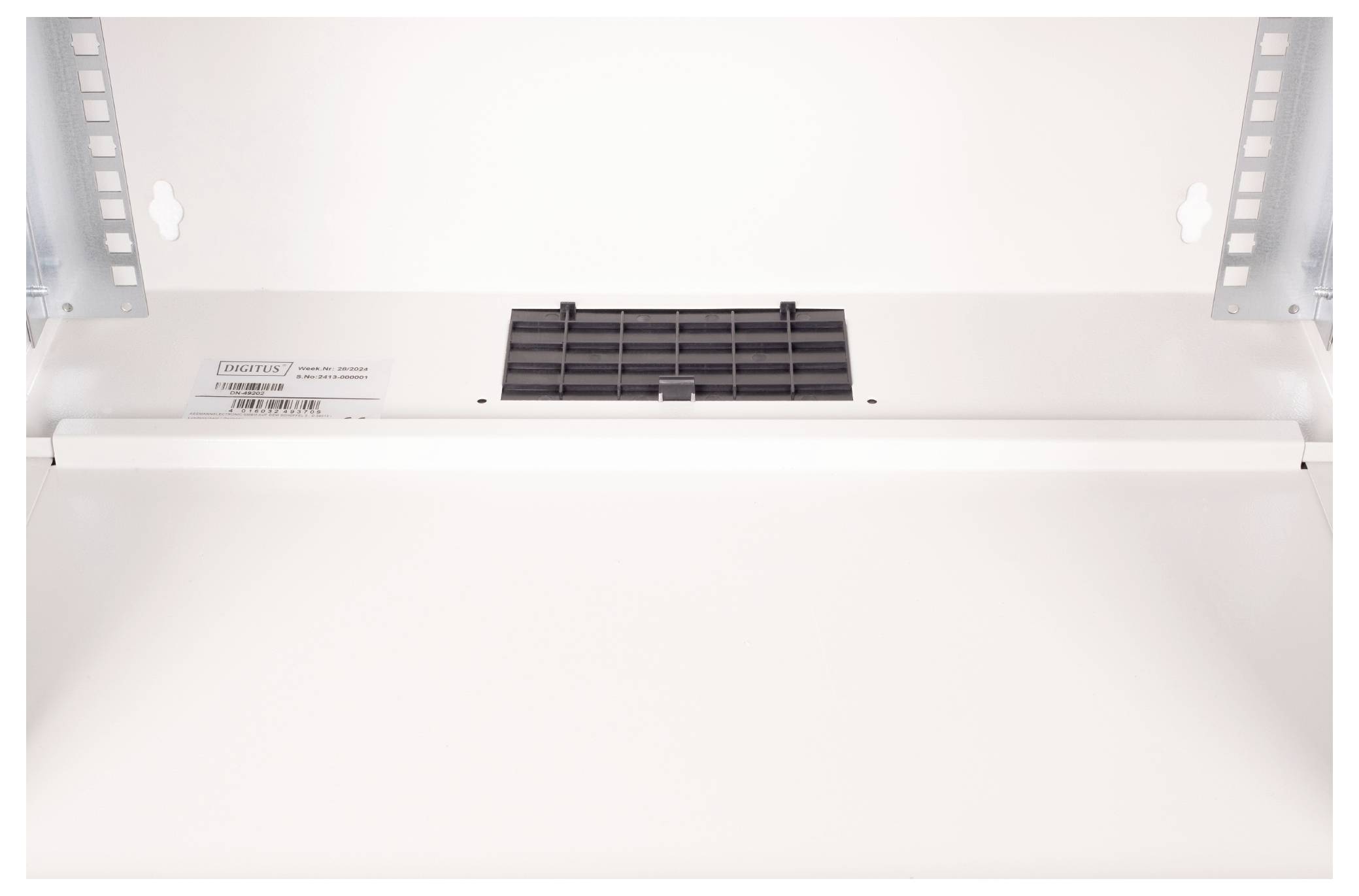

Flexible options for cable routing through protected openings in the roof and floor
Lockable steel front door with perforation, 200° door opening angle
Depth-adjustable 483 mm (19") rails
Load capacity for installation of components: 60 kg

Technical specifications

483 mm (19 ") profile rails installed at the front and rear within the cabinet, galvanized
Depth adjustable with 483 mm (19 ") rails
1.1 - 1.5 mm thick steel sheet with a high load capacity, powder-coated
Mounting depth for components max. 327 mm
Product dimensions (H x W x D) 370 x 540 x 400 mm
Width 540 mm
Colour: Light gray, RAL 7035
Front door: Steel door, perforated, single-leaf
HE 7
Cabinet type: Wall housing
Side walls: Both sides
Depth: 400 mm
60 kg load capacity
IP protection class IP20
Mounted: No.

Product type: 19" server rack cabinet

Rack unit: 7 U

Width: 540 mm

Height: 370 mm

Depth: 400 mm

Material: Steel plate

Dim: (W x H x D) 540 x 370 x 400 mm

Weight: 9110 g

Factory colour: Grey
Light grey
Grey-white (RAL 7035)

Rack size: 483 mm (19")

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3385567 Digitus DN-49208 19" server rack cabinet (W x H x D) 540 x 370 x 400 mm 7 U Grey, Light grey, Grey-white (RAL 7035)

Description

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 483 mm (19") solutions of the SOHO PRO series. The version with a perforated sheet steel front door is available in three height units (7HE, 9HE, 12HE). All cabinets are equipped with a cable entry in the roof and floor. Two pairs of galvanized, with readable rack units labeled 483 mm (19")- Profile rails are installed in the interior. The depth of these can be adjusted. Each cabinet is a sturdy steel construction made of up to 1.5 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). A door stop can be changed. The network cabinets are delivered unassembled in an optimized flat pack. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions.
