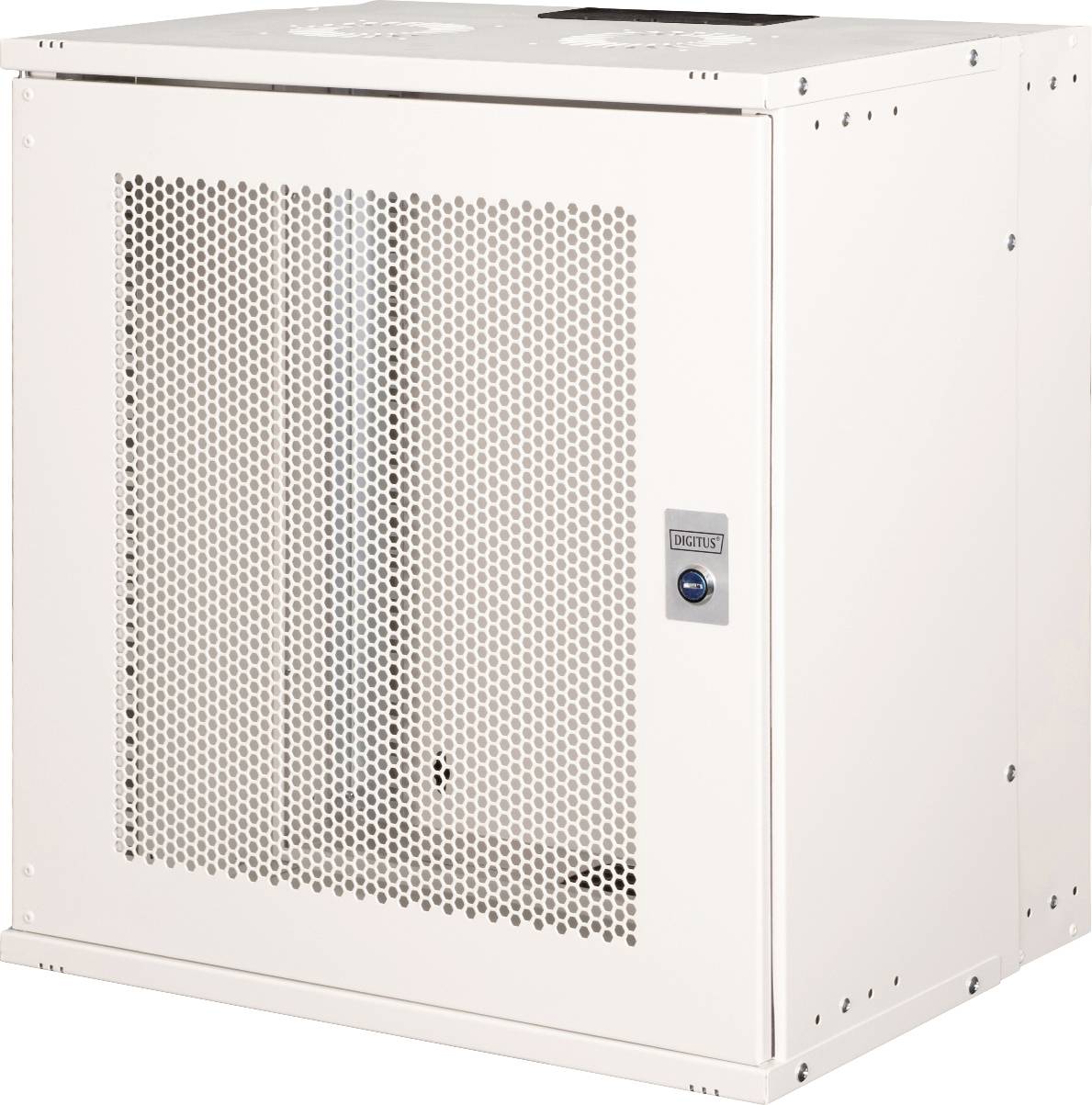

A white metal security enclosure with a perforated front panel and a lock on the right side, designed for housing electronic devices.

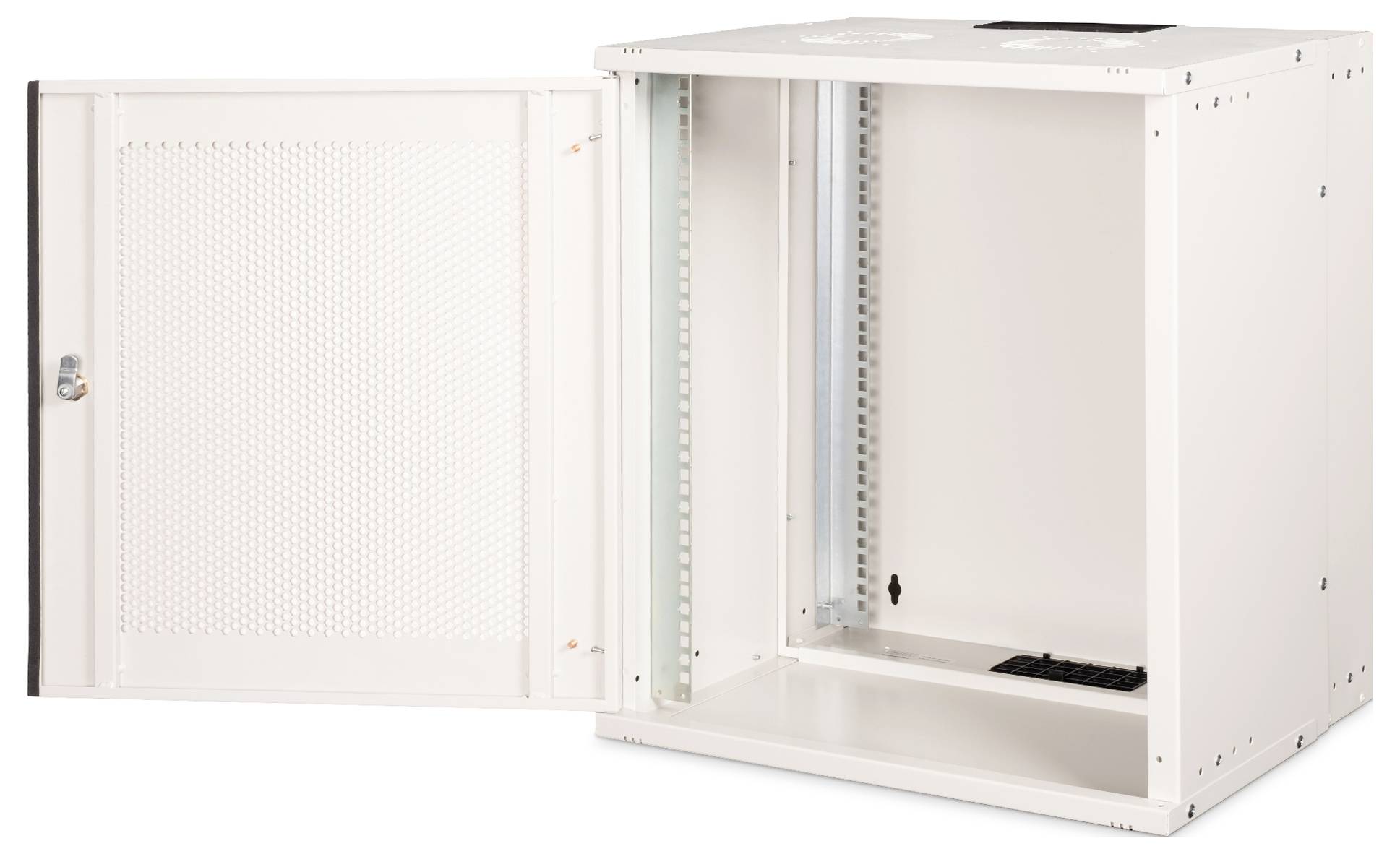

An empty white metal server rack cabinet with an open perforated door, revealing a spacious interior for networking equipment.

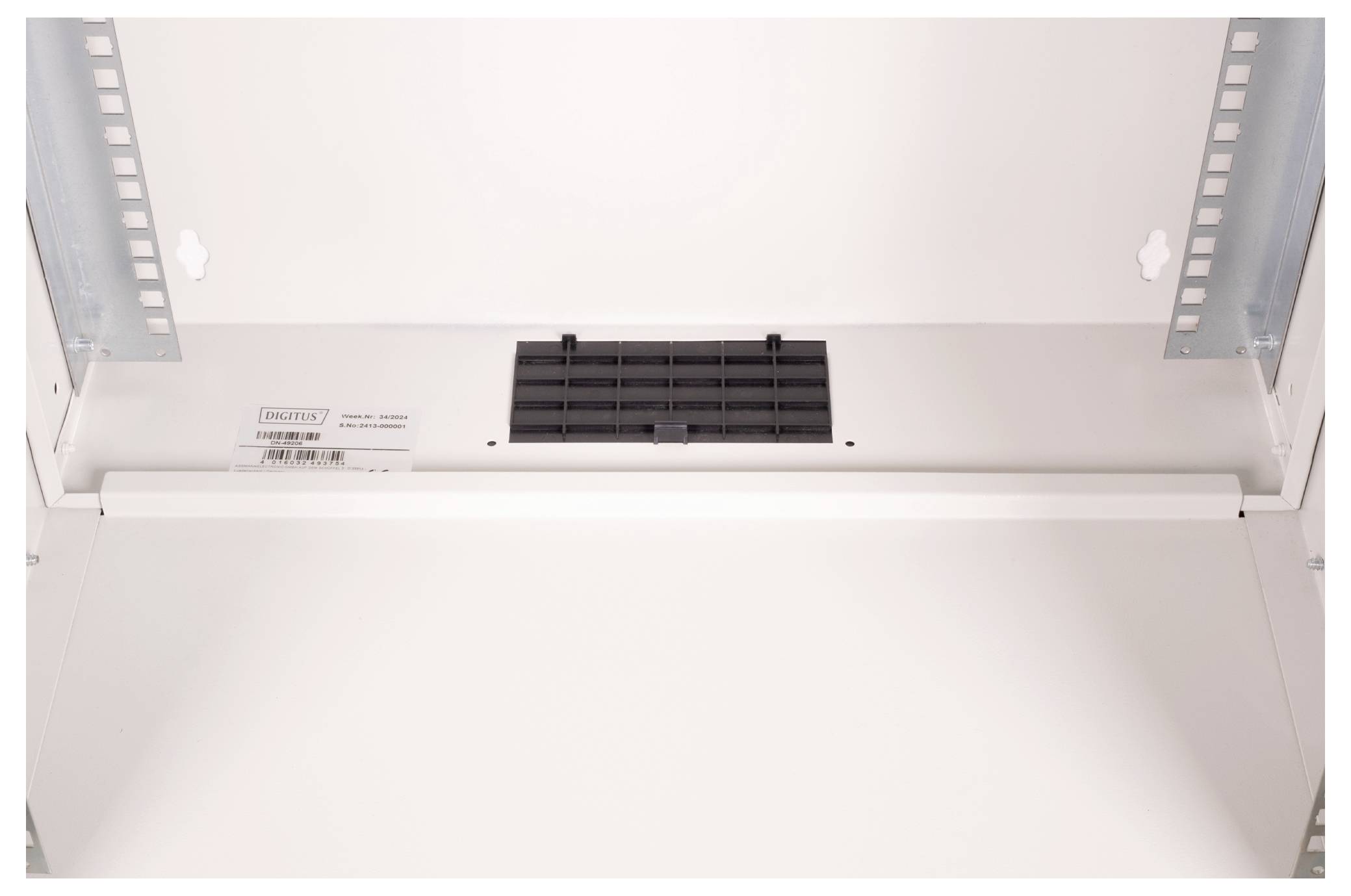

Interior of an empty white electrical panel box with a ventilation grill at the top and hinged door mechanism.

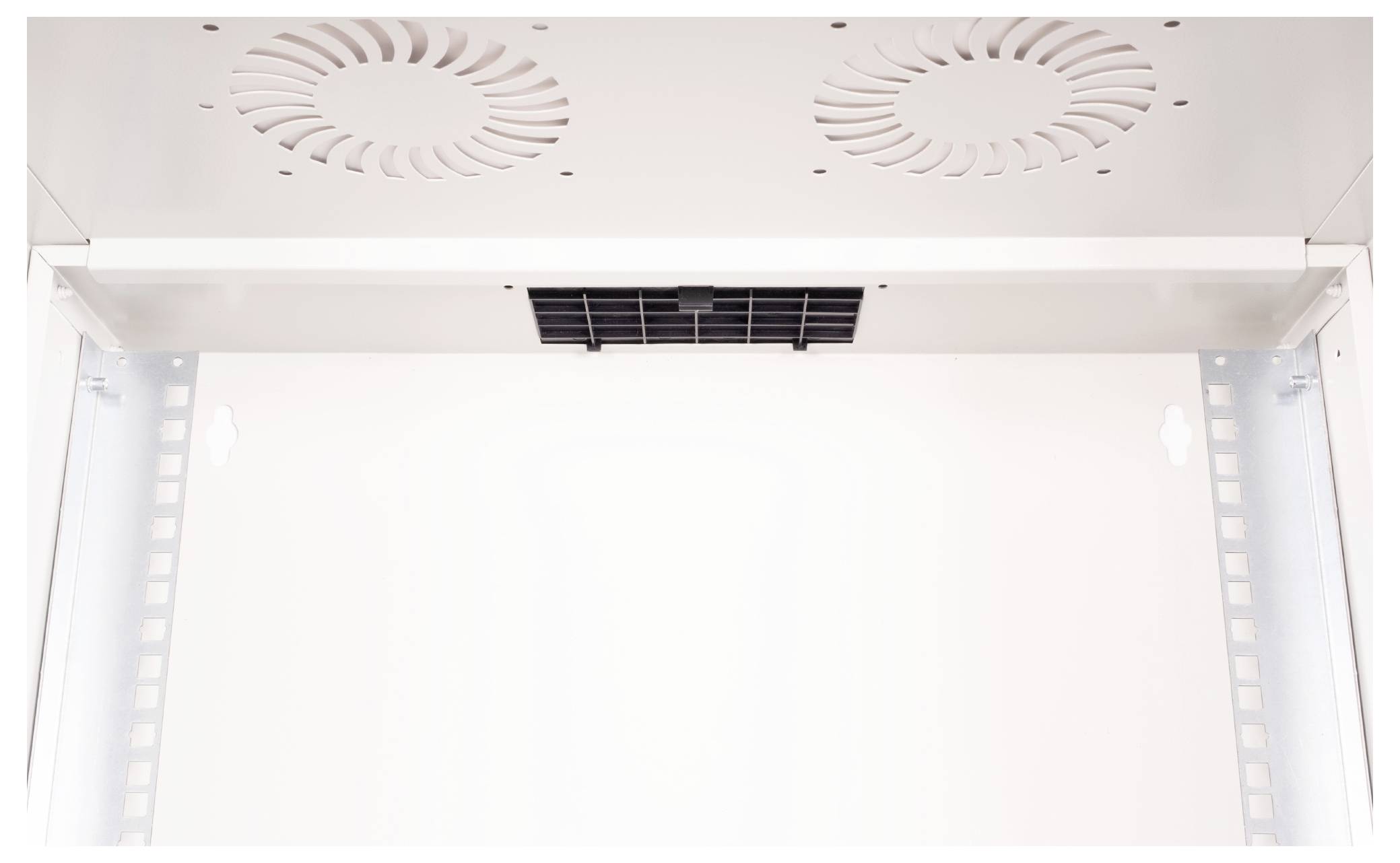

A white server rack ceiling with fans and a central air vent, designed for cooling server equipment in data centers.

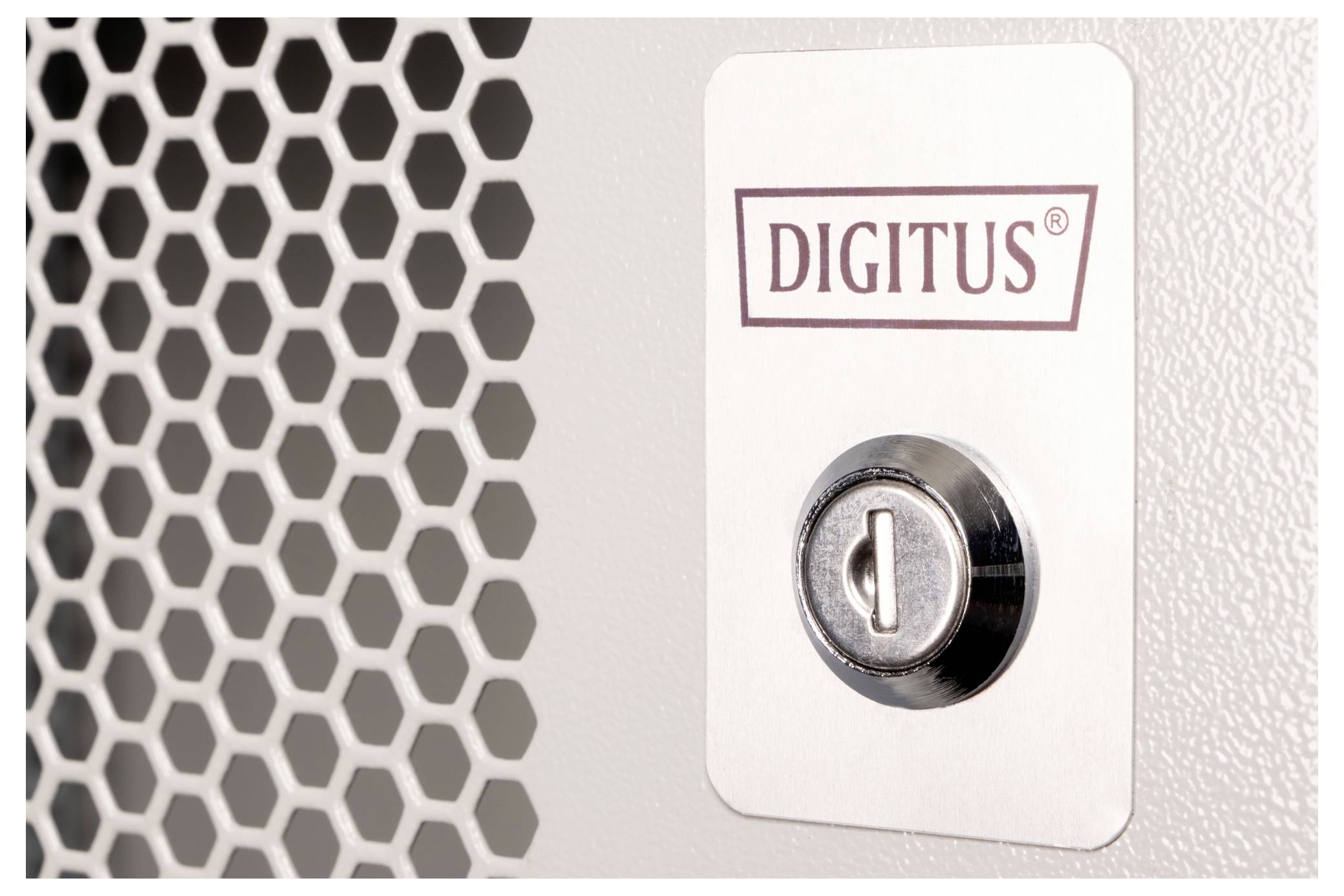

A lock on a white metal panel with a hexagonal perforated pattern beside it. The panel is labeled 'DIGITUS'.

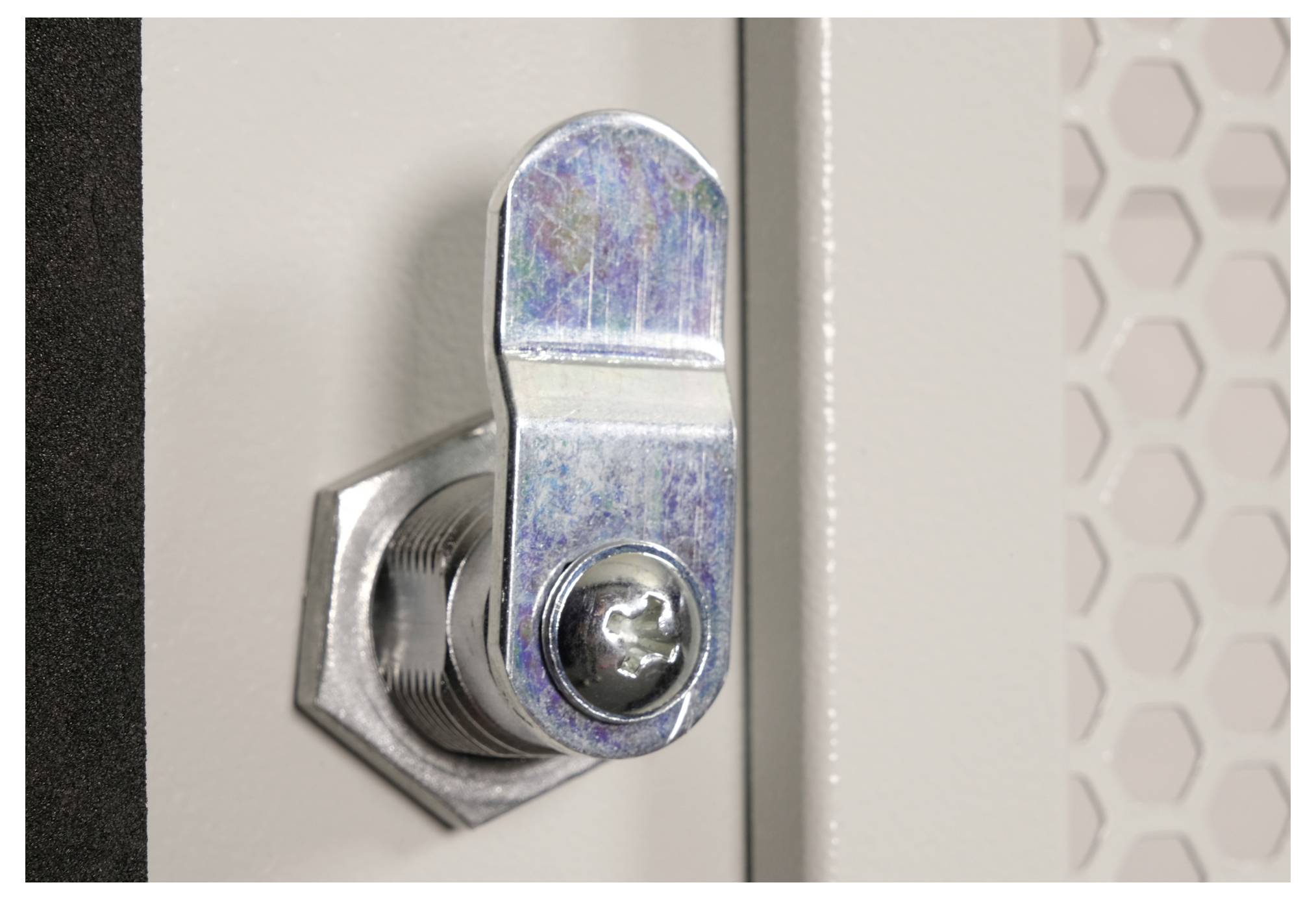

A metallic cam lock with a hexagonal nut secures a cabinet door, which has a perforated pattern on the panel.

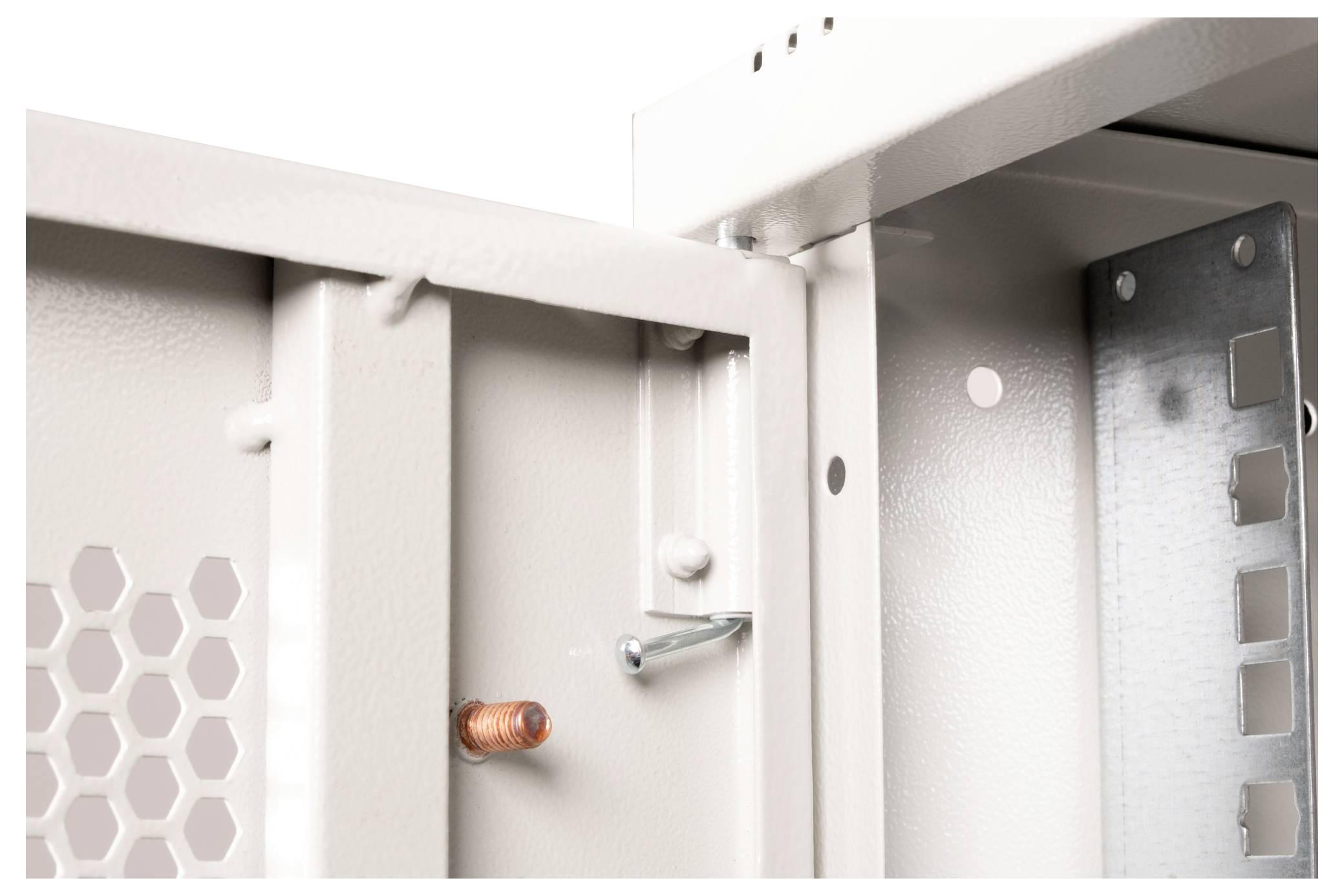

An open metal electrical cabinet showing interior framework and components, revealing a focus on construction and design details.

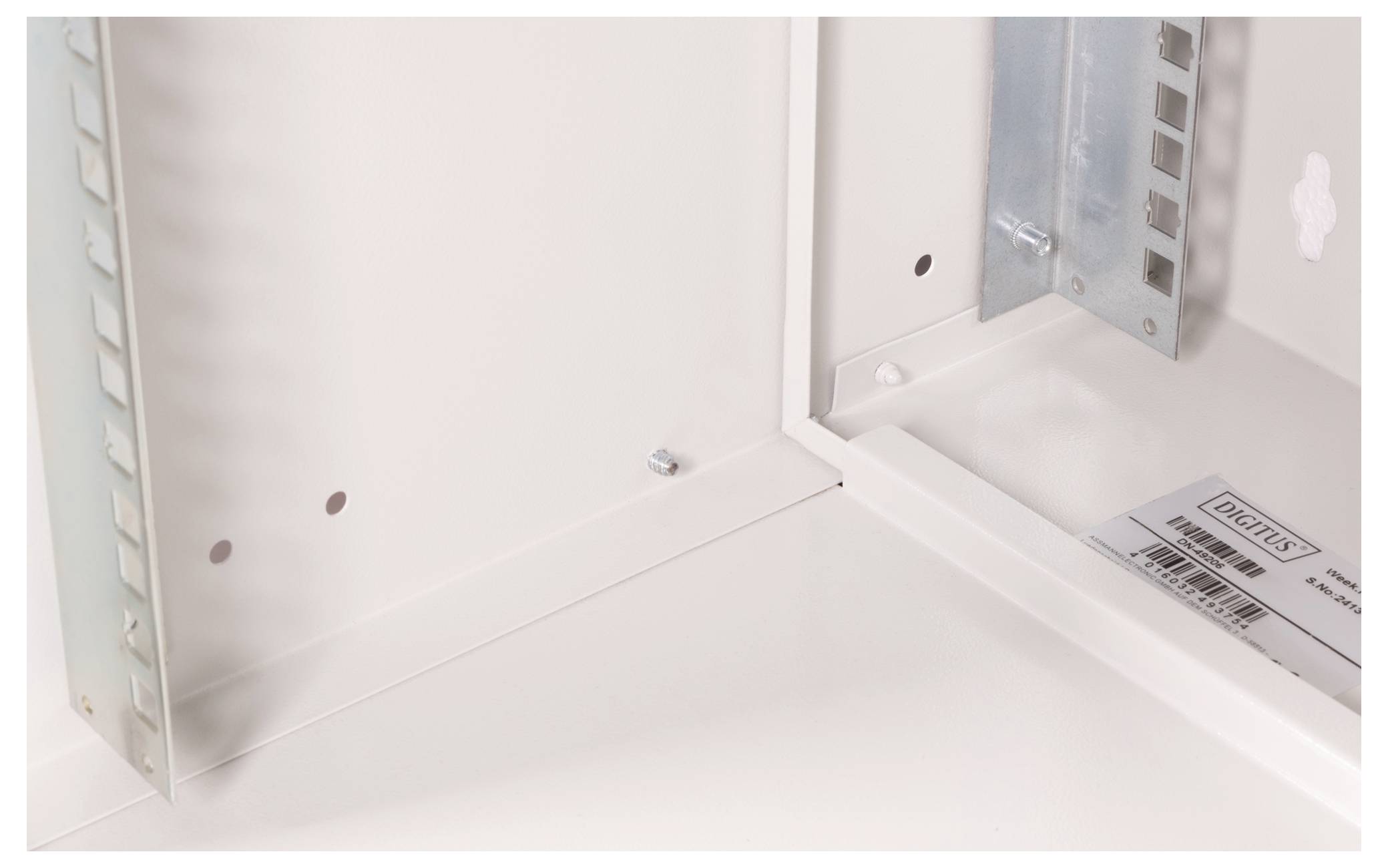

Electrical enclosure corner showing metallic frame, vent holes, and a document holder with a label partially visible.

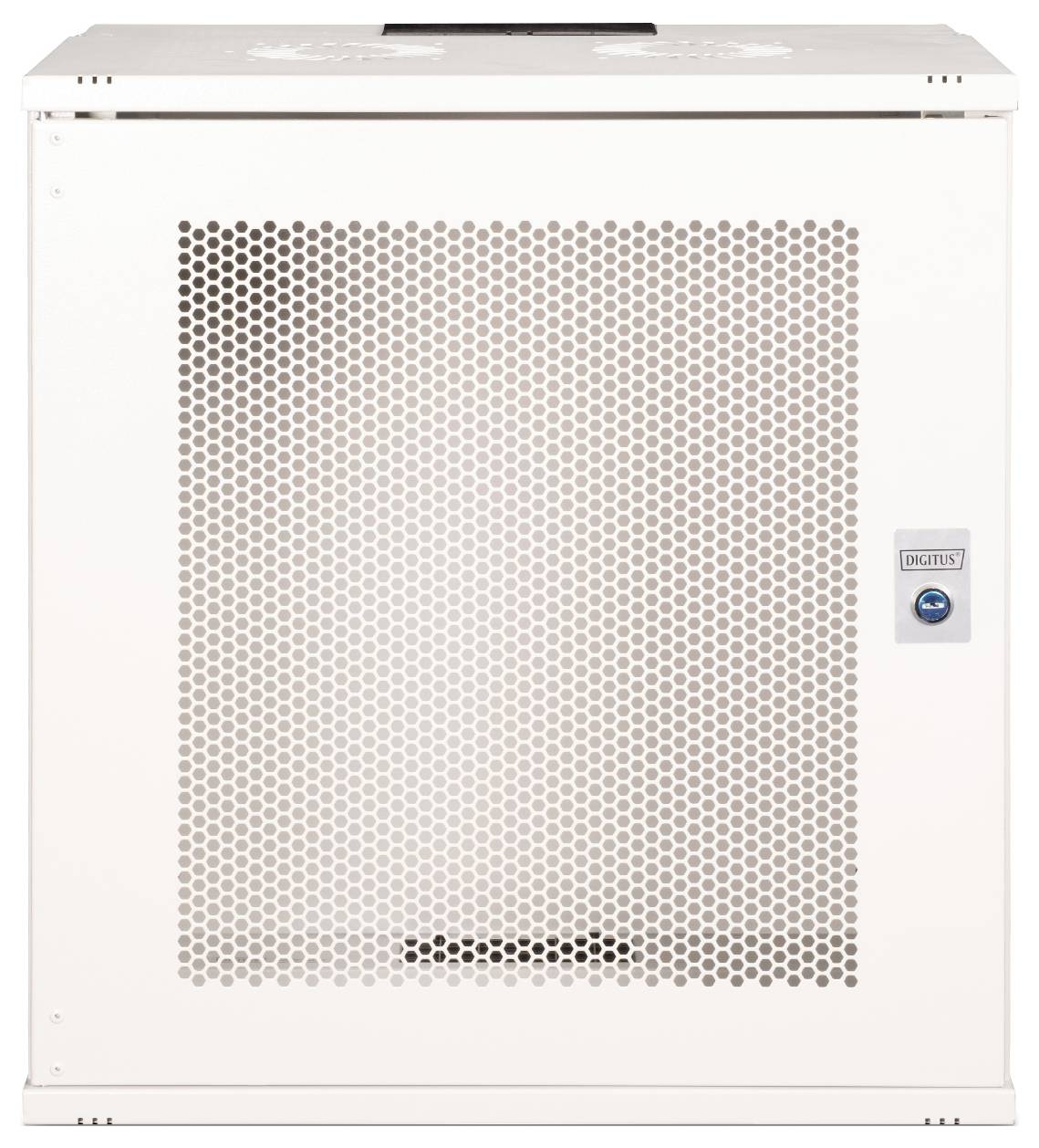

A white metallic cabinet with a perforated door and a lock. It has a compact design and is likely used for storing electronic equipment securely.

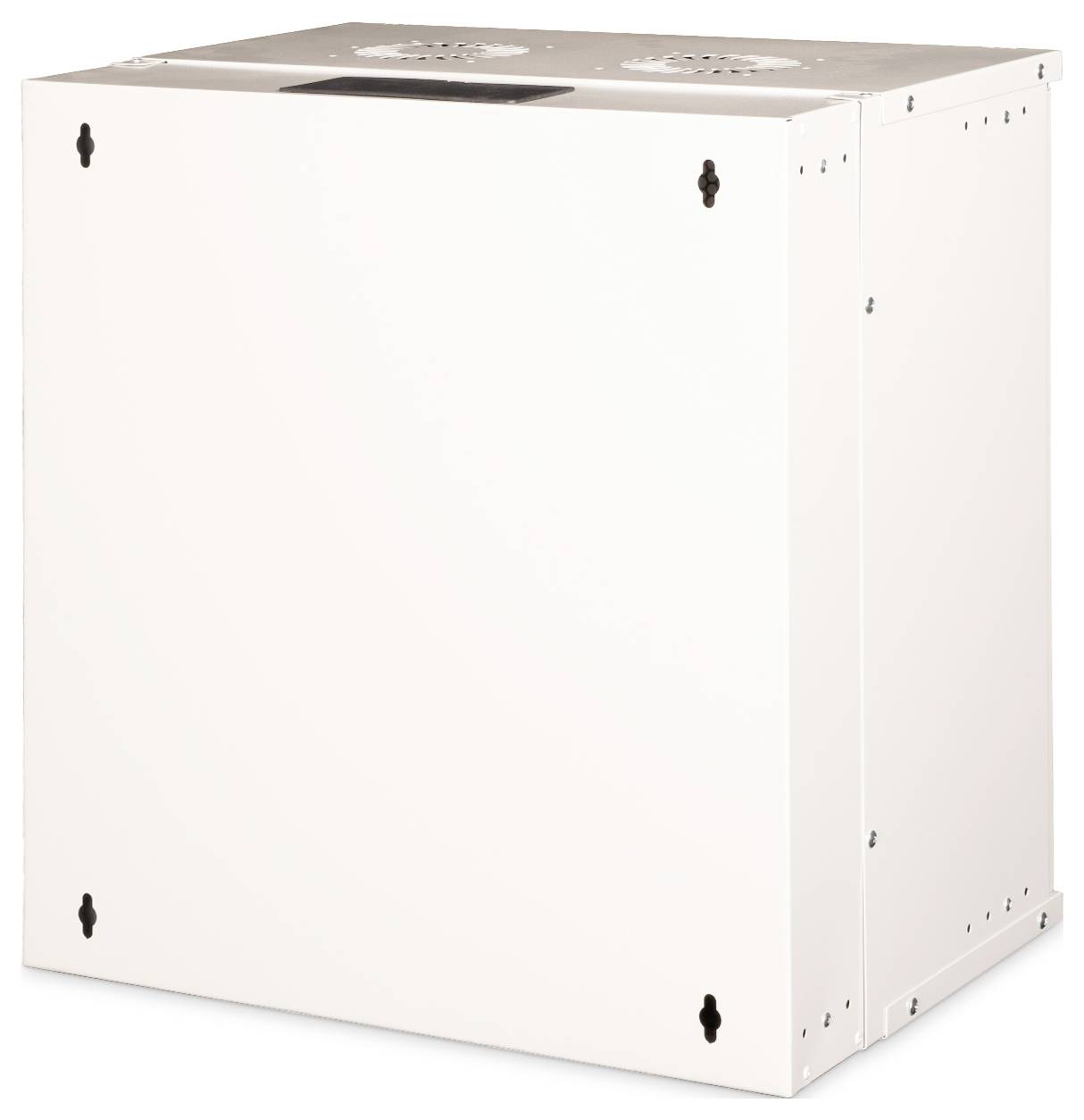

A white metal electrical enclosure box with vent holes on top and mounting brackets on the sides.

1/10

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus wall housing SOHO PRO - 483 mm (19") - 540x400 mm (WxT)

Highlights & Details

Compact casing for 483 mm (19") installations
Simplified logistics: Supplied unassembled in optimized flat pack
Quick to set up: Extremely user-friendly, quick installation with just a few screws
Flexible options for cable routing through protected openings in the roof and floor
Lockable steel front door with perforation, 200° door opening angle
Depth-adjustable 483 mm (19") rails
Load capacity for installation of components: 60 kg

Technical specifications

Protection class: IP20
483 mm (19 ") profile rails installed at the front and rear within the cabinet, galvanized
Depth adjustable with 483 mm (19 ") rails
1.1 - 1.5 mm thick steel sheet with a high load capacity, powder-coated
Mounting depth for components max. 327 mm
Product dimensions (H x W x D) 595 x 540 x 400 mm
Width 540 mm
Colour: Light gray, RAL 7035
Front door: Steel door, perforated, single-leaf
HE 12
Cabinet type: Wall housing
Side walls: Both sides
Depth: 400 mm
60 kg load capacity
IP protection class IP20
Mounted: No.

Product type: 19" server rack cabinet

Rack unit: 12 U

Width: 540 mm

Height: 595 mm

Depth: 400 mm

Material: Steel plate

Dim: (W x H x D) 540 x 595 x 400 mm

Weight: 14000 g

Factory colour: Grey
Light grey
Grey-white (RAL 7035)

Rack size: 483 mm (19")

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3385569 Digitus DN-49210 19" server rack cabinet (W x H x D) 540 x 595 x 400 mm 12 U Grey, Light grey, Grey-white (RAL 7035)

Description

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 483 mm (19") solutions of the SOHO PRO series. The version with a perforated sheet steel front door is available in three height units (7HE, 9HE, 12HE). All cabinets are equipped with a cable entry in the roof and floor. Two pairs of galvanized, with readable rack units labeled 483 mm (19")- Profile rails are installed in the interior. The depth of these can be adjusted. Each cabinet is a sturdy steel construction made of up to 1.5 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). A door stop can be changed. The network cabinets are delivered unassembled in an optimized flat pack. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions.

This text is machine translated.
