Digitus DN-650107 Industrial Ethernet switch 10 / 100 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
EAN:
Part number:
Item no:

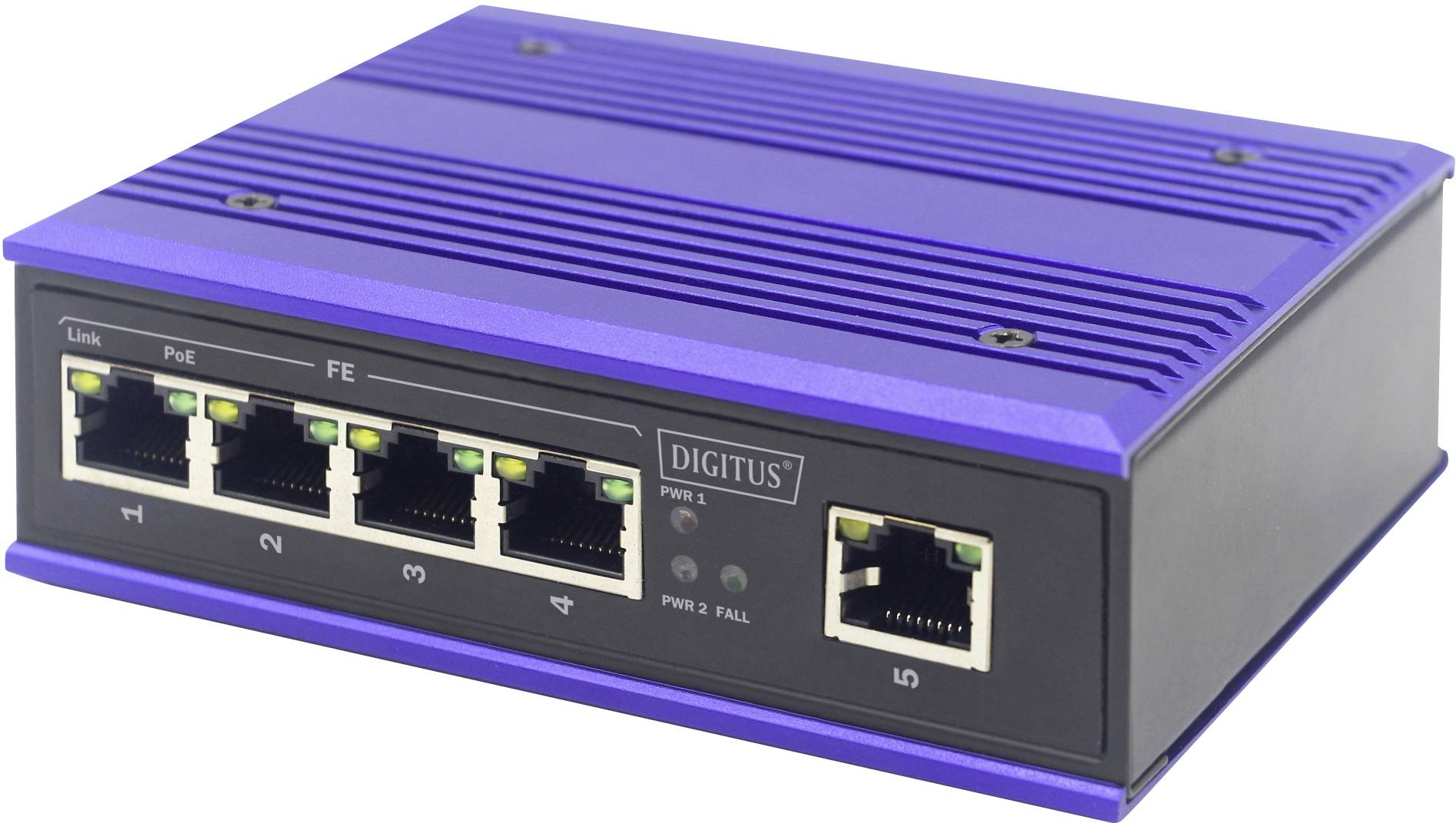

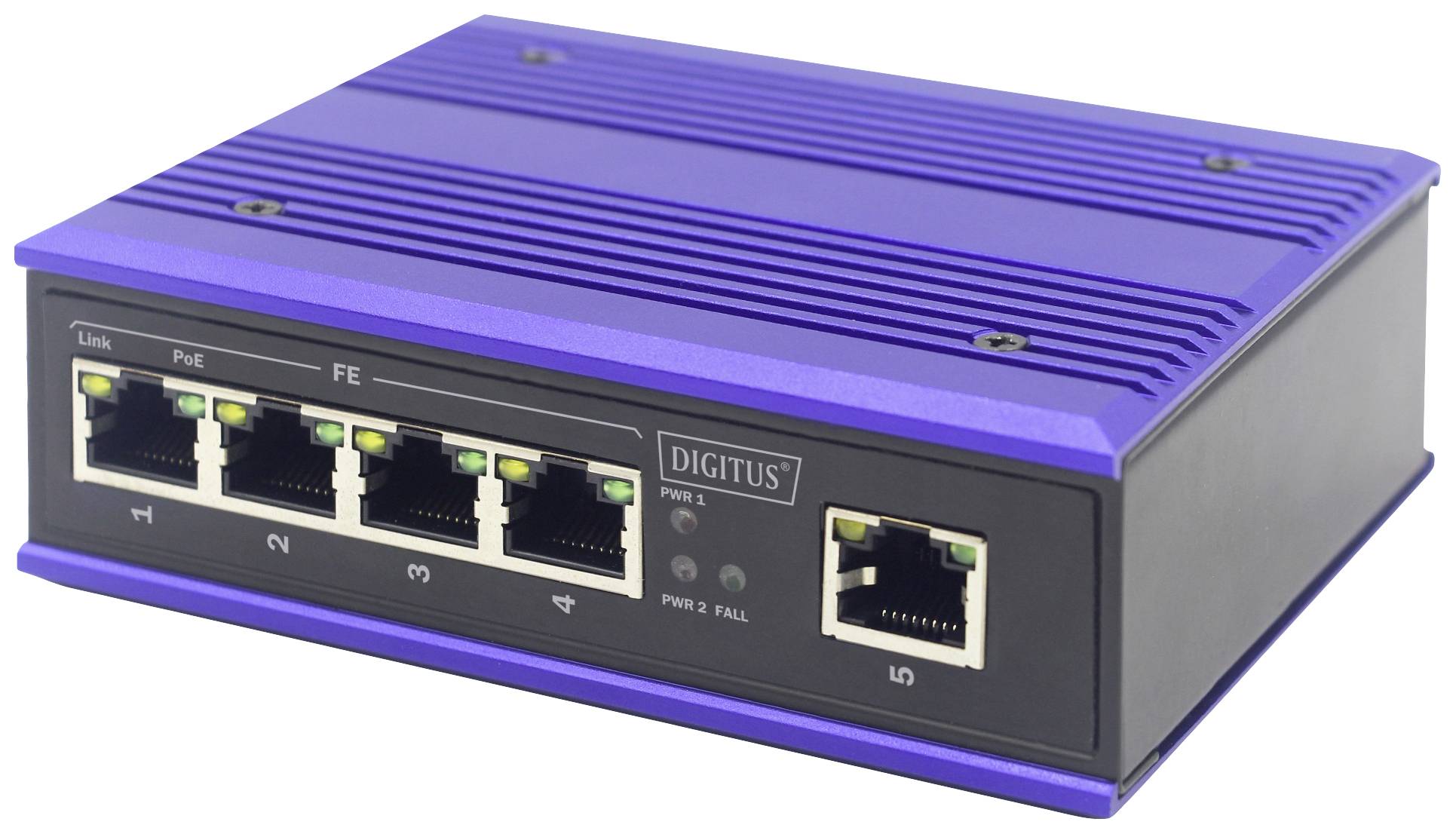

Industrial 4-port Fast Ethernet PoE Switch 1 uplink port, DIN rail, Extended Temp. Range
Highlights & Details
- The Industrial Ethernet switch has 4 RJ45 PoE ports + 1 uplink port with fast Ethernet speed and comes in a robust, compact metal housing, which is held in the colors black & blue
- The power supply is designed redundantly and takes place via a terminal connection. In addition, the network switch has a lightning, short-circuit and overvoltage protection
- In addition to DIN rail mounting on standardized DIN rails in switch boxes or control cabinets The industrial switch can also be mounted directly on the wall
Technical specifications
- Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE802.3af, IEEE802.3at
- Extended operating temperature range -40 °C ~ +85 °C.
- Redundant power supply: 48~57 V DC, redundant power supply with polarity reversal protection function
- Protection class: IP40
- Number of ports: 4
- PoE standard IEEE802.3at (PoE+)
- Ethernet speed: Fast Ethernet
- Industrial use: Yes
- Number of ports (uplink): 1
- Mounting type: DIN rail
- Uplink port connection: RJ45
- Product type
Industrial Ethernet switch
- PoE
IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)
- LAN data transfer rate
10 / 100 MBit/s
- Width
118 mm
- Height
39 mm
- Length
86 mm
- Factory colour
Multicolour
- Weight
0.562
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2290755 Digitus DN-650107 Industrial Ethernet switch 10 / 100 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
Description
Digitus DIGITUS® Industrial Fast Ethernet Switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibration. With a temperature range of -40°C to 85°C, the Industrial Fast Ethernet Switch can be used under the most unfavorable conditions. Through the PoE ports with IEEE802.3af/at support, PoE-enabled devices with up to 30 W per port can be supplied. Continuous availability is ensured in highly sensitive areas such as transport, production, transport and security monitoring. The simple plug-and-play system allows the Industrial Fast Ethernet switch to be quickly integrated into the respective environment. Due to Fast Ethernet connectivity, the Industrial Fast Ethernet Switch is thus a flexible, cost-effective solution for the industrial environment.
This text is machine translated.
This text is machine translated.
Features
- Thanks to IP40, the PoE switch is protected against foreign bodies (less than 1 mm) - the extended temperature range is -40 to 85 °C - rained for non-condensing humidity of 5 to 95 %
- of the LAN switch possesses Store-and-Forward technology, automatic cable detection (Auto-MDI-/ MDI-X) & Half-/Full-Duplex recognition - Standards: IEEE802.3u, IEEE802.3x, IEEEaf, 802.3af IEEE802.3at
- 4 x 10/100Base-TX Ethernet PoE Ports
- 1 x 10/100Base-TX Ethernet Uplink Port
- supports IEEE802.3af/at
- Automatic cable recognition - Auto-MDI-/ MDI-X function
- IEEE802.3x Flow Control and Back Pressure
- Store-and-Forward technology for an optimized data transfer
- Automatic speed and half/full duplex recognition/setting
- Backplane with 1Gbps
- MAC address memory 2K
- compact, compact Robust metal housing
- Excellent protection against short circuits
- Lightning protection and surge protection
- DIN rail (DIN rail) and wall mounting possible
- removable terminal connection
Scope of delivery
- Industrial 4-Port Fast Ethernet PoE Switch + 1 Uplink Port
- Quick start guide
