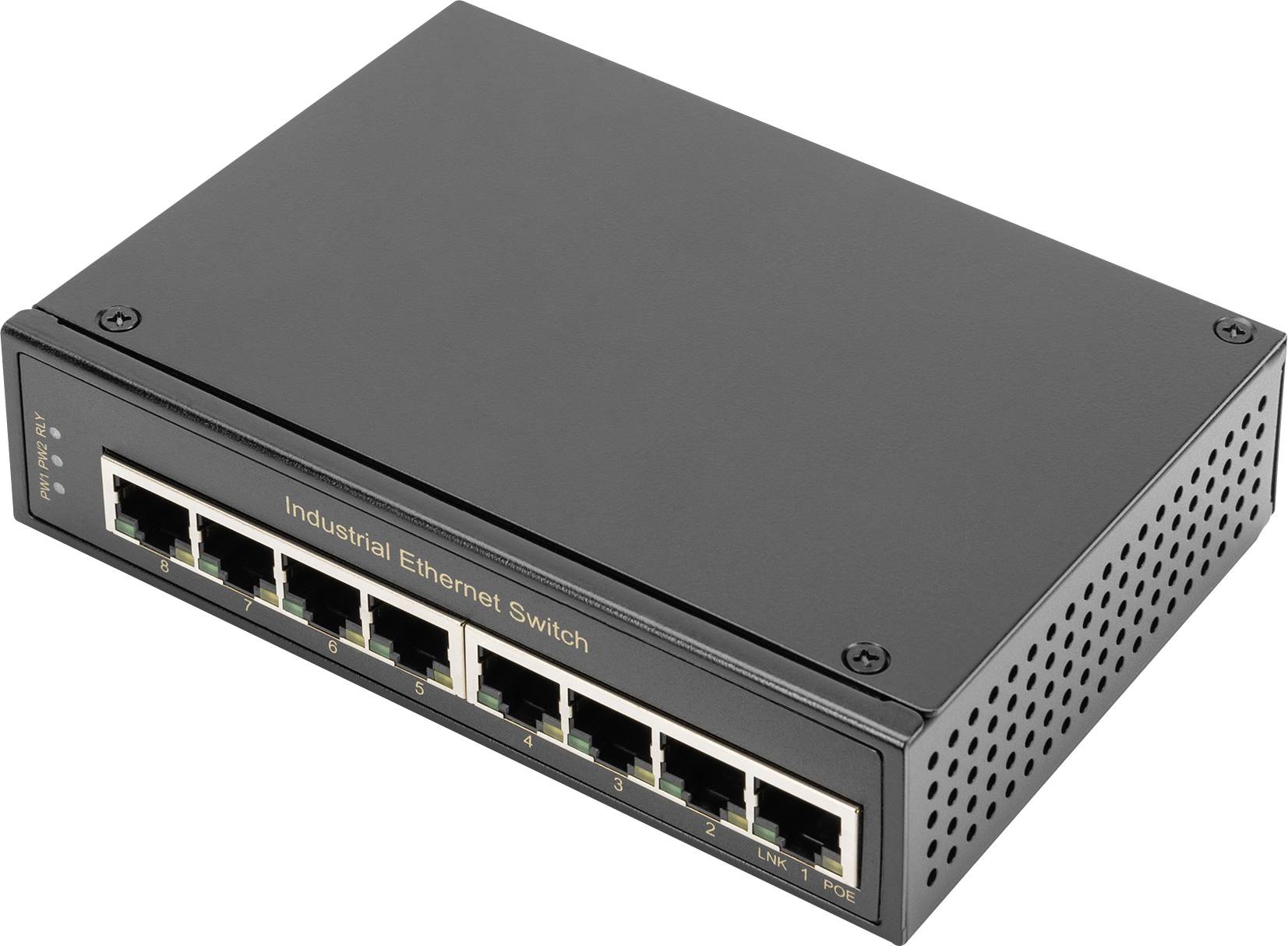

A black industrial Ethernet switch with eight ports, suitable for network applications in industrial environments.

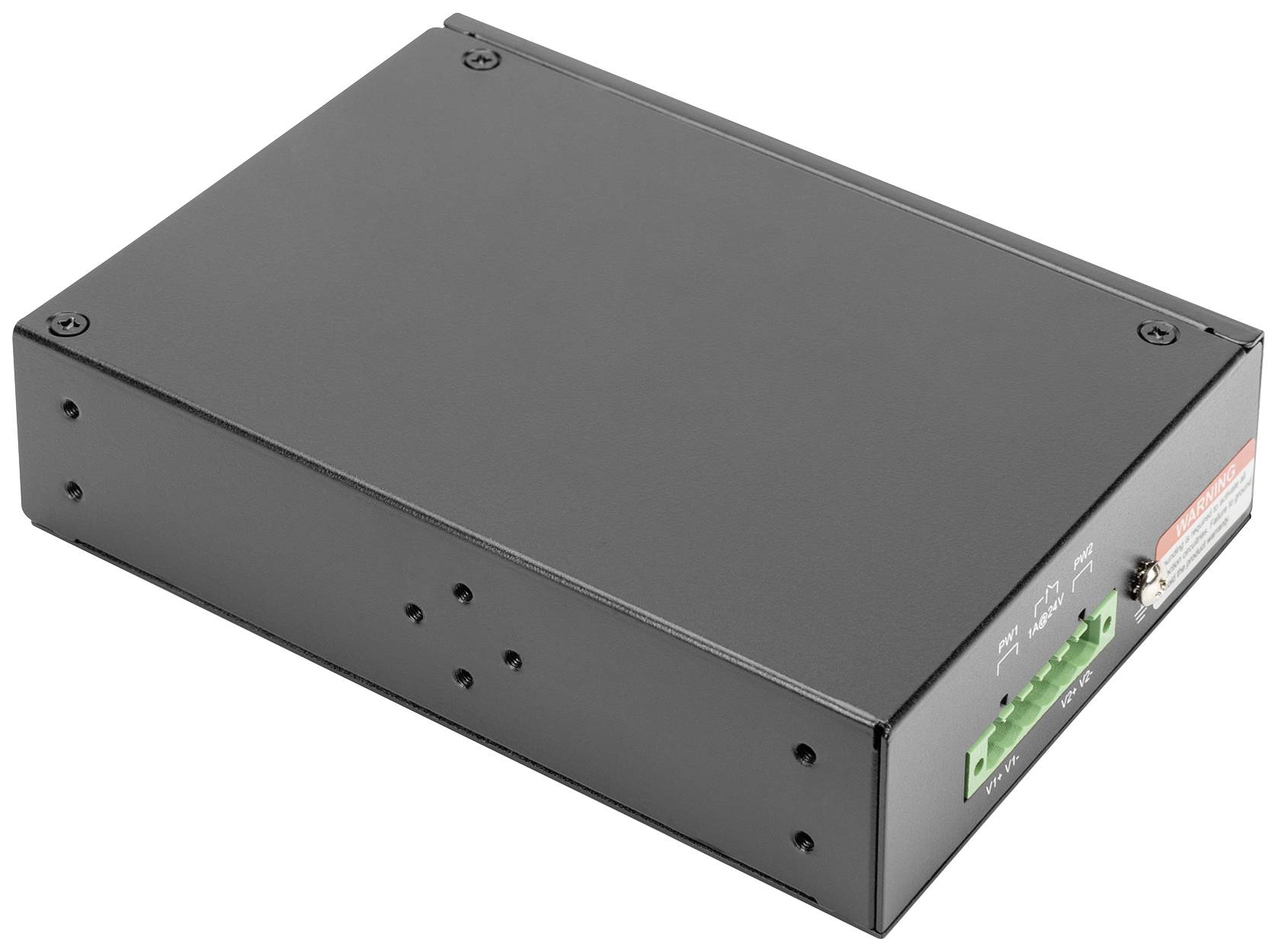

A black, rectangular electrical device with multiple connection ports on its side.

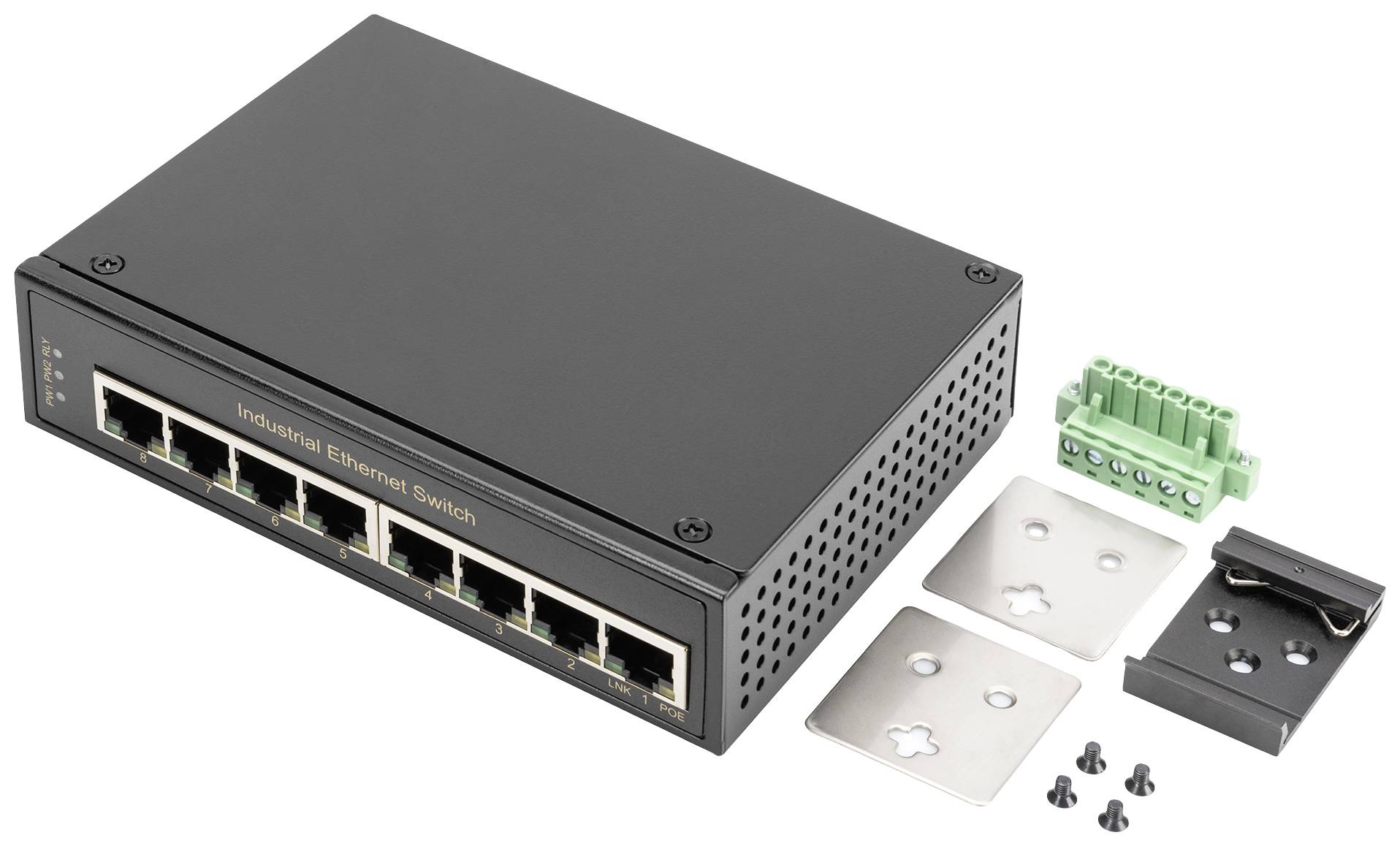

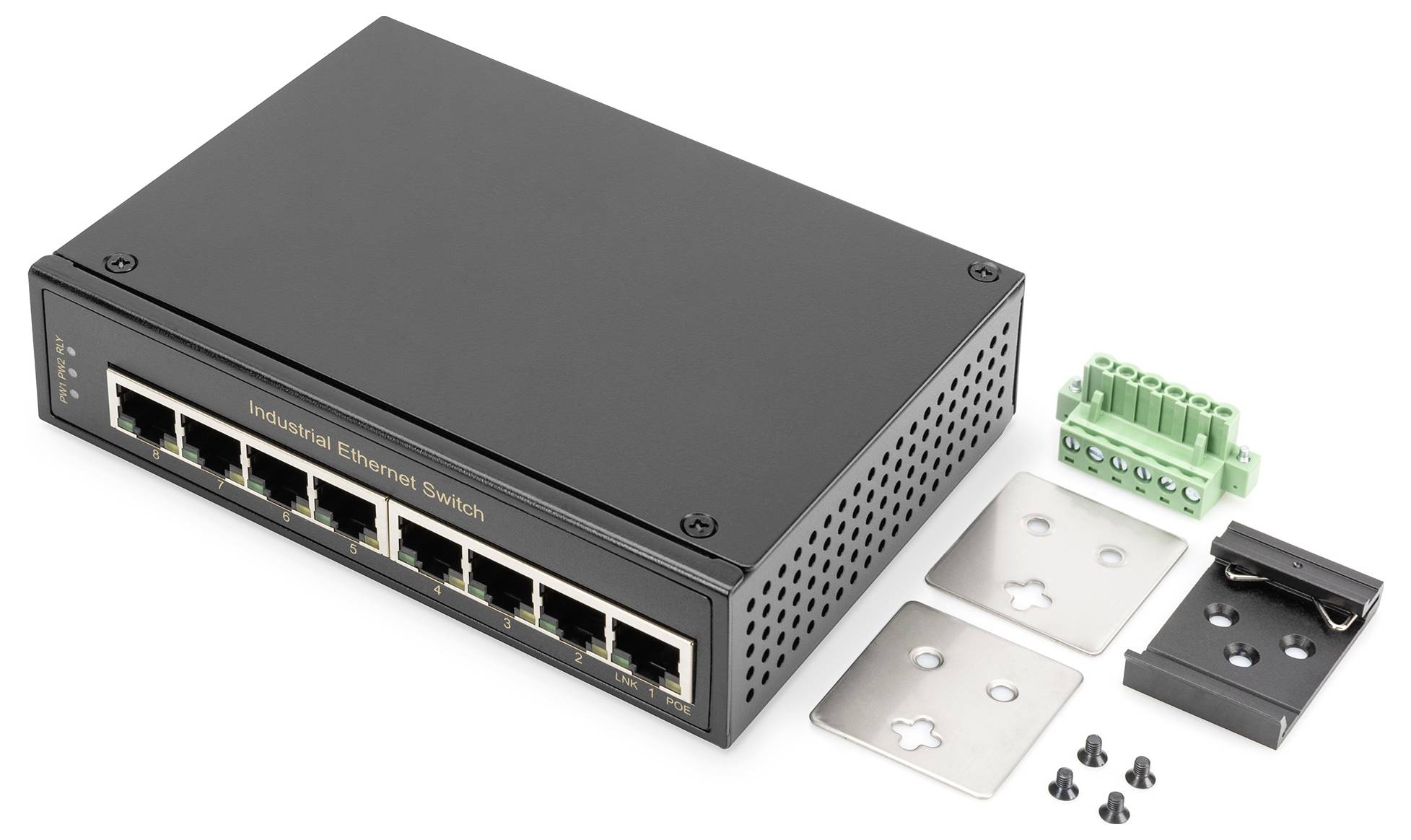

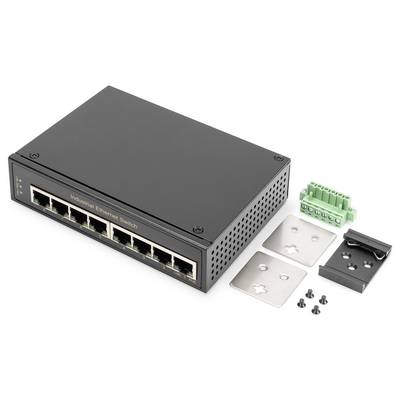

A black industrial Ethernet switch with seven ports, pictured with mounting accessories and screws on a white background.

Digitus DN-651108 DN-651108 Industrial Ethernet switch 8 ports 10 / 100 / 1000 MBit/s-3

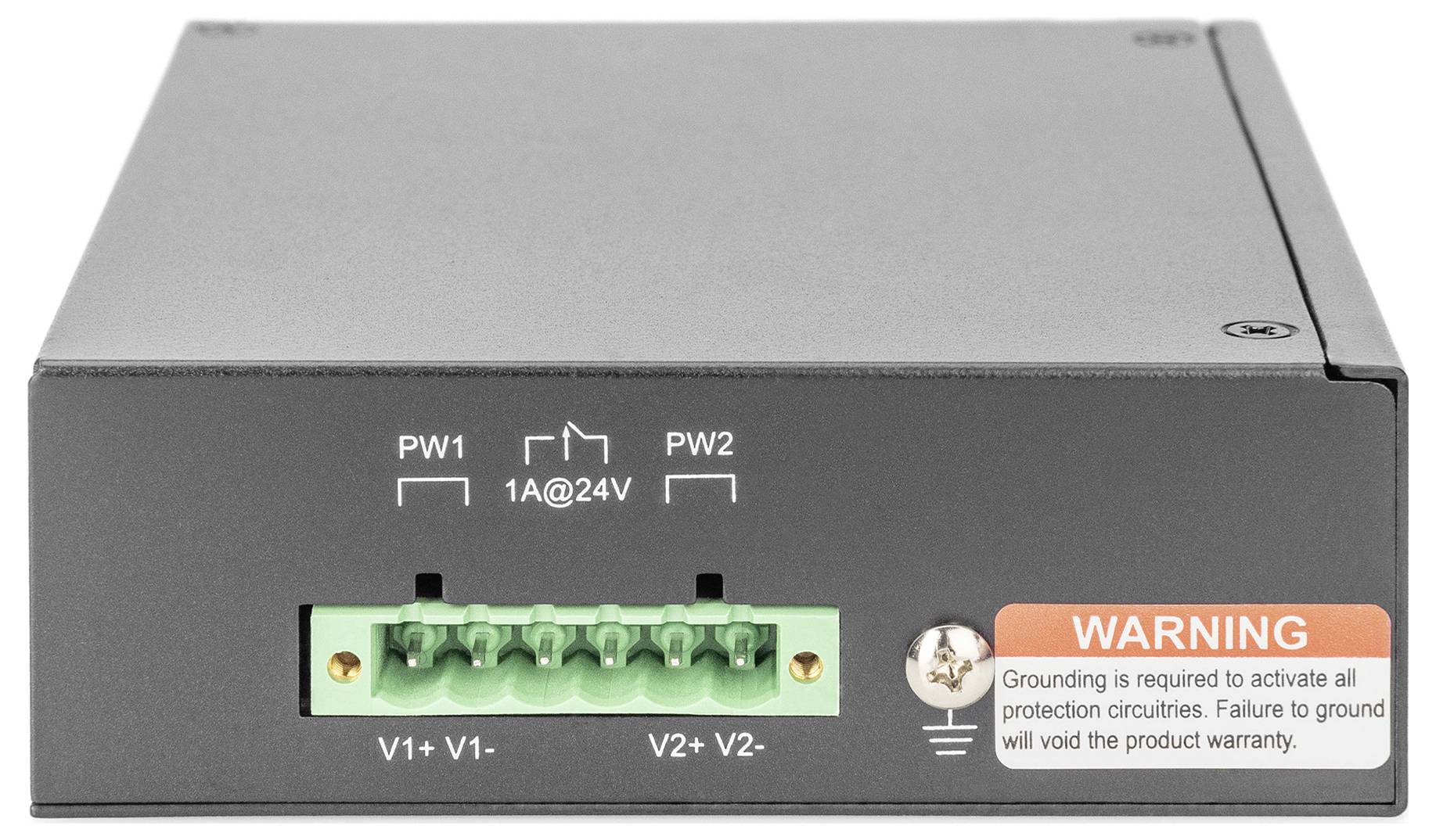

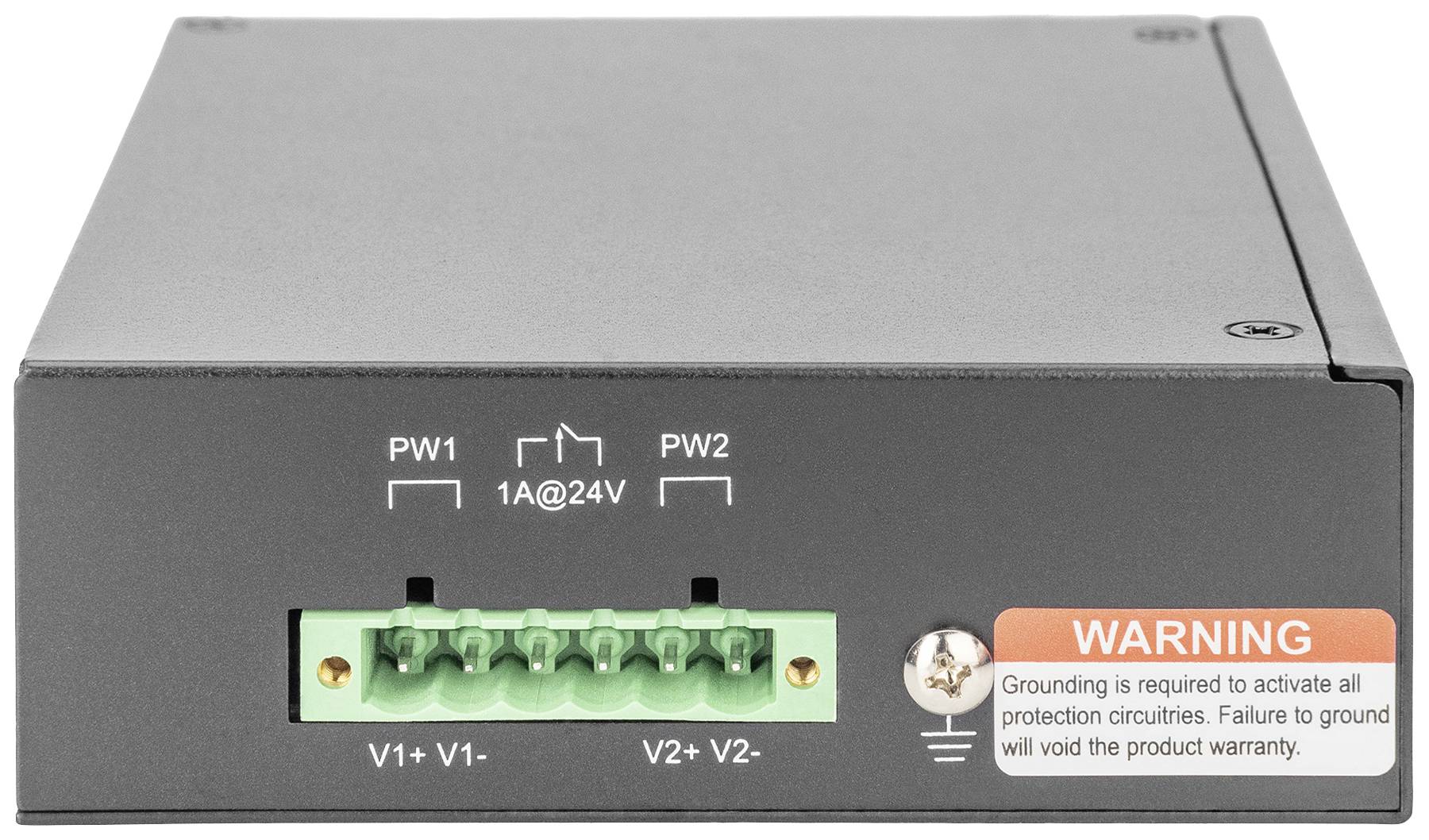

Black electronic device with a green connection block for V1+, V1-, V2+, V2-. Warning label indicates earthing requirement.

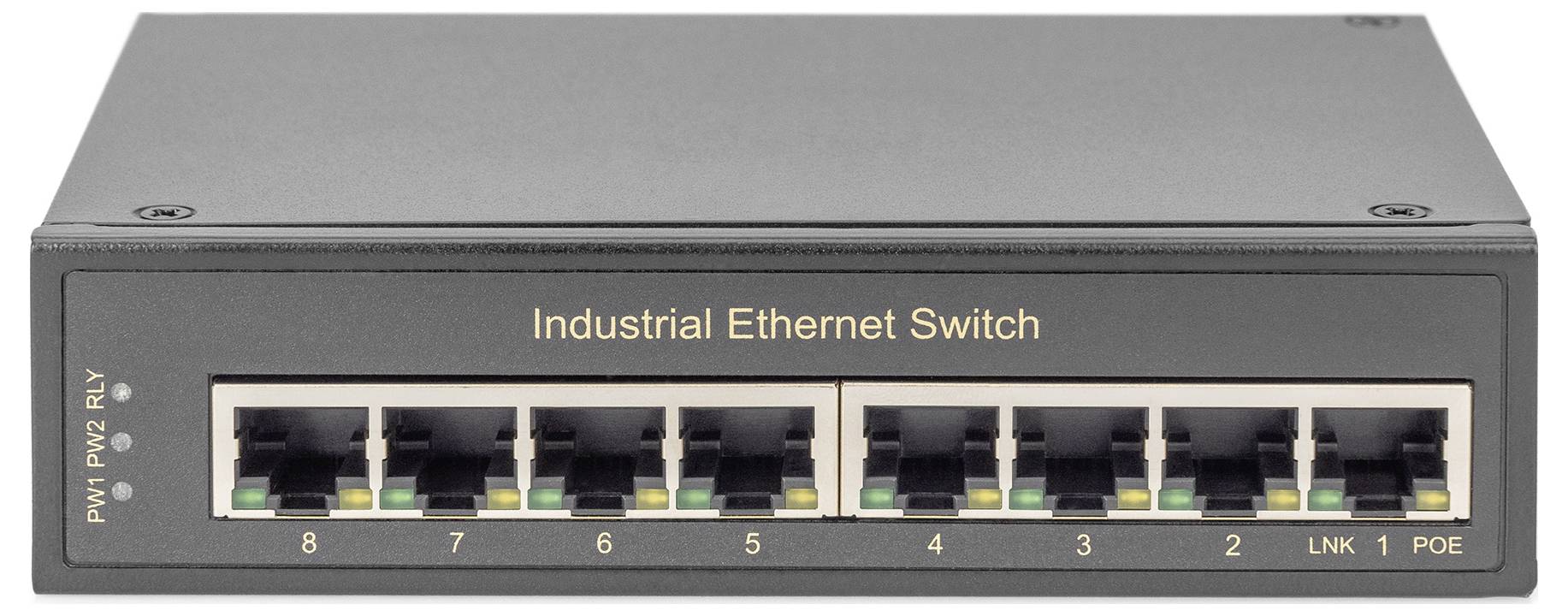

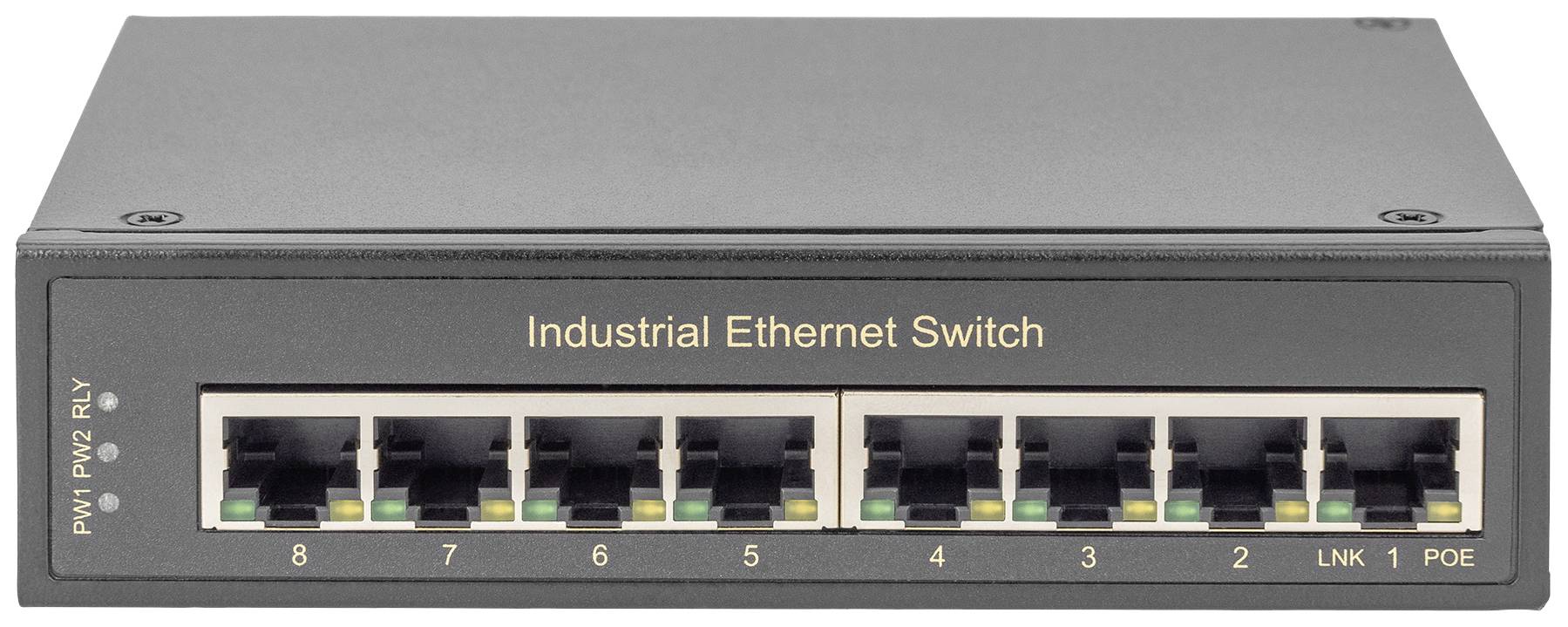

An industrial Ethernet switch with eight Ethernet ports, labelled 'Industrial Ethernet Switch'. Suitable for industrial networks.

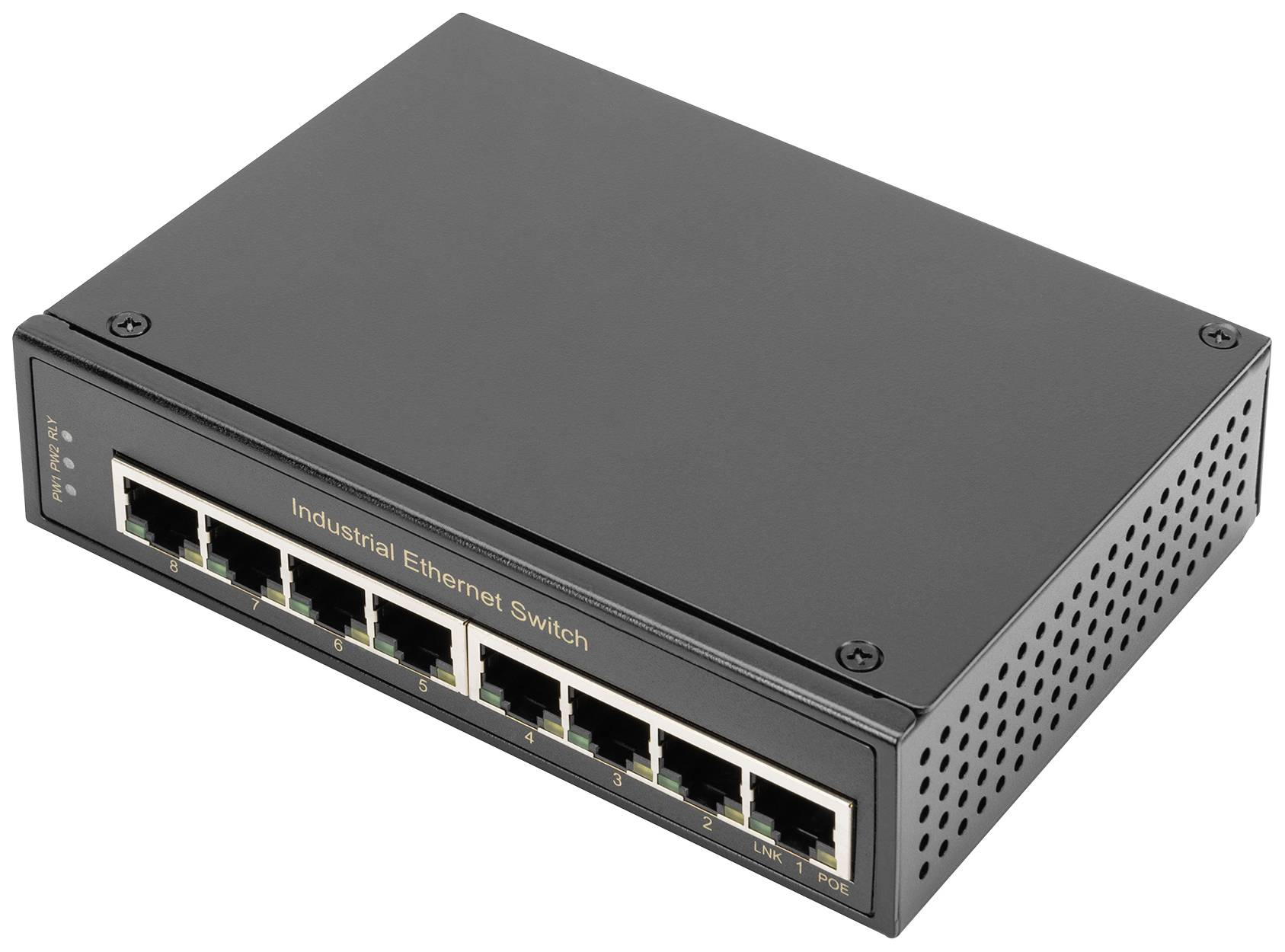

A black industrial Ethernet switch with eight network ports on the front.

Digitus DN-651108 DN-651108 Industrial Ethernet switch 8 ports 10 / 100 / 1000 MBit/s-7

Digitus DN-651108 DN-651108 Industrial Ethernet switch 8 ports 10 / 100 / 1000 MBit/s-8

Digitus DN-651108 DN-651108 Industrial Ethernet switch 8 ports 10 / 100 / 1000 MBit/s-9

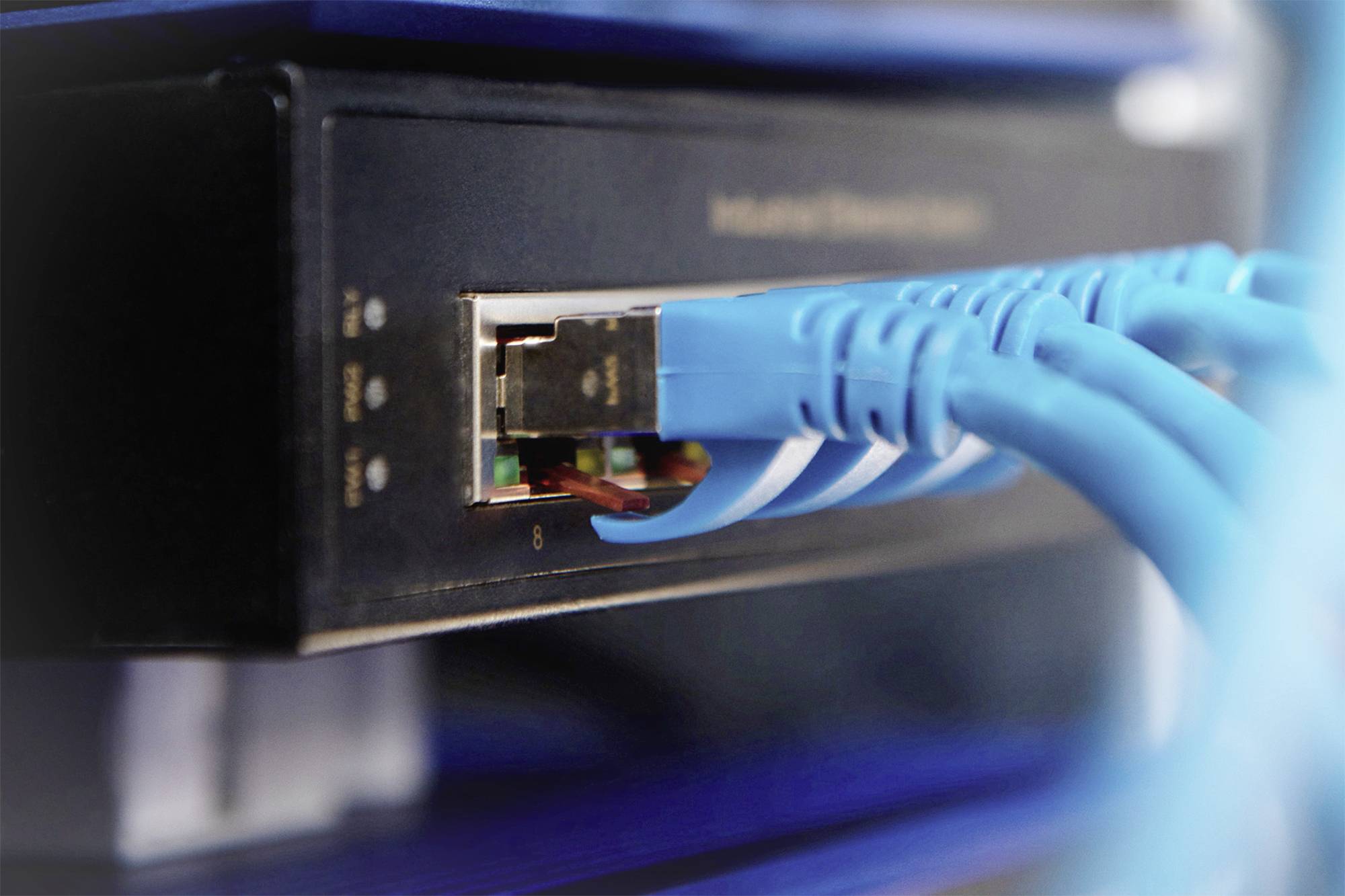

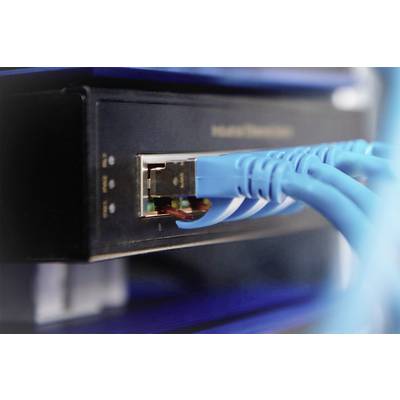

Several blue network cables are connected to an internet router, establishing an active internet connection.

1/11

Datasheet (PDF)

Unavailable

12 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Industrial 8-Port Gigabit Switch 8 x 10/100/1000Base-TX Ethernet Ports

Highlights & Details

Industrial 8-Port Gigabit Switch
8 x 10/100/1000Base-TX Ethernet ports
Extended operating temperature range from -40 °C ~ +85 °C.
DIN rail (DIN rail) and wall mounting possible

Technical specifications

8 x 10/100/1000Base-TX Ethernet ports
Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab Gigabit Ethernet
Redundant power supply: 12~56 V DC, redundant power supply with polarity reversal protection function
Extended operating temperature range -40 °C ~ +85 °C.
Power consumption: 5 W.
MTBF: 500,000 hrs.

Product type: Industrial Ethernet switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 8

10/100/1000 Mbps ports: 8 x

Power supply (LOV): mains-powered (redundant)
mains-powered
via terminal
via DIN rail PSU

Weight: 520 g

Width: 142 mm

Height: 105 mm

Depth: 362 mm

Type: DN-651108

Interfaces: Gigabit LAN (1 Gbps)
Gigabit LAN (1 Gbps)

Factory colour: Black

Operating voltage: 56 V DC
48 V DC
12 V DC

Max. ambient temperature: 85 °C

Min. ambient temperature: -40 °C

Port: 8 ports

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2197269 Digitus DN-651108 DN-651108 Industrial Ethernet switch 8 ports 10 / 100 / 1000 MBit/s

User & Safety Instructions

User & Safety Instructions 2197269 Digitus DN-651108 DN-651108 Industrial Ethernet switch 8 ports 10 / 100 / 1000 MBit/s

Description

The DIGITUS® Industrial Gigiabit switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibration. With a temperature range of -40°C to 75°C, the Industrial Gigabit Switch can be used under the most unfavorable conditions. Continuous availability is ensured in highly sensitive areas such as transport, production, transport and security monitoring. The simple plug-and-play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. Due to the Gigabit connectivity, the Industrial Gigabit Switch thus represents a flexible, cost-effective solution for the industrial environment.
