Digitus DN-651109 Industrial Ethernet switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
EAN:
Part number:
Item no:
Industrial Gigabit Ethernet PoE+ Switch 4-port PoE + 2-port SFP, 802.3at, DIN rail
Highlights & Details

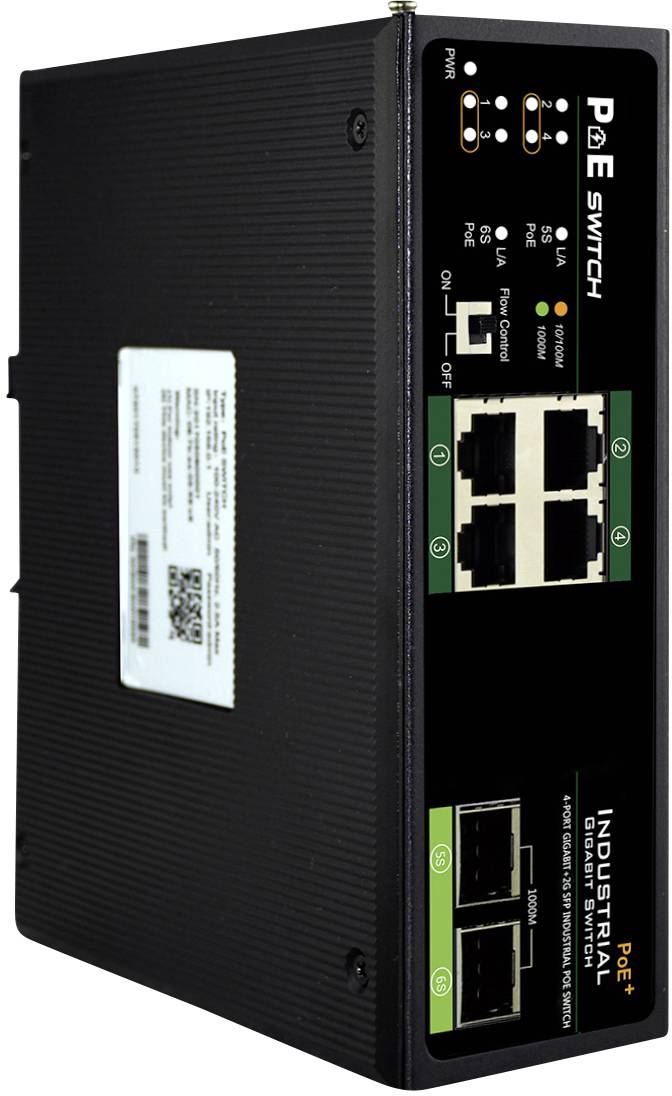

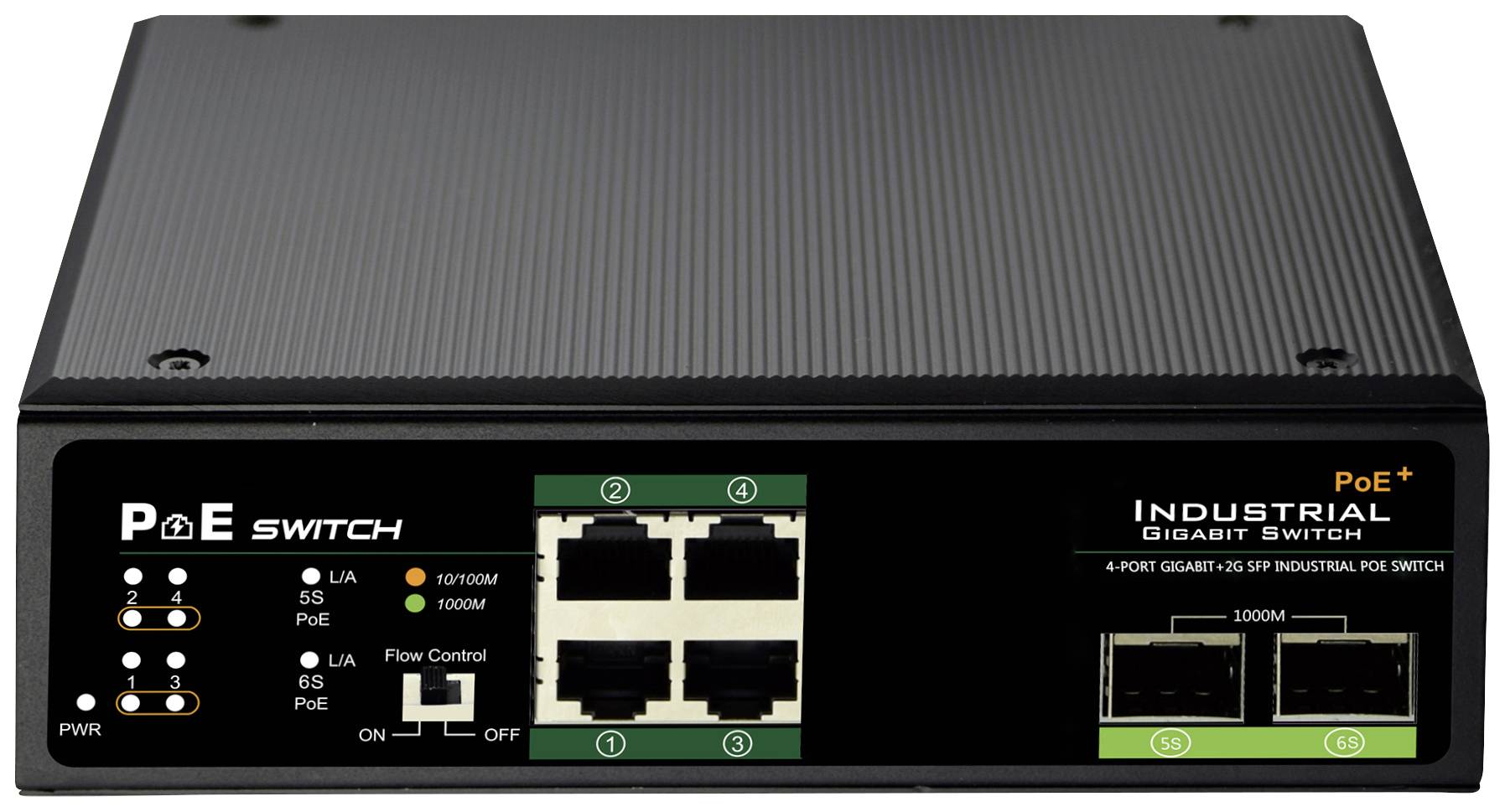

- Industrial 4-Port Gigabit PoE+ Switch with 2 x SFP uplink
- 4 x 10/100/1000Base-TX Ethernet PoE ports
- 2 x 1000Base-X SFP uplink ports
- DIN rail (DIN rail) and wall mounting possible
Technical specifications
- Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3z Gigabit Ethernet

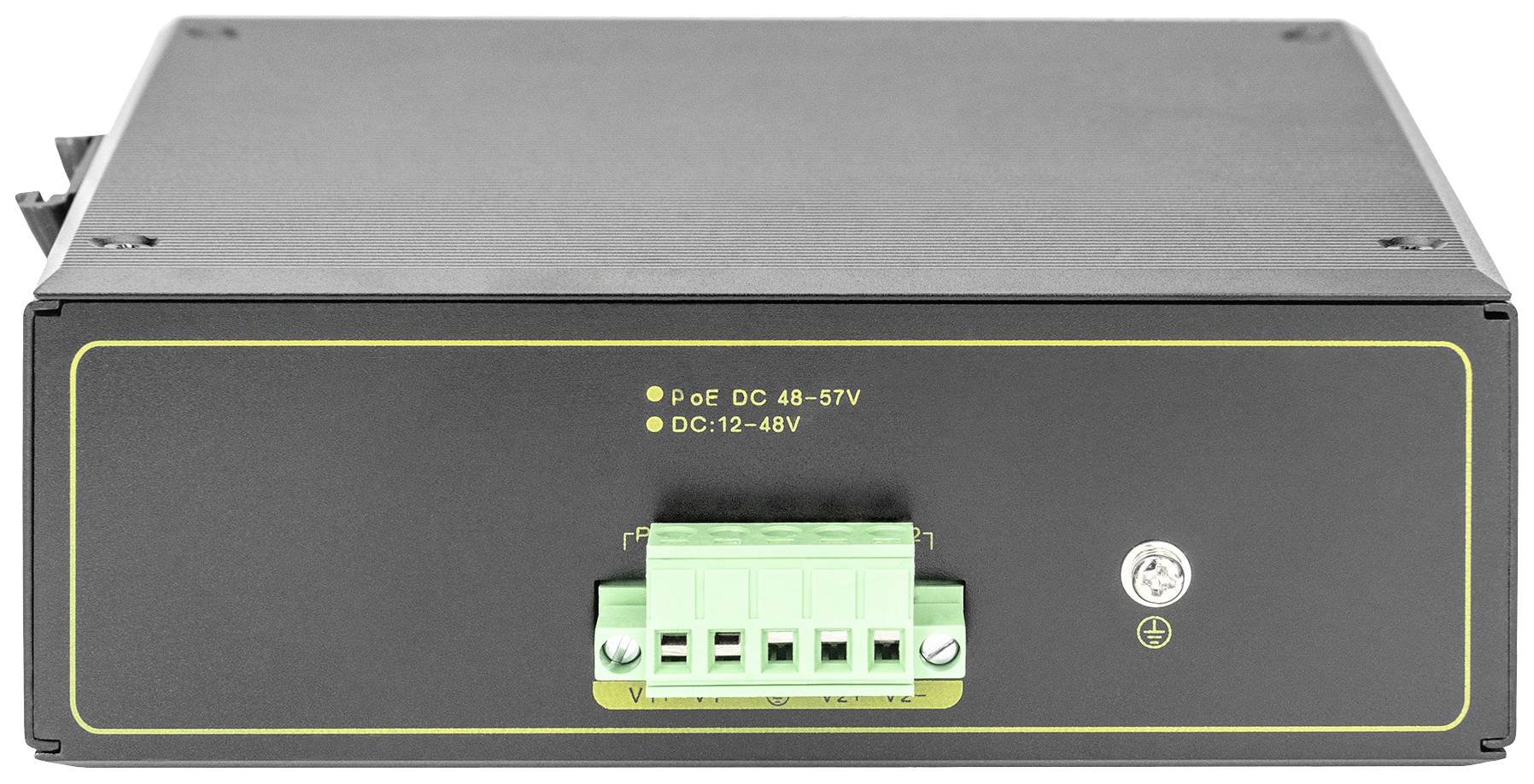

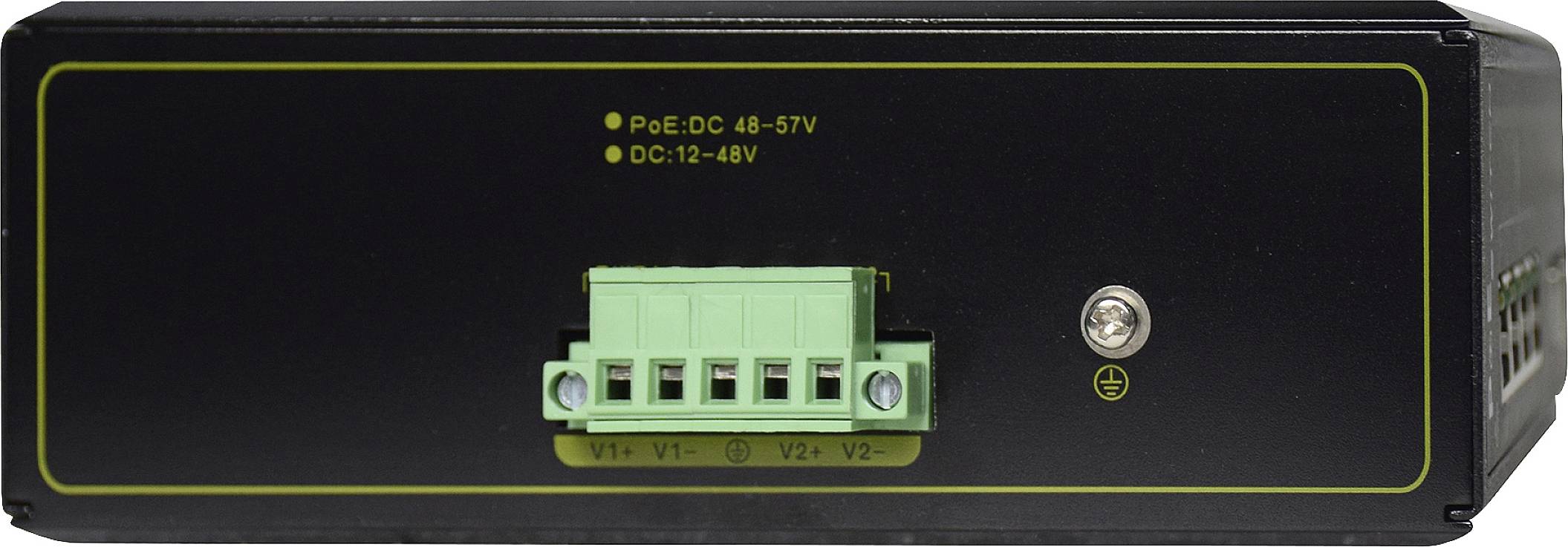

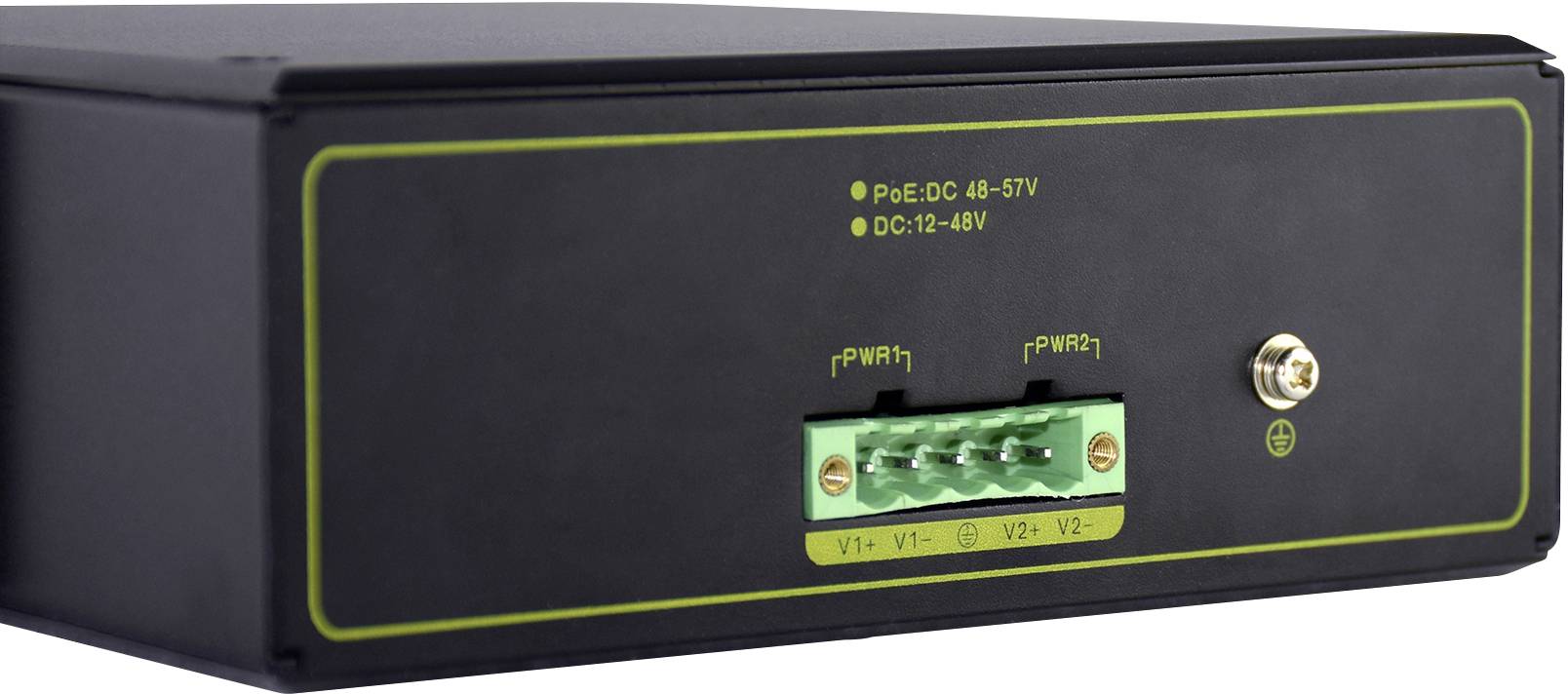

- Redundant power supply: 48~57 V DC, redundant power supply with polarity reversal protection function
- Extended operating temperature range -40 °C ~ +75 °C.
- Number of ports: 4
- PoE standard IEEE802.3at (PoE+)
- Ethernet speed: Gigabit
- Industrial use: Yes
- Number of ports (uplink): 2

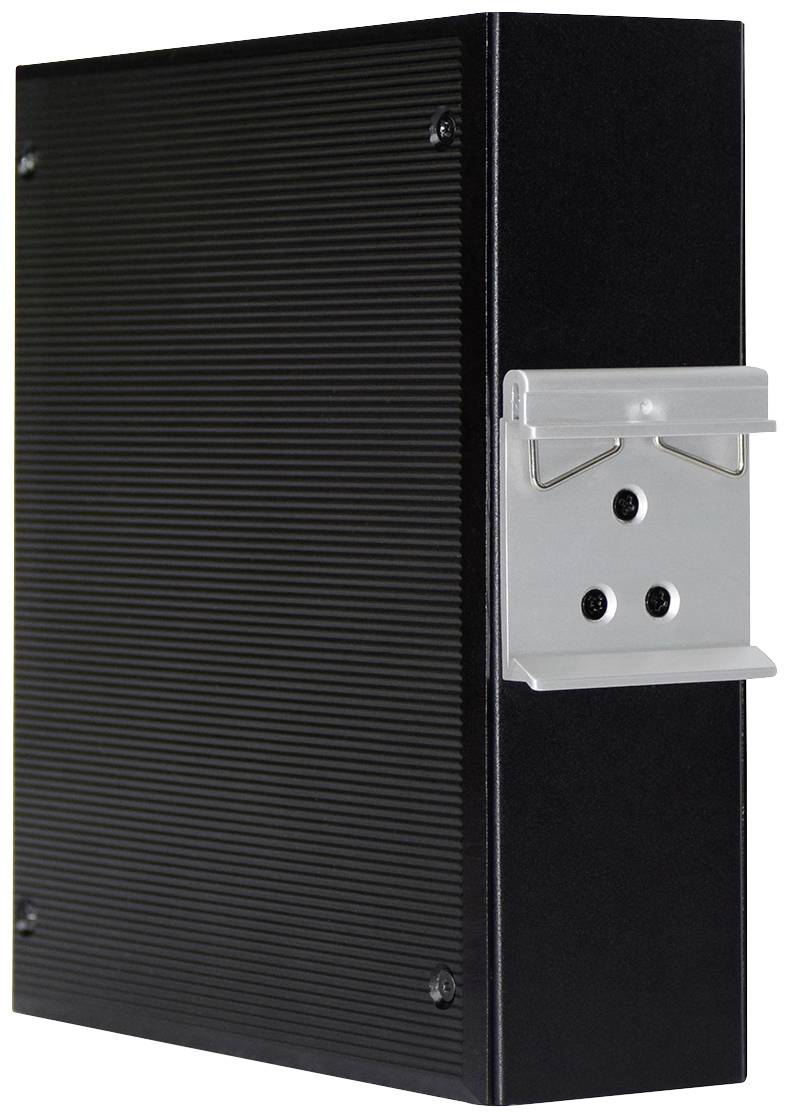

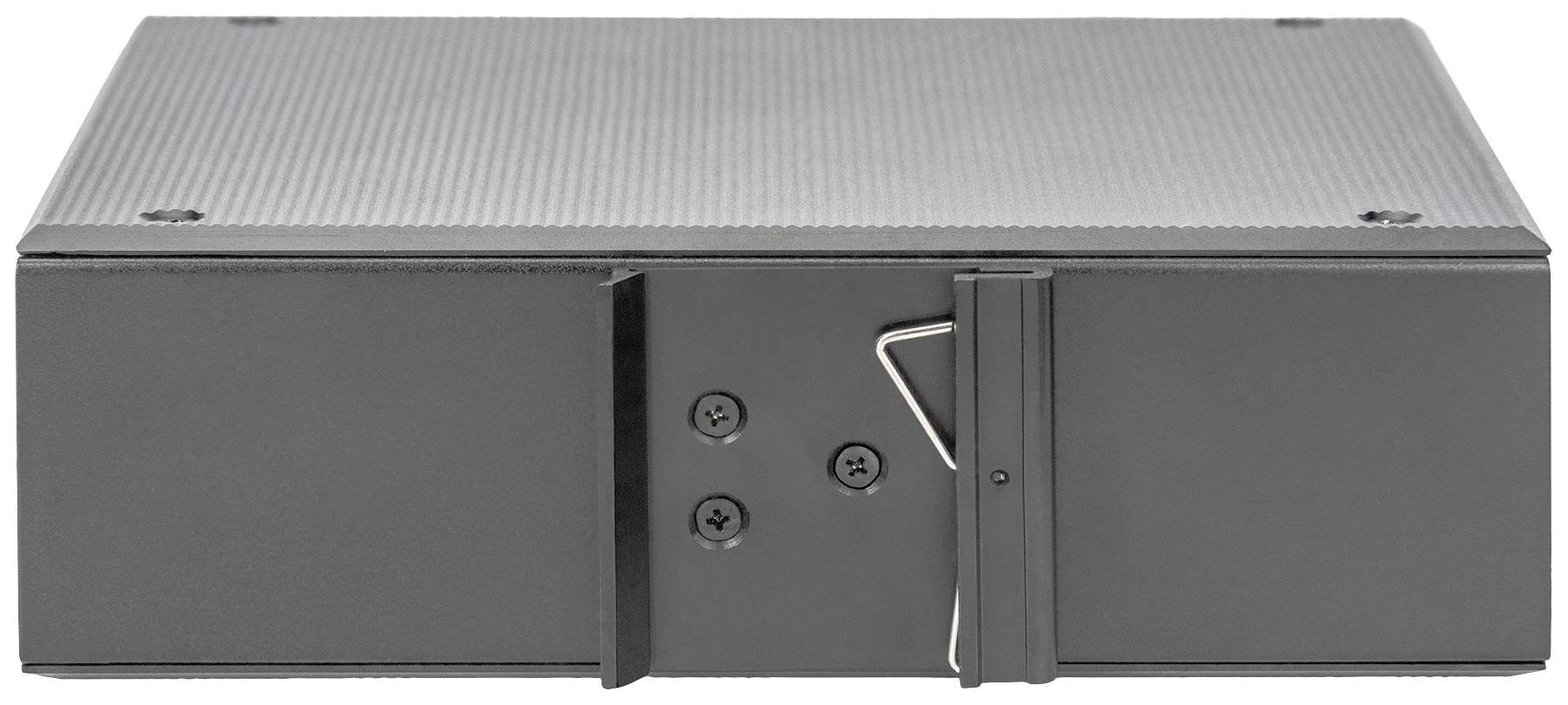

- Mounting type: DIN rail, wall
- Uplink port connection: SFP
- Product type
Industrial Ethernet switch
- PoE
IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
165 mm
- Height
54 mm
- Length
147 mm
- Weight
0.98
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2290757 Digitus DN-651109 Industrial Ethernet switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
Description
The DIGITUS® Industrial Gigiabit Digitus PoE switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibration. With a temperature range of -40°C to 75°C, the Industrial Gigabit PoE switch can be used under the most adverse conditions. Through the PoE ports with IEEE802.3af/at support, PoE-enabled devices can be supplied with up to 30 W per port. Continuous availability is ensured in highly sensitive areas such as transport, production, transport and security monitoring. The simple plug-and-play system allows the Industrial Gigabit PoE switch to be quickly integrated into the respective environment. Due to the Gigabit connectivity as well as the SFP uplink ports, the Industrial Gigabit PoE switch thus represents a flexible, cost-effective solution for the industrial environment.
This text is machine translated.
This text is machine translated.
Features
- Supports IEEE802.3af/at
- Automatic cable recognition - Auto-MDI-/ MDI-X function
- Backplane 12G
- MAC address memory 1K
- compact, robust metal housing
- excellent protection against short-circuits
- lightning protection and overvoltage protection
- removable terminal connection
Scope of delivery
- Industrial 4-port Gigabit PoE switch with 2 x SFP uplink
- Quick start guide
