Digitus DN-651111 PoE splitter 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W), IEEE 802.3bt
EAN:
Part number:
Item no:
Industrial Gigabit PoE++ splitter, 802.3bt selectable voltage: 12VDC, 16VDC, 24VDC, 48VDC
Highlights & Details
- PoE splitters are used whenever a surveillance camera, access point or other device is to be supplied with power only via the data line, but the device is not PoE-enabled.

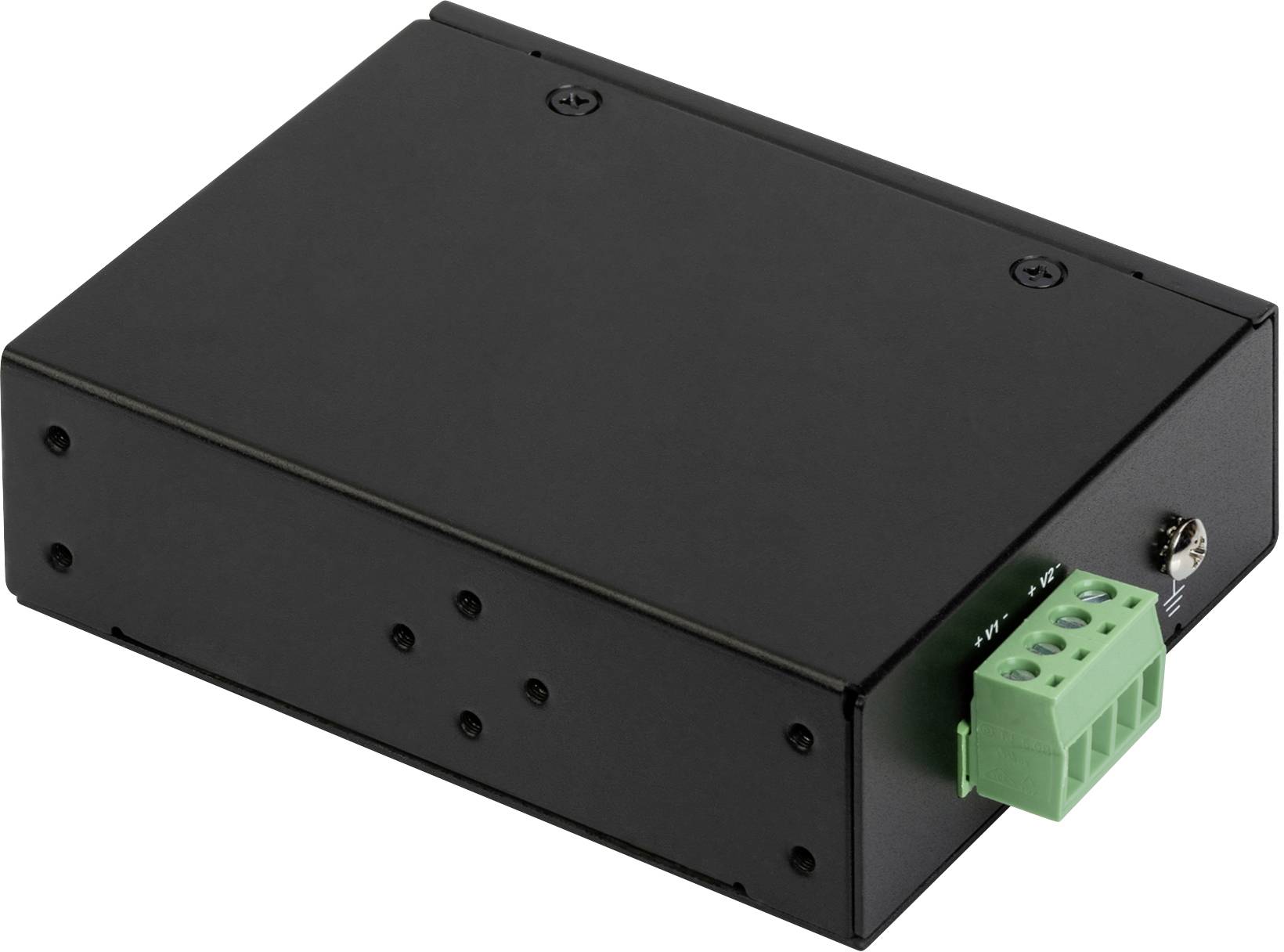

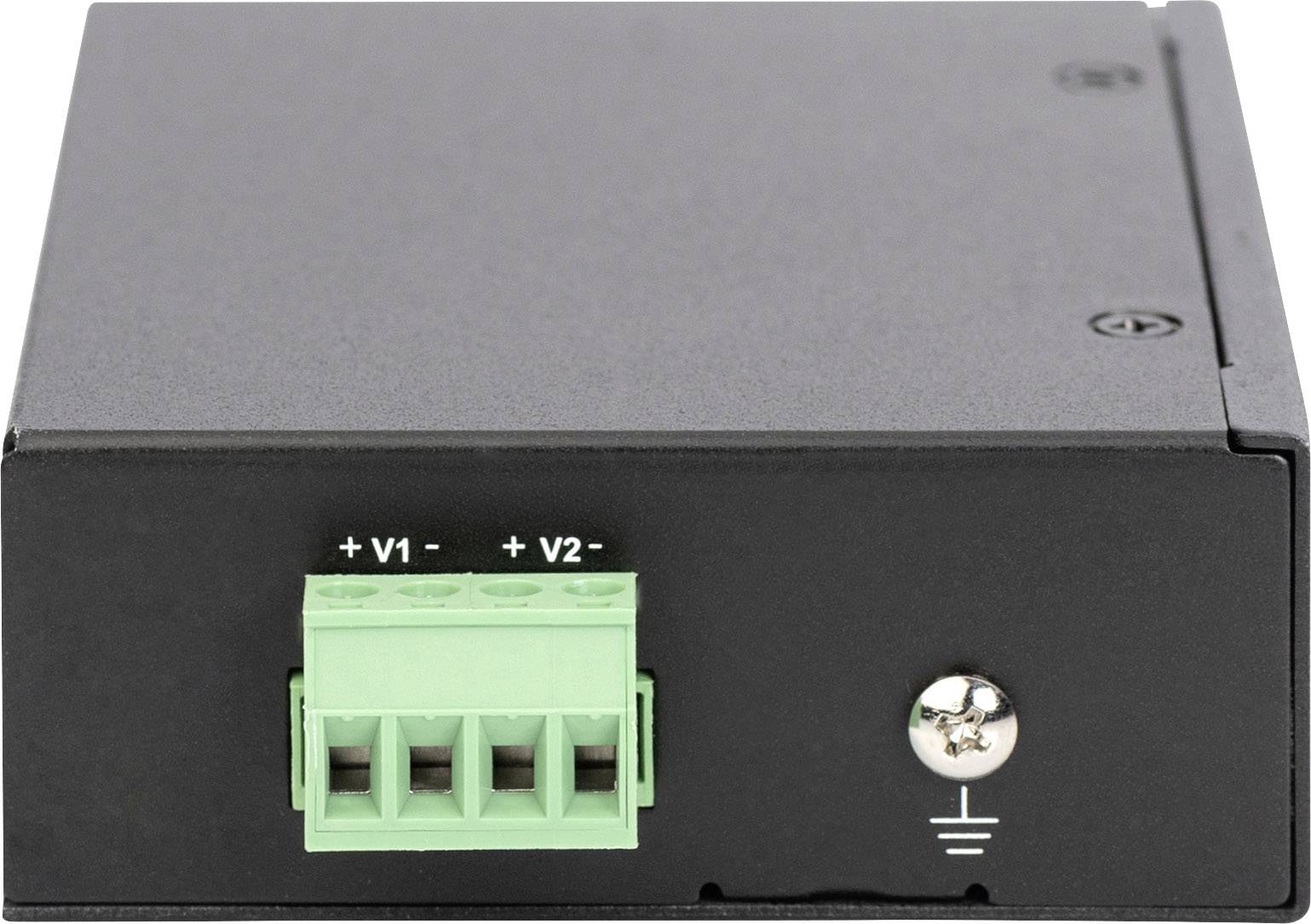

- The network and PoE signals received via the LAN cable are separated from the splitter and the PoE signal is output separately from the network signal via the terminal block terminal strip.
- While only the Ethernet signal is present at the RJ45 socket, the power supply for the device to be operated is provided separately with 12, 16, 24 or 48 volts.
Technical specifications
- Output voltage flexibly adjustable: 12VDC, 16VDC, 24VDC, 48VDC
- Operating temperature: -40°C to + +75°C.

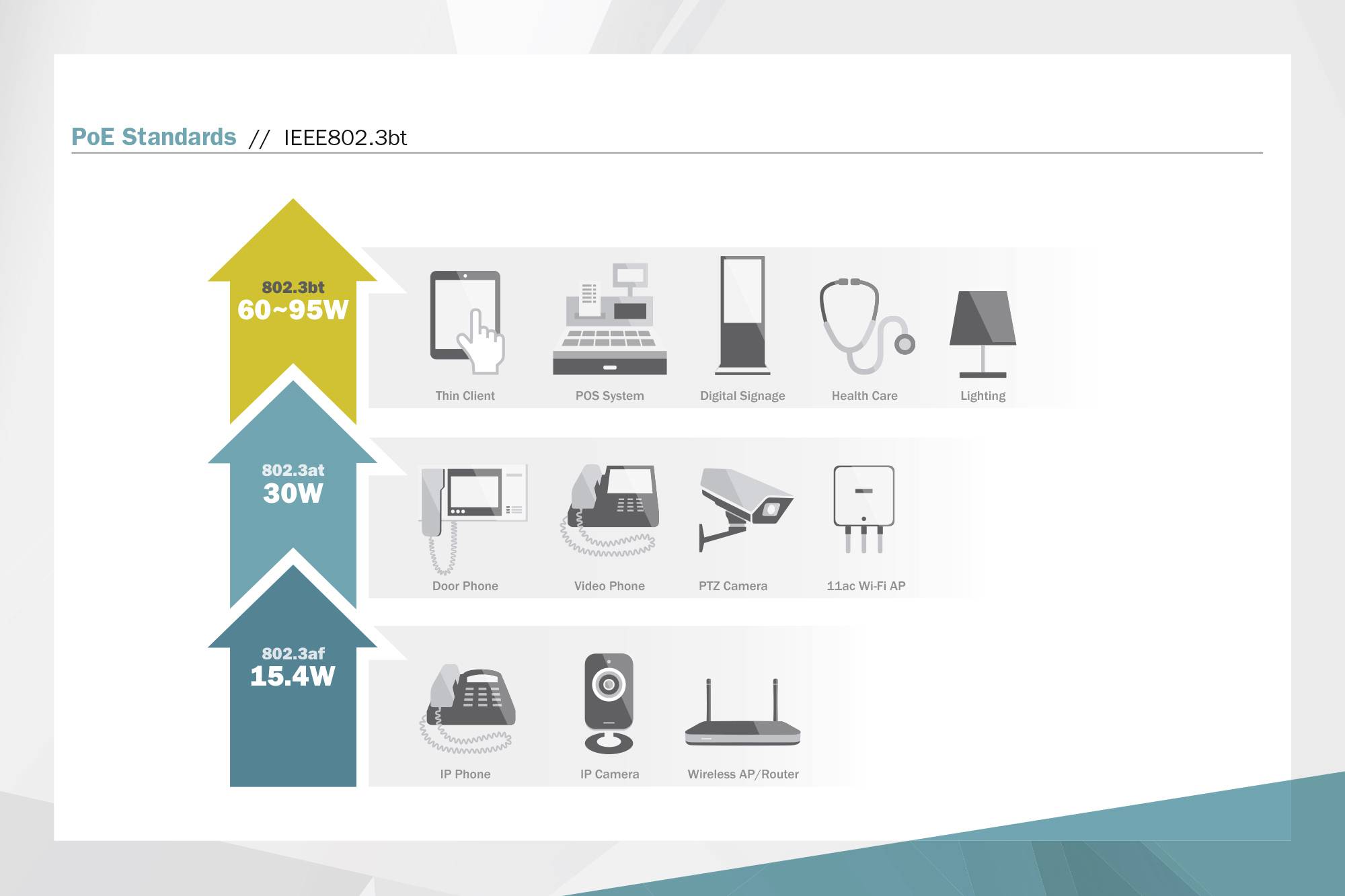

- PoE standard: IEEE802.3bt (PoE++)
- Ethernet speed: Gigabit
- Power output: 55 W
- Industrial use: Yes
- Product type
PoE splitter
- PoE
IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)
IEEE 802.3bt
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
215 mm
- Height
165 mm
- Length
65 mm
- Factory colour
Multicolour
- Weight
0.44
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2290752 Digitus DN-651111 PoE splitter 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W), IEEE 802.3bt
Description

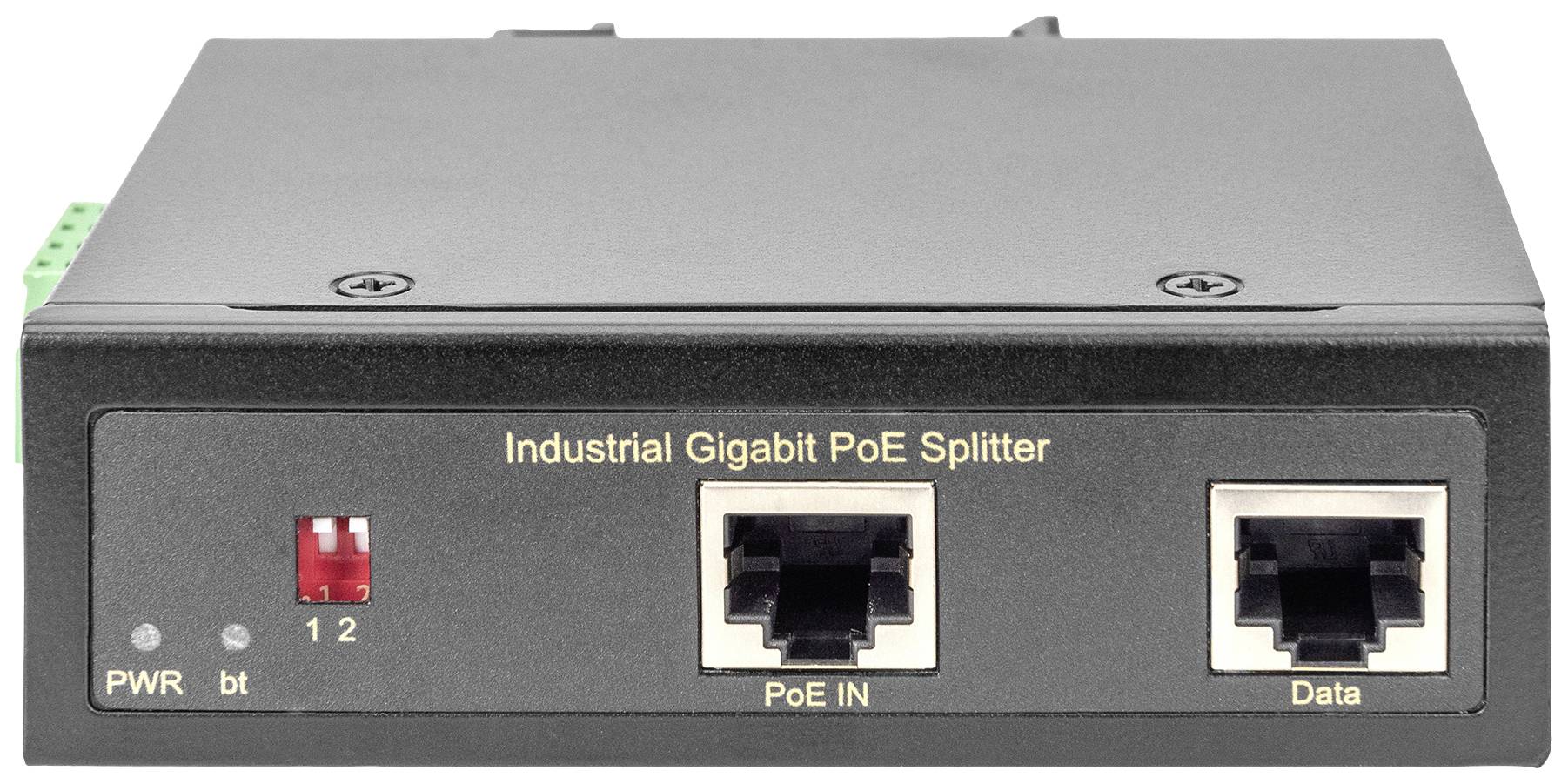

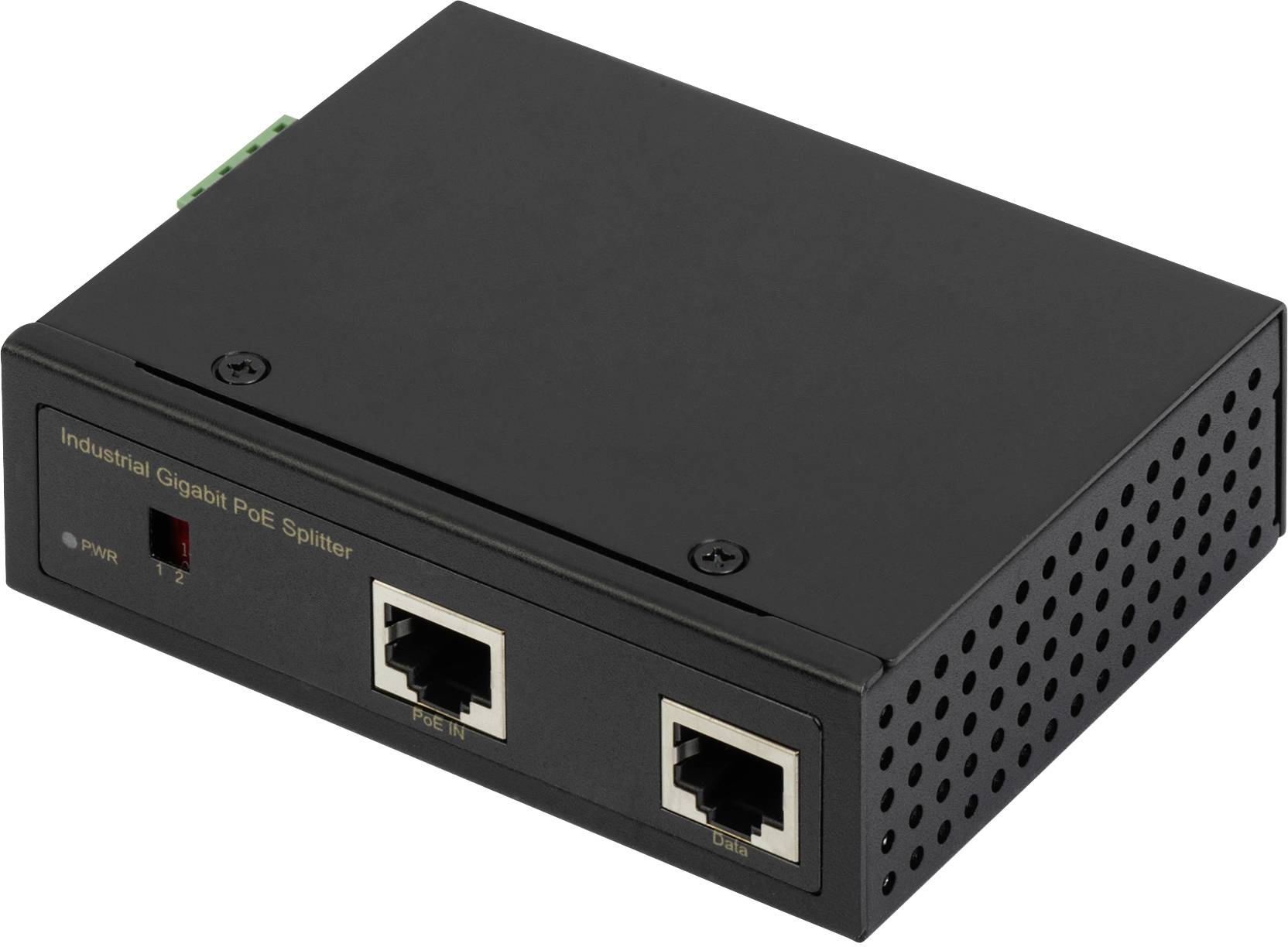

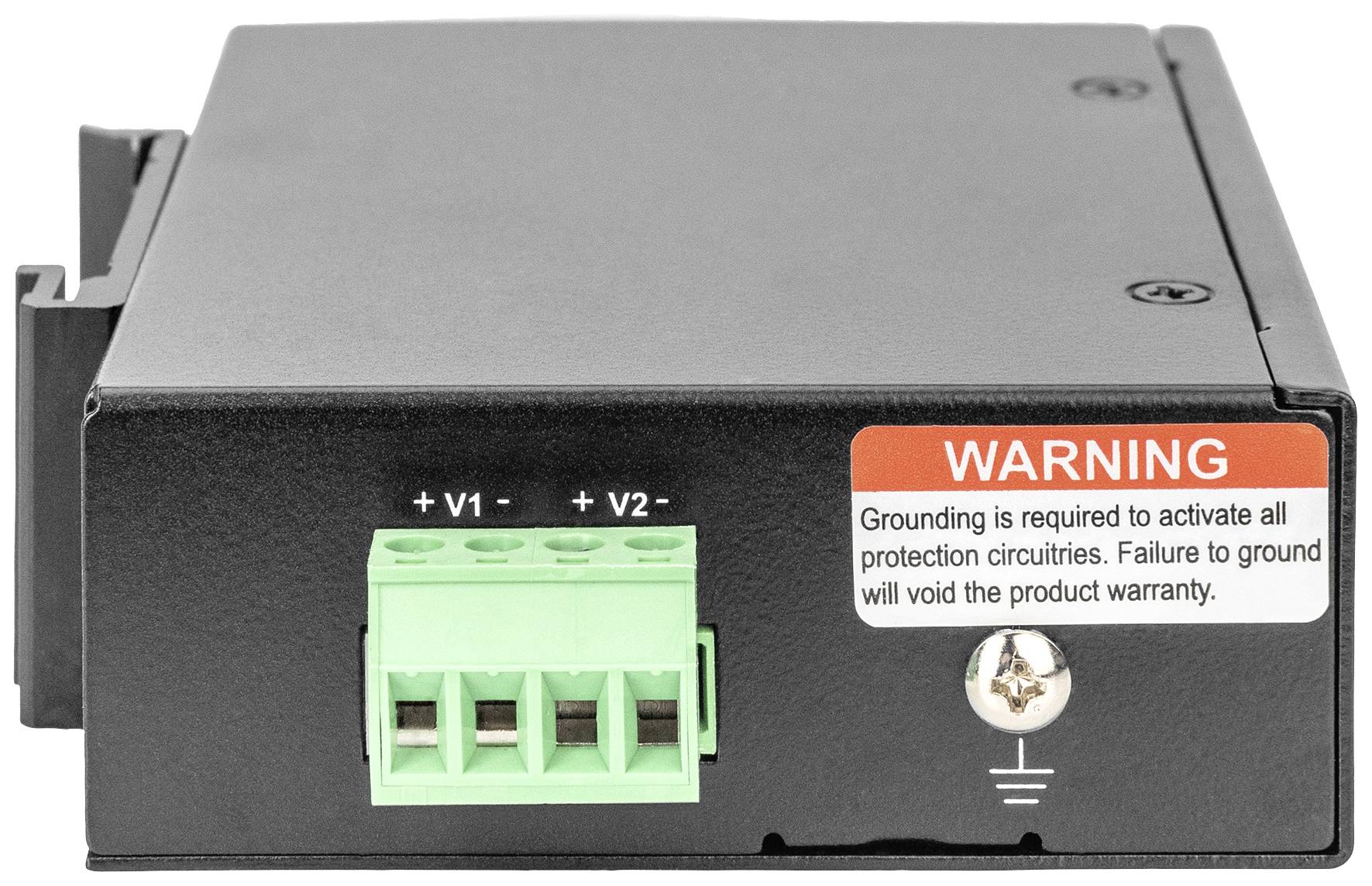

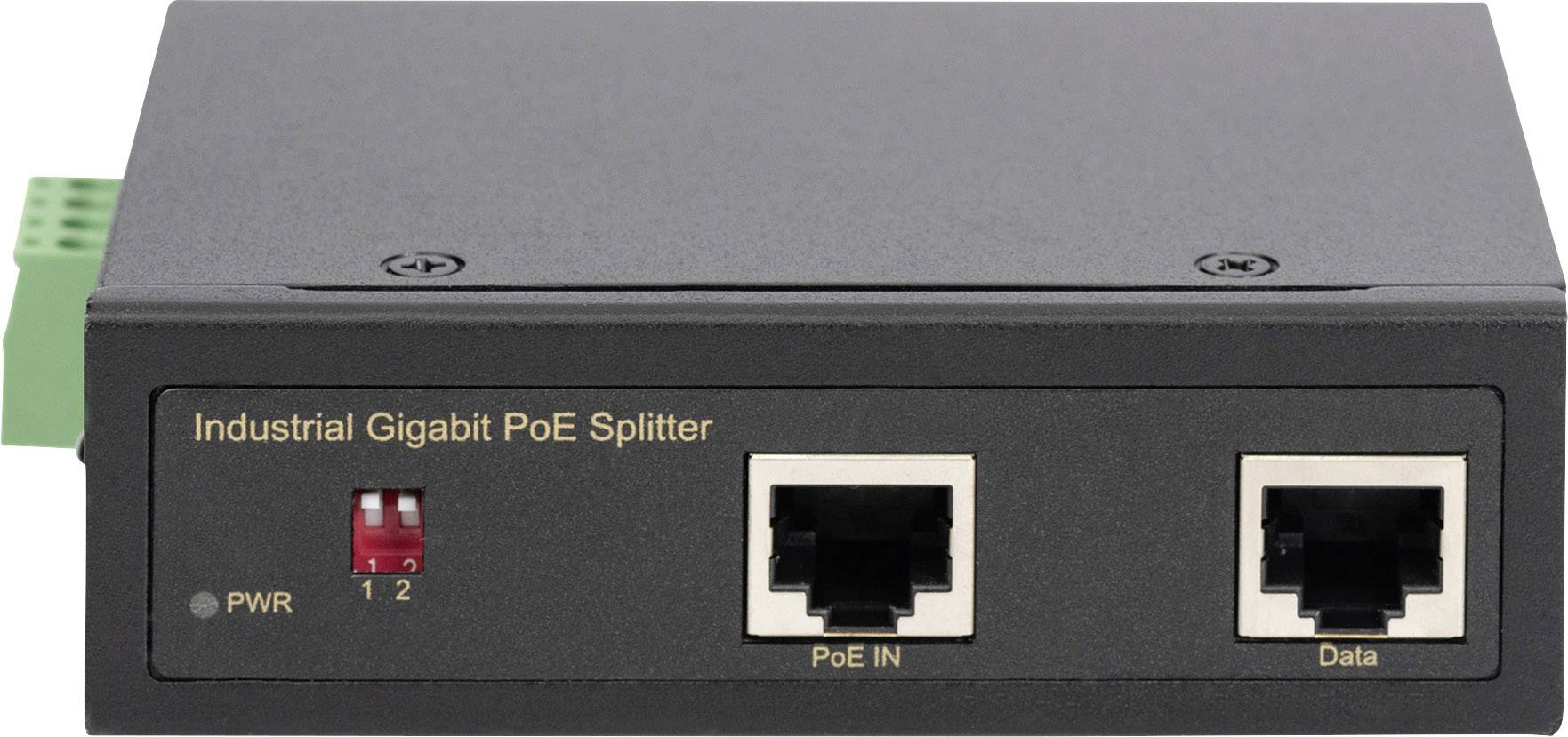

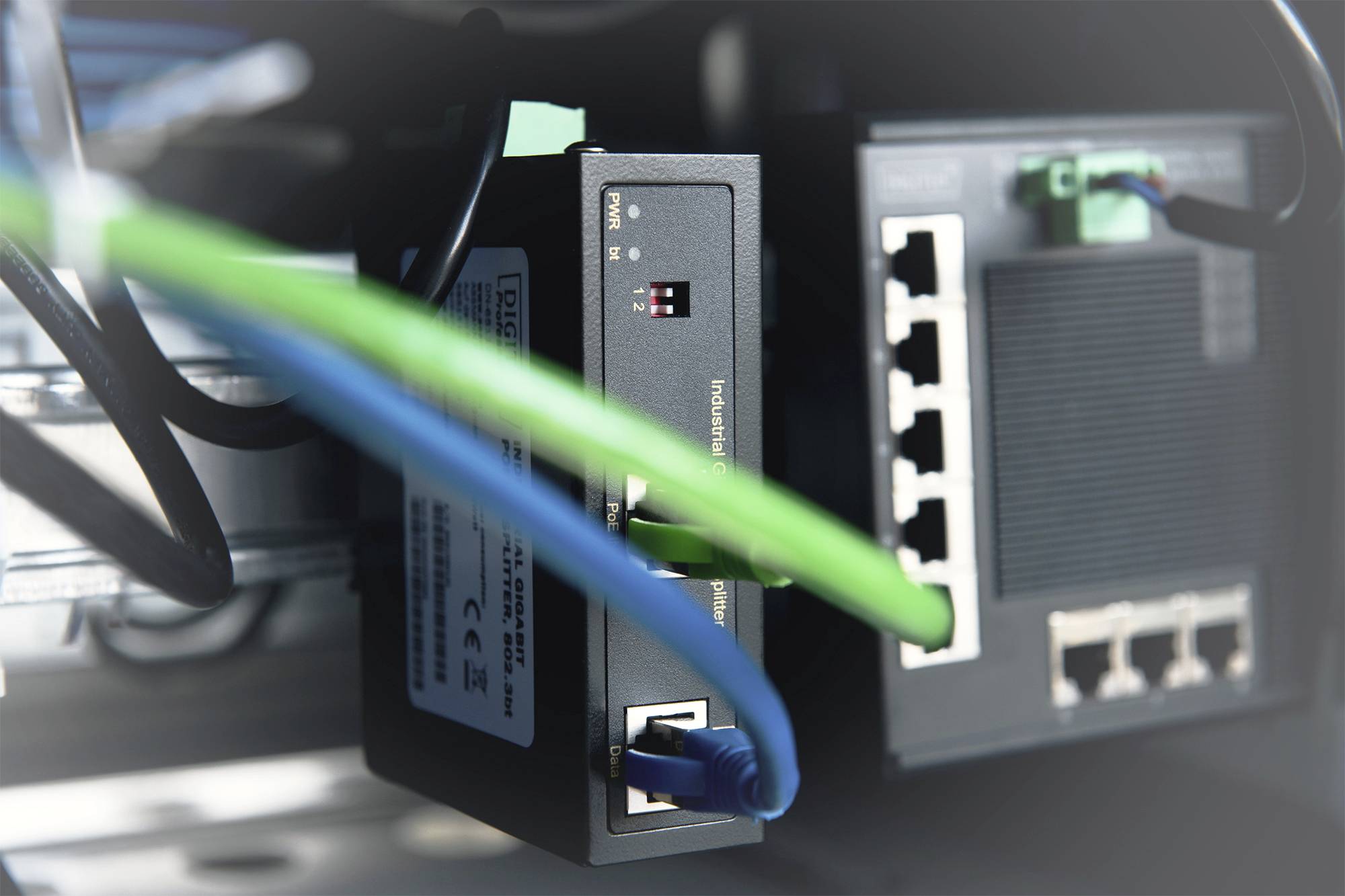

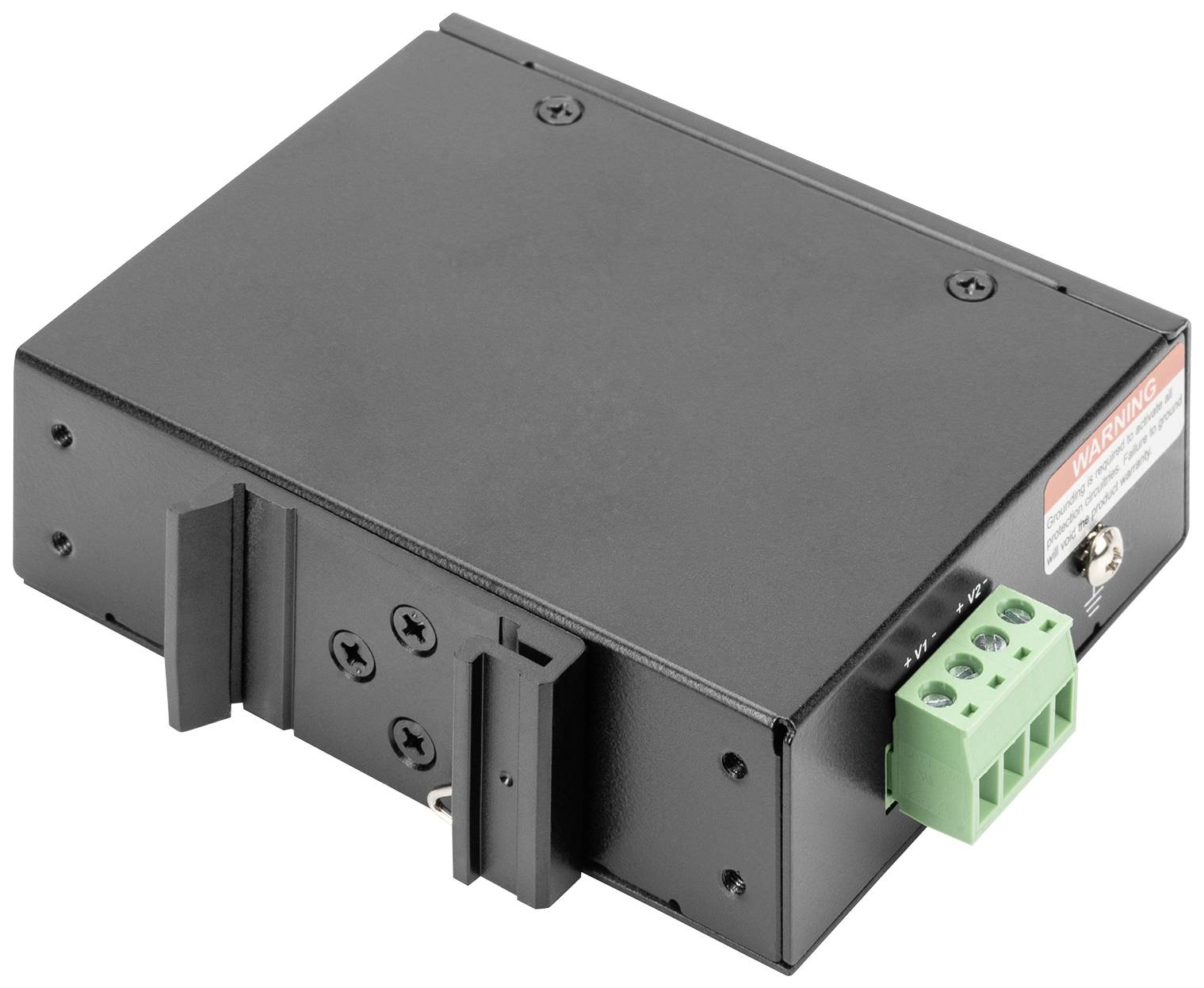

The DIGITUS® Industrial Gigiabit Digitus PoE Splitter is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibrations. With a temperature range of -40°C to 75°C, the Industrial Gigabit PoE Splitter can be used under the most adverse conditions. Continuous availability is ensured in highly sensitive areas such as transport, production, transport and security monitoring. The simple plug-and-play system allows the Industrial Gigabit PoE Splitter to be quickly integrated into the respective environment. Digitus DIGITUS® DN-651111 is an unmanaged Plug & Play Industrial Gigabit PoE Splitter in a robust IP30 protected aluminum housing. Due to the Gigabit connectivity as well as the selectable voltage, which can be made available for non-PoE-enabled devices, the Industrial Gigabit PoE Splitter thus represents a flexible, cost-effective solution for the industrial environment. The supply voltage can be selected in the range of 12VDC, 16VDC, 24VDC or 48VDC. Through the IEEE802.3bt standard, an input via PoE can be made with up to 95 watt. Two parallel current outputs are provided for terminals.
This text is machine translated.
This text is machine translated.
Features
- Gigabit splitter with up to 95 watt PoE feed
- Gigabit Data output for network connection

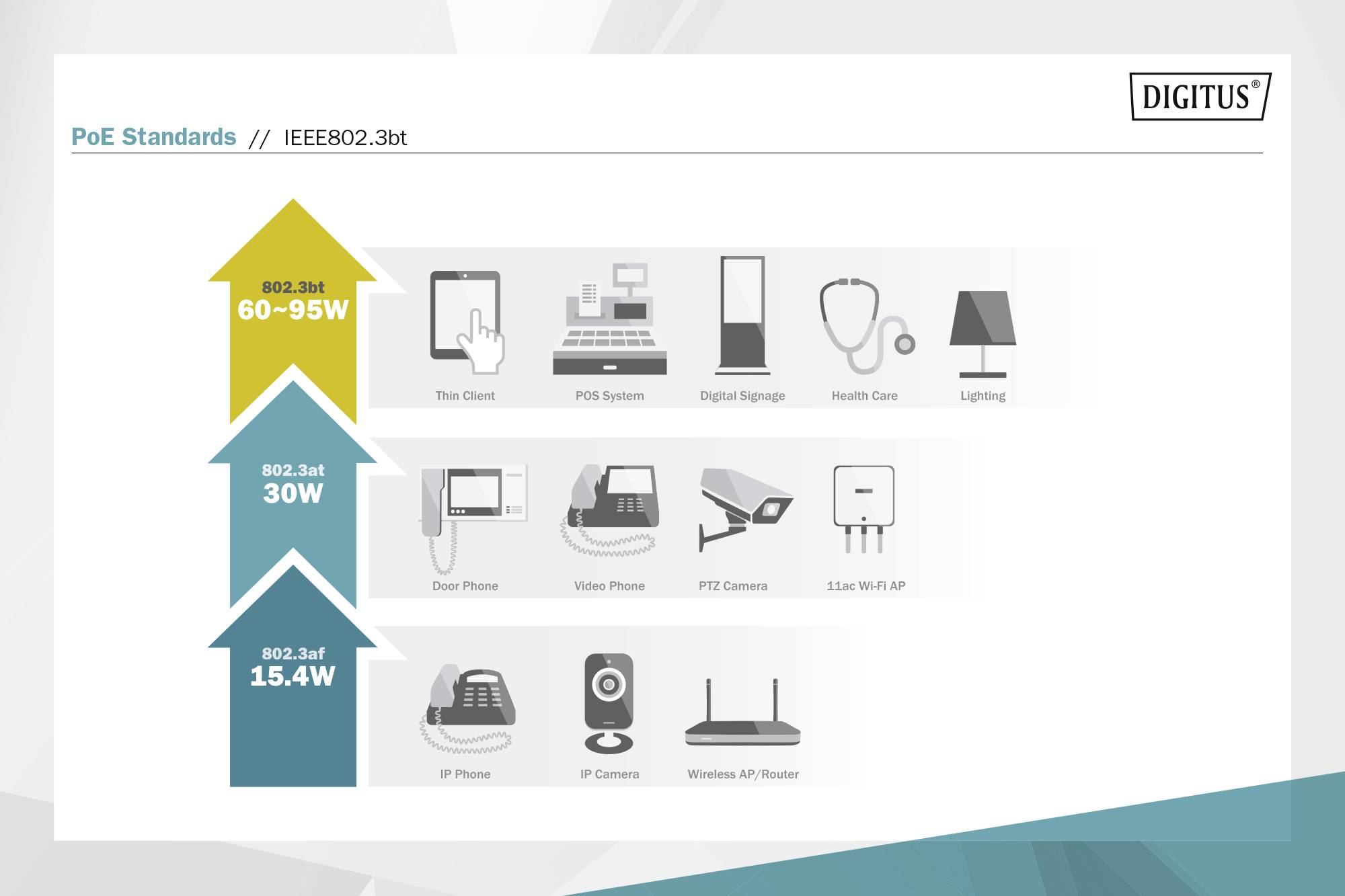

- backward compatible with IEEE802.3af/at Standard
- Store-and-Forward-Technology for one Optimized data transfer
- Auto MDI/MDI-X function
- Diagnostics LEDs for the status And activity monitoring
Scope of delivery
- Industrial Gigabit PoE++ splitter, 802.3bt
- Quick start guide
