Digitus DN-651113 Industrial Ethernet switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
EAN:
Part number:
Item no:

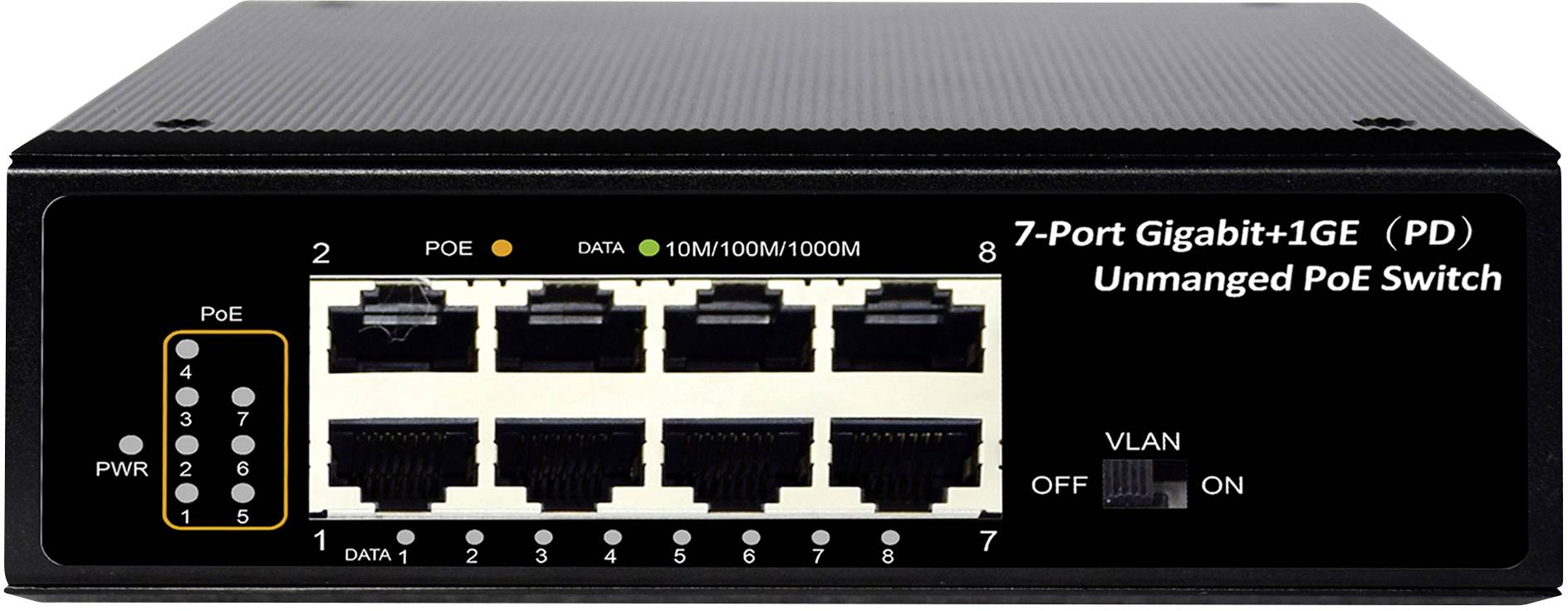

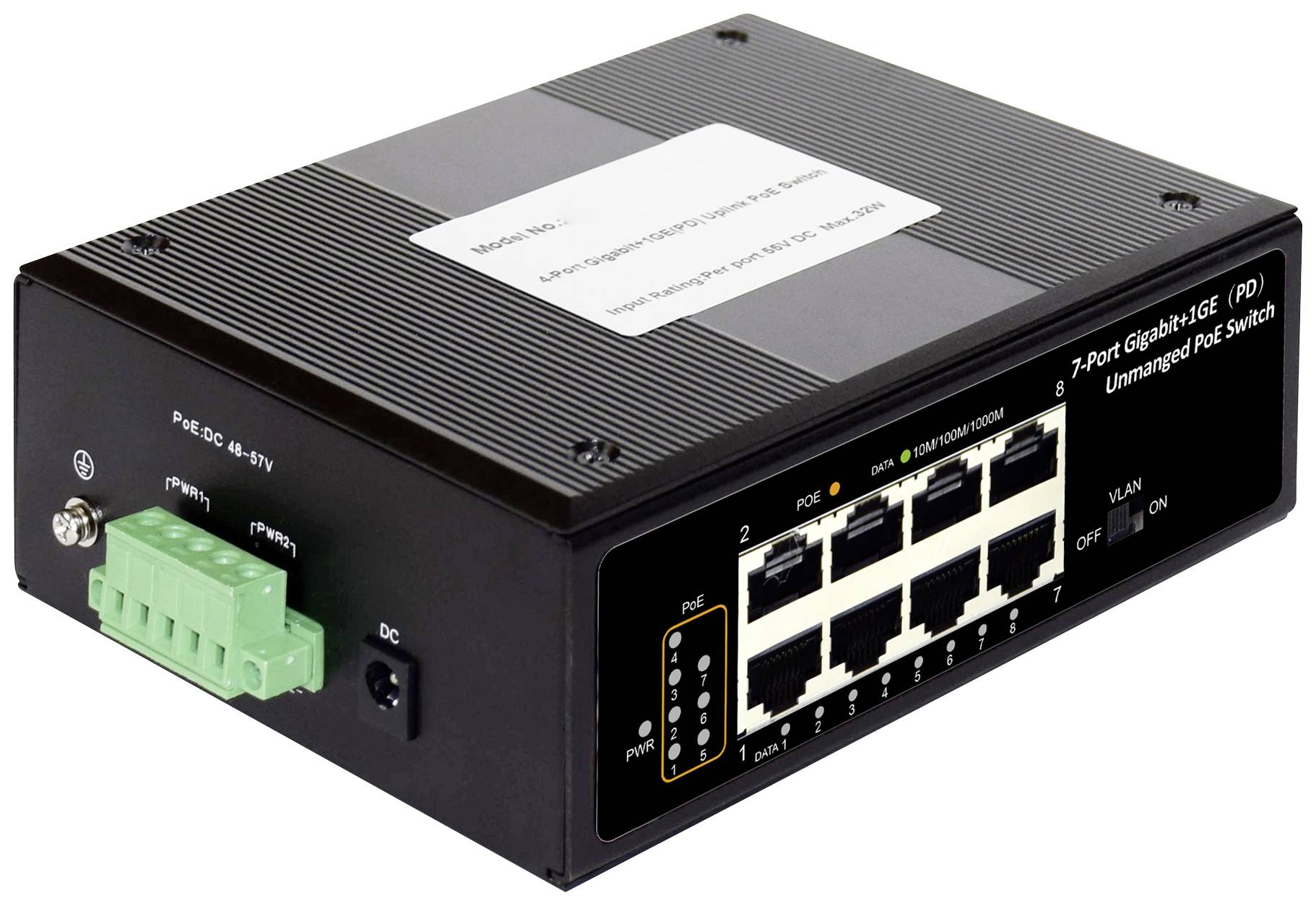

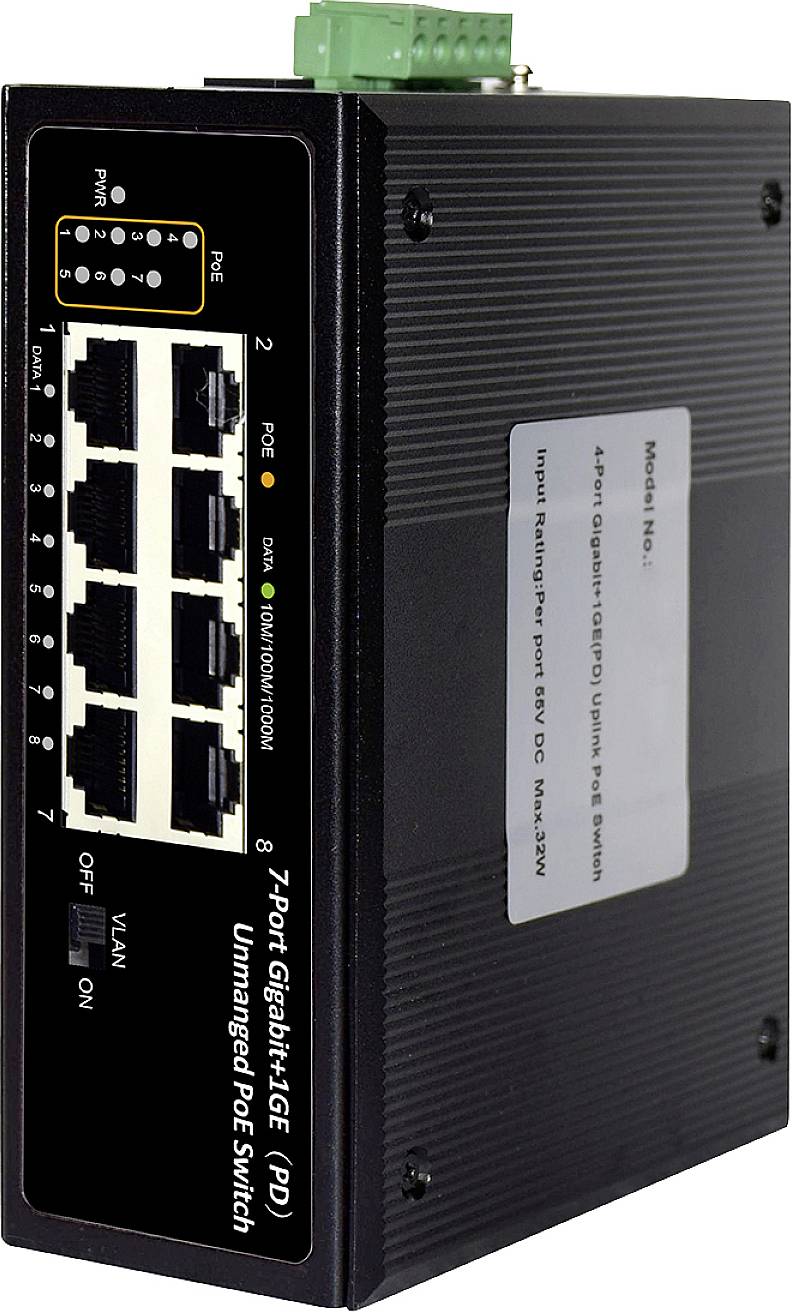

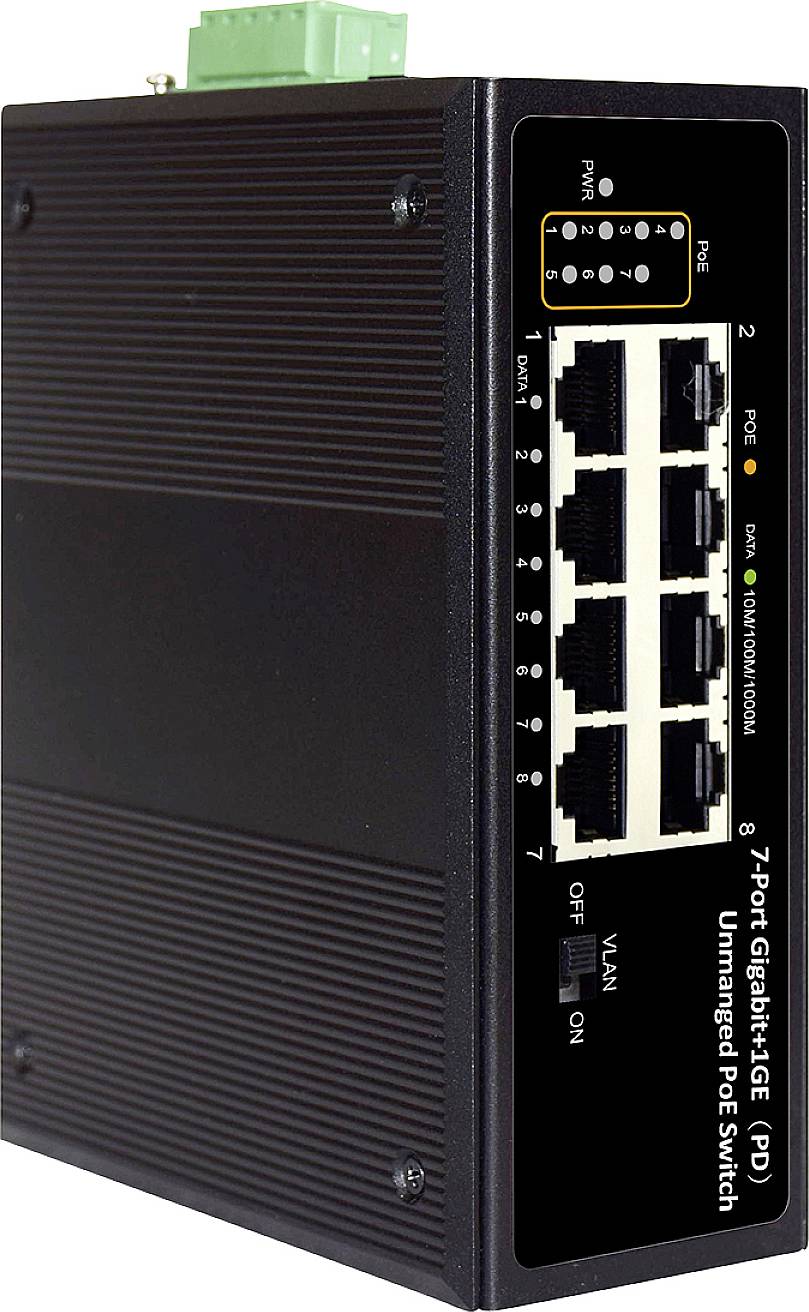

Industrial 7-port Gigabit PoE+Switch+1 PD-port IEEE802.3af/at, DIN rail, extended temperature range
Highlights & Details

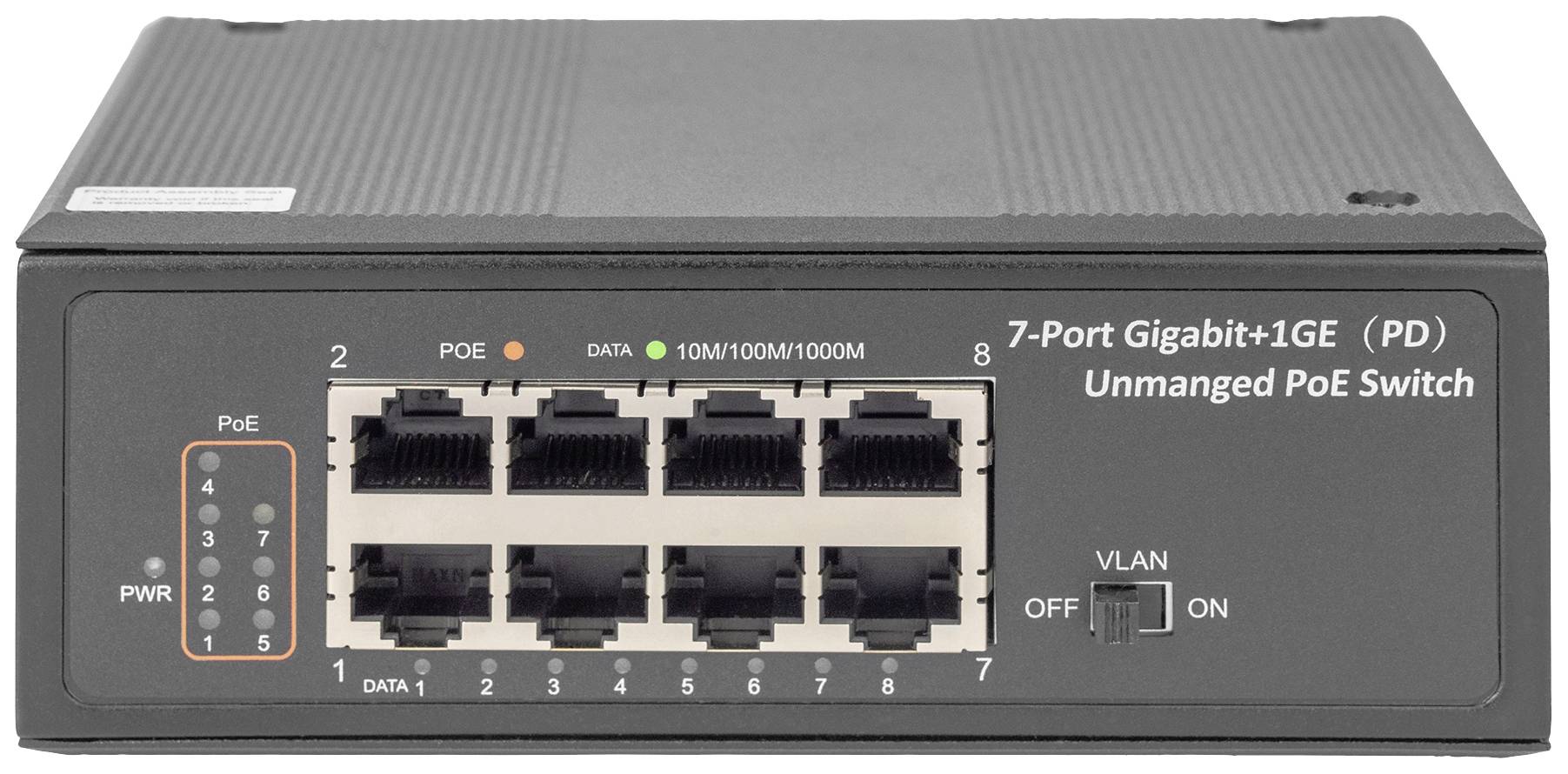

- Industrial 7-Port Gigabit PoE+ Switch with 1 x PD-Port
- 7 x 10/100/1000Base-TX Ethernet PoE ports
- 1 x 10/100/1000Base-TX Ethernet PD (power delivery) port

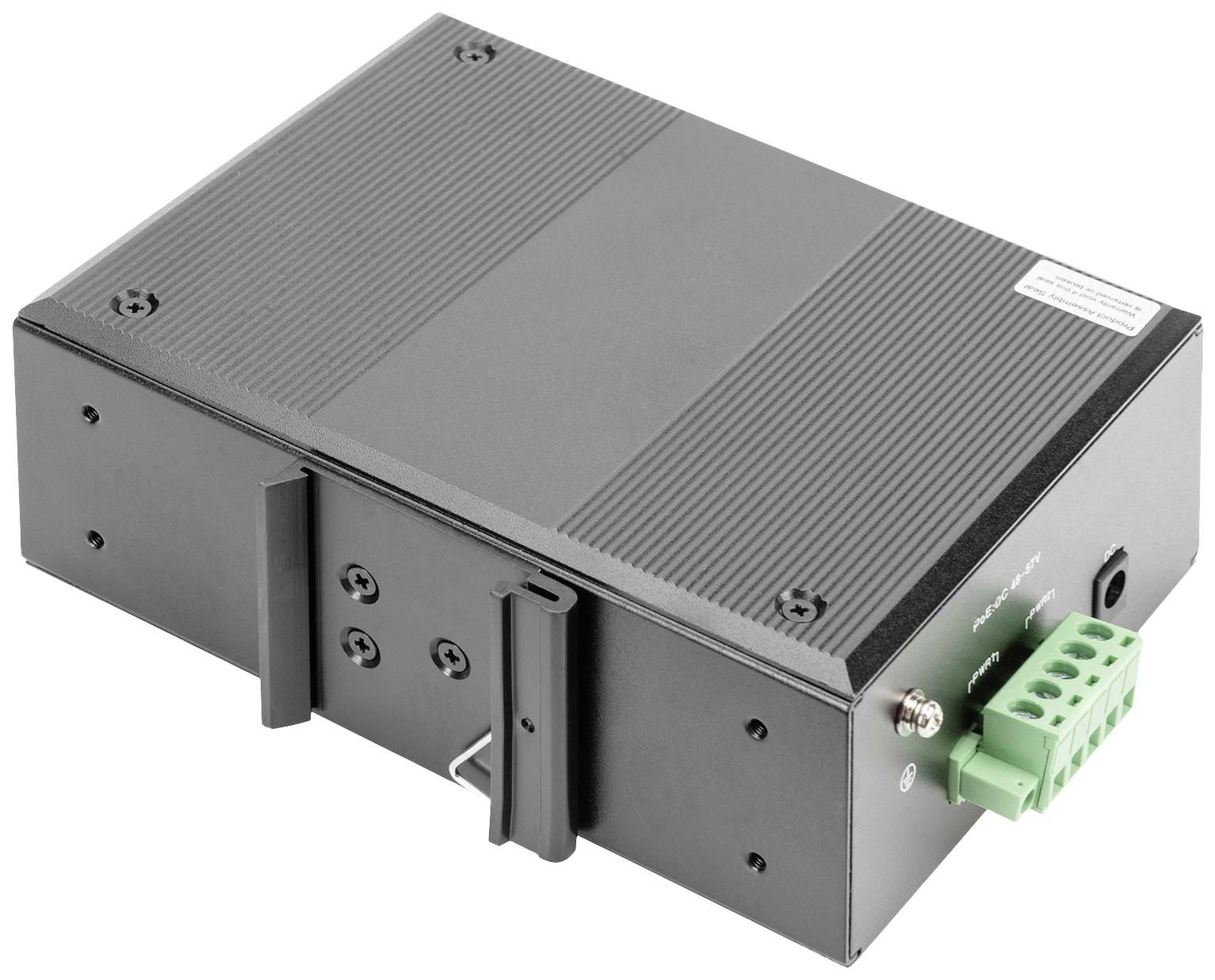

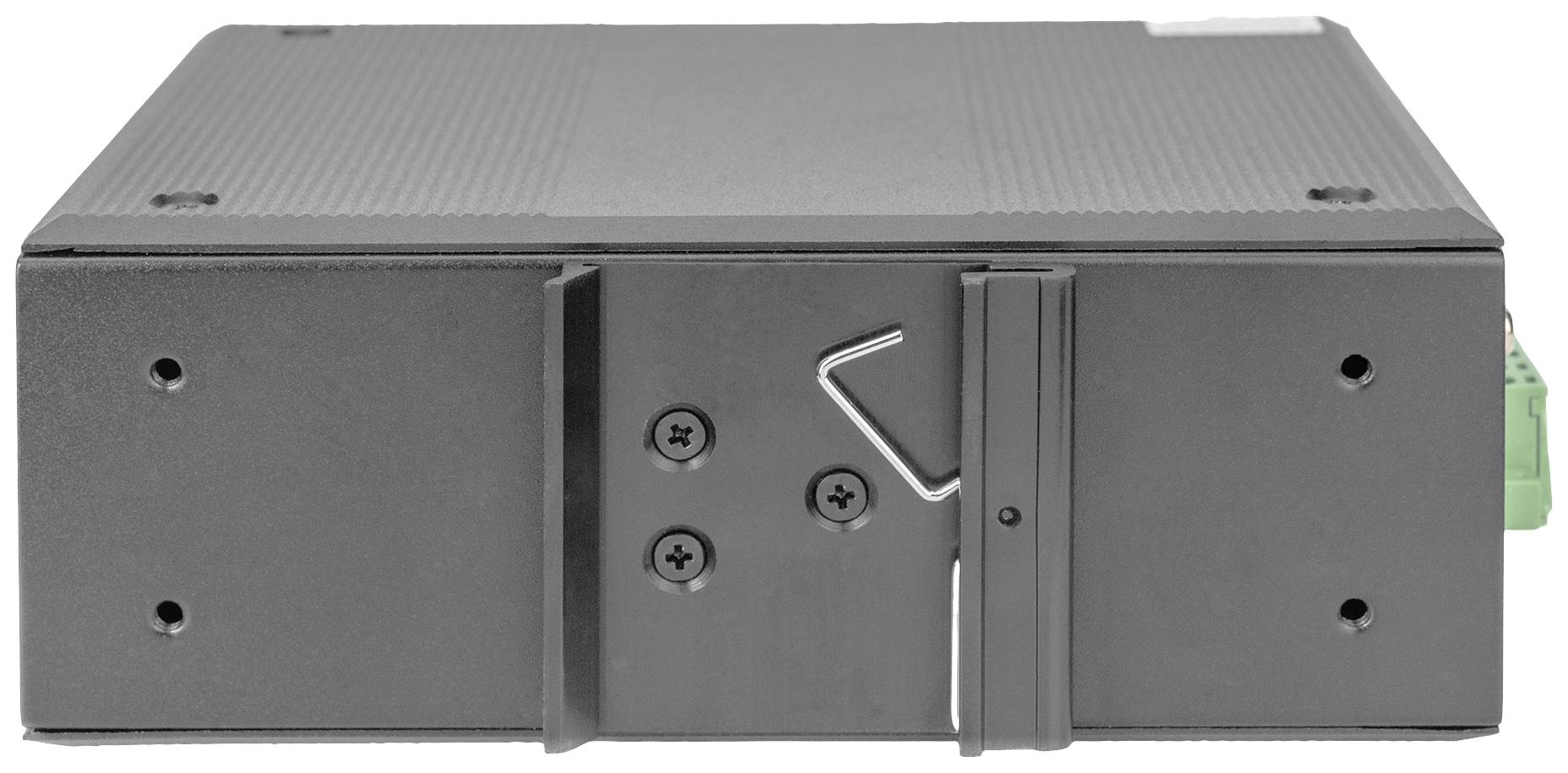

- DIN rail mounting and wall mounting possible
Technical specifications

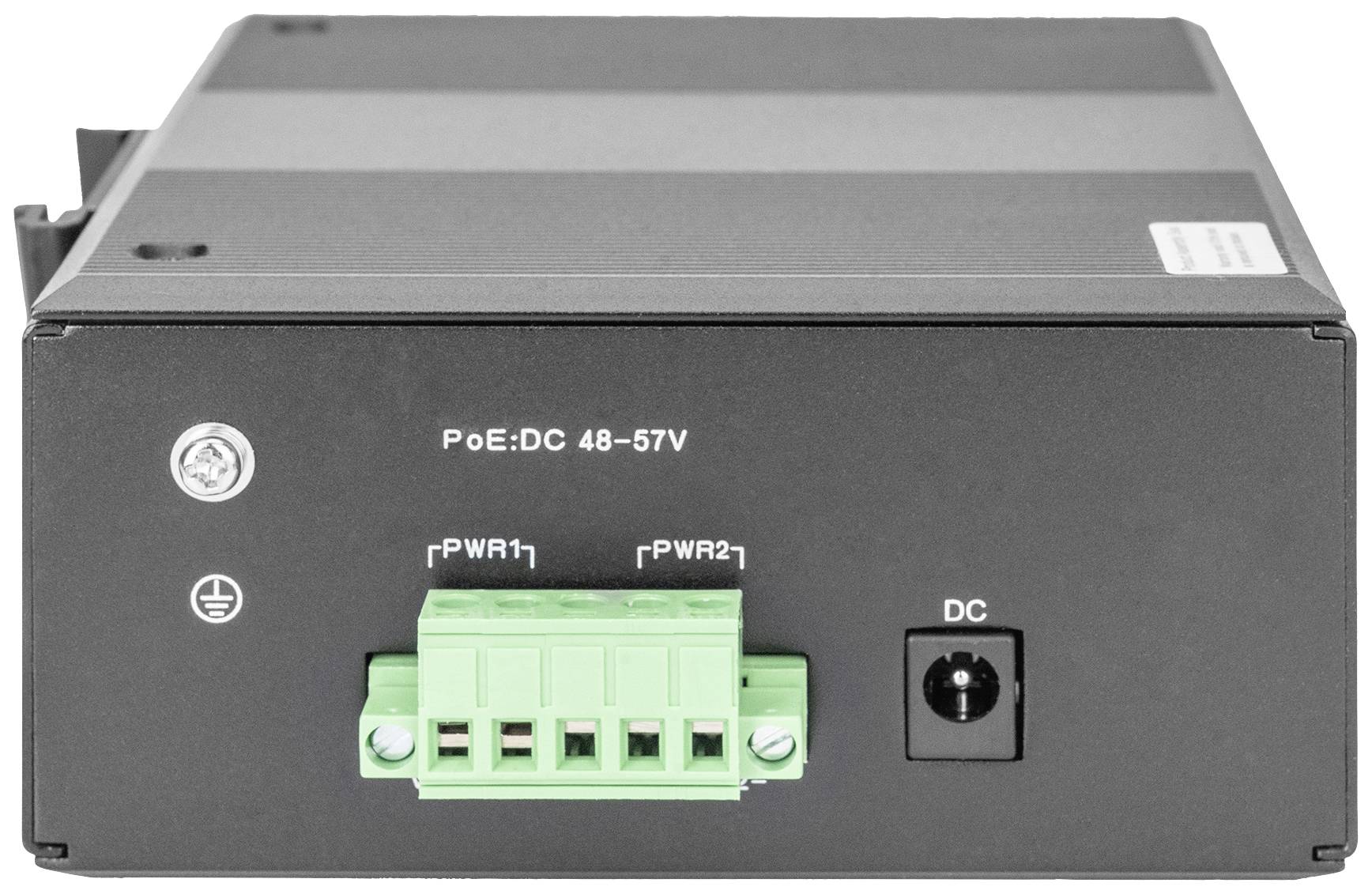

- Redundant power supply: 48~57 V DC, redundant power supply with polarity reversal protection function
- Extended operating temperature range -20 °C ~ +70 °C.
- Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3z Gigabit Ethernet
- Number of ports: 7
- PoE standard IEEE802.3at (PoE+)
- Ethernet speed: Gigabit
- Industrial use: Yes
- Mounting type: DIN rail, wall
- Product type
Industrial Ethernet switch
- PoE
IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
138 mm
- Height
50 mm
- Length
108 mm
- Weight
0.91
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2290761 Digitus DN-651113 Industrial Ethernet switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
Description
The DIGITUS® Industrial Gigiabit Digitus PoE switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibration. With a temperature range of -20°C to 70°C, the Industrial Gigabit PoE switch can be used under the most adverse conditions. Through the PoE ports with IEEE802.3af/at support, PoE-enabled devices can be supplied with up to 30 W per port. The switch can be supplied with power via PoE via the PD (power delivery) port. This eliminates the need to connect a power supply to the switch. Continuous availability is ensured in highly sensitive areas such as transport, production, transport and security monitoring. The simple plug-and-play system allows the Industrial Gigabit PoE switch to be quickly integrated into the respective environment. Due to the Gigabit connectivity as well as the SFP uplink ports, the Industrial Gigabit PoE switch thus represents a flexible, cost-effective solution for the industrial environment.
This text is machine translated.
This text is machine translated.
Features
- 7 x 10/100/1000Base-TX Ethernet PoE ports
- 1 x 10/100/1000Base-TX Ethernet PD (power delivery) Port
- supports IEEE802.3af/at/bt as PD input supply up to 95 W
- Automatic cable detection - Auto-MDI/MDI-X function
- Backplane 16G
- MAC address memory 4K
- compact, robust metal housing
- Excellent protection against short-circuits
- Lightning protection and overvoltage protection
- DIN rail (DIN rail) and wall mounting possible
- Terminal connection

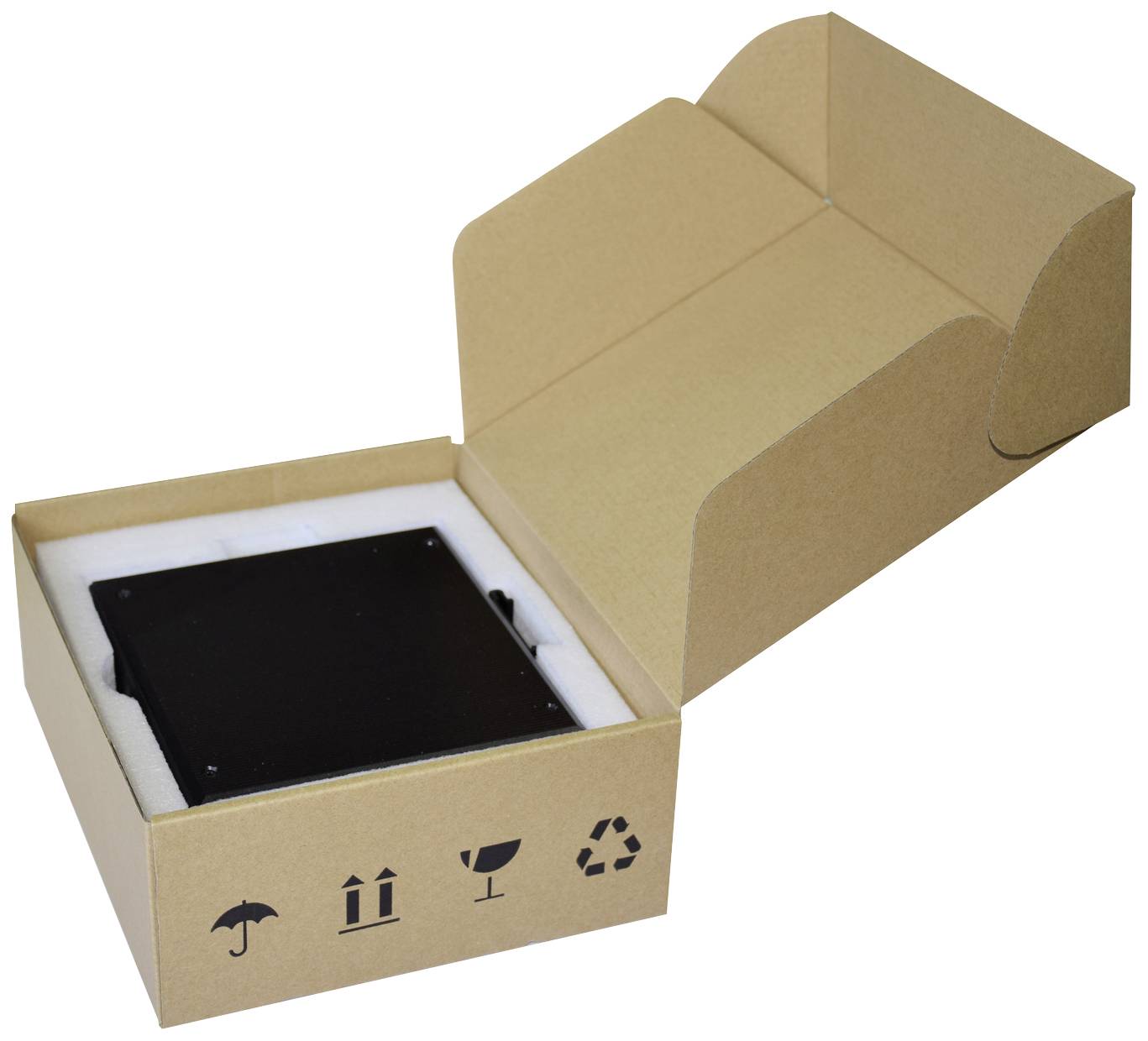

Scope of delivery
- Industrial 7-Port Gigabit PoE+ Switch with 1 x PD-Port
- Quick start guide
