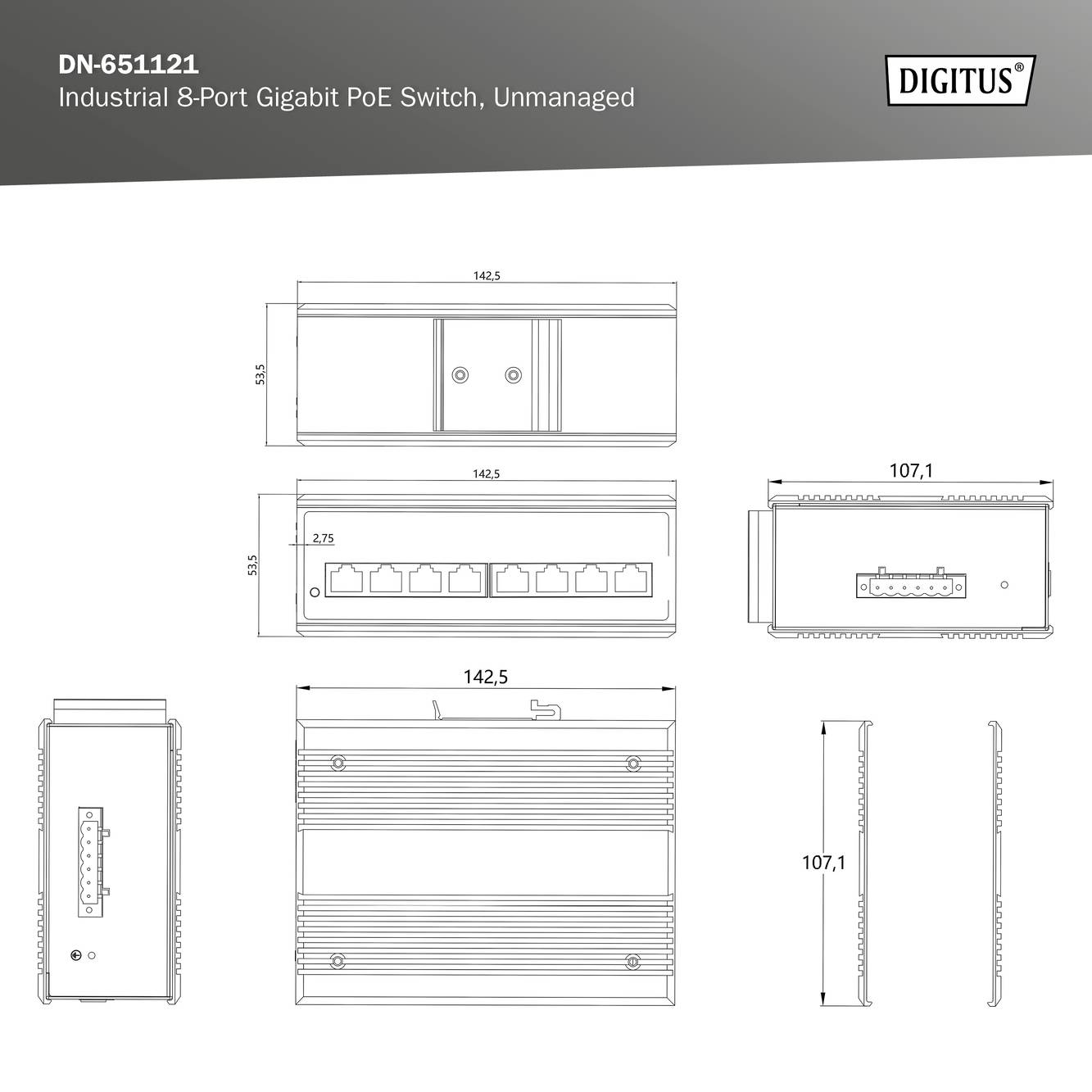

Stroke drawing/circuit diagram
1/5
Stroke drawing/circuit diagram
Digitus DN-651121 Industrial Ethernet switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
EAN:
Part number:
Item no:
Datasheet (PDF)
Industrial 8-Port Gigabit PoE Switch DIN rail, extended temperature range
Highlights & Details
- The Industrial Ethernet switch has 8 RJ45 PoE ports with Gigabit Ethernet speed and comes in a robust, compact metal housing, which is held in the colors black & blue
- The power supply is designed redundantly and takes place via a terminal connection. In addition, the network switch has a lightning, short-circuit and overvoltage protection
- In addition to DIN rail mounting on standardized DIN rails in switch boxes or control cabinets The industrial switch can also be mounted directly on the wall
Technical specifications
- Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE802.3ab 1000BaseTX, IEEE802.3af, IEEE802.3at

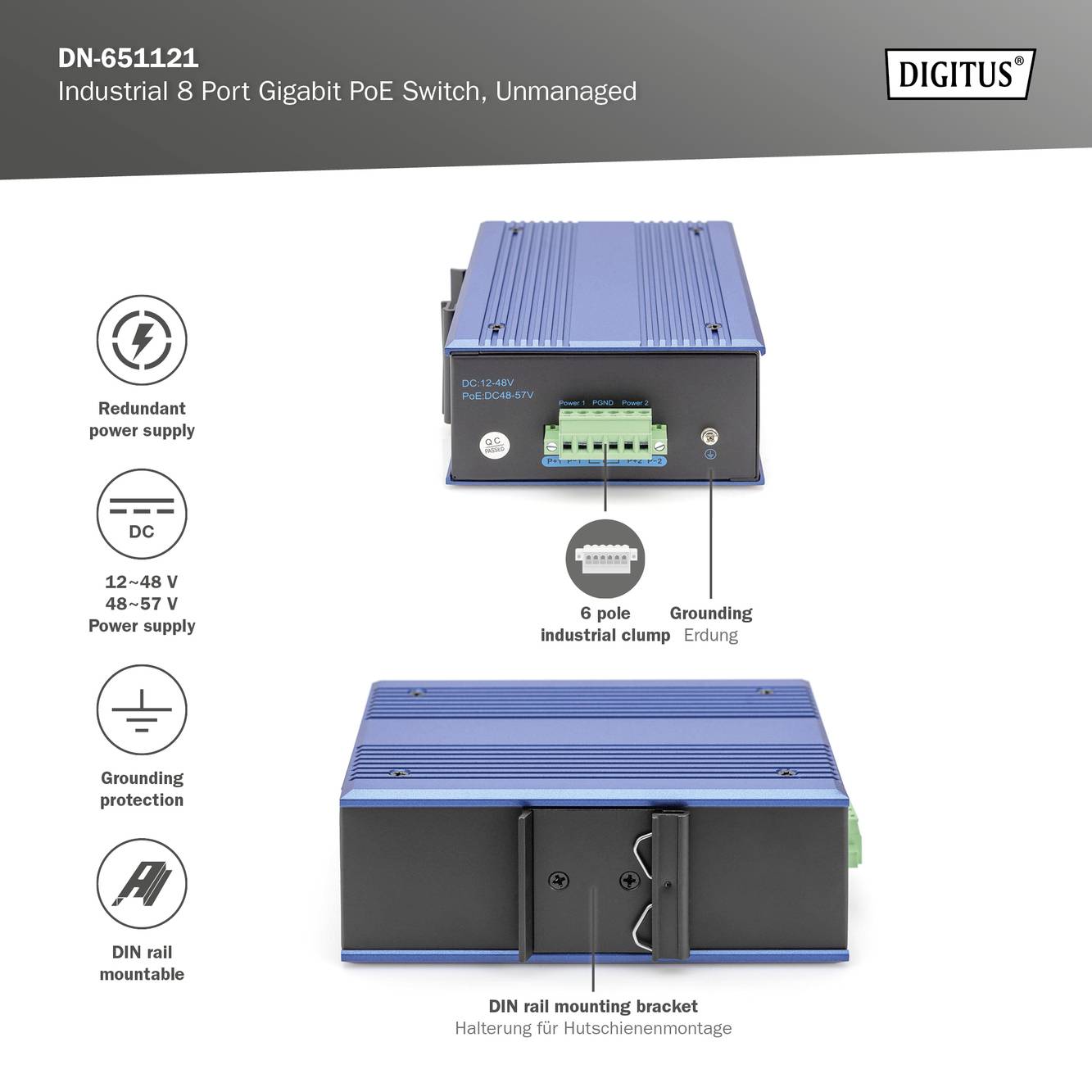

- Redundant power supply: 48~57 V DC, redundant power supply with polarity reversal protection function

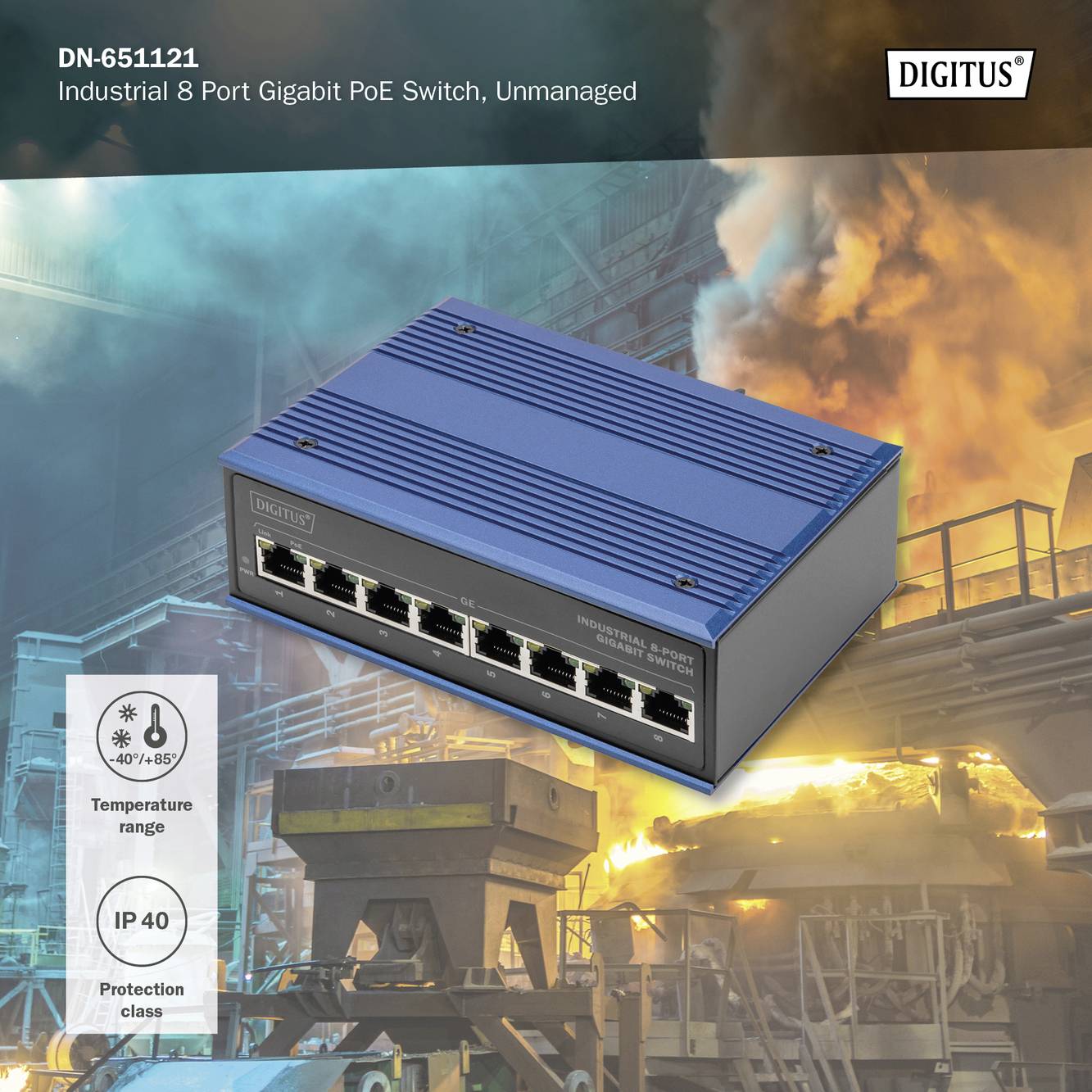

- Extended operating temperature range -40 °C ~ +85 °C.
- Protection class: IP40
- Number of ports: 8
- PoE standard IEEE802.3at (PoE+)
- Ethernet speed: Gigabit
- Industrial use: Yes
- Mounting type: DIN rail, wall
- Product type
Industrial Ethernet switch
- PoE
IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
143 mm
- Height
44 mm
- Length
101 mm
- Weight
0.83
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2290762 Digitus DN-651121 Industrial Ethernet switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
User & Safety Instructions
User & Safety Instructions 2290762 Digitus DN-651121 Industrial Ethernet switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
Description
Digitus DIGITUS® Industrial Gigabit Switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibration. With a temperature range of -40°C to 85°C, the Industrial Gigabit Switch can be used under the most unfavorable conditions. Through the PoE ports with IEEE802.3af/at support, PoE-enabled devices with up to 30 W per port can be supplied. Continuous availability is ensured in highly sensitive areas such as transport, production, transport and security monitoring. The simple plug-and-play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. Due to the Gigabit connectivity, the Industrial Gigabit Switch thus represents a flexible, cost-effective solution for the industrial environment.
This text is machine translated.
This text is machine translated.
Features
- Thanks to IP40, the PoE switch is protected against foreign bodies (less than 1 mm) - the extended temperature range is -40 to 85 °C - rained for non-condensing humidity of 5 to 95 %
- of the LAN switch possesses Store-and-Forward technology, automatic cable detection (Auto-MDI-/ MDI-X) & Half-/Full-Duplex recognition - Standards: IEEE802.3u, IEEE802.3x, IEEEab, 802.3af, 802.3af IEEE802.3at

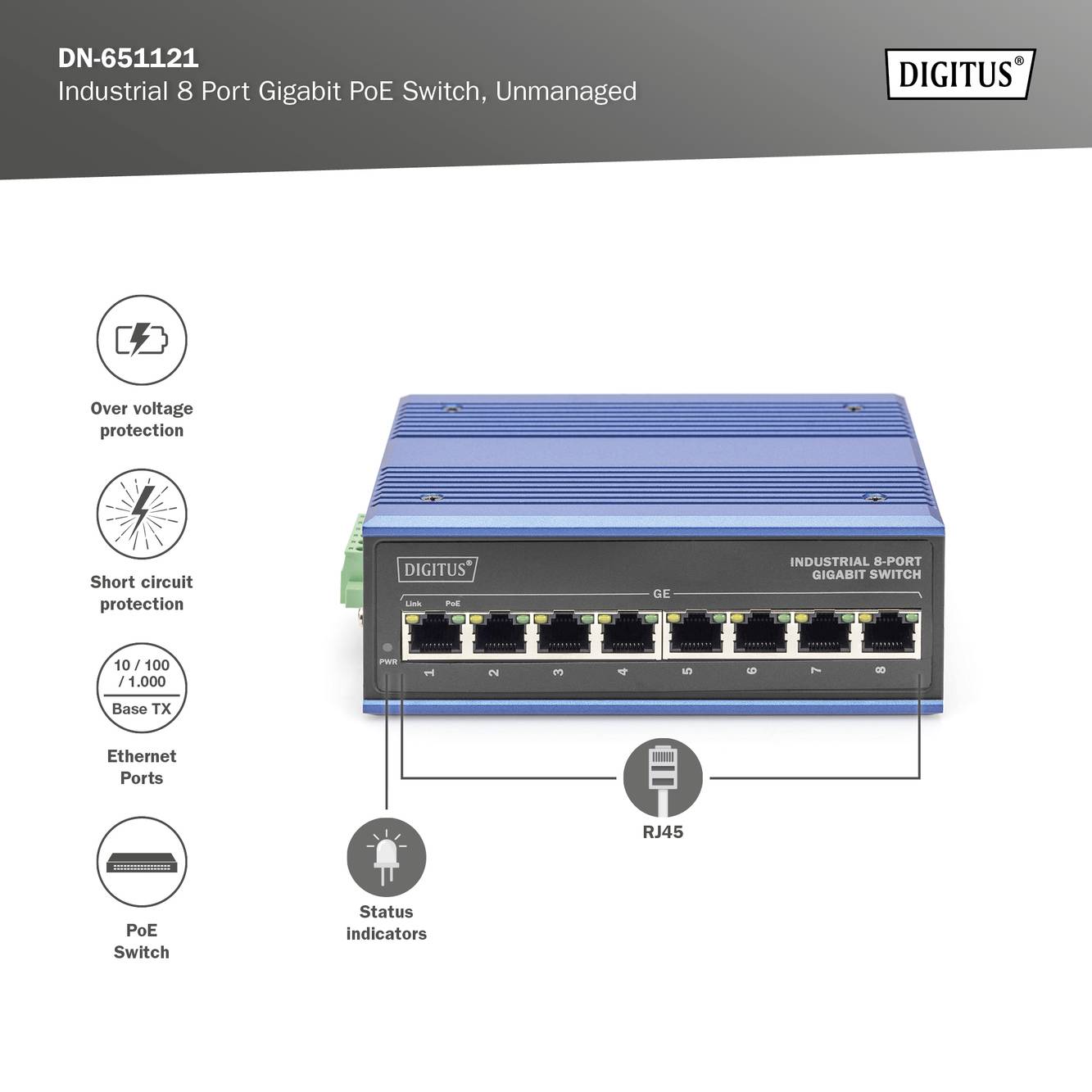

- 8 x 10/100/1000Base-TX Ethernet PoE ports
- supports IEEE802.3af/at
- Automatic cable recognition - Auto-MDI-/ MDI-X function
- IEEE802.3x flow control and Back Pressure
- Store-and-Forward technology for an optimized data transfer
- Automatic speed and half/full duplex recognition/setting
- Backplane with 16Gbps
- MAC address memory 4K
- compact, Robust metal housing
- Excellent protection against short circuits

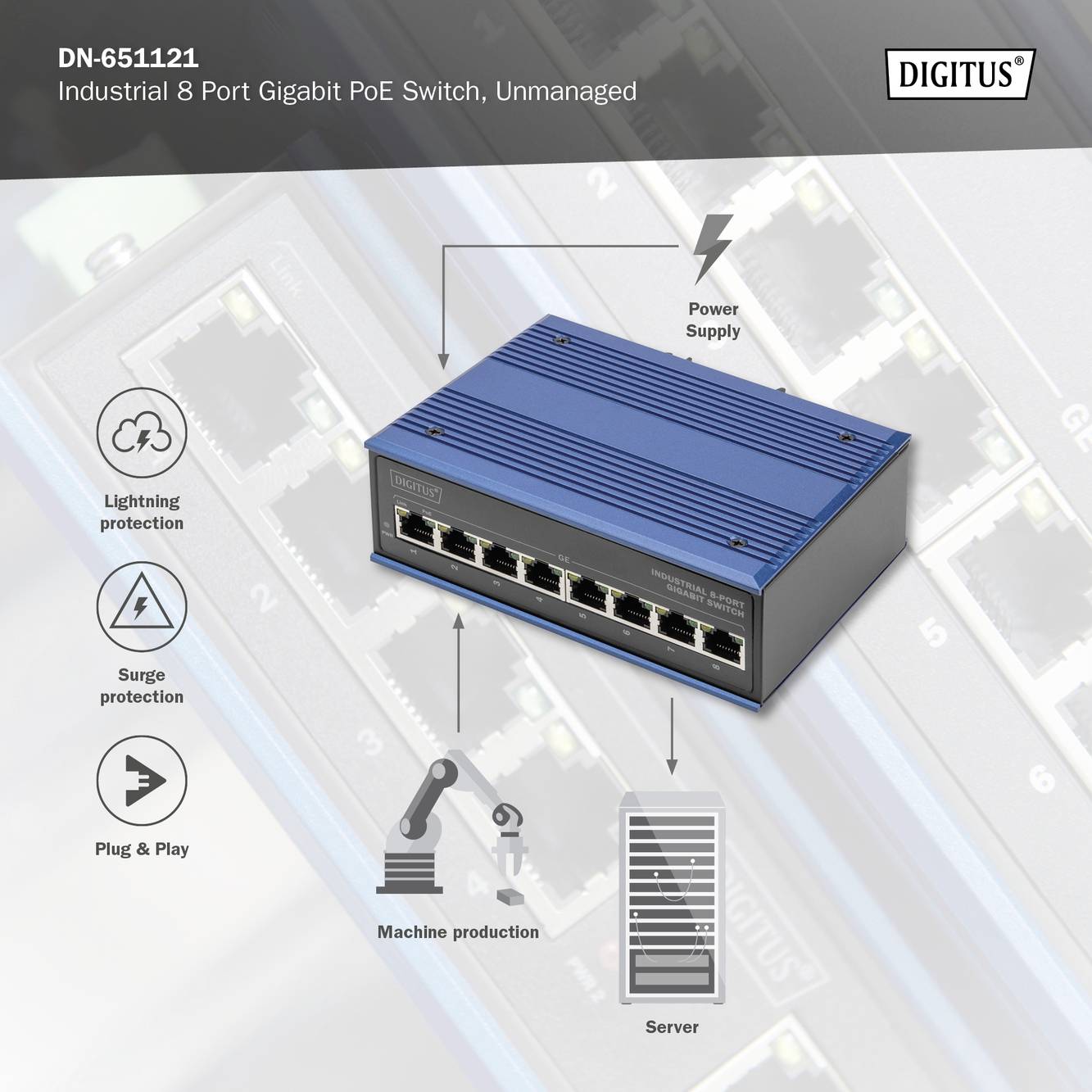

- Lightning protection and surge protection
- DIN rail (DIN rail) and wall mounting possible
- removable terminal connection
Scope of delivery
- Industrial 8-Port Gigabit PoE Switch
- Quick start guide
