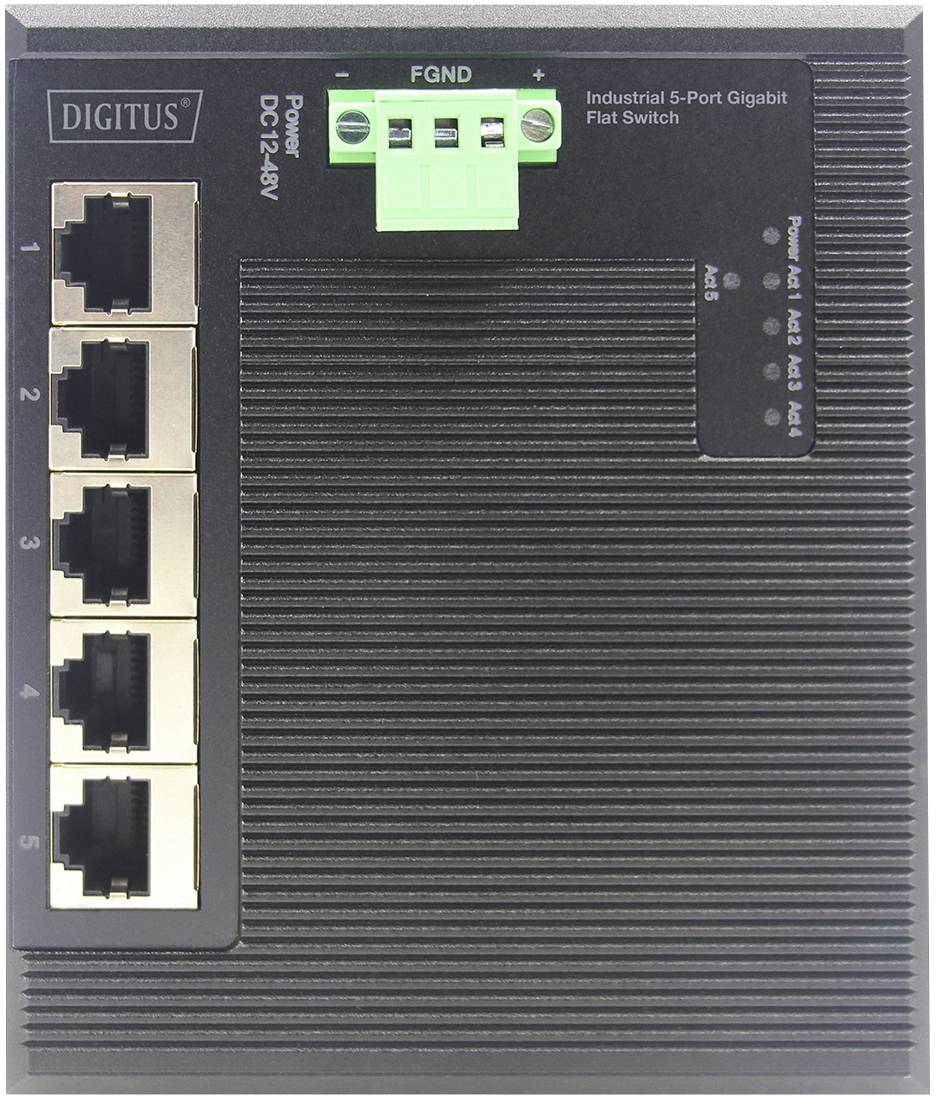

'Industrial 5-Port Gigabit Flat Switch' with five Ethernet ports and green power connection strip on a black enclosure.

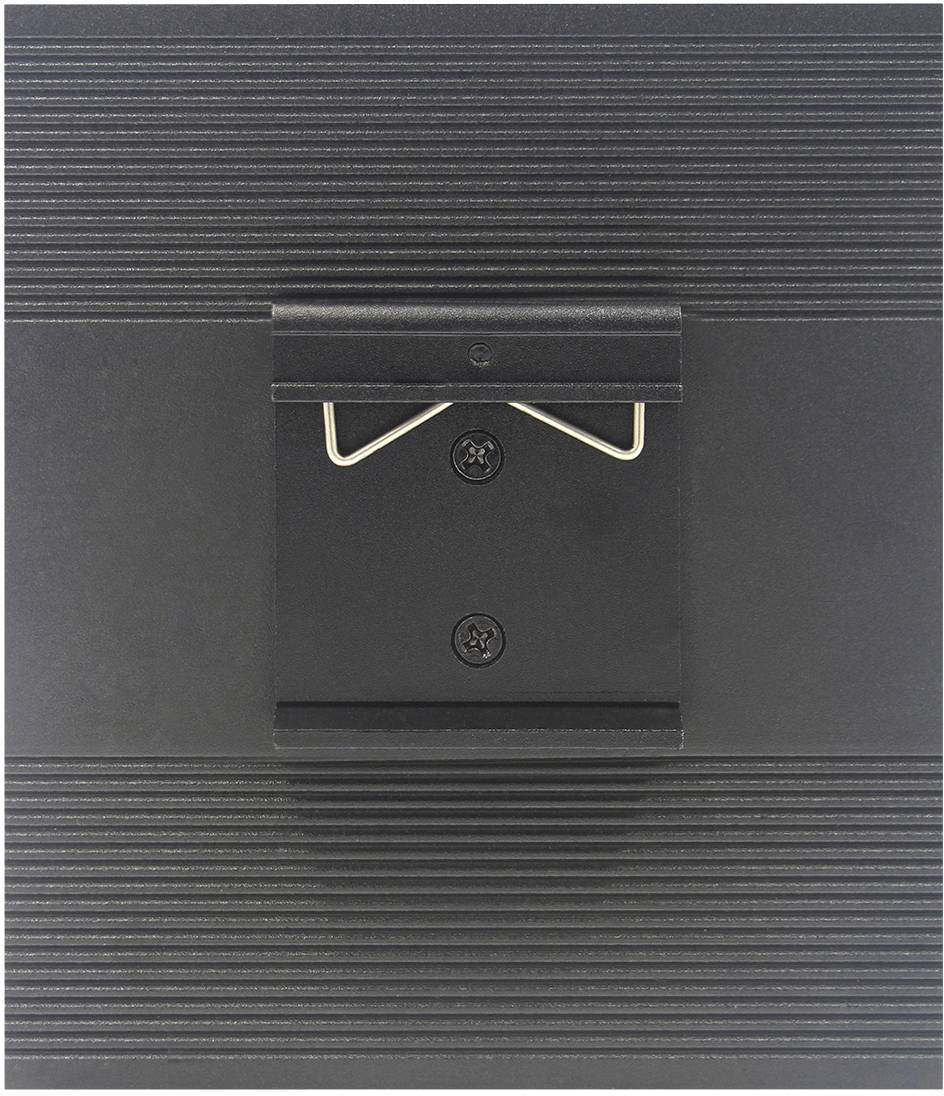

Black picture frame backing with hanging mechanism, consisting of metal hooks and screws on a ribbed surface.

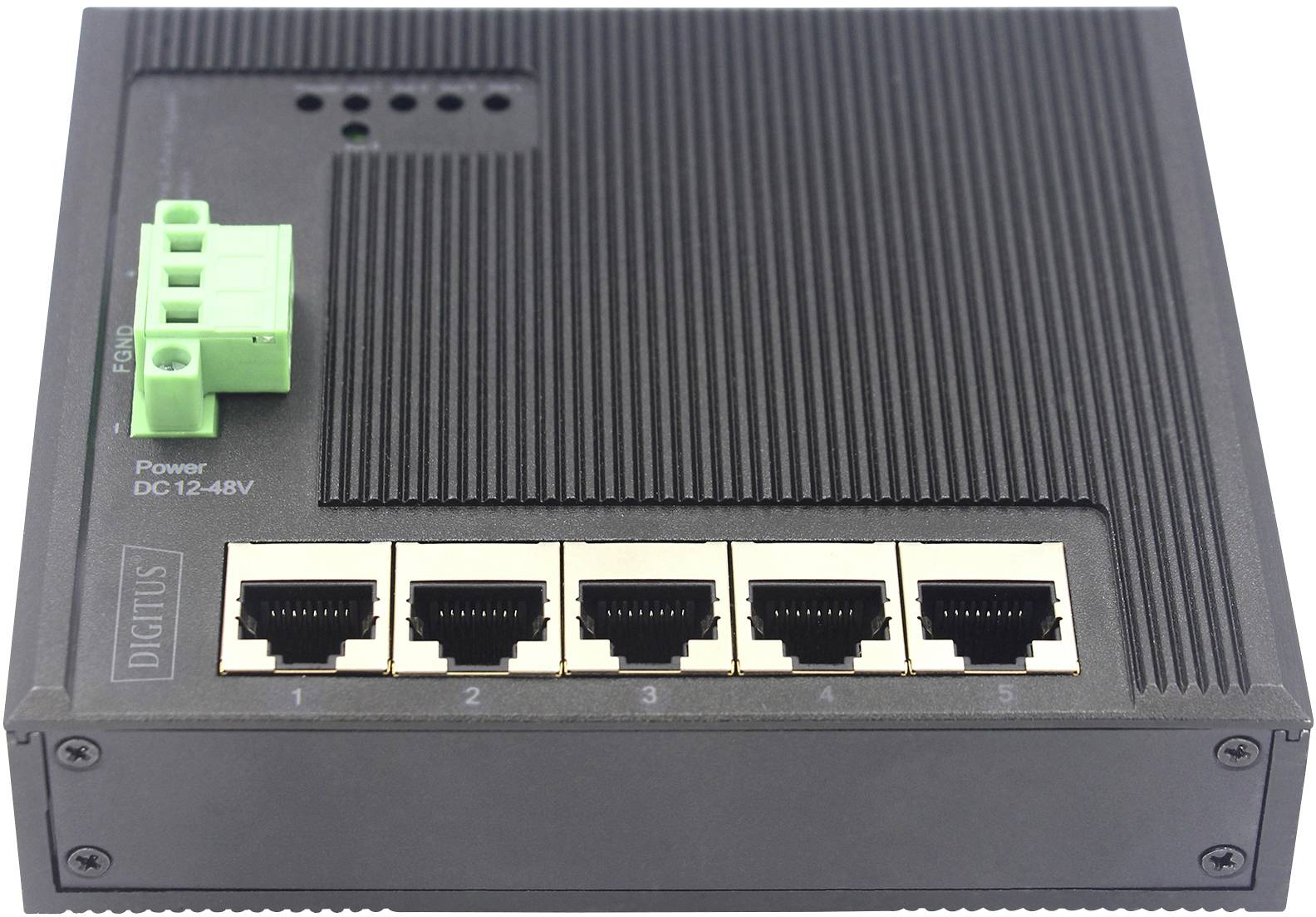

A network switch with five Ethernet ports and a green connection for power supply, marked with 'Power DC 12-48V'.

The industrial Ethernet switch displays six RJ45 ports and a green connection block. Robust, for professional network installations.

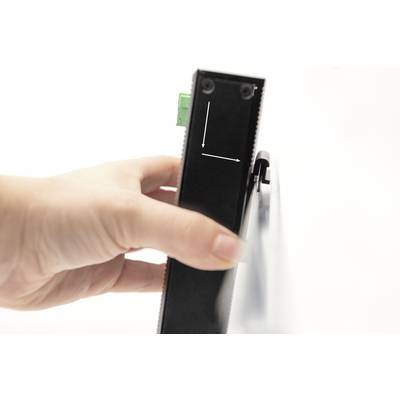

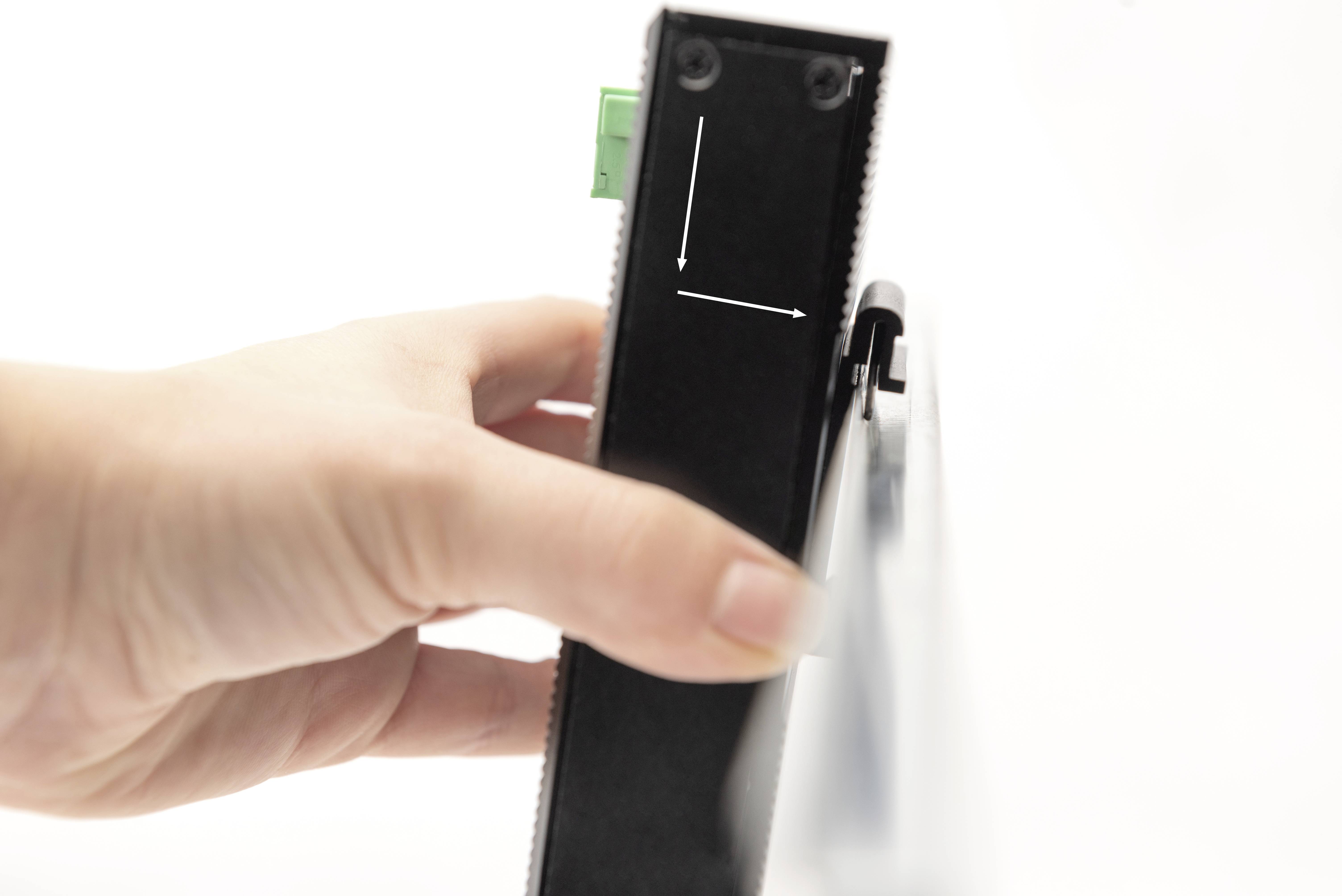

'A hand is holding a rectangular, black device. Two white arrows are drawn on the device, pointing in different directions.'

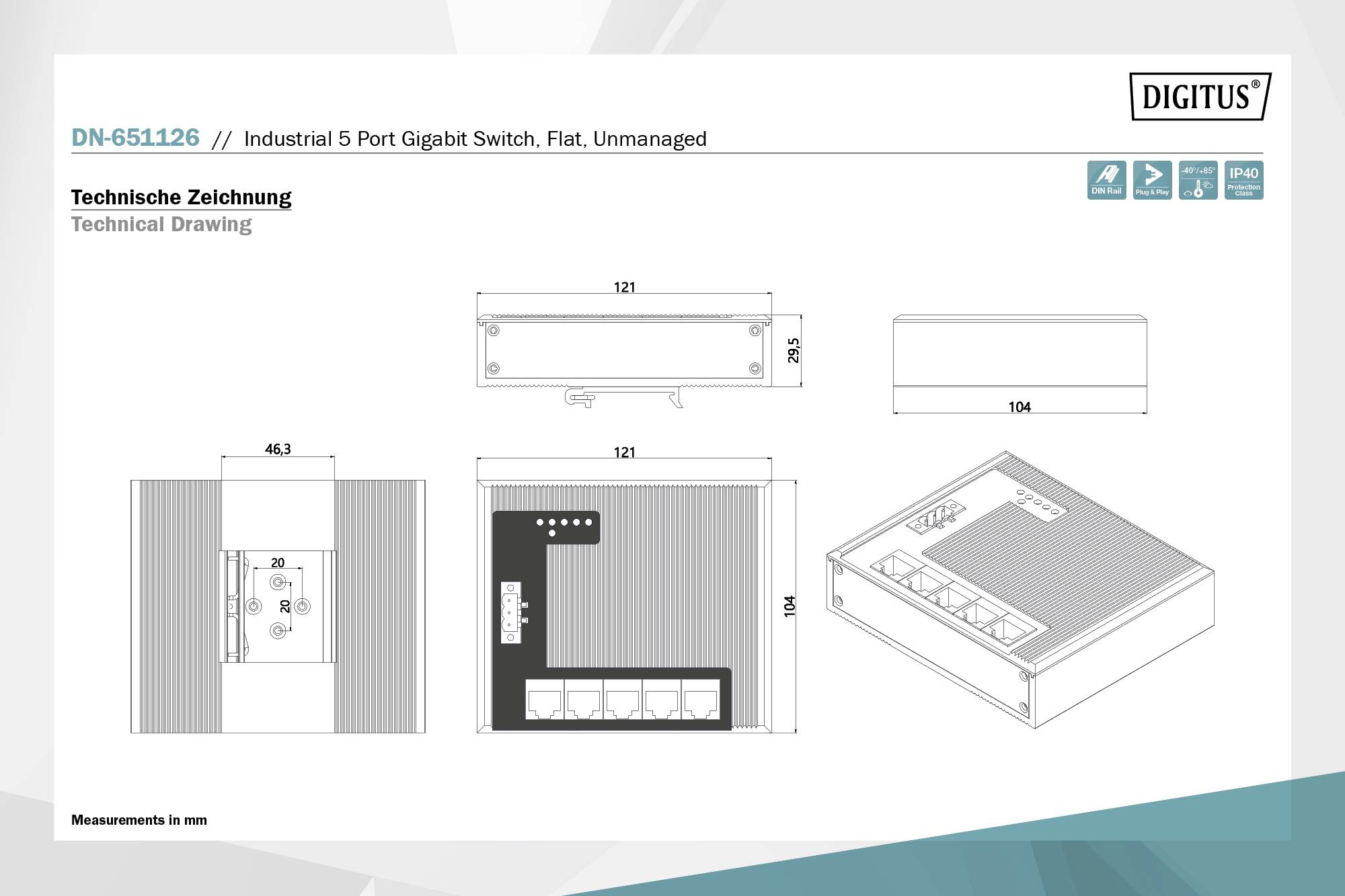

'Industrial 5-Port Gigabit Switch, Flat, Unmanaged' by Digitus. Technical drawing with dimensions of front, side and top view.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Industrial 5-Port Gigabit Flat Switch DIN rail, extended temperature range

Highlights & Details

The Industrial Ethernet switch has 5 RJ45 ports with Gigabit Ethernet speed and comes in a robust, particularly compact metal housing, which is held in the colors black & blue
The power supply is designed redundantly and takes place via a terminal connection. In addition, the network switch has a lightning, short-circuit and overvoltage protection
In addition to DIN rail mounting on standardized DIN rails in switch boxes or control cabinets The space-saving industrial switch can also be mounted directly on the wall are

Technical specifications

Electrostatic standard: Contact 8kV, air 15kV
Power supply via terminal strip (3 terminals, +/-/PE)
Power supply 12 - 48 V DC
Operating temperature: -40°C to 85°C
Storage temperature -40°C ~ 85°C.
Operating humidity: 5% ~ 95% (non-condensing)
Storage humidity: 5% ~ 95% (non-condensing)
Dimensions: L 121 x W 90 x H 37 mm
Protection class: IP40
Max. power consumption: 5W
Number of ports: 5
Ethernet speed: Gigabit
Industrial use: Yes
Mounting type: DIN rail, wall

Product type: Industrial Ethernet switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 5

10/100/1000 Mbps ports: 5 x

Port type: RJ45

Auto-uplink at each port: Yes

Jumbo frames: No

Power supply (LOV): mains-powered
mains-powered (redundant)
via terminal
via DC in
via DIN rail PSU

Weight: 400 g

Width: 121 mm

Height: 37 mm

Depth: 90 mm

Type: DN-651126

Interfaces: RJ45

: IP40

Factory colour: Black

Operating voltage: 48 V DC

Max. ambient temperature: 85 °C

Min. ambient temperature: -40 °C

Port: 5 ports

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2275126 Digitus DN-651126 DN-651126 Industrial Ethernet switch 5 ports 10 / 100 / 1000 MBit/s

User & Safety Instructions

User & Safety Instructions 2275126 Digitus DN-651126 DN-651126 Industrial Ethernet switch 5 ports 10 / 100 / 1000 MBit/s

Description

Digitus DIGITUS® Industrial Flat Gigabit Switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibration. With a temperature range of -40°C to 85°C, the Industrial Flat Gigabit Switch can be used under the most unfavorable conditions. The flat, fanless housing saves space and additional energy costs. It ensures continuous availability in highly sensitive areas such as transport, production, transport and security monitoring. Thanks to the simple plug-and-play system, the Industrial Flat Gigabit Switch can be quickly integrated into the respective environment. With its gigabit connectivity, the Industrial Gigabit Switch is a flexible and cost-effective solution for the industrial environment.

This text is machine translated.

Features

Thanks to IP40, the gigabit switch is protected against foreign objects (larger than 1 mm) - the extended temperature range is -40 to 85 °C - suitable for non-condensing humidity of 5 to 95 %
of the LAN switch has store-and-forward technology, automatic cable detection (auto MDI/MDI-X) & half-/full-duplex detection - Standards: IEEE802.3u, IEEE802.3ab, IEEE802.3x
5 x 10/100/1000Base-TX Ethernet ports
Automatic cable recognition - Auto-MDI/MDI-X function
supported standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
LED display: Current (on/off), Link (off/active
/data) Store-and-forward technology for an optimized automatic speed and
address storage: Full MAC/MAC address storage: 4K (Auto-Learning, Auto-Aging)
robust, flat metal housing
Excellent protection against short-circuits
Flash and overvoltage protection
Mounting on DIN-rail (DIN rail) and wall mounting possible
fanless design
