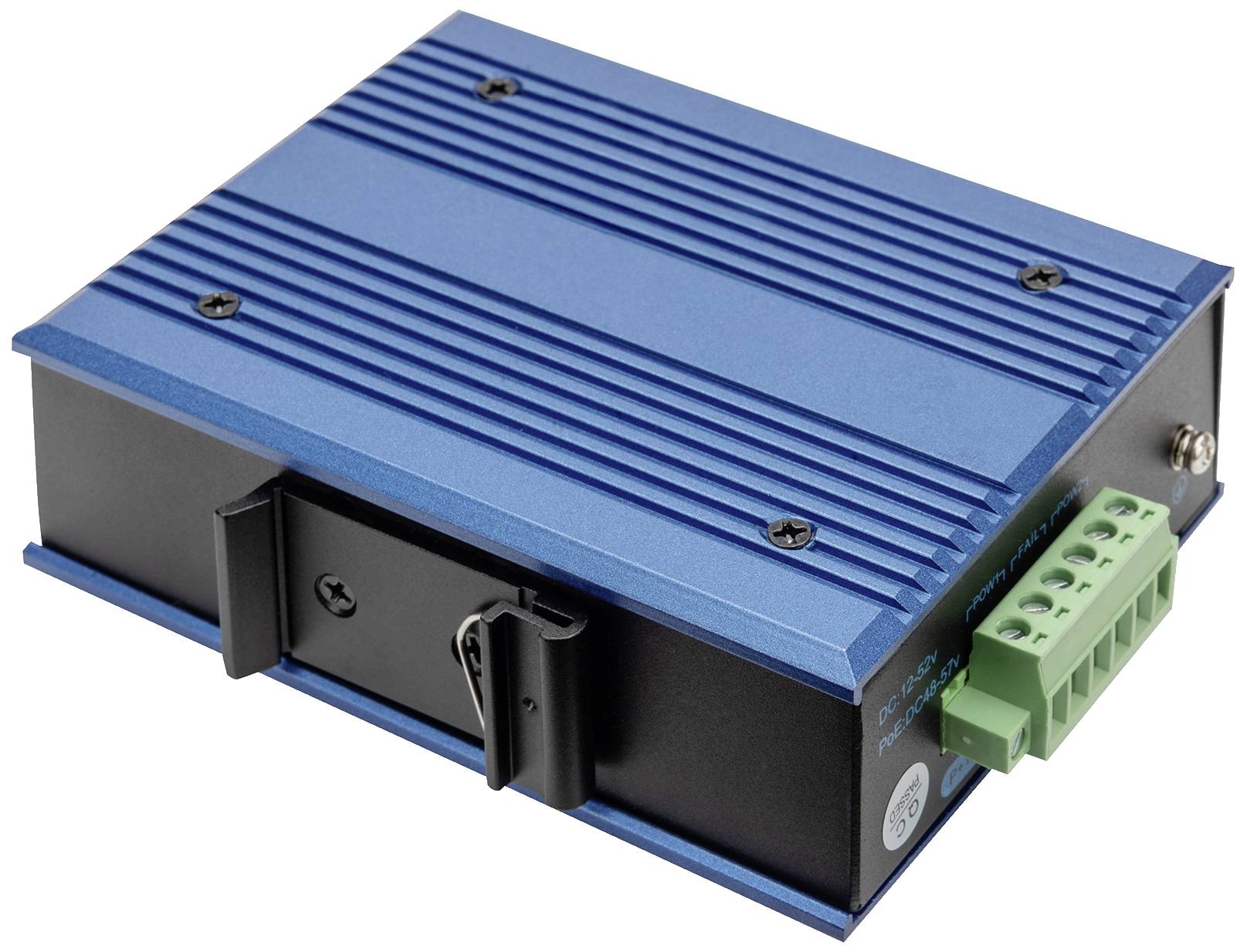

A blue, rectangular electronic device with a green connector block on its side.

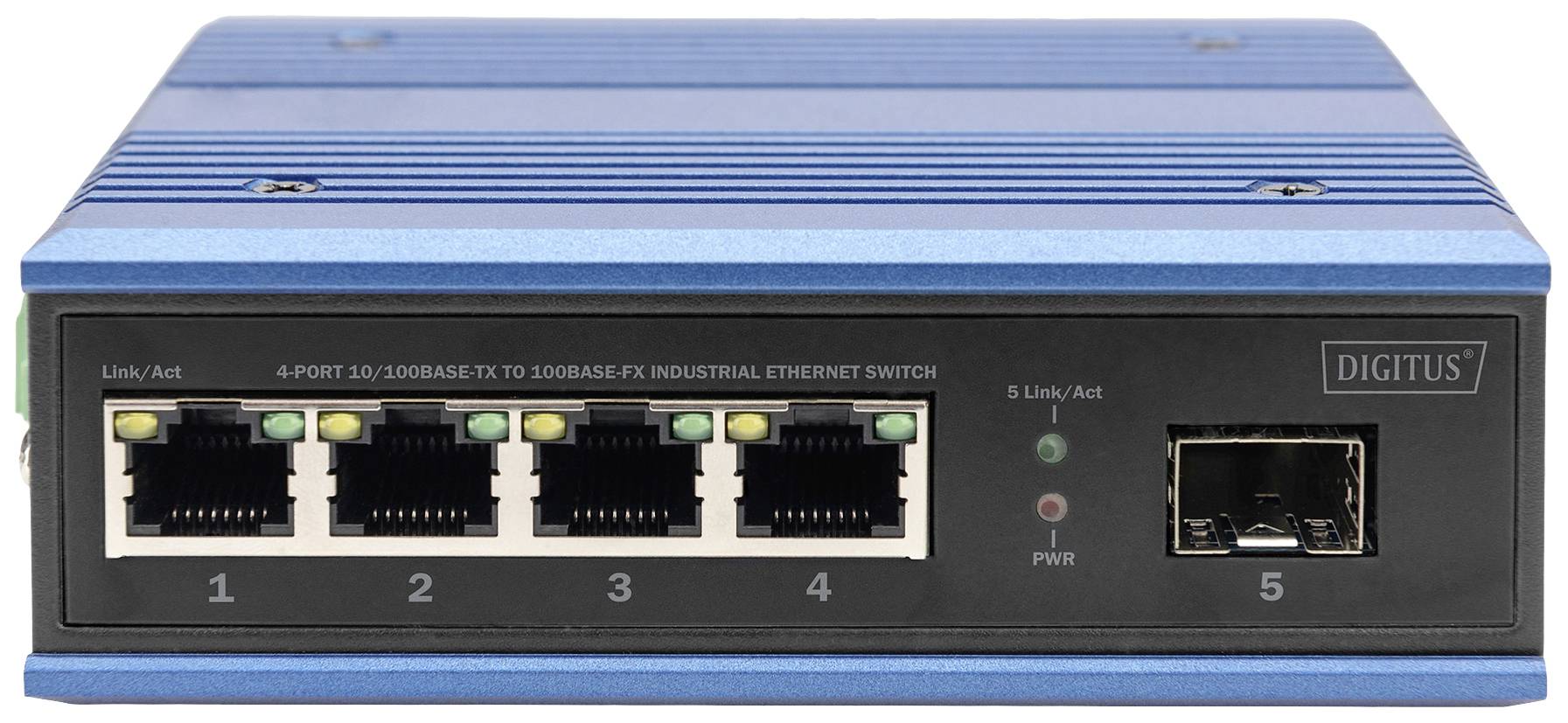

Blue industrial Ethernet switch with five ports, four RJ45 ports and one fibre optic port, suitable for network connections.

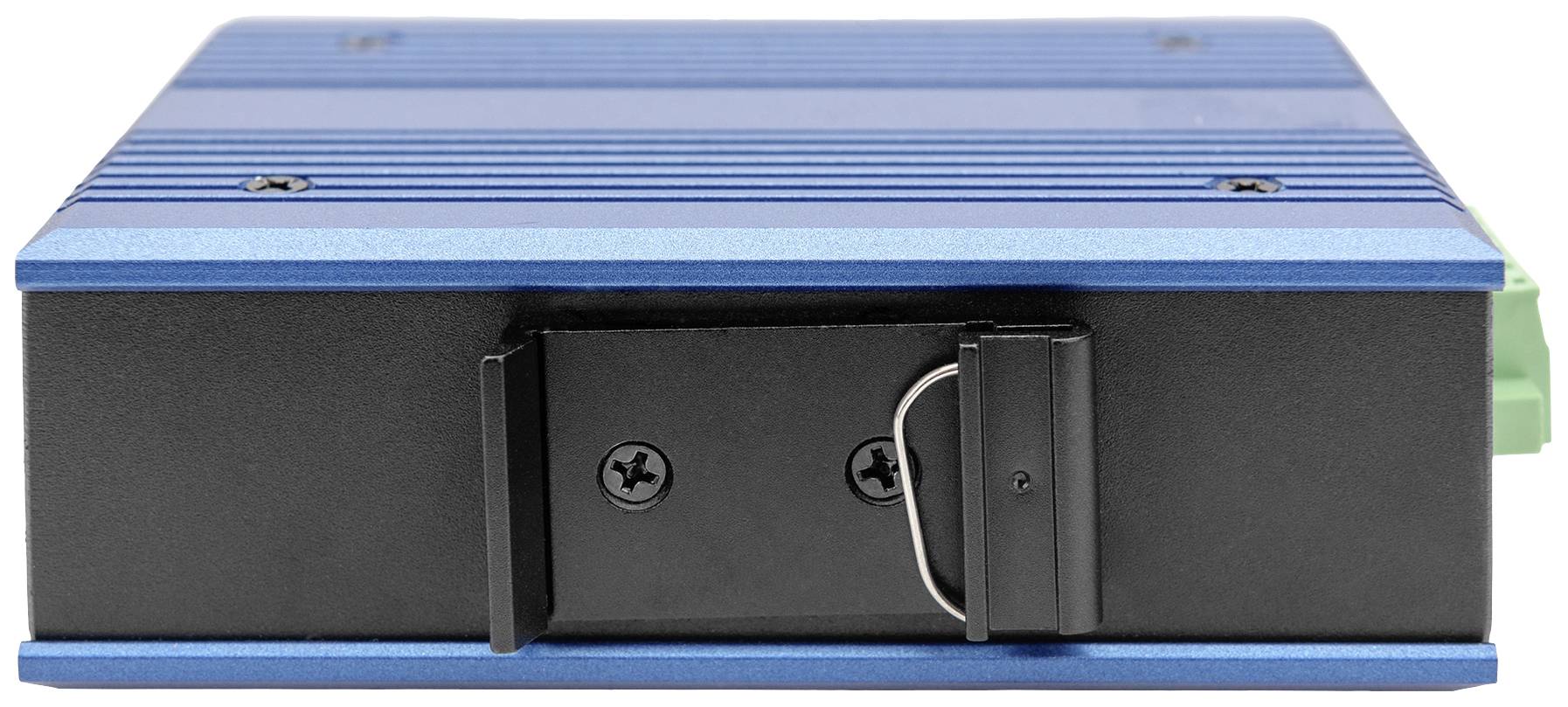

A blue, rectangular electronic device, possibly a computer, with a black front panel and two visible screws.

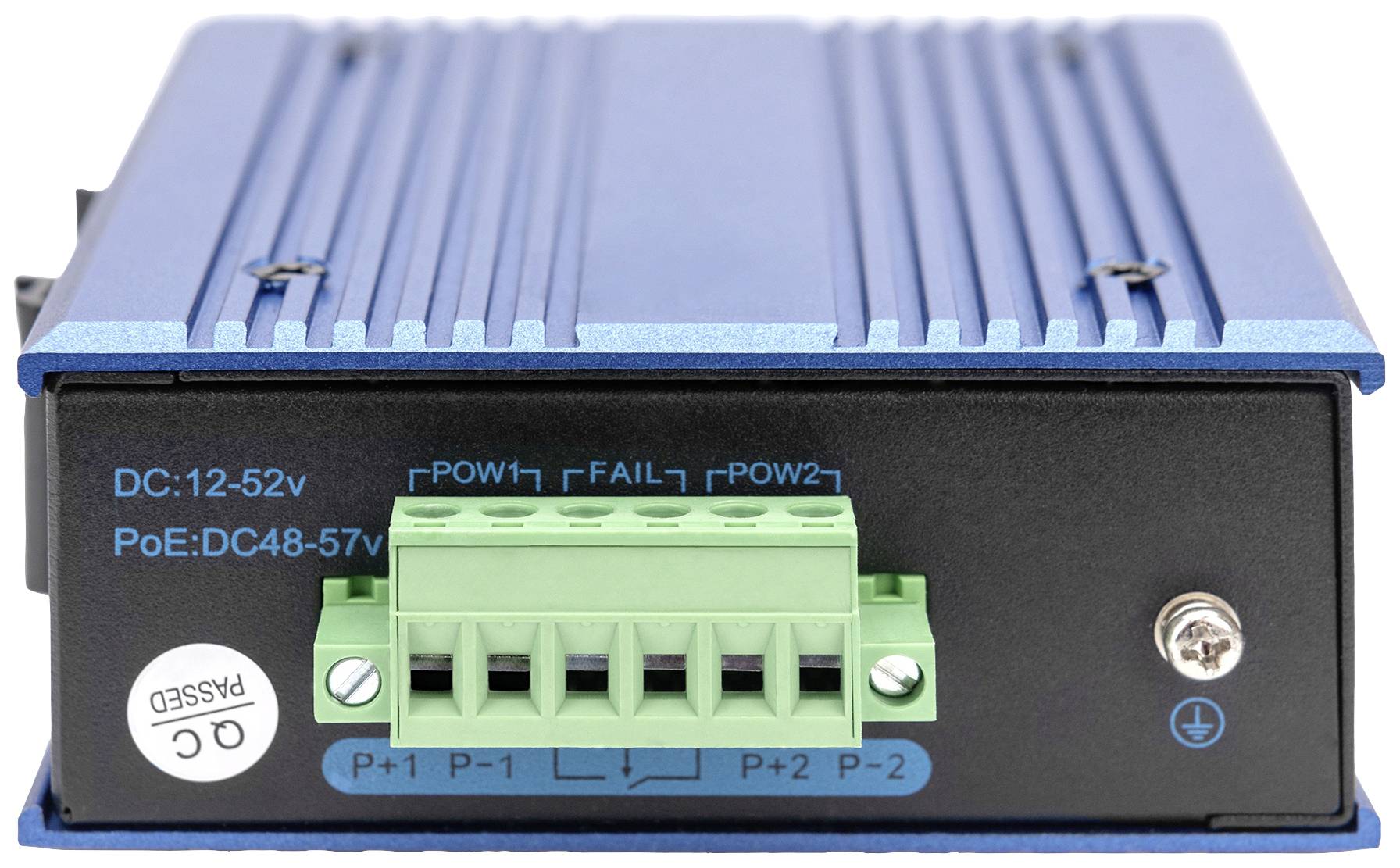

A blue PoE injector with green ports and voltage specifications (DC: 12-52 V, PoE: DC 48-57 V) on the front panel.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

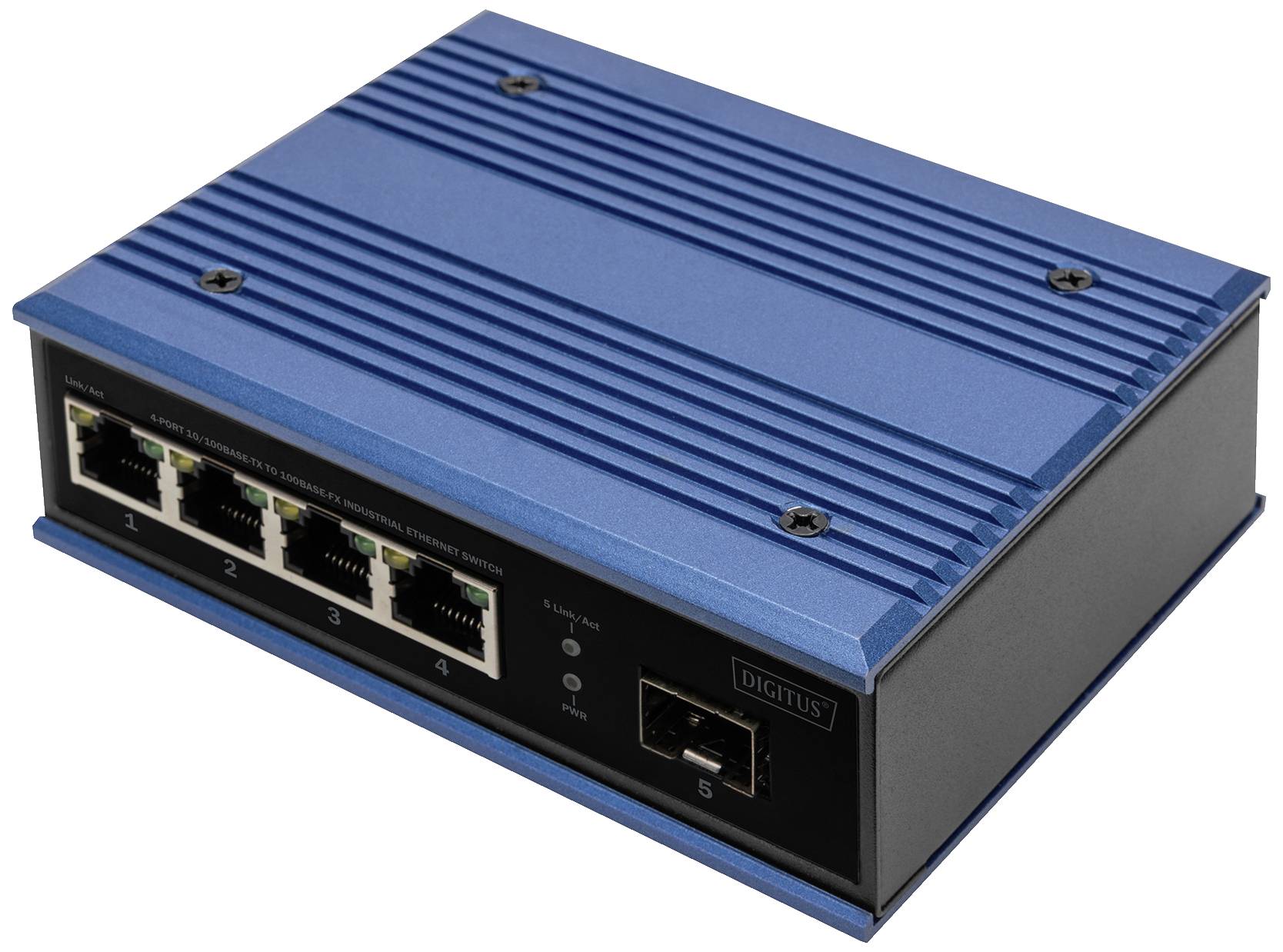

Digitus DN-651130 4+1 ports industrial fast Ethernet switch, 10/100Base-TX to 100Base-FX, unmanaged, rail mounting, redundant power supply

Highlights & Details

The use of a high-quality photoelectric integration module ensures good transfer rates for optical and electrical connections.12V to 52V DC, redundant power connection possibleSupports full-duplex or half-duplex mode, with automatic negotiationNetwork connection supports automatic cross-identificationUses 'Store and Forward' technology The switch supports a variety of protocols

Technical specifications

Bandwidth : 1.6GbpsPacket buffer memory 1MbitPacket forwarding rate: 1.2MppsFlow control: Uses the back pressure technology for half duplex, uses the "pause frame" technology in full-duplex modeHousing: Aluminium housing of the protection class IP40LED display: Power: Red; Fiber: Link 2(Green); Ethernet: YellowPower input: 12 to 52V DC- It is possible to install a redundant power supplyPower consumption : Less than 3 wattNetwork protocol : IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX/FXFCC CFR47 Part 15, EN55022/CISPR22, Class A, IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air), IEC61000-4-3 (RS): 10V/m (80~1000MHz), IEC61000-4-4 (EFT): Power supply: ±4kV; data connection: ±2kV, IEC61000-4-5 (overvoltage)Working environment: Operating temperature: -40 to max 80℃; storage temperature: -40 to max 80℃; relative humidity: 5% to max 95% (no condensation)Ethernet speed: Fast EthernetIndustrial use: YesNumber of ports (uplink): 1Managed: No.Mounting type: Top hat railSuitable for outdoor use: No.Power over Ethernet (PoE ): No.Protection against vandalism: No.Uplink port connection: SFPVLAN: No.

Product type: Industrial Ethernet switch

LAN transfer rate: 10 MBit/s
100 MBit/s

Transfer rate: 10 / 100 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 4

SFP ports: 1 x

10/100 Mbps ports: 4 x

Fibre-optic ports: 1

Port type: RJ45

Auto-uplink at each port: No

Power supply (LOV): mains-powered
mains-powered (redundant)
via DC in
via DIN rail PSU

MAC addresses: 2000

Weight: 450 g

Width: 128 mm

Height: 34 mm

Depth: 86 mm

Type: DN-651130

Interfaces: RJ45
SFP

: IP40

Factory colour: Blue

Operating voltage: 52 V

Current consumption: 3 W

Max. ambient temperature: 80 °C

Min. ambient temperature: -40 °C

Port: 4+1 ports

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2794221 Digitus DN-651130 DN-651130 Industrial Ethernet switch 4+1 ports 10 / 100 MBit/s

Description

DN-651130 is an industrial fast - Ethernet switch with 4 port 10/100 Mbps RJ45 +1 port 100Mbps base-FX. The industrial switch has the operating temperature of -40℃ ~ 80℃, has been manufactured robust and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, housing of protection class IP40 and LED display make the DN-651130 a plug-and-play device in industrial quality, which offers the users a reliable and comfortable solution for networking their Ethernet devices.

This text is machine translated.

Features

Conforms to industrial operating standardsOperating voltage DC 12 VSurge Protection (Power) 5000A(8/20μs) Supports 6KV DC Ethernet ESD protectionSupports 6KV DC EFT protection for the power line
