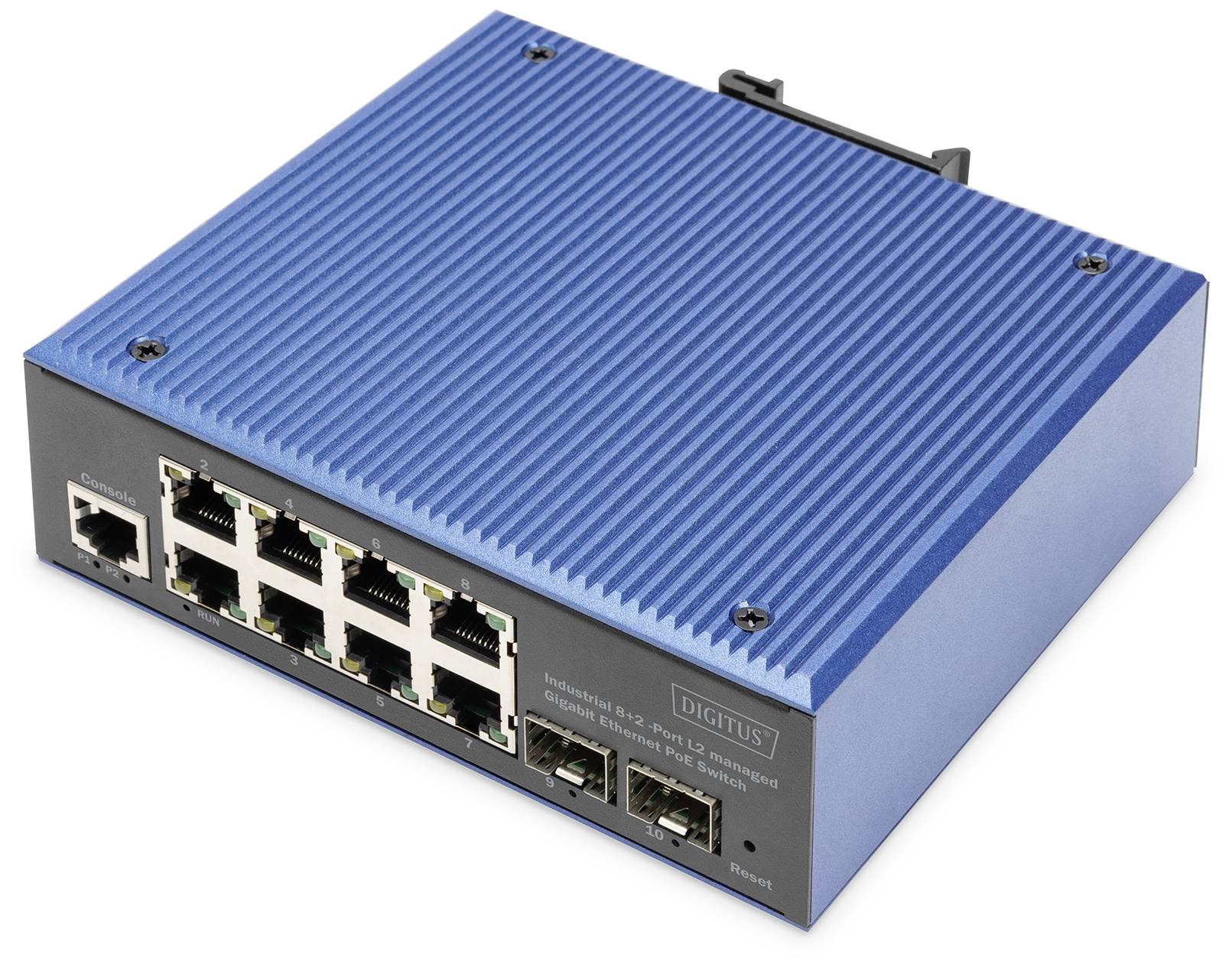

Compact blue network switch with multiple Ethernet ports. Suitable for industrial applications with a robust housing.

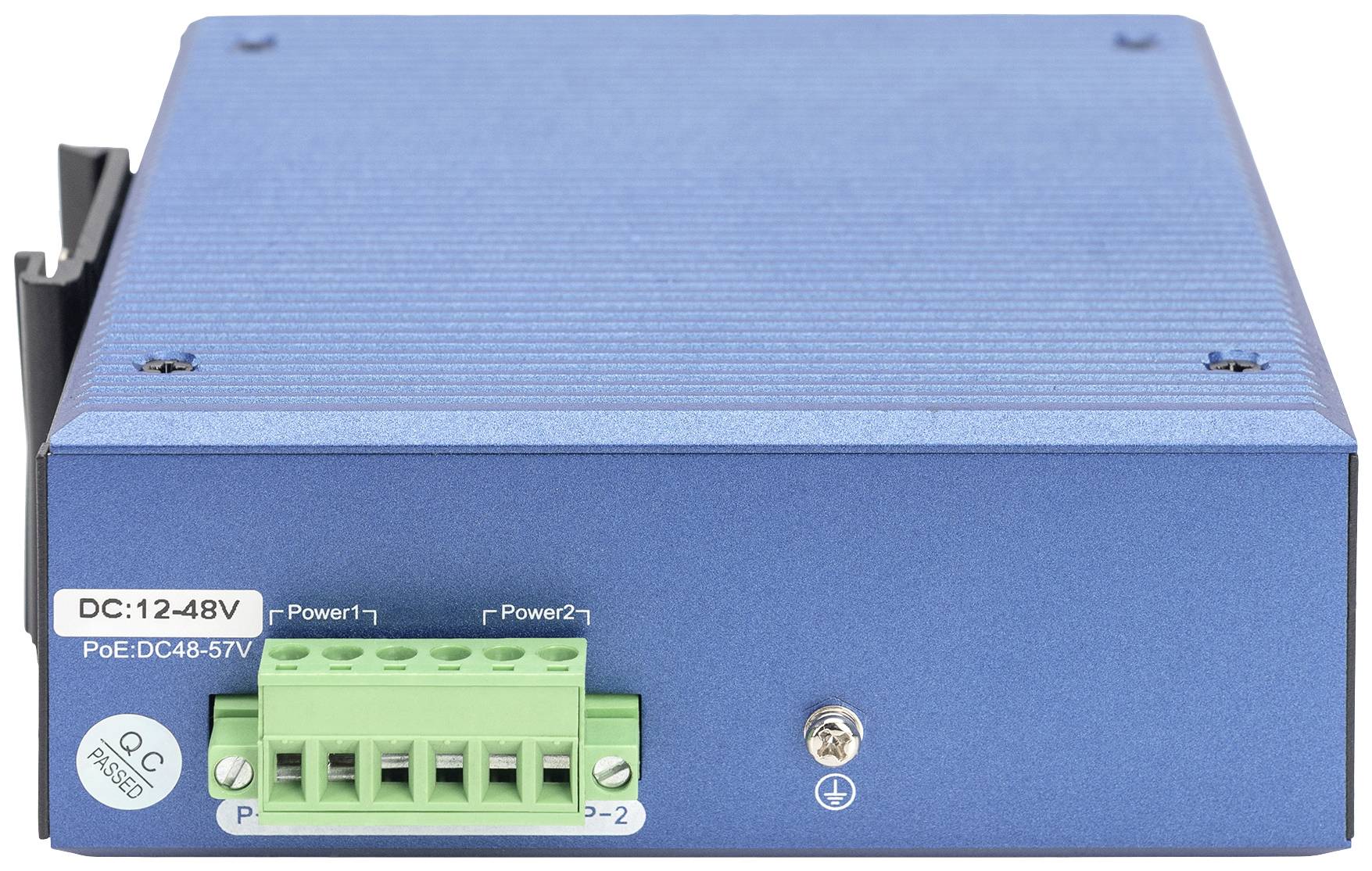

A blue, rectangular technical device with connections and green output sockets. Marked with 'DC:12-48V' and 'PoE:DC 48-57V'.

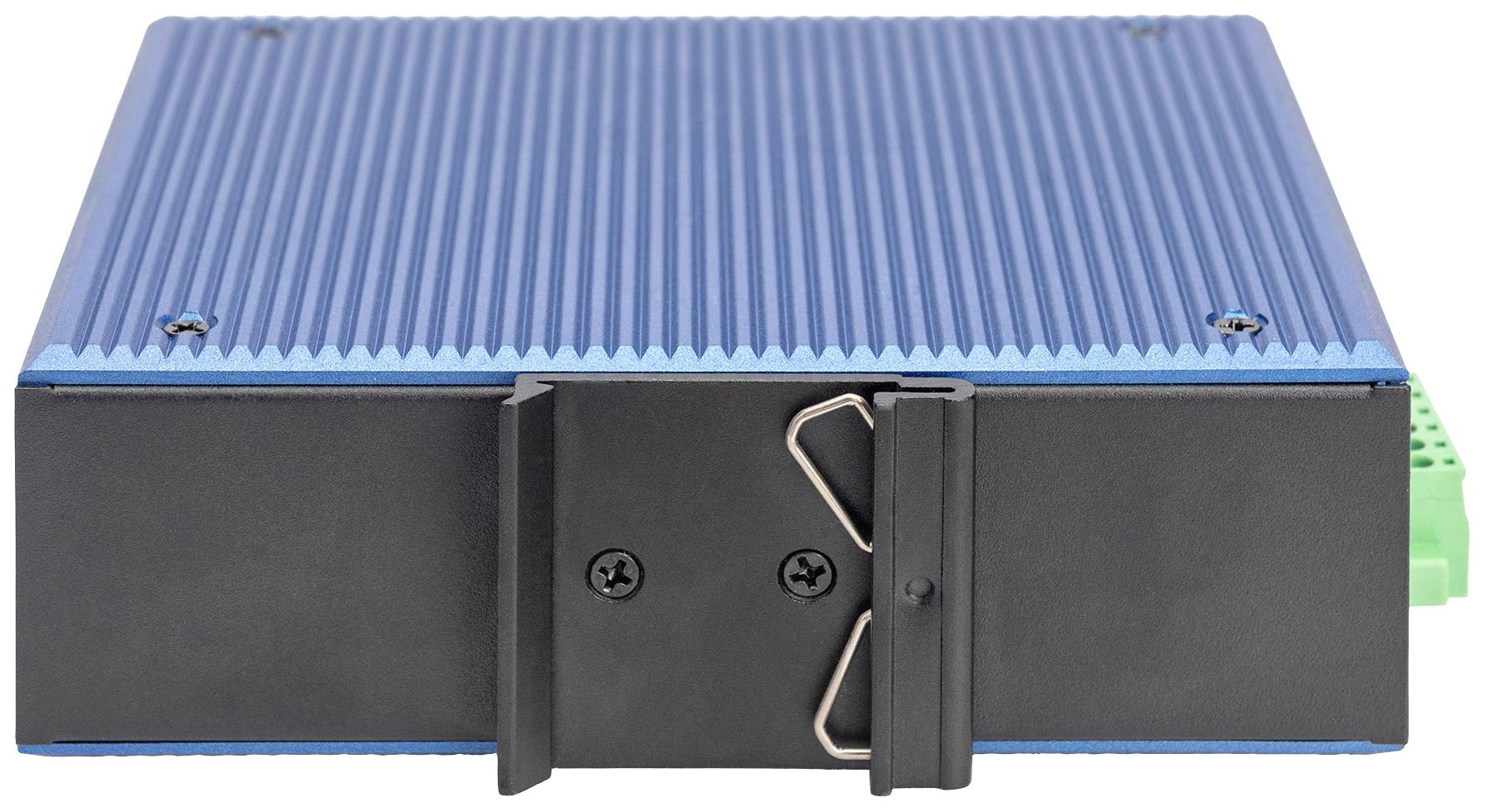

A blue, rectangular electronic device with a ribbed casing and black mounting bracket. Function unknown.

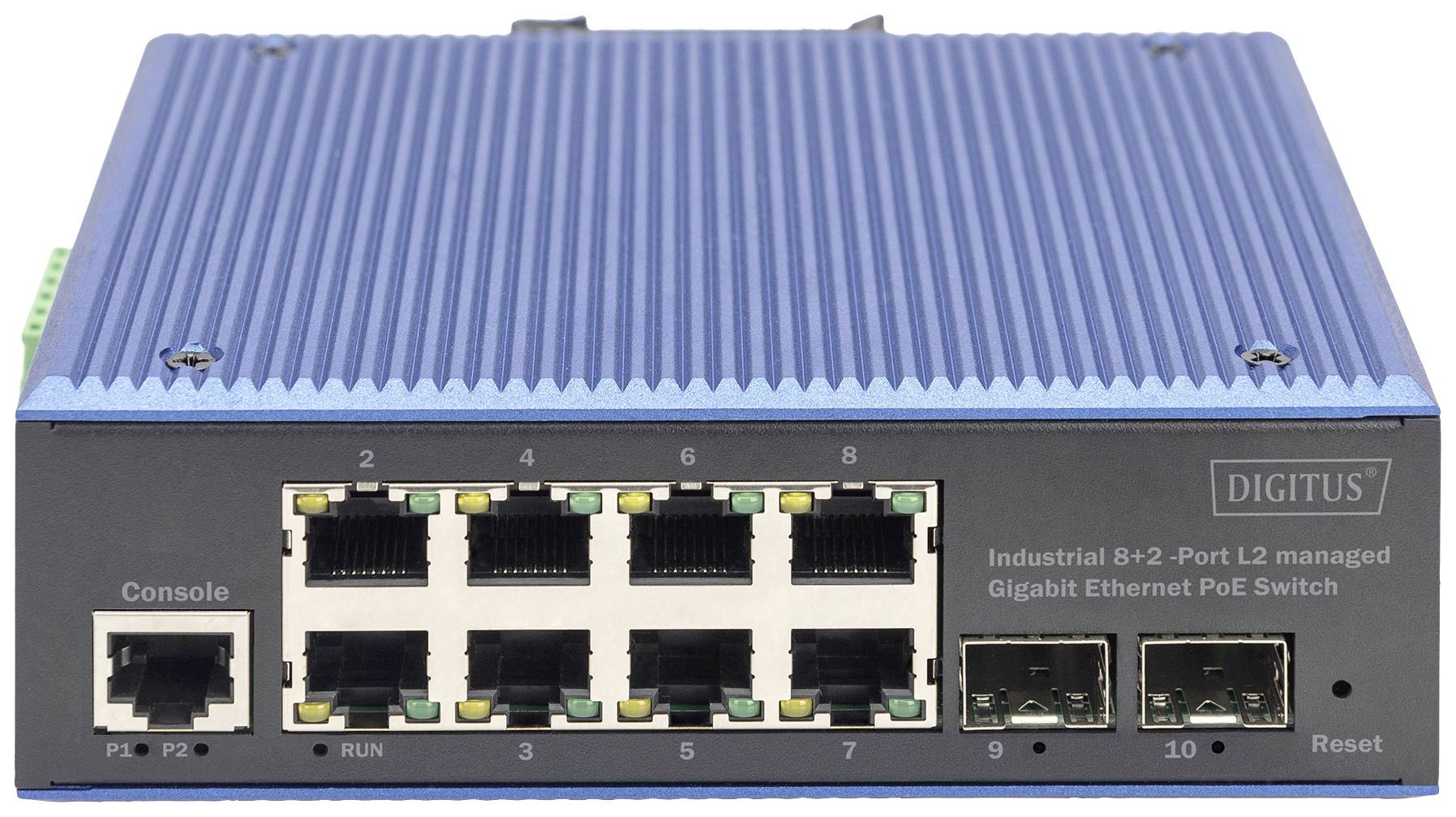

Industrial 8+2-port L2 managed Gigabit Ethernet PoE switch with blue heat sinks, numerous connections and console port.

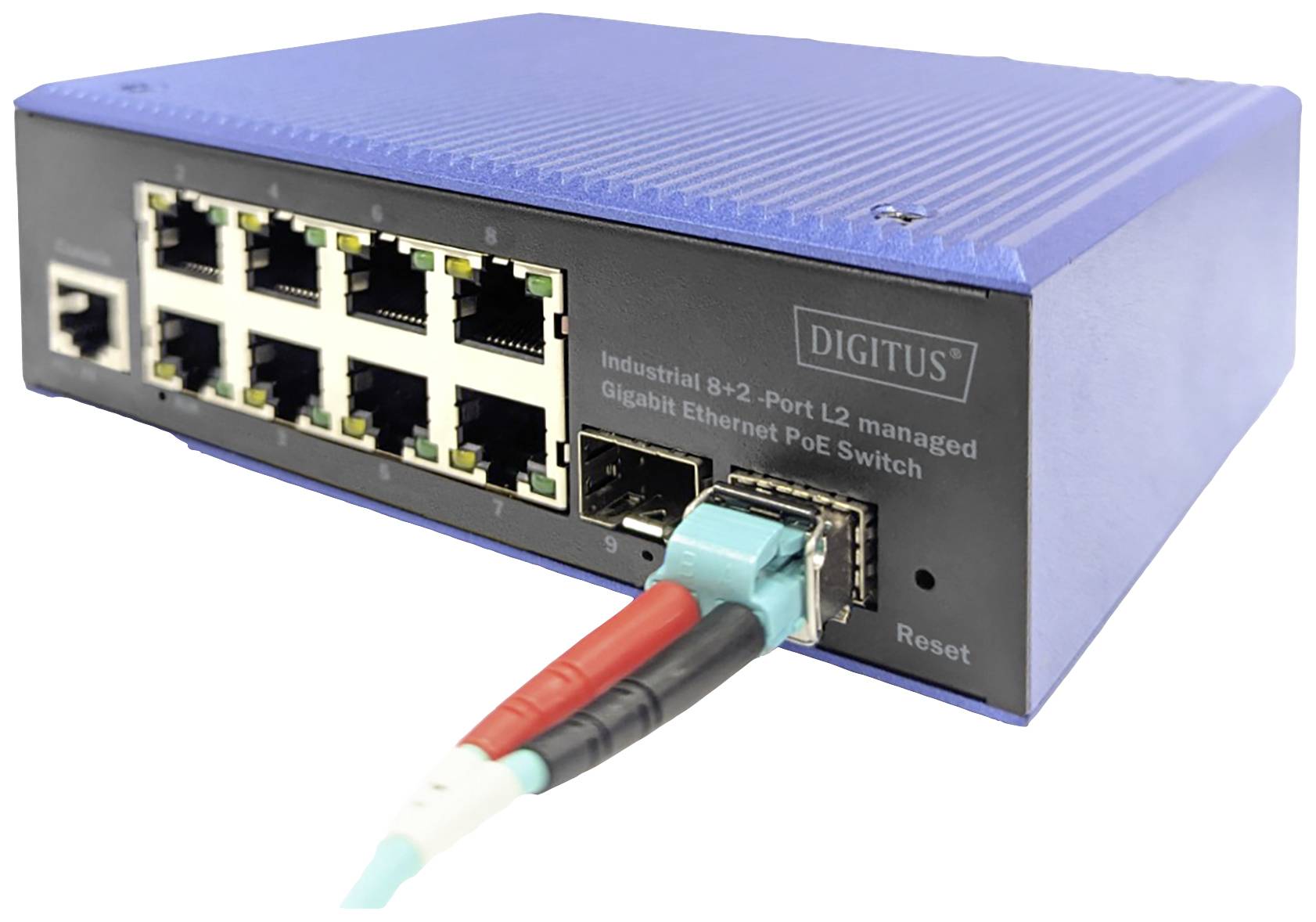

Blue 8+2-Port L2 Managed Gigabit Ethernet PoE Switch with Multiple Ethernet Ports and Power Cable Input.

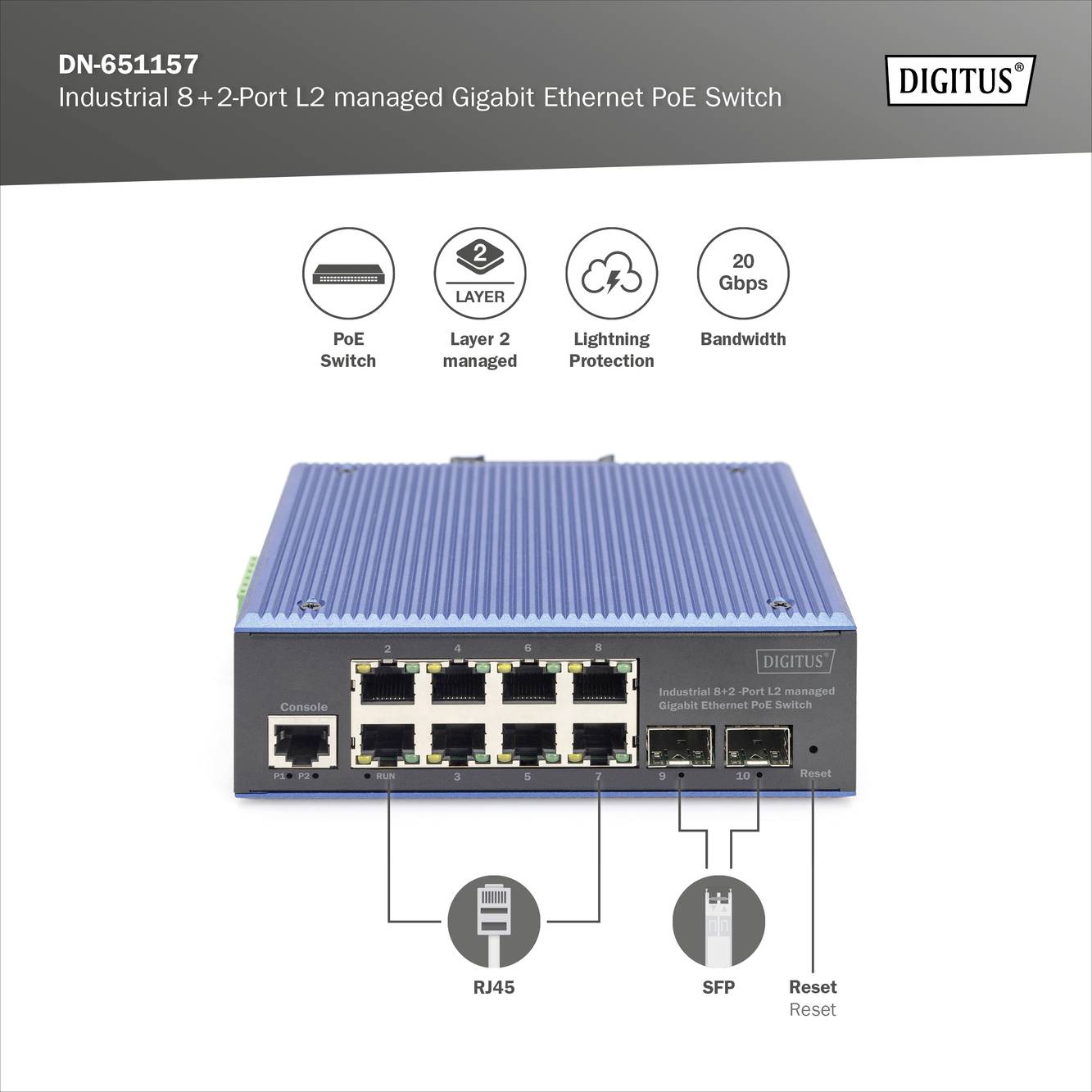

A 'Industrial 8+2-Port L2 managed Gigabit Ethernet PoE Switch' by Digitus, Model DN-651157, with PoE, RJ45, and SFP ports.

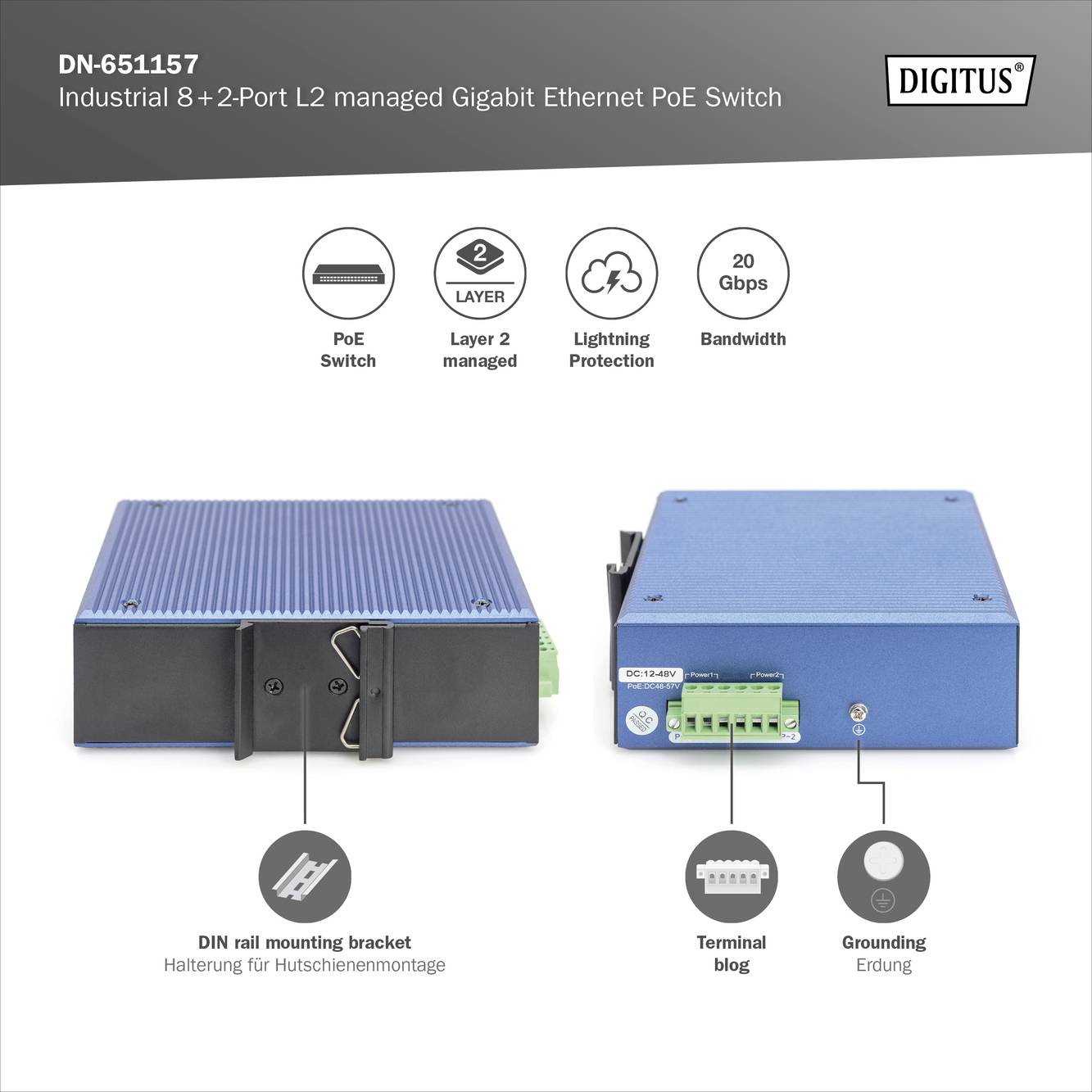

Industrial Gigabit Ethernet PoE Switch, 8+2 Ports, DIN and Top-Hat Rail Mounting, 20 Gbps Bandwidth, Layer 2 Management.

'Industrial 8+2-Port L2 Managed Gigabit Ethernet PoE Switch, ESD Protected, Temperature Range -40°/+80°, IP40.'

1/8

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus industrial 8+2-port L2 managed Gigabit Ethernet PoE switch

Highlights & Details

8 ports GE RJ45, 2 SFP GE ports
8 x 10/100/1000 Mbit (RJ45, PoE IEEE802.3af/at)
2 x 10/100/1000 Mbit (SFP)

Technical specifications

Product type: Industrial Ethernet switch

LAN transfer rate: 1000 MBit/s

Transfer rate: 1 GBit/s

Working principle: Managed switch

SFP ports: 2 x

10/100/1000 Mbps ports: 8 x

Power supply (LOV): mains-powered (redundant)

Weight: 700 g

Width: 143.7 mm

Height: 125 mm

Depth: 47.7 mm

Type: DN-651157

Rack size: 254 mm (10")
483 mm (19")

: IP40

Factory colour: Blue

Max. ambient temperature: -40 °C

Min. ambient temperature: 80 °C

Port: 8 + 2 ports

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2997763 Digitus DN-651157 DN-651157 Industrial Ethernet switch 8 + 2 ports 1 GBit/s

Description

The Digitus DN-651157 Ethernet switch with 8 x RJ45 interfaces, as well as 2 x SFP Uplinks offers numerous layer 2 port functions for optimum network performance. It supports flow control, link aggregation, and various routing strategies. The switch enables VLAN management, supports spanning tree protocols, and ensures rapid disaster recovery. With IGMP and MLD snooping, you can optimize multicast traffic. The switch provides advanced security features such as ACLs and supports QoS for traffic prioritization. You have control with extensive management options like SNMP and CLI. The RJ45 port can supply connected PoE devices with up to 30W each. Our switch is a reliable networking solution with advanced features to meet your needs.
