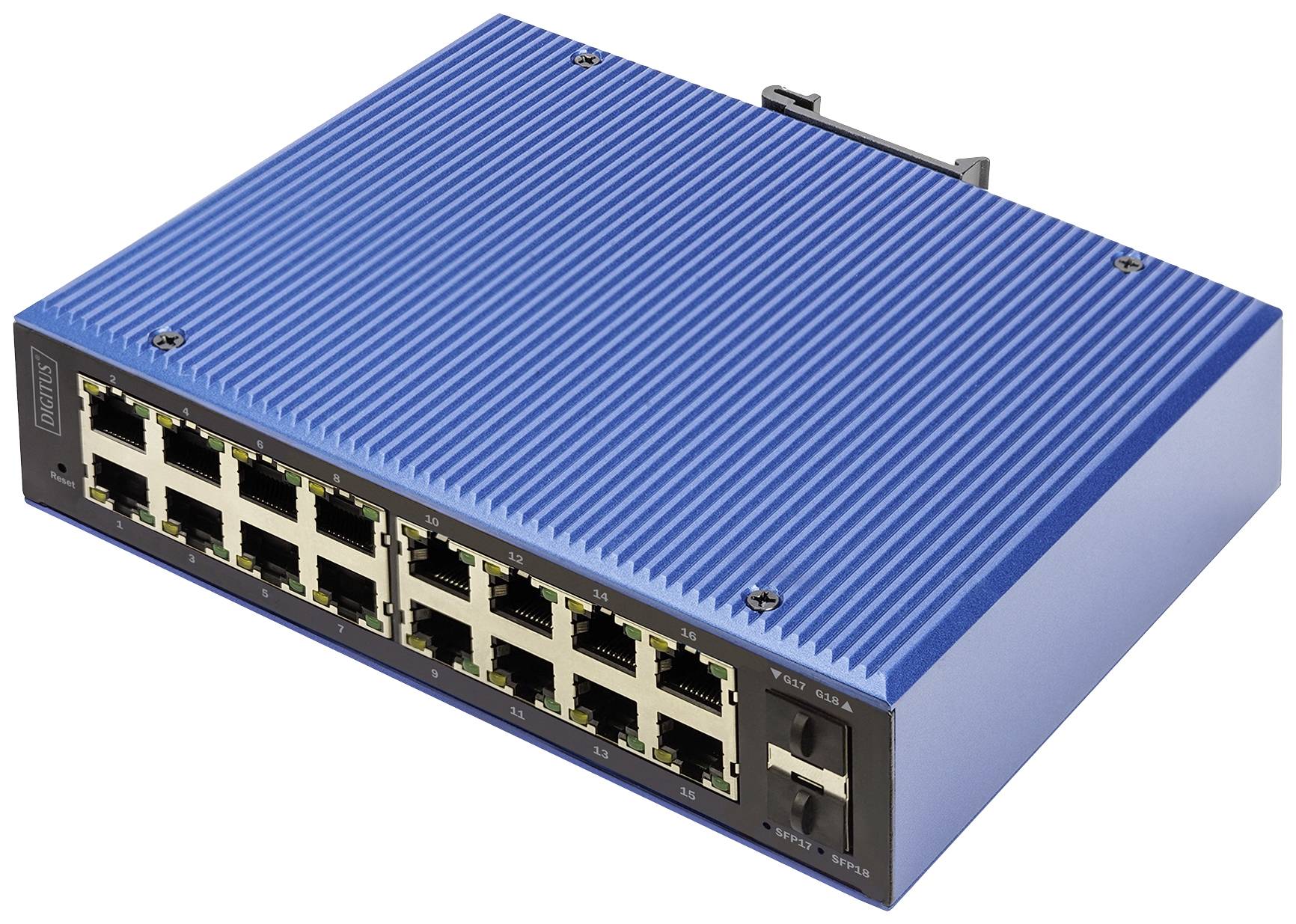

A blue network switch with 16 Ethernet ports. It is robustly designed and suitable for use in industrial environments.

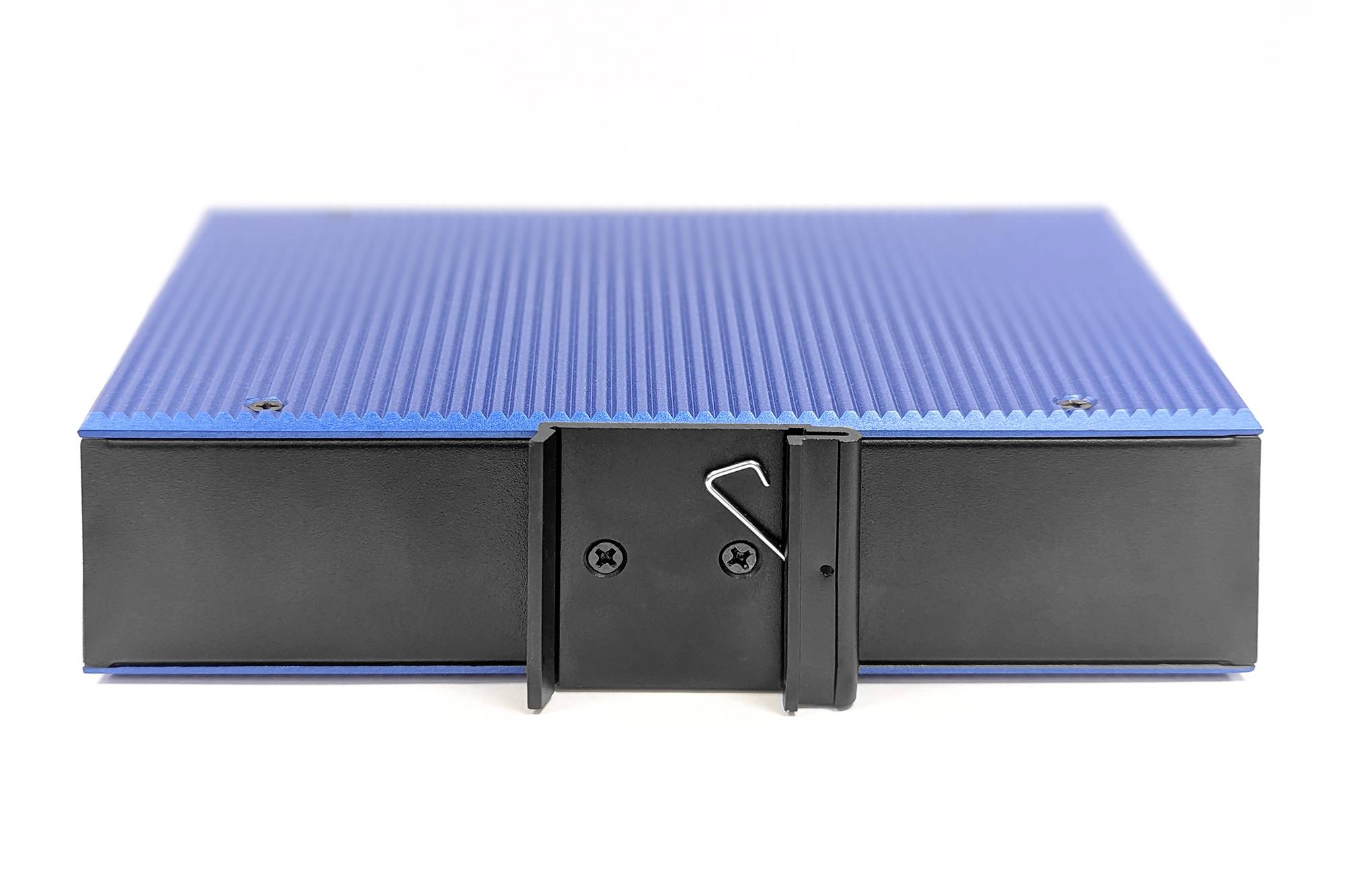

A blue computer memory module with a ribbed top surface. The front side has black brackets for mounting.

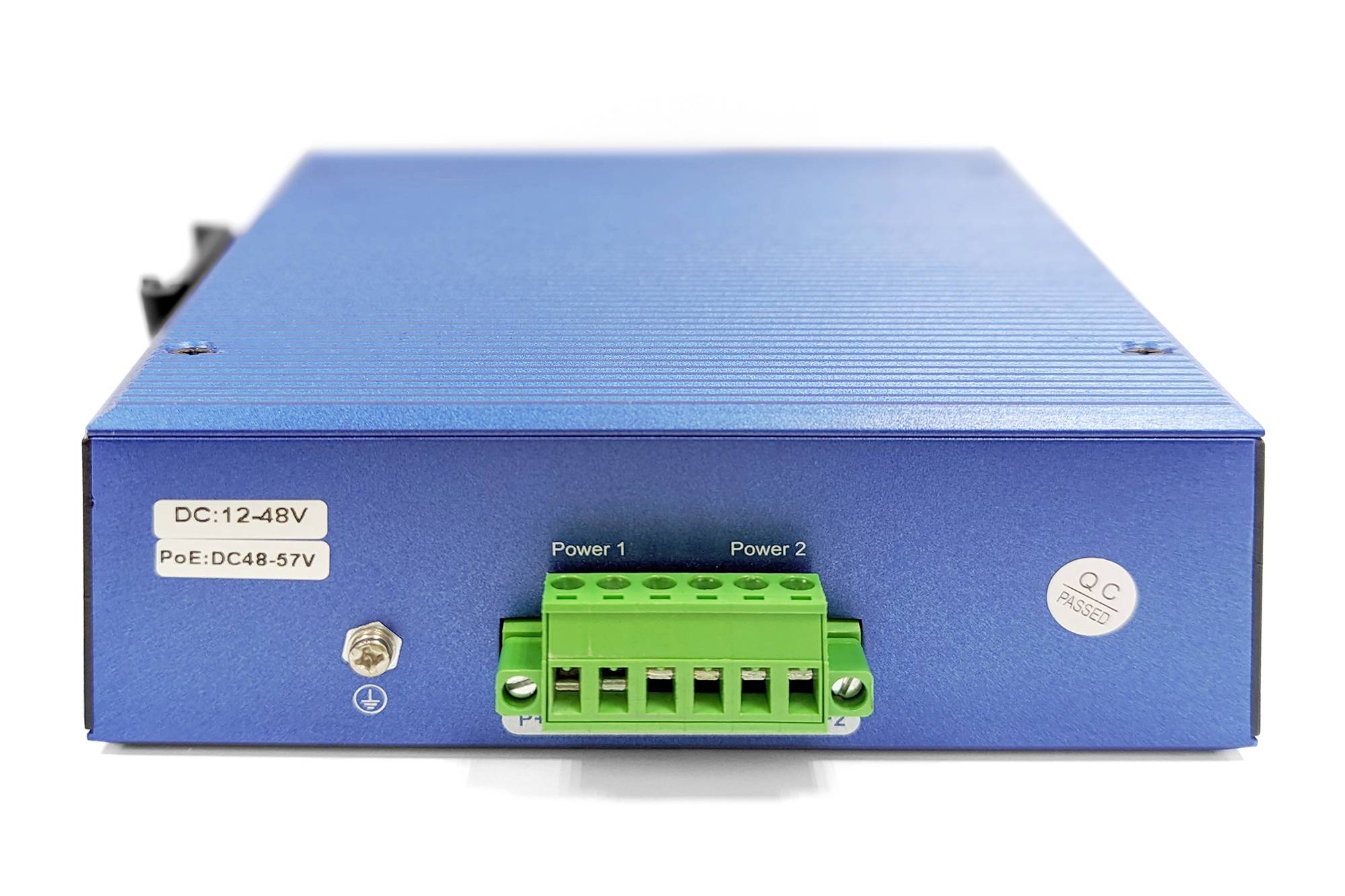

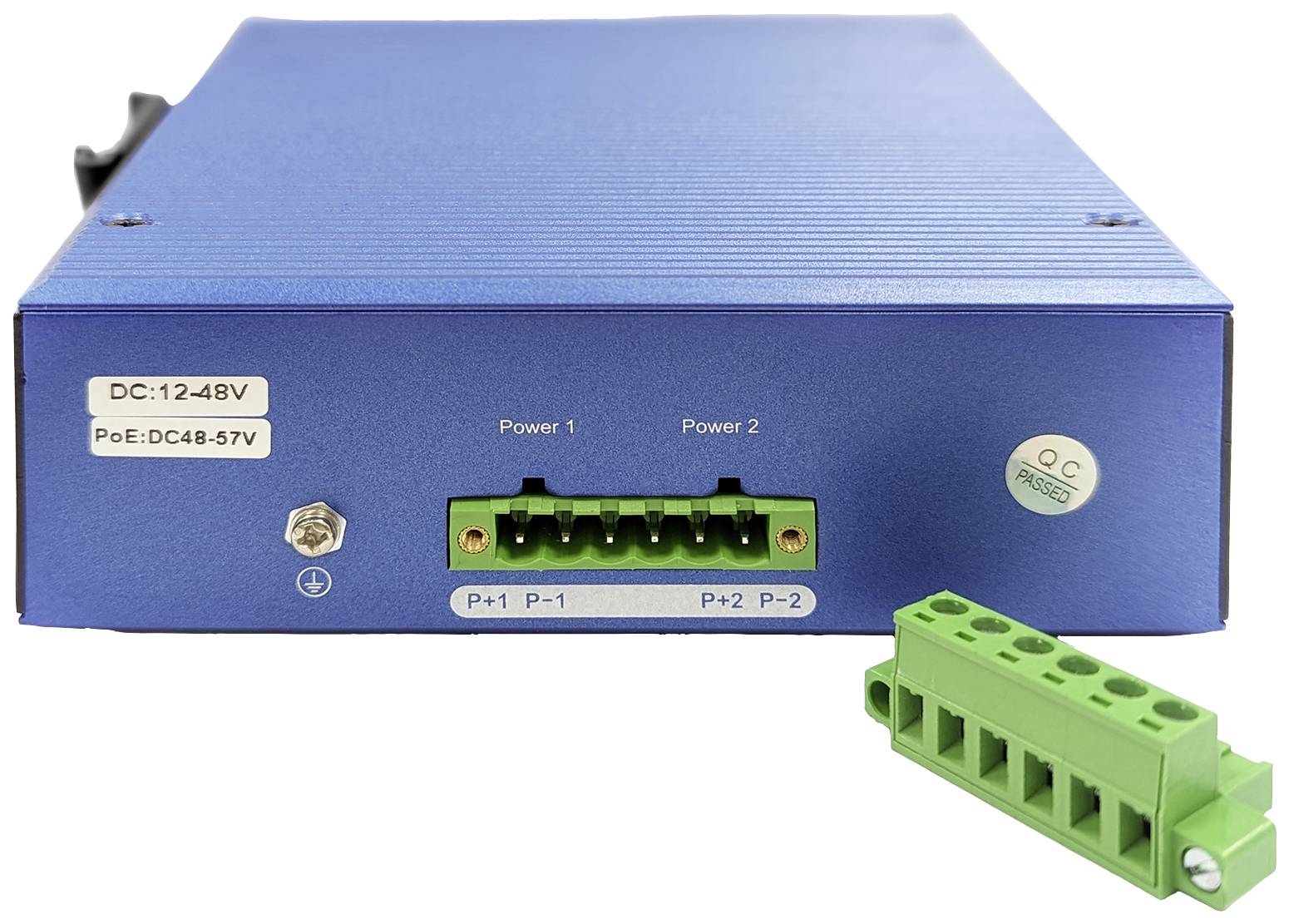

Blue device with a green connection strip at the front. Stickers show voltage specifications: 'DC: 12-48V' and 'PoE: DC48-57V'.

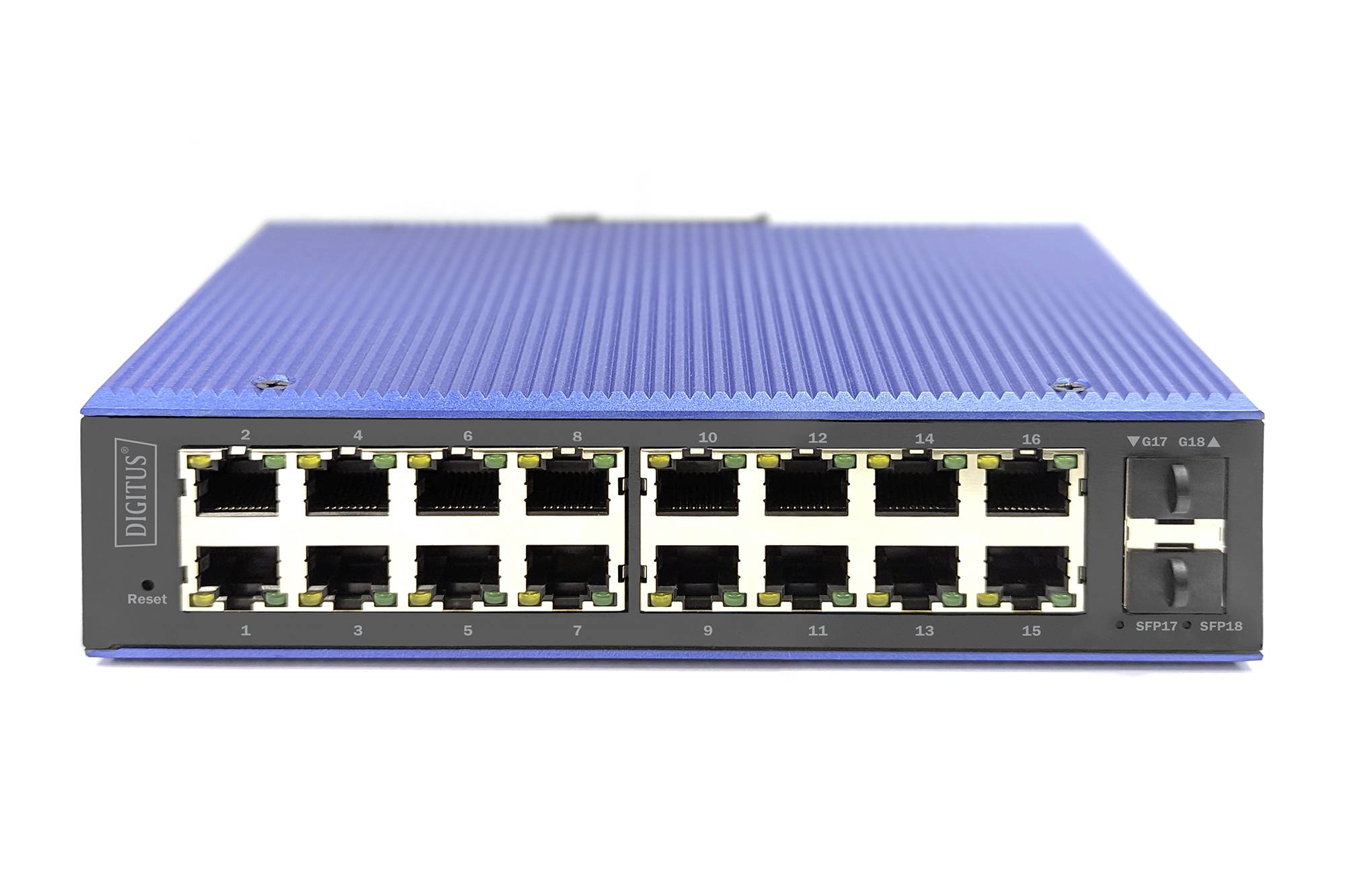

A network switch with 16 Ethernet ports, shown in close-up. Supports connecting multiple devices for data transmission.

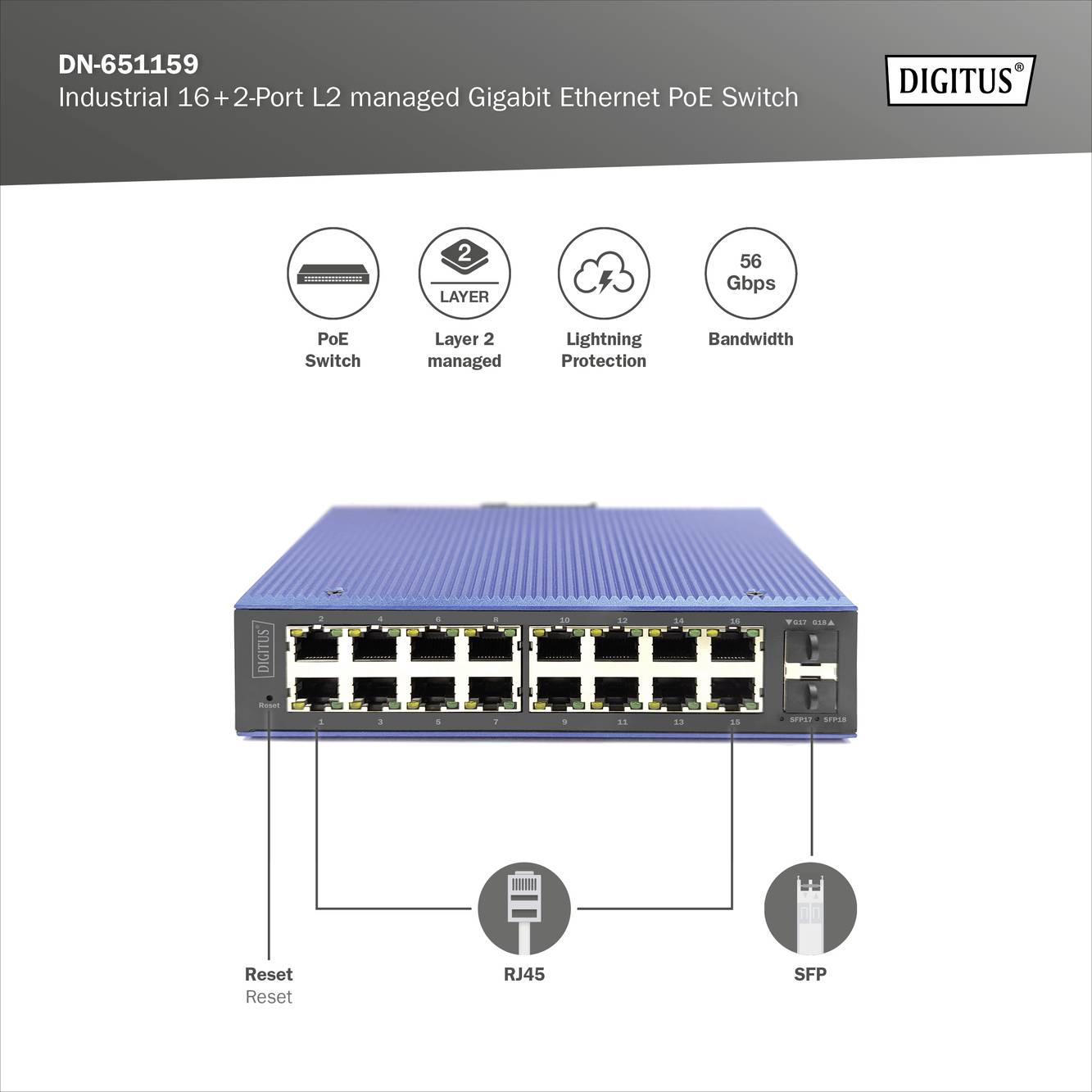

Industrial switch with 16+2 ports and Gigabit Ethernet PoE supporting PoE, Layer 2 management, lightning protection, 56 Gbps bandwidth.

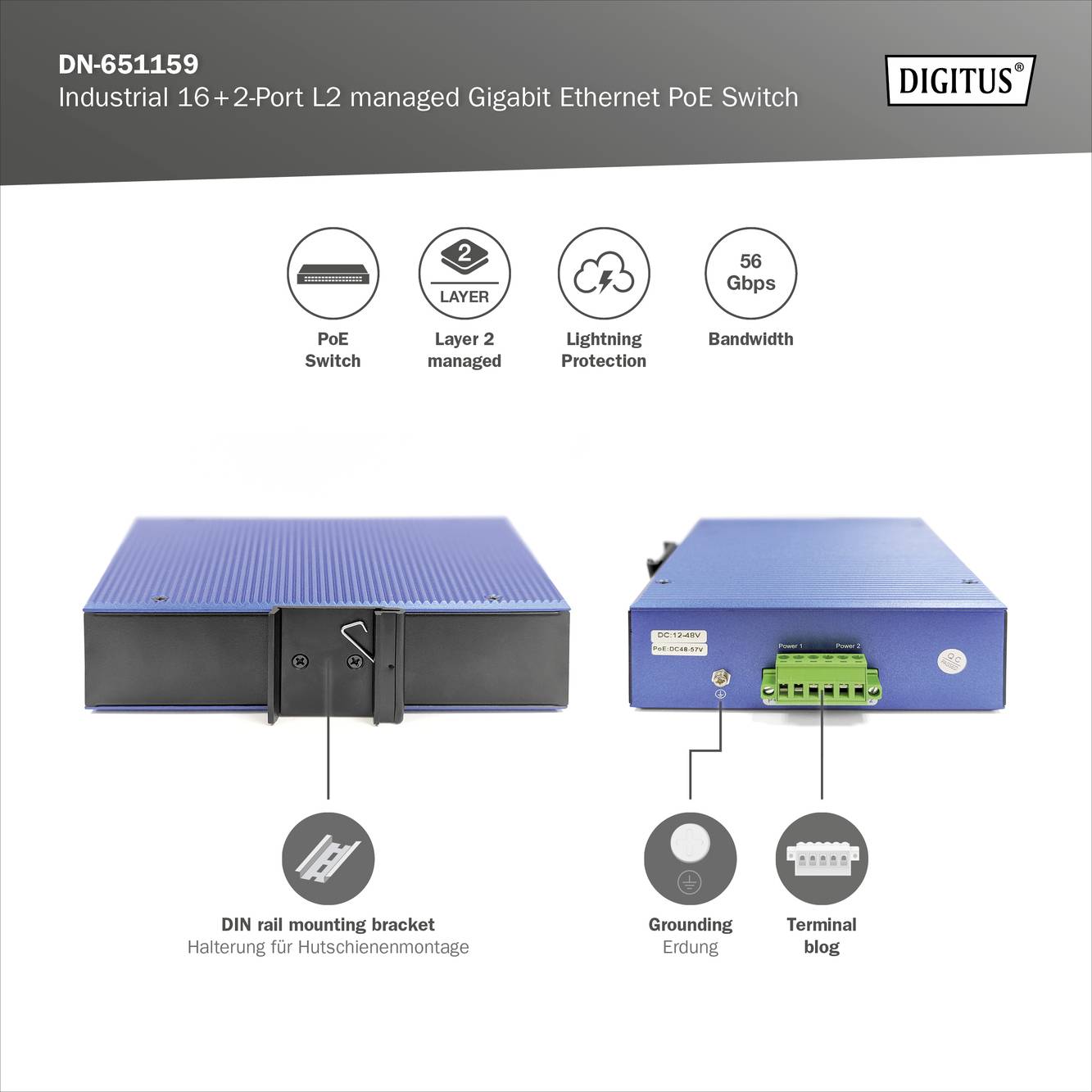

'Functional representation of an industrial, L2-managed PoE switch with 16+2 ports. Offers 60 Gbps, lightning protection and DIN rail mounting.'

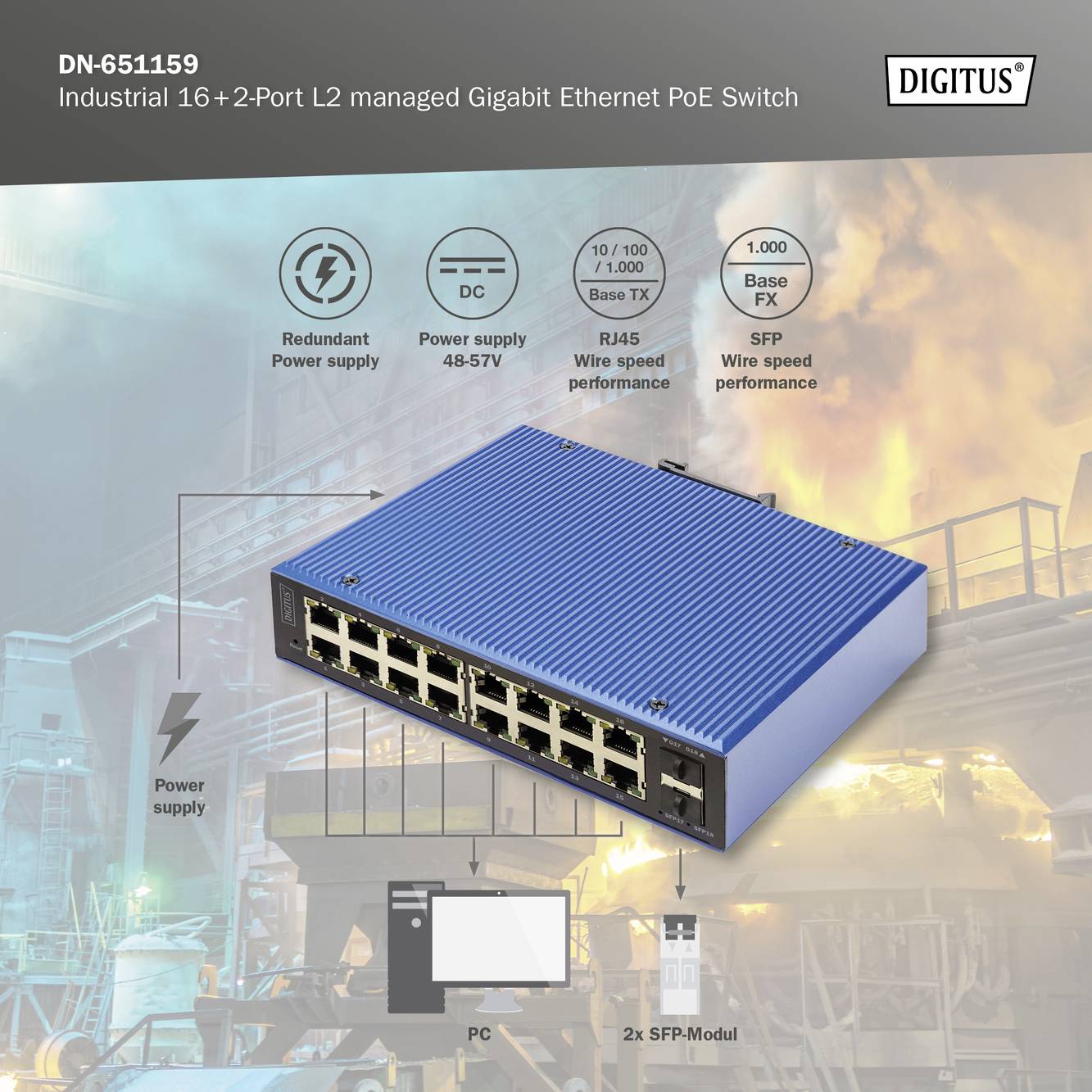

Industrial 16+2-port Ethernet PoE Switch. Shows connections for power supply, RJ45, SFP. Industrial applications depicted.

1/9

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus industrial 16+2-port L2 managed Gigabit Ethernet PoE switch

Highlights & Details

16 ports GE RJ45, 2 SFP GE ports
16 x 10/100/1000 Mbit (RJ45, PoE IEEE802.3af/at)
2 x 10/100/1000 Mbit (SFP

Technical specifications

Product type: Industrial Ethernet switch

LAN transfer rate: 1000 MBit/s

Transfer rate: 1 GBit/s

Working principle: Managed switch

SFP ports: 2 x

10/100/1000 Mbps ports: 16 x

Power supply (LOV): mains-powered (redundant)

Weight: 1200 g

Width: 175.6 mm

Height: 135 mm

Depth: 45.5 mm

Type: DN-651159

Rack size: 254 mm (10")
483 mm (19")

: IP40

Factory colour: Blue

Max. ambient temperature: -40 °C

Min. ambient temperature: 80 °C

Port: 16 + 2 ports

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2997764 Digitus DN-651159 DN-651159 Industrial Ethernet switch 16 + 2 ports 1 GBit/s

Description

The Digitus DN-651159 Ethernet switch with 16x RJ45 interfaces, as well as 2 x SFP Uplinks offers numerous layer 2 port functions for optimum network performance. It supports flow control, link aggregation, and various routing strategies. The switch enables VLAN management, supports spanning tree protocols, and ensures rapid disaster recovery. With IGMP and MLD snooping, you can optimize multicast traffic. The switch provides advanced security features such as ACLs and supports QoS for traffic prioritization. You have control with extensive management options like SNMP and CLI. The RJ45 port can supply connected PoE devices with up to 30W each. Our switch is a reliable networking solution with advanced features to meet your needs.
