Buy Digitus DN-652102-1 LAN Media converter 10 / 100 / 1000 MBit/s

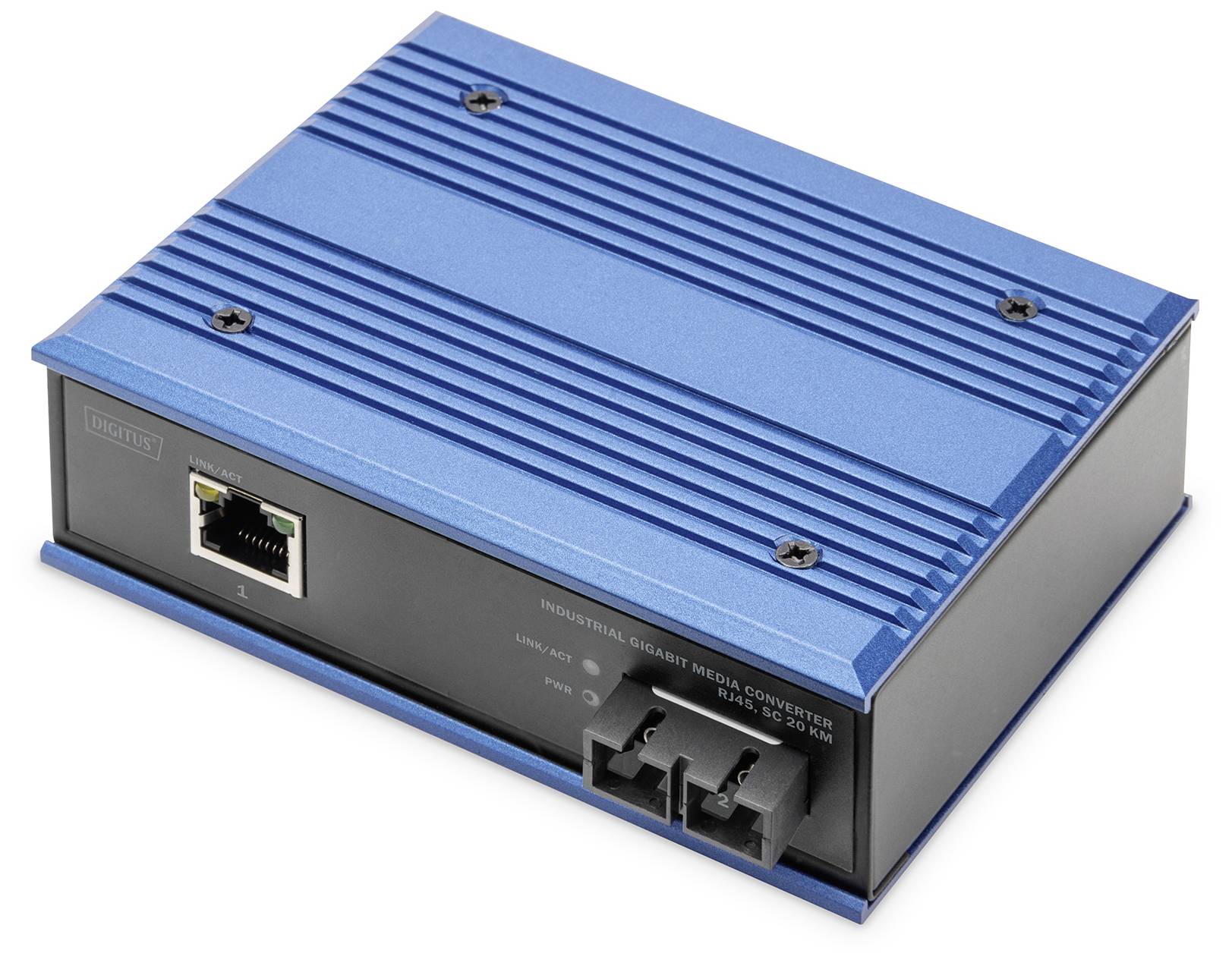

Blue industrial media converter with metal casing, Ethernet and fibre optic connections on the front panel.

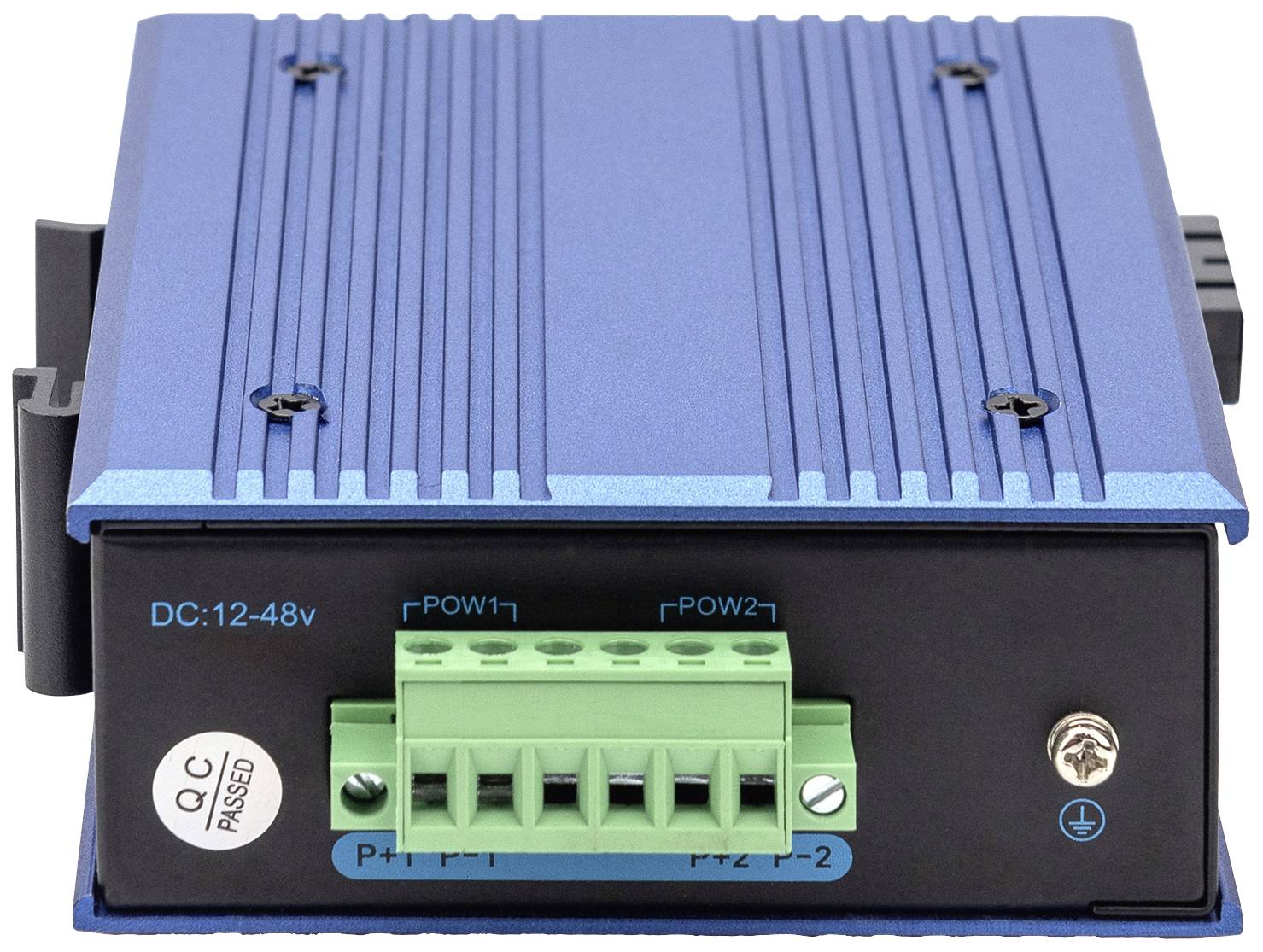

A blue, rectangular electronic device with ports and a sticker reading 'QC PASSED'.

A blue electronic device with green ports at the front, suitable for 12-48V power supply. Mounting options for industrial applications.

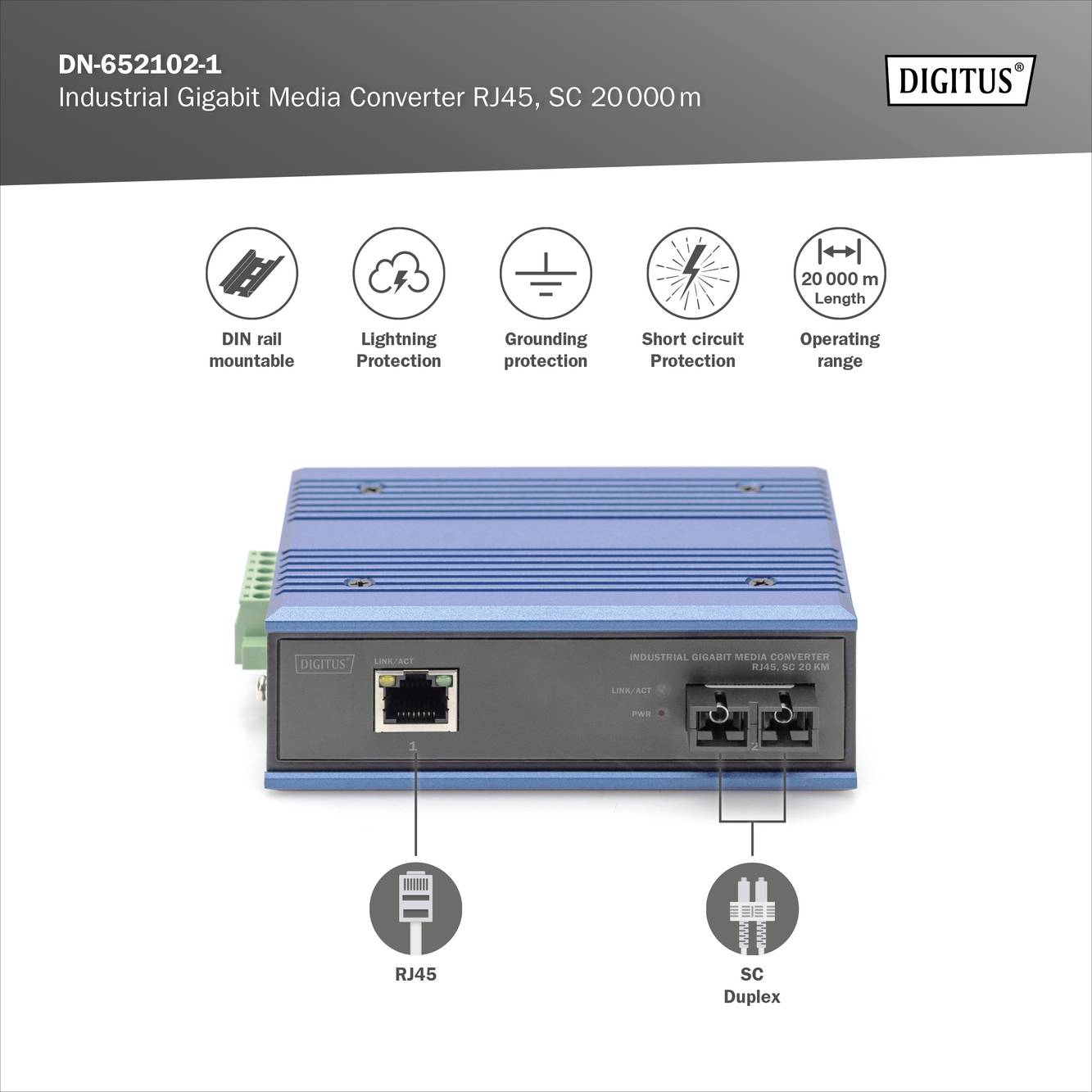

'Industrial Gigabit Media Converter RJ45, SC 20000m' by DIGITUS with housing, Ethernet RJ45 port and SC-duplex connection.

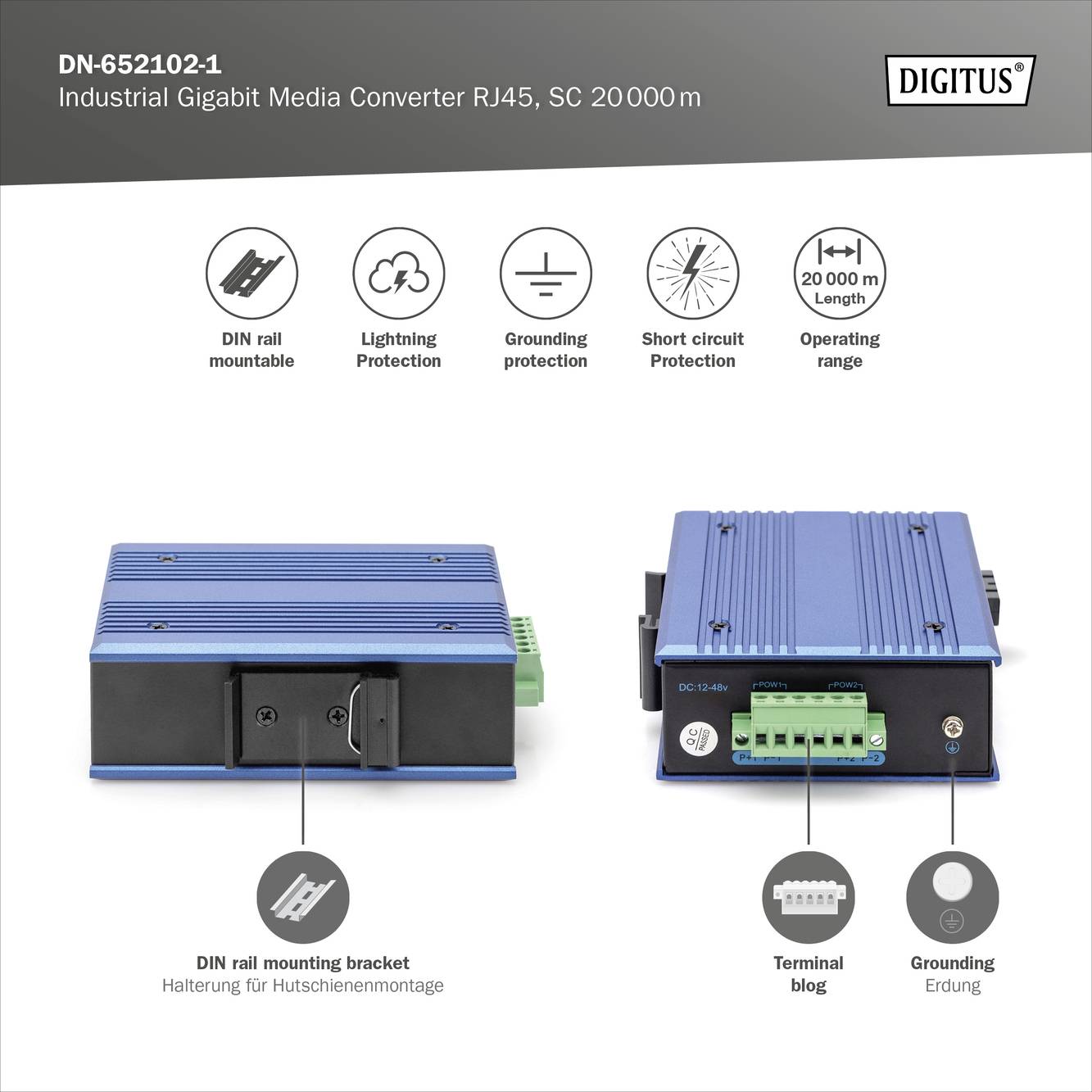

Industrial Gigabit Media Converter by Digitus with DIN rail mounting, lightning protection, earthing, short-circuit protection and 20 km range.

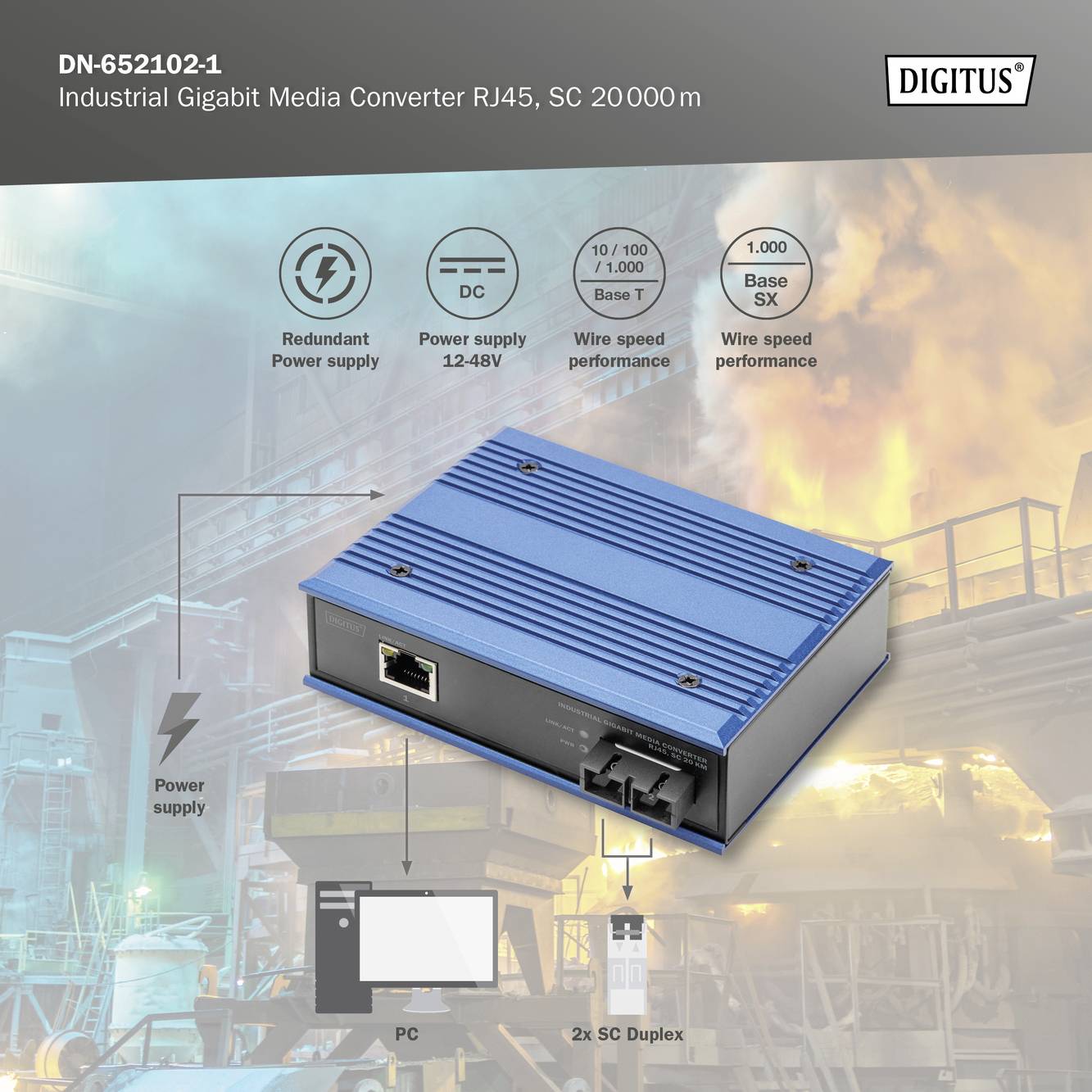

DN-652102-1 Industrial Converter, Gigabit, RJ45, SC, 20000m, shows connection options and data transmission in an industrial environment.

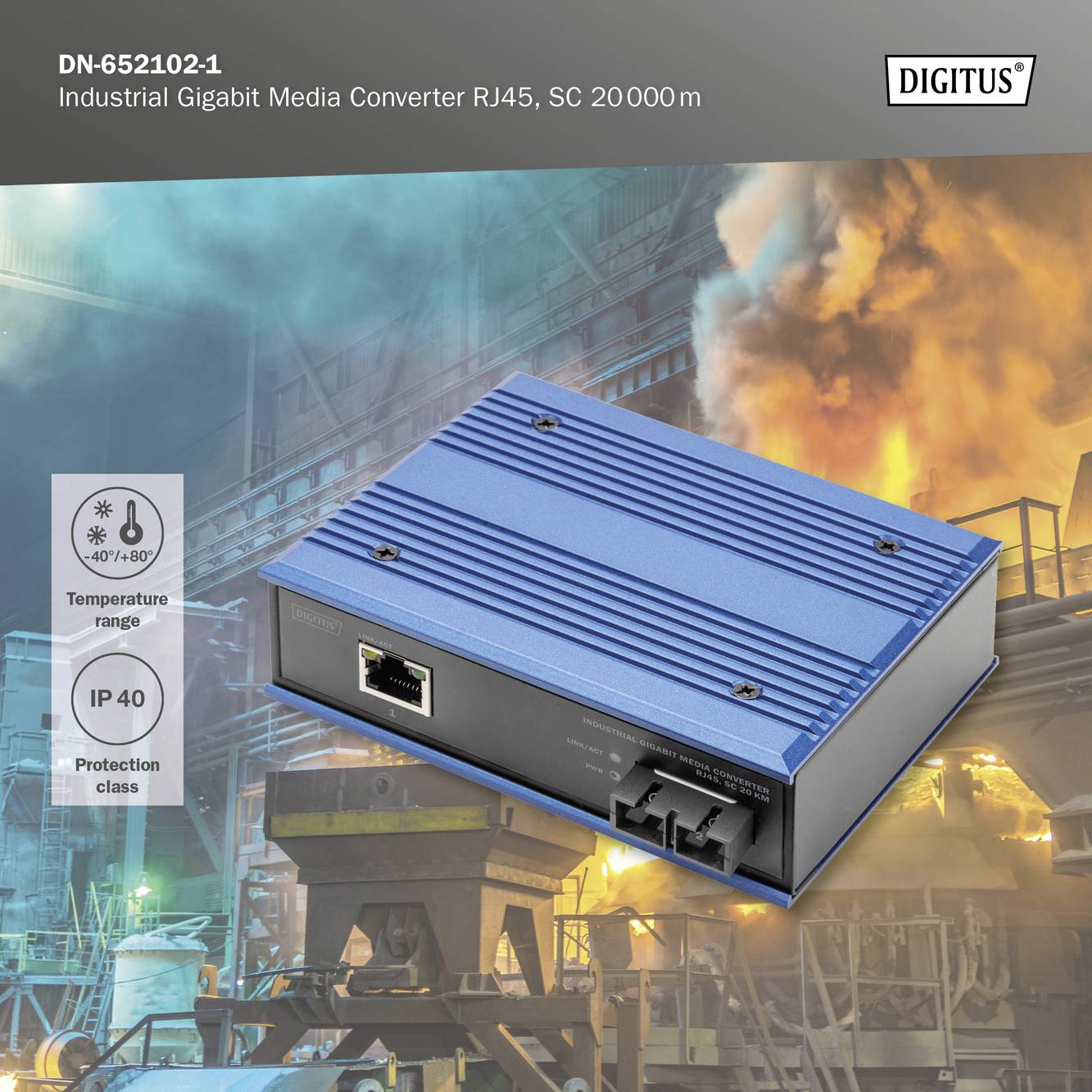

Digitus DN-652102-1 LAN Media converter 10 / 100 / 1000 MBit/s-6

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus Digitus Industrial Gigabit Media converter RJ45, SC 20 km.

Highlights & Details

Converts wire-based network signals into fiber optic signals
High quality and highest reliability
10/100/1000Base-TX to 1000Base-SX

Technical specifications

Product type: Media converter

Interfaces: RJ45

Link: LAN

Transfer rate: 10 / 100 / 1000 MBit/s

Length: 118 mm

Width: 92.4 mm

Height: 40 mm

Weight: 0.56 kg

Version: Cable

Cable use: RJ45

Connection type: RJ45

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2997768 Digitus DN-652102-1 LAN Media converter 10 / 100 / 1000 MBit/s

Description

The Digitus® media converters are an optimal solution for the migration of fiber optic signals. Now you can access fiber optic technology and bridge several kilometers without replacing your entire network cabling. With our extensive range of products you can react to your individual requirements. Intuitive operation guarantees quick and easy installation. Years of experience and a wide range of services make Digitus® a reliable partner for your network technology.

This text is machine translated.

Features

Range up to 20 km
Wavelength: 1310nm
Single-mode fiber
Automatic cable detection - auto MDI/MDI-X function
Diagnostic LEDs for status and activity monitoring
Suitable for 50/125µm, 62.5/125µm and 100/140µm fiber optic cables (multimode)
Compact, robust metal housing
Excellent protection from short-circuits

Scope of delivery

Industrial Gigabit Media converter RJ45, SC 20 km.
User manual
