Buy Digitus DN-80115-1 Ethernet switch 16 ports

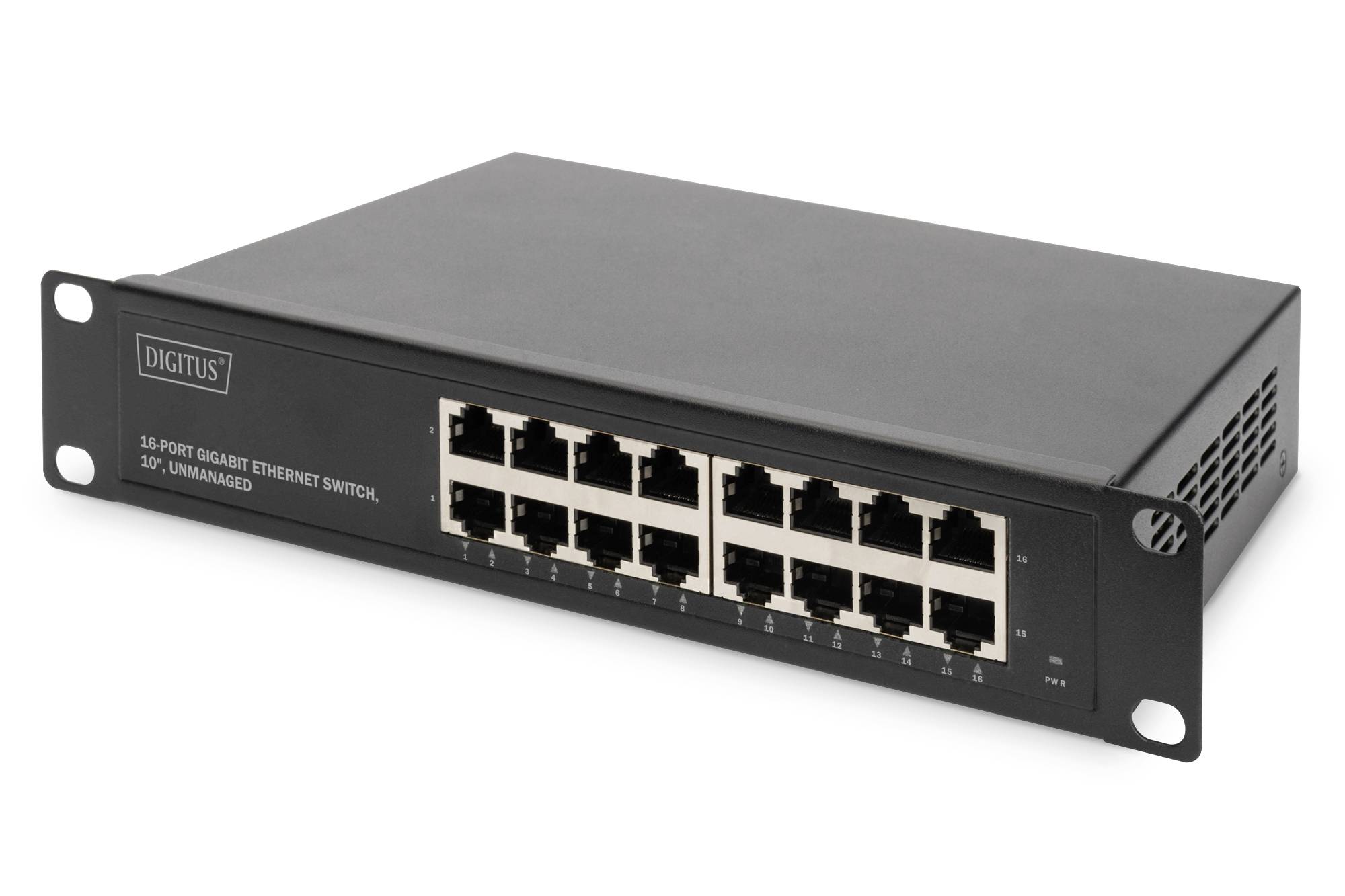

Black 16-port Gigabit Ethernet switch with rack-mount ears and front panel LEDs, shown on a white background.

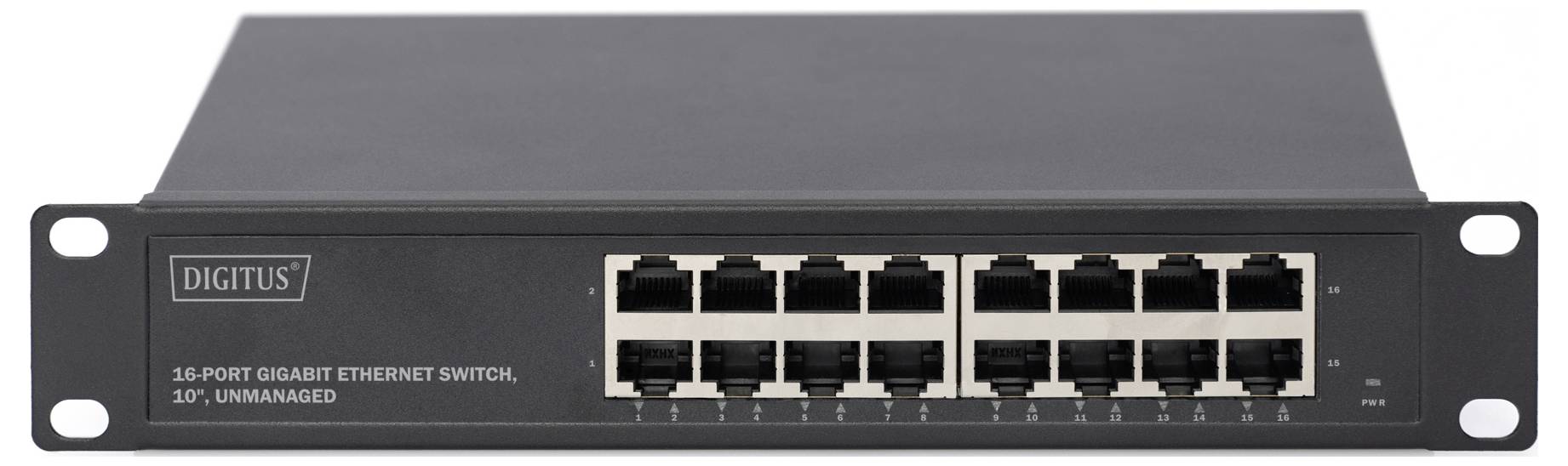

Front view of a DIGITUS 16-port gigabit Ethernet switch, 10-inch unmanaged, with 16 RJ45 ports and rack-mount ears.

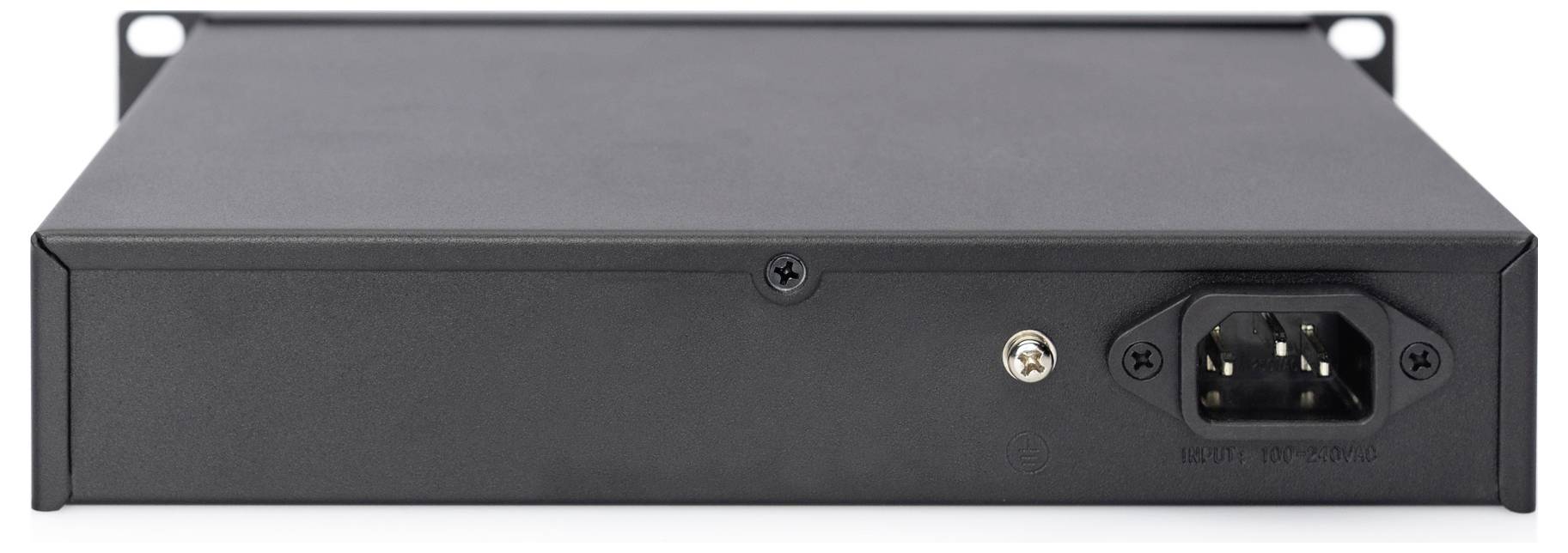

Front view of a black metal electronic device or server unit, showing a power input socket, mounting ears, and a plain front panel.

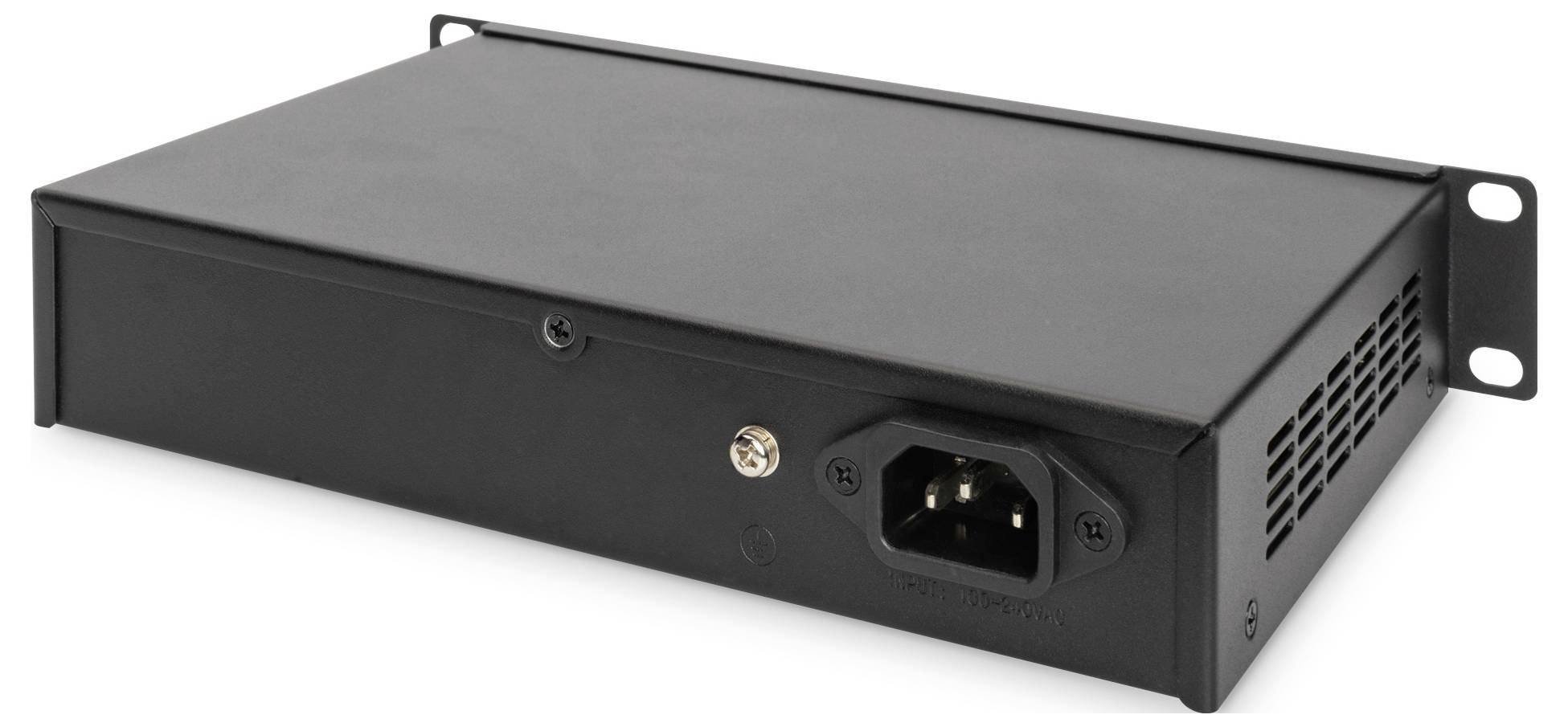

Black 1U rackmount electronic enclosure with power inlet, front key lock, and side vent holes on a white background

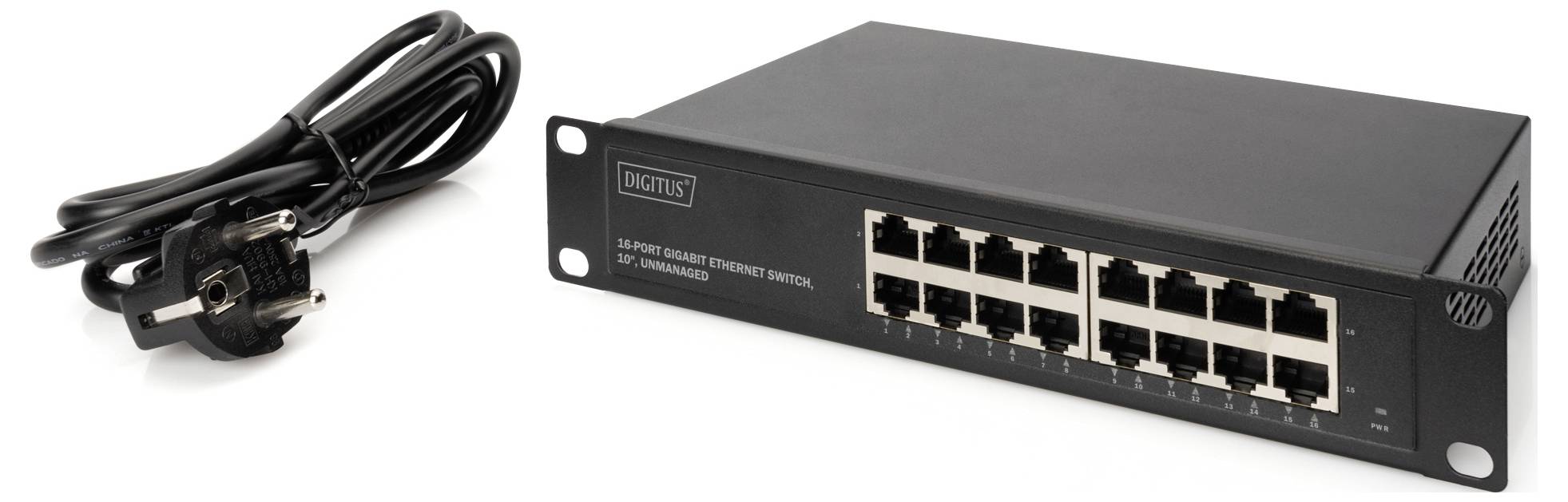

A 16-port Ethernet network switch with a power cord, shown on a white background.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Digitus 10" gigabit Ethernet switch, 16-port, unmanaged

16 × 10/100/1000Base-T RJ45 ports
Simple Plug & Play installation.
10" rack mount (25 cm)
Switching capacity 32 Gbps
Transmission rate: Up to 1,488 Mpps per port
Store-and-forward switching
Non-blocking architecture
IEEE 802.3x flow control
Auto negotiation
Auto MDI/MDI-X on all ports
8K MAC address table
Fanless metal casing
Power consumption: max. 15 W

Technical specifications

Ports 16 × 10/100/1000Base-TX
IEEE 802.3, 802.3u, 802.3ab, 802.3x
Switching capacity 32 Gbps
Forwarding: Non-blocking
Architecture: Store-and-forward
MAC addresses: 8K
Duplex mode: Half/full duplex auto-detection
Flow Control IEEE 802.3x (Full Duplex), Back Pressure (Half Duplex)
Design 10" (25 cm)
Installation: Rack or desktop
Housing: metal
No fan (passive cooling)
Dimensions: Approx. 252 × 150 × 42 mm
Input voltage 100–240 V AC, 50/60 Hz
Internal power supply
Power consumption: max. 15 W
Operating temperature: 0 °C to 40 °C
Storage temperature: -10°C to 70°C.
Humidity: 5% - 95% (non-condensing)

Auto-uplink at each port: Yes

Factory colour: Black

: IP20

Jumbo frames: Yes

Working principle: Unmanaged switch

Interfaces: RJ45

Port: 16 ports

Rack size: 254 mm (10")

Power supply (LOV): via PSU

Operating voltage: 240 V AC

Ethernet ports: 16

Port type: RJ45 ports

Max. ambient temperature: 40 °C

Min. ambient temperature: 0 °C

Weight: 1.60

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3763176 Digitus DN-80115-1 Ethernet switch 16 ports

Description

The Digitus® DN-80115-1 is a compact 16-port Gigabit switch for powerful network infrastructures with many wired devices. With 16 × 10/100/1000Base-T ports and a switching capacity of 32 Gbps, the device provides sufficient power reserves for parallel data transfer at high utilization. The switch operates as an unmanaged layer 2 device and does not require any configuration. Auto-negotiation automatically detects speed and duplex mode, while Auto MDI/MDI-X enables the use of different cable types without manual adjustment. The non-blocking architecture in combination with store-and-forward technology ensures a reliable, packet-tested data forwarding. IEEE 802.3x flow control (full duplex) as well as back pressure (half duplex) support a stable performance even at increased network load. The fan-less metal housing provides for a noiseless operation and reduces the mechanical wear parts. Through the 10" - compatibility (1HE) the switch is especially suitable for compact network cabinets, wall distributors or structured building wiring.

This text is machine translated.

Scope of delivery

DN-80115-1 10" Gigabit switch
Power cable;
Quick start guide
Rubber feet
