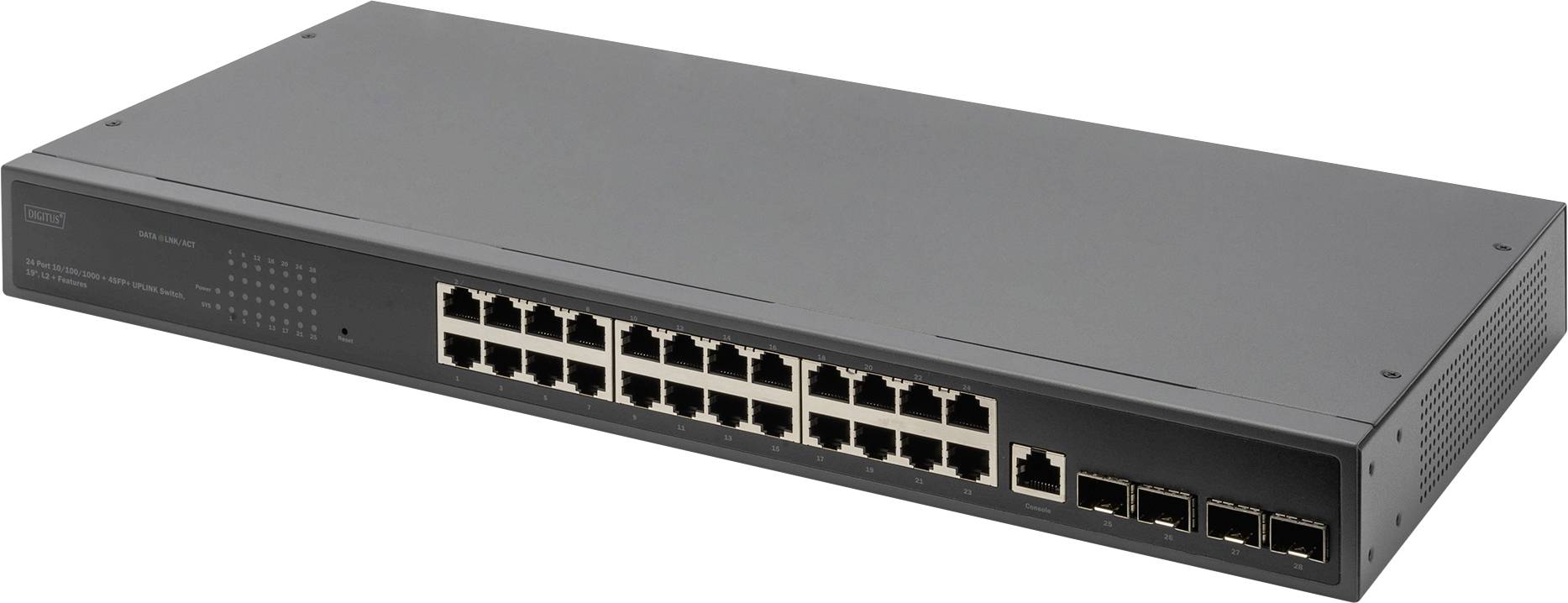

Digitus DN-80223 DN-80223 Ethernet switch 24 ports 10 / 100 / 1000 MBit/s
EAN:
Part number:
Item no:

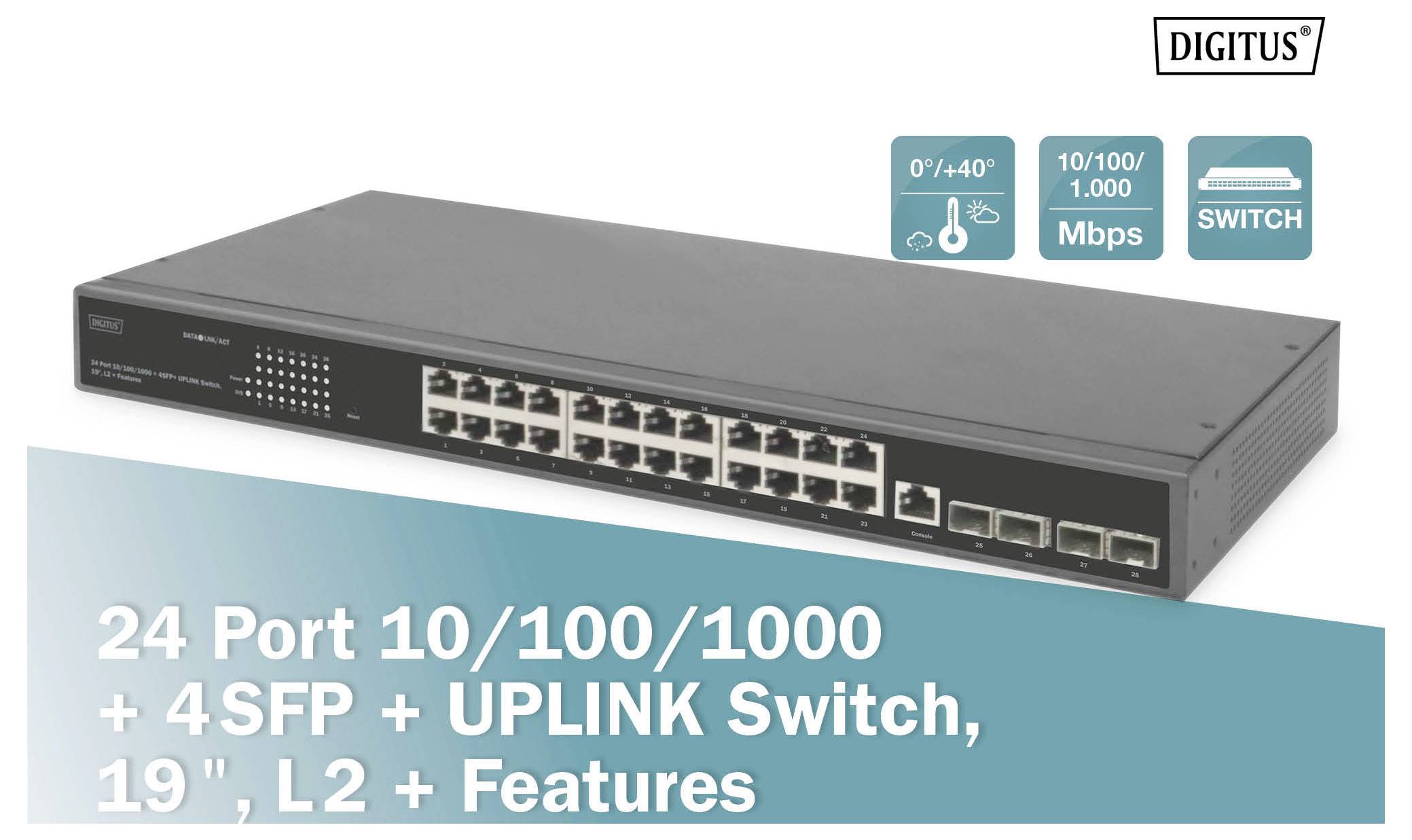

Digitus DN-80223 24 port 10/100/1000 + 4SFP+ UPLINK switch, 19", L2+ features
Highlights & Details
- Supports RJ45 auto MDI/MDIX
- Panel light monitors the working status and helps with the fault analysis
- Supports full duplex IEEE 802.3x flow control and back pressure half duplex flow control
Technical specifications
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad

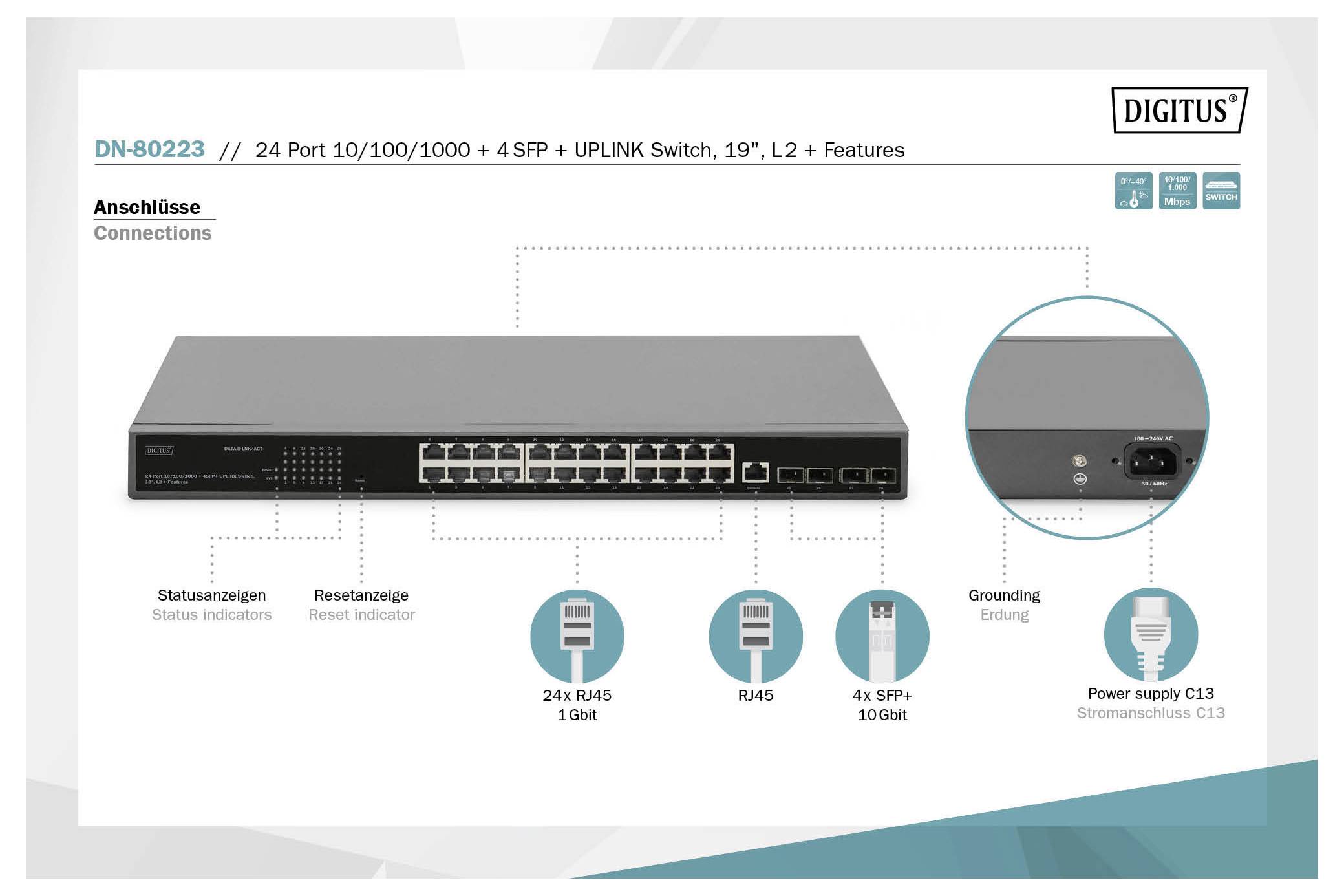

- Interface 24x 10/100/1000Mbps RJ45 port, 4x 10G SFP+ slots, 1x console
- LED DISPLAY PWR, LNK/ACT, SYS
- Network Media: 10BASE-T: UTP Category 3, 4, 5≤100m), 100BASE-TX: UTP Category 5, 5e Cable(≤100m), 1000BASE-T: Category 5e, 5（≤100m UTP cable） 1000BASE-X: MMF, SMF, 10GBASE-X: MMF, SMF
- MAC address table: 16K, auto-learning, auto-aging
- Jumbo frame: 12K bytes
- Transfer mode: Store-and-forward
- Packet forwarding speed: 95.23Mpps
- Switching capacity: 128 Gbps
- Package buffer: 12Mbit
- Number of fans: Without fan
- Energy-saving options: IEEE 802.3az
- Power supply 24W
- Input voltage 12V/2A
- Operating temperature: 0 °C ~ 40 °C
- Storage temperature -40 °C ~ 70 °C
- Operating humidity: 10% ~ 90% non-condensing
- Storage humidity: 5% ~ 90% non-condensing
- System settings: Basic information, system status, user management, SNTP configuration, importing/exporting configuration files, Firmware upgrade

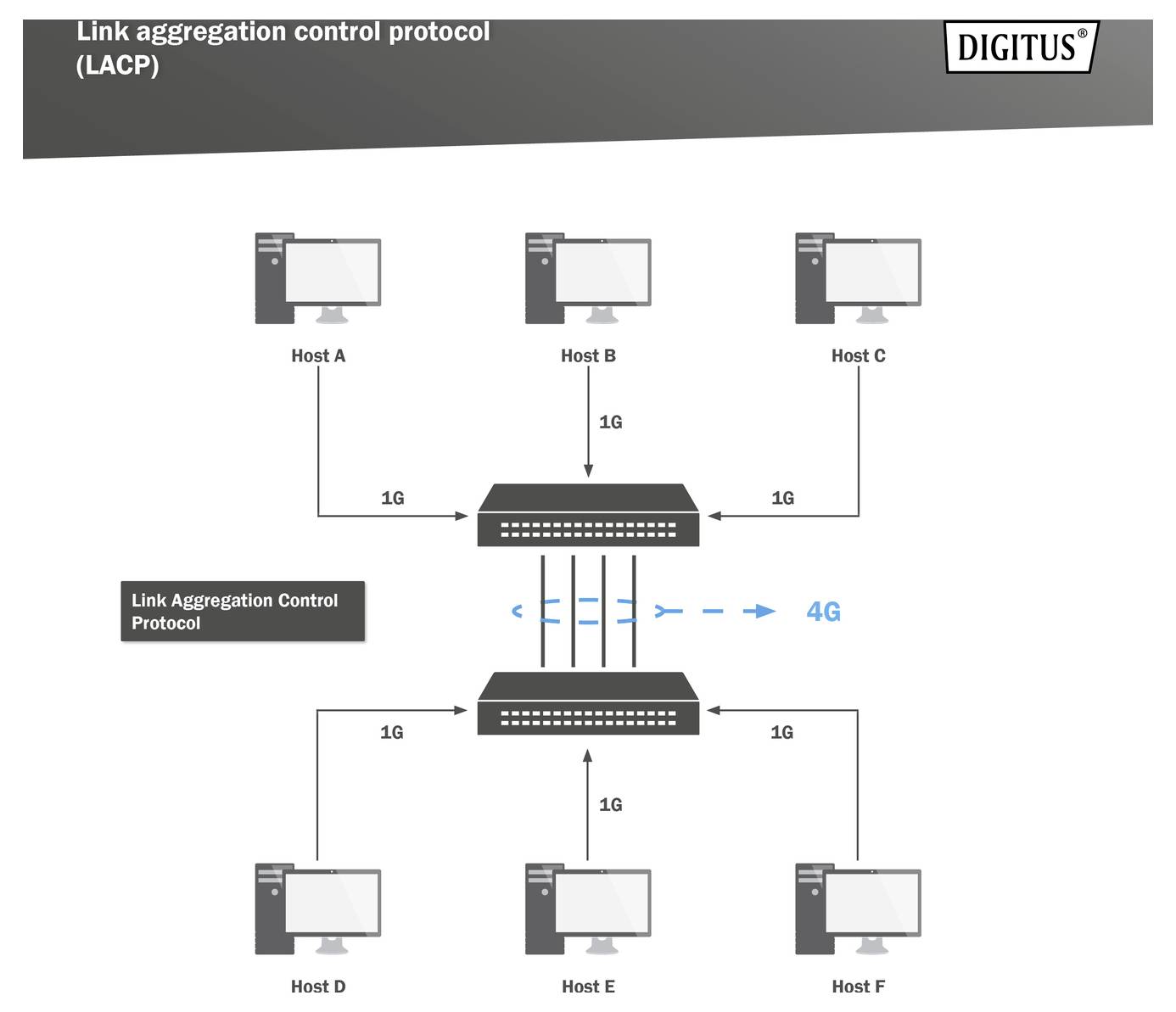

- Port settings: Basic configuration, port statistics, broadcast storm, port rate limit, port security, link aggregation, port mirroring and port isolation, port aggregation, load balancing, static aggregation, LACP
- MAC binding: Static MAC binding, dynamic learning, automatic conversion of MAC binding, MAC aging and learning restriction as well as MAC filtering
- VLAN configuration: VLAN information, VLAN configuration, VLAN port configuration, voice VLAN, QinQ, GUEST-VLAN, GVRP, MVR
- ARP: IP Source Guard, ARP Check, Grateful ARP, ARP Defense, DAI, Tri-binding
- DHCP: IPV4/IPV6 DHCP snooping, DHCP Server, DHCP Relay
- STP: STP/MSTP/RSTP, PortFast，Root Guard, BPDU Guard
- SNMP CONFIGURATION: SNMP COMMUNITY, SNMP VIEW, SNMP TRAP, SNMP(V1,V2C,V3)
- RMON configuration: RMON(1.2,3.9)
- ACL configuration: Standard ACLs, IPv6-based ACLs, advanced ACLs, Mac-based ACLs, expert ACLs, and time range ACLs

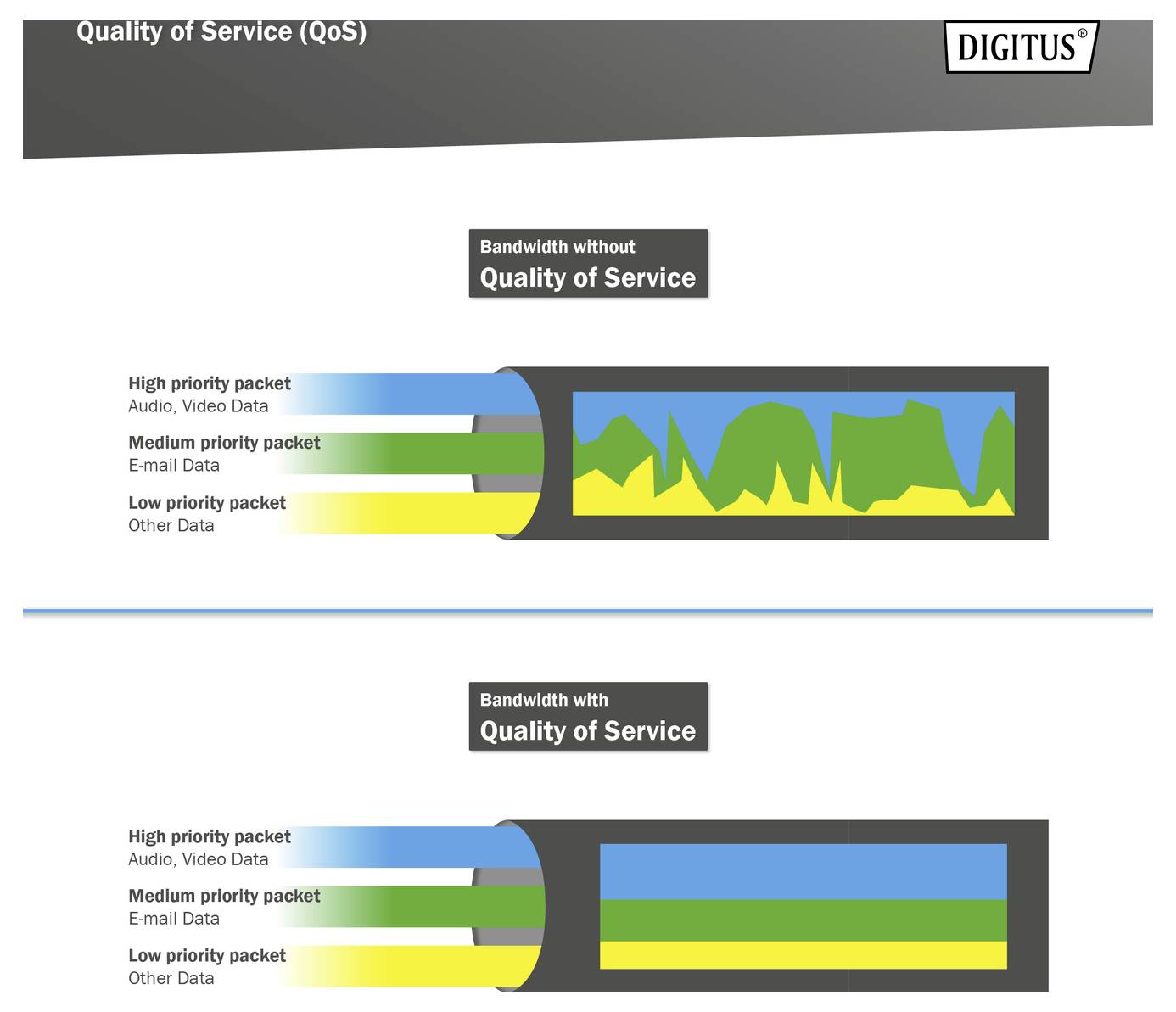

- QOS configuration: QOS application, QOS scheduling strategy, queue mapping (DSCP&CoS)

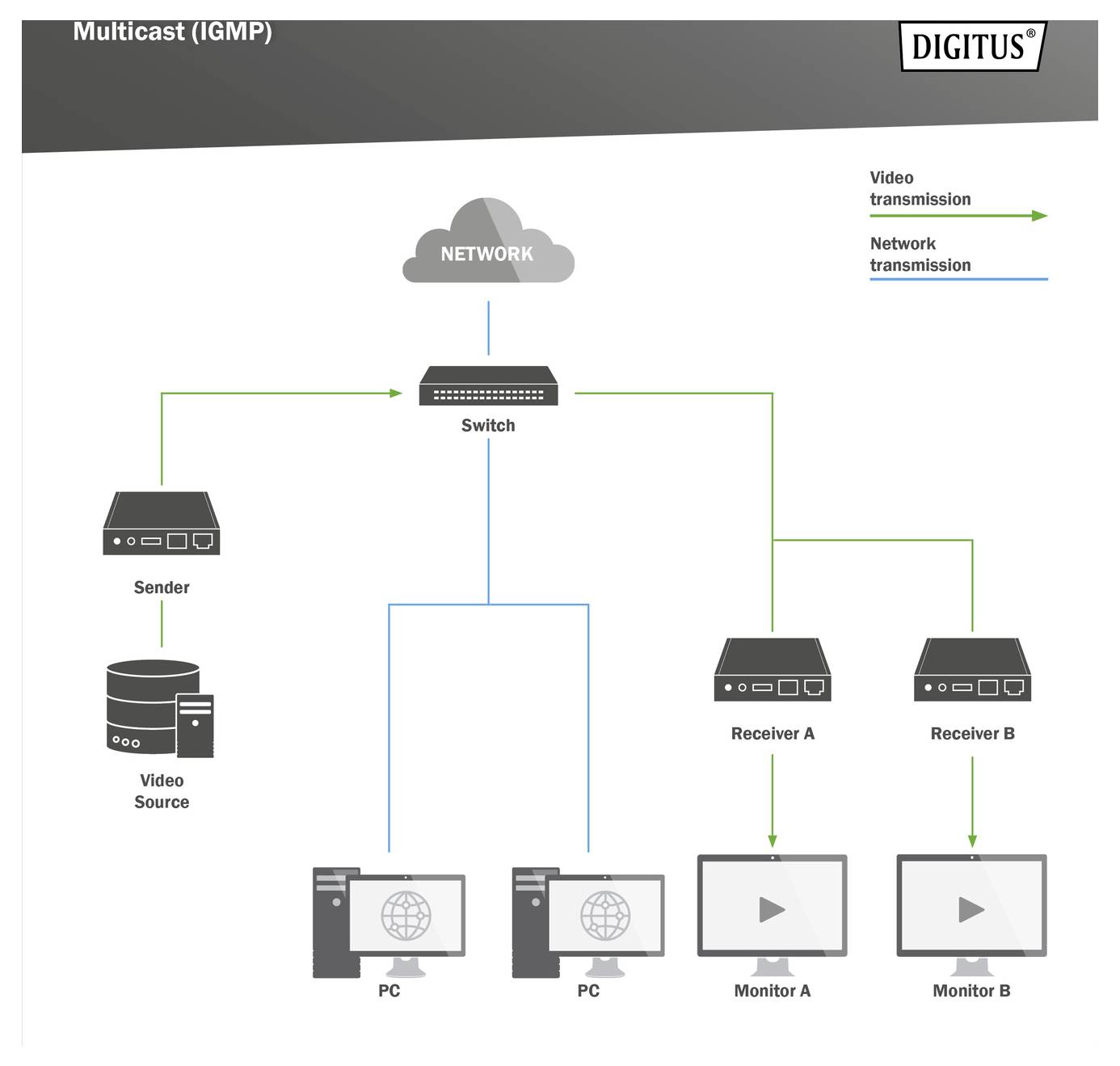

- IGMP Snooping Configuration: IGMP SNOOPING Configuration, Multicast Group Information, IGMP SNOOPING VLAN, IGMP SNOOPING (V1,V2,V3)）
- ERPS: ERPS configuration, ERPS mode, ERPS role
- LLDP: LLDP TLV configuration to display network information
- Error disabling: Error disable, loopback detection
- Web Tools: Ping/Ping6, Traceroute/Traceroute 6, cable detection
- Log management: Log management and debug information
- Industrial use: No.
- Suitable for outdoor use: No.
- Power over Ethernet (PoE): No.
- Protection against vandalism: No.
- Product type
Ethernet switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
10000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
24
- SFP+ ports
4 x
- SFP ports
4 x
- 10/100/1000 Mbps ports
24 x
- Port type
RJ-45
- Jumbo frames
Yes
- Power supply (LOV)
mains-powered
- MAC addresses
16000
- Weight
3.61 kg
- Width
440 mm
- Height
260 mm
- Depth
44 mm
- Type
DN-80223
- Rack size
483 mm (19")
- Factory colour
Black
- Port
24 ports
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3066266 Digitus DN-80223 DN-80223 Ethernet switch 24 ports 10 / 100 / 1000 MBit/s
Description

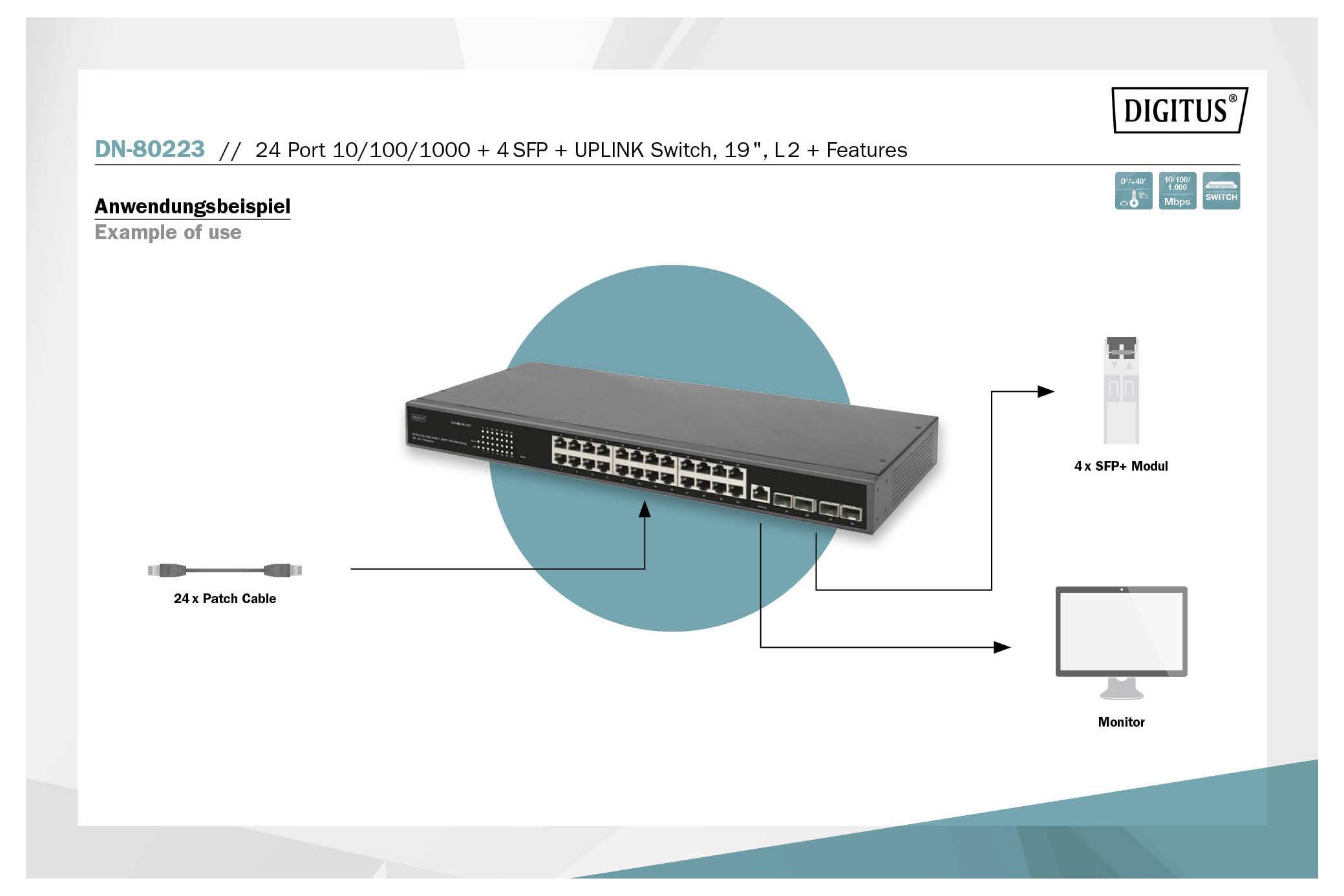

The Digitus DN-80223 is optimally suitable with its 24 gigabit RJ45 port and four independent SFP + glass fiber module extension slot for connecting local networks to the data center. Equipped with 4 x 10G SFP+ slot, you can expand your network flexibly. The 10G Uplink Switch offers high performance, Enterprise QoS, advanced security policies, and extensive Layer 2+ management features. With all these advanced features, the switch is powerful and flexible enough to meet virtually any IT requirement.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 24 port RJ45 network switch, 4 10G SFP+ uplink switch
- Power Cables
- User manual
