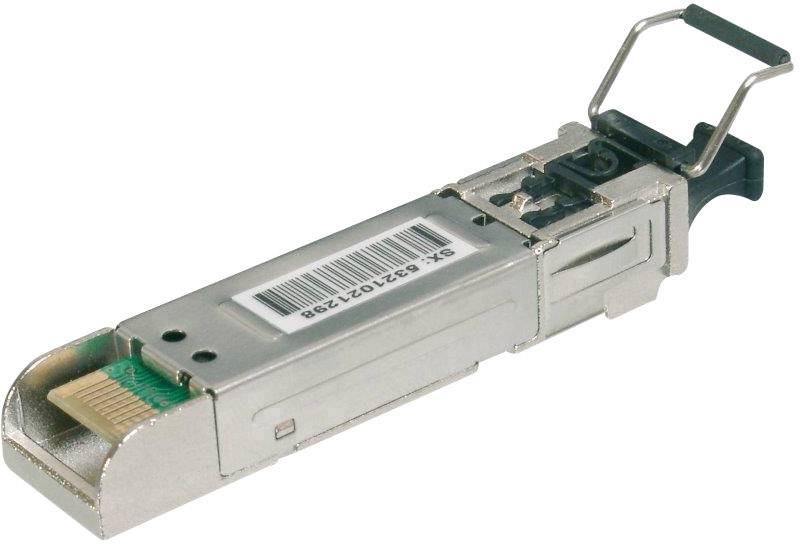

Digitus DN-81001-01 DN-81001-01 SFP transceiver module 1.2 GBit/s 20 km Module type LC
EAN:
Part number:
Item no:
Datasheet (PDF)
DIGITUS Professional SFP module, Gigabit, up to 20 km, LC, duplex, single mode, 1310 nm, HP-Compatible
Highlights & Details
- Mini GBIC SFP (Small Form-Factor Pluggable) module with high quality and maximum reliability
- 1.25 Gbps maximum data rate
- For a distance of up to 20 km
- Suitable for 09/125 μm single mode glass fiber cable
- MSA (Multi-Source Agreement) compatible, programd for HP
Technical specifications
- Maximum data transfer rate: 1.25 Gbps
- Connection: 1 x LC Duplex
- Shaft length: 1310 nm
- Standard: 1000BASE-LX (for long distances)
- Transmission power: Minimum 8 dBm, Maximum -3 dBm
- Reception sensitivity: Minimum -24 dBm
- Distance: up to 20 km
- Suitable for: 09/125 μm single mode glass fiber cable
- Power supply: 3.3V
- Operating temperature: -0 to + 70 °C.
- Product type
SFP transceiver module
- Transfer rate
1.2 GBit/s
- Interfaces
LC
- Module type
LC
- Distances up to
20 km
- LAN transfer rate
1000 MBit/s
- Weight
60 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1515951 Digitus DN-81001-01 DN-81001-01 SFP transceiver module 1.2 GBit/s 20 km Module type LC
User & Safety Instructions
User & Safety Instructions 1515951 Digitus DN-81001-01 DN-81001-01 SFP transceiver module 1.2 GBit/s 20 km Module type LC
Description
The Digitus Mini GBIC (SFP) transceiver modules offer the highest quality and reliability. Whether from switch to switch, converter to switch, converter to converter or more extensive possibilities: the large variety of DIGITUS modules allows you a flexible use of fiber-optic technology. The conformity with the MSA (Multi-Source Agreement) Standard, compatibility with third-party is guaranteed.
This text is machine translated.
This text is machine translated.
Features
- High quality and maximum reliability
- Enstspricht the IEEE 802.3z Gigabit Standard
- Class 1 laser product according to EN60825-1
- Easy Plug and Play installation.
- Hot pluggable
- Secure Schnellverschluss-Mechanismusafe
