Buy Digitus DN-81004-01 DN-81004-01 SFP (Mini-GBIC) transceiver module 1.25 GBit/s 20 km Module type LC

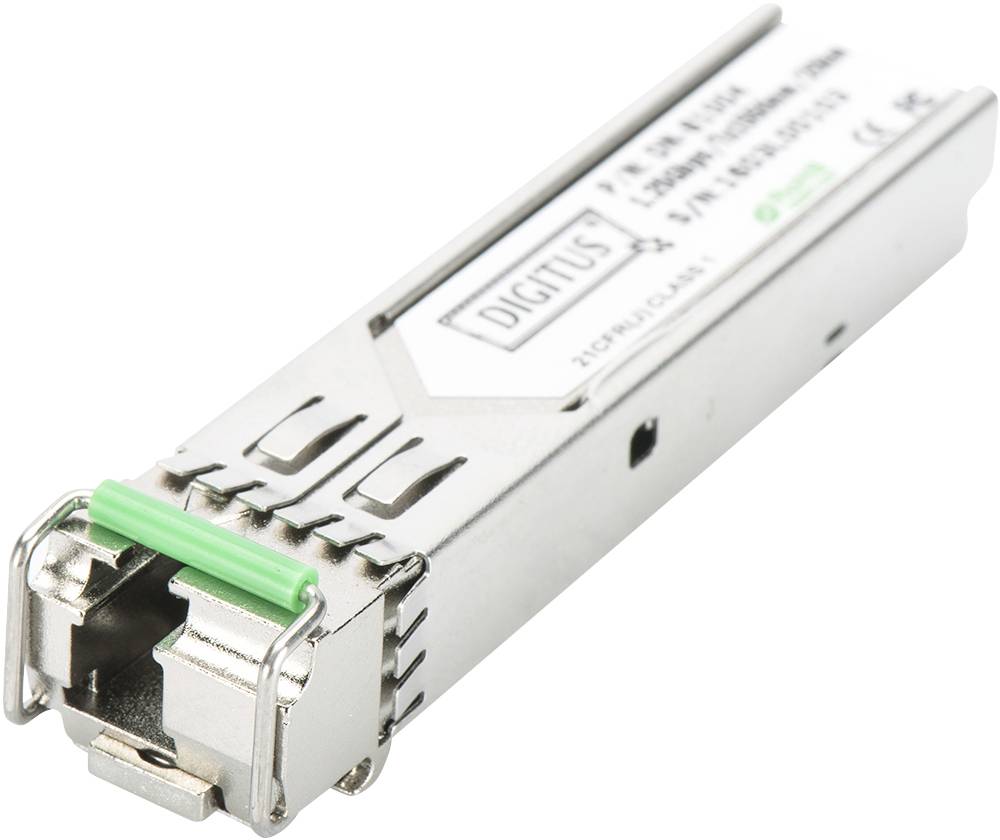

A silver SFP module with product details on the surface, used for network connection in fibre optic systems.

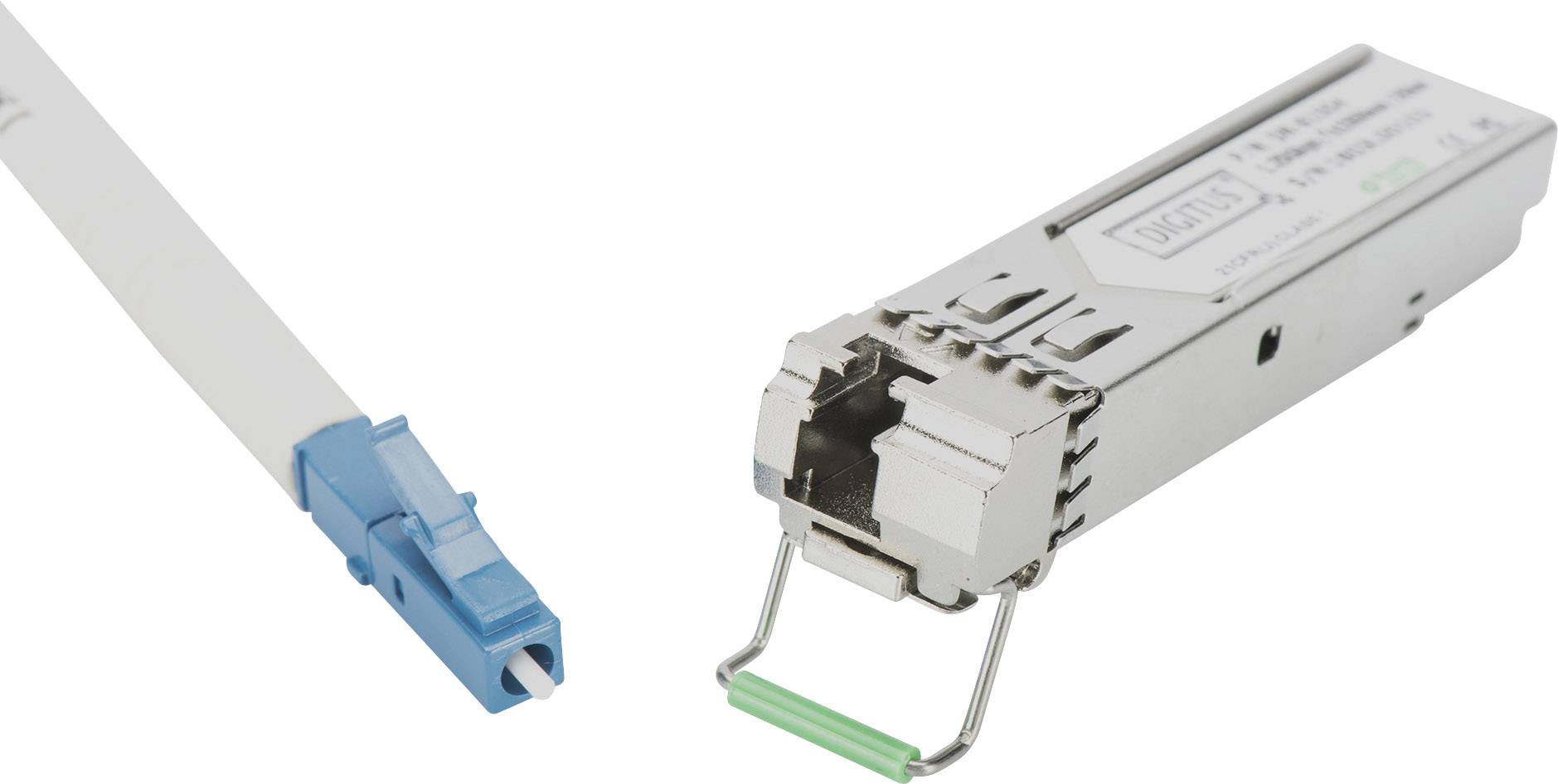

An LC optical fibre connector next to an SFP transceiver module, commonly used in network technology for data transmission.

1/2

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

DIGITUS HP-compatible mini GBIC (SFP) module, 1.25 Gbps, 20km, with DDM function

Highlights & Details

The Plug & Play fiber connection allows quick installation
Sends data in high quality and also offers the highest reliability
Distance up to 20km at a maximum data rate of 1.25Gbps

Technical specifications

Connection: 1x LC Simplex
Wavelength: TX 1550nm / Rx 1310nm
Transmission power: Minimum -5 dBm, maximum 0 dBm
Reception sensitivity: Minimum -24 dBm
Suitable module for the opposite side: DN-81003
Operating temperature: 0 °C ~ 70 °C
Mode: Singlemode
Connection: LC
Distance (km): 20
Wavelength 1550/1310 nm
DDM support: Yes
Manufacturer Compatibility: HP, Universal (MSA)
Send method: Bidirectional
Ethernet speed: Gigabit

Product type: SFP (Mini-GBIC) transceiver module

Transfer rate: 1.25 GBit/s

Interfaces: SFP

Module type: LC

Distances up to: 20 km

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2290741 Digitus DN-81004-01 DN-81004-01 SFP (Mini-GBIC) transceiver module 1.25 GBit/s 20 km Module type LC

Description

Digitus DIGITUS® Mini GBIC (SFP) transceiver modules offer the highest quality and reliability. Whether from switch to switch, converter to switch, converter to converter or other, extensive application possibilities: The wide variety of Digitus modules allows you to use the fiber-optic technology flexibly. Compliance with the MSA (Multi Source Agreement) standard ensures compatibility with third-party vendors.
