Buy Digitus DN-81005-01 DN-81005-01 SFP (Mini-GBIC) transceiver module 1.25 GBit/s 100 m

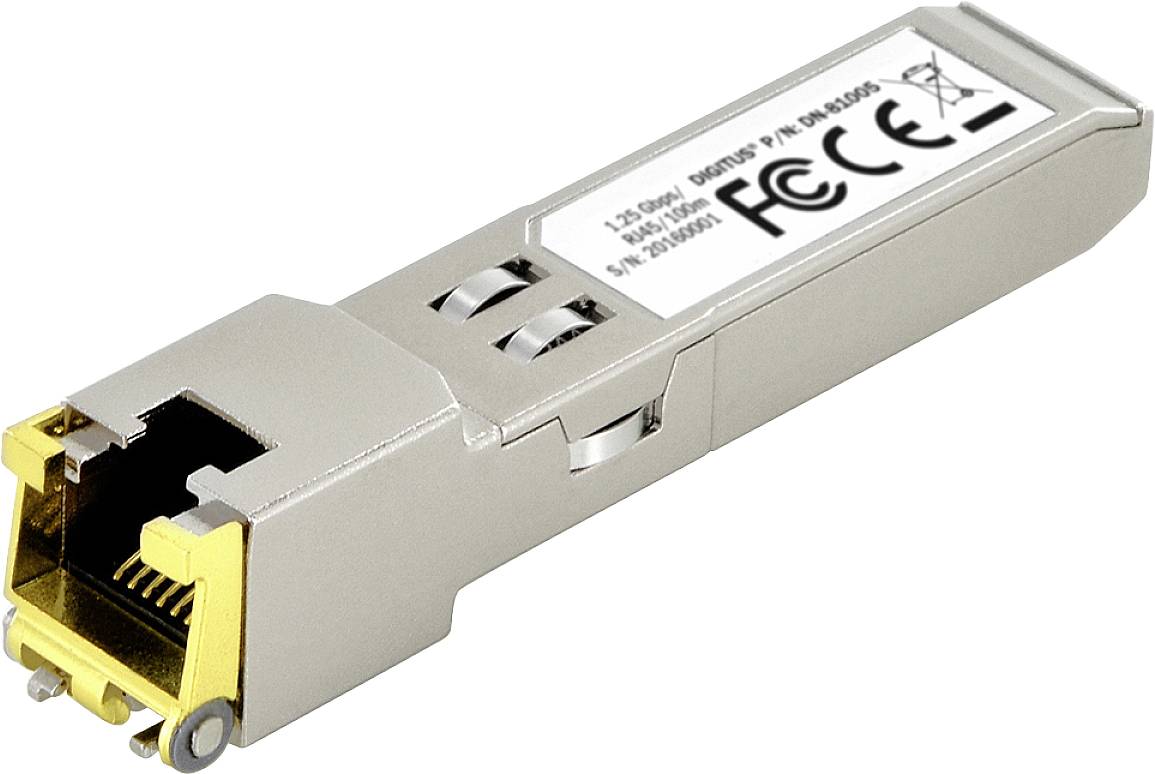

A small form-factor pluggable (SFP) module with a metallic casing, labelled with 'FCC' and 'CE', for insertion into network devices for fibre optic connections.

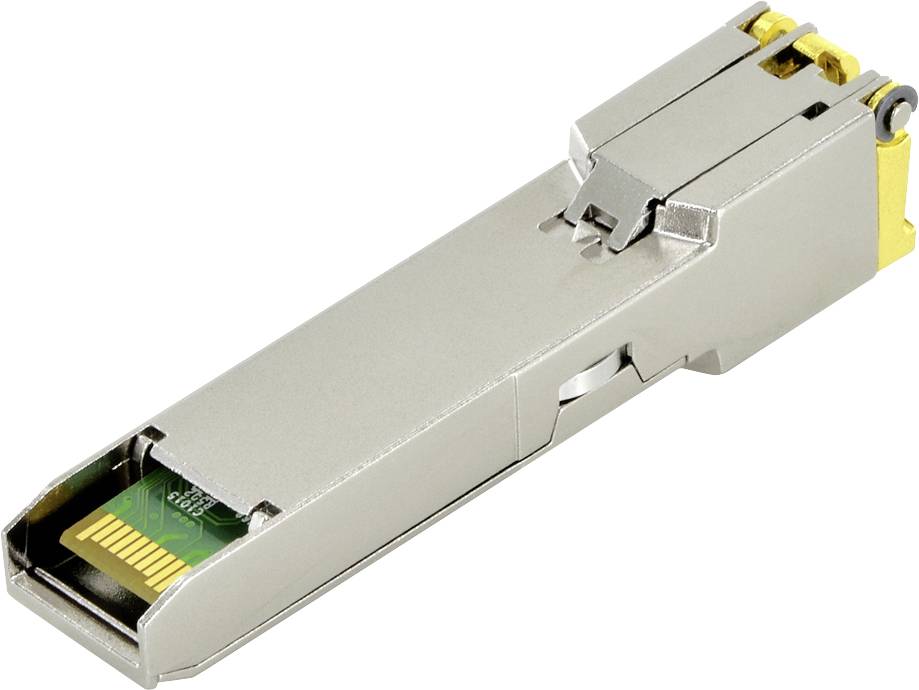

A rectangular SFP module with a metallic housing shows golden contact terminals, used for fibre-optic network connections.

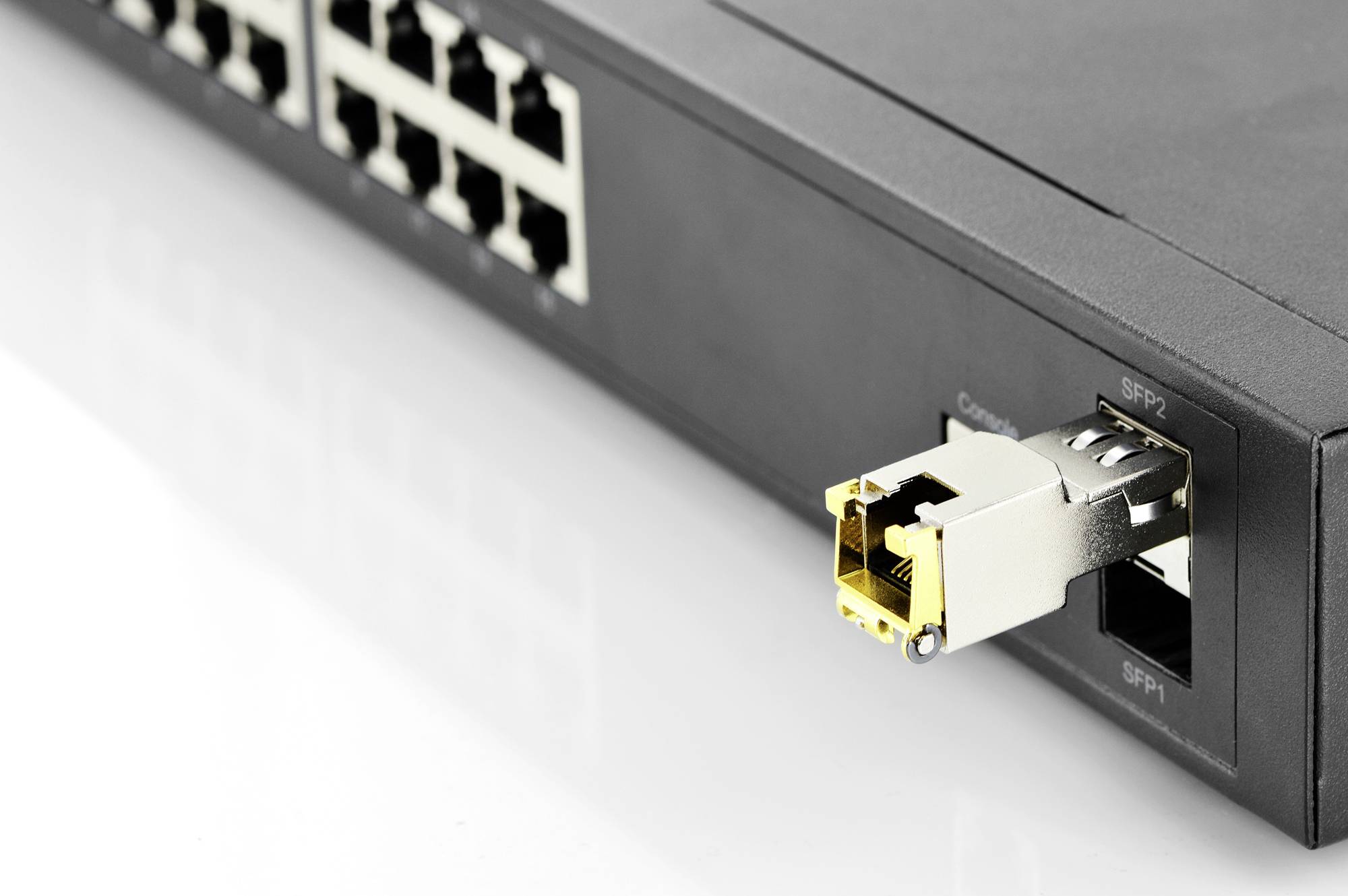

A network switch with multiple Ethernet ports and an SFP module inserted into one of the SFP ports.

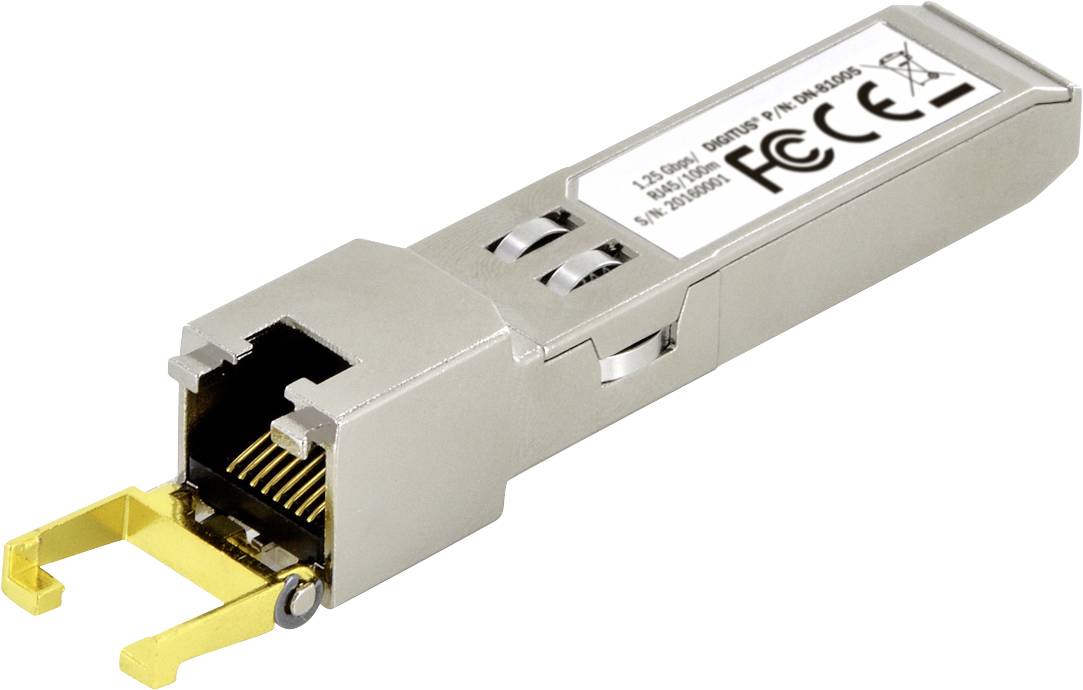

A SFP module with a metal casing and an RJ-45 connector, used for network connectivity in devices. Includes verification markings.

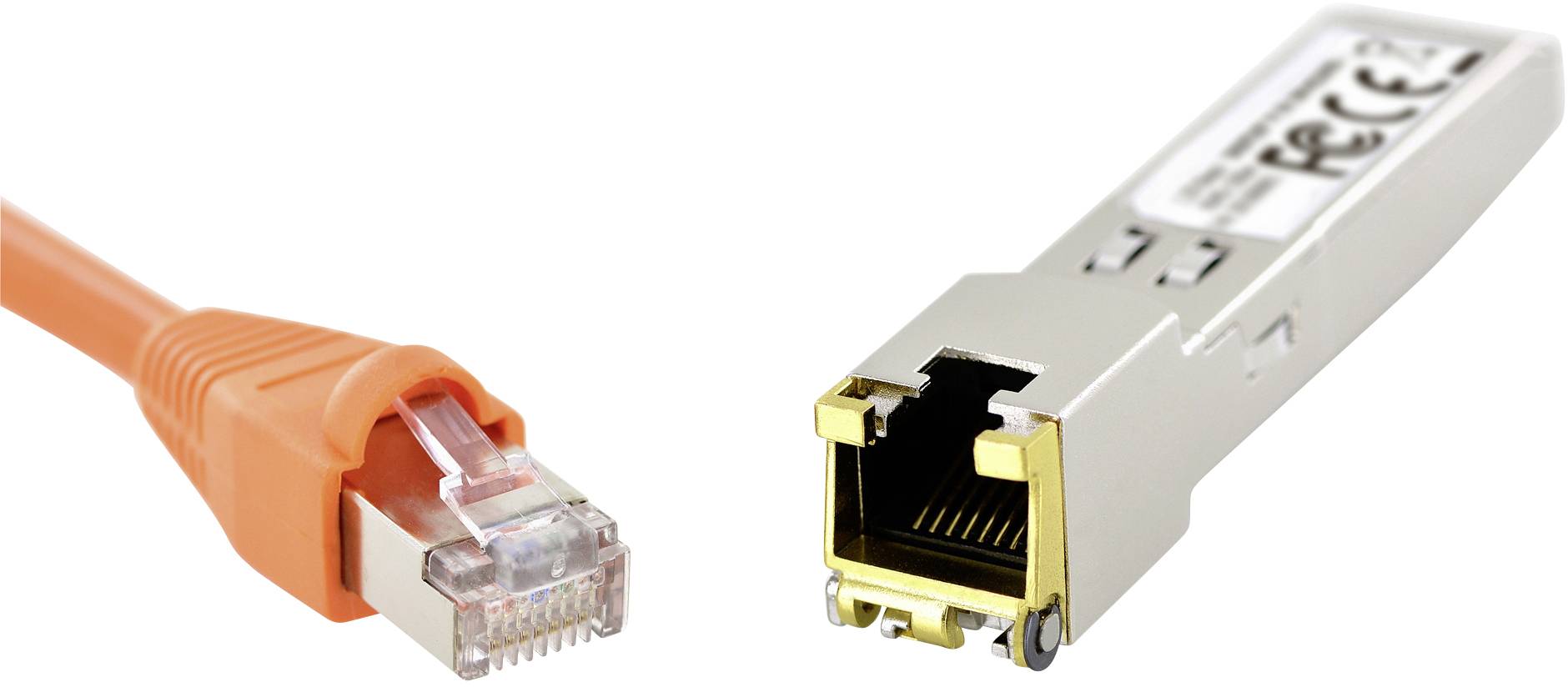

An orange Ethernet cable next to an SFP module, which is used for connecting network equipment.

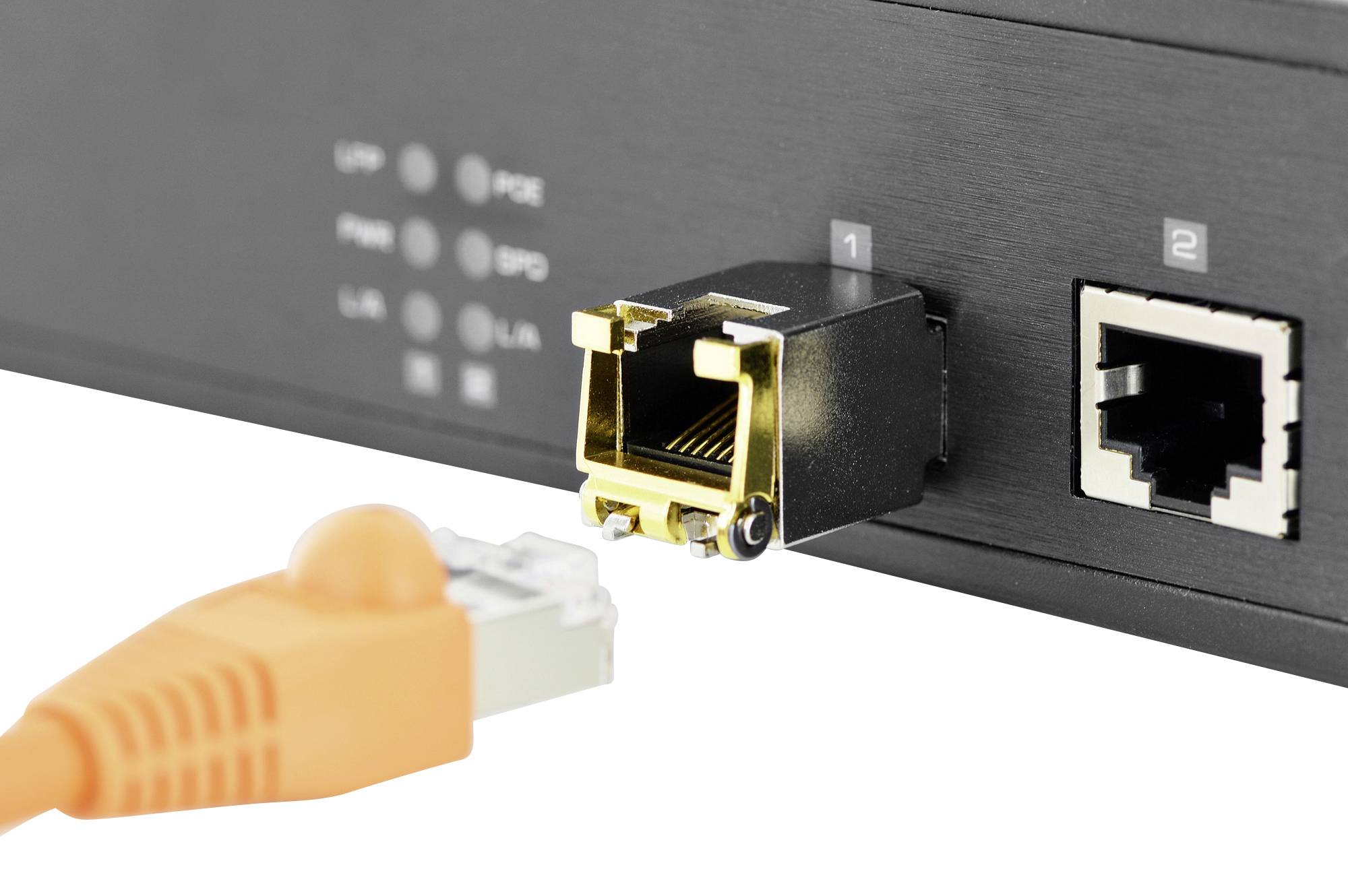

An orange network cable approaches an open Ethernet port on an electronic device.

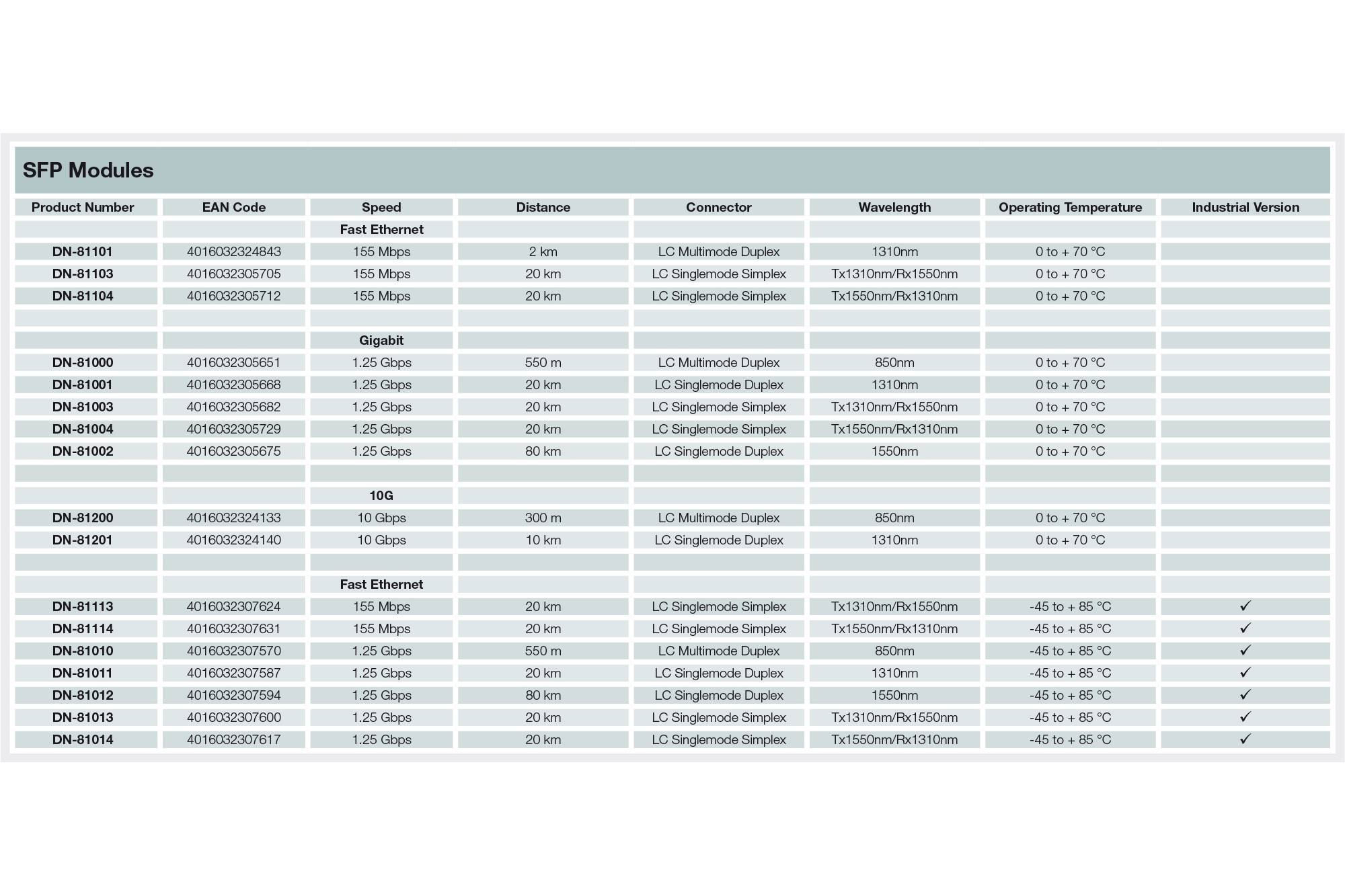

'Table of SFP Modules: Product Number, EAN Code, Speed, Distance, Port, Wavelength, Operating Temperature, Industrial Version.'

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

1.25 Gbps Copper SFP Module, RJ45, HP-compatible 10/100/1000Base-T, up to 100 meters

Highlights & Details

Expand your network switch with free SFP ports by additional RJ-45 Connections
Compatible with the most common network switch manufacturers
Hot pluggable - Installation possible during operation
Operating temperature: 0 °C ~ 70 °C

Technical specifications

Connection: 1x RJ45, cat 5
Mode: Copper
Connection: RJ45
Distance (km): 0.1
Manufacturer Compatibility: HP, Universal (MSA)
Send method: Bidirectional
Ethernet speed: Gigabit

Product type: SFP (Mini-GBIC) transceiver module

Transfer rate: 1.25 GBit/s

Interfaces: SFP

Distances up to: 100 m

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Factory colour: Multicolour

Weight: 60.00

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2280627 Digitus DN-81005-01 DN-81005-01 SFP (Mini-GBIC) transceiver module 1.25 GBit/s 100 m

Description

Digitus DIGITUS® Mini GBIC (SFP) transceiver modules offer the highest quality and reliability. The module offers the perfect possibility to expand your Gigabit network switch with a free SFP uplink port by an additional RJ45 connection. Thanks to the hot-plug capability, you can install the module without interrupting network traffic or a device restart. Compliance with the MSA (Multi Source Agreement) standard also ensures compatibility with the most common network switch manufacturers.

This text is machine translated.

Features

Mini GBIC Small Form Factor Pluggable (SFP) Module
up to 1.25 Gbps bi-directional maximum data rate
corresponds to this IEEE 802.3z Gigabit standard
high quality and highest fail-safety
light Plug and Play installation
MSA (Multi Source Agreement) Compatible
Hot pluggable - Installation possible during operation
Auto MDI/MDI-X

Scope of delivery

SFP module
