Buy Digitus DN-81200-01 DN-81200-01 SFP transceiver module 10 GBit/s 300 m Module type LC

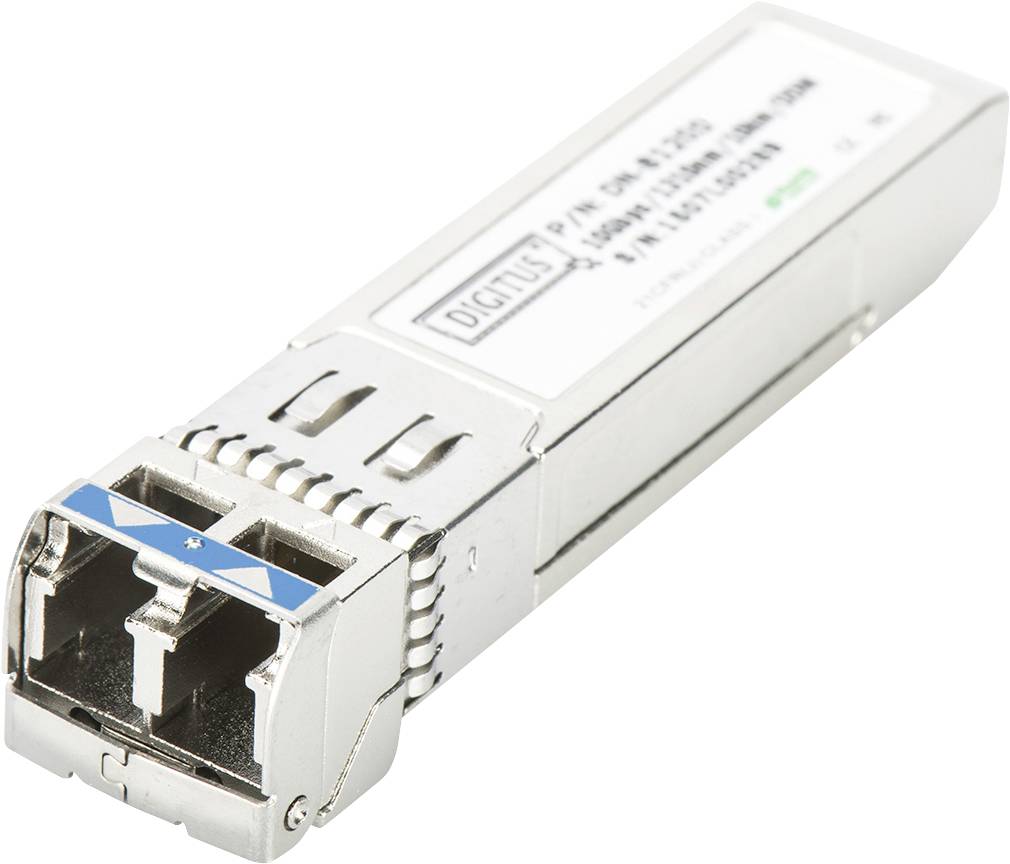

A silver SFP module plug for data transmission in networks, with two ports and a label displaying technical specifications.

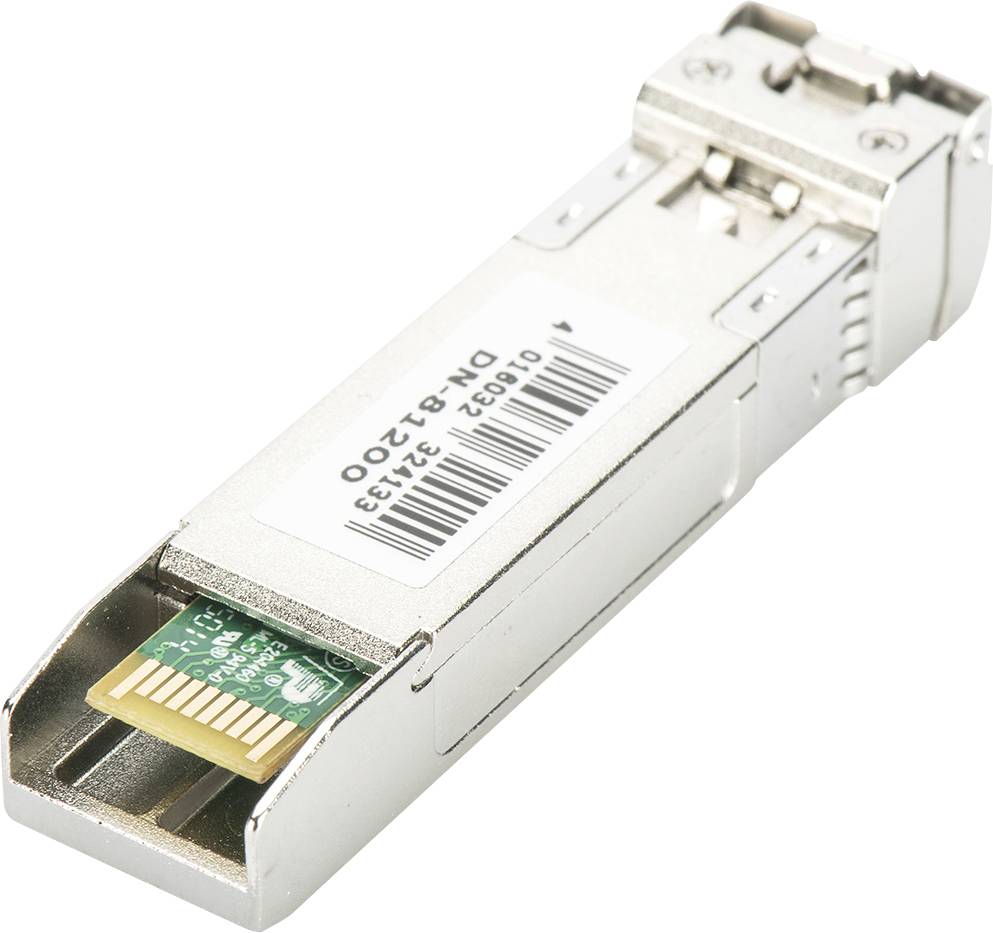

A metal module with a connector and a small green printed circuit board, likely an optical transceiver module.

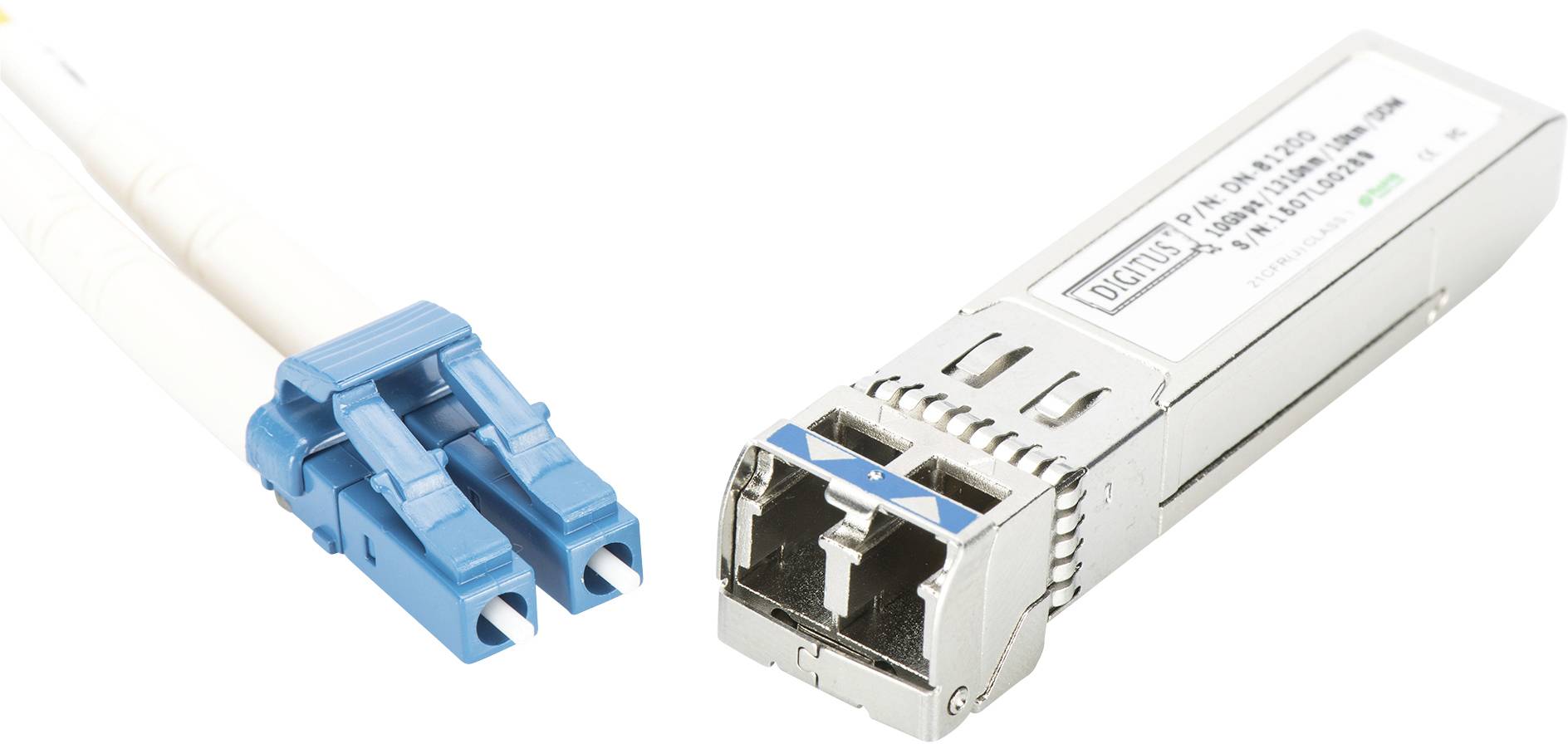

A blue fibre optic cable with two connectors and a silver SFP module for network connectivity, lying side by side.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

10G SFP+ modules, multimode, DDM, HP-compatible LC Duplex Connector, 850nm, up to 300m, HP

The Plug & Play fiber connection allows quick installation
Sends data in high quality and also offers the highest reliability
Distance up to 0.3 km at a maximum data rate of 10Gbps
Operating temperature: 0 °C ~ 70 °C

Technical specifications

Mode: Multimode
Connection: LC
Distance (km): 0.3
Wavelength 850 nm.
DDM support: Yes
Manufacturer compatibility: Universal (MSA)
Transmission method: Unidirectional
Ethernet speed: 10 Gigabit
Connection: 1x LC Duplex
Wavelength: 850nm
Transmission power: Minimum -5 dBm, maximum -1 dBm
Sensitivity Receiving power: Minimum -11.5 dBm

Product type: SFP transceiver module

Transfer rate: 10 GBit/s

Interfaces: SFP

Module type: LC

Distances up to: 300 m

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s
10000 MBit/s

Weight: 0.00

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2280628 Digitus DN-81200-01 DN-81200-01 SFP transceiver module 10 GBit/s 300 m Module type LC

User & Safety Instructions

User & Safety Instructions 2280628 Digitus DN-81200-01 DN-81200-01 SFP transceiver module 10 GBit/s 300 m Module type LC

Description

Digitus DIGITUS® Mini GBIC (SFP) transceiver modules offer the highest quality and reliability. Whether from switch to switch, converter to switch, converter to converter or other, extensive application possibilities: The wide variety of Digitus modules allows you to use the fiber-optic technology flexibly. Compliance with the MSA (Multi Source Agreement) standard ensures compatibility with third-party vendors.

This text is machine translated.

Features

Mini GBIC SFP (Small Form Factor Pluggable) module
supports DDM (Digital Diagnostic Monitoring)
High quality and highest fail-safety
10 Gbps maximum data rate
Complies with the IEEE802.3ae 10 Gigabit standard class 1 laser product EN 60825-1
MSA (Multi Source Agreement) Compatible
Hot pluggable
secure quick-release mechanism
3.3V power supply
