Buy Digitus DN-81201-01 DN-81201-01 SFP transceiver module 10 GBit/s 10 km Module type LC

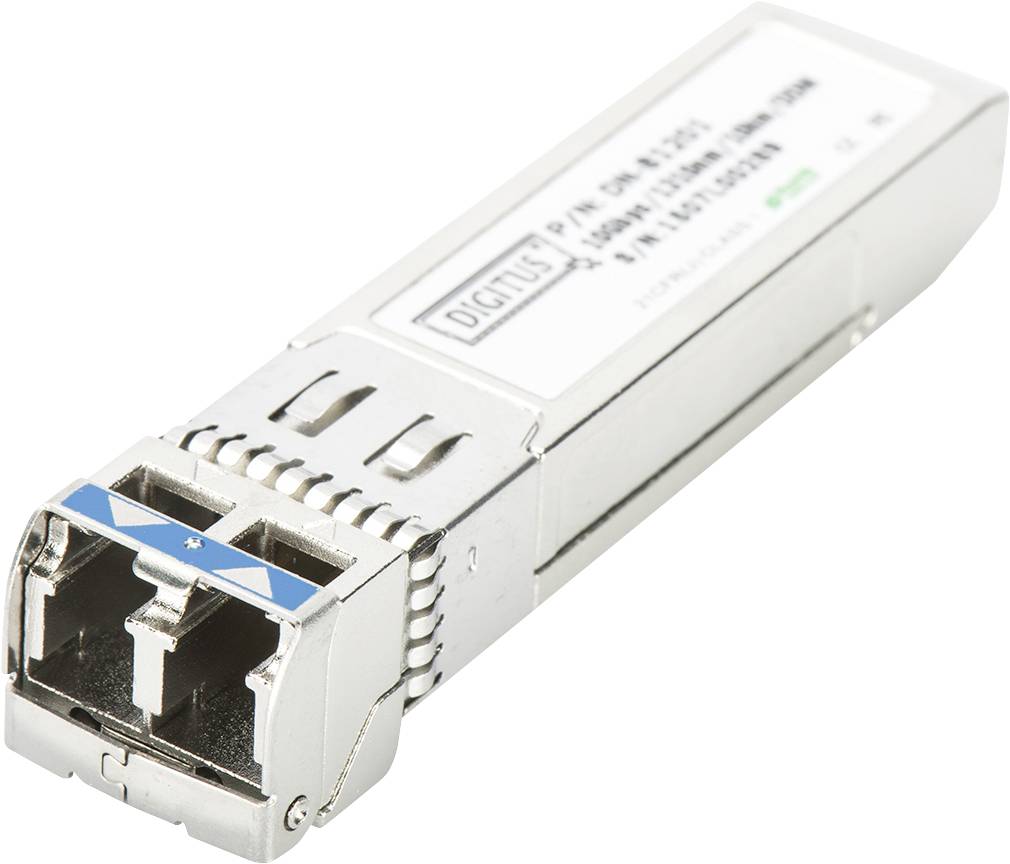

A small form-factor pluggable (SFP) fibre optic transceiver, suitable for network connections in optical communication equipment, with two front-facing slots.

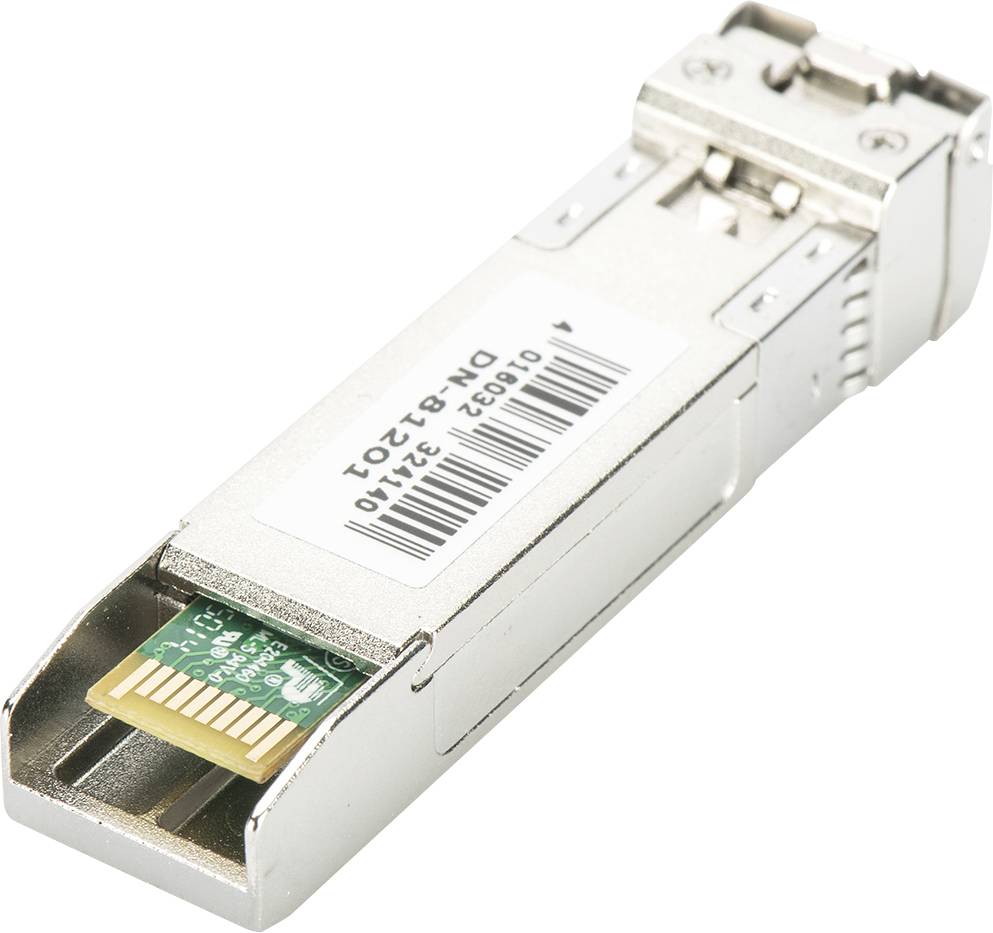

SFP module with metal casing and exposed chip on white background. Used for network connections in computer networks.

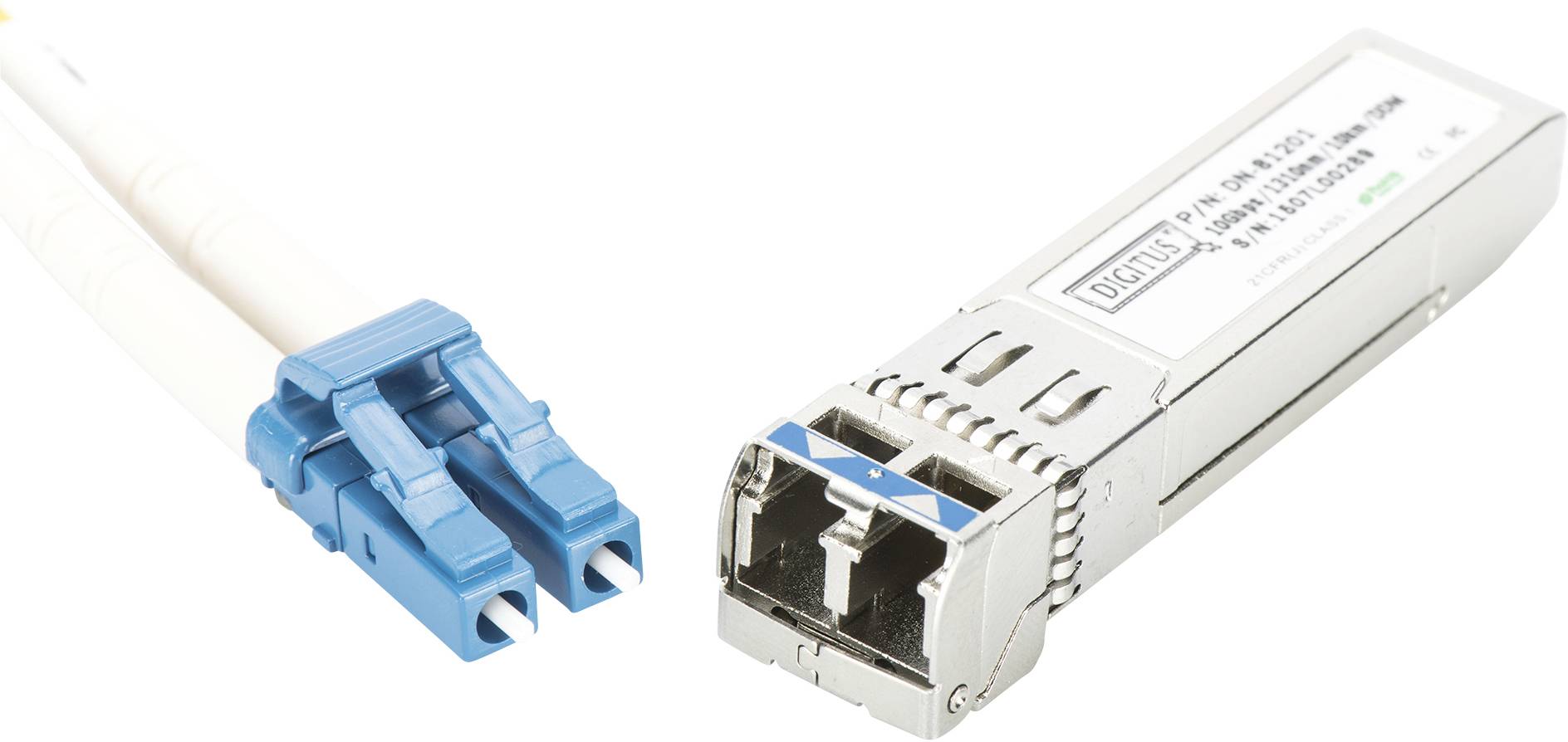

Two fibre optic connectors: on the left a blue and white duplex connector, on the right a silver SFP module socket. They are used for data transmission.

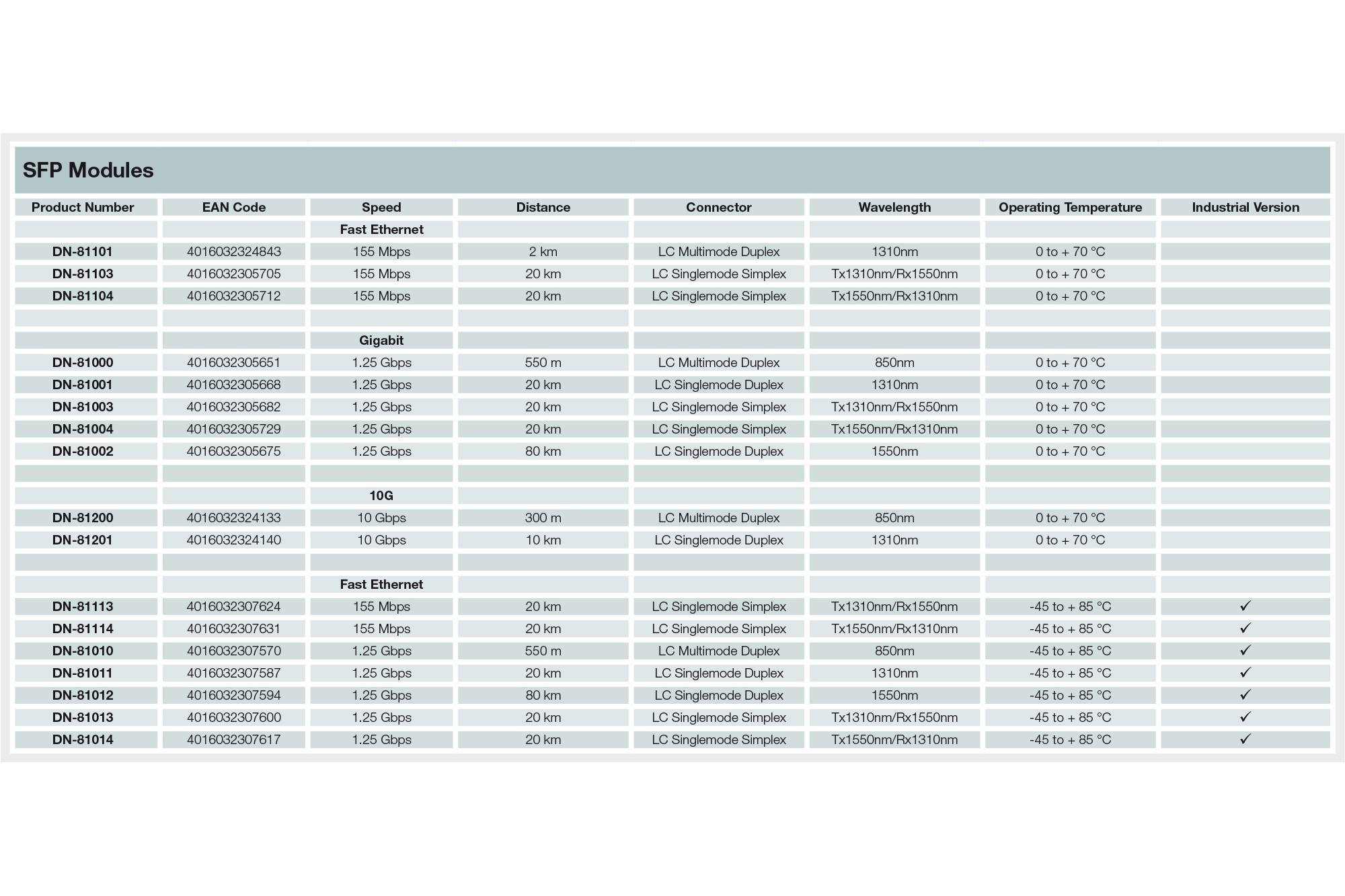

'Table SFP Modules: Product Number, EAN Code, Speed, Distance, Connector Type, Wavelength, Operating Temperature, Industrial Version.'

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

HP-compatible SFP+ 10G SM 1310nm 10km with DM LC connector

Highlights & Details

The Plug & Play fiber connection allows quick installation
Sends data in high quality and also offers the highest reliability
Distance up to 10 km at a maximum data rate of 10Gbps
Operating temperature: 0 °C ~ 70 °C

Technical specifications

Mode: Singlemode
Connection: LC
Distance (km): 10
Wavelength: 1310 nm
DDM support: Yes
Manufacturer compatibility: HP
Transmission method: Unidirectional
Ethernet speed: 10 Gigabit
Connection: 1x LC Duplex
Wavelength: 1310 nm
Transmission power: Minimum -8 dBm, maximum -0.5 dBm
Reception sensitivity: Minimum -12.5 dBm

Product type: SFP transceiver module

Transfer rate: 10 GBit/s

Interfaces: SFP

Module type: LC

Distances up to: 10 km

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s
10000 MBit/s

Weight: 860 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2280629 Digitus DN-81201-01 DN-81201-01 SFP transceiver module 10 GBit/s 10 km Module type LC

Description

Digitus DIGITUS® Mini GBIC (SFP) transceiver modules offer the highest quality and reliability. Whether from switch to switch, converter to switch, converter to converter or other, extensive application possibilities: The wide variety of Digitus modules allows you to use the fiber-optic technology flexibly. Compliance with the MSA (Multi Source Agreement) standard ensures compatibility with third-party vendors.

This text is machine translated.

Features

Mini GBIC SFP (Small Form Factor Pluggable) module
supports DDM (Digital Diagnostic Monitoring)
High quality and highest fail-safety
10 Gbps maximum data rate
Complies with the IEEE802.3ae 10 Gigabit standard class 1 laser product EN 60825-1
Easy Plug and Play installation
MSA (Multi Source Agreement) Compatible
Hot pluggable
Secure quick-release mechanism
HP-compatible
HP-Aruba compatible
