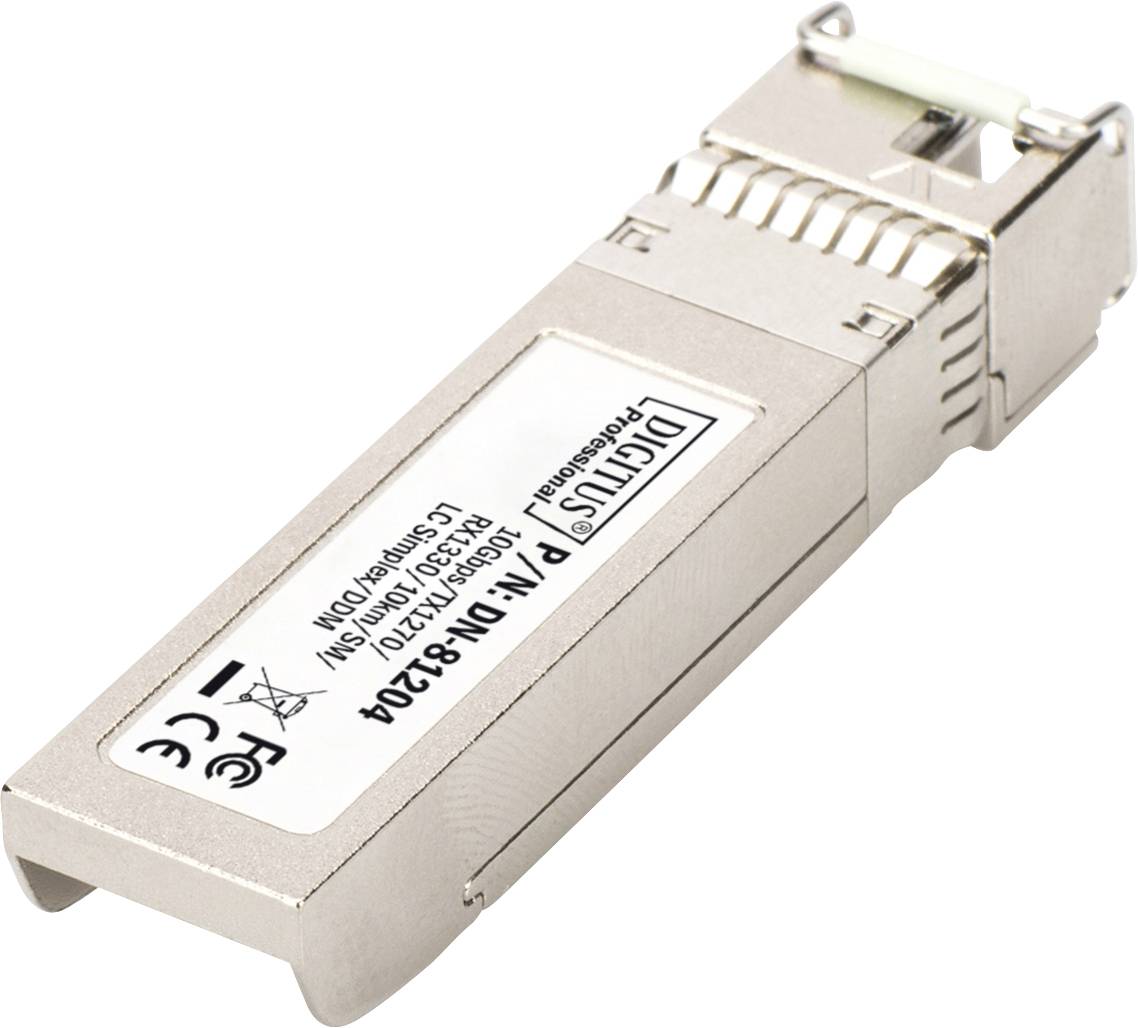

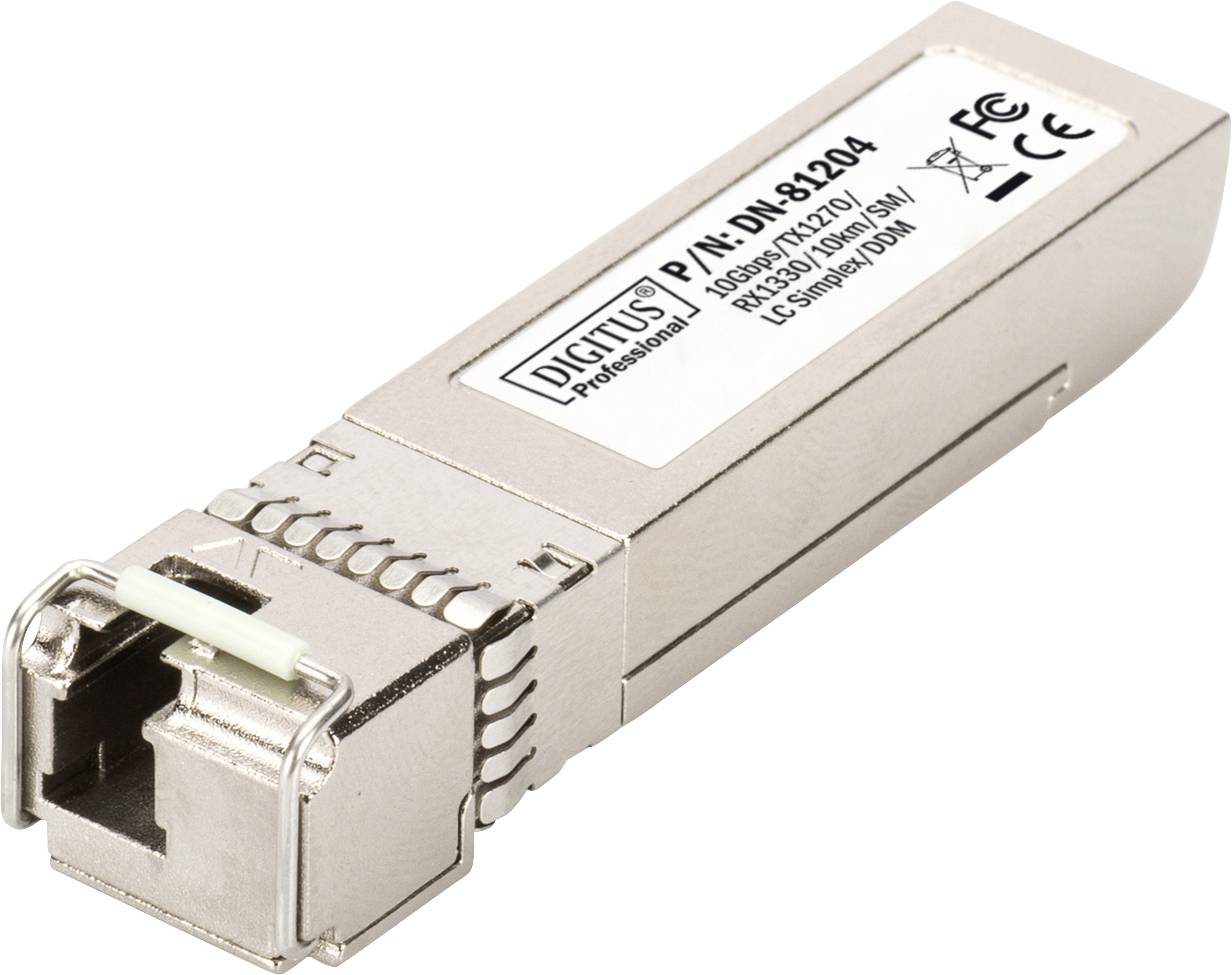

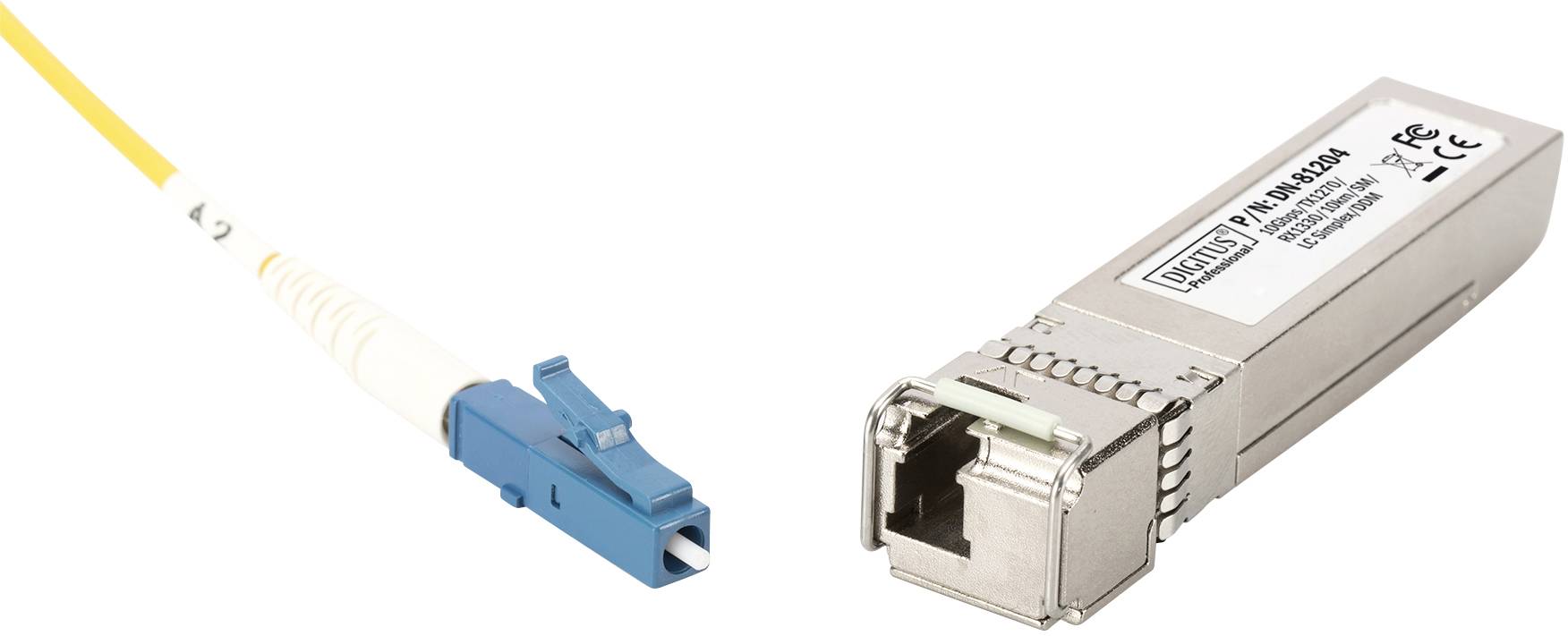

Digitus DN-81204 DN-81204 SFP+ transceiver module 10 GBit/s 10 km Module type LC
EAN:
Part number:
Item no:
Highlights & Details
10G SFP+ modules, single mode, BiDi, DM LC Simplex Connector, Tx1270/Rx1330, up to 10km
- The Plug & Play fiber connection allows quick installation
- Distance up to 10 km at a maximum data rate of 10Gbps
- Sends data in high quality and also offers the highest reliability
- Bidirectional WDM module - only one fiber is required
Technical specifications
- Operating temperature: 0 °C ~ 70 °C
- Mode: Singlemode
- Connection: LC
- Distance (km): 10
- Wavelength: 1270/1330 nm
- DDM support: Yes
- Manufacturer Compatibility: Universal (MSA), Cisco
- Send method: Bidirectional
- Ethernet speed: 10 Gigabit
- Connection: 1x LC Simplex
- Wavelength: TX 1270 / RX 1330, single mode
- Transmission power: Minimum -5 dBm, maximum 0.5 dBm
- Reception sensitivity: Minimum -13 dBm
- Product type
SFP+ transceiver module
- Transfer rate
10 GBit/s
- Interfaces
SFP+
- Module type
LC
- Distances up to
10 km
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
10000 MBit/s
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2290521 Digitus DN-81204 DN-81204 SFP+ transceiver module 10 GBit/s 10 km Module type LC
Description
Digitus DIGITUS® Mini GBIC (SFP) transceiver modules offer the highest quality and reliability. Whether from switch to switch, converter to switch, converter to converter or other, extensive application possibilities: The wide variety of Digitus modules allows you to use the fiber-optic technology flexibly. Compliance with the MSA (Multi Source Agreement) standard ensures compatibility with third-party vendors.
This text is machine translated.
This text is machine translated.
Features
- SFP+ (Small Form Factor Pluggable) Module
- compatible with the following manufacturers: Ubiquiti, Allied Telesis, Allnet, CISCO, D-Link, Edimax, INTELLINET, CTI Networks, Level One, PLANET, Tenda, TP-LINK, TRENDnet, ZyXEL, ZTE, Avaya, Microtics, ENTERASYS, FINISAR, FORCE 10, RIVERSTONE, Fortinet
- secure quick-lock mechanism
- supports DDM (Digital Diagnostic)
- High quality and highest fail-safety
- corresponds to the IEEE802.3ae 10 Gigabit Standard
- Class 1 Laser Product according to EN 60825-1
- easy Plug and Play installation
- MSA (Multi Source Agreement) compatible
- Hot pluggable
- 3.3V Power supply
- suitable for 09/125µm single-mode glass fiber cable
Scope of delivery
- 10G SFP+ module
