Buy Digitus DN-81210 DN-81210 SFP (Mini-GBIC) transceiver module 10 GBit/s 100 m

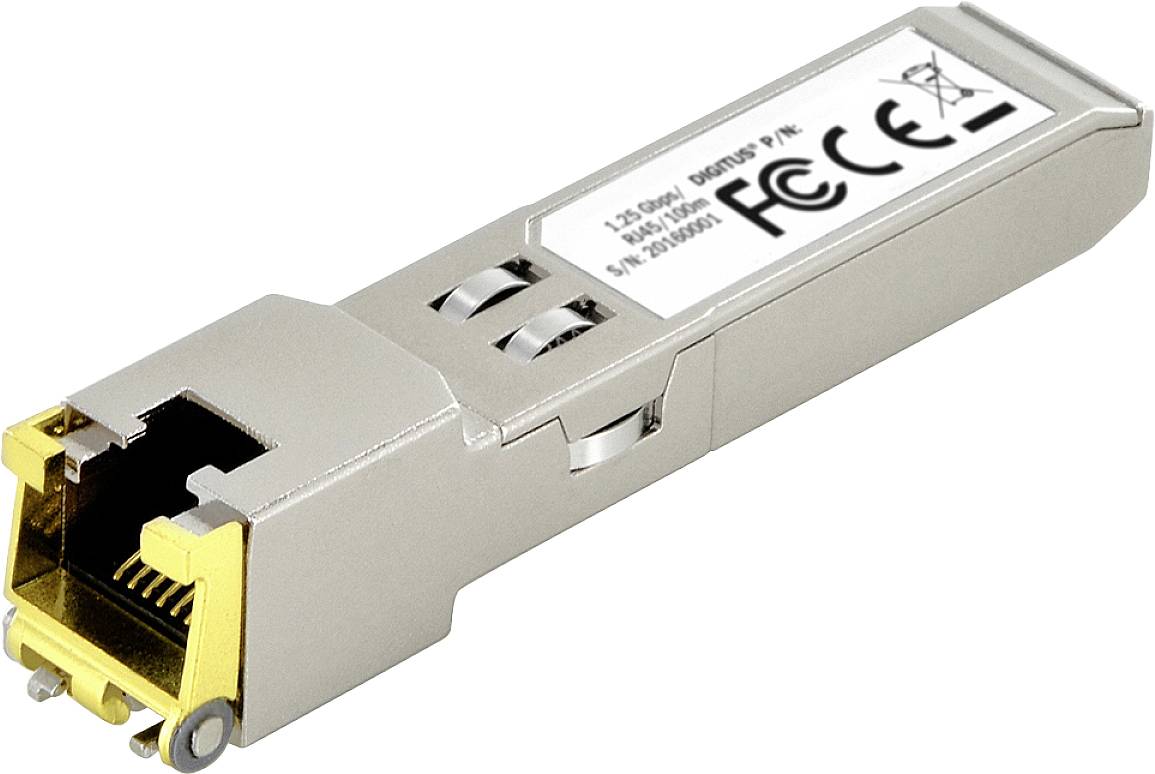

An SFP module with CE and FCC marking. It is a small rectangular device with an RJ-45 port for network connections.

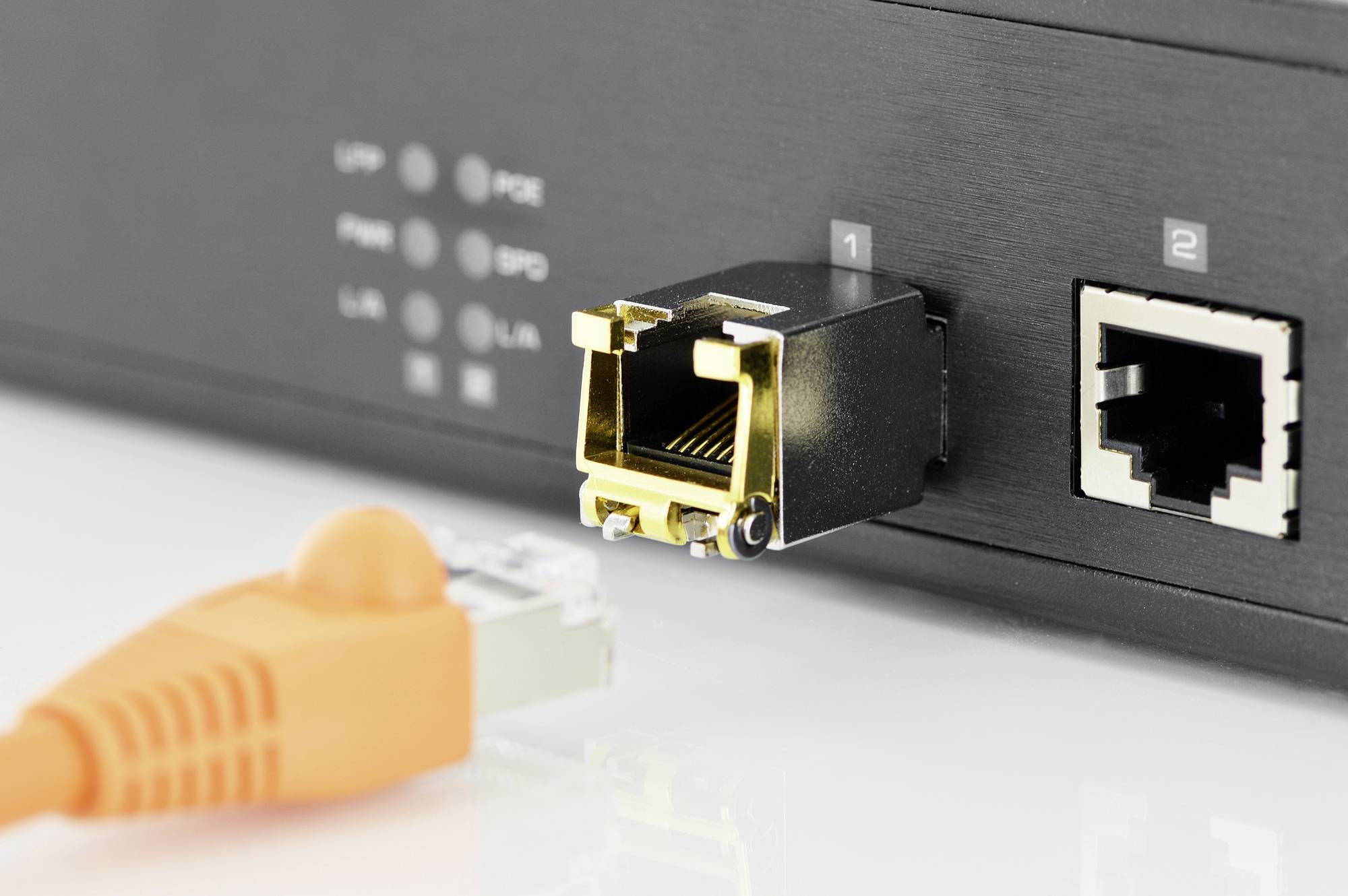

An orange network cable in front of an interface of an electronic device used for data connections.

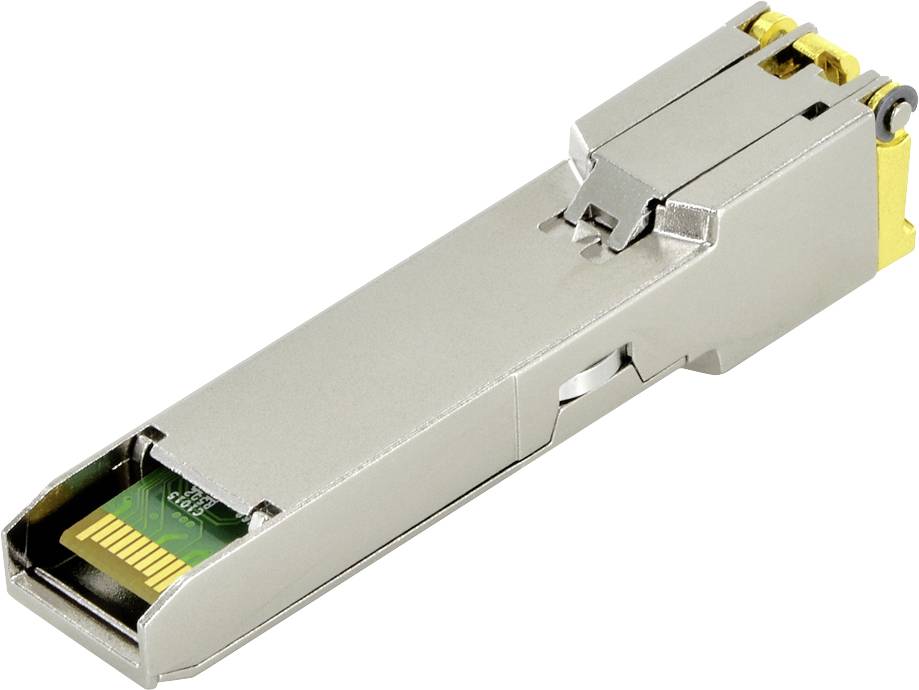

A metal SFP module for use in network devices for high-speed data transmission. It displays a gold-coloured connector.

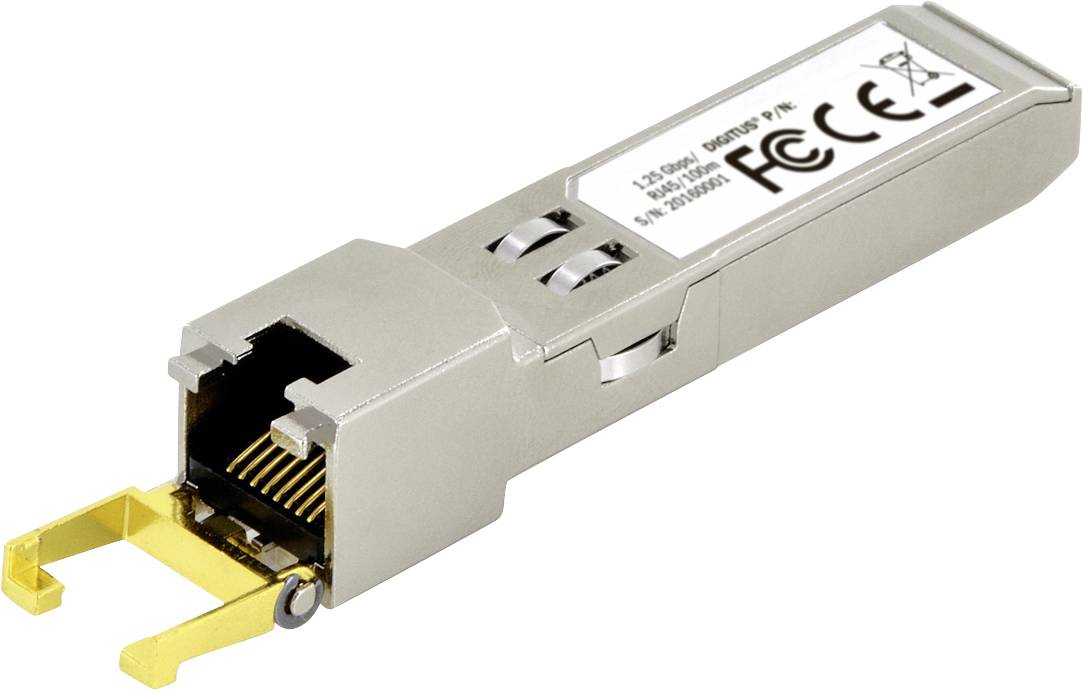

A silver SFP module plug with golden contacts, used for network connections. Displays FCC and CE markings on the side.

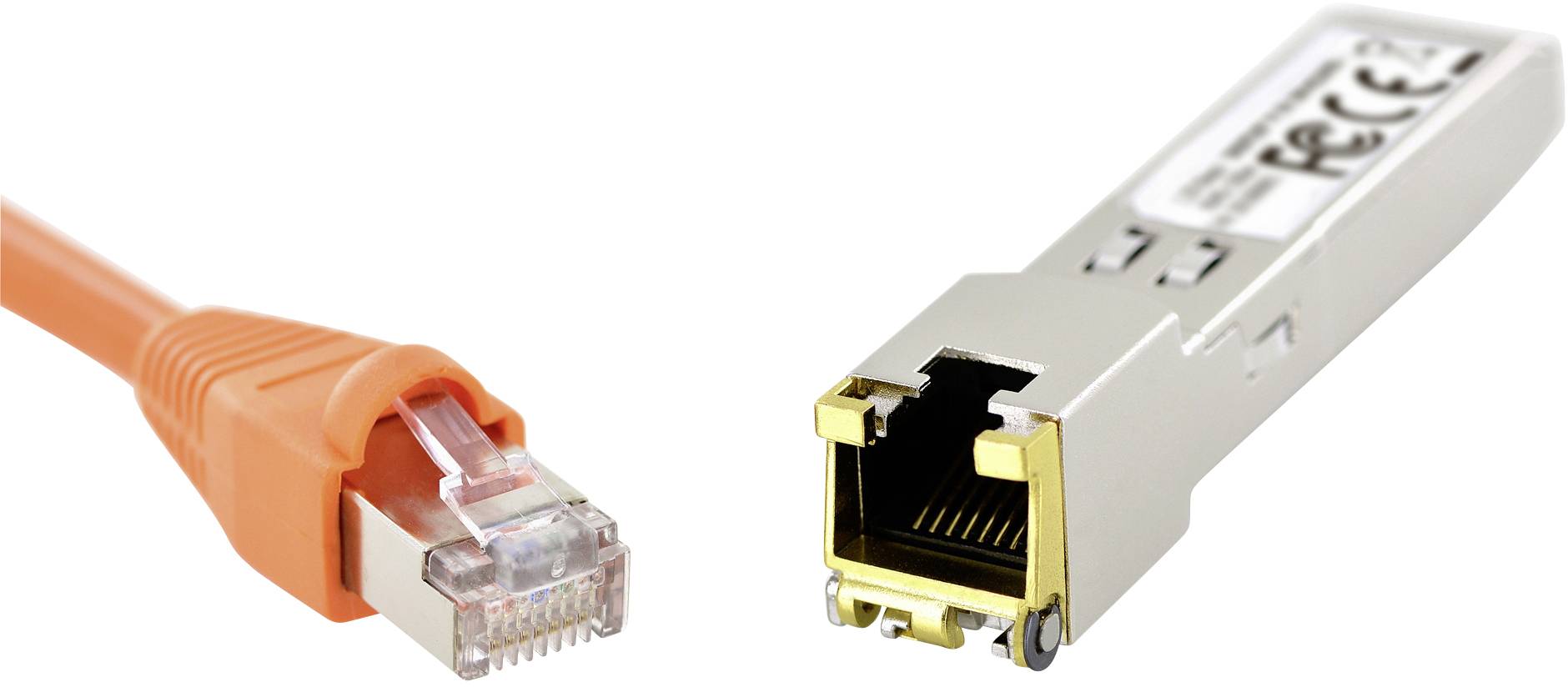

An orange Ethernet cable on the left, with a metal-housed SFP connector on the right, ready to be connected.

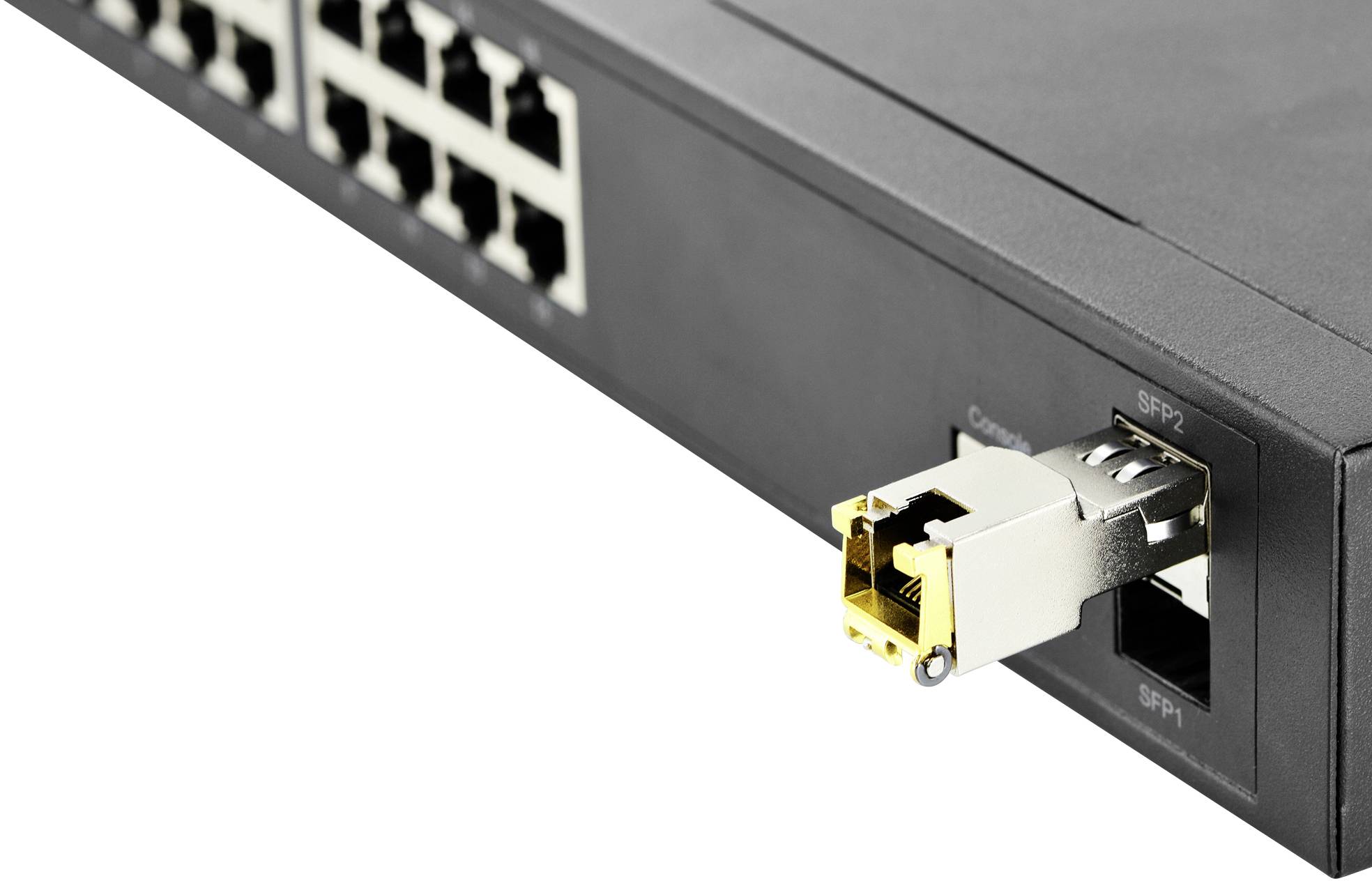

A network switch with multiple Ethernet ports, with a module plugged into the SFP port.

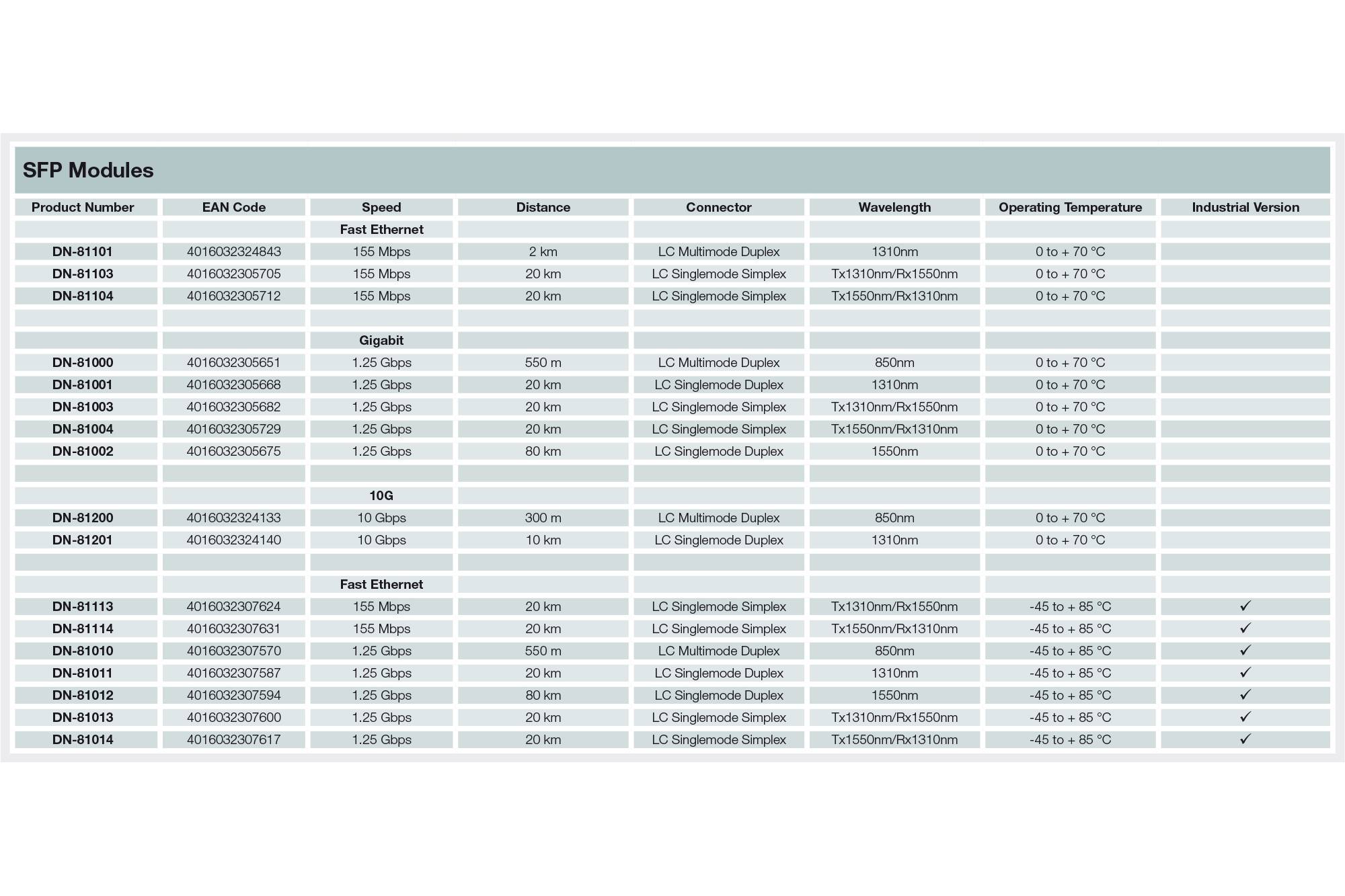

'Table of SFP Modules: Product Number, EAN Code, Speed, Distance, Connector, Wavelength, Operating Temperature, Industrial Version.'

1/7

Unavailable

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

SFP+ 10G copper module, up to 100m supports 10G, 5G, 2.5G, 1G Base-T standard

Highlights & Details

Compatible with IEEE 802.3 standard and most switch manufacturers
Hot-pluggable SFP transceiver
Range: Up to 100 m (1 Gbit)
High operating temperature: 0° to 65°C.
Easy plug and play installation

Technical specifications

Storage temperature -40°C to 85°C.
Serial communication protocol: I²C clock rate: 200 Hz
Mode: Copper
Connection: RJ45
Manufacturer compatibility: Universal (MSA)
Transmission method: Unidirectional
Ethernet speed: 10 Gigabit
Compatible standards: 10GBASE-T, 5GBase-T, 2.5GBase-T, 1000Base-T.
Cable length: 1000BASE-T: 100 m, 5 / 2.5GBase-T: 50 m, 10GBase-T: 30 m.

Product type: SFP (Mini-GBIC) transceiver module

Transfer rate: 10 GBit/s

Interfaces: SFP

Distances up to: 100 m

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s
10000 MBit/s

Version: Cable

Cable use: RJ45

Connection type: RJ45

Weight: 60.00

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2280632 Digitus DN-81210 DN-81210 SFP (Mini-GBIC) transceiver module 10 GBit/s 100 m

Description

Digitus DIGITUS® 10G Mini GBIC SFP transceiver modules offer the highest quality and reliability. The modules offer the perfect possibility for you to extend your Gigabit switch with an additional RJ45 connection. Thanks to the hot-plug option, you can install modules during operation without restarting or interruptions. In addition, the modules comply with the MSA (Multi Source Agreement) and can be operated with switches from the most common manufacturers. Compatible with the following standards: 10GBASE-T / 5GBase-T /2.5GBase-T / 1000Base-T (IEEE802.3 specified)

This text is machine translated.

Features

MSA (Multi Source Agreement) compliant
Auto MDI/MDI-X.

Scope of delivery

1 x 10GBase-T Mini GBIC Copper SFP module
