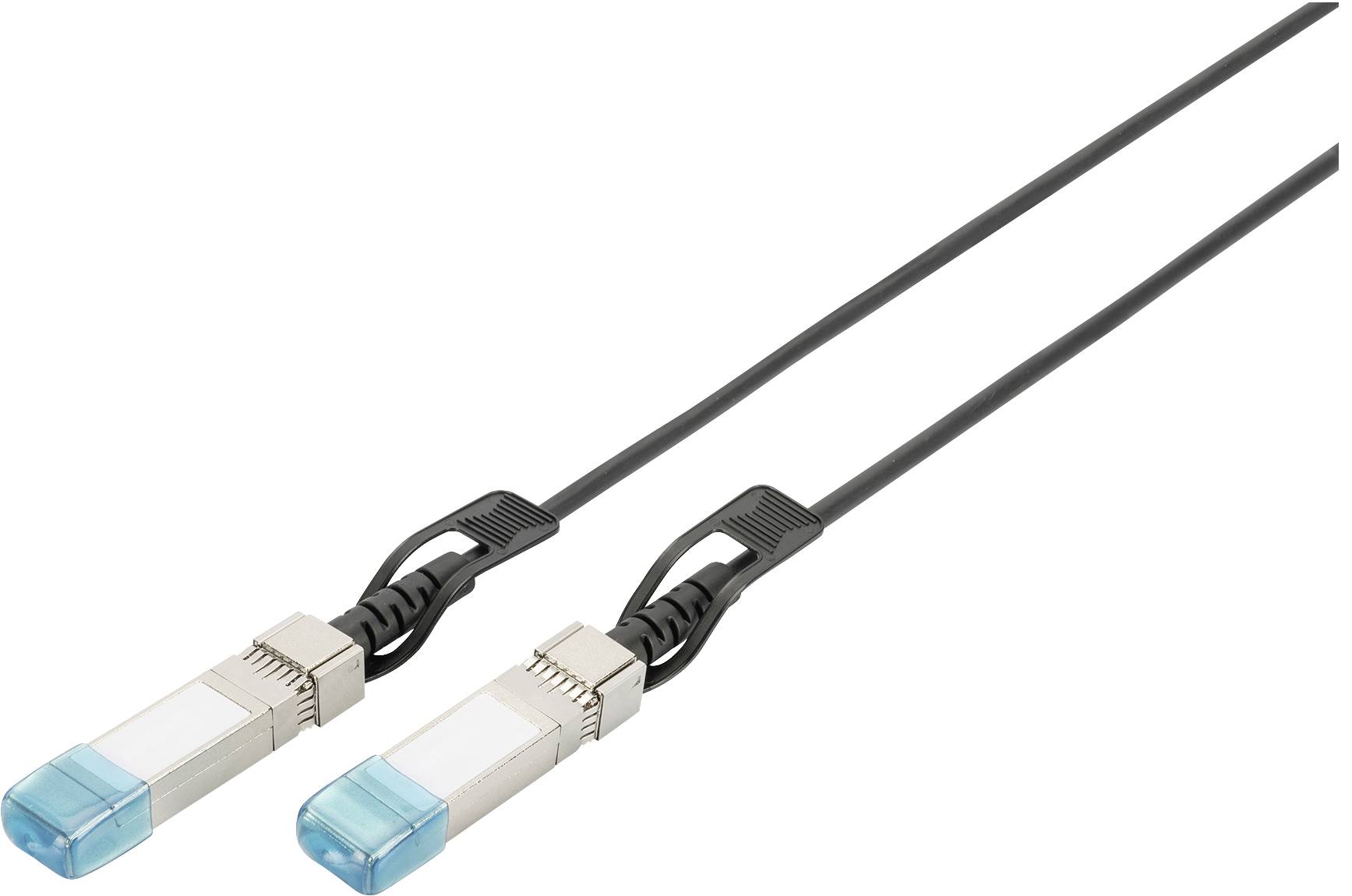

Digitus DN-81220-01 DN-81220-01 SFP cable 10 GBit/s 0.5 m
EAN:
Part number:
Item no:
10G SFP+ DAC Cable 0.5m, HPE-compatible AWG 30, HP HPE compatible
Highlights & Details
- SFP+ 10G 0.5m DAC cable
- AWG 30 Twinax cable
- 1.0625-10.52 Gbps supported data rate
Technical specifications
- Temperature range 0-70 ° C.
- SFP + connectors
- Power: + 3.3V supply voltage
- Power consumption 0.5W
- Transceiver type: DAC
- AWG 30
- Length: 0.5 m
- Manufacturer compatibility: HP
- Supported applications: 10G Ethernet (10.21 Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), Gigabit Ethernet (1.25 Gbps), CPRI Option2.3
- Product type
SFP cable
- Transfer rate
10 GBit/s
- Interfaces
SFP+
- Distances up to
0.5 m
- LAN transfer rate
1000 MBit/s
10000 MBit/s
- Factory colour
Black
- Weight
0.10
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2290524 Digitus DN-81220-01 DN-81220-01 SFP cable 10 GBit/s 0.5 m
Description
The Digitus® SFP+ 10G DAC cables are the ideal connection between switches in the backbone area. For the use of the SFP+ 10G DAC cables, the following data rates and applications are supported: 10G Ethernet (10.21 Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), Gigabit Ethernet (1.25 Gbps), CPRI option2.3,5.6,7.8, OBSAI RP3 x 2, RP3 x 4, RP x 8. The SFP+ 10G DAC cables are compatible with Hewlett Packard (HP) H3C.
This text is machine translated.
This text is machine translated.
Features
- Compatible brands: Hewlett Packard (HP) HPE compatible
- DDM / DOM support
Scope of delivery
- SFP+ 10G 0.5m DAC cable
- Quick start guide
