Digitus DN-81243 RJ45 FO cable Cable 3.00 m Black Shielded 1 pc(s)
EAN:
Part number:
Item no:
Product type
FO cable
Specification
Cable
Connection type
RJ45
Cable length
3.00 m
Cable features
Shielded
Digitus SFP28 25G 3M DAC cable
Highlights & Details
- 3M maximum distanceAWG 30 Twinax cableUp to 25.88 Gbps supported data rate
Technical specifications
- Transmission paths: RX and TXSFP28 connectionsUp to 25.88 Gbps supported data rateTemperature range: 0-70 ° C.Storage temperature range -40 to 85 °C.Output: + 3.3V power supply voltagePower consumption 0.5WCompatible with MSA SFP28Electrical interface: 20-pin connectorManagement interface: Serial, I²CThe connection is compatible with the SFF-8432 specificationCompatible with the following manufacturers: Allnet, Cisco, 3COM, D-Link, Dell, EDIMAX, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, Linksys, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZyXELDDM support: No.
- Product type
FO cable
Cable
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 plug
- No. of B connections
1 x
- Type B
RJ45 plug
- Cable length
3.00 m
- Factory colour
Black
- Connector version
straight
- Cable features
Shielded
30
- Cable use
Networks
- Version
Cable
- Cable design
Round
Copper
- LAN transfer rate
25000 MBit/s
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2751324 Digitus DN-81243 RJ45 FO cable Cable 3.00 m Black Shielded 1 pc(s)
Description

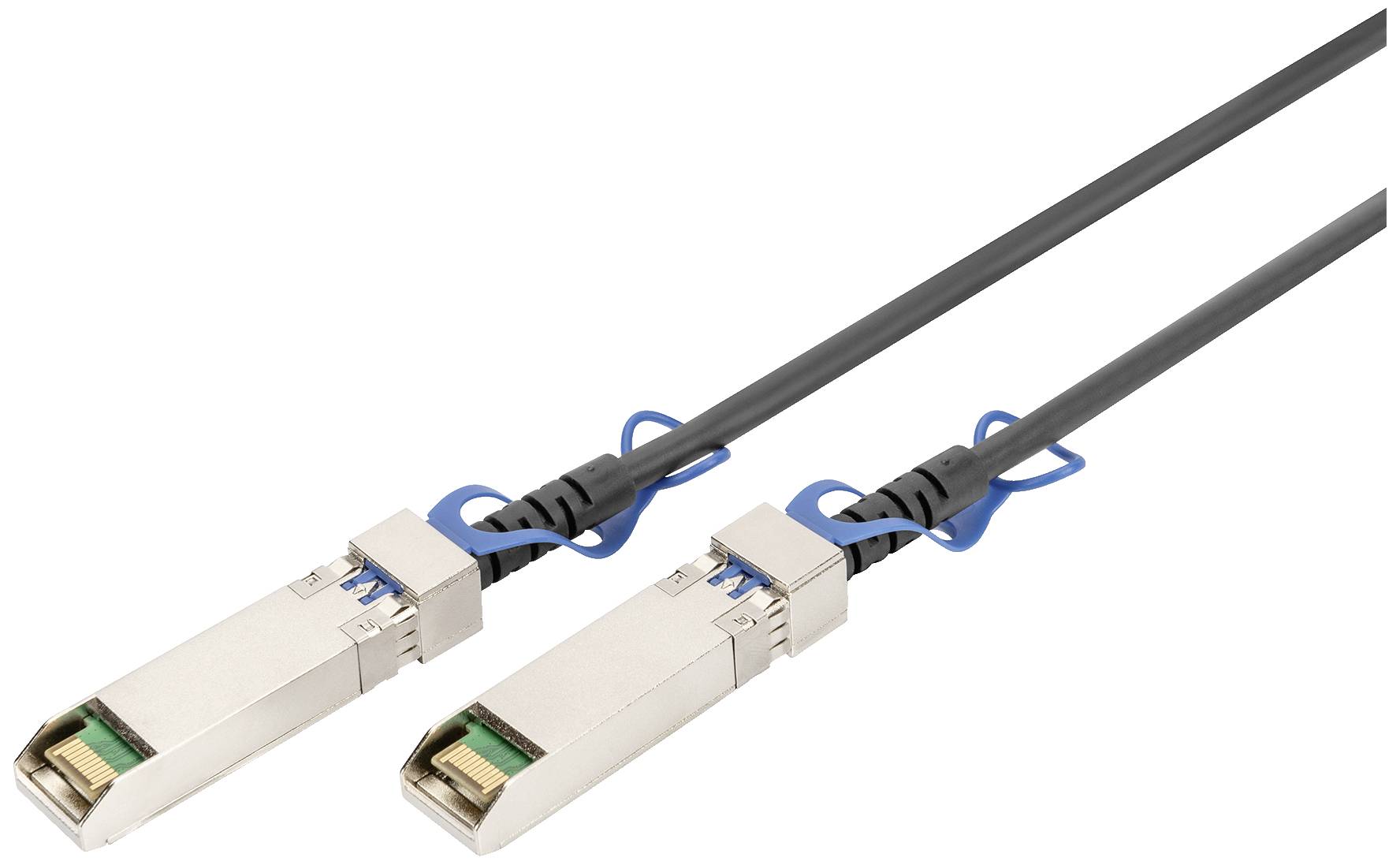

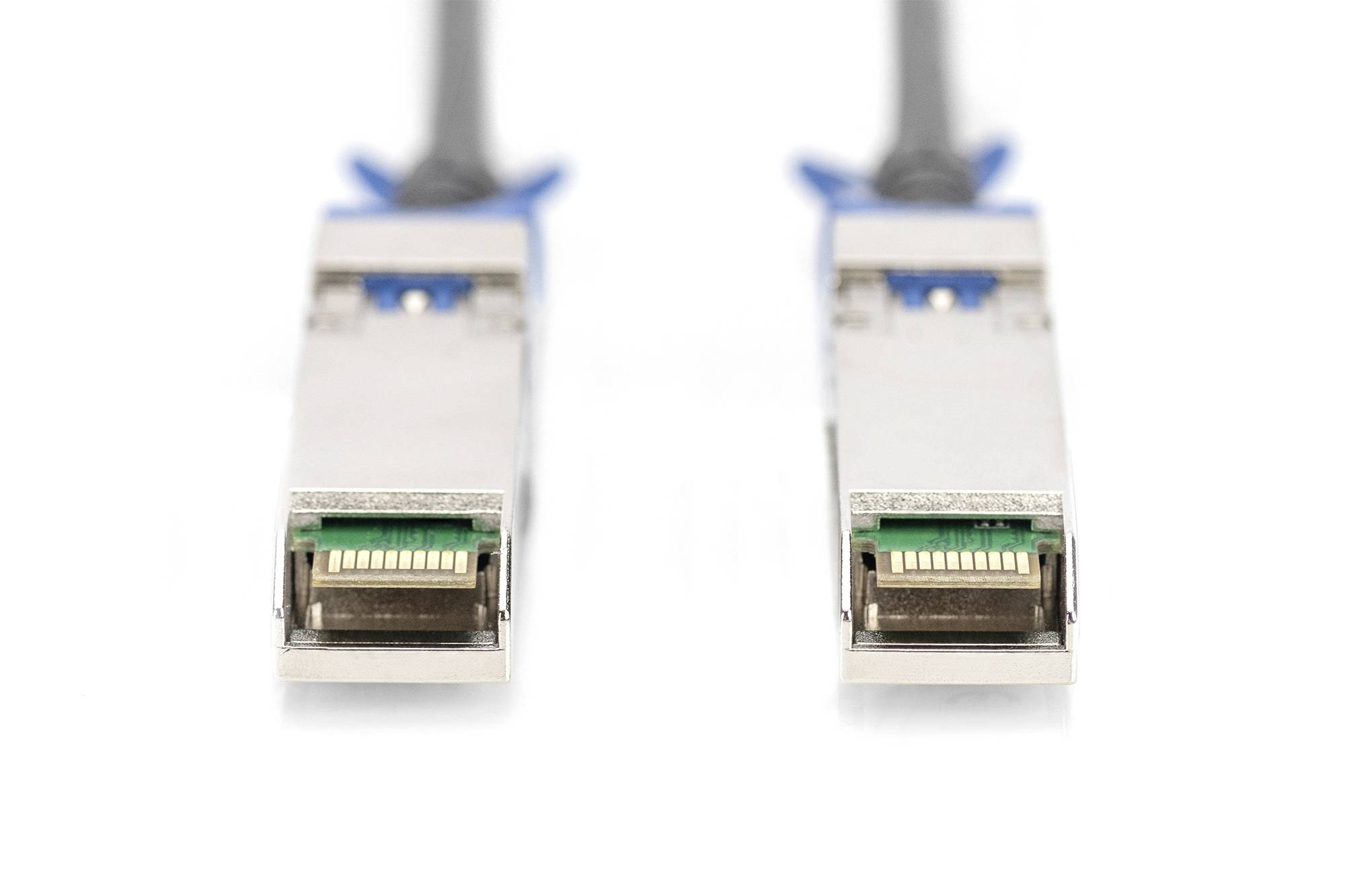

25G SFP28 DAC Twinax cables are a high-performance, energy-saving solution for 25G Ethernet applications, switches, high-performance computers, data acquisition systems and telecommunications systems. It consists of a shielded Twinax copper cable with plug-in connectors at both ends. Passive DAC cables have no electrical components in the cable and are suitable for short transmission distances.
This text is machine translated.
This text is machine translated.
Features
- Hot-plug-capable SFP 20 pin connectionTemperature range: 0-70 ° C.Improved pluggable form factor (IPF)Output: + 3.3V power supply voltageCompatible with SFF-8432 specifications
