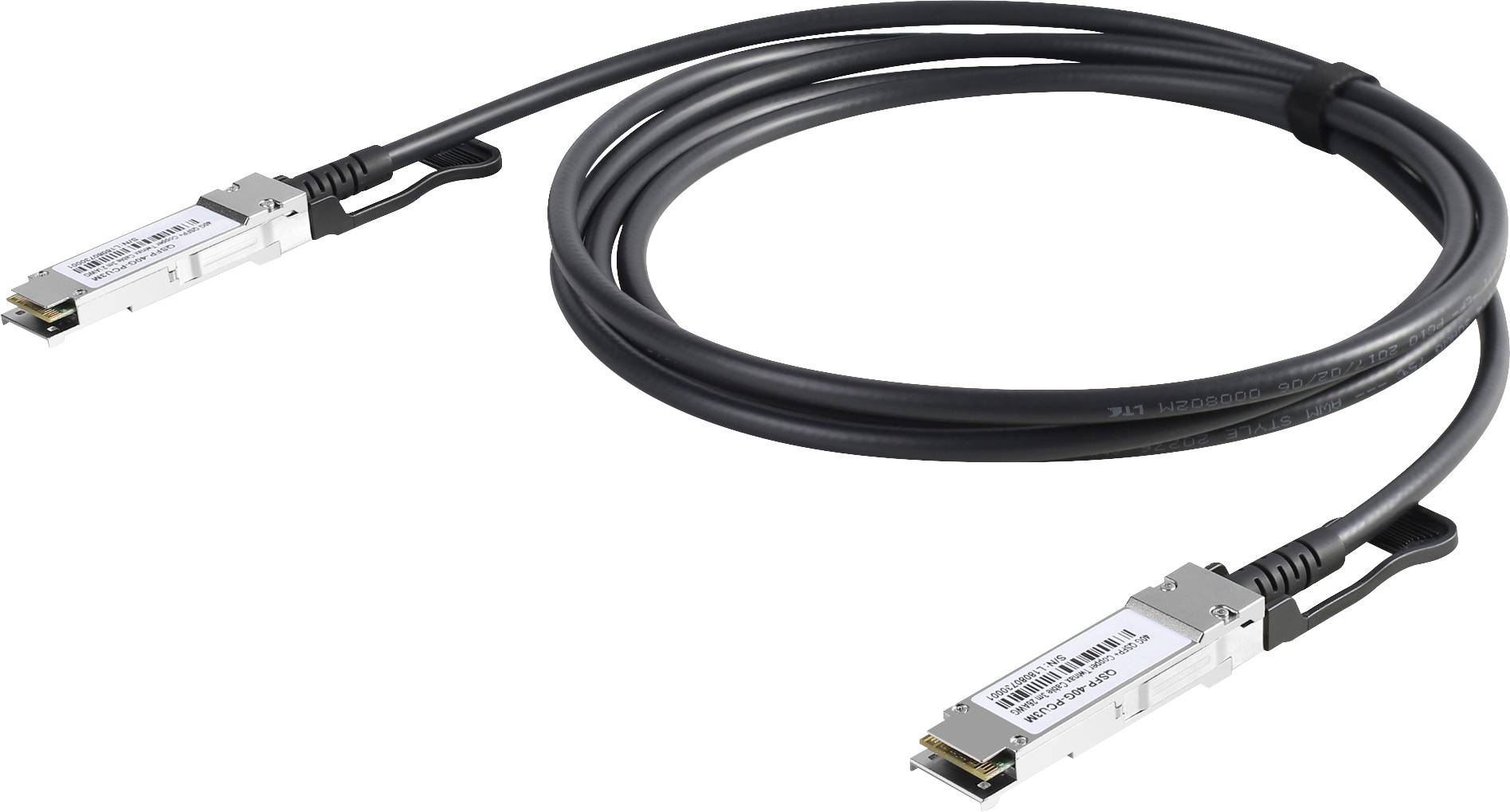

Digitus DN-81309 DN-81309 SFP cable 40 GBit/s 3 m
EAN:
Part number:
Item no:
Highlights & Details
QSFP+ 40G 3M DAC cable Allnet,CISCO,D-Link,Edimax,Etherwan,Fortinet
- QSFP+ 40G 3 m DAC cable
- 2.125-41.2Gbps supported data rate
- Compatible brands: Allnet, CISCO, Dell, D-Link, Edimax, Etherwan, Fortinet, INTELLINET, CTI Networks, Level One, NETGEAR, PLANET, Tenda, TP-LINK, ZyXEL etc. compatible
Technical specifications
- Temperature range 0-70 ° C.
- Connections: QSFP
- Power: + 3.3V supply voltage
- Power consumption: Less than 1.5W
- Multimode fiber with 850nm wavelength
- Product type
SFP cable
- Transfer rate
40 GBit/s
- Interfaces
QSFP+
- Distances up to
3 m
- LAN transfer rate
10000 MBit/s
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2280624 Digitus DN-81309 DN-81309 SFP cable 40 GBit/s 3 m
Description
The DIGITUS® 40G QSFP+ DAC cables are a powerful, energy-saving close-range connection solution. Digitus They are compliant with the QSFP MSA and IEEE P802.3ba. 4 full duplex channels are used, each channel was able to transmit data at speeds of up to 10.3Gb/s, resulting in an aggregated rate of 41.2Gb/s. Digitus DIGITUS® 40G QSFP+DAC cables offer increased port density and cost savings in the overall system.
This text is machine translated.
This text is machine translated.
Features
- 3 m maximum distance supported applications: 12.5G Fiber Channel, 10G Fiber Channel, 8G Fiber Channel, 4G Fiber Channel and 2G Fiber Channel
- DDM / DOM support
Scope of delivery
- QSFP+ 40G 3 m DAC cable
- Quick start guide
