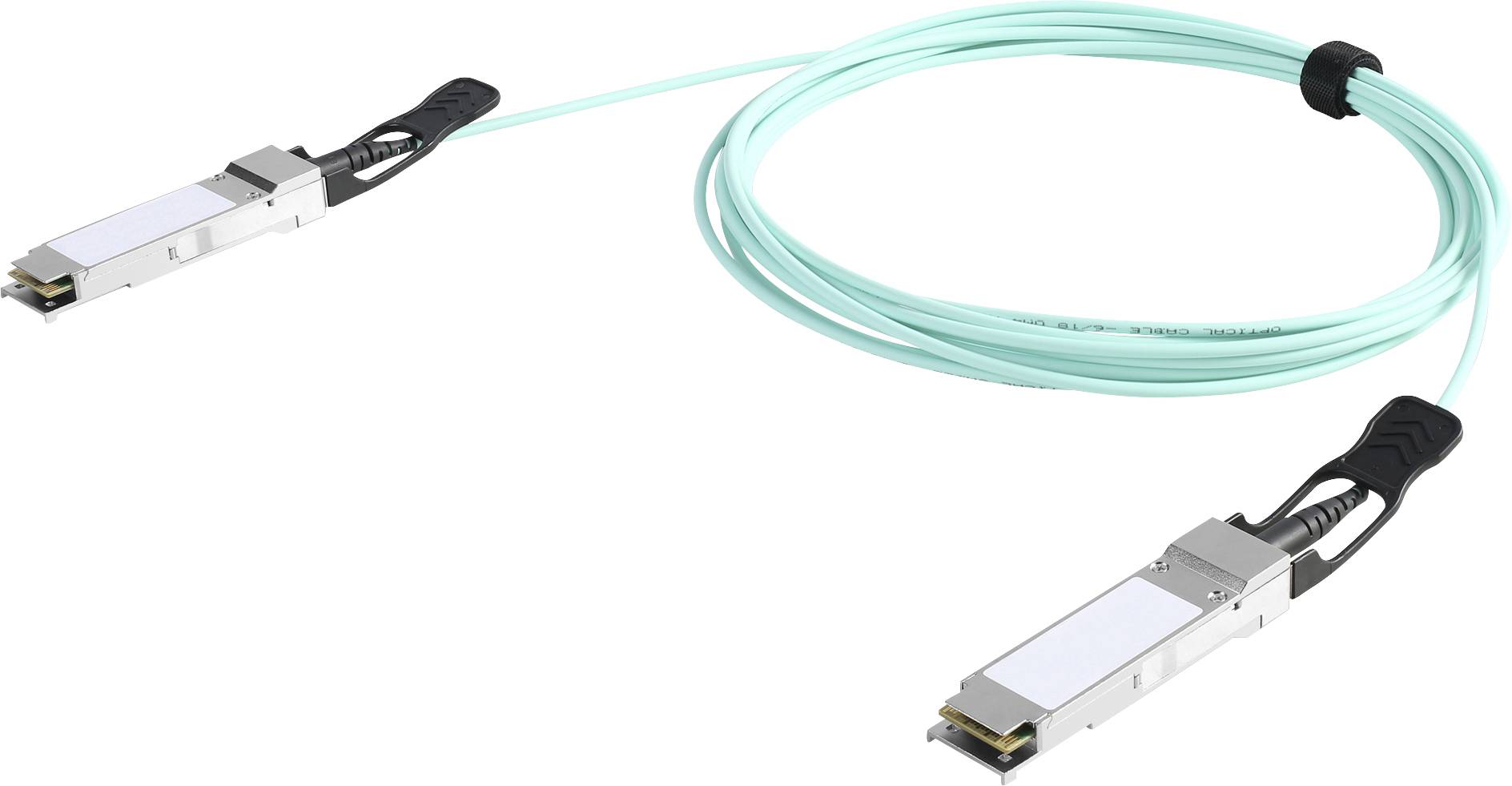

Digitus DN-81313 DN-81313 SFP cable 40 GBit/s 10 m
EAN:
Part number:
Item no:
Highlights & Details
QSFP+ 40G 10m AOC cable Allnet,CISCO,Dell,D-Link,Edimax,Etherwan,Fortinet,
- QSFP+ 40G 10m AOC cable
- 2.125-41.2Gbps supported data rate
- Compatible brands: Allnet, CISCO, Dell, D-Link, Edimax, Etherwan, Fortinet, INTELLINET, CTI Networks, Level One, NETGEAR, PLANET, Tenda, TP-LINK, TRENDnet, ZyXEL, ZTE, etc.
Technical specifications
- Temperature range 0-70 ° C.
- Connections: QSFP
- Power: + 3.3V supply voltage
- Power consumption: Less than 1.5W
- Multimode fiber with 850nm wavelength
- Length: 10 m
- Ethernet speed 40 Gigabit
- Connection: QSFP+
- Supported applications include 12.5G Fiber Channel, 10G Fiber Channel, 8G Fiber Channel, 4G Fiber Channel, and 2G Fiber Channel
- Product type
SFP cable
- Transfer rate
40 GBit/s
- Interfaces
QSFP+
- Distances up to
10 m
- LAN transfer rate
10000 MBit/s
- Factory colour
Blue
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2280525 Digitus DN-81313 DN-81313 SFP cable 40 GBit/s 10 m
Description
The active DIGITUS® 40G QSFP+ AOC cables are a powerful, low-power, near-range interconnect solution that supports InfiniBand QDR/DDR/SDR,12.5G/10G/8G/8G/4G/4G/2G fiber channel, PCIe Digitus and SAS. They are compliant with the QSFP MSA and IEEE P802.3ba. 4 full duplex channels are used, each channel was able to transmit data at speeds of up to 11.3Gb/s, resulting in an aggregated rate of 45.2Gb/s. The active DIGITUS® 40G QSFP+ AOC cables offer increased port density and cost savings in the overall system. Digitus
This text is machine translated.
This text is machine translated.
Features
- 10 m maximum distance
- DDM / DOM support
Scope of delivery
- QSFP+ 40G 10m AOC cable
- Quick start guide
