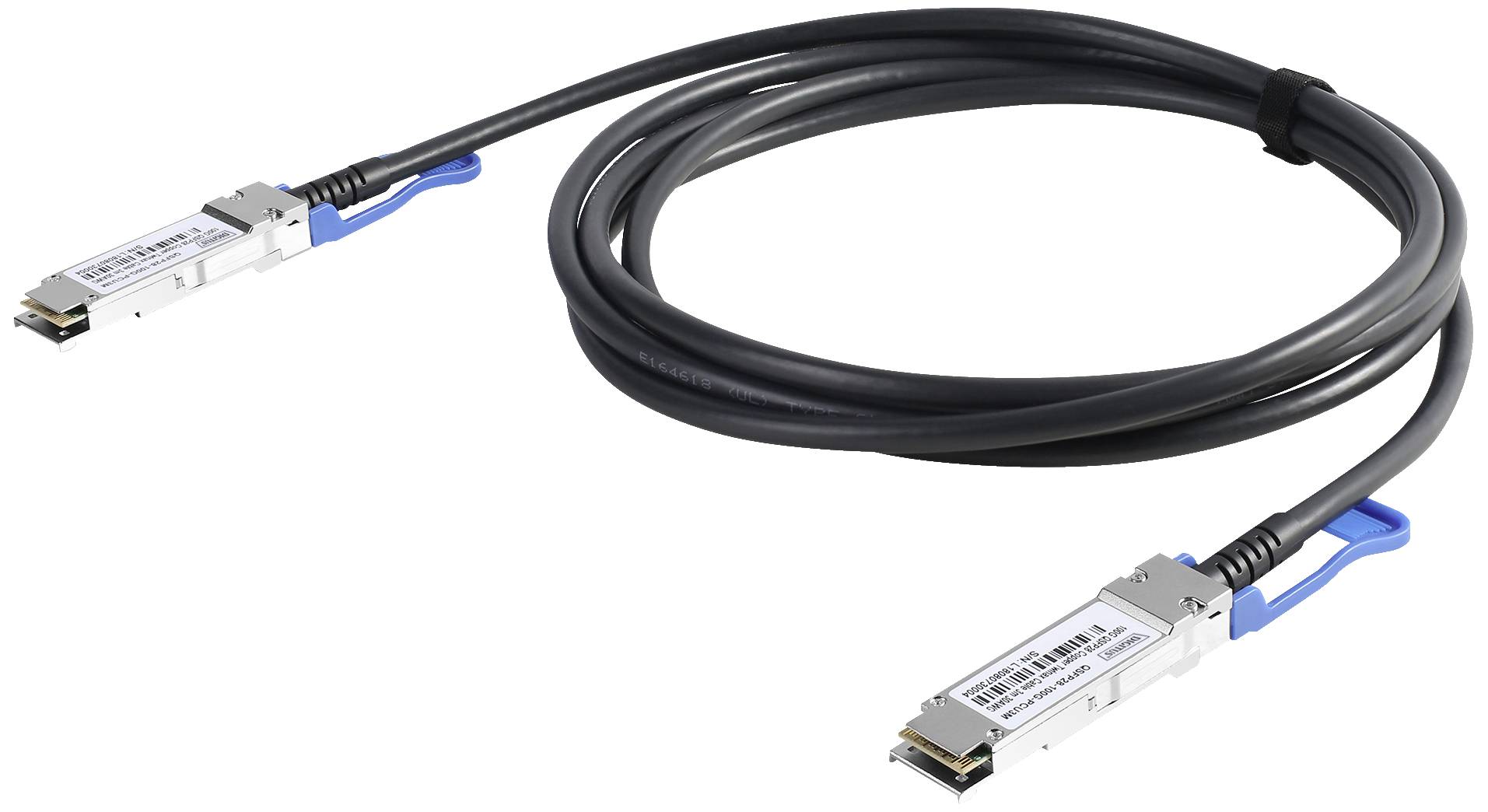

Digitus DN-81603 DN-81603 SFP cable 100 GBit/s 3 m
EAN:
Part number:
Item no:
100g QSFP28 DAC cable, AWG26, MSA, SFF-8665, 3M
Highlights & Details
- 3 m Maximum distanceAWG 26 Twinax cableSupports up to 100 Gbps data rateMax. Supported data rate per channel 28.3125 Gbps
Technical specifications
- Output: + 3.3V power supply voltageAWG 26Connection A: QSFP28Connection B: QSFP28Temperature range: 0-70 ° C.Storage temperature range -40 to 85 °C.Compatible brands: Allnet, Cisco, 3COM, D-Link, Dell, EDIMAX, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, Linksys, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZyXELDDM support: No.
- Product type
SFP cable
- Transfer rate
100 GBit/s
- Interfaces
QSFP28
- Distances up to
3 m
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
10000 MBit/s
2500 MBit/s
25000 MBit/s
- Product type description
Kabel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2757431 Digitus DN-81603 DN-81603 SFP cable 100 GBit/s 3 m
Description
The Digitus® QSFP28 100G DAC cables are the ideal connection between switches in the backbone area. The 100G QSFP28 to QSFP28 Direct Attached Cable Copper Cable Assemblies (DAC) are a cost effective alternative for short range data connections. They meet the specifications for 100G Ethernet (100GBASE-CR4). It contains four high-speed copper pairs, each with data rates up to 25 GbE. The QSFP28 DAC cable is therefore suitable for energy-efficient short distance connections, such as data centers, enterprise storage systems, and high-performance computing
This text is machine translated.
This text is machine translated.
Features
- The connection is compatible with the SFF-8665 specificationCompatible with many other manufacturers
