Buy Digitus DN-81631 DN-81631 QSFP28 transceiver module 100 GBit/s 100 m

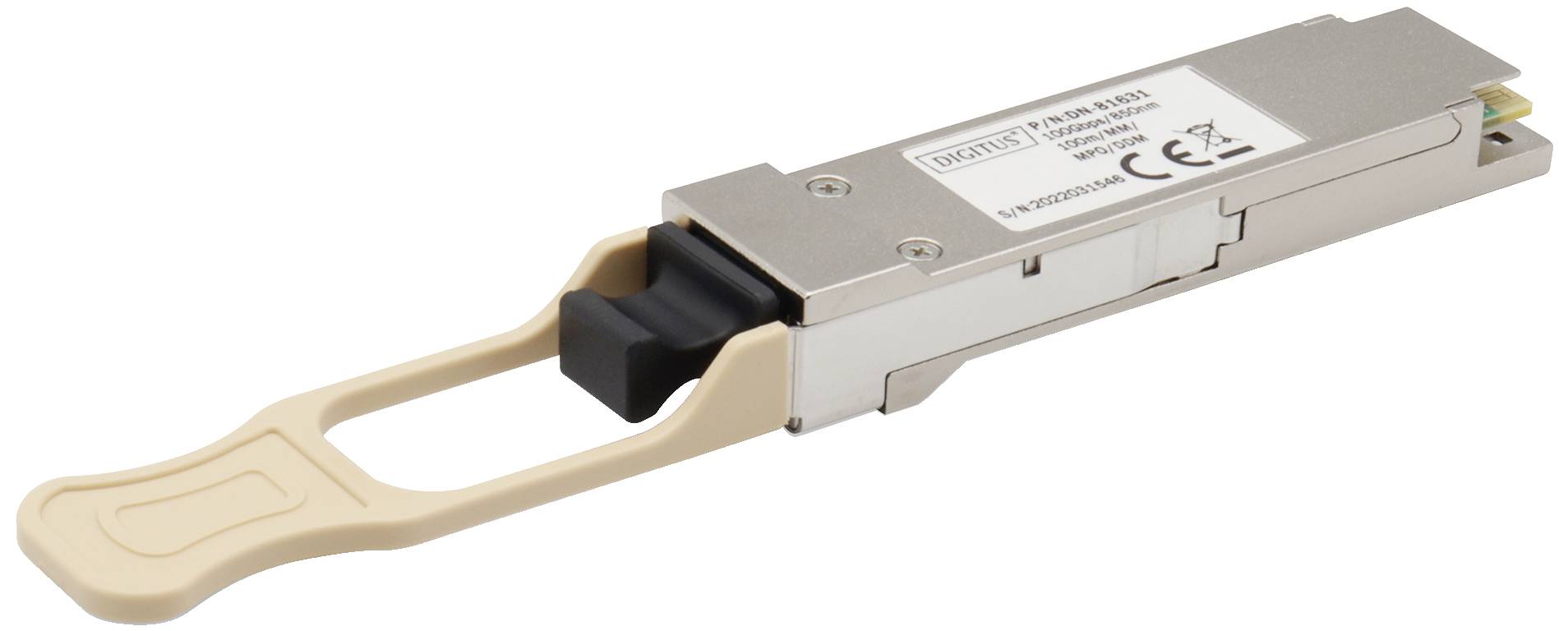

A QSFP-DD transceiver module used for high-speed data connections in network equipment.

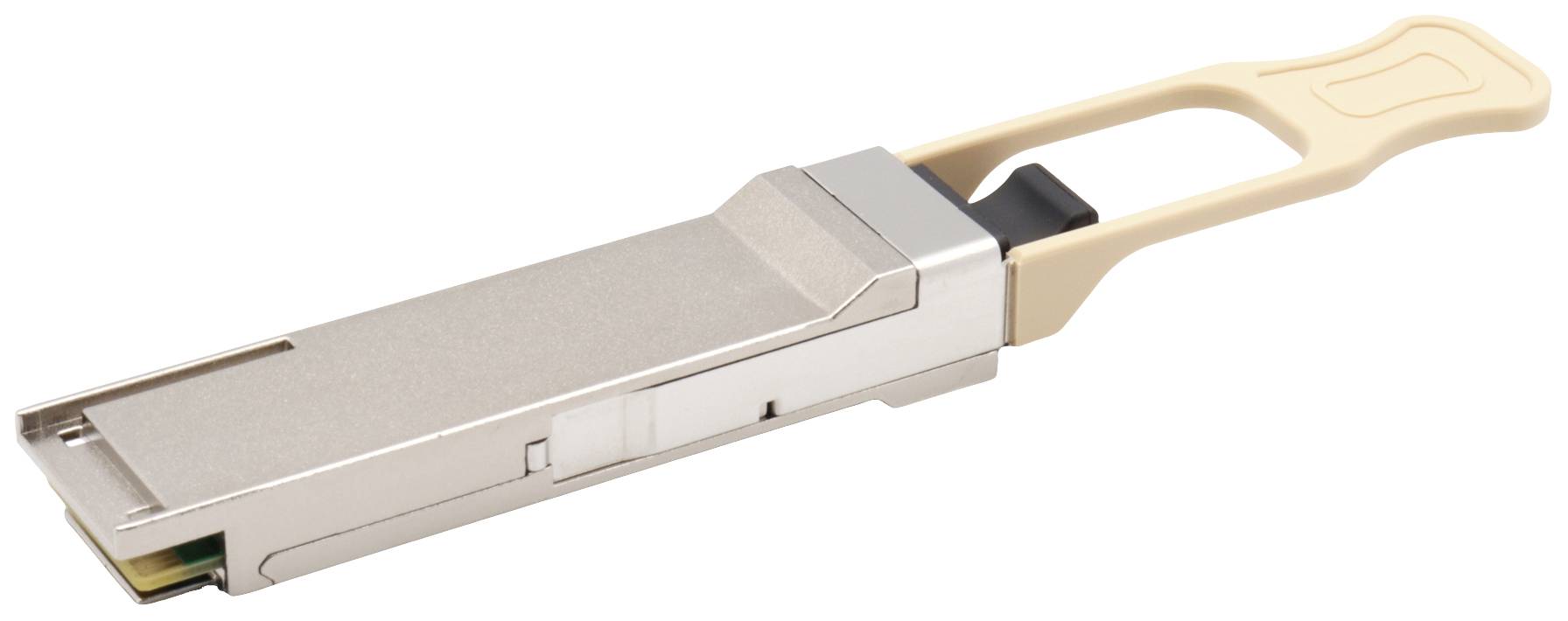

A silver QSFP transceiver with a beige strain relief. A data transmission module for network devices.

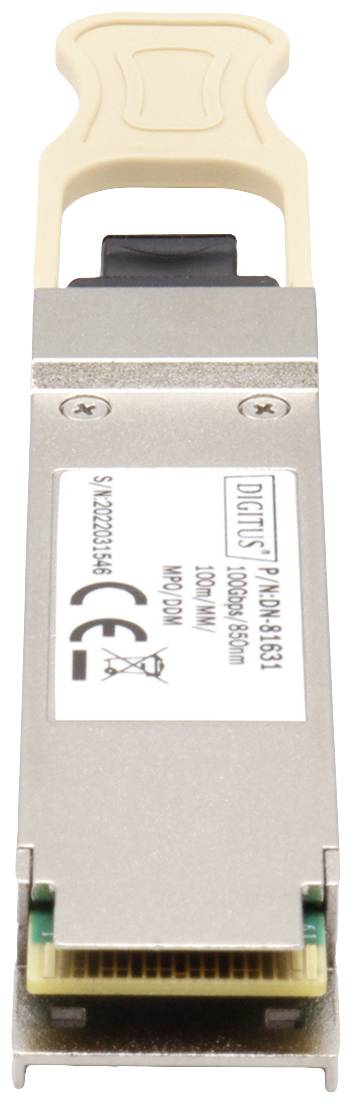

A QSFP28 transceiver module for data transmission with 100G capacity in a network device with CE marking.

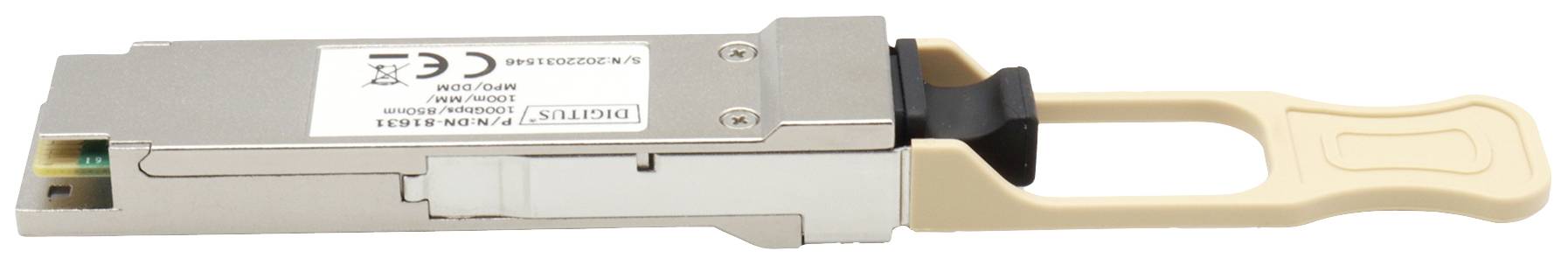

A silver-coloured network adapter with a black and beige casing, typically used for computer server connections.

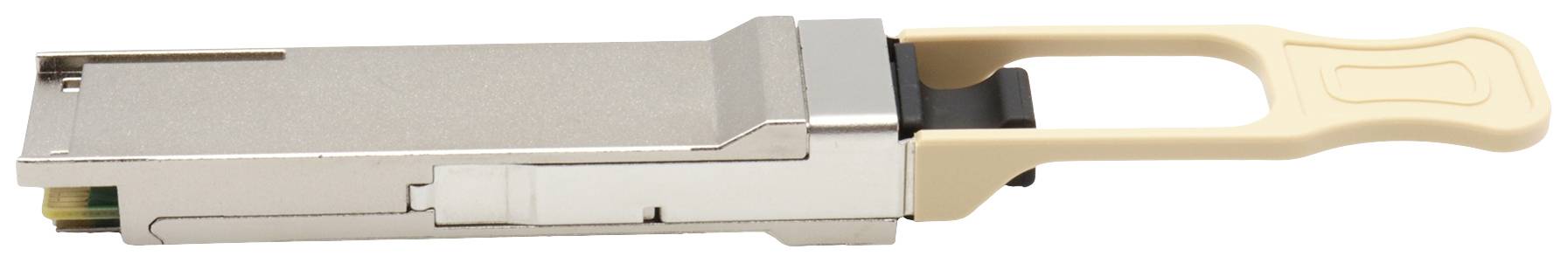

A silver, rectangular network adapter with a cream-coloured handle on the right side, used for optical connections.

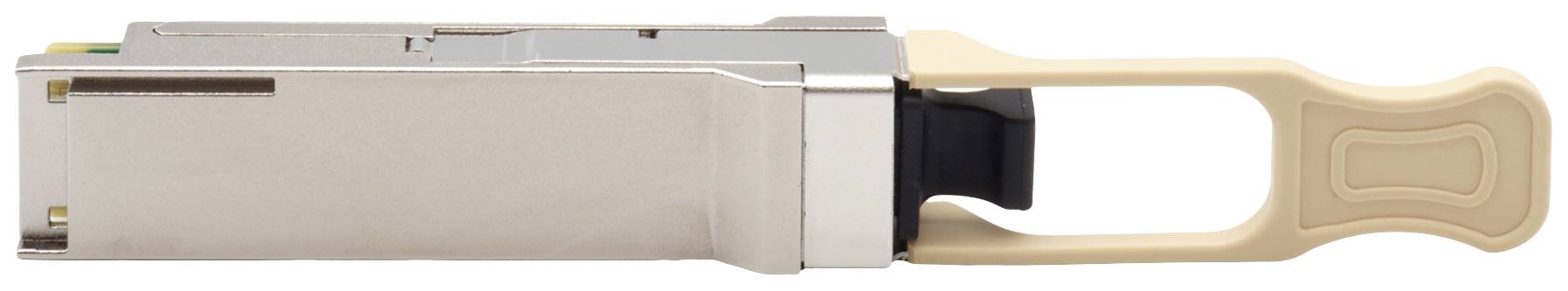

A silver network connector with a beige-coloured pull handle, viewed from the side, for use in data communications equipment.

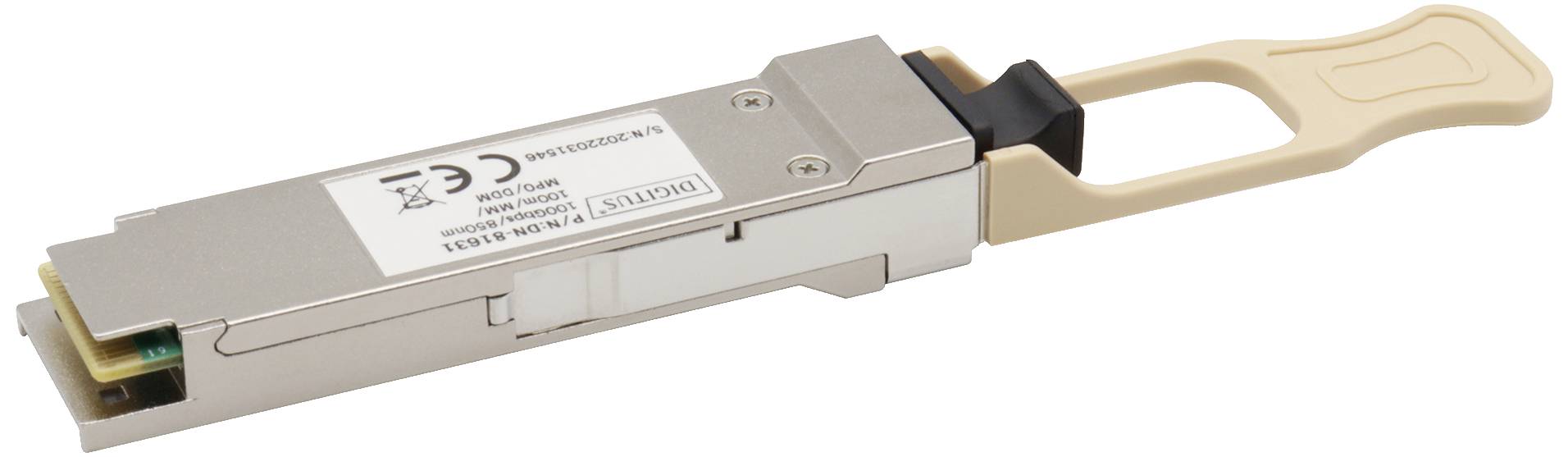

A metallic transceiver with a plastic handle, commonly used for high-speed network connections in data centres.

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

100G QSFP28 transceiver module, SR4, multimode, up to 100m

Four-channel full-duplex transceiver modulesTransmission data rate of up to 26 Gbit/s per channelTransmission range of up to 70m on OM3 multimode fiber (MMF) and 100m on OM4 MMFLow power consumption of less than 3.5W

Technical specifications

Transmission range 70 m (OM3) / 100 m (OM4)Power consumption: Less than 3.5WHousing operating temperature: 0°C to +70°C.Supply voltage 3.3V Compatible with the following manufacturers: Allied Telesis, Allnet, Avaya, Cisco, D-Link, EDIMAX, FINISAR, FORCE 10, gigamon Intellinet, CTI networks, Level one, PLANET, Tenda, TP-LINK, TrendNet, Microtics , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE

Product type: QSFP28 transceiver module

Transfer rate: 100 GBit/s

Interfaces: QSFP28

Distances up to: 100 m

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s
10000 MBit/s
2500 MBit/s
25000 MBit/s

Product type description: Transceiver

Weight: 70 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2757423 Digitus DN-81631 DN-81631 QSFP28 transceiver module 100 GBit/s 100 m

Description

The Digitus DN-81316 is a 4-channel pluggable, parallel optical QSFP28 transceiver for IEEE 802.3bm, 100GBASE SR4 applications, or 40 Gigabit Ethernet and Infiniband FDR/EDR applications. The optical QSFP28 full duplex module offers 4 independent transmit and receive channels, each with 26 Gbps for a total data rate of 104 Gbps over 70 m when using the OM3 standard. These modules are designed for operation via multi-mode fiber optic systems with 850nm VCSEL laser array. A fiber optic flat cable with a MPO/MTPTM plug can be plugged into the QSFP module socket. QSFP28 SR4 transceivers, have higher port density and provide savings on overall system costs.

This text is machine translated.

Features

3.3V supply voltageRoHS 6 compliantHot pluggable QSFP form factorMPO socketBuilt-in digital diagnostics
