Buy Digitus DN-82024 SC Duplex Media converter 100 MBit/s

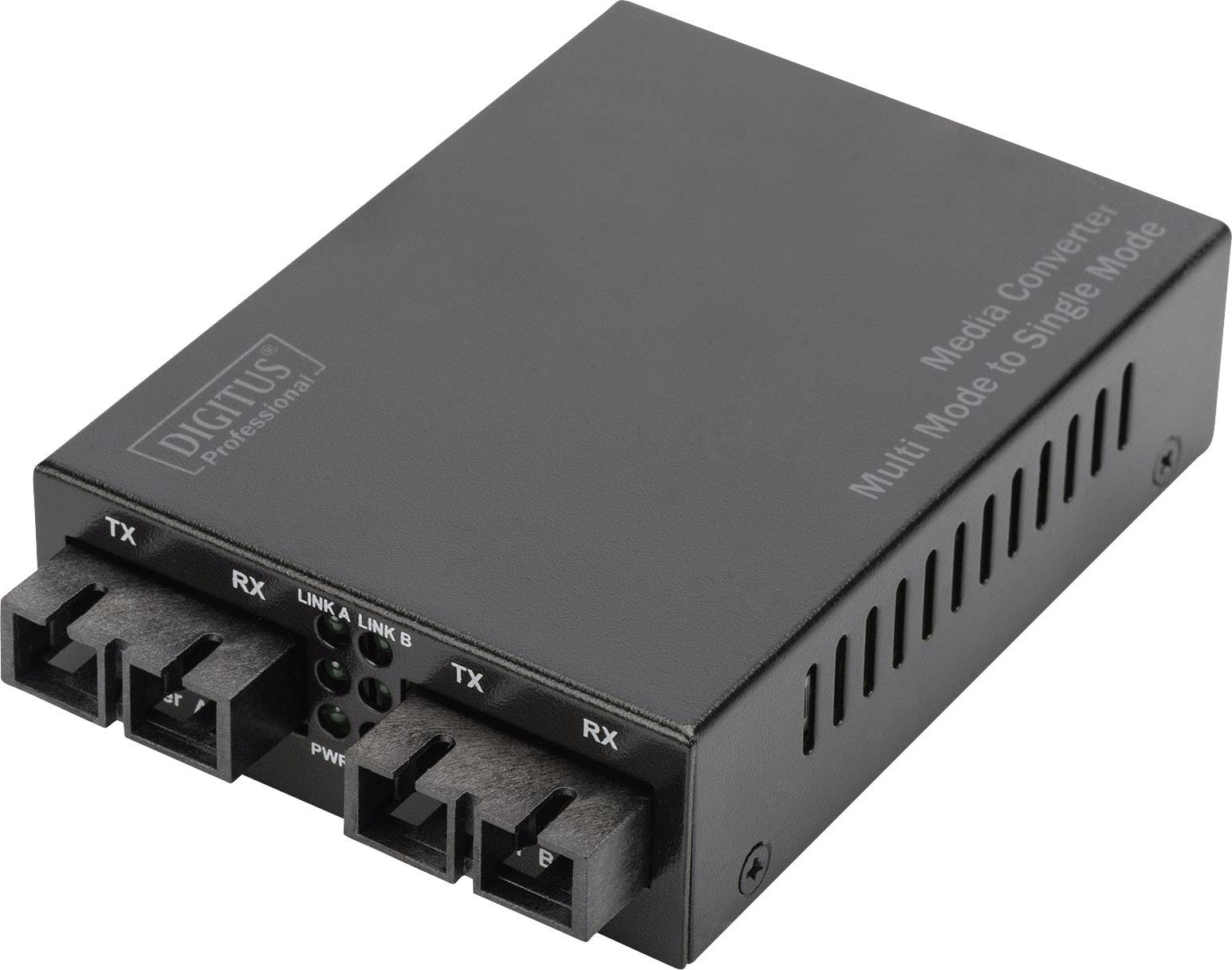

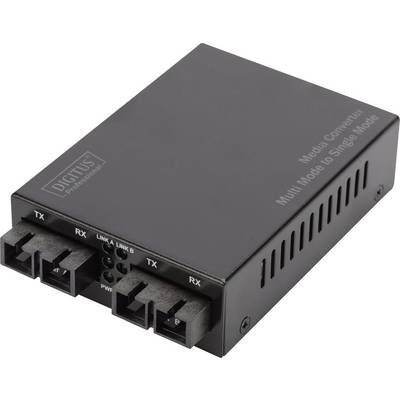

A black media converter with the inscription 'Multi Mode to Single Mode', featuring input and output ports on the front panel.

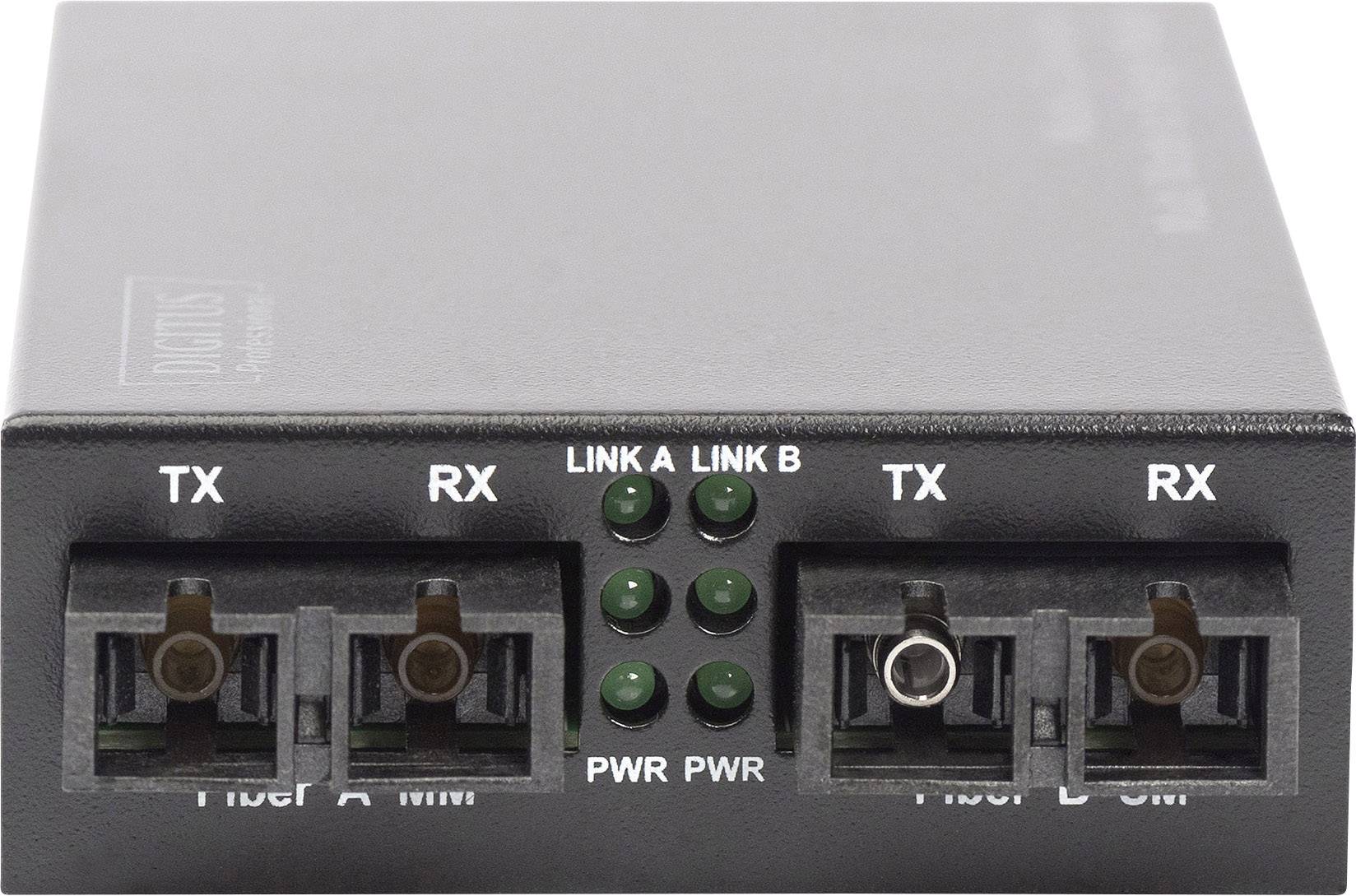

'Media converter with two fibre optic ports (Fibre A and B) for TX (Transmit) and RX (Receive) and six LED indicators for connections and power supply.'

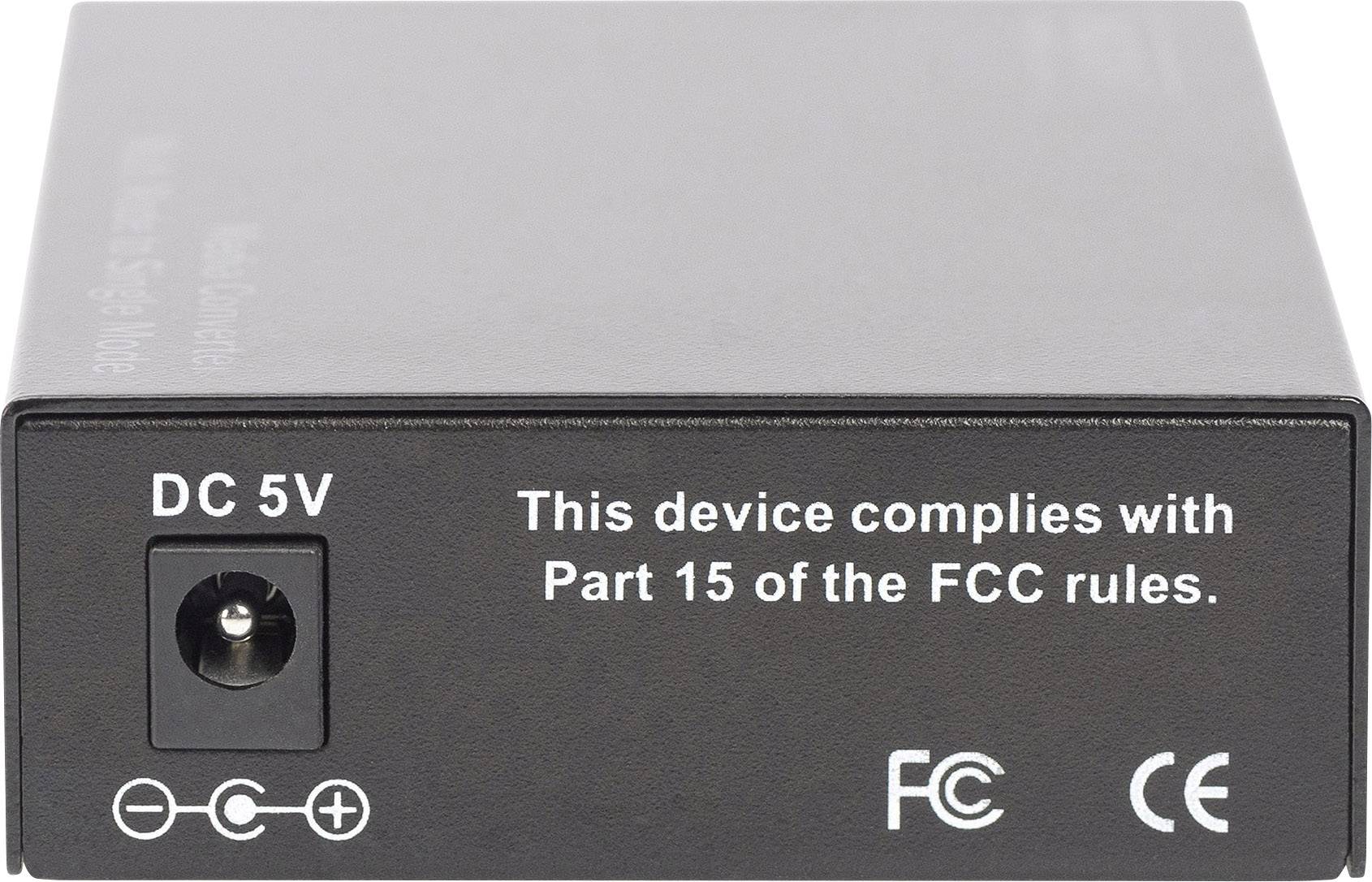

Black device with adjustable DC 5V power socket. Label reads: 'This device complies with Part 15 of the FCC rules.' FCC and CE symbols.

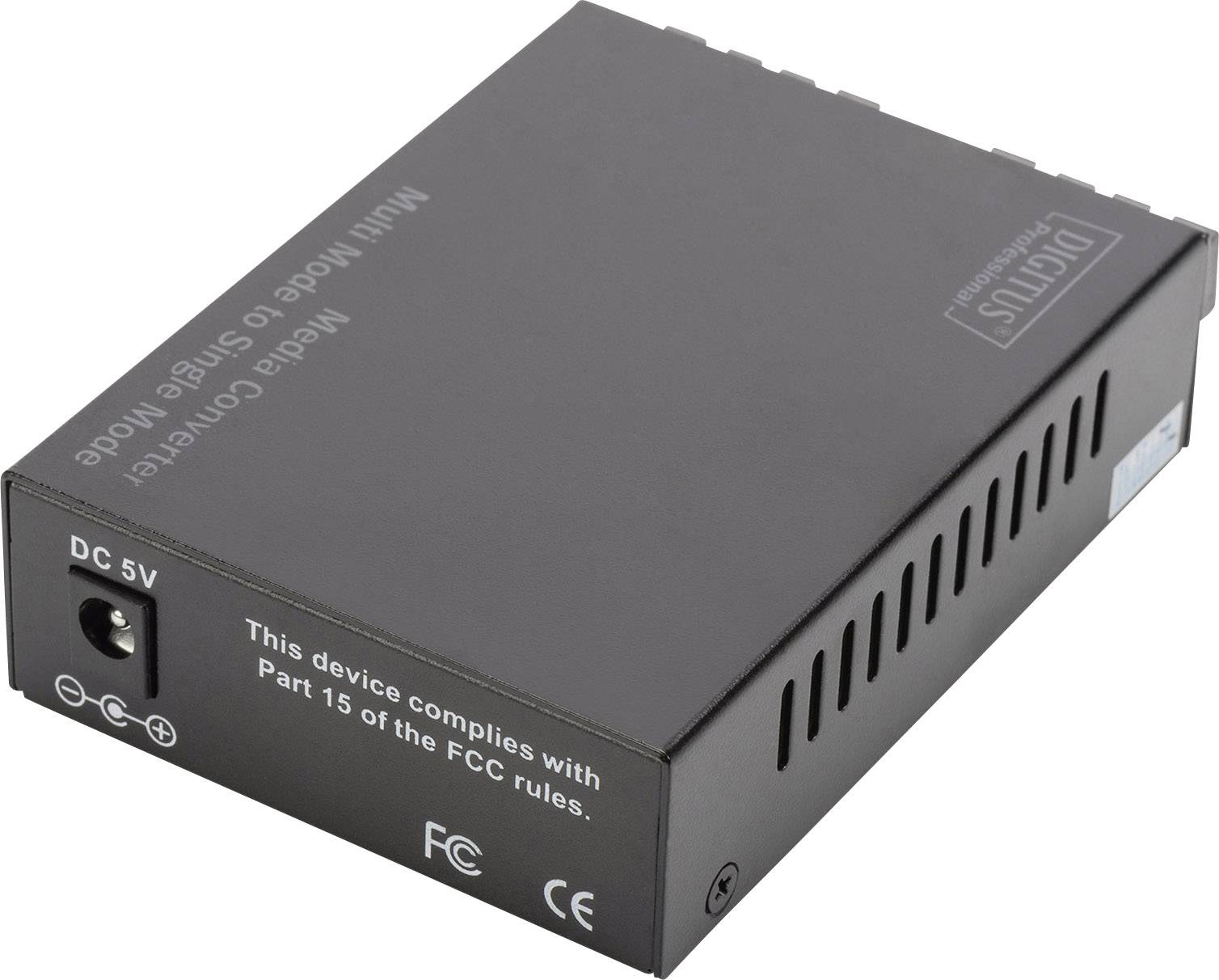

Black media converter with labelling 'This device complies with Part 15 of the FCC Rules'. Contains ports and ventilation slots.

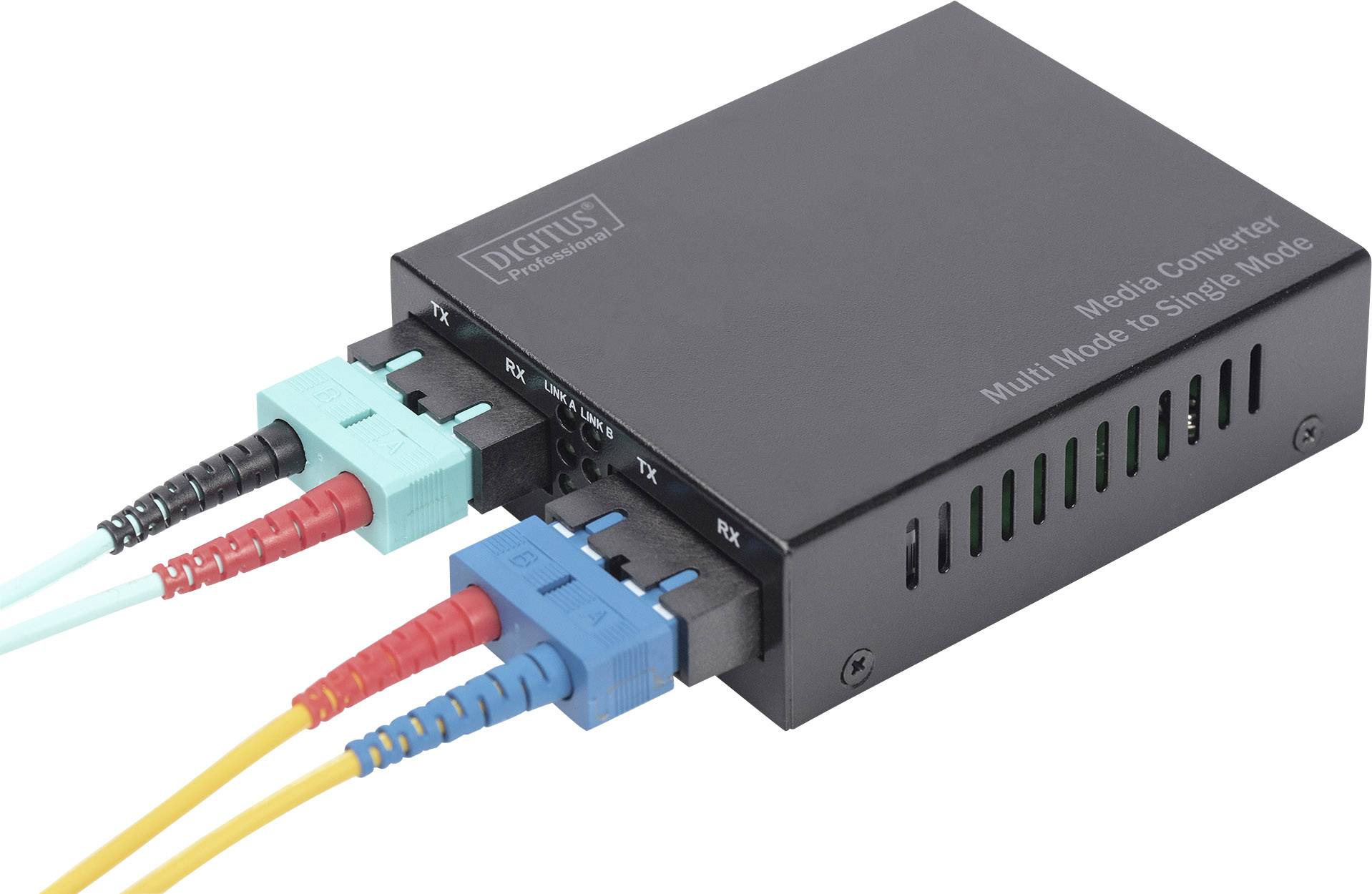

A black media converter with several connected coloured cables. Label: 'DIGITUS. Media Converter. Multi Mode to Single Mode.'

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Fast Ethernet multimode to singlemode media converter, SC to SC wavelength 1310nm

Highlights & Details

The perfect converter solution for optical data transfer
Easy conversion between multimode and singlemode fiber
Fast migration for long distances
Range up to 20km

Technical specifications

Input voltage 5V/DC
Max current consumption: 1 A
Power consumption: 3.5W.
Dimensions (L x W x H): 95mm x 70mm x 26mm
Wavelength: 1310 nm
Range Multimode: Up to 2km
Range single mode: Up to 20km
Operating temperature -10 to 55°C.

Product type: Media converter

Interfaces: 1x SC Duplex
1x SC Simplex

Link: SC Duplex

Transfer rate: 100 MBit/s

Length: 26 mm

Width: 95 mm

Height: 70 mm

Weight: 300 g

LAN transfer rate: 100 MBit/s

Version: Cable

Factory colour: Black

Cable use: PC

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2197222 Digitus DN-82024 SC Duplex Media converter 100 MBit/s

Description

The DIGITUS® media converters are an optimal solution for the migration of optical fiber signals. You can now access fiber optic technology and bridge several kilometers without having to replace your entire network cabling. With our extensive range of products you can react to your individual requirements. The intuitive operation guarantees a quick and easy installation. Years of experience and a wide range of products make DIGITUS® a reliable partner for your network technology.

This text is machine translated.

Features

Converts between single & multimode fiber
100Base-FX SC connection, multimode dual fiber
100Base-FX SC connection, single mode dual fiber
Diagnostics LEDs for status and activity monitoring
Suitable for 50/125µm, 62.5/125µm and 100/140µm fiber optic cables (multimode)
Suitable for 8.3/125µm, 8.7/125µm, 9/125µm and 10/125µm fiber optic cables (single mode)
Standalone converter with external power supply

Scope of delivery

Fast Ethernet multimode/singlemode media converter SC/SC
Quick start guide
Power supply unit
