Digitus DN-82122 LAN, SC Simplex Network media converter 1 GBit/s
EAN:
Part number:
Item no:
Bidirectional Gigabit Media Converter, RJ45 / SC
Highlights & Details
- The perfect converter solution for various fiber media
- Distance up to 20km
- Sends data in high quality and additionally provides excellent reliability
- A quick delivery is guaranteed in the gigabit range
Technical specifications
- Product type
Network media converter
- Interfaces
1x LAN (10/100/1000 Mbps)
1x SC Simplex
- Link
LAN
SC Simplex
- Transfer rate
1 GBit/s
- Length
95 mm
- Width
70 mm
- Height
26 mm
- Weight
180 g
- Version
Cable
- Cable use
RJ45
- Connection type
RJ45
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1345738 Digitus DN-82122 LAN, SC Simplex Network media converter 1 GBit/s
Conformity certificate
Conformity certificate 1345738 Digitus DN-82122 LAN, SC Simplex Network media converter 1 GBit/s
Description
The media converters from DIGITUS® are the ideal solution for the migration of copper and fiber network signals. From now on, you are able to access the fiber technology and transfer network signals over several kilometers without renewing your whole network infrastructure. The huge variety of products fulfil your individual needs. The intiutive operation guarantees a quick and easy installation. Years of experience and a wide range of products lets DIGITUS® become a reliable partner for your network.
· Transforms wire based network media to fiber optic
· High quality and excellent reliability
· 10/100/1000Base-TX to 1000Base-LX
· Connectors: 1x RJ45, 1x SC Simplex
· Distance up to 20km
· Wavelength: Tx 1310nm / Rx 1550nm
· Singlemode Single Fiber
· Automatic cable detection - auto MDI / MDI-X function
· Auto-negotiation of full- and half-duplex

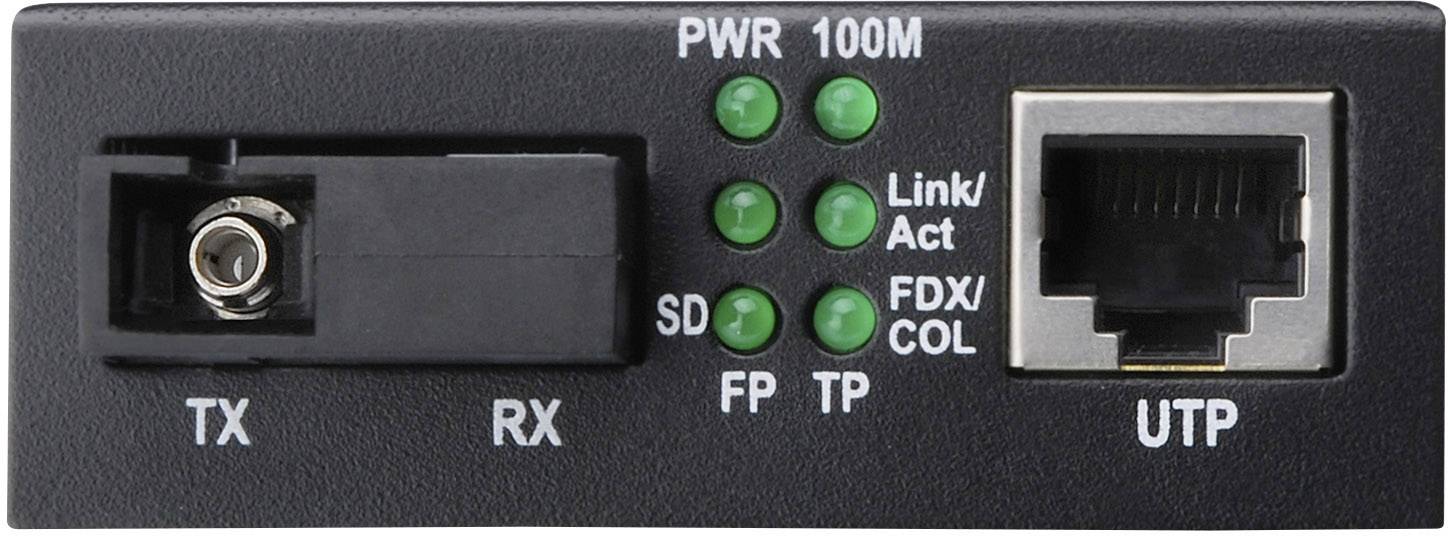

· Diagnostic and monitoring LEDs for the status of power, link and act of the ports
· Link Fault Pass Through (LFP) function for easier network maintenance
· Suitable for 9/125µm Fiber Cables
· Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
· 2MB Data Buffer
· Operating Temperature: 0 to 60°C
· Dimensions (L x W x H): 95mm x 70mm x 26mm
· Weight: 200g
· Standalone Converter with external power supply

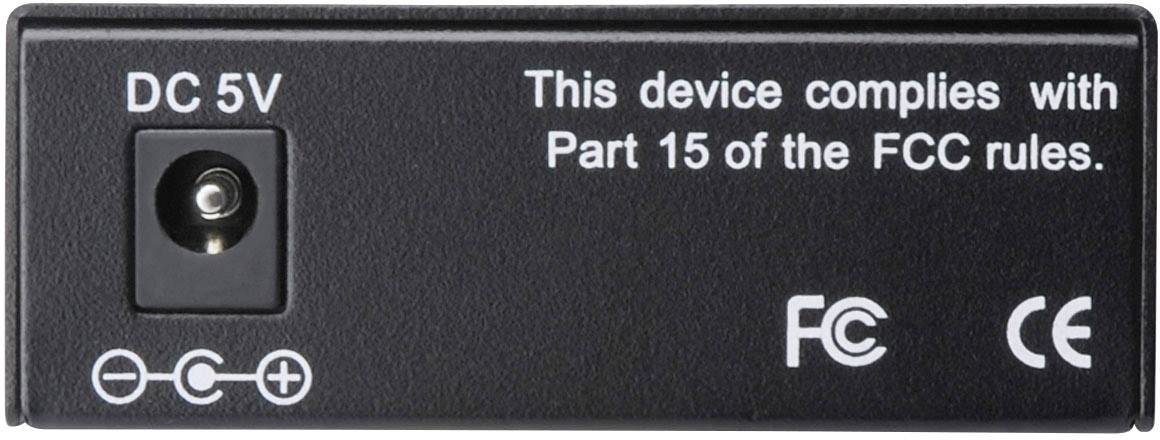

· Input Supply Voltage: 5V DC
· Max. Current: 800mA
· Power Consumption: 2.5W
· Suitable Converter for Opposite Side: DN-82123
· Transforms wire based network media to fiber optic
· High quality and excellent reliability
· 10/100/1000Base-TX to 1000Base-LX
· Connectors: 1x RJ45, 1x SC Simplex
· Distance up to 20km
· Wavelength: Tx 1310nm / Rx 1550nm
· Singlemode Single Fiber
· Automatic cable detection - auto MDI / MDI-X function
· Auto-negotiation of full- and half-duplex
· Diagnostic and monitoring LEDs for the status of power, link and act of the ports
· Link Fault Pass Through (LFP) function for easier network maintenance
· Suitable for 9/125µm Fiber Cables
· Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
· 2MB Data Buffer
· Operating Temperature: 0 to 60°C
· Dimensions (L x W x H): 95mm x 70mm x 26mm
· Weight: 200g
· Standalone Converter with external power supply
· Input Supply Voltage: 5V DC
· Max. Current: 800mA
· Power Consumption: 2.5W
· Suitable Converter for Opposite Side: DN-82123
Features
- Converts wire-based network signals in fiber-optic signals
- High quality and maximum reliability
- 10/100/1000 Base-TX to 1000BASE-LX
- Connections: 1 x RJ45, 1 x SC Simplex
- Range up to 20km
- 1310 nm wavelength: Tx/Rx1550 nm
- Single mode single fiber
- Automatic cable detection - Auto-MDI/MDI-X function
- Auto detection of full- and half-duplex
- Diagnostic LEDs for status and activity monitoring
- Link Fault pass-through (LFP) function for a simple error detection
- Suitable for 9 / 125 µm fiber-optic cable
- Supported standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
- 2 MB data buffer
- Operating temperature: 0 to 60°
- Dimensions (L x W x H): 95 mm x 70 mm x 26 mm
- Weight: 200 g
- Standalone converter with external power supply unit
- Input voltage 5V/DC
- Max current consumption: 800mA
- Power consumption: 2.5W.
- Suitable converter for the opposite side: DN -82123
Scope of delivery
- Media Converter
- Quick installation guide
- Power adapter
