Buy Digitus DN-82124 IEEE 802.3z 1000BASE-SX, SC Duplex Media converter 1000 MBit/s

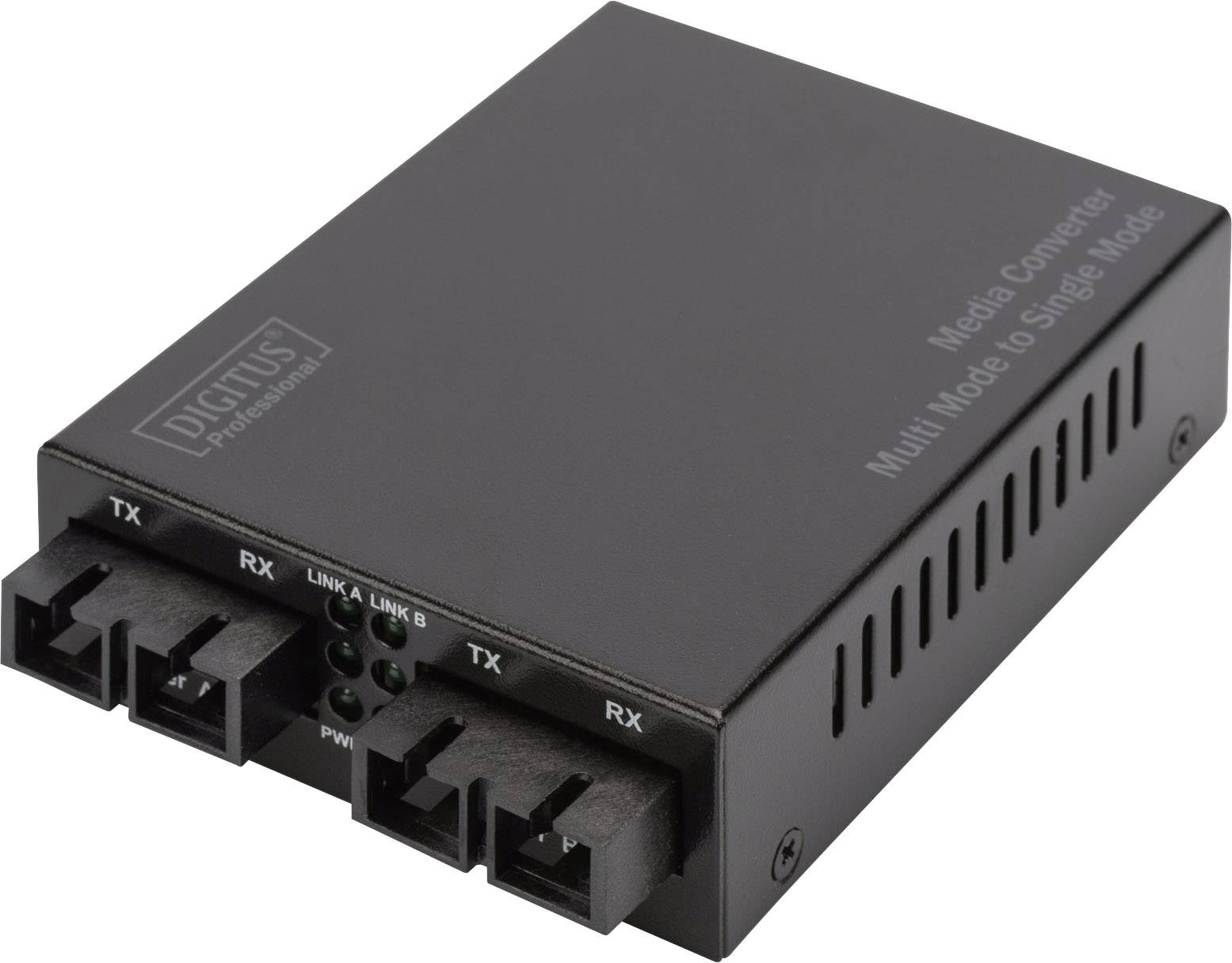

Black media converter with 'Media Converter Multi Mode to Single Mode' inscription and connections for TX, RX.

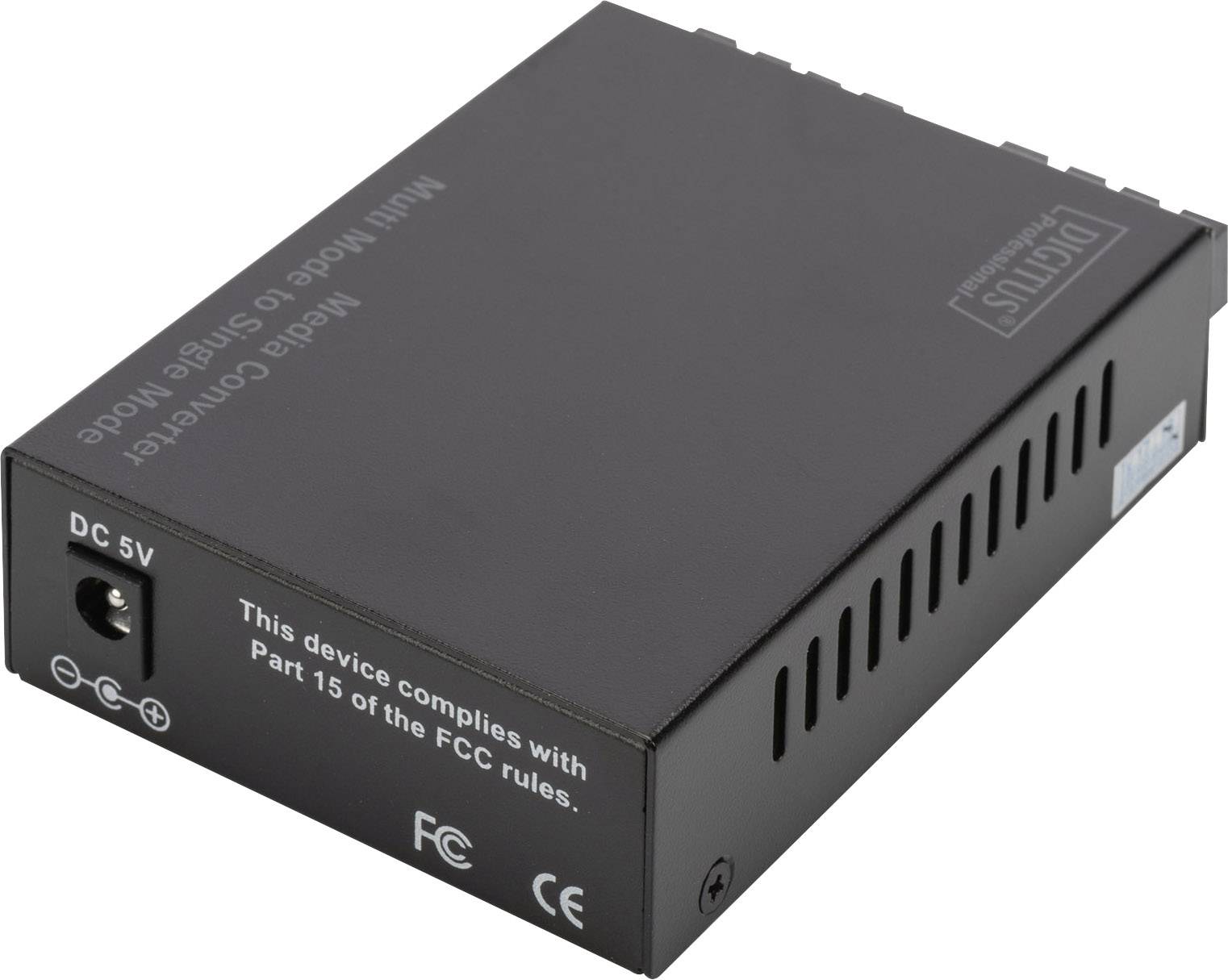

Black fibre media converter, DC 5V connection, FCC certified.

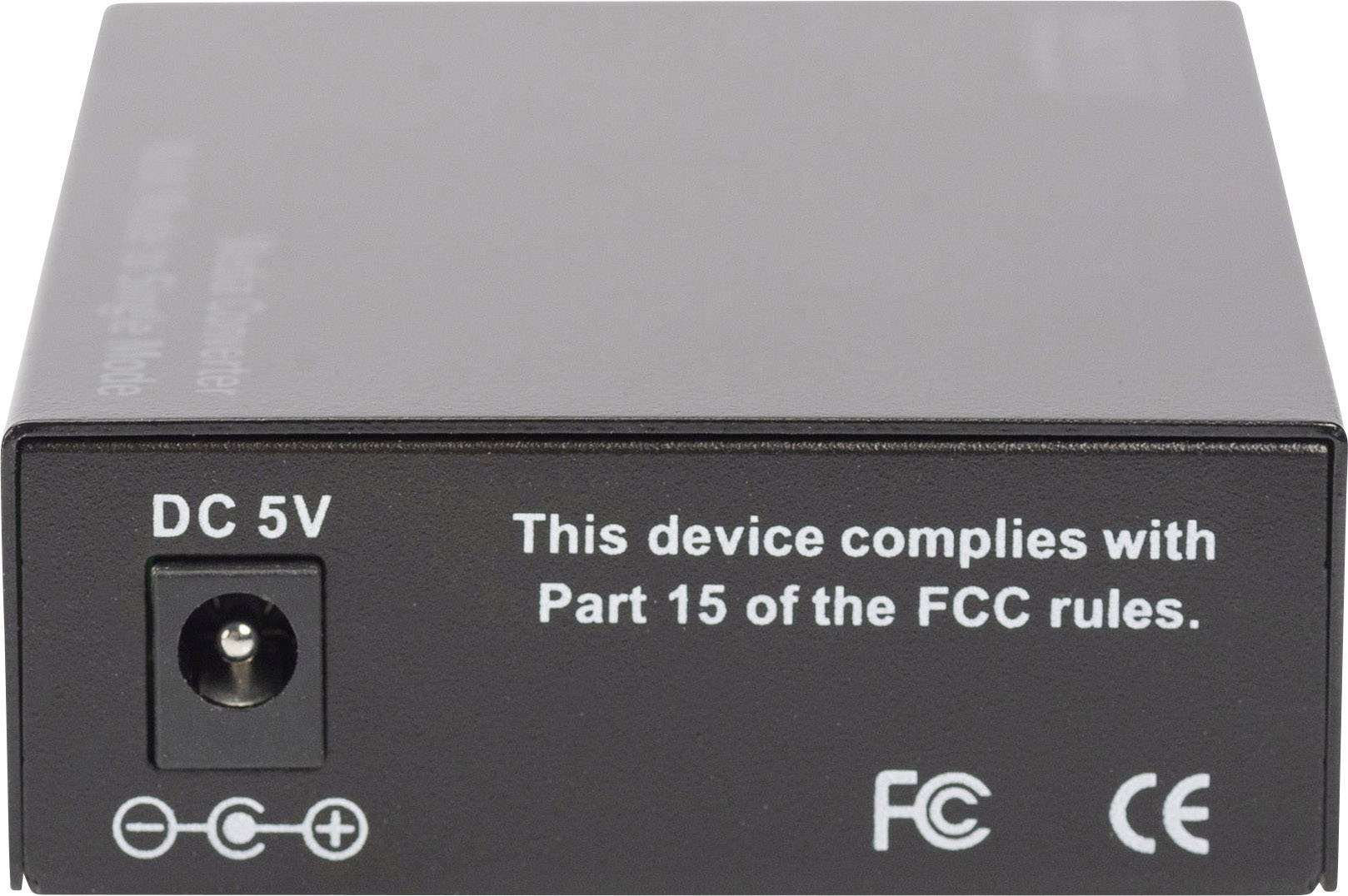

Digitus DN-82124 IEEE 802.3z 1000BASE-SX, SC Duplex Media converter 1000 MBit/s-2

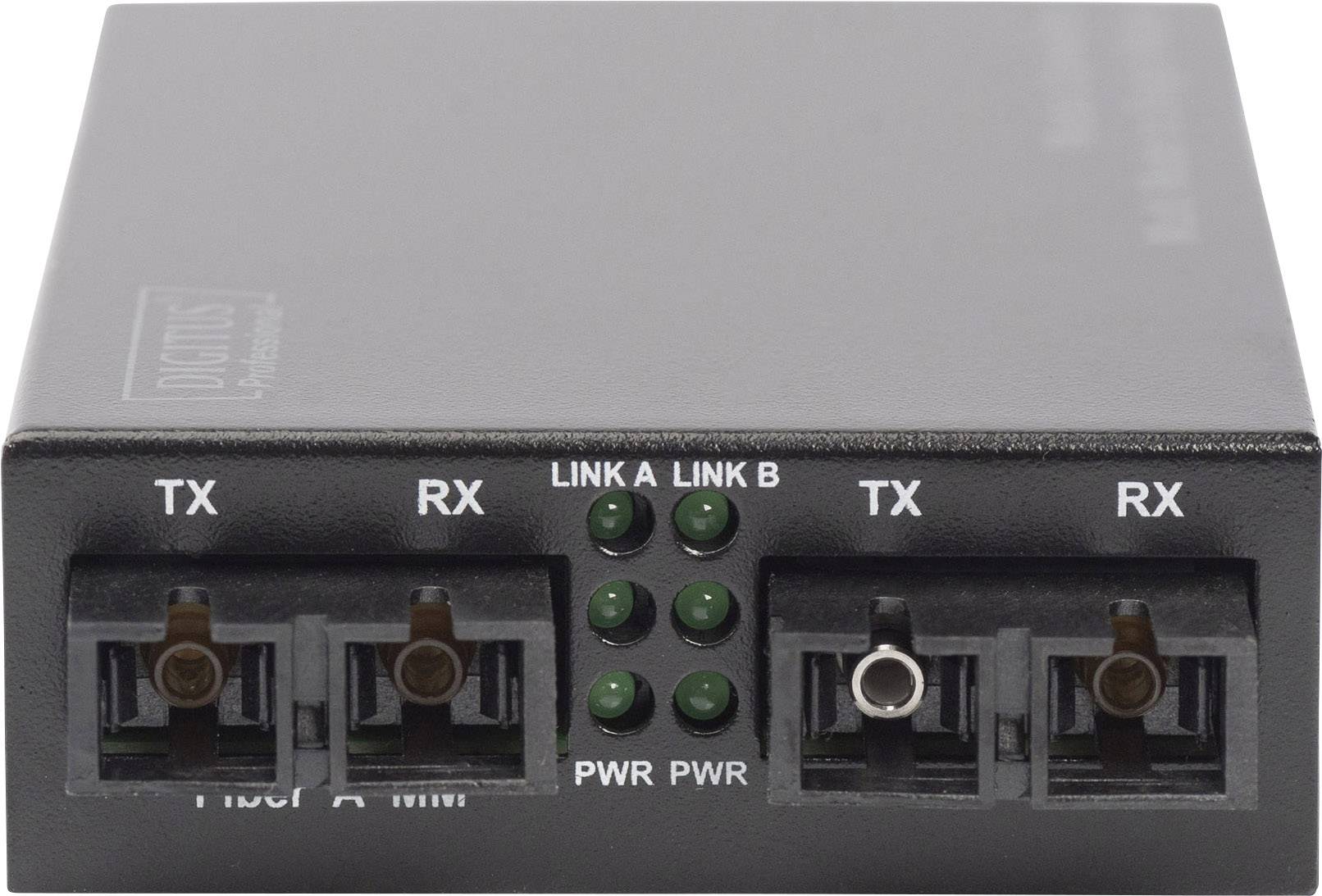

A black network adapter with TX and RX ports and LED indicators for LINK A, LINK B, and PWR.

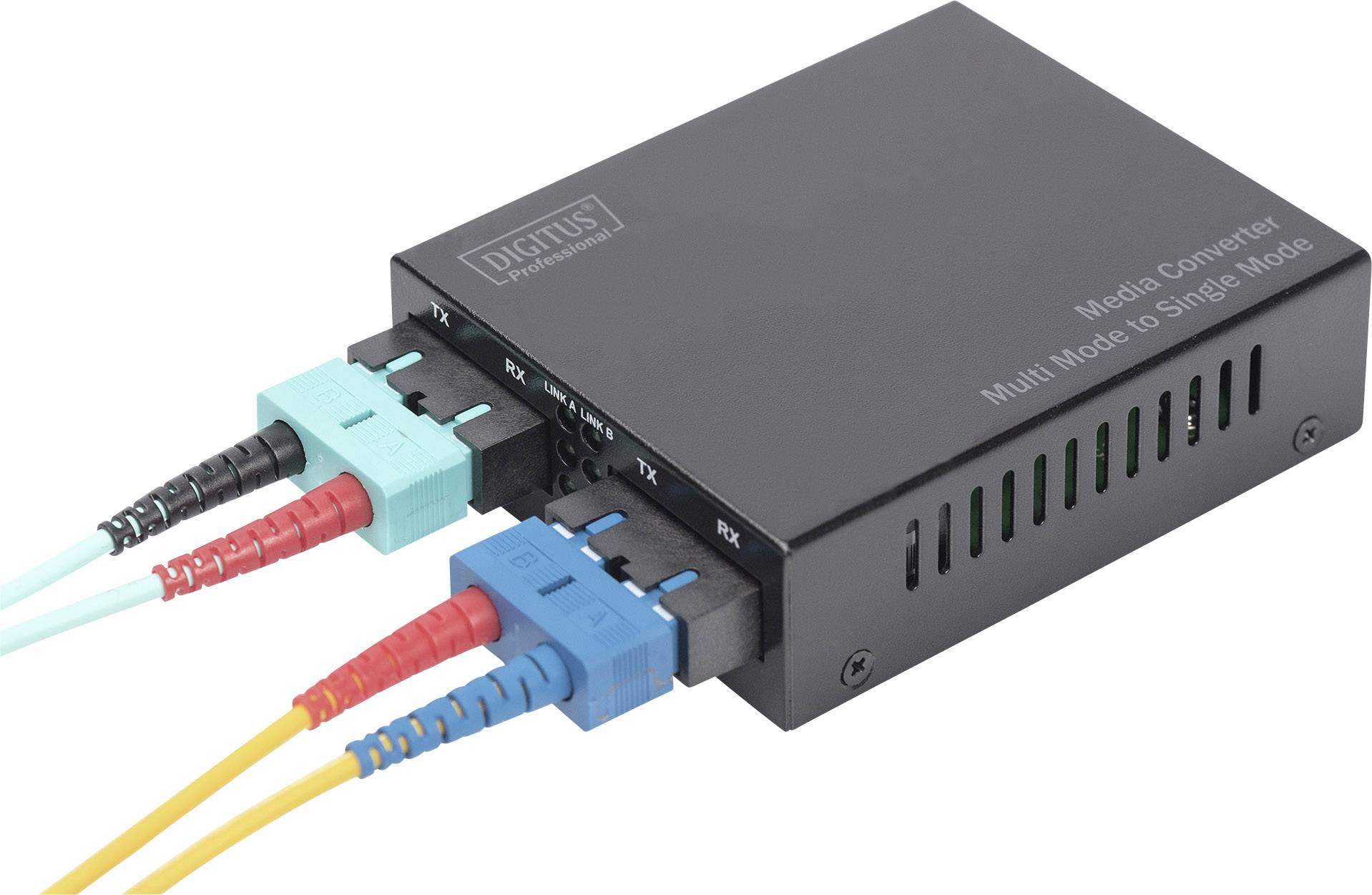

A black media converter with three connected cables colour-coded in different colours. It has ports for TX and RX.

1/5

Unavailable

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Gigabit multimode to singlemode media converter SC to SC, wavelength 850nm, 1310nm up to 20km via singlemode

Highlights & Details

The perfect converter solution for optical data transfer
Easy conversion between multimode and singlemode fiber
Fast migration for long distances
Range up to 20km

Technical specifications

Input voltage 5V/DC
Max current consumption: 1 A
Power consumption: 3.5W.
Dimensions (L x W x H): 95mm x 70mm x 26mm
Operating temperature -10 to 55°C.
Wavelength: 850nm (multimode), 1310nm (singlemode)
Range Multimode up to 0.5km
Range Singlemode up to 20km

Product type: Media converter

Interfaces: 1x SC Duplex
1x SC Simplex

Link: IEEE 802.3z 1000BASE-SX
SC Duplex

Transfer rate: 1000 MBit/s

Length: 26 mm

Width: 95 mm

Height: 70 mm

Weight: 300 g

LAN transfer rate: 1000 MBit/s

Version: Cable

Factory colour: Black

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2197223 Digitus DN-82124 IEEE 802.3z 1000BASE-SX, SC Duplex Media converter 1000 MBit/s

Description

The DIGITUS® media converters are an optimal solution for the migration of optical fiber signals. You can now access fiber optic technology and bridge several kilometers without having to replace your entire network cabling. With our extensive range of products you can react to your individual requirements. The intuitive operation guarantees a quick and easy installation. Years of experience and a wide range of products make DIGITUS® a reliable partner for your network technology.

This text is machine translated.

Features

Converts between single & multimode fiber
1000BASE-SX SC connection, multimode dual fiber
1000BASE-SX SC connection, single mode dual fiber
Diagnostics LEDs for status and activity monitoring
Suitable for 50/125µm, 62.5/125µm and 100/140µm fiber optic cables (multimode)
Suitable for 8.3/125µm, 8.7/125µm, 9/125µm and 10/125µm fiber optic cables (single mode)
Standalone converter with external power supply

Scope of delivery

Gigabit Multimode/Singlemode Media Converter SC/SC
Quick start guide
Power supply unit
