Digitus DN-82130 LAN, SFP Network media converter 1 GBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Gigabit Media Converter, RJ45 / SFP
Highlights & Details
- The perfect converter solution for various fiber media
- Exclusive SFP module with a range up to 80 km
- Sends data in high quality and additionally provides excellent reliability
- A quick delivery is guaranteed in the gigabit range
Technical specifications
- Product type
Network media converter
- Interfaces
1x LAN (10/100/1000 Mbps)
1x SFP
- Link
LAN
SFP
- Transfer rate
1 GBit/s
- Length
70 mm
- Width
95 mm
- Height
26 mm
- Weight
200 g
- Version
Cable
- Factory colour
Multicolour
- Type A
RJ45 8p8c plug
- Type B
RJ45 8p8c plug
- Cable use
RJ45
- Connection type
RJ45
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1345744 Digitus DN-82130 LAN, SFP Network media converter 1 GBit/s
User & Safety Instructions
User & Safety Instructions 1345744 Digitus DN-82130 LAN, SFP Network media converter 1 GBit/s
Conformity certificate
Conformity certificate 1345744 Digitus DN-82130 LAN, SFP Network media converter 1 GBit/s
Description
The media converters from DIGITUS® are the ideal solution for the migration of copper and fiber network signals. From now on, you are able to access the fiber technology and transfer network signals over several kilometers without renewing your whole network infrastructure. The huge variety of products fulfil your individual needs. The intiutive operation guarantees a quick and easy installation. Years of experience and a wide range of products lets DIGITUS® become a reliable partner for your network.
· Transforms wire based network media to fiber optic
· High quality and excellent reliability
· Connectors: 1x RJ45, 1x SFP
· Distance up to 80km
· Automatic cable detection - auto MDI / MDI-X function
· Auto-negotiation of full- and half-duplex

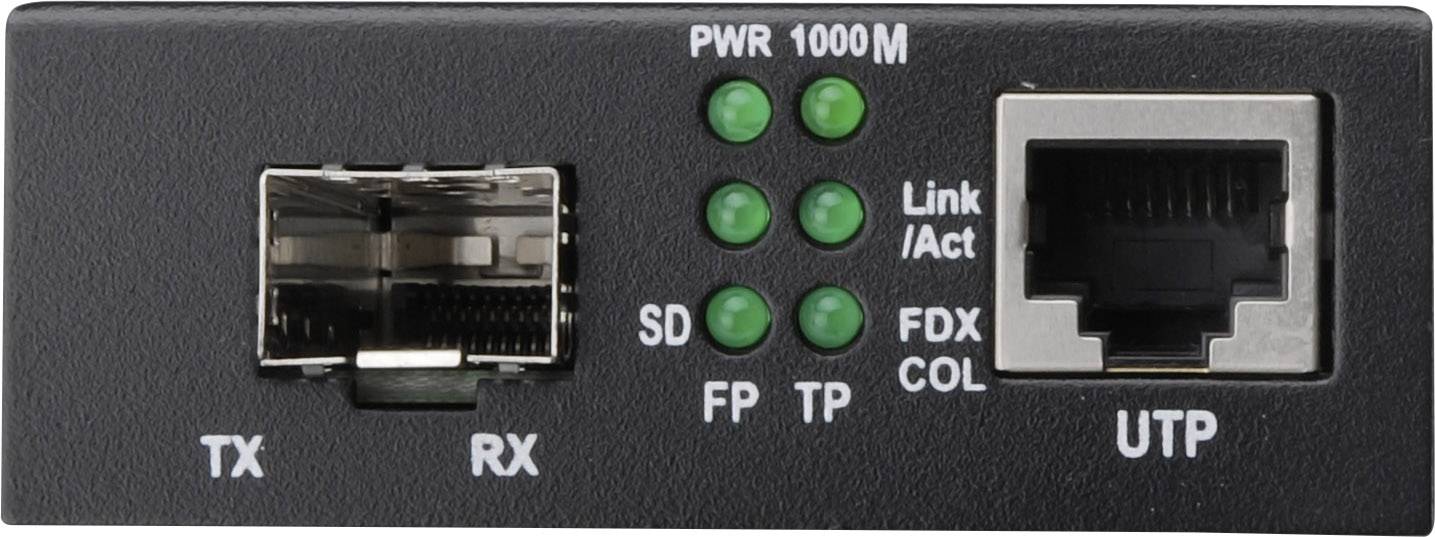

· Diagnostic and monitoring LEDs for the status of power, link and act of the ports
· Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
· 2MB Data Buffer
· Operating Temperature: 0 to 60°C
· Dimensions (L x W x H): 95mm x 70mm x 26mm
· Weight: 200g

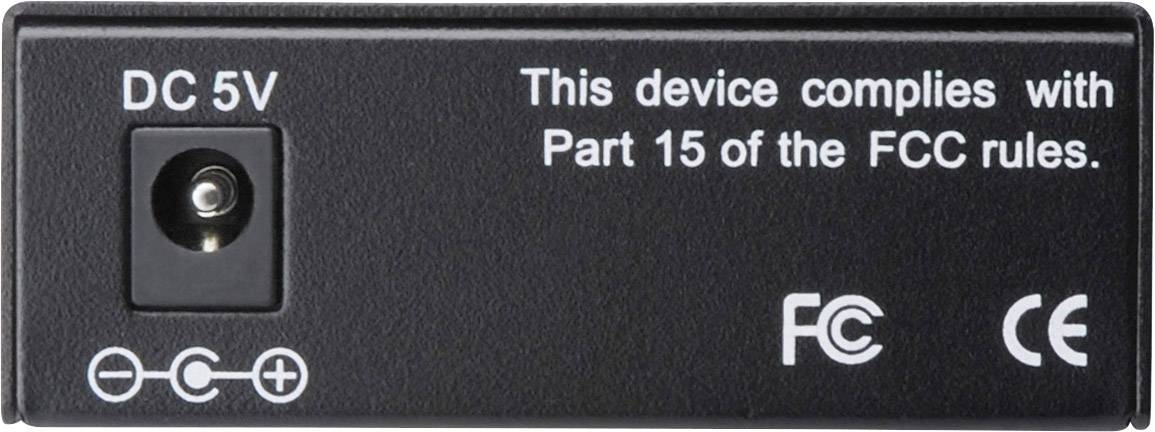

· Standalone Converter with external power supply
· Input Supply Voltage: 5V DC
· Exclusive SFP Module
· Transforms wire based network media to fiber optic
· High quality and excellent reliability
· Connectors: 1x RJ45, 1x SFP
· Distance up to 80km
· Automatic cable detection - auto MDI / MDI-X function
· Auto-negotiation of full- and half-duplex
· Diagnostic and monitoring LEDs for the status of power, link and act of the ports
· Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
· 2MB Data Buffer
· Operating Temperature: 0 to 60°C
· Dimensions (L x W x H): 95mm x 70mm x 26mm
· Weight: 200g
· Standalone Converter with external power supply
· Input Supply Voltage: 5V DC
· Exclusive SFP Module
Features
- Converts wire-based network signals in fiber-optic signals
- High quality and maximum reliability
- Connections: 1 x RJ45, 1 x SFP
- Range up to 80km
- Automatic cable detection - Auto-MDI/MDI-X function
- Auto detection of full- and half-duplex
- Diagnostic LEDs for status and activity monitoring
- Supported standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
- 2 MB data buffer
- Operating temperature: 0 to 60°
- Dimensions (L x W x H): 95 mm x 70 mm x 26 mm
- Weight: 200 g
- Standalone converter with external power supply unit
- Input voltage 5V/DC
- Exclusive SFP module
Scope of delivery
- Media Converter
- Quick installation guide
- Power adapter
