Digitus DN-82140 LAN 10/100/1000 MBit/s, SFP, IEEE 802.3z 1000BASE-LX, IEEE 802.3z 1000BASE-SX Media converter 10 / 100
EAN:
Part number:
Item no:
PoE at Media Converter, SFP 10/100/1000Base-T to SFP Open Slot, incl. PSU, 30 W PoE, without SFP modules
Highlights & Details
- The perfect converter solution for optical data transfer
- PoE power supplier, PSE
- Sends data in high quality and also offers the highest reliability
- A fast transmission is guaranteed in the gigabit range
- Exclusive SFP module with a range of up to 80 km.
Technical specifications
- Maximum output power 30 watts
- Power supply 48~52V DC
- Operating temperature: - 20 °C to 65°C
- Storage temperature -40°C - 85°C.
- Dimensions (L x W x H): 95mm x 70mm x 26mm
- MTBF: 500,000 hours
- Ports: 1x RJ45, 1x SFP
- Range: Up to 80 km
- Product type
Media converter
- Interfaces
SFP
1x LAN (10/100/1000 Mbps)
1x RJ45 (LAN)
1x RJ45 (LAN, PoE version)
LAN
1 x Ethernet/LAN
- Link
LAN 10/100/1000 MBit/s
SFP
IEEE 802.3z 1000BASE-LX
IEEE 802.3z 1000BASE-SX
- Transfer rate
10 / 100 / 1000 MBit/s
- Length
20 mm
- Width
100 mm
- Height
70 mm
- Weight
700 g
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Version
Cable
- Factory colour
Black
- Cable use
PC
- Connection type
RJ45
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2197225 Digitus DN-82140 LAN 10/100/1000 MBit/s, SFP, IEEE 802.3z 1000BASE-LX, IEEE 802.3z 1000BASE-SX Media converter 10 / 100
Description
The DIGITUS® media converters are an optimal solution for the migration of optical fiber signals. You can now access fiber optic technology and bridge several kilometers without having to replace your entire network cabling. With our extensive range of products you can react to your individual requirements. The intuitive operation guarantees a quick and easy installation. Years of experience and a wide range of products make DIGITUS® a reliable partner for your network technology.
This text is machine translated.
This text is machine translated.
Features
- PoE power supplier, PSE

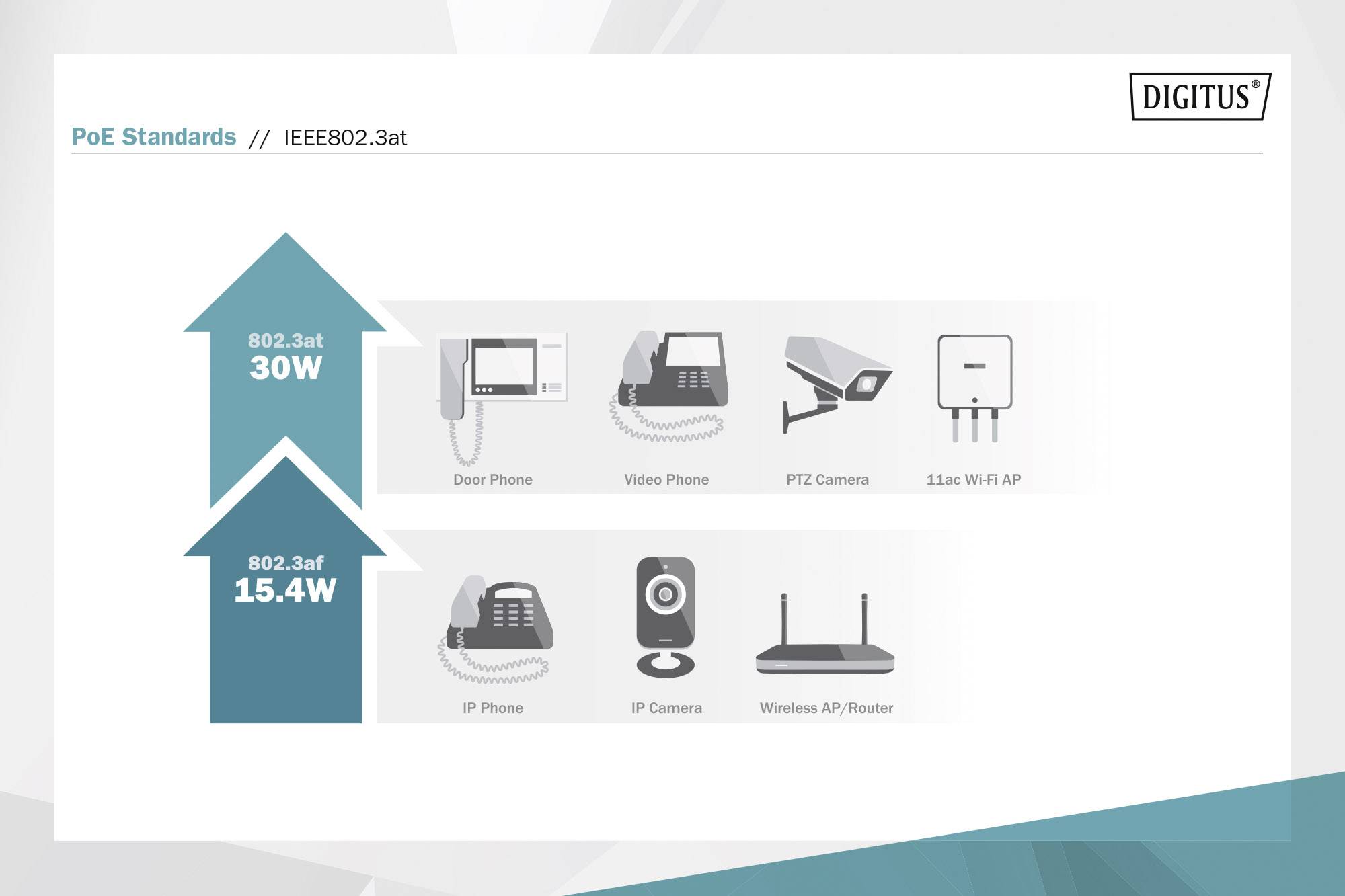

- Compatible with the IEEE802.3af and IEEE802.3at standards
- PoE power supply via PIN 1.2(V-) and PIN 3.6(V+)
- Compatible with the IEEE802.3, IEEE802.3u and IEEE802.3z standards
- Automatic cable recognition - Auto MDI/MDI-X function
- Auto-detection of full and half duplex
- Converts wire-based network signals into fiber-optic signals

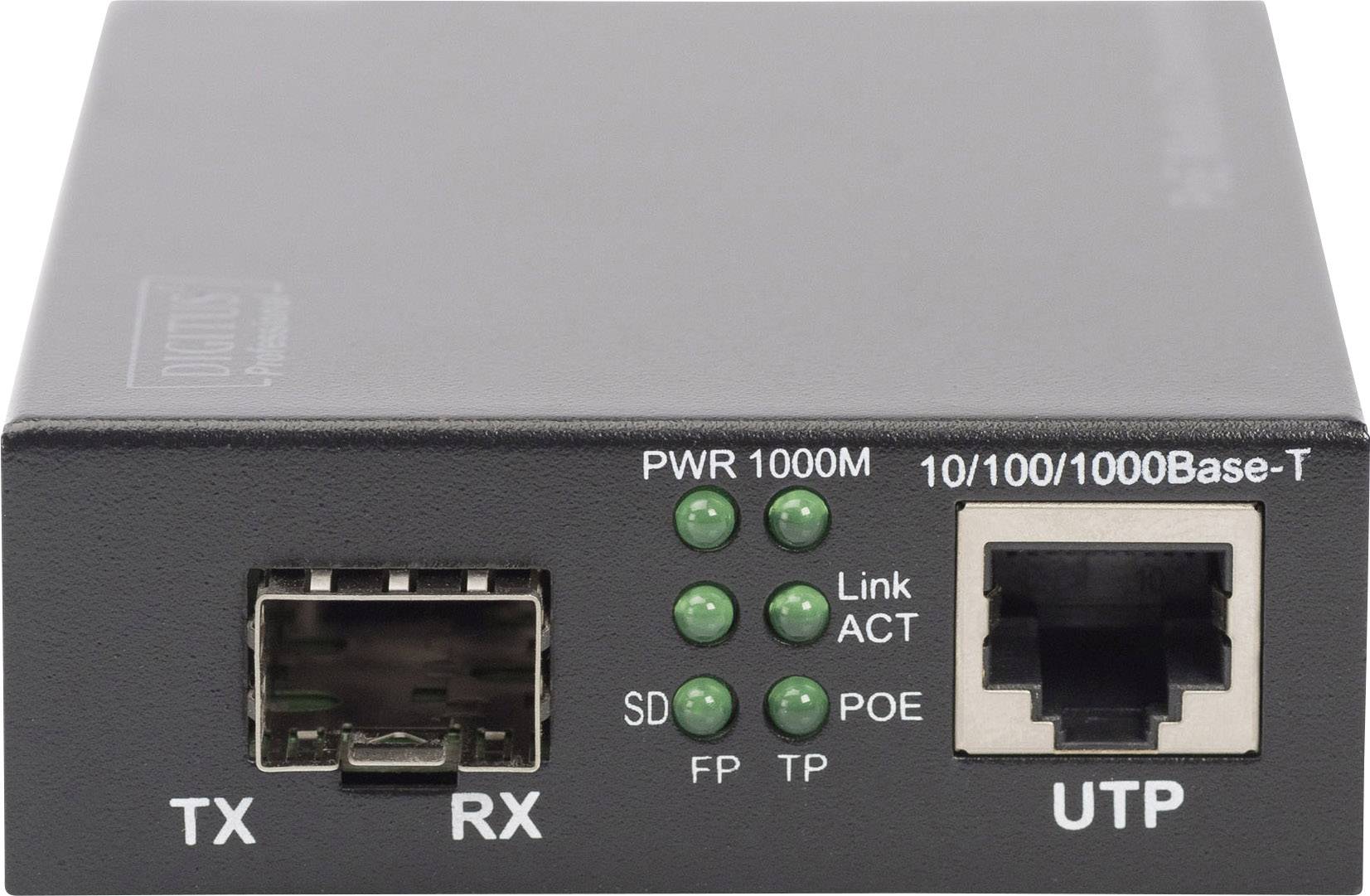

- Diagnostics LEDs for status and activity monitoring
- Exclusively SFP module
Scope of delivery
- Gigabit PoE media converter, RJ45 / SFP, PSE
- Quick start guide
- Power supply unit
