Buy Digitus DN-82160 SC Duplex, IEEE 802.3z 1000BASE-LX, LAN 10/100/1000 MBit/s Media converter 10 / 100 / 1000 MBit/s

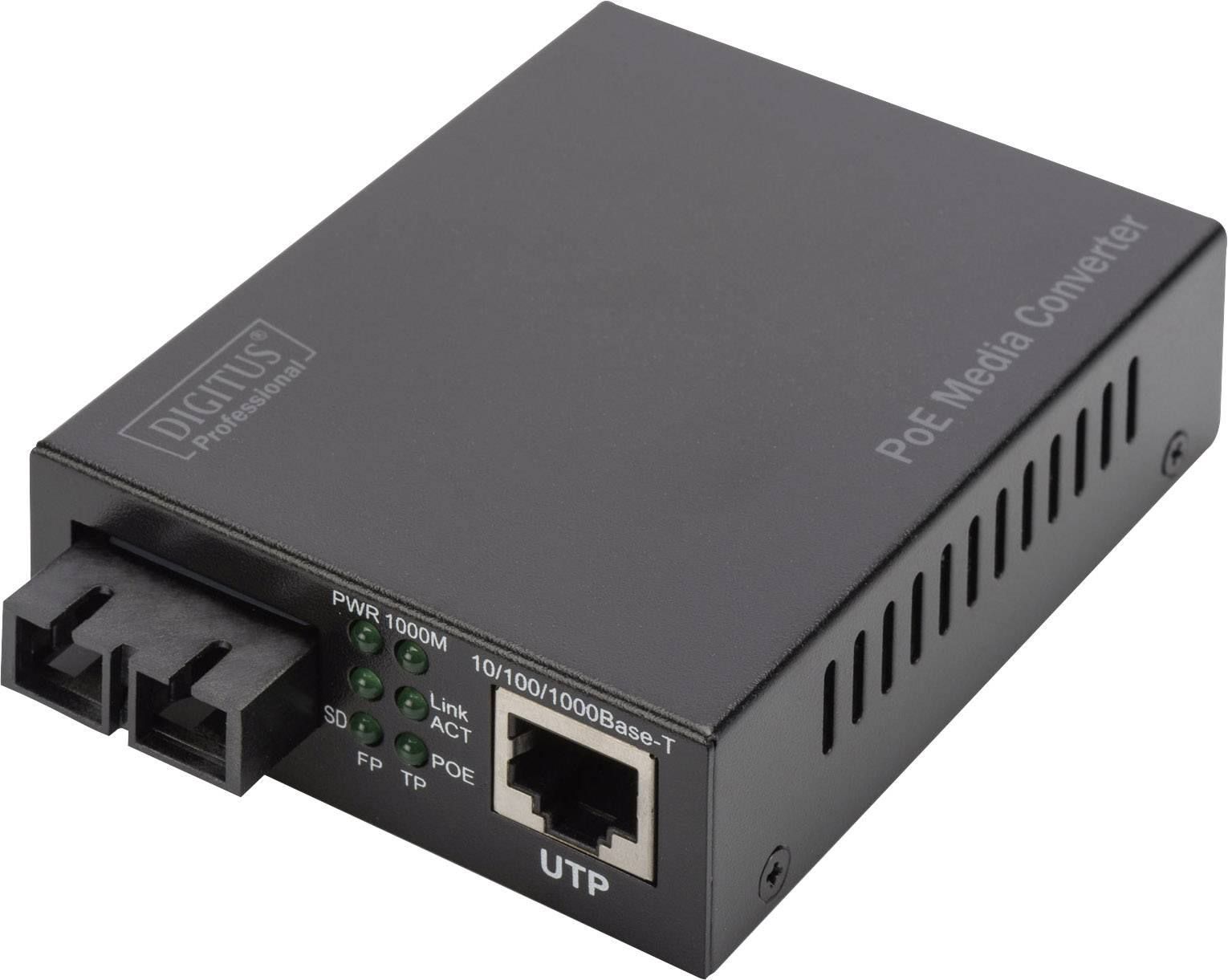

'PoE Media Converter in a black enclosure with Ethernet and fibre optic connections, suitable for network applications.'

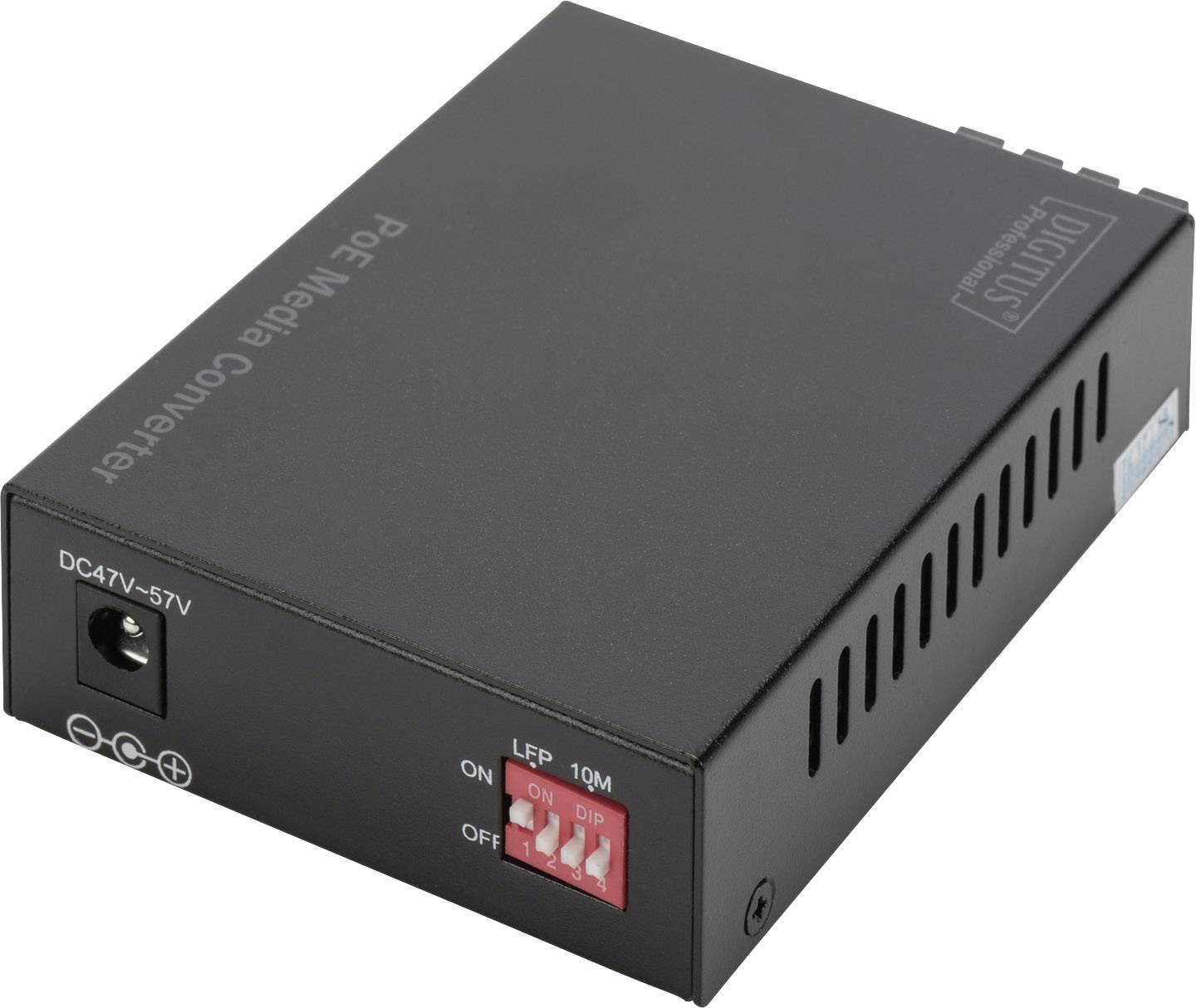

Black PoE media converter with network connection, DIP switches for configuration and ventilation slots on the side.

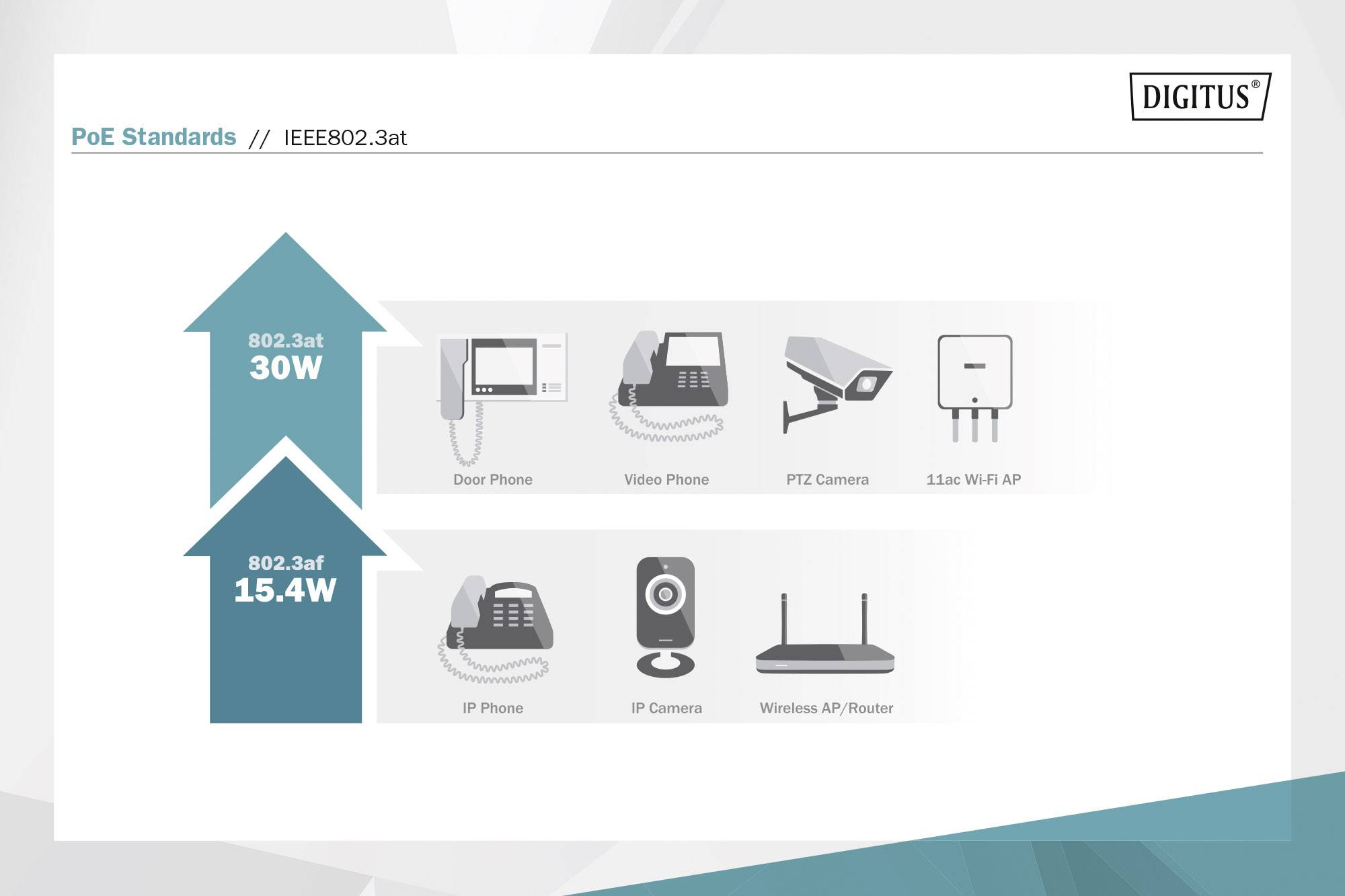

Diagram of PoE Standards. 802.3at (30W) supports door phone, video phone, PTZ camera, WLAN access point. 802.3af (15.4W) supports IP telephone, IP camera, router.

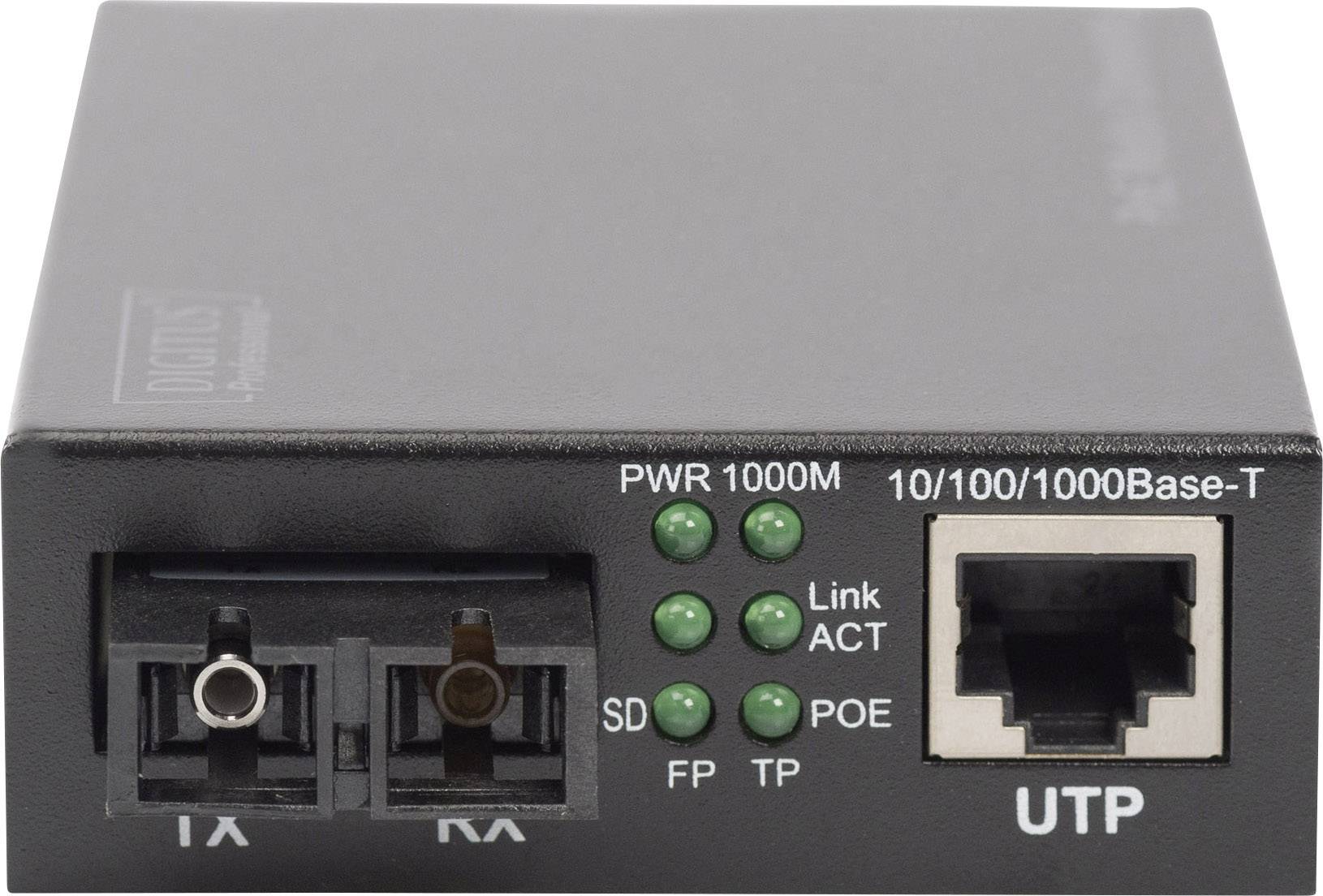

A media converter with connections for fibre optic cable (left) and Ethernet (right). LEDs indicate power status and activity.

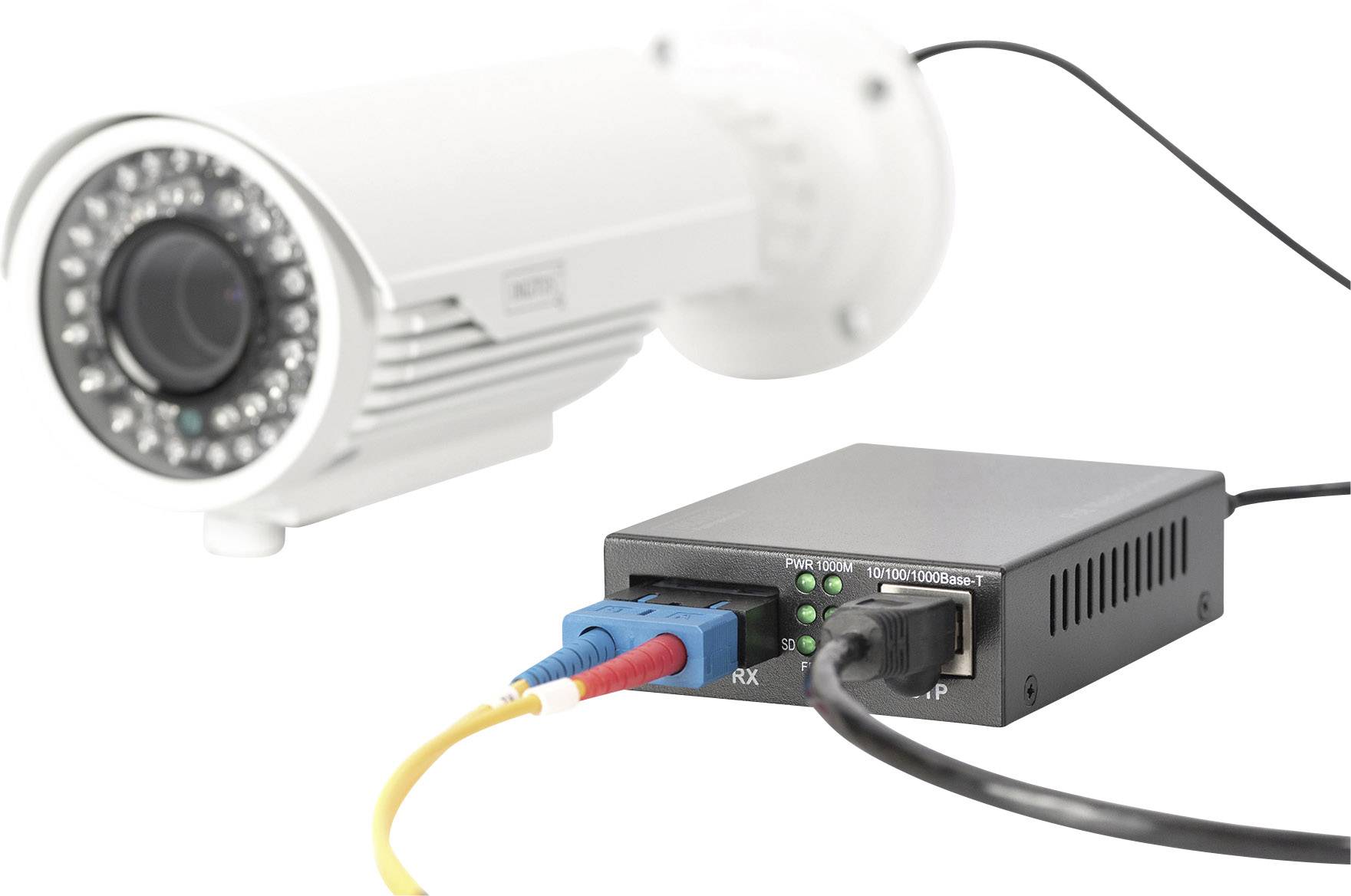

Surveillance camera with connected fibre optic module, showing the technical connection for video transmission.

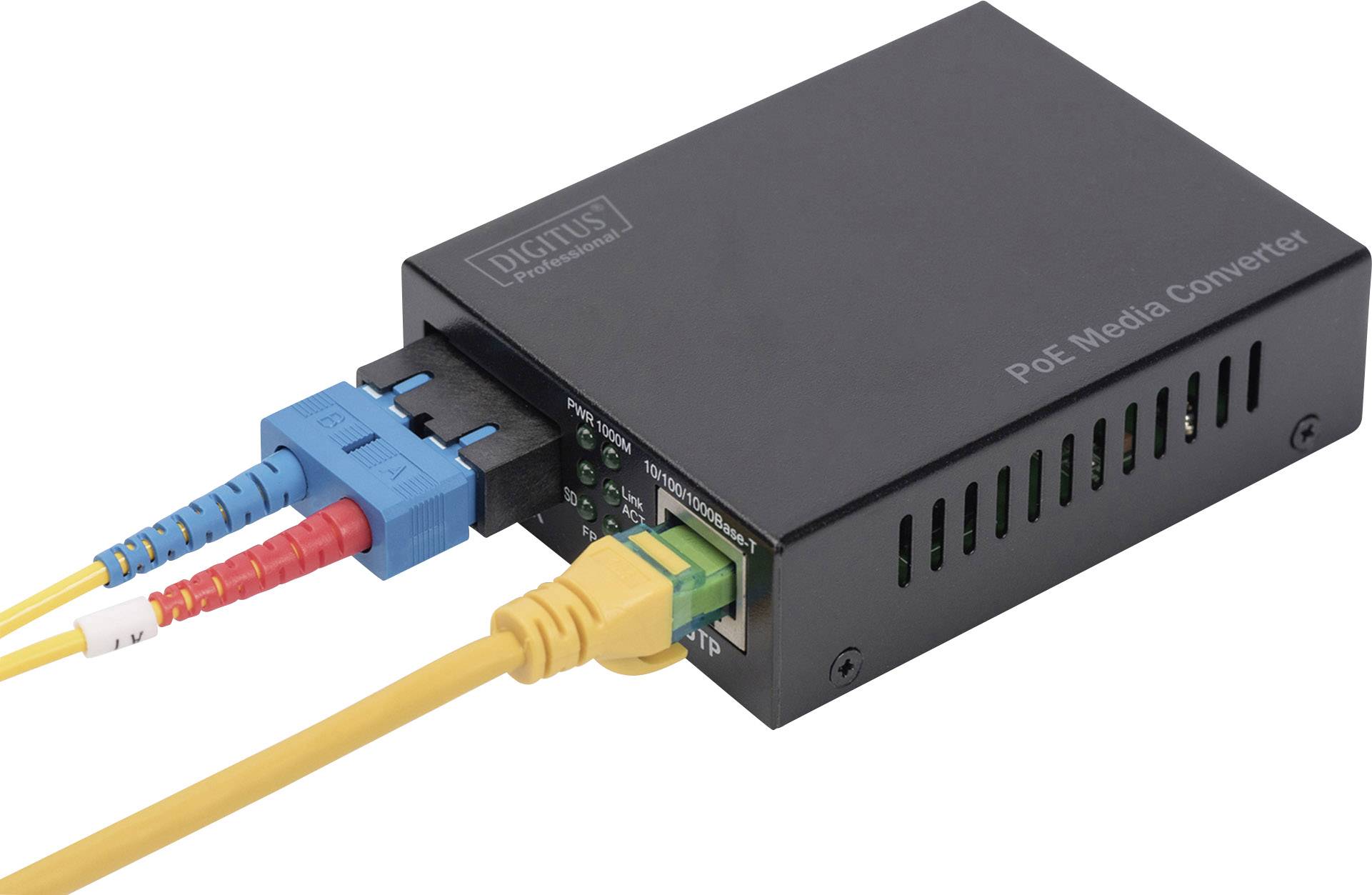

A black PoE media converter with two fibre optic cables and a yellow Ethernet cable is connected.

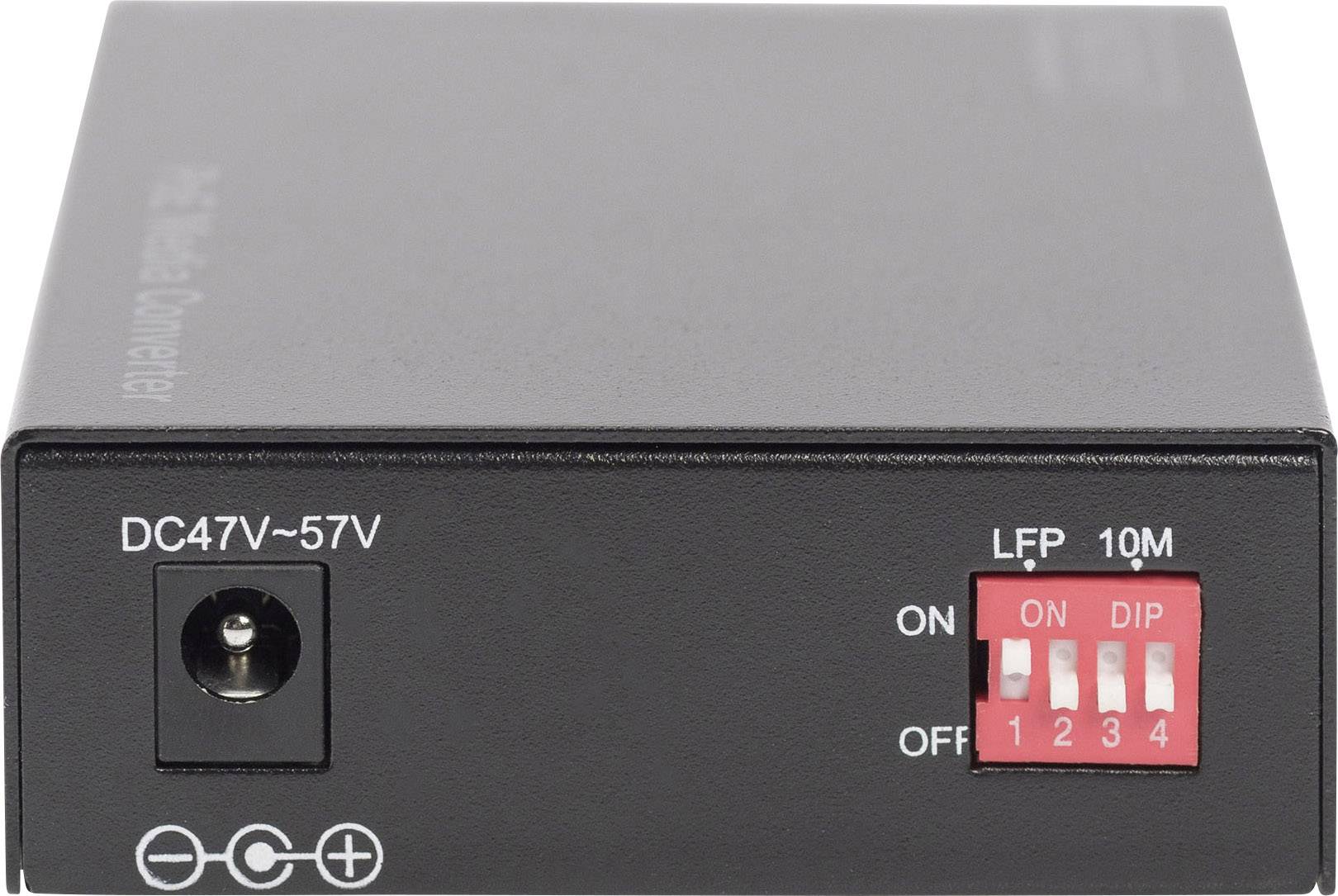

Black device with power connection, 4 red DIP switches for settings. Inscription: 'DC47V-57V', 'LFP', '10M', switch 'ON/OFF'.

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

PoE Media Converter, Singlemode 10/100/1000Base-T to 1000Base-LX, incl. PSU 30W, SC connector, Up to 20 km.

Highlights & Details

The perfect converter solution for optical data transfer
PoE power supplier, PSE
Sends data in high quality and also offers the highest reliability
A fast transmission is guaranteed in the gigabit range
Range up to 20km

Technical specifications

Power supply 48~52V DC
Operating temperature: - 20 °C to 65°C
Storage temperature -40°C - 85°C.
Dimensions (L x W x H): 95mm x 70mm x 26mm
MTBF: 500,000 hours
Ports: 1x RJ45, 1x SC duplex
Range: Up to 20km
Wavelength: 1310 nm
Maximum total output of 30 watts

Product type: Media converter

Interfaces: 1x RJ45 (LAN)
1x RJ45 (LAN, PoE version)
1x SC Duplex
1 x Ethernet/LAN
LAN

Link: SC Duplex
IEEE 802.3z 1000BASE-LX
LAN 10/100/1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Length: 20 mm

Width: 100 mm

Height: 70 mm

Weight: 700 g

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Version: Cable

Factory colour: Black

Cable use: PC

Connection type: RJ45

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2197267 Digitus DN-82160 SC Duplex, IEEE 802.3z 1000BASE-LX, LAN 10/100/1000 MBit/s Media converter 10 / 100 / 1000 MBit/s

Description

The DIGITUS® media converters are an optimal solution for the migration of optical fiber signals. You can now access fiber optic technology and bridge several kilometers without having to replace your entire network cabling. With our extensive range of products you can react to your individual requirements. The intuitive operation guarantees a quick and easy installation. Years of experience and a wide range of products make DIGITUS® a reliable partner for your network technology.

This text is machine translated.

Features

PoE power supplier, PSE
Compatible with the IEEE802.3af and IEEE802.3at standards
PoE power supply via PIN 1.2(V-) and PIN 3.6(V+)
Compatible with IEEE802.3, IEEE802.3u and IEEE802.3z standards
Automatic cable detection - Auto MDI/MDI-X function
Auto-detection of full and half duplex
Converts wire-based network signals into fiber-optic signals
10/100/1000Base-TX to 1000Base-LX
Single mode dual fiber
Diagnostics LEDs for status and activity monitoring

Scope of delivery

Gigabit PoE media converter, RJ45 / SC, SM, PSE
Quick start guide
Power supply unit
