Buy Digitus DN-82211 1 SFP, GBIC, LAN, LAN 10/100/1000 MBit/s, SFP Media converter 1 / 10 GBit/s

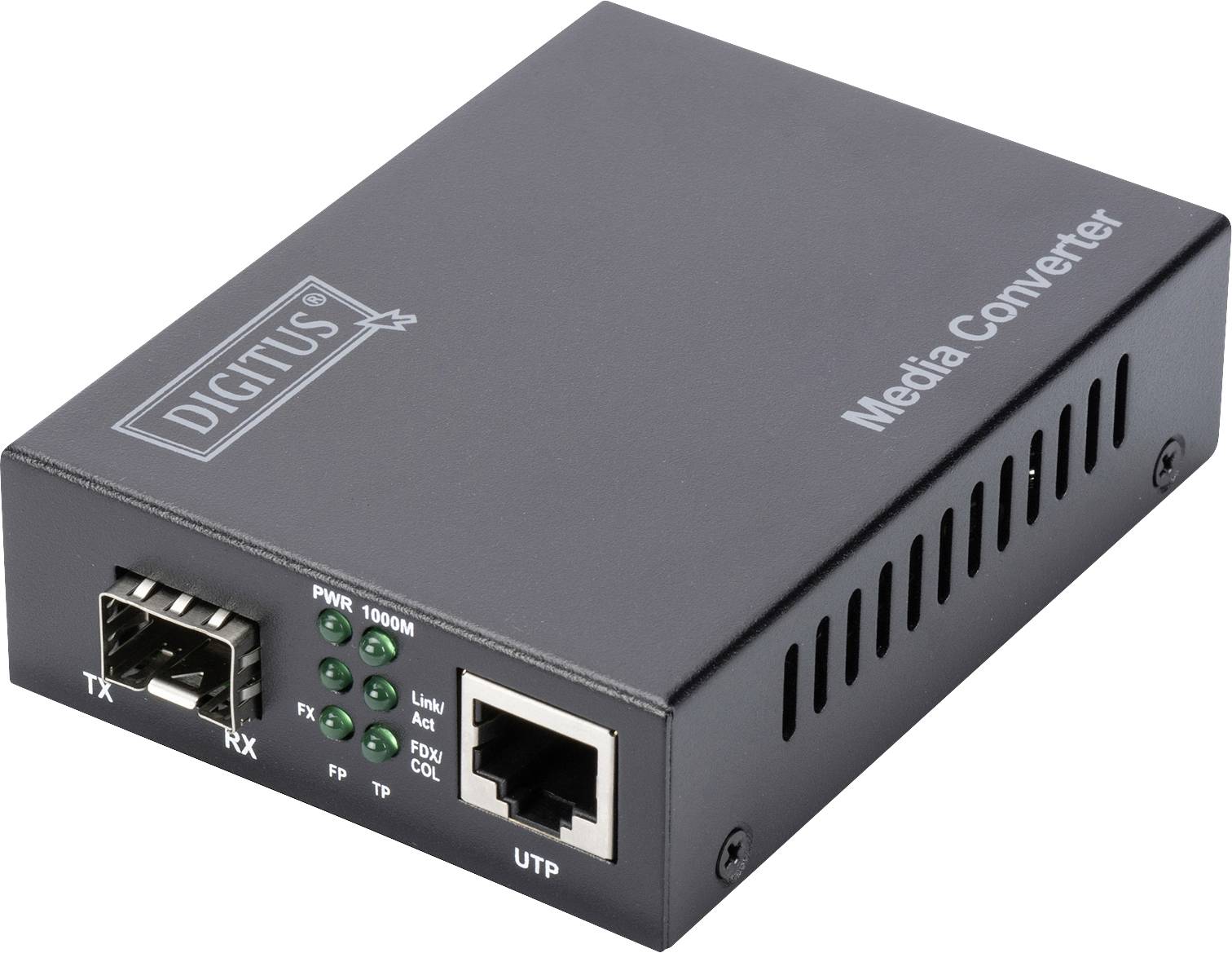

Black media converter with labels 'Digitus' and 'Media Converter', network connection and optical fibre connection.

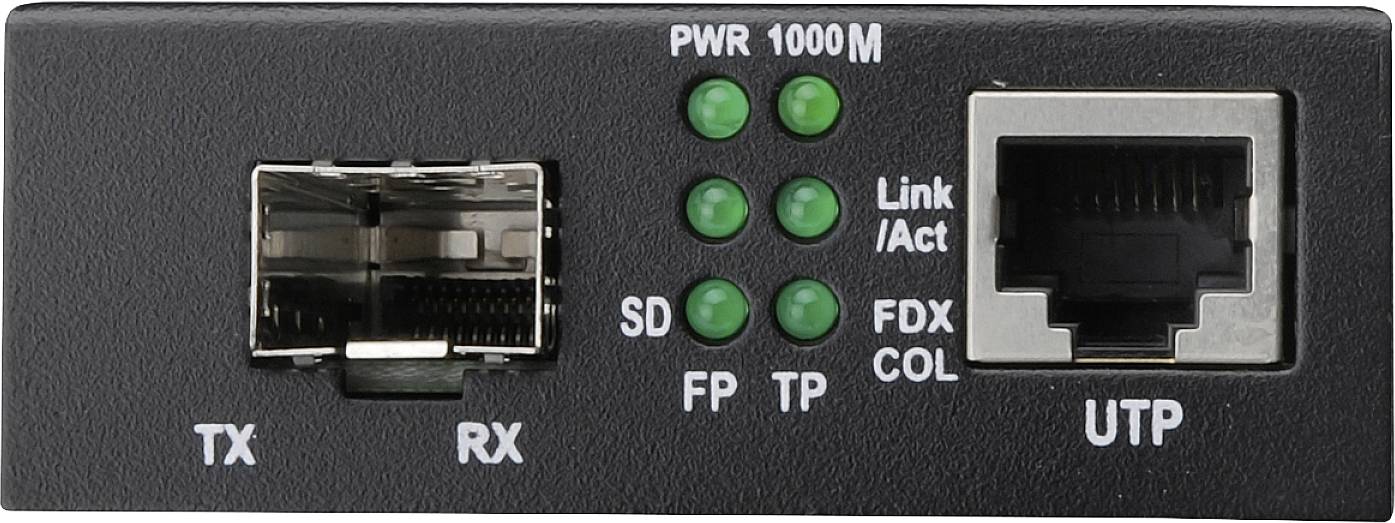

A network media converter with ports for fibre optic (TX, RX) and Ethernet (UTP). LEDs indicate status for power, connection, and activity.

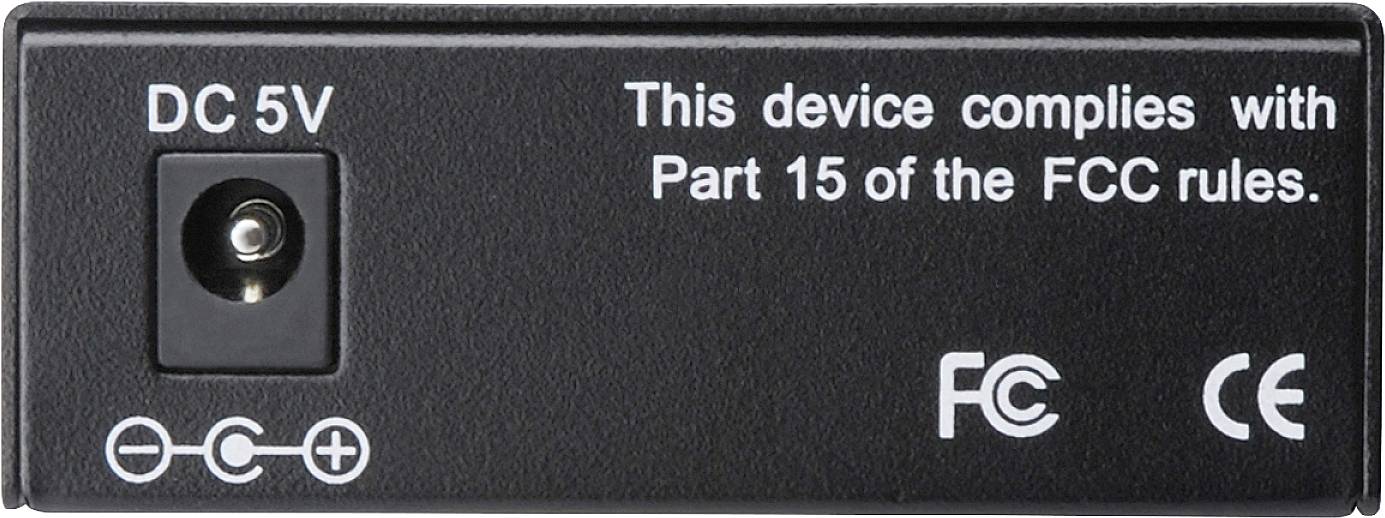

Black power supply, left side: 'DC 5V' connection. Right side: Text 'This device complies with Part 15 of the FCC rules', FCC and CE symbols.

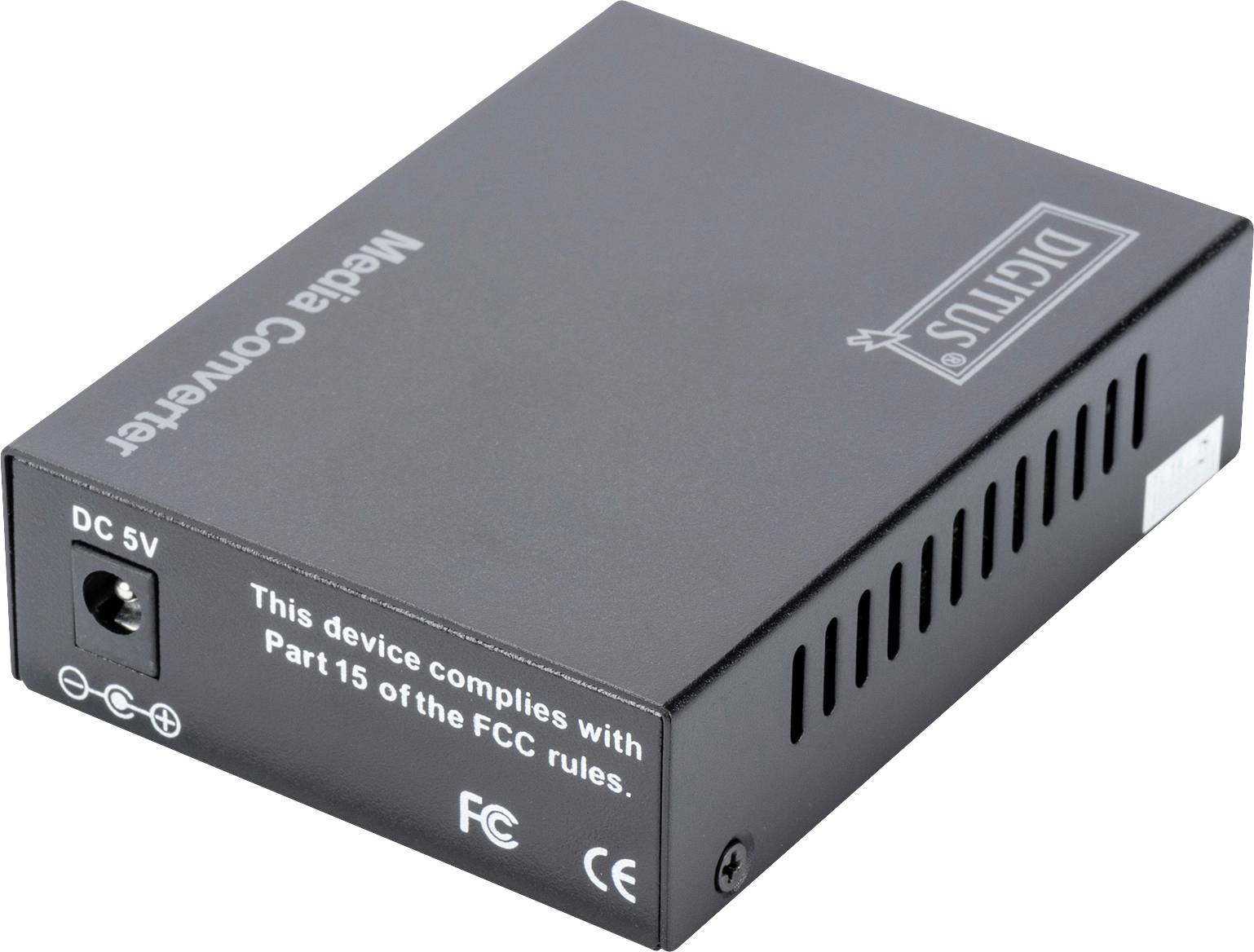

Digitus DN-82211 1 SFP, GBIC, LAN, LAN 10/100/1000 MBit/s, SFP Media converter 1 / 10 GBit/s-3

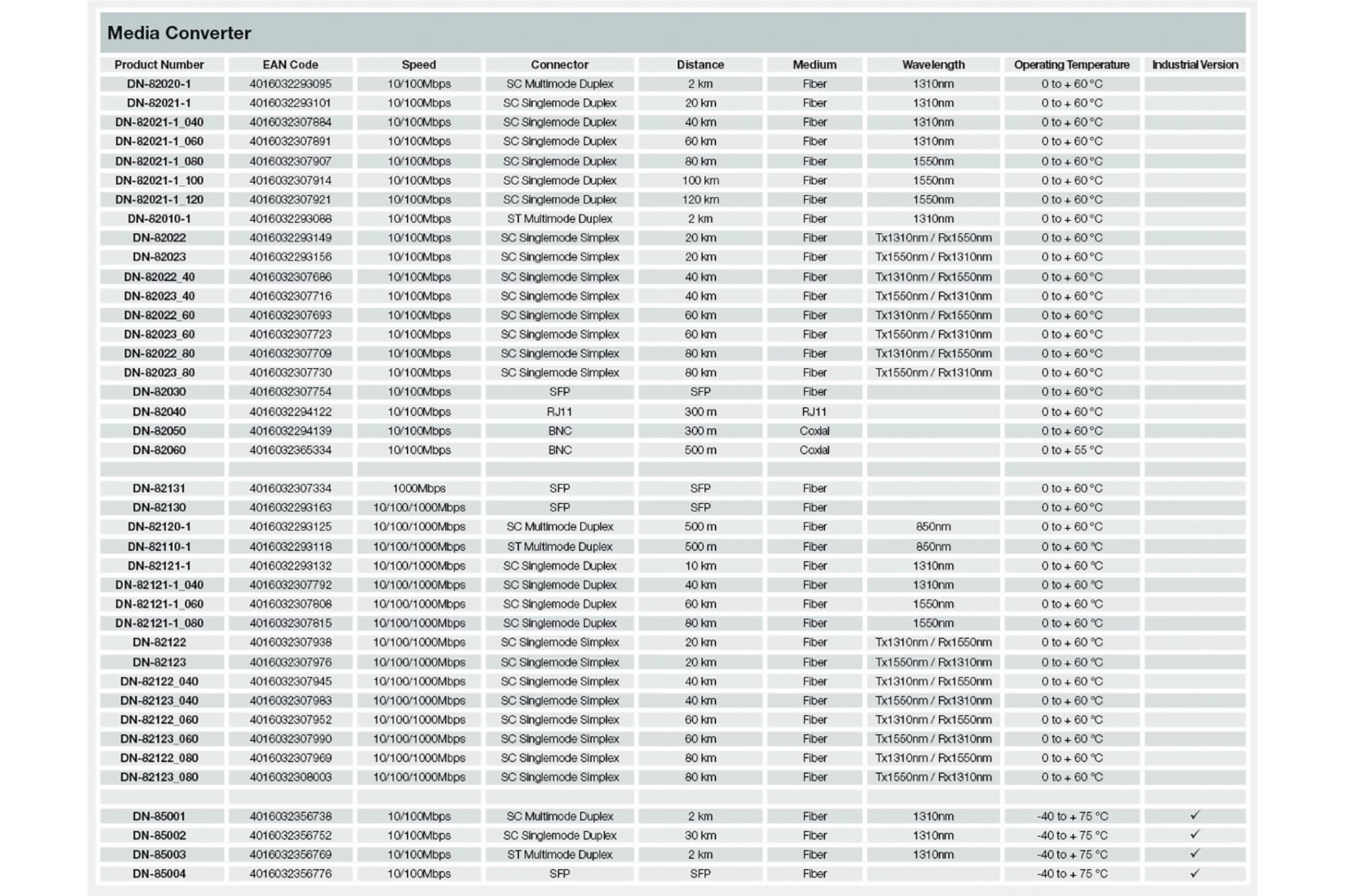

'Table of Media Converters. Contains columns for Product Name, EAN Code, Speed, Converter, Distance, Medium and Operating Conditions.'

1/6

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus 10 Gigabit Media Converter RJ45 / SFP supports 1G, 2.5G, 5G and 10G, 12V, 5W

Highlights & Details

Converts wire-based network signals into fiber-optic signals
10G Base-T on 10G Base-R media converter
Supports 1000Base-T on 1000Base-X, 2.5G Base-T on 2.5G Base-X, 5G Base-T on 5G Base-R and 10G Base-T on 10G Base-R.
Range up to 80km

Technical specifications

Operating temperature 0 to 55°C.
Standalone converter with external power supply
Connection 1: RJ45
Port 2: SFP
Mode: Module dependant
Distance (km): Module dependant
Transmission method: Unidirectional
PoE injector: Yes
Ethernet speed: 10 Gigabit

Product type: Media converter

Interfaces: 1 x Ethernet/LAN
1x LAN (10/100/1000 Mbps)
1x mains power
1x SFP
1x RJ45 (LAN)

Link: 1 SFP
GBIC
LAN
LAN 10/100/1000 MBit/s
SFP

Transfer rate: 1 / 10 GBit/s

Length: 70 mm

Width: 95 mm

Height: 26 mm

Weight: 200 g

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s
10000 MBit/s

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2274992 Digitus DN-82211 1 SFP, GBIC, LAN, LAN 10/100/1000 MBit/s, SFP Media converter 1 / 10 GBit/s

Description

The Digitus DIGITAL® media converters are an optimal solution for the migration of copper and fiber optic signals. You can now access fiber optic technology and bridge several kilometers without having to replace your entire network cabling. With our extensive range of products you can react to your individual requirements. The intuitive operation guarantees a quick and easy installation. Years of experience and a Digitus offer make DIGITUS® a reliable partner for your network technology.

This text is machine translated.

Features

1 x RJ45 / 1 x SFP
supports back pressure and Bandwidth control at each Port
Store-and-Forward technology for an optimized data transfer
car MDI/MDI-X function
Diagnostics LEDs for status and activity monitoring

Scope of delivery

10 Gigabit Media Converter
Quick start guide
Power supply unit
