Digitus DN-9010/8-1 Network outlet Flush mount Insert with main panel and frame CAT 6A White
EAN:
Part number:
Item no:
Highlights & Details
Digitus CAT 6A class EA network socket, design-compatible, shielded, flush-mounted
- Design-compatible with all the common switching programs
- Easy installation via color-coded LSA terminals
- Central plate with integrated dust-protection plate
Technical specifications
- Product type
Network outlet
- Mounting type
Flush mount
- Type
Insert with main panel and frame
CAT 6A
- Factory colour
White
- Switch type function
Network junction box
- Switch type component
Insert
- Length
80 mm
- Width
80 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2903267 Digitus DN-9010/8-1 Network outlet Flush mount Insert with main panel and frame CAT 6A White
Description

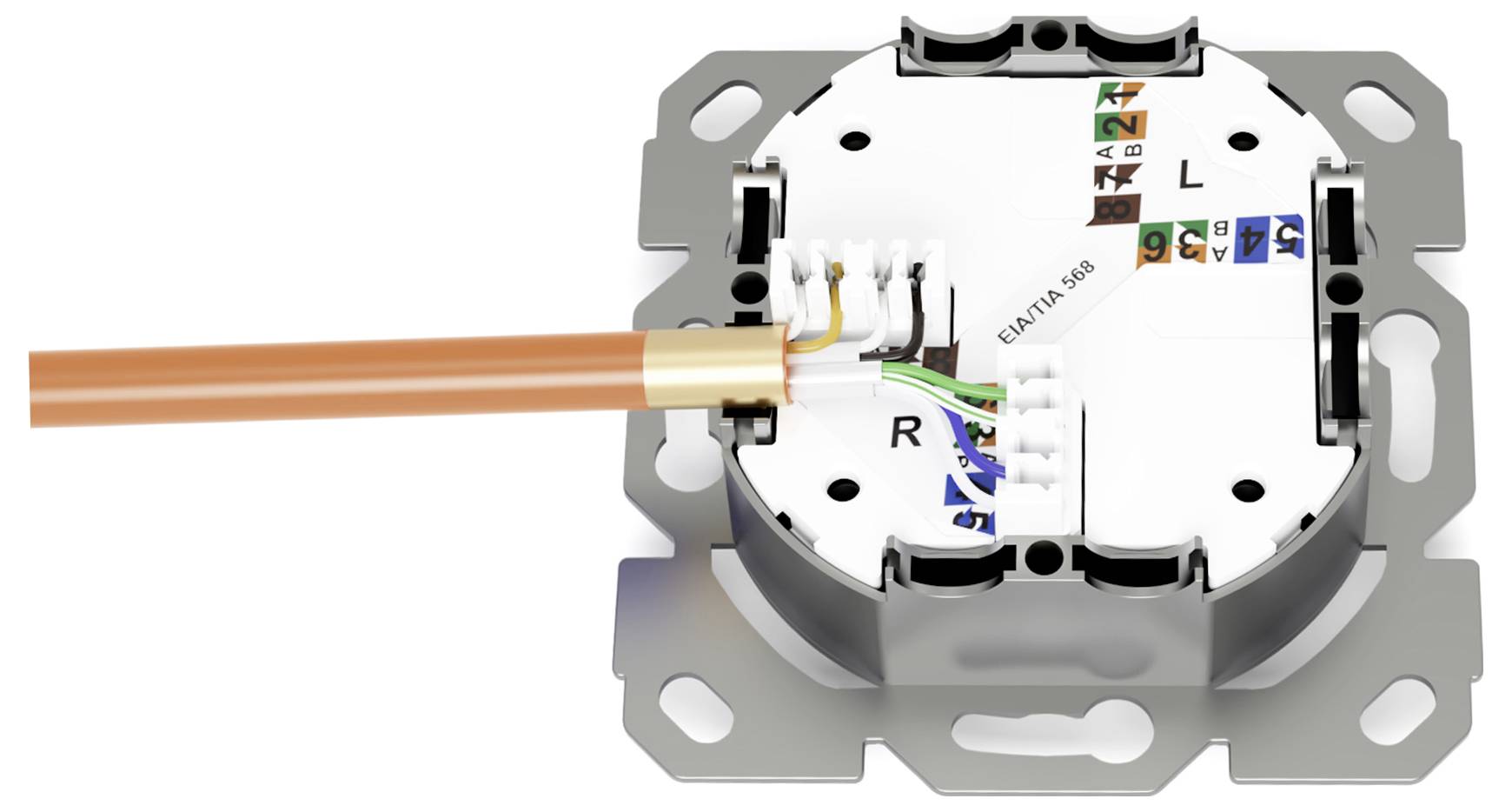

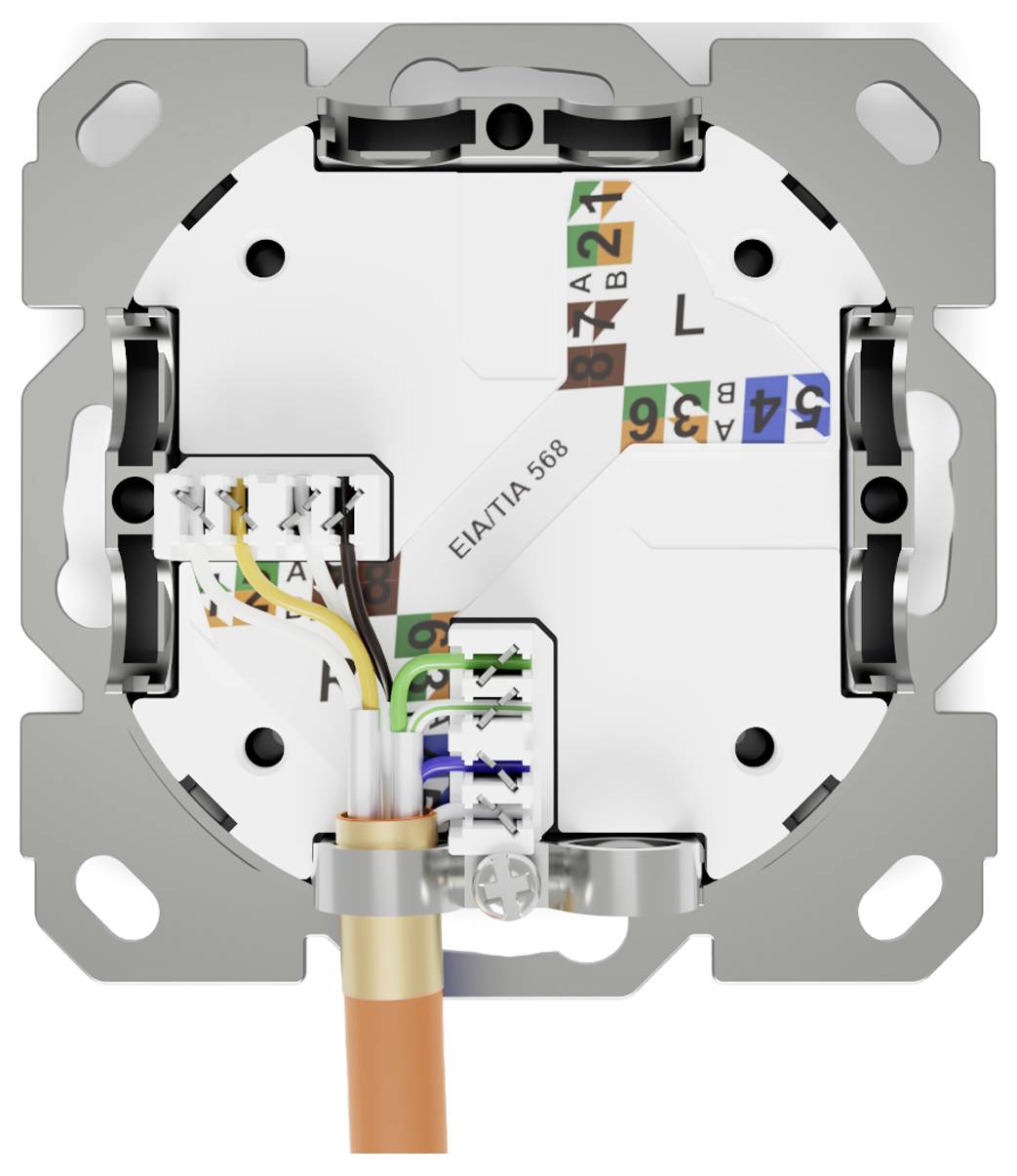

The CAT 6A data connection sockets from Digitus® are design-compatible with all standard switching programs. They are certified according to CAT 6A ANSI/TIA 568 and ISO/IEC 11801, EN 50173 and have 1 shielded RJ45 sockets. The cable installation is done via LSA-strips, color-coded according to EIA/TIA 568 A & B. The UP-connection socket is Ideal, in order to connect your laying cable cleanly and properly. Suitable for installation depths from 28 mm. The box is rounded off by the integrated field of vision, with which you can identify the junction box with a label insert optimally.
This text is machine translated.
This text is machine translated.
Features
- Integrated strain relief of the plug cable
Scope of delivery
- Junction box UP
- Screw
- User manual
