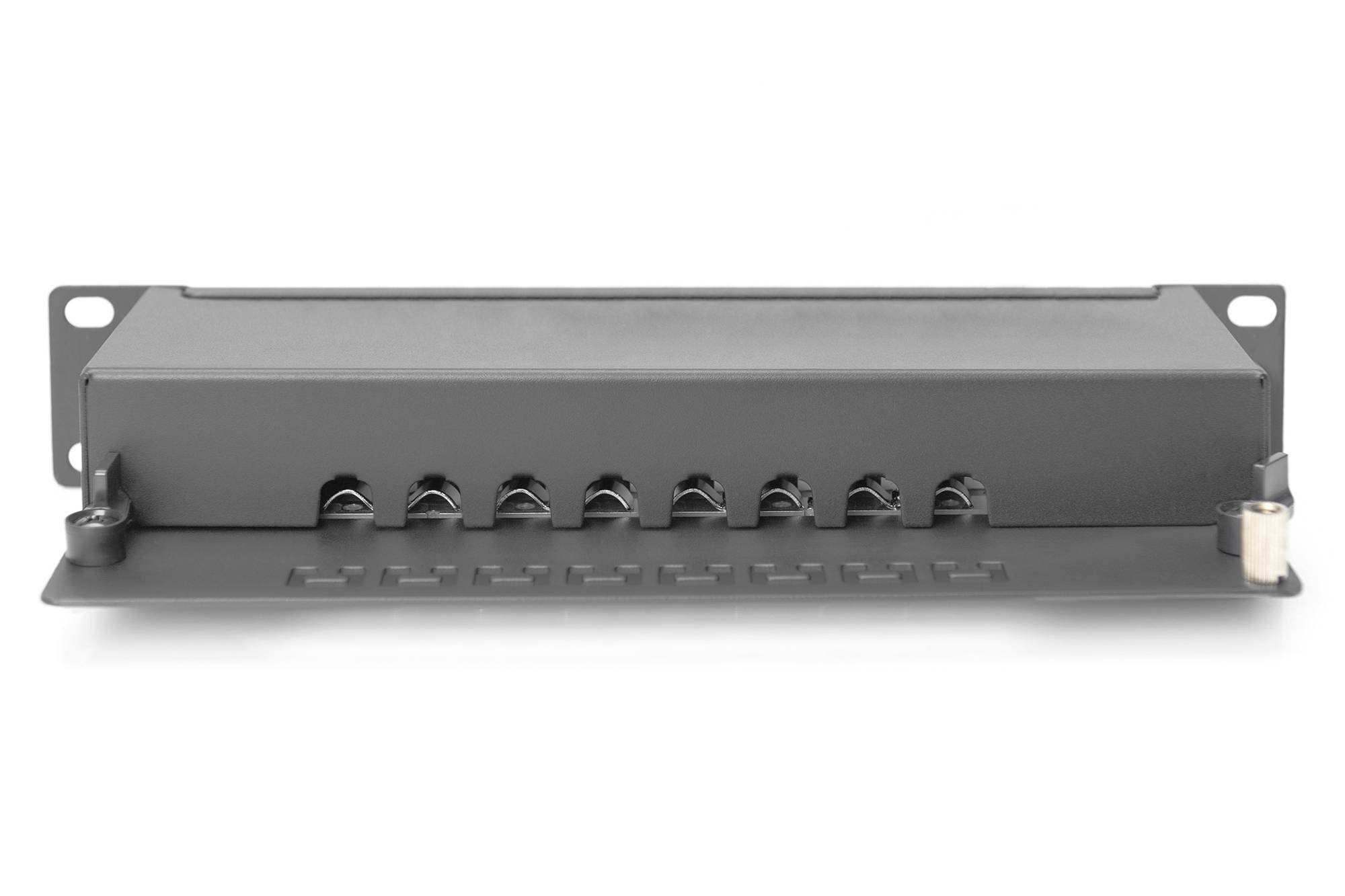

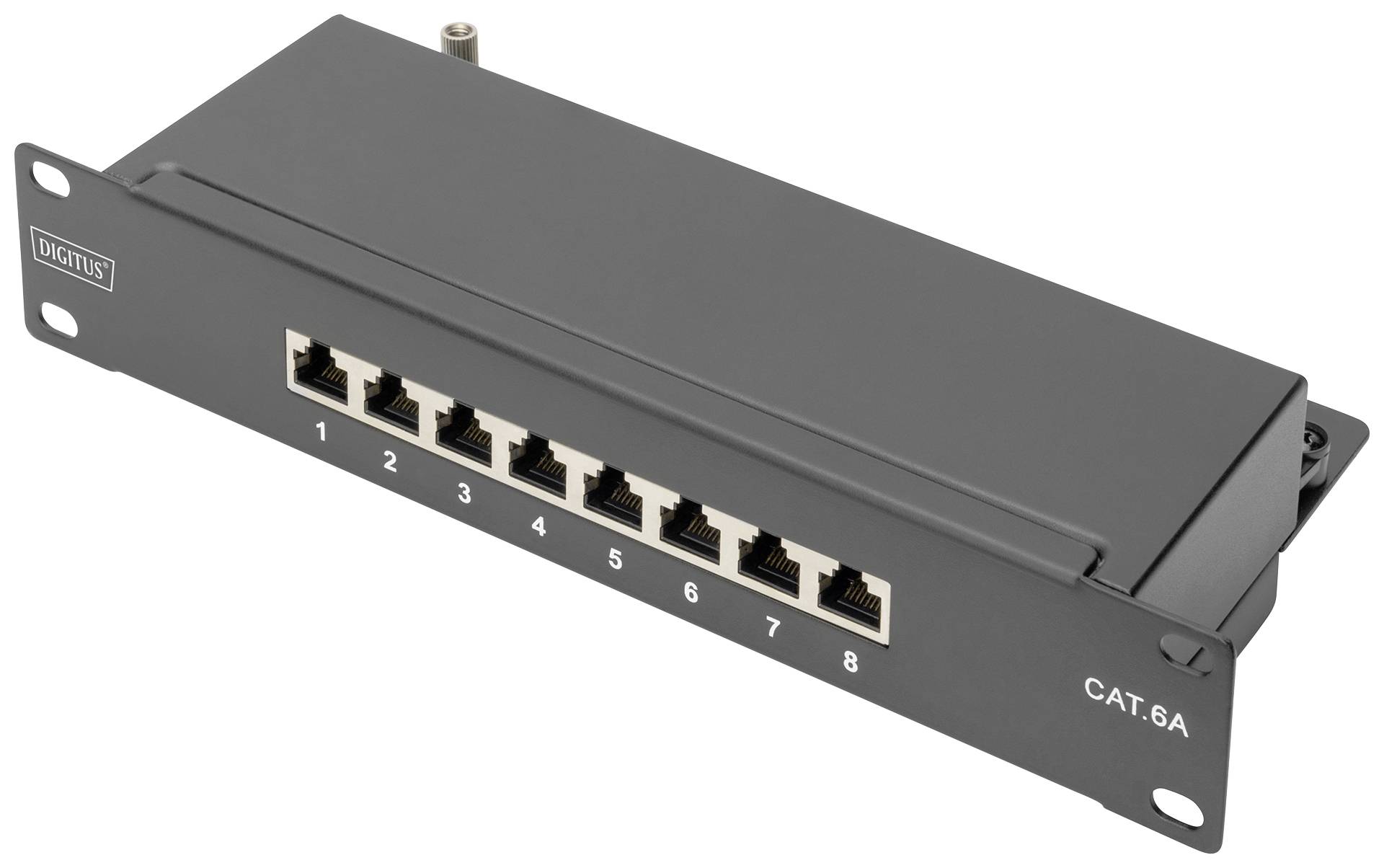

Digitus DN-91608S-EA 8 ports Patch panel 254 mm (10") CAT 6A 1 U Multicolour Equipped
EAN:
Part number:
Item no:
10" cat 6A patch panel, shielded, 8-port, 1HE, 10", Rack mount, black RAL 9005
Highlights & Details
- Simple cable installation possible through color-coded LSA-stripsShielding ensures optimized performance measurementsCompact 10" design with 8x RJ45 socketsPoE-enabled according to: IEEE 802.3af, IEEE 802.3at PoE+Wall mounting possible
Technical specifications
- Material casing: 1.5 mm galvanized, cold-rolled steel according to EN 1.4301, US S30400, AISI 304 and LMSAD110Material RJ45 socket: ABS UL 94V-0Contact RJ45 socket: Nickel plated phosphor bronze, 0.5 μ gold plated contactRJ-45 shielding: Nickel-plated bronzeLSA-cutting terminal LSA+, UL 94V-2, galvanized phosphor bronzeGrounding wire: Not includedPRINTED CIRCUIT BOARD FR4, UL 94V-0Physical properties:Insertion force: 30N max. (IEC 60603-7-5)Tensile load: 7.7 kg between socket and plugOPERATING TEMPERATURE -20° C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)Wire intake: 22-26 AWG solid and stranded conductor
- Product type
Patch panel
- Rack size
254 mm (10")
CAT 6A
- Rack unit
1 U
- Transfer rate
1 GBit/s
- Port
8 ports
- Patch panel design
Equipped
- Connection method
RJ45, auto-negotiation

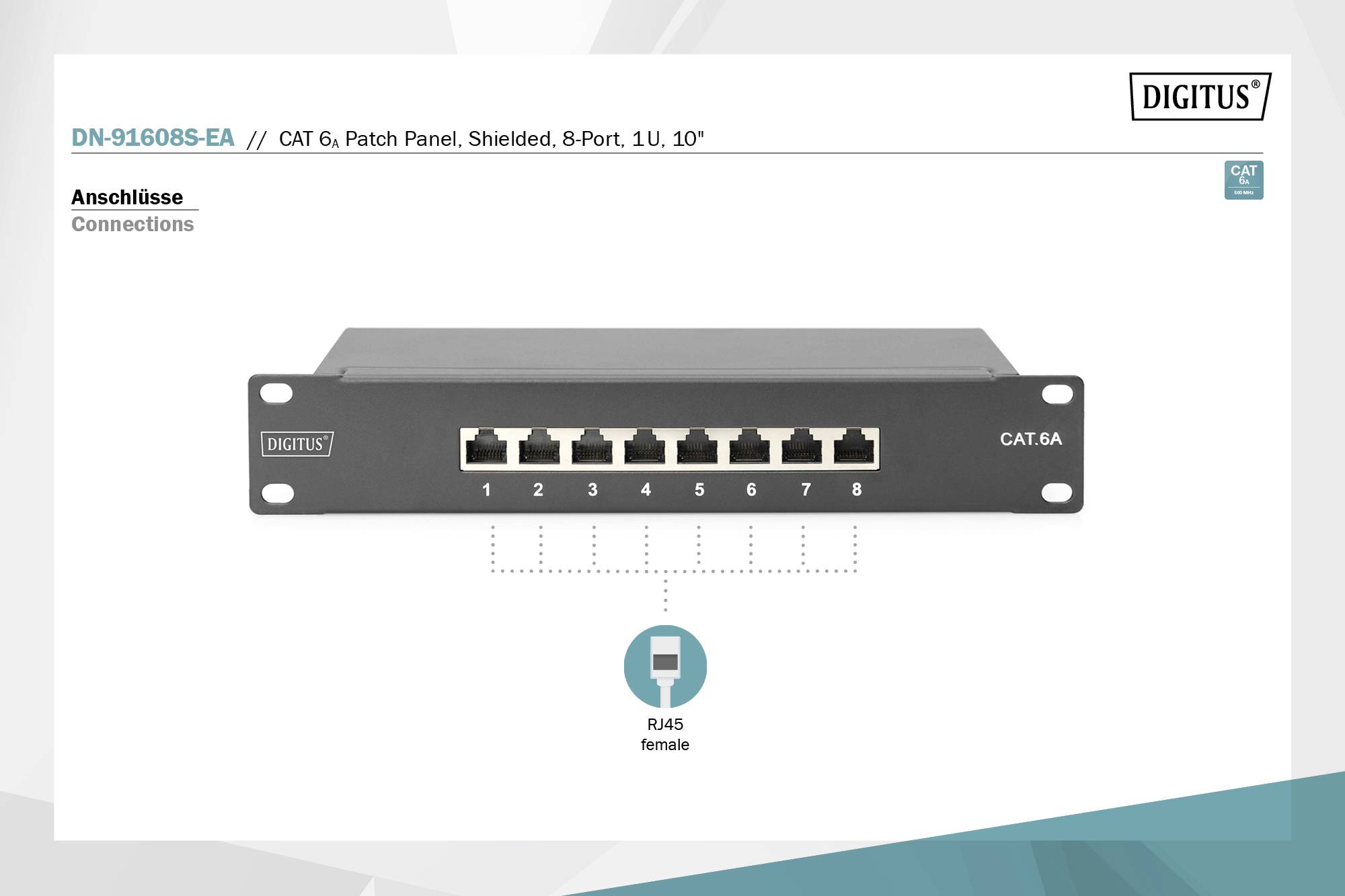

- Connections
RJ45 sockets
8P8C

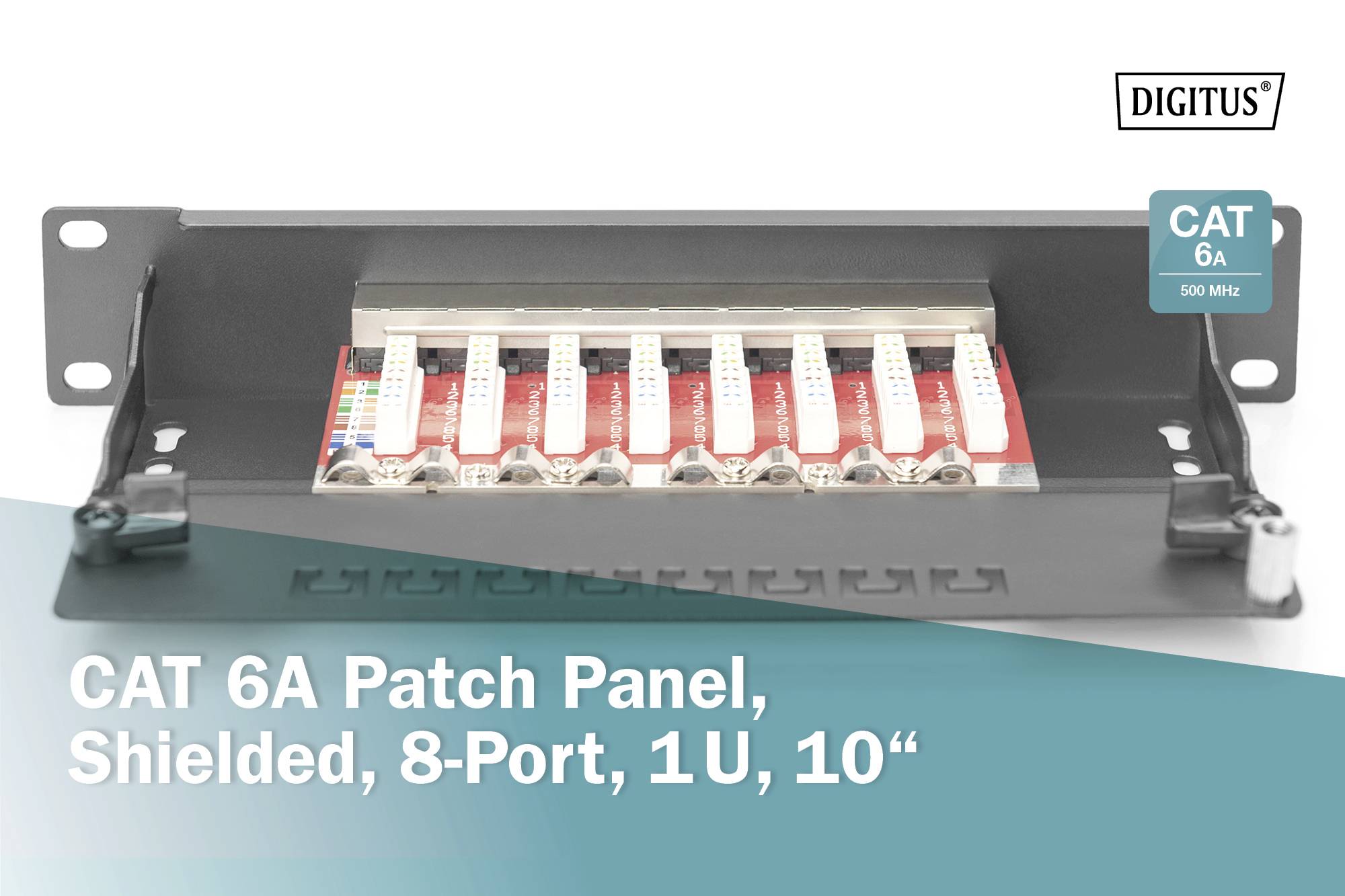

LSA-strips
- Width
44 mm
- Height
110 mm
- Factory colour
Multicolour
- Version
Cable
- Length
255 mm
- Cable use
RJ45
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2595259 Digitus DN-91608S-EA 8 ports Patch panel 254 mm (10") CAT 6A 1 U Multicolour Equipped
Description
cat 6A Digitus Patch Panel for 254 mm (10") rack mounting from DIGITUS® is manufactured according to Link Performance Class E, for up to 500 MHz, ISO/IEC 11801 and EN 50173. Cable installation is done via the LSA-strips, which are color-coded according to EIA/TIA 568B. The housing consists of galvanized cold-rolled steel in accordance with EN1.4301, S30400, AISI 304 and LMSAD110. It corresponds to the 802.3at PoE+ and the 802.3af PoE standard.
This text is machine translated.
This text is machine translated.
Features
- Transfer property: Category 6AApplication areas: Up to 500 MHz, 10GBase-T.Suitable for 10" (254 mm) cabinet mountingRJ45 sockets, 8P8CCable fixing by means of screw fixingCentral grounding connection360° shield contact
